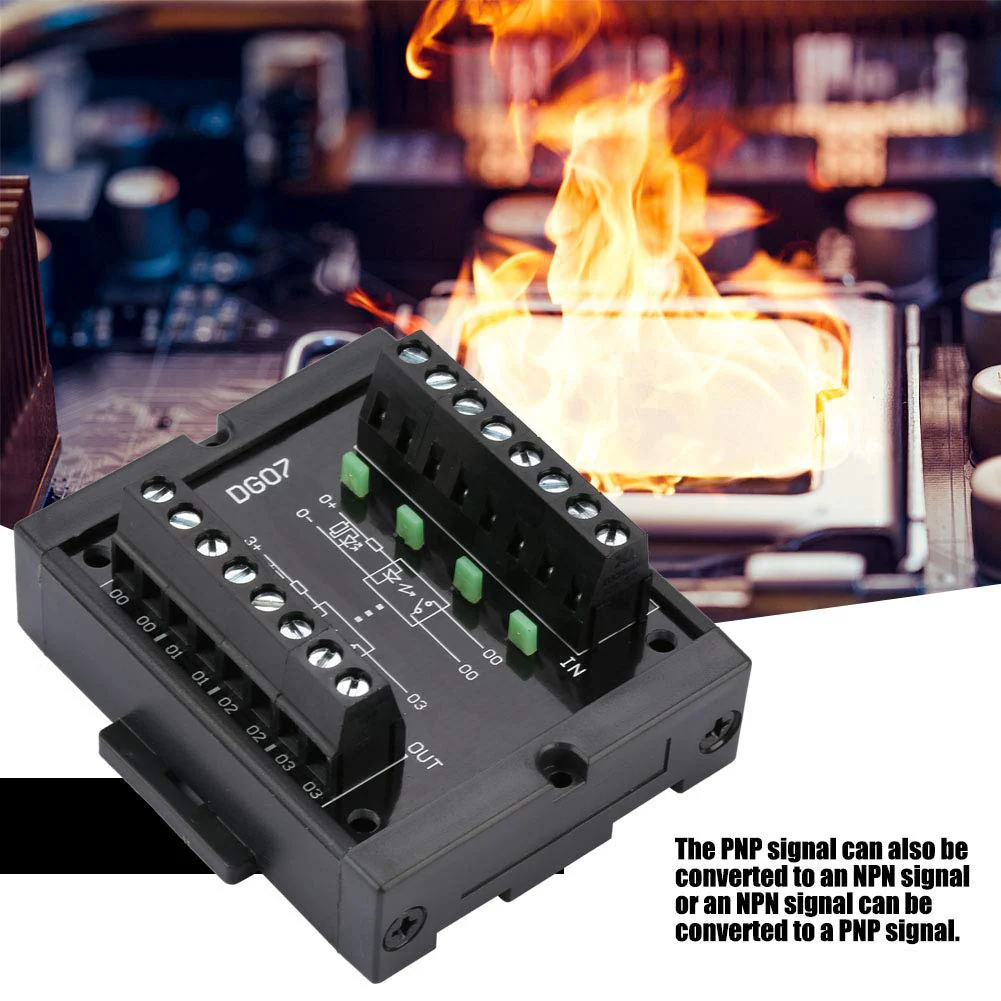

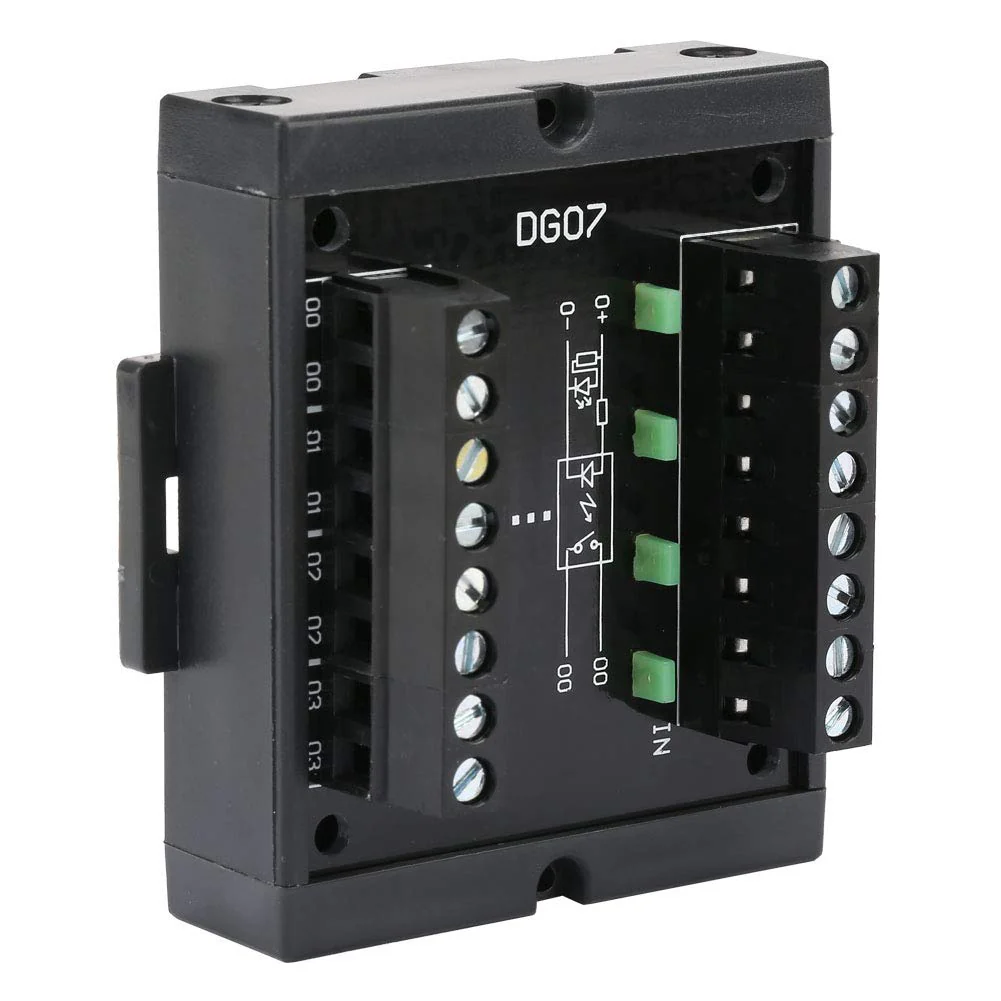

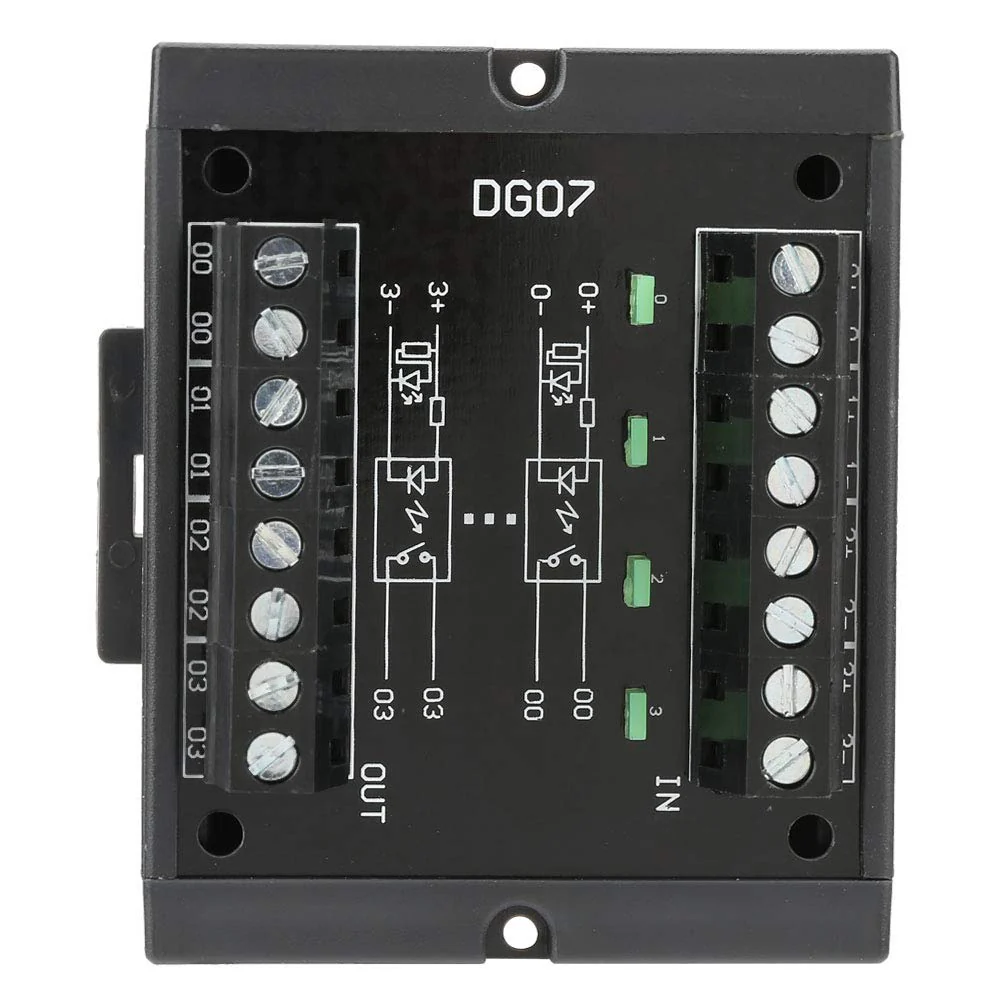

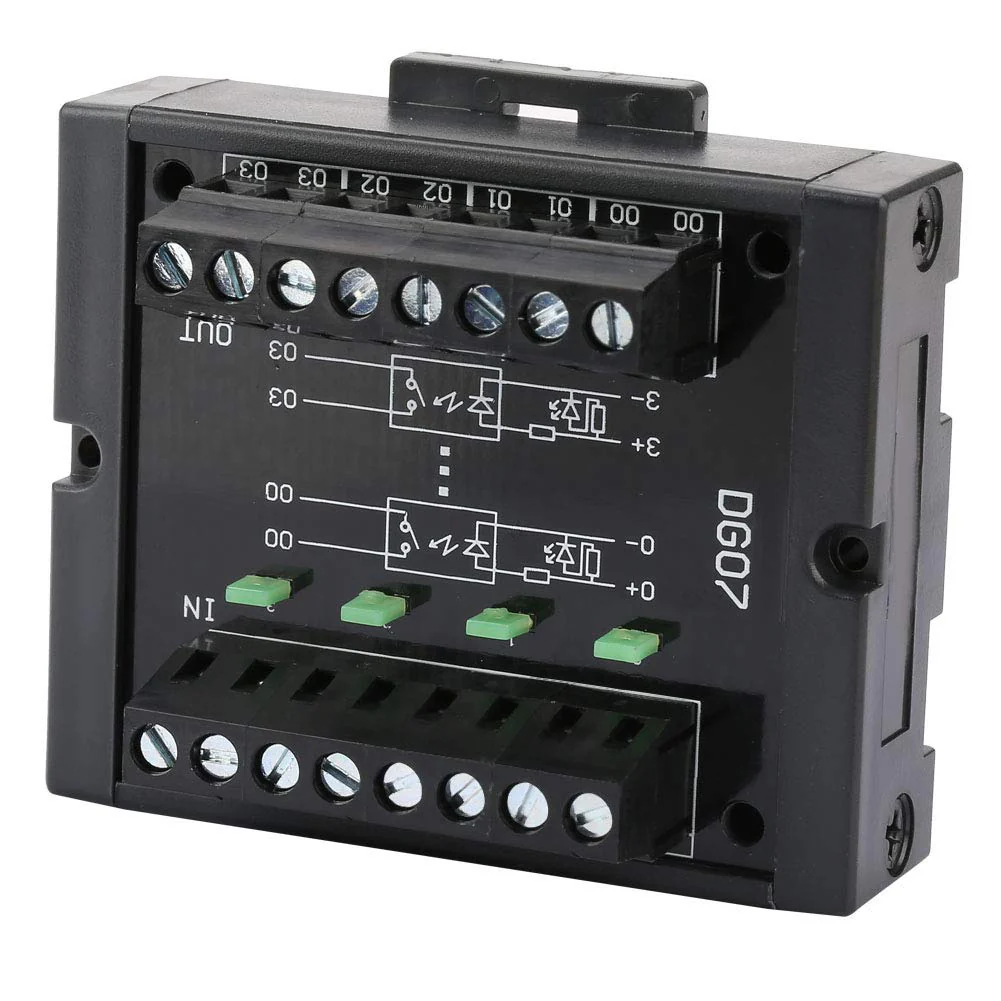

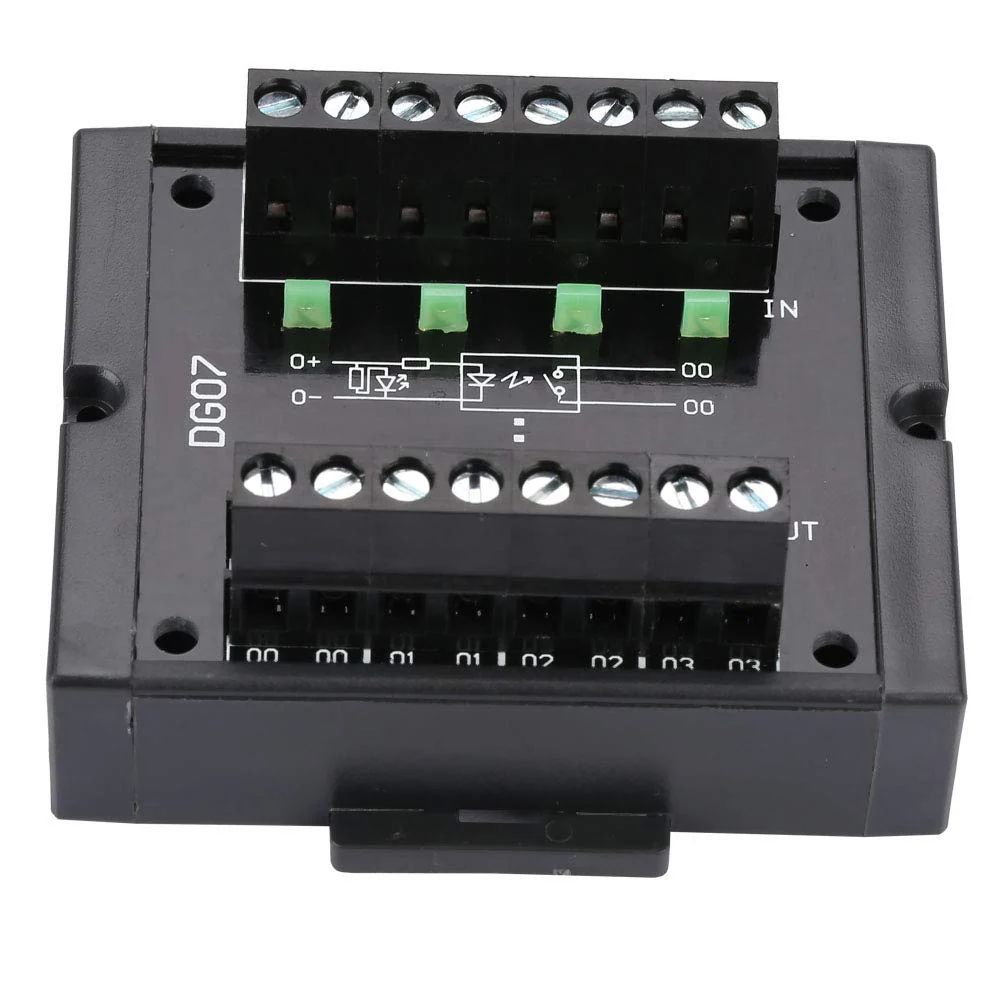

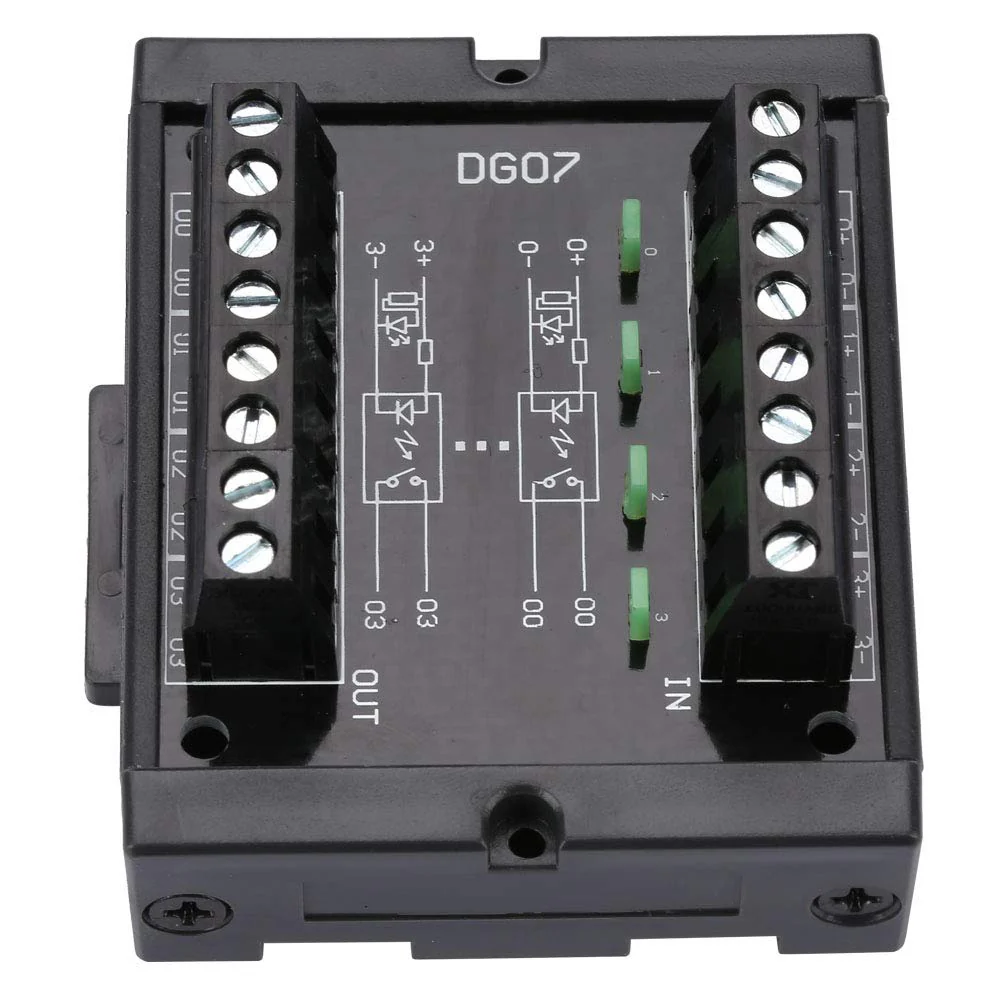

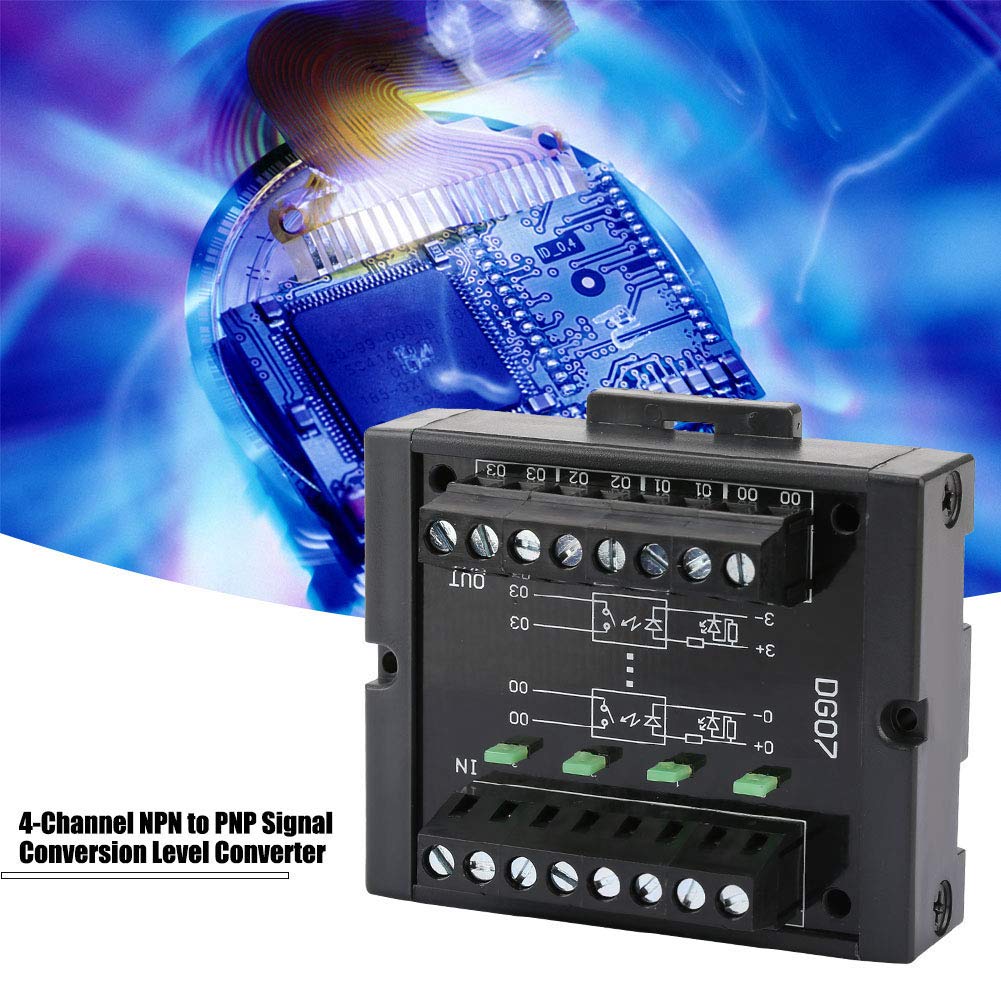

Nikou Level Converter, High Stability 10-28V Logic Level Converter, 4-Channel NPN to PNP Level Conversion with Two Lines DG07
Nikou Level Converter, High Stability 10-28V Logic Level Converter, 4-Channel NPN to PNP Level Conversion with Two Lines DG07
Nikou Level Converter, High Stability 10-28V Logic Level Converter, 4-Channel NPN to PNP Level Conversion with Two Lines DG07
Product Features
- Dual Line Design The output of the junction box is actually an electronic switch, which is double conductive. Therefore, the junction box can also be used in detection devices to control the on/off of the signal or small loads
- High Stability This terminal block is a signal conversion insulation terminal block that can be used to isolate highly stable input points. Digital size is optically insulated
- Function:4 channel level converter can also convert a PNP signal to NPN signal or NPN signal into a PNP signal
- Input voltage: the standard input voltage of this terminal block is 10-28V. Output inrush voltage: 1 V. Isolation voltage at output 3750Vrms (min)
- Level conversion information: level shifter. The operating temperature is -40 ~ 85 C and the maximum output frequency is 10 kHz. Output rated load current 50 mA (AC/DC)
$97.79
Nikou Level Converter, High Stability 10-28V Logic Level Converter, 4-Channel NPN to PNP Level Conversion with Two Lines DG07—
$97.79
More Images
Nikou Level Converter, High Stability 10-28V Logic Level Converter, 4-Channel NPN to PNP Level Conversion with Two Lines DG07
Nikou Level Converter, High Stability 10-28V Logic Level Converter, 4-Channel NPN to PNP Level Conversion with Two Lines DG07
Product Features
- Dual Line Design The output of the junction box is actually an electronic switch, which is double conductive. Therefore, the junction box can also be used in detection devices to control the on/off of the signal or small loads
- High Stability This terminal block is a signal conversion insulation terminal block that can be used to isolate highly stable input points. Digital size is optically insulated
- Function:4 channel level converter can also convert a PNP signal to NPN signal or NPN signal into a PNP signal
- Input voltage: the standard input voltage of this terminal block is 10-28V. Output inrush voltage: 1 V. Isolation voltage at output 3750Vrms (min)
- Level conversion information: level shifter. The operating temperature is -40 ~ 85 C and the maximum output frequency is 10 kHz. Output rated load current 50 mA (AC/DC)
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Nikou Level Converter, High Stability 10-28V Logic Level Converter, 4-Channel NPN to PNP Level Conversion with Two Lines DG07
Product Features
- Dual Line Design The output of the junction box is actually an electronic switch, which is double conductive. Therefore, the junction box can also be used in detection devices to control the on/off of the signal or small loads
- High Stability This terminal block is a signal conversion insulation terminal block that can be used to isolate highly stable input points. Digital size is optically insulated
- Function:4 channel level converter can also convert a PNP signal to NPN signal or NPN signal into a PNP signal
- Input voltage: the standard input voltage of this terminal block is 10-28V. Output inrush voltage: 1 V. Isolation voltage at output 3750Vrms (min)
- Level conversion information: level shifter. The operating temperature is -40 ~ 85 C and the maximum output frequency is 10 kHz. Output rated load current 50 mA (AC/DC)
