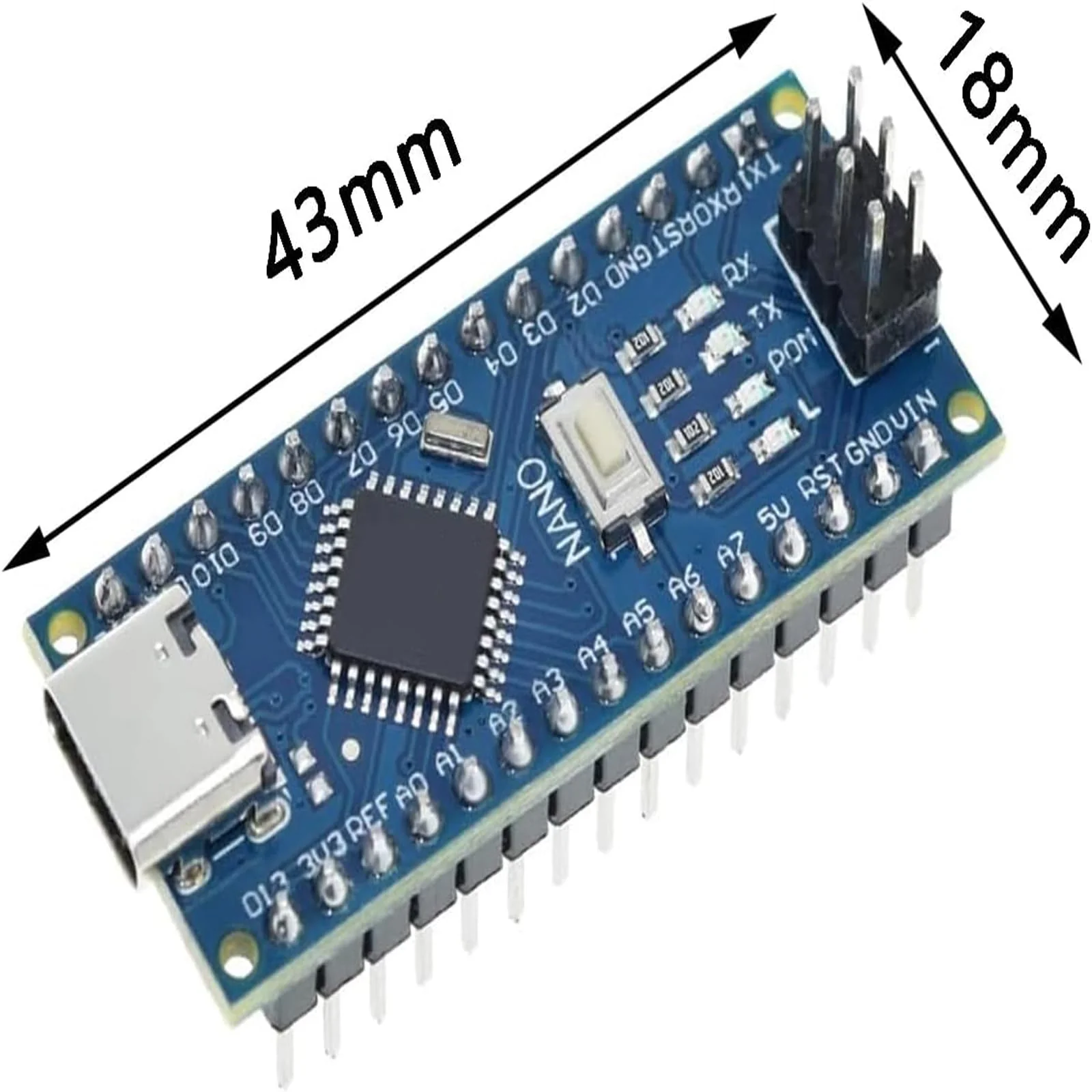

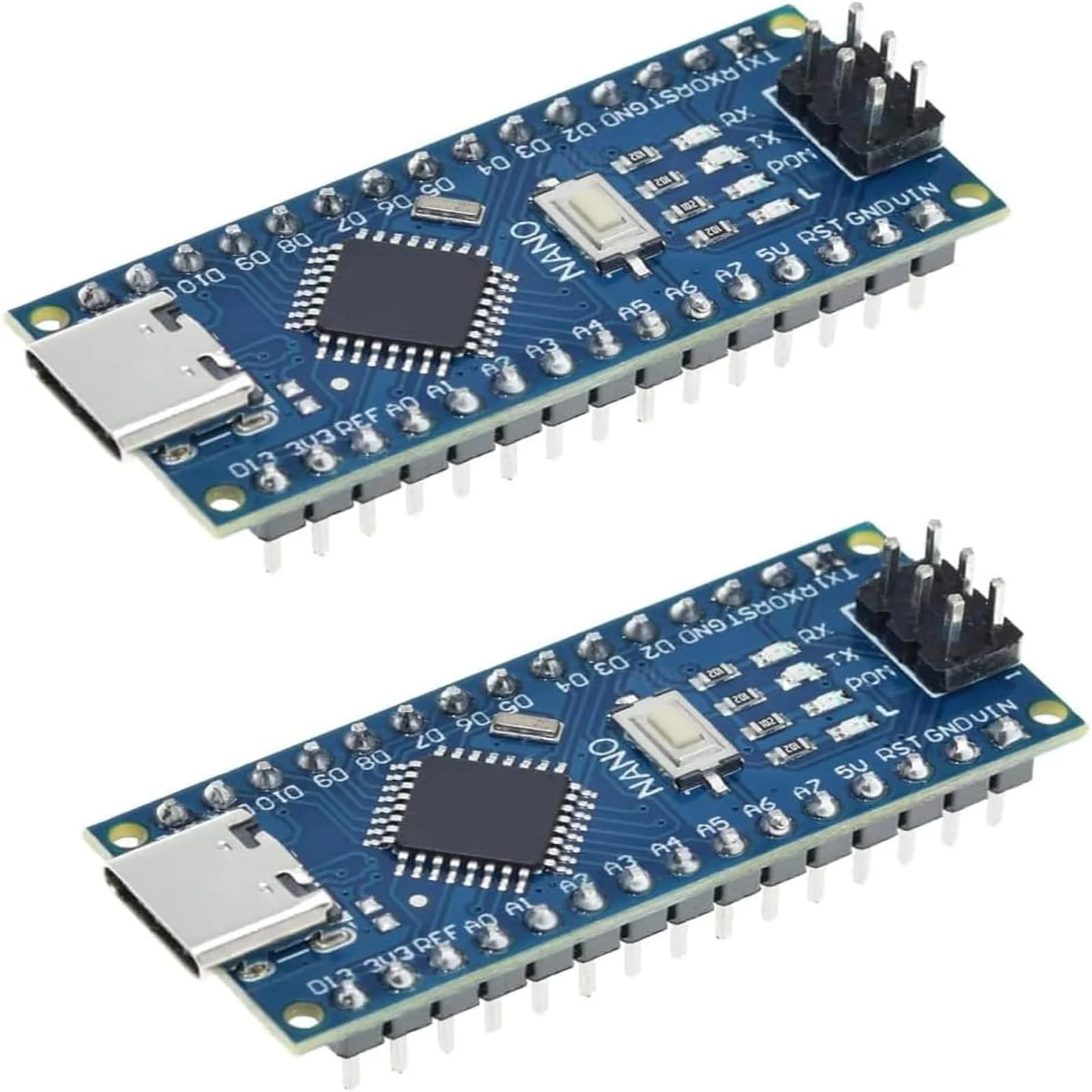

Nano Module with CH340 Microchip, 5 V/16 MHz Nano Board Compatible with Arduino IDE (Type C Port) Pack of 2
Nano Module with CH340 Microchip, 5 V/16 MHz Nano Board Compatible with Arduino IDE (Type C Port) Pack of 2
Nano Module with CH340 Microchip, 5 V/16 MHz Nano Board Compatible with Arduino IDE (Type C Port) Pack of 2
Nano Module USB C Port - Development Board Compatible with Arduino, 5V/16MHz, USB Type-C Port Technical data: Supply voltage: 5V (USB) / 7-12V (Vin). I/O Voltage: 5V Clock speed: 16 MHz. Flash memory: 32 KB (of which 2 KB is used by the bootloader) SRAM 2KB EEPROM: 1 KB. 14 digital input/output ports: TX, RX, D2 ~ D13 6 PWM ports: D3, D5, D6, D9, D10, D11. Analogue inputs: 8 (A0 ~ A7). USB Port: Type C USB Microcontroller: Fully compatible with development board Input voltage (recommended) 7V-12V; input voltage (limits) 6V-20V. Bootloader installed, ready to load sketches from IDE software DC current per I/O pin: 40mA DC per pin: 3.3V 50mA Digital I/O pins: 14 (6 of which have PWM output) Package: 2 pieces development board with CH340 compatible with Arduino
Product Features
- PERFORMANCE The Nano module is compatible with Arduino and offers high performance with a clock frequency of 16MHz and 32KB flash memory (includes 2KB for the bootloader).
- Wide Compatibility The module CH340G 5V 16M USB-C microcontroller board development board with PIN headers. The unsoldered module is 100% compatible with Arduino and uses CH340 chips.

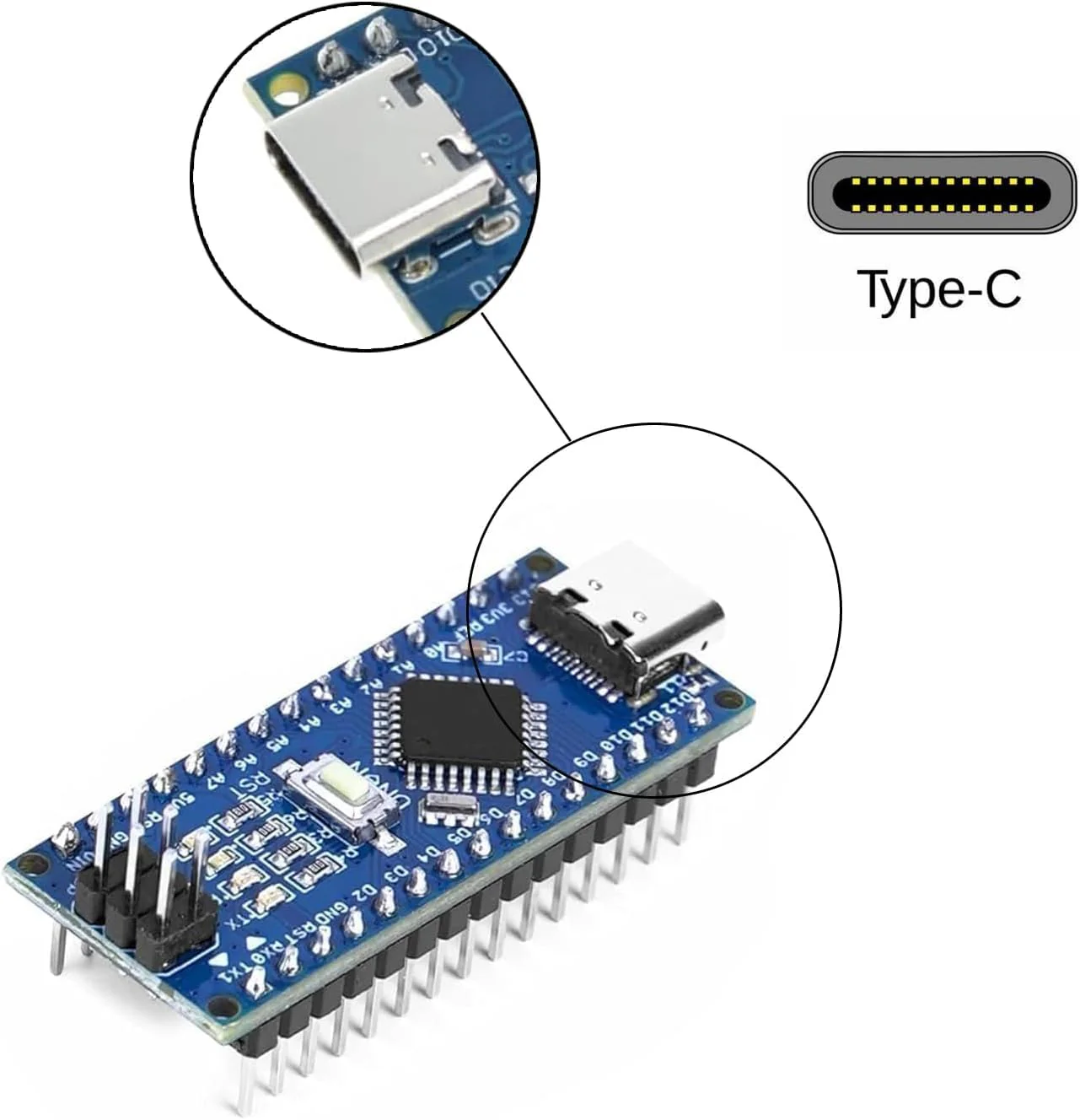

- USB Type C Port The development board is equipped with a modern USB Type-C port, which makes it easier to connect and program the device, providing a more robust and reversible connection compared to traditional micro USB ports.
- Pin Layout It features a pin layout that works well with the Mini (TX, RX, ATN, GND) on one side and the power supply and ground on the other.
- Flexible Power Supply: The nano development board supports USB (5V) and VIN pin (7-12V), which allows versatile use in various applications.
More Images
