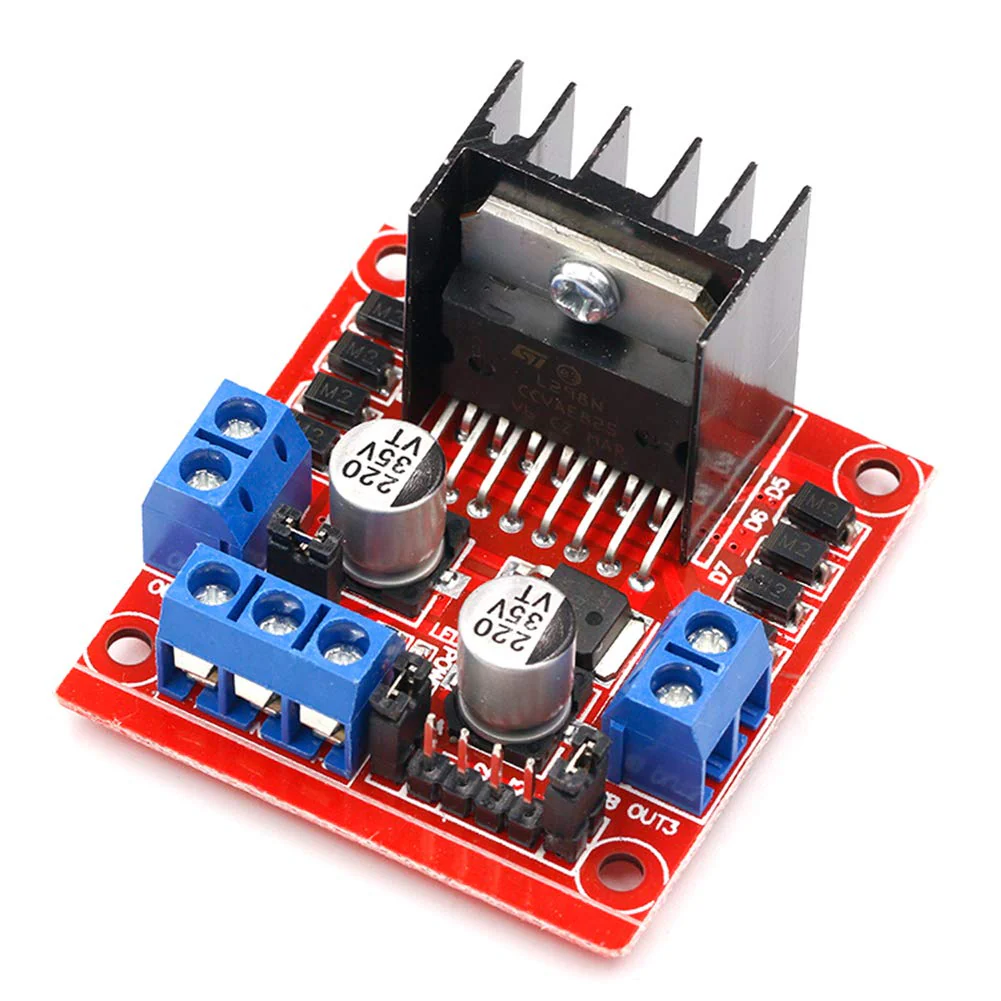

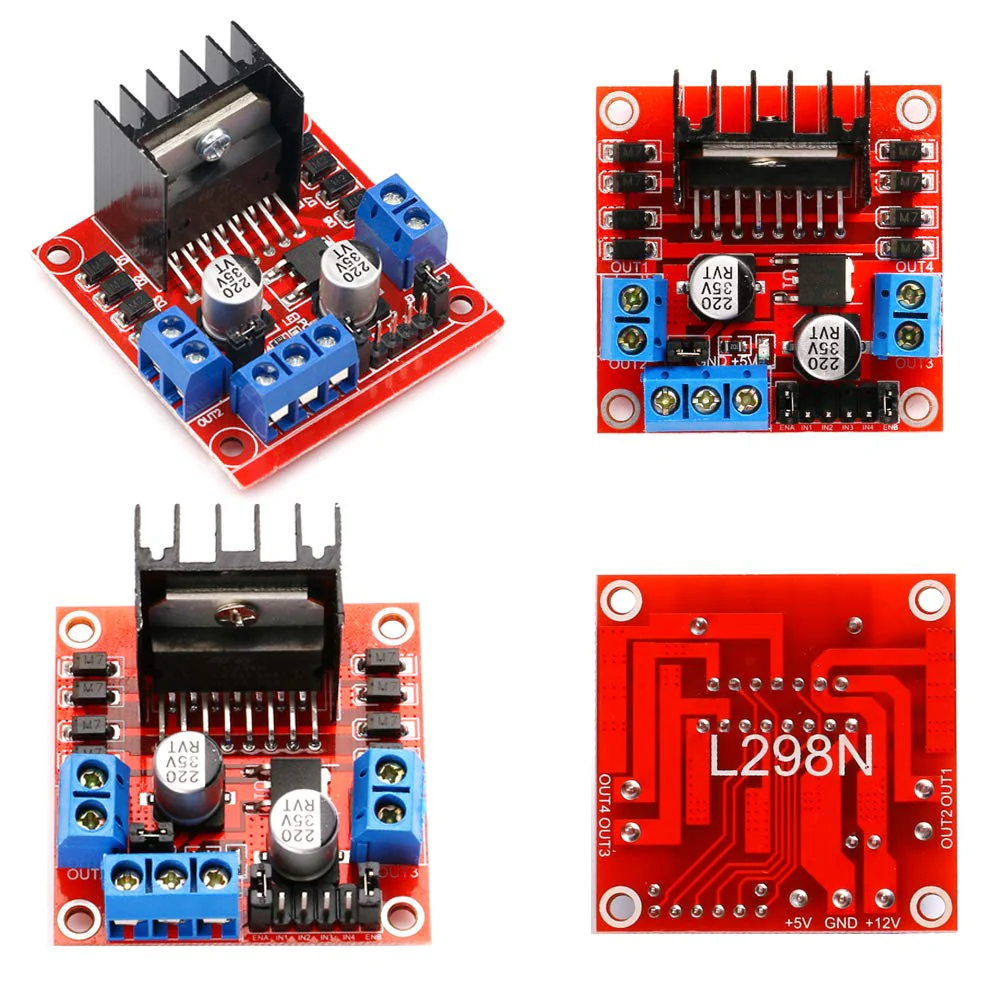

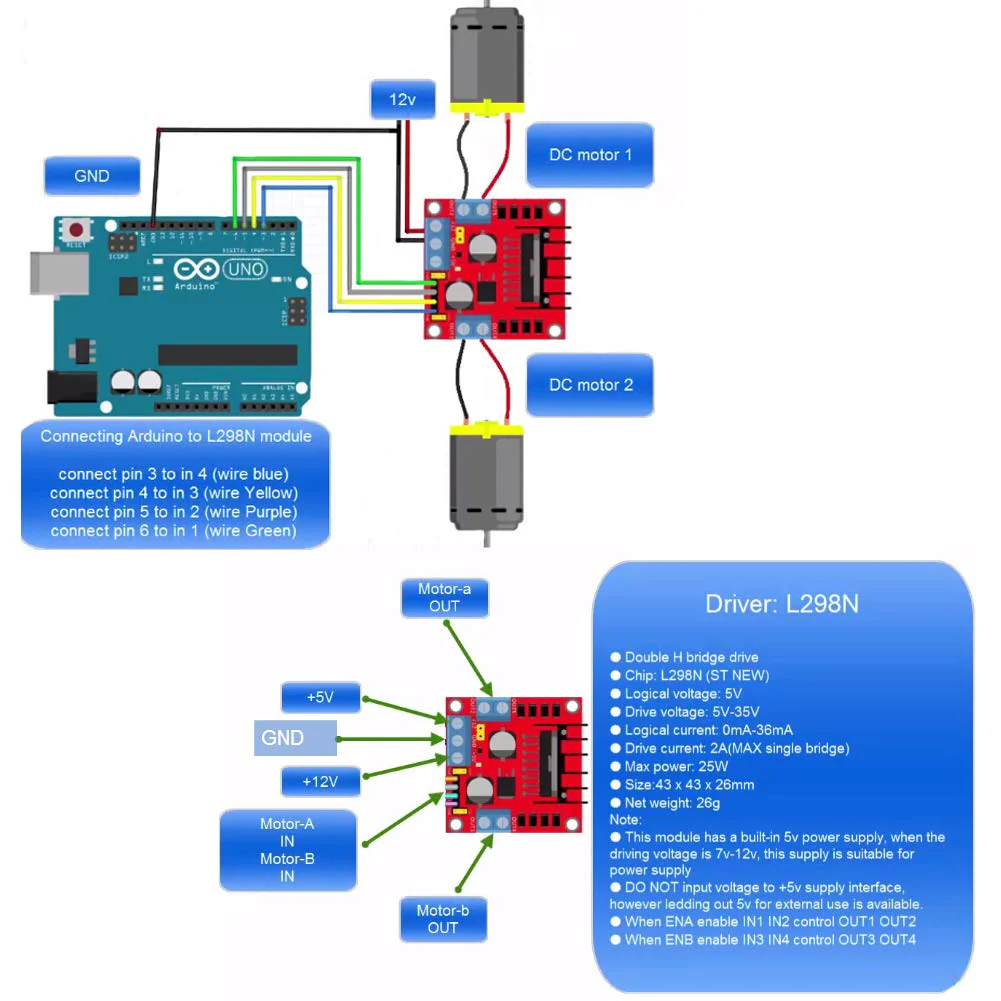

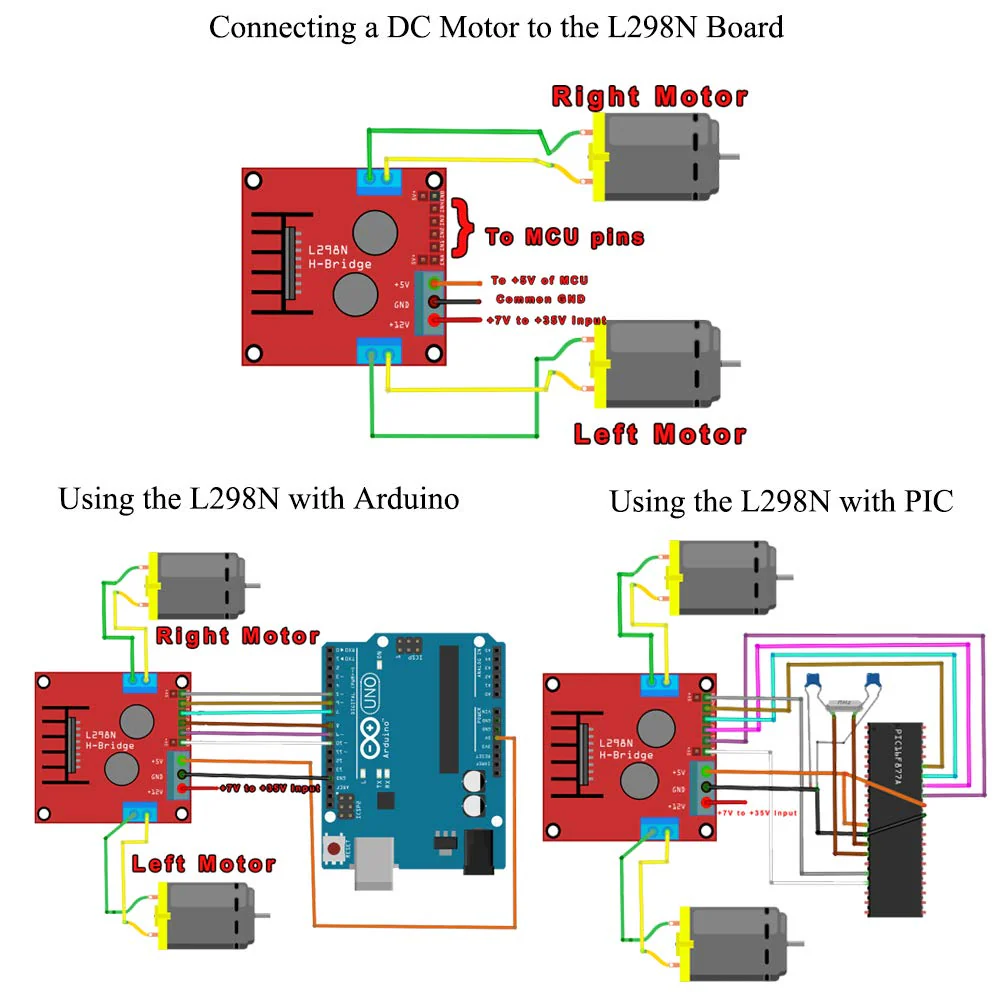

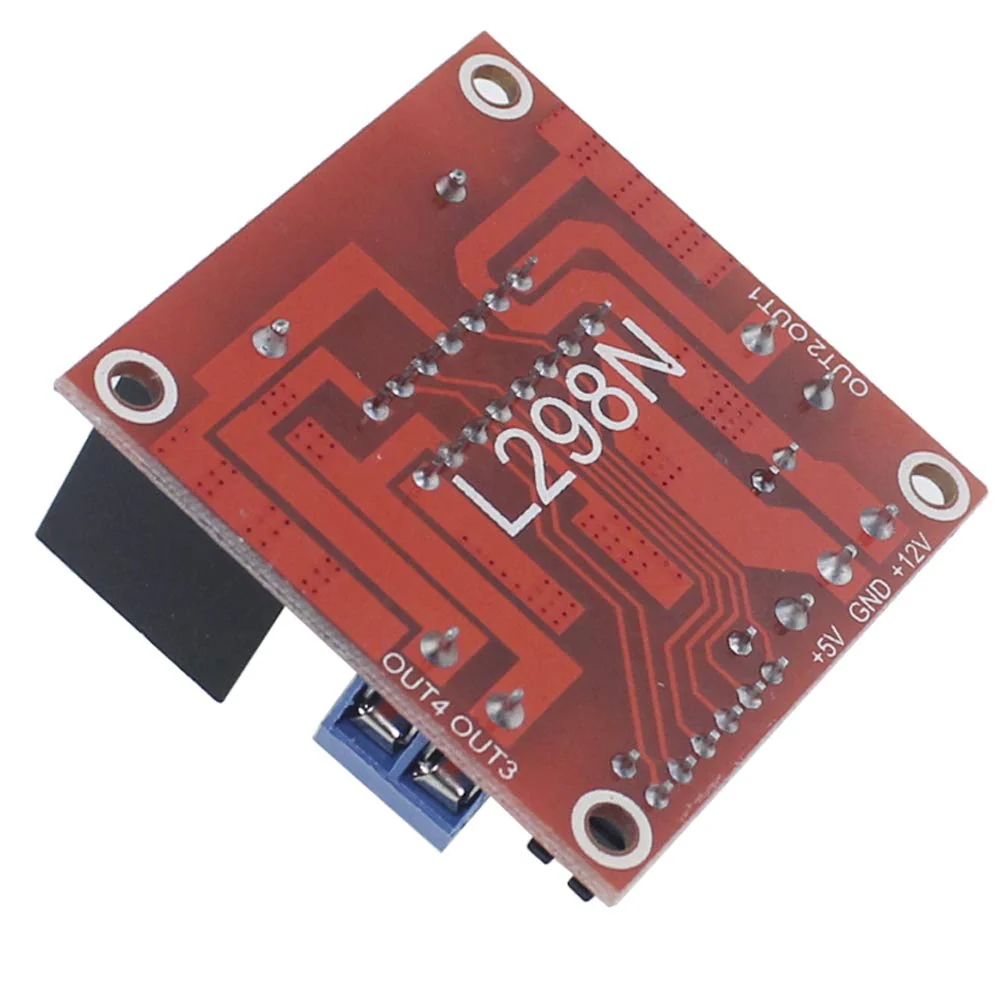

Specification: Module Name: Dual H Bridge Motor Drive Module Working mode: H-bridge drive (double road). Main control chip: ST L298N dual H-Bridge driver chip Logical Voltage: 5V Input voltage: 5-35V Logical current: 0mA - 36mA Drive current: 2A (max. single bridge). Storage Temperature: -20°C to +135°C Maximum power: 25 W. Product features: This module uses L298N as the main drive chip, with strong driving ability, low heat and strong anti-interference ability. Through this module, the built-in 78m05 drive power supply can use parts of its work, but to avoid damage to the voltage regulator chip, if the driving voltage is greater than 12V, please use the external power supply 5V logic. This module uses a large filter capacity, a continuation protection diode, can improve reliability. Notes: - General application: if your driver is 7V-12V, you can activate the built-in 5V logic supply. When using the built-in 5V power supply, the + 5V power supply in the interface is not used input voltage, but it can draw 5V voltage for external use. - Unconventional application of high voltage drive: If the driving voltage is higher than 12V, less than or equal to 24V, for example, to drive a motor with a rated voltage of 18V, the jumper cap must be connected with 5V output, and then connect outside the 5V voltage to the internal logic voltage supply of L298N. Package includes: 4 x L298N Motor Driver Control Board Module

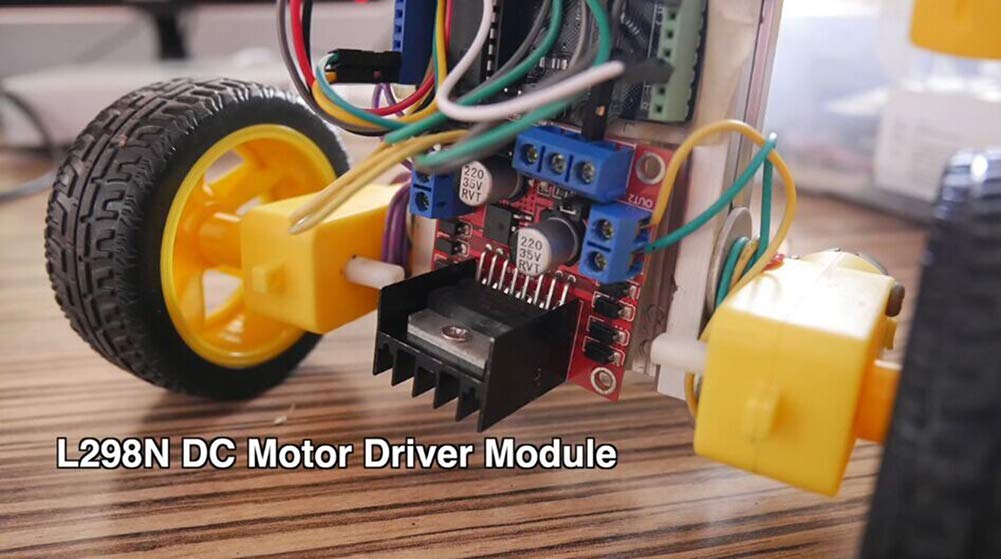

Product Features
- Using L298N manufactured by ST company as control chip, the module has such characteristics as strong driving ability, low calorific value and strong anti-interference ability.
- This module can use built-in 78M05 for electrical work via a drive power supply. To avoid damage to the voltage stabilization chip, please use external 5V logic supply when using more than 12V driving voltage.
- With large filter capacitor, this module can follow current to protect diodes and improve reliability.
- Two-channel H bridge driver mode creates higher work efficiency.
- To avoid damage to the voltage stabilization chip, please use external 5V logic supply when using more than 12V driving voltage.
