Mini Optical Power Meter,4-in-1 Portable Fiber Optical Power Meter with Universal FC/SC/ST Interface and Built-in 2Mw Visual Fault Locator,10 Wavelengths OPM530-07
Mini Optical Power Meter,4-in-1 Portable Fiber Optical Power Meter with Universal FC/SC/ST Interface and Built-in 2Mw Visual Fault Locator,10 Wavelengths OPM530-07
Mini Optical Power Meter,4-in-1 Portable Fiber Optical Power Meter with Universal FC/SC/ST Interface and Built-in 2Mw Visual Fault Locator,10 Wavelengths

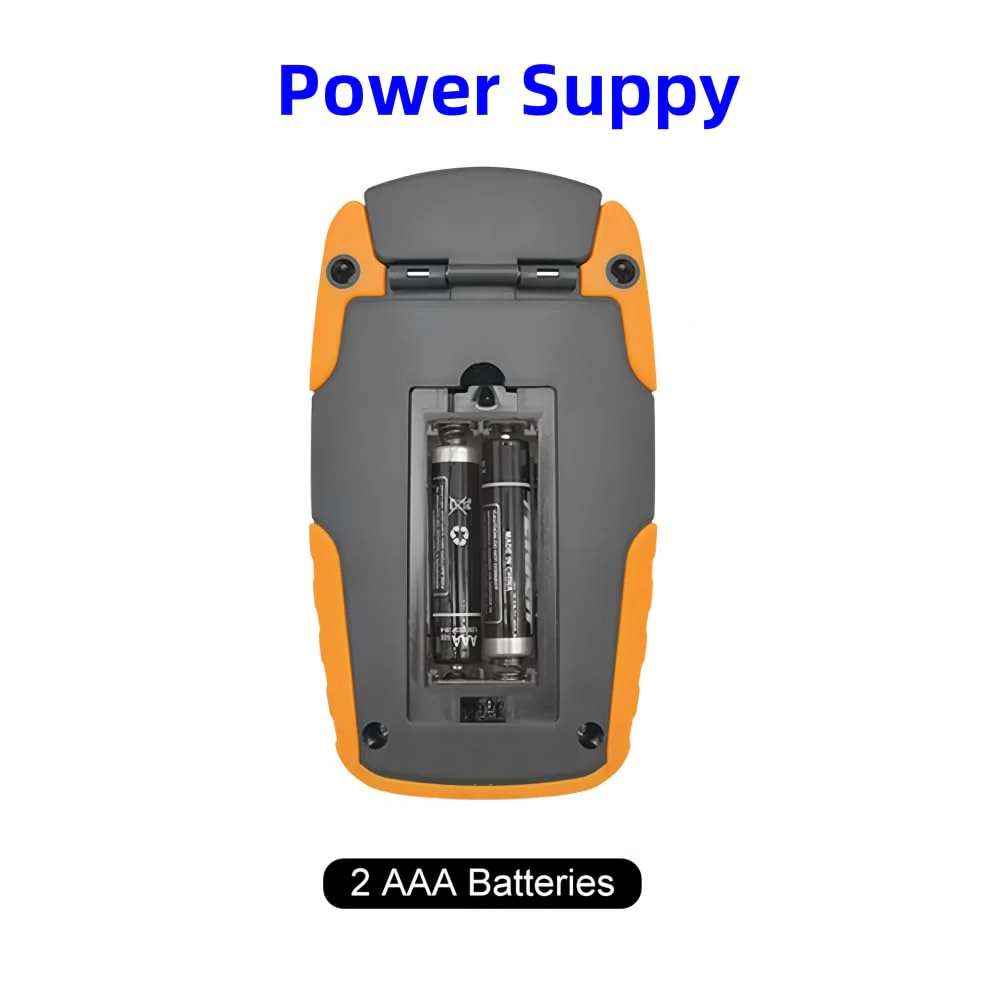

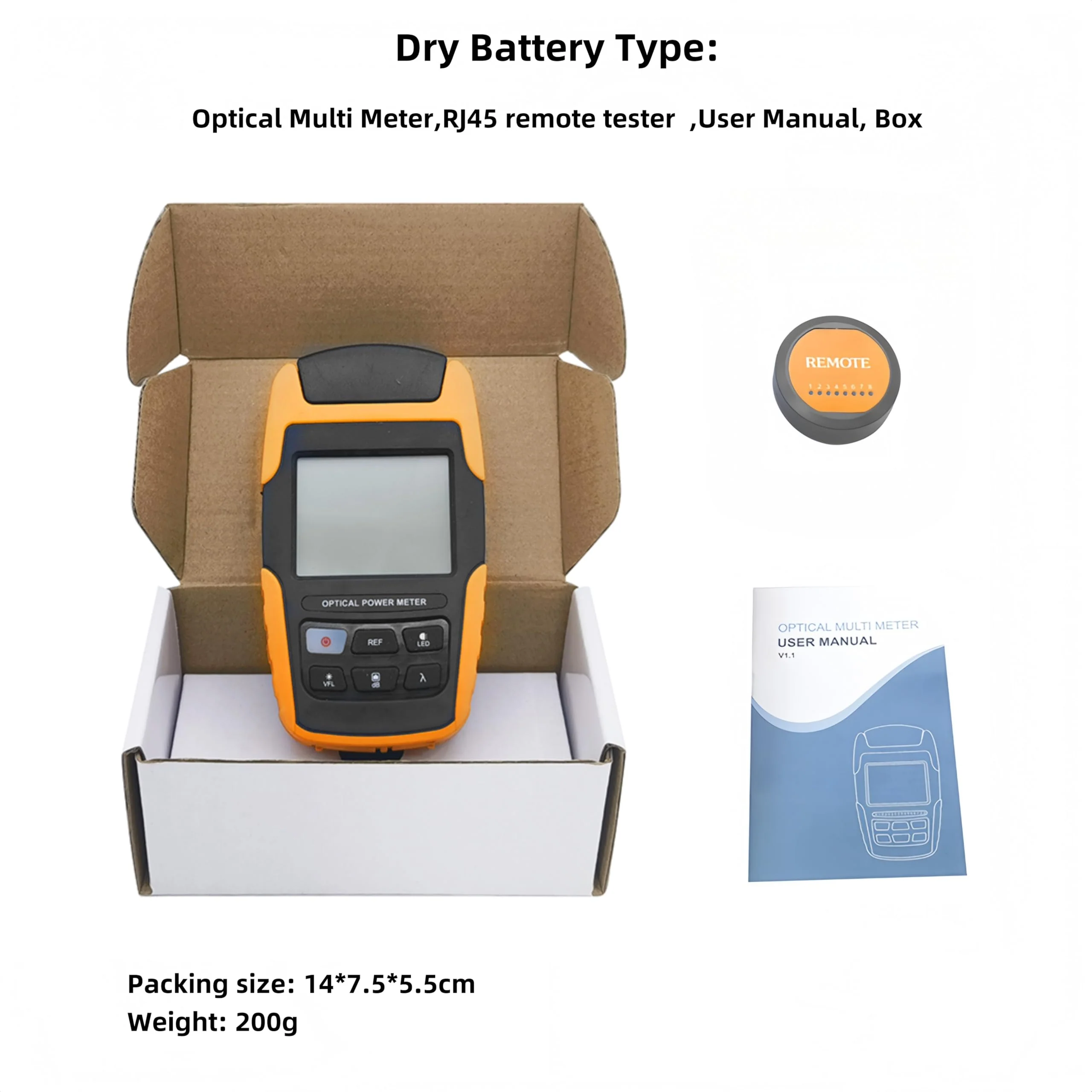

Product Features - Support ten types of testing wavelengths. - VFL function. - RJ45 sequence function. - LED lighting function. - User self-calibration function (no computer connection necessary). - Automatic shutdown function can be configured. - Wavelength off memory function. - Accurate optical power measurement with high sensitivity and high linearity. - Real-time display of battery level. - Low power design for long standby time. Specifications Optical Power Meter Wavelength Range： 800~1700nm Connector： Universal joint Detector Type： InGaAs Power Test Range ：-70~+10dBm Uncertainty：±5％ Standard Wavelength： /1300/1310/1490/1550/1577/1625/1650nm Display Resolution： Linear display: 0.1%, Logarithmic display: 0.01dBm VFL Wavelength： 650nm±30nm Output Power：2mw Mode ：CW/1Hz/2Hz Connector ：Universal joint RJ45 Cable Sequence Test Distance： 300m Power Supply： 2 AAA Batteries Battery Duration： ≥120h (OPM) Automatic Shutdown Time： 10min Working Temperature ：-10℃~+50℃ Storage Temperature： -40℃~+70℃ Relative Humidity： 0~95％ No condensation Dimension： 1216931mm Weight： 140g PACKAGE INCLUDING: 1 x Optical Multi Meter 1 x RJ45 remote tester 1 x User Manual 1 x Box Not including the battery
Product Features

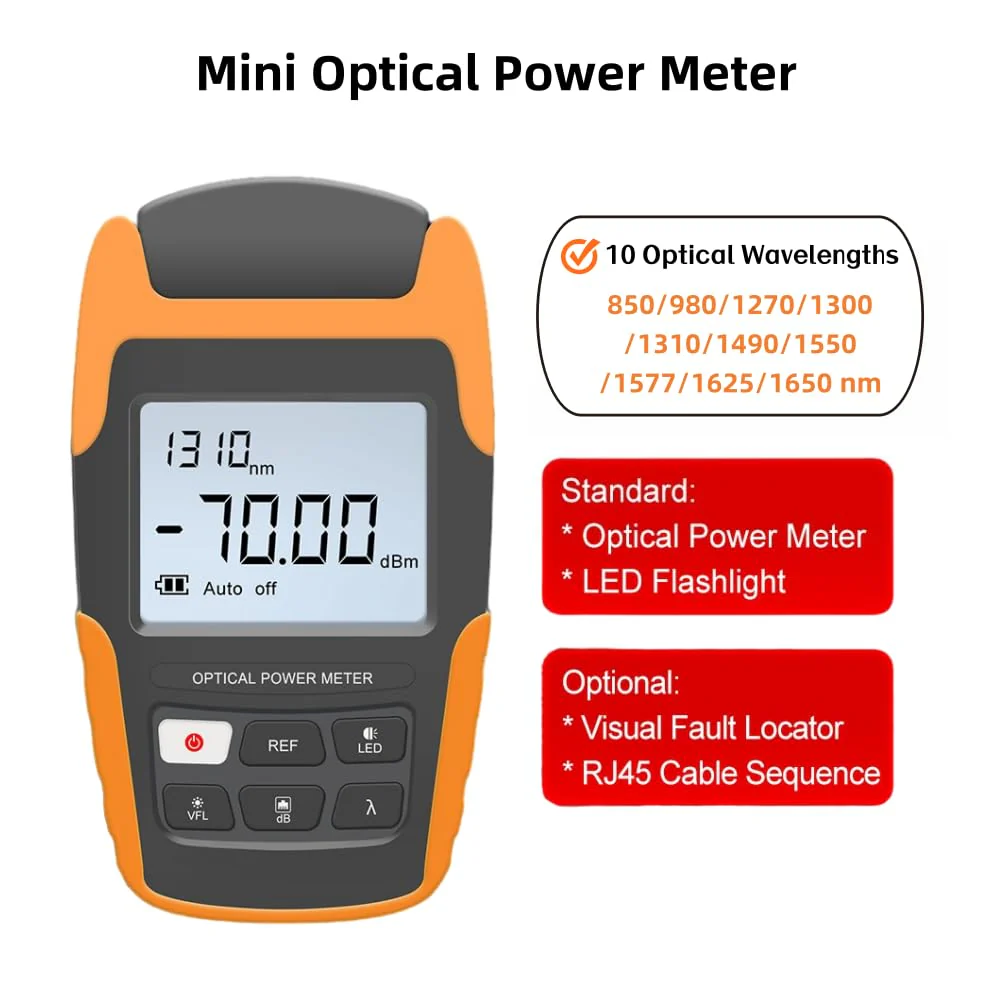

- Function: can measure 10 standdard wavelengths 8/1300/1310/1490/1550/1577/1625/1650nm , test range: -70dBm~+10dBm.

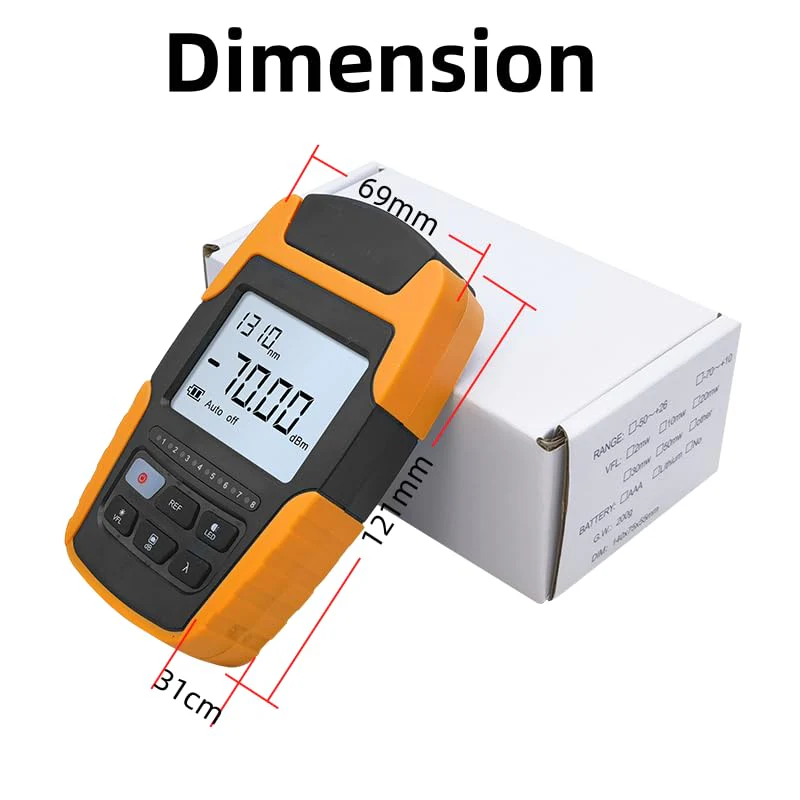

- The light power meter ,Accurate optical power measurement with high sensitivity and high linearity, fine workmanship, easy to carry, Product size: 121 * 69 * 31CM.

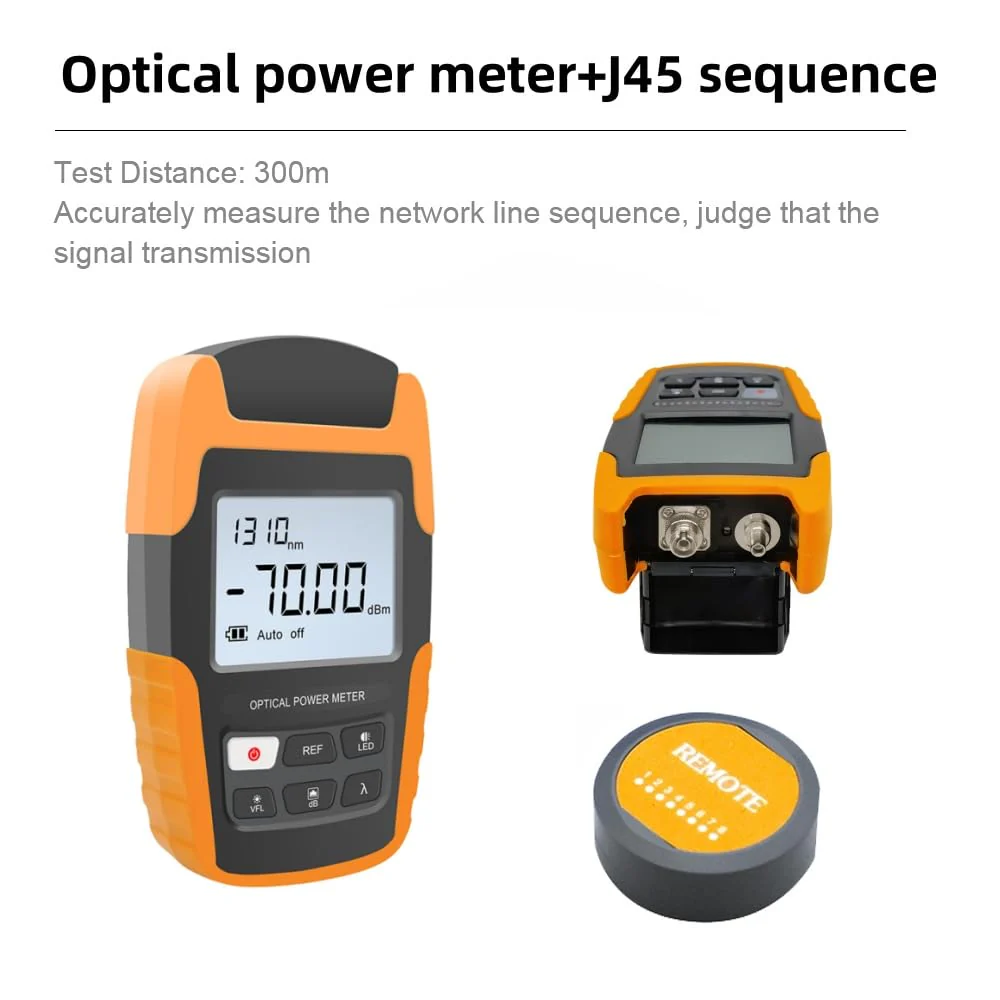

- Support FC/SC/ST universal interface,Support RJ45 testing,Support simultaneous disply of linear mW and non-linear index dBm.

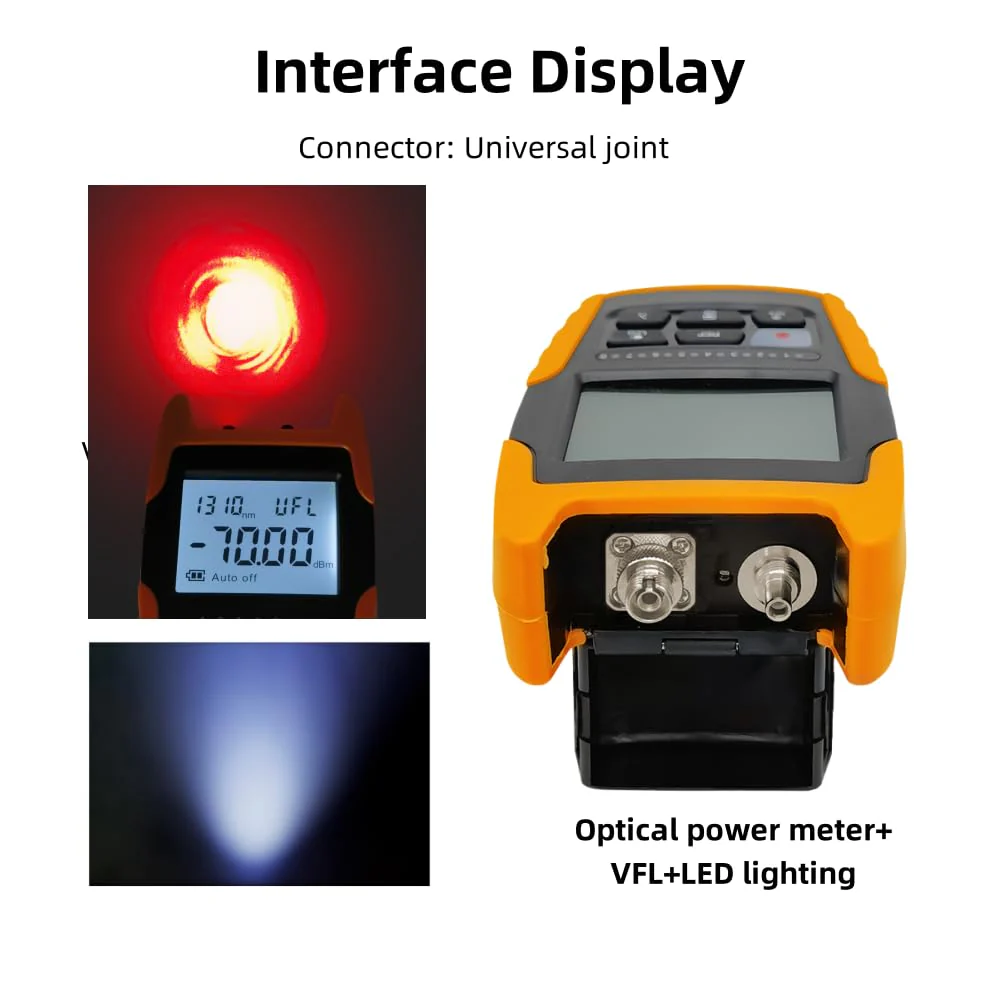

- Comes with built-in LED flashlight for work in dark environments and optional Visual Fault Locator for cable testing,2mw VFL.

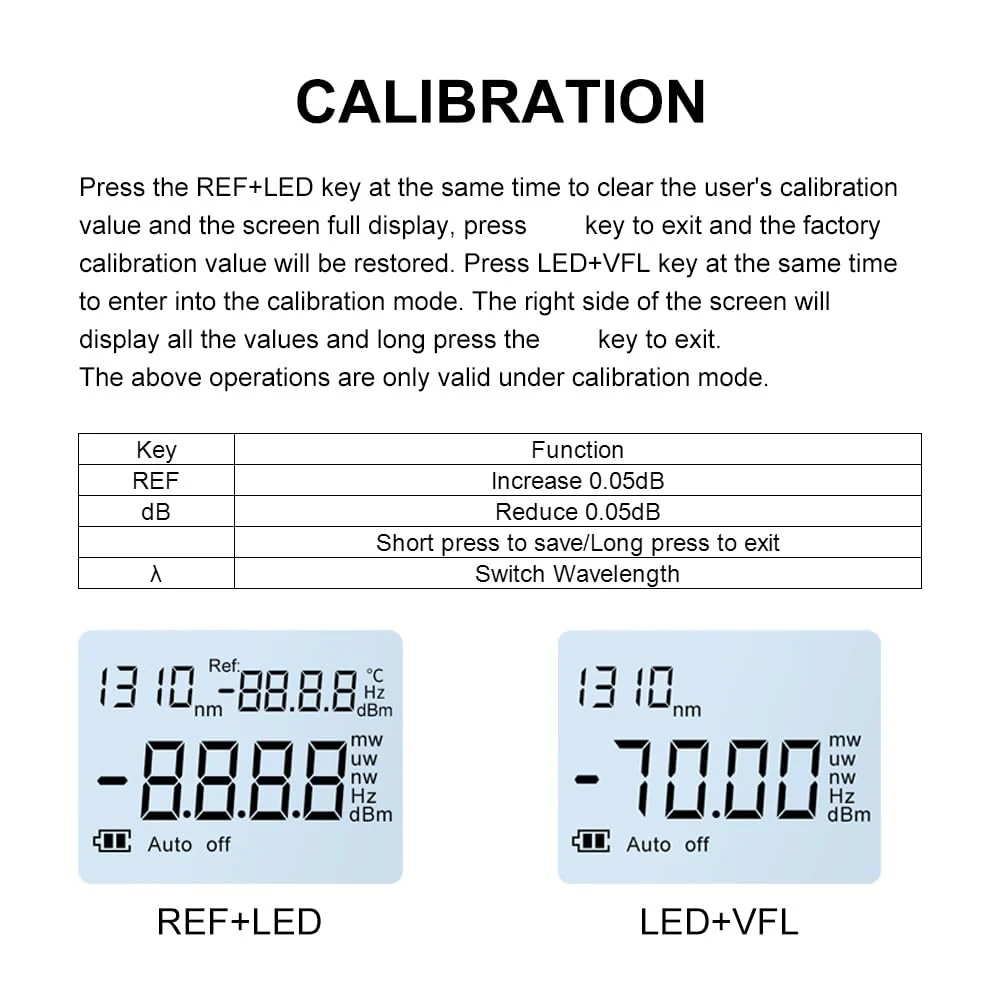

- User self-calibration function (no computer connection necessary)/Automatic shutdown function / Wavelength off memory function/Real-time display of battery level. Low power design for long standby time
Original: $131.11
-65%$131.11
$45.89More Images
Mini Optical Power Meter,4-in-1 Portable Fiber Optical Power Meter with Universal FC/SC/ST Interface and Built-in 2Mw Visual Fault Locator,10 Wavelengths OPM530-07
Mini Optical Power Meter,4-in-1 Portable Fiber Optical Power Meter with Universal FC/SC/ST Interface and Built-in 2Mw Visual Fault Locator,10 Wavelengths
Product Features - Support ten types of testing wavelengths. - VFL function. - RJ45 sequence function. - LED lighting function. - User self-calibration function (no computer connection necessary). - Automatic shutdown function can be configured. - Wavelength off memory function. - Accurate optical power measurement with high sensitivity and high linearity. - Real-time display of battery level. - Low power design for long standby time. Specifications Optical Power Meter Wavelength Range： 800~1700nm Connector： Universal joint Detector Type： InGaAs Power Test Range ：-70~+10dBm Uncertainty：±5％ Standard Wavelength： /1300/1310/1490/1550/1577/1625/1650nm Display Resolution： Linear display: 0.1%, Logarithmic display: 0.01dBm VFL Wavelength： 650nm±30nm Output Power：2mw Mode ：CW/1Hz/2Hz Connector ：Universal joint RJ45 Cable Sequence Test Distance： 300m Power Supply： 2 AAA Batteries Battery Duration： ≥120h (OPM) Automatic Shutdown Time： 10min Working Temperature ：-10℃~+50℃ Storage Temperature： -40℃~+70℃ Relative Humidity： 0~95％ No condensation Dimension： 1216931mm Weight： 140g PACKAGE INCLUDING: 1 x Optical Multi Meter 1 x RJ45 remote tester 1 x User Manual 1 x Box Not including the battery
Product Features
- Function: can measure 10 standdard wavelengths 8/1300/1310/1490/1550/1577/1625/1650nm , test range: -70dBm~+10dBm.
- The light power meter ,Accurate optical power measurement with high sensitivity and high linearity, fine workmanship, easy to carry, Product size: 121 * 69 * 31CM.
- Support FC/SC/ST universal interface,Support RJ45 testing,Support simultaneous disply of linear mW and non-linear index dBm.
- Comes with built-in LED flashlight for work in dark environments and optional Visual Fault Locator for cable testing,2mw VFL.
- User self-calibration function (no computer connection necessary)/Automatic shutdown function / Wavelength off memory function/Real-time display of battery level. Low power design for long standby time
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Mini Optical Power Meter,4-in-1 Portable Fiber Optical Power Meter with Universal FC/SC/ST Interface and Built-in 2Mw Visual Fault Locator,10 Wavelengths
Product Features - Support ten types of testing wavelengths. - VFL function. - RJ45 sequence function. - LED lighting function. - User self-calibration function (no computer connection necessary). - Automatic shutdown function can be configured. - Wavelength off memory function. - Accurate optical power measurement with high sensitivity and high linearity. - Real-time display of battery level. - Low power design for long standby time. Specifications Optical Power Meter Wavelength Range： 800~1700nm Connector： Universal joint Detector Type： InGaAs Power Test Range ：-70~+10dBm Uncertainty：±5％ Standard Wavelength： /1300/1310/1490/1550/1577/1625/1650nm Display Resolution： Linear display: 0.1%, Logarithmic display: 0.01dBm VFL Wavelength： 650nm±30nm Output Power：2mw Mode ：CW/1Hz/2Hz Connector ：Universal joint RJ45 Cable Sequence Test Distance： 300m Power Supply： 2 AAA Batteries Battery Duration： ≥120h (OPM) Automatic Shutdown Time： 10min Working Temperature ：-10℃~+50℃ Storage Temperature： -40℃~+70℃ Relative Humidity： 0~95％ No condensation Dimension： 1216931mm Weight： 140g PACKAGE INCLUDING: 1 x Optical Multi Meter 1 x RJ45 remote tester 1 x User Manual 1 x Box Not including the battery
Product Features
- Function: can measure 10 standdard wavelengths 8/1300/1310/1490/1550/1577/1625/1650nm , test range: -70dBm~+10dBm.
- The light power meter ,Accurate optical power measurement with high sensitivity and high linearity, fine workmanship, easy to carry, Product size: 121 * 69 * 31CM.
- Support FC/SC/ST universal interface,Support RJ45 testing,Support simultaneous disply of linear mW and non-linear index dBm.
- Comes with built-in LED flashlight for work in dark environments and optional Visual Fault Locator for cable testing,2mw VFL.
- User self-calibration function (no computer connection necessary)/Automatic shutdown function / Wavelength off memory function/Real-time display of battery level. Low power design for long standby time
