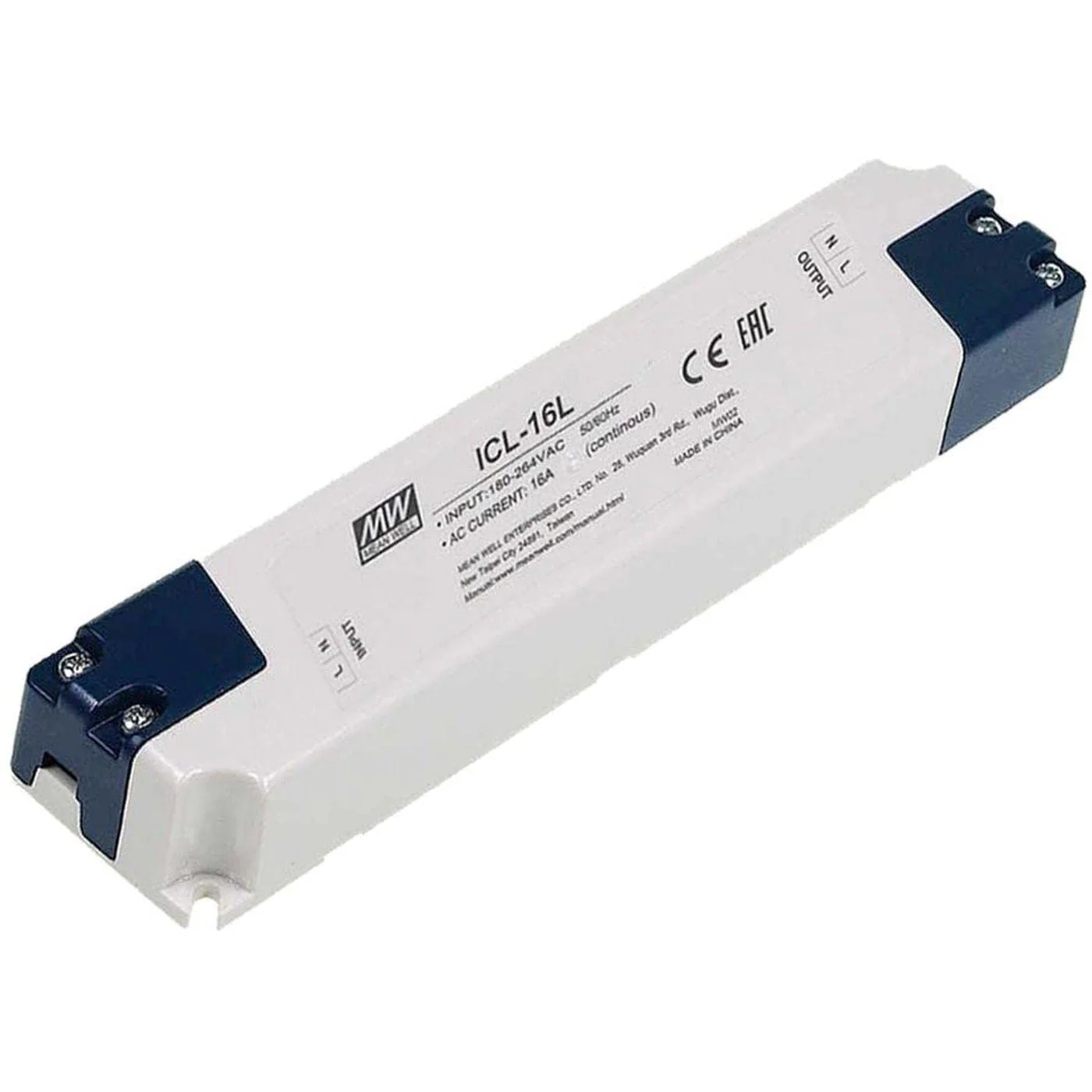

Mean Well ICL-16L Inrush Current Limiter 16A 23A 180...264V AC
Mean Well ICL-16L Inrush Current Limiter 16A 23A 180...264V AC
✔ Inrush current limiter for toroidal transformers power supplies LED, etc. ✔ Voltage: 180 - 264 V AC. ✔ Rated current: 16 A, max. 23A. ✔ Frequency: 47 - 63 Hz. ✔ Max. Switching capacity: 3680VA (16A x 230V AC). ✔ Ambient temperature: -30 to +70 °C. ✔ Integrated temperature protection. ✔ Switching frequency: max. 2x per second. ✔ Connections: screw terminals 2.5 mm². ✔ Length: 90 mm. ✔ Width: 35 mm. ✔ Height: 54.5 mm.
Product Features
- Inrush current limiter for toroidal transformers power supplies LED, etc., MeanWell, ICL-16L
- Voltage: 180 - 264 V AC, rated current: 16 A, max. 23 A, frequency: 47 - 63 Hz
- Max. Switching capacity: 3680VA (16A x 230V AC), ambient temperature: -30...+70C, integrated temperature fuse
- Switching frequency: max. 2 x per second, connections: screw terminals 2.5 mm2, length: 90 mm
- Width: 35 mm, Height: 54.5 mm
More Images
Mean Well ICL-16L Inrush Current Limiter 16A 23A 180...264V AC
Mean Well ICL-16L Inrush Current Limiter 16A 23A 180...264V AC
✔ Inrush current limiter for toroidal transformers power supplies LED, etc. ✔ Voltage: 180 - 264 V AC. ✔ Rated current: 16 A, max. 23A. ✔ Frequency: 47 - 63 Hz. ✔ Max. Switching capacity: 3680VA (16A x 230V AC). ✔ Ambient temperature: -30 to +70 °C. ✔ Integrated temperature protection. ✔ Switching frequency: max. 2x per second. ✔ Connections: screw terminals 2.5 mm². ✔ Length: 90 mm. ✔ Width: 35 mm. ✔ Height: 54.5 mm.
Product Features
- Inrush current limiter for toroidal transformers power supplies LED, etc., MeanWell, ICL-16L
- Voltage: 180 - 264 V AC, rated current: 16 A, max. 23 A, frequency: 47 - 63 Hz
- Max. Switching capacity: 3680VA (16A x 230V AC), ambient temperature: -30...+70C, integrated temperature fuse
- Switching frequency: max. 2 x per second, connections: screw terminals 2.5 mm2, length: 90 mm
- Width: 35 mm, Height: 54.5 mm
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Mean Well ICL-16L Inrush Current Limiter 16A 23A 180...264V AC
✔ Inrush current limiter for toroidal transformers power supplies LED, etc. ✔ Voltage: 180 - 264 V AC. ✔ Rated current: 16 A, max. 23A. ✔ Frequency: 47 - 63 Hz. ✔ Max. Switching capacity: 3680VA (16A x 230V AC). ✔ Ambient temperature: -30 to +70 °C. ✔ Integrated temperature protection. ✔ Switching frequency: max. 2x per second. ✔ Connections: screw terminals 2.5 mm². ✔ Length: 90 mm. ✔ Width: 35 mm. ✔ Height: 54.5 mm.
Product Features
- Inrush current limiter for toroidal transformers power supplies LED, etc., MeanWell, ICL-16L
- Voltage: 180 - 264 V AC, rated current: 16 A, max. 23 A, frequency: 47 - 63 Hz
- Max. Switching capacity: 3680VA (16A x 230V AC), ambient temperature: -30...+70C, integrated temperature fuse
- Switching frequency: max. 2 x per second, connections: screw terminals 2.5 mm2, length: 90 mm
- Width: 35 mm, Height: 54.5 mm
