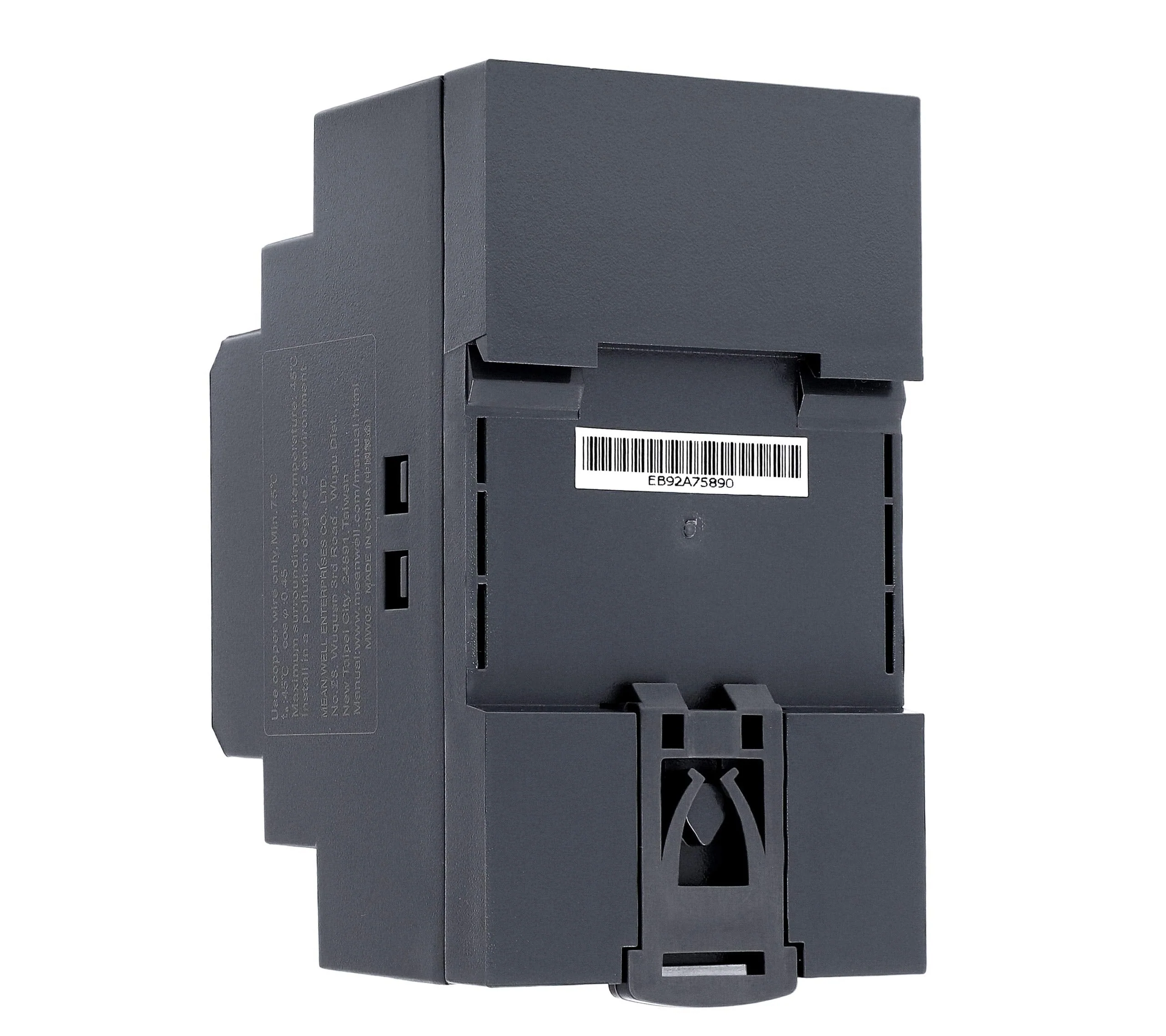

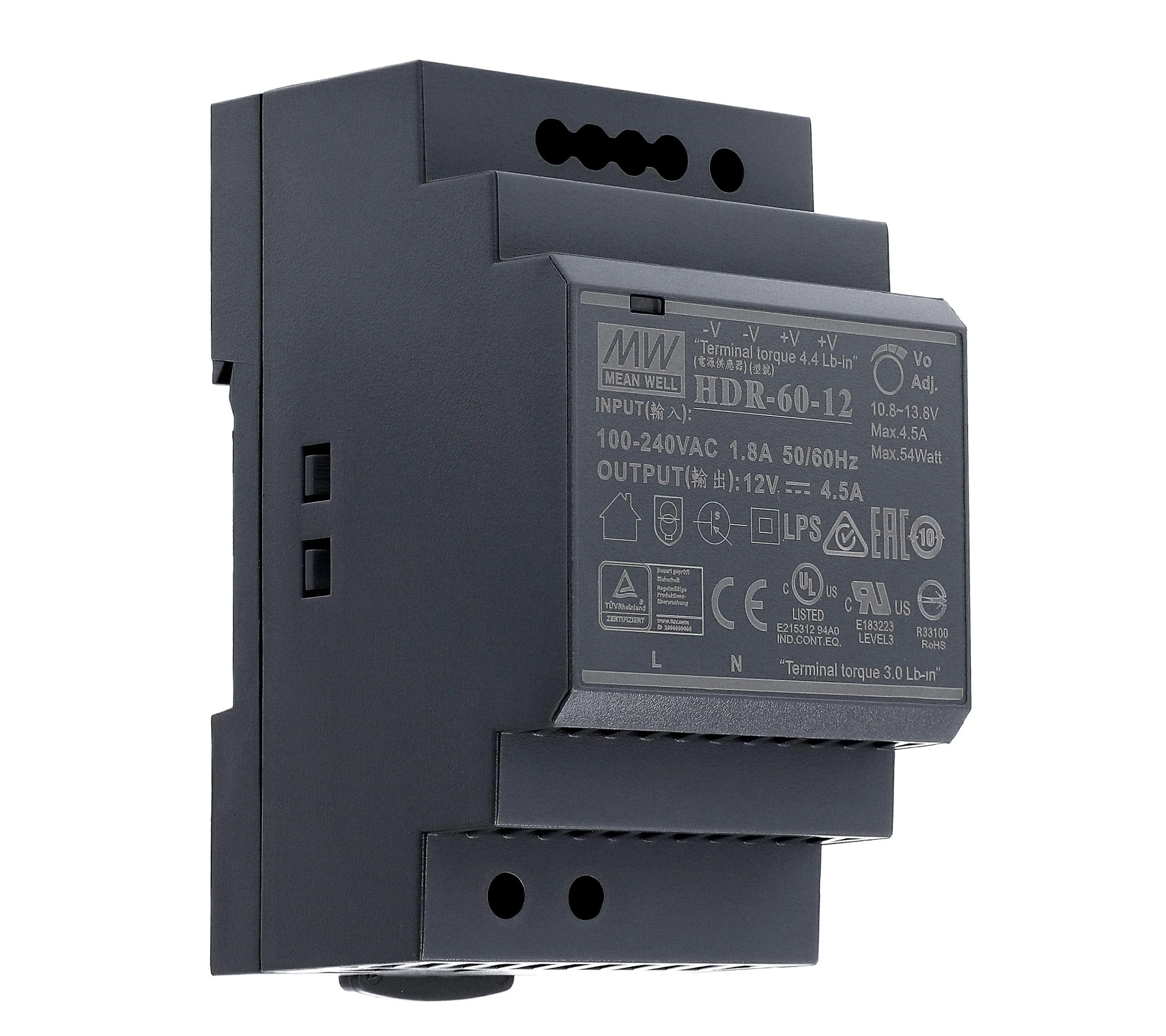

Mean Well HDR-60-12 DIN Rail Power Supply DIN-Rail 12 VDC 4.5 A 54 Watt
Mean Well HDR-60-12 DIN Rail Power Supply DIN-Rail 12 VDC 4.5 A 54 Watt
Single-phase MEANWELL switching power supply series HDR-60, primarily clocked for DIN rail mounting in plastic housing. Can be mounted directly on the DIN rail. Closed design, touch-protected screw connections. Universal input. Overload protection thanks to current limitation, auto recovery. Protected against short circuit, overload, overvoltage. Compact size: 3 TE (DIN EN43880). Low idle power of only 0.3 watts. LED indicator for power-on Type: Clocked. Technology: constant voltage Mounting type: DIN rail power supply. Model: HDR Series No-load power: 0.3 watts. Power On/Off: LED indicator Operating temperature range: -30°C to +70°C. Voltage input AC: 85 - 264 V AC. Voltage input DC: 120 - 370 V DC. Mains frequency: 50/60Hz Voltage: Output Voltage | 12VDC Adjustable voltage: adjustable | from 10.8 V to 13.8 VDC. Current: output current: 4.5 A/4500 mA. Power: output power: 54 watts. Efficiency: 88%. Inrush current: 60 A. Dimmable: no. Overload protection: yes. Overload protection in %: 105 - 160%. Surge Protection: Yes Short circuit resistant: yes. Temperature monitoring: yes. Insulation class: II. Insulation voltage: 3000V AC. Protection class: IP42. Installation area: indoor Colour: anthracite. Material: plastic. Length: 90 mm. Width: 52.5 mm / 3TE. Height: 58.4 mm. Power connection: screw terminals. Output connection: screw terminals. Manufacturer: Mean Well. Manufacturer number: HDR-60-12. Package weight: 190 g. Certification: TÜV, CE, CB, UL, LPS. RoHS: compliant
Product Features
- Output voltage: 12 VDC
- Output current: 4.5 A / 4500 mA
- Output power: 54 watts
- Constant Voltage
- Adjustable | from 10.8 V to 13.8 VDC
Original: $141.98
-65%$141.98
$49.69More Images
Mean Well HDR-60-12 DIN Rail Power Supply DIN-Rail 12 VDC 4.5 A 54 Watt
Mean Well HDR-60-12 DIN Rail Power Supply DIN-Rail 12 VDC 4.5 A 54 Watt
Single-phase MEANWELL switching power supply series HDR-60, primarily clocked for DIN rail mounting in plastic housing. Can be mounted directly on the DIN rail. Closed design, touch-protected screw connections. Universal input. Overload protection thanks to current limitation, auto recovery. Protected against short circuit, overload, overvoltage. Compact size: 3 TE (DIN EN43880). Low idle power of only 0.3 watts. LED indicator for power-on Type: Clocked. Technology: constant voltage Mounting type: DIN rail power supply. Model: HDR Series No-load power: 0.3 watts. Power On/Off: LED indicator Operating temperature range: -30°C to +70°C. Voltage input AC: 85 - 264 V AC. Voltage input DC: 120 - 370 V DC. Mains frequency: 50/60Hz Voltage: Output Voltage | 12VDC Adjustable voltage: adjustable | from 10.8 V to 13.8 VDC. Current: output current: 4.5 A/4500 mA. Power: output power: 54 watts. Efficiency: 88%. Inrush current: 60 A. Dimmable: no. Overload protection: yes. Overload protection in %: 105 - 160%. Surge Protection: Yes Short circuit resistant: yes. Temperature monitoring: yes. Insulation class: II. Insulation voltage: 3000V AC. Protection class: IP42. Installation area: indoor Colour: anthracite. Material: plastic. Length: 90 mm. Width: 52.5 mm / 3TE. Height: 58.4 mm. Power connection: screw terminals. Output connection: screw terminals. Manufacturer: Mean Well. Manufacturer number: HDR-60-12. Package weight: 190 g. Certification: TÜV, CE, CB, UL, LPS. RoHS: compliant
Product Features
- Output voltage: 12 VDC
- Output current: 4.5 A / 4500 mA
- Output power: 54 watts
- Constant Voltage
- Adjustable | from 10.8 V to 13.8 VDC
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Mean Well HDR-60-12 DIN Rail Power Supply DIN-Rail 12 VDC 4.5 A 54 Watt
Single-phase MEANWELL switching power supply series HDR-60, primarily clocked for DIN rail mounting in plastic housing. Can be mounted directly on the DIN rail. Closed design, touch-protected screw connections. Universal input. Overload protection thanks to current limitation, auto recovery. Protected against short circuit, overload, overvoltage. Compact size: 3 TE (DIN EN43880). Low idle power of only 0.3 watts. LED indicator for power-on Type: Clocked. Technology: constant voltage Mounting type: DIN rail power supply. Model: HDR Series No-load power: 0.3 watts. Power On/Off: LED indicator Operating temperature range: -30°C to +70°C. Voltage input AC: 85 - 264 V AC. Voltage input DC: 120 - 370 V DC. Mains frequency: 50/60Hz Voltage: Output Voltage | 12VDC Adjustable voltage: adjustable | from 10.8 V to 13.8 VDC. Current: output current: 4.5 A/4500 mA. Power: output power: 54 watts. Efficiency: 88%. Inrush current: 60 A. Dimmable: no. Overload protection: yes. Overload protection in %: 105 - 160%. Surge Protection: Yes Short circuit resistant: yes. Temperature monitoring: yes. Insulation class: II. Insulation voltage: 3000V AC. Protection class: IP42. Installation area: indoor Colour: anthracite. Material: plastic. Length: 90 mm. Width: 52.5 mm / 3TE. Height: 58.4 mm. Power connection: screw terminals. Output connection: screw terminals. Manufacturer: Mean Well. Manufacturer number: HDR-60-12. Package weight: 190 g. Certification: TÜV, CE, CB, UL, LPS. RoHS: compliant
Product Features
- Output voltage: 12 VDC
- Output current: 4.5 A / 4500 mA
- Output power: 54 watts
- Constant Voltage
- Adjustable | from 10.8 V to 13.8 VDC
