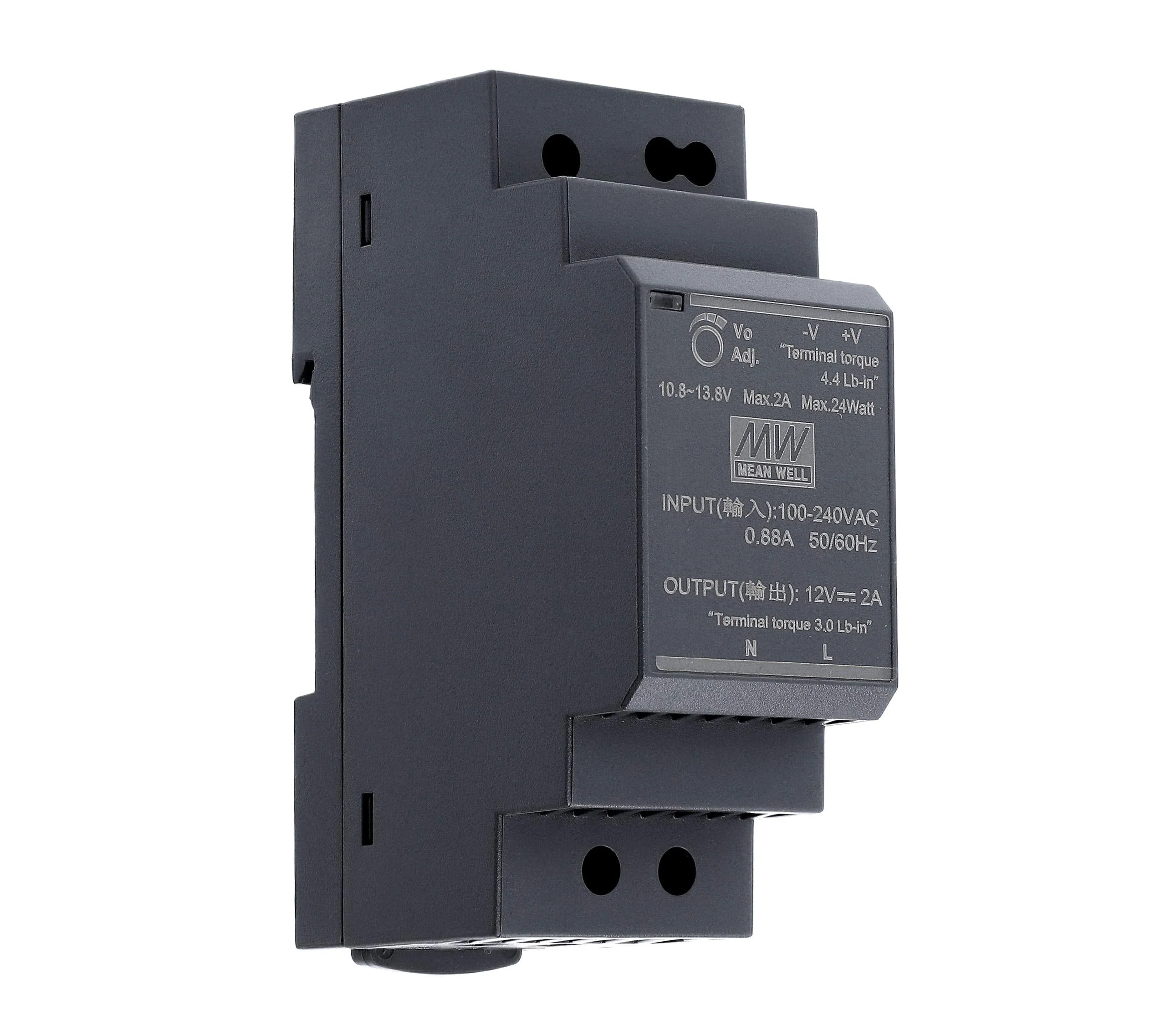

Mean Well Hdr 30 12 Power Supply DIN Rail Single
Mean Well Hdr 30 12 Power Supply DIN Rail
Single-phase MEANWELL switching power supply series HDR-30, primarily clocked for DIN rail mounting in plastic housing. Can be mounted directly on the DIN rail. Closed design, touch-protected screw connections. Universal input. Overload protection thanks to current limitation, auto recovery. Protected against short circuit, overload, overvoltage. Compact size: 2 TE (DIN EN43880). Low idle power of only 0.3 watts. LED indicator for power-on Type: Clocked. Technology: constant voltage Mounting type: DIN rail power supply. Model: HDR Series No-load power: 0.3 watts. Power On/Off: LED indicator Operating temperature range: -30°C to +70°C. Voltage input AC: 85 - 264 V AC. Voltage input DC: 120 - 370 V DC. Mains frequency: 50/60Hz Voltage: Output Voltage | 12VDC Adjustable voltage: adjustable | from 10.8 V to 13.8 VDC. Current: output current: 2 A/2000 mA. Power: output power: 24 watts. Efficiency: 88%. Inrush current: 45 A. Dimmable: no. Overload protection: yes. Overload protection in %: 105 - 160%. Surge Protection: Yes Short circuit resistant: yes. Temperature monitoring: yes. Insulation class: II. Insulation voltage: 3000V AC. Protection class: IP42. Installation area: indoor Colour: anthracite. Material: plastic. Length: 90 mm. Width: 35 mm / 2TE Height: 58.4 mm. Power connection: screw terminals. Output connection: screw terminals. Manufacturer: Mean Well. Manufacturer number: HDR-30-12. Package weight: 120 g. Certification: TÜV, CE, CB, UL, LPS. RoHS: compliant
Product Features
- Item number
- 535855
- Product Category
- LED Power Supply
- Manufacturer
Original: $141.98
-65%$141.98
$49.69More Images
Mean Well Hdr 30 12 Power Supply DIN Rail Single
Mean Well Hdr 30 12 Power Supply DIN Rail
Single-phase MEANWELL switching power supply series HDR-30, primarily clocked for DIN rail mounting in plastic housing. Can be mounted directly on the DIN rail. Closed design, touch-protected screw connections. Universal input. Overload protection thanks to current limitation, auto recovery. Protected against short circuit, overload, overvoltage. Compact size: 2 TE (DIN EN43880). Low idle power of only 0.3 watts. LED indicator for power-on Type: Clocked. Technology: constant voltage Mounting type: DIN rail power supply. Model: HDR Series No-load power: 0.3 watts. Power On/Off: LED indicator Operating temperature range: -30°C to +70°C. Voltage input AC: 85 - 264 V AC. Voltage input DC: 120 - 370 V DC. Mains frequency: 50/60Hz Voltage: Output Voltage | 12VDC Adjustable voltage: adjustable | from 10.8 V to 13.8 VDC. Current: output current: 2 A/2000 mA. Power: output power: 24 watts. Efficiency: 88%. Inrush current: 45 A. Dimmable: no. Overload protection: yes. Overload protection in %: 105 - 160%. Surge Protection: Yes Short circuit resistant: yes. Temperature monitoring: yes. Insulation class: II. Insulation voltage: 3000V AC. Protection class: IP42. Installation area: indoor Colour: anthracite. Material: plastic. Length: 90 mm. Width: 35 mm / 2TE Height: 58.4 mm. Power connection: screw terminals. Output connection: screw terminals. Manufacturer: Mean Well. Manufacturer number: HDR-30-12. Package weight: 120 g. Certification: TÜV, CE, CB, UL, LPS. RoHS: compliant
Product Features
- Item number
- 535855
- Product Category
- LED Power Supply
- Manufacturer
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Mean Well Hdr 30 12 Power Supply DIN Rail
Single-phase MEANWELL switching power supply series HDR-30, primarily clocked for DIN rail mounting in plastic housing. Can be mounted directly on the DIN rail. Closed design, touch-protected screw connections. Universal input. Overload protection thanks to current limitation, auto recovery. Protected against short circuit, overload, overvoltage. Compact size: 2 TE (DIN EN43880). Low idle power of only 0.3 watts. LED indicator for power-on Type: Clocked. Technology: constant voltage Mounting type: DIN rail power supply. Model: HDR Series No-load power: 0.3 watts. Power On/Off: LED indicator Operating temperature range: -30°C to +70°C. Voltage input AC: 85 - 264 V AC. Voltage input DC: 120 - 370 V DC. Mains frequency: 50/60Hz Voltage: Output Voltage | 12VDC Adjustable voltage: adjustable | from 10.8 V to 13.8 VDC. Current: output current: 2 A/2000 mA. Power: output power: 24 watts. Efficiency: 88%. Inrush current: 45 A. Dimmable: no. Overload protection: yes. Overload protection in %: 105 - 160%. Surge Protection: Yes Short circuit resistant: yes. Temperature monitoring: yes. Insulation class: II. Insulation voltage: 3000V AC. Protection class: IP42. Installation area: indoor Colour: anthracite. Material: plastic. Length: 90 mm. Width: 35 mm / 2TE Height: 58.4 mm. Power connection: screw terminals. Output connection: screw terminals. Manufacturer: Mean Well. Manufacturer number: HDR-30-12. Package weight: 120 g. Certification: TÜV, CE, CB, UL, LPS. RoHS: compliant
Product Features
- Item number
- 535855
- Product Category
- LED Power Supply
- Manufacturer
