MEAN WELL HDR-150-12 135.6 W 12 V 11.3 A DIN-rail power supply DIN-RAIL
MEAN WELL HDR-150-12 135.6 W 12 V 11.3 A DIN-rail power supply DIN-RAIL
✔ Can be mounted directly on the DIN rail. ✔ Universal input ✔ Closed design, screw terminals protected from accidental contact. ✔ Overload protection by current limiting, automatic recovery. ✔ Short circuit, overload and surge protection. ✔ Low idle power. ✔ LED indicator for switching on. ✔ Insulation class II. Power supply: DIN rail Stabilization: Constant voltage Topology: AC/DC converter Input Voltage: 115V/230V (Universal) Output Voltage: 12V Output Current: 11.3A Power: 135.6W Input voltage (min...max): 85 to 264 V AC. Output voltage (min...max): 10.8 to 13.8 V DC. Efficiency: 89% Input: screw terminals Connection Output: Screw Terminals Length: 105mm Width: 90 mm. Height: 54.5mm
Product Features
- MeanWell HDR-150-12 DIN Rail Power Supply
- Power: 135.6 W, Output voltage: 12 V (10.8 ...13.8 V DC), Output current: 11.3 A
- Input voltage: 85 to 264 VAC, Efficiency: 89 %

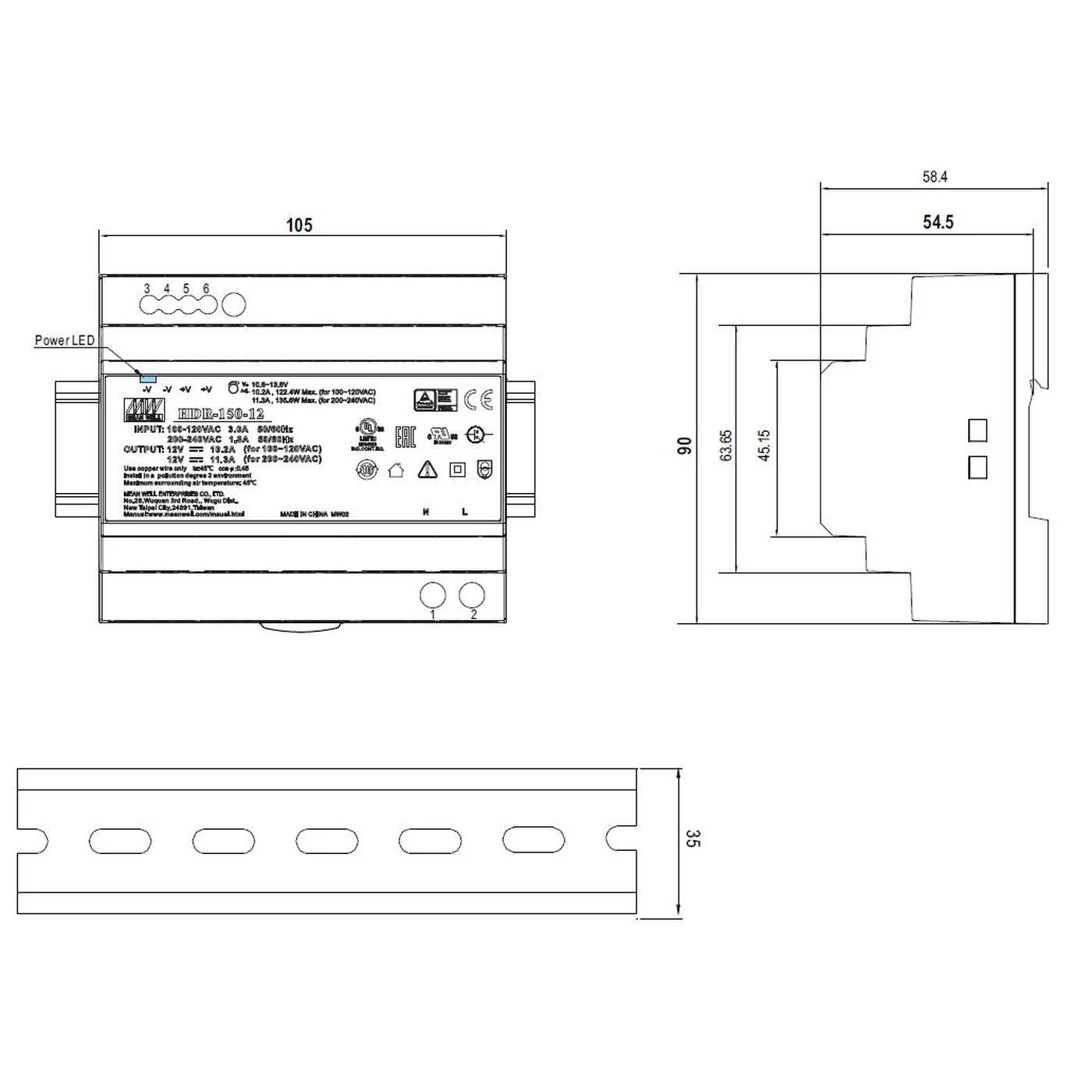

- Length: 105 mm, Width: 90 mm, Height: 54.5 mm
Original: $233.25
-65%$233.25
$81.64More Images
MEAN WELL HDR-150-12 135.6 W 12 V 11.3 A DIN-rail power supply DIN-RAIL
MEAN WELL HDR-150-12 135.6 W 12 V 11.3 A DIN-rail power supply DIN-RAIL
✔ Can be mounted directly on the DIN rail. ✔ Universal input ✔ Closed design, screw terminals protected from accidental contact. ✔ Overload protection by current limiting, automatic recovery. ✔ Short circuit, overload and surge protection. ✔ Low idle power. ✔ LED indicator for switching on. ✔ Insulation class II. Power supply: DIN rail Stabilization: Constant voltage Topology: AC/DC converter Input Voltage: 115V/230V (Universal) Output Voltage: 12V Output Current: 11.3A Power: 135.6W Input voltage (min...max): 85 to 264 V AC. Output voltage (min...max): 10.8 to 13.8 V DC. Efficiency: 89% Input: screw terminals Connection Output: Screw Terminals Length: 105mm Width: 90 mm. Height: 54.5mm
Product Features
- MeanWell HDR-150-12 DIN Rail Power Supply
- Power: 135.6 W, Output voltage: 12 V (10.8 ...13.8 V DC), Output current: 11.3 A
- Input voltage: 85 to 264 VAC, Efficiency: 89 %
- Length: 105 mm, Width: 90 mm, Height: 54.5 mm
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
MEAN WELL HDR-150-12 135.6 W 12 V 11.3 A DIN-rail power supply DIN-RAIL
✔ Can be mounted directly on the DIN rail. ✔ Universal input ✔ Closed design, screw terminals protected from accidental contact. ✔ Overload protection by current limiting, automatic recovery. ✔ Short circuit, overload and surge protection. ✔ Low idle power. ✔ LED indicator for switching on. ✔ Insulation class II. Power supply: DIN rail Stabilization: Constant voltage Topology: AC/DC converter Input Voltage: 115V/230V (Universal) Output Voltage: 12V Output Current: 11.3A Power: 135.6W Input voltage (min...max): 85 to 264 V AC. Output voltage (min...max): 10.8 to 13.8 V DC. Efficiency: 89% Input: screw terminals Connection Output: Screw Terminals Length: 105mm Width: 90 mm. Height: 54.5mm
Product Features
- MeanWell HDR-150-12 DIN Rail Power Supply
- Power: 135.6 W, Output voltage: 12 V (10.8 ...13.8 V DC), Output current: 11.3 A
- Input voltage: 85 to 264 VAC, Efficiency: 89 %
- Length: 105 mm, Width: 90 mm, Height: 54.5 mm
