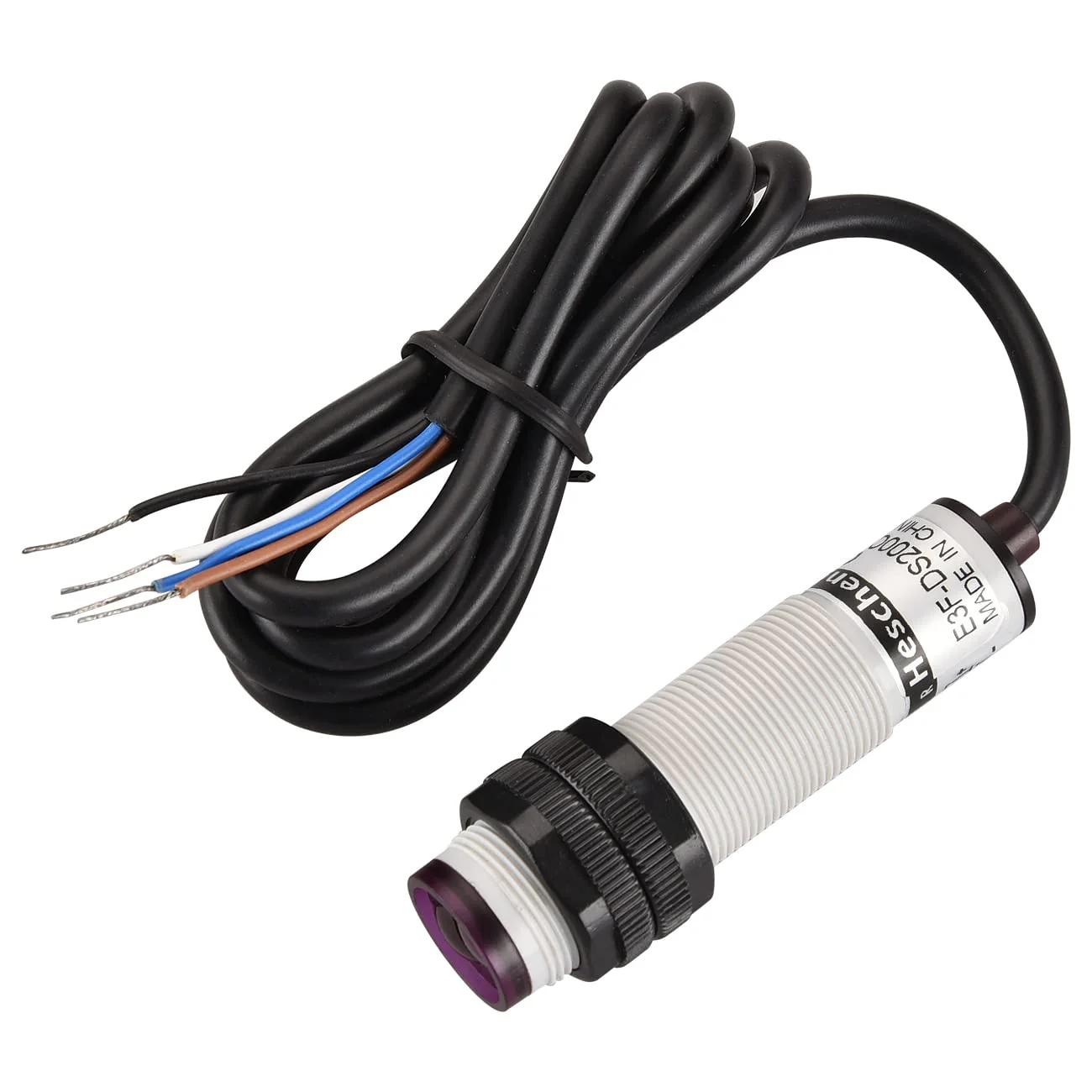

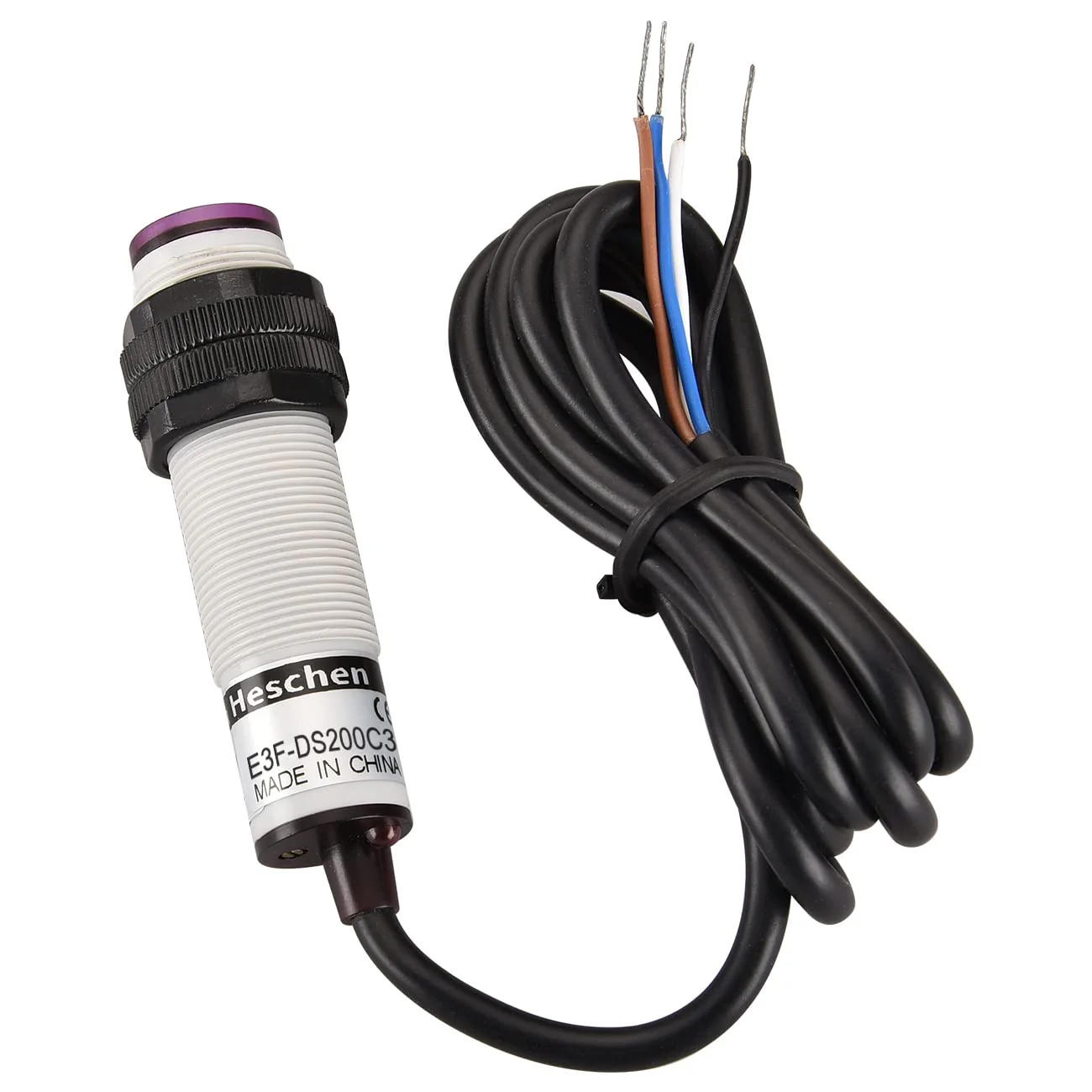

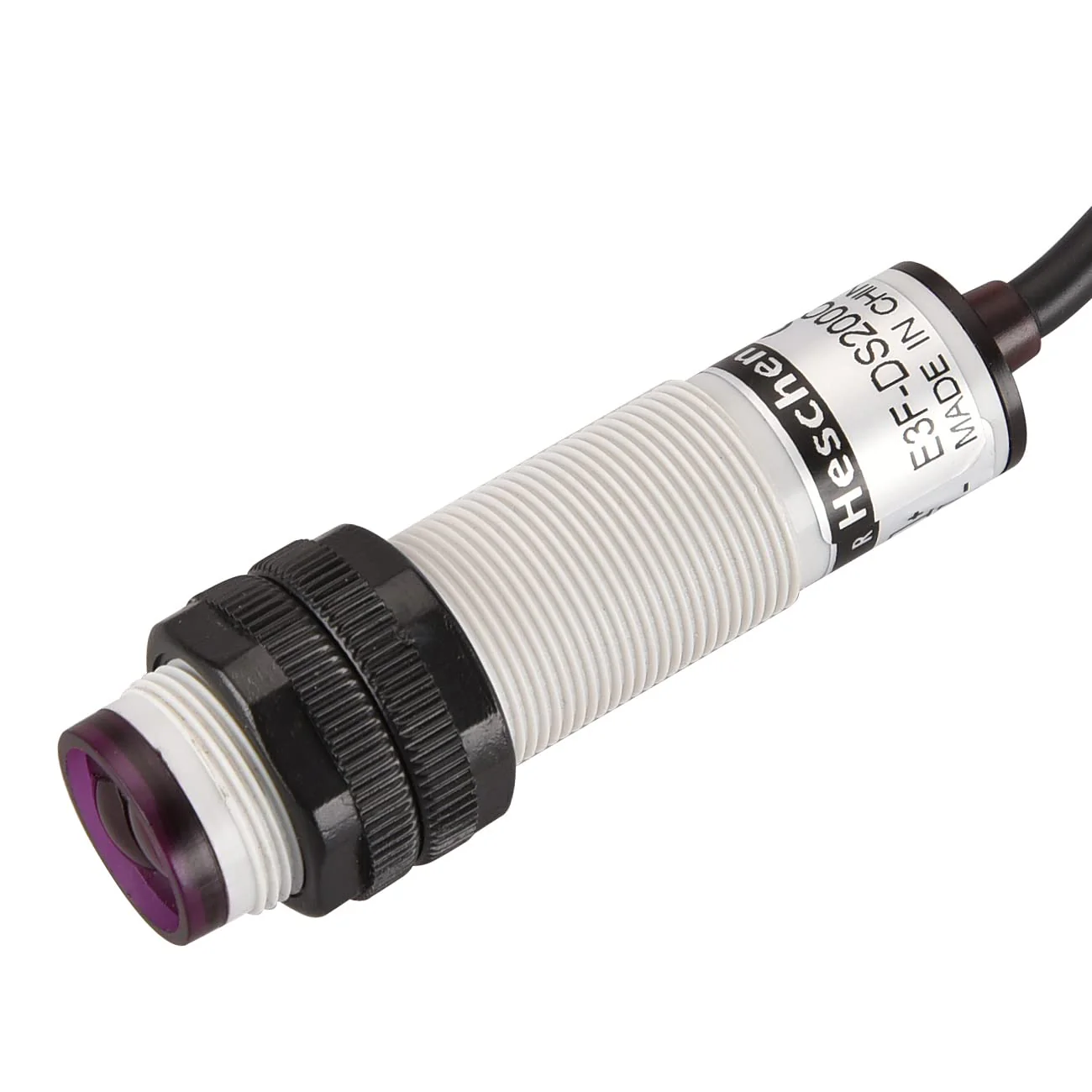

M18 Column Infrared Photoelectric Proximity Switch, Diffuse Reflection Type, E3F-DS200C3, Detection Distance 10-200CM, 10-30VDC 200mA, NPN NO+NC, 4 Wire
M18 Column Infrared Photoelectric Proximity Switch, Diffuse Reflection Type, E3F-DS200C3, Detection Distance 10-200CM, 10-30VDC 200mA, NPN NO+NC, 4 Wire
M18 Column Infrared Photoelectric Proximity Switch, Diffuse Reflection Type, E3F-DS200C3, Detection Distance 10-200CM, 10-30VDC 200mA, NPN NO+NC, 4 Wire
Connection Delay: 1.5ms.Light Source: Infrared light 660nm.Supply Voltage: DC10-30V Impulse (p-p)10% below.Comsuption Current: 20mA below.Control Output: 200mA below.Loop Protection: Reversal connection protection,surge absorption,load short-circuit protection.Ambient Temperature & Humidity: During operation, Storage: individually-30～＋65℃(no freeze ,no drew ), During operation, Storage: Individually 35-95%RH.Insulation Impedance: 50MΩ above ( DC500 megameter ) between charging part and housing.Withstand Voltage: AC1000V 50/60Hz 1min between charging part and housing.Temperature Influence: Temperature range-30～＋65℃,at + 23℃,± 15% detection distance, Temperature range-25～＋60℃,at +23℃,±10% detection distance.Voltage Influence: Inside ±15% rated supply voltage range, at rated supply voltage value ,inside ± 10 % detection distance.
Product Features

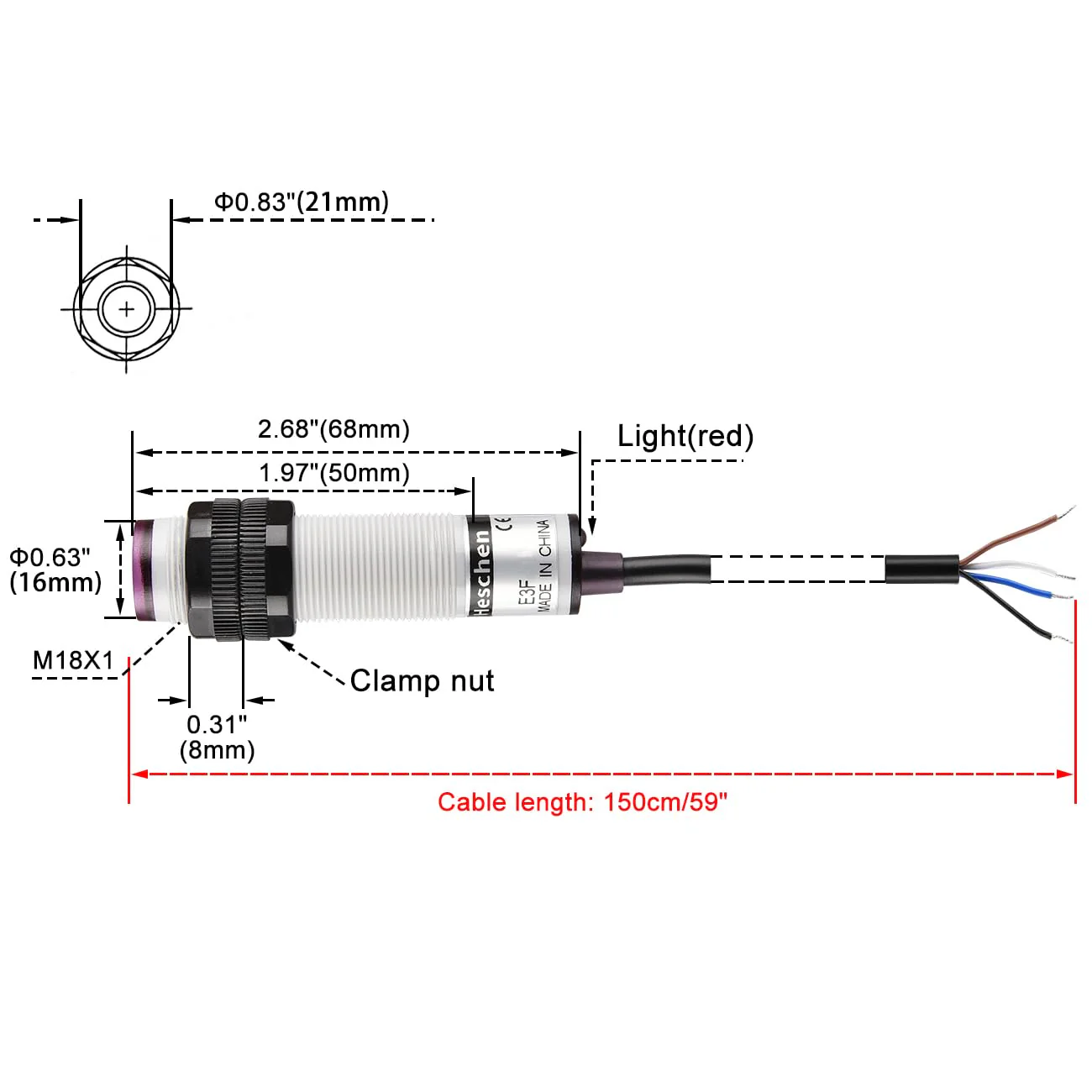

- Mounting Hole Diameter: 18mm; Cable Length: 150cm/59"

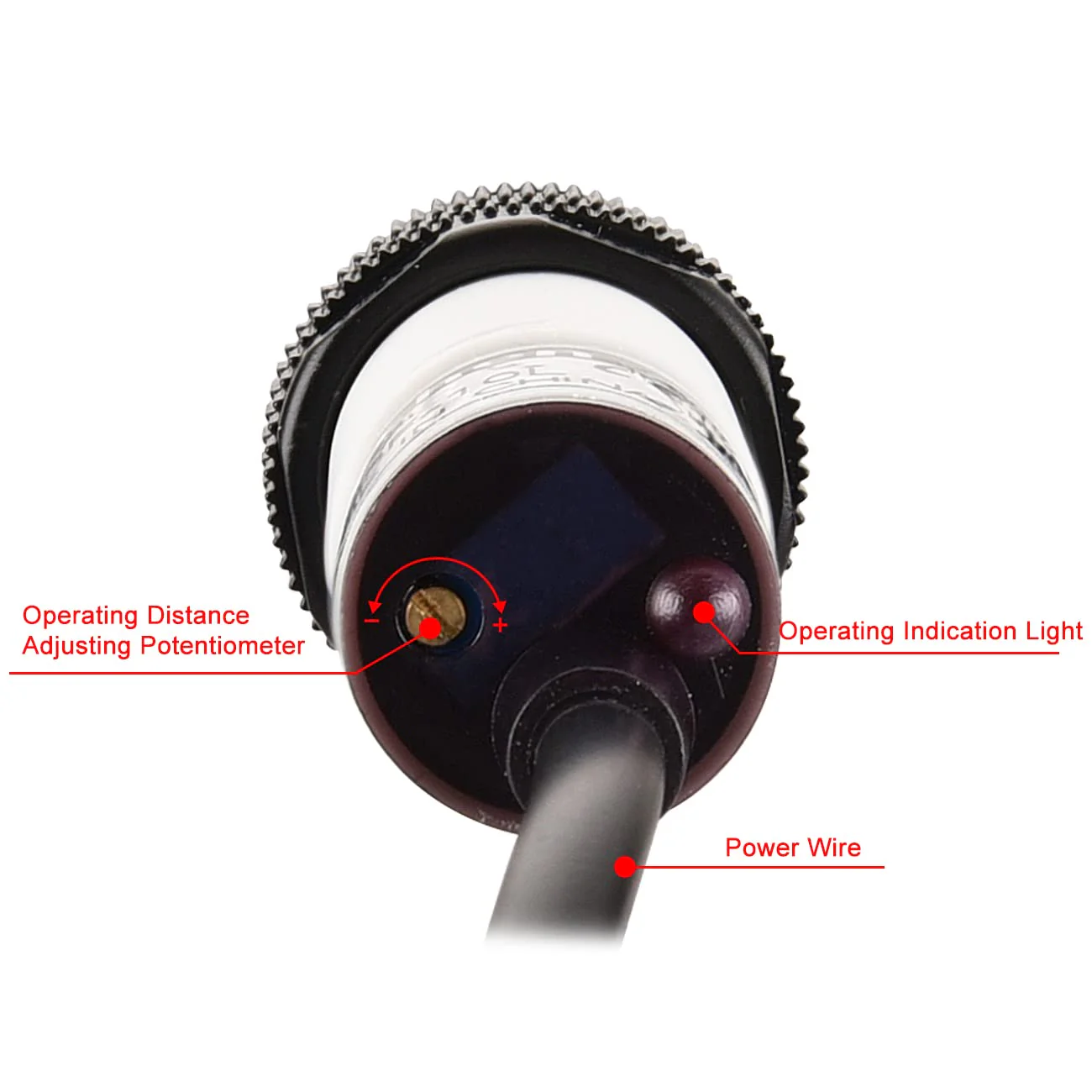

- Detecting Distance: 10-200cm10%, Adjustable

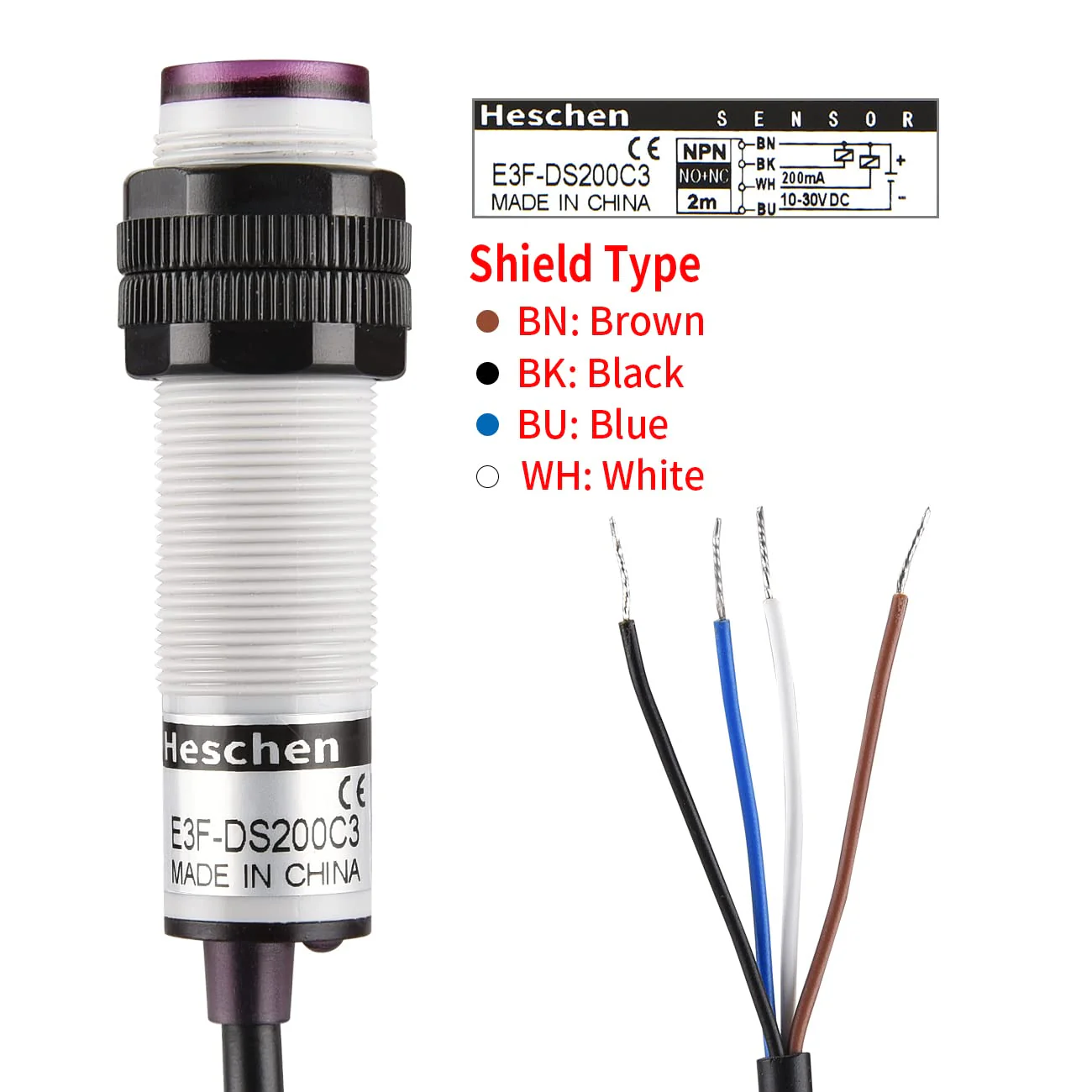

- Output Type: NPN NO+NC; Diffuse Reflection Type
- Current Output: 200mA; Working Voltage: 10-30VDC
- Detection Terget: Opaque Object
More Images
M18 Column Infrared Photoelectric Proximity Switch, Diffuse Reflection Type, E3F-DS200C3, Detection Distance 10-200CM, 10-30VDC 200mA, NPN NO+NC, 4 Wire
M18 Column Infrared Photoelectric Proximity Switch, Diffuse Reflection Type, E3F-DS200C3, Detection Distance 10-200CM, 10-30VDC 200mA, NPN NO+NC, 4 Wire
Connection Delay: 1.5ms.Light Source: Infrared light 660nm.Supply Voltage: DC10-30V Impulse (p-p)10% below.Comsuption Current: 20mA below.Control Output: 200mA below.Loop Protection: Reversal connection protection,surge absorption,load short-circuit protection.Ambient Temperature & Humidity: During operation, Storage: individually-30～＋65℃(no freeze ,no drew ), During operation, Storage: Individually 35-95%RH.Insulation Impedance: 50MΩ above ( DC500 megameter ) between charging part and housing.Withstand Voltage: AC1000V 50/60Hz 1min between charging part and housing.Temperature Influence: Temperature range-30～＋65℃,at + 23℃,± 15% detection distance, Temperature range-25～＋60℃,at +23℃,±10% detection distance.Voltage Influence: Inside ±15% rated supply voltage range, at rated supply voltage value ,inside ± 10 % detection distance.
Product Features
- Mounting Hole Diameter: 18mm; Cable Length: 150cm/59"
- Detecting Distance: 10-200cm10%, Adjustable
- Output Type: NPN NO+NC; Diffuse Reflection Type
- Current Output: 200mA; Working Voltage: 10-30VDC
- Detection Terget: Opaque Object
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
M18 Column Infrared Photoelectric Proximity Switch, Diffuse Reflection Type, E3F-DS200C3, Detection Distance 10-200CM, 10-30VDC 200mA, NPN NO+NC, 4 Wire
Connection Delay: 1.5ms.Light Source: Infrared light 660nm.Supply Voltage: DC10-30V Impulse (p-p)10% below.Comsuption Current: 20mA below.Control Output: 200mA below.Loop Protection: Reversal connection protection,surge absorption,load short-circuit protection.Ambient Temperature & Humidity: During operation, Storage: individually-30～＋65℃(no freeze ,no drew ), During operation, Storage: Individually 35-95%RH.Insulation Impedance: 50MΩ above ( DC500 megameter ) between charging part and housing.Withstand Voltage: AC1000V 50/60Hz 1min between charging part and housing.Temperature Influence: Temperature range-30～＋65℃,at + 23℃,± 15% detection distance, Temperature range-25～＋60℃,at +23℃,±10% detection distance.Voltage Influence: Inside ±15% rated supply voltage range, at rated supply voltage value ,inside ± 10 % detection distance.
Product Features
- Mounting Hole Diameter: 18mm; Cable Length: 150cm/59"
- Detecting Distance: 10-200cm10%, Adjustable
- Output Type: NPN NO+NC; Diffuse Reflection Type
- Current Output: 200mA; Working Voltage: 10-30VDC
- Detection Terget: Opaque Object
