M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z/BY Detection 10mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires
HomeStore

M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z/BY Detection 10mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires

M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z/BY Detection 10mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires

M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z/BY Detection 10mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires

Detection Object:Can detect any dielectric.Delay Distance:10% below of the detection distance.Supply Voltage:DC12-24V(10-30V) Impulse (p-p)10% below.Comsuption Current:13mA below.Control Output:200mA below.Loop Protection :reversal connection protection,surge absorption,load short-circuit protection.Ambient Temperature & Humidity:During operation , storage : individually-30～＋65℃(no freeze ,no drew ) ,During operation,storage:individually 35-95%RH.Insulation Impedance :50MΩ above ( DC500 megameter ) between charging part and shell.Withstand Voltage : AC1000V 50/60Hz 1 min. between charging part and shell.Temperature Influence : Temperature range-30～＋65℃,at + 23℃,± 15% detection distance, Temperature range-25～＋60℃,at +23℃,±10% detection distance.Voltage influence : Inside ±I5% rated supply voltage range,at rated supply voltage value ,inside ± 10 % detection distance.

Product Features

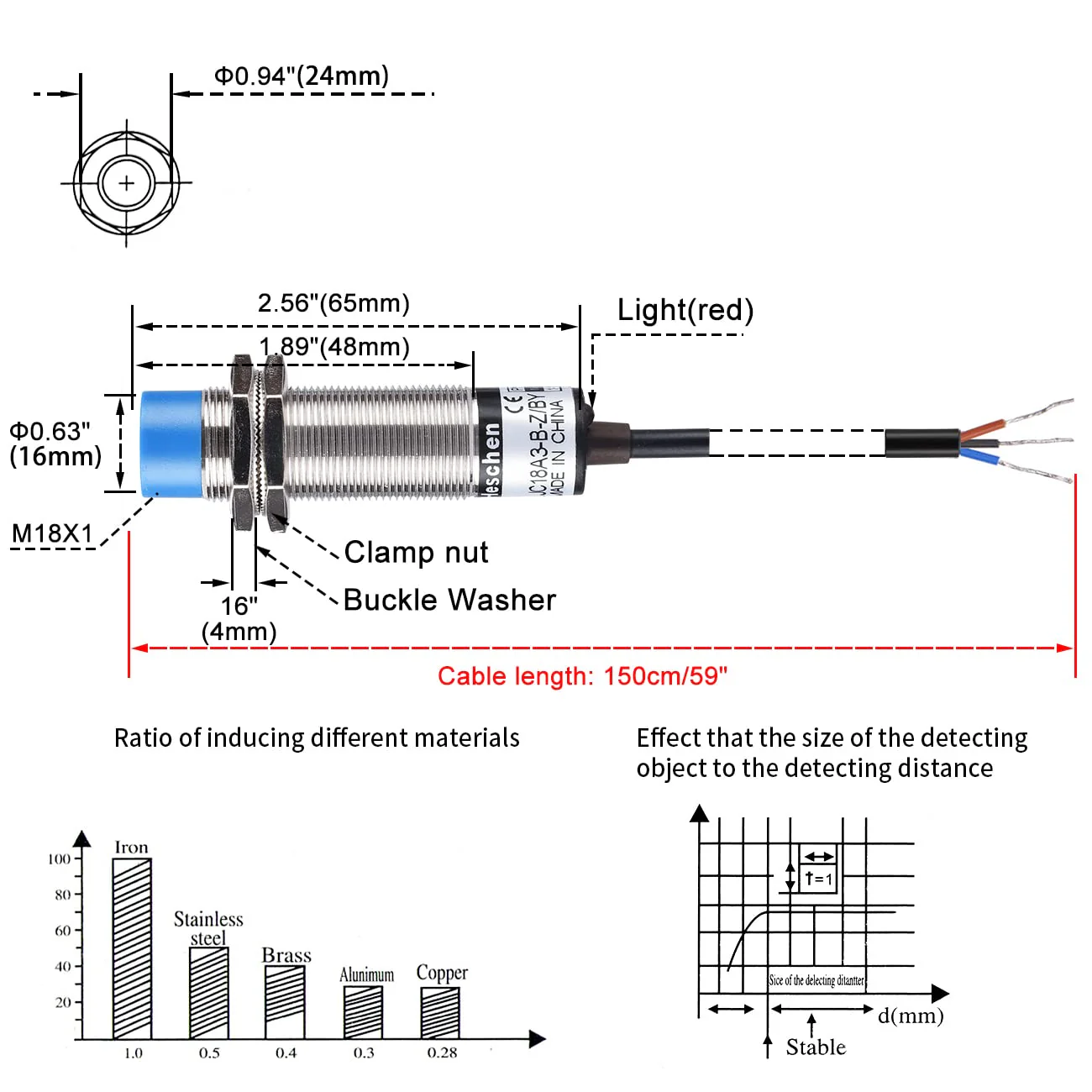

  • Mounting Hole Diameter: 18mm
  • Detecting Distance: 10mm10%; Set distance:0-8mm
  • Output Type: PNP Normally Open(NO), Non-Shield Type
  • Current Output: 200mA; Working Voltage: 10-30 VDC
  • Cable Length: 50"(127cm)
$68.82
M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z/BY Detection 10mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires—
$68.82

More Images

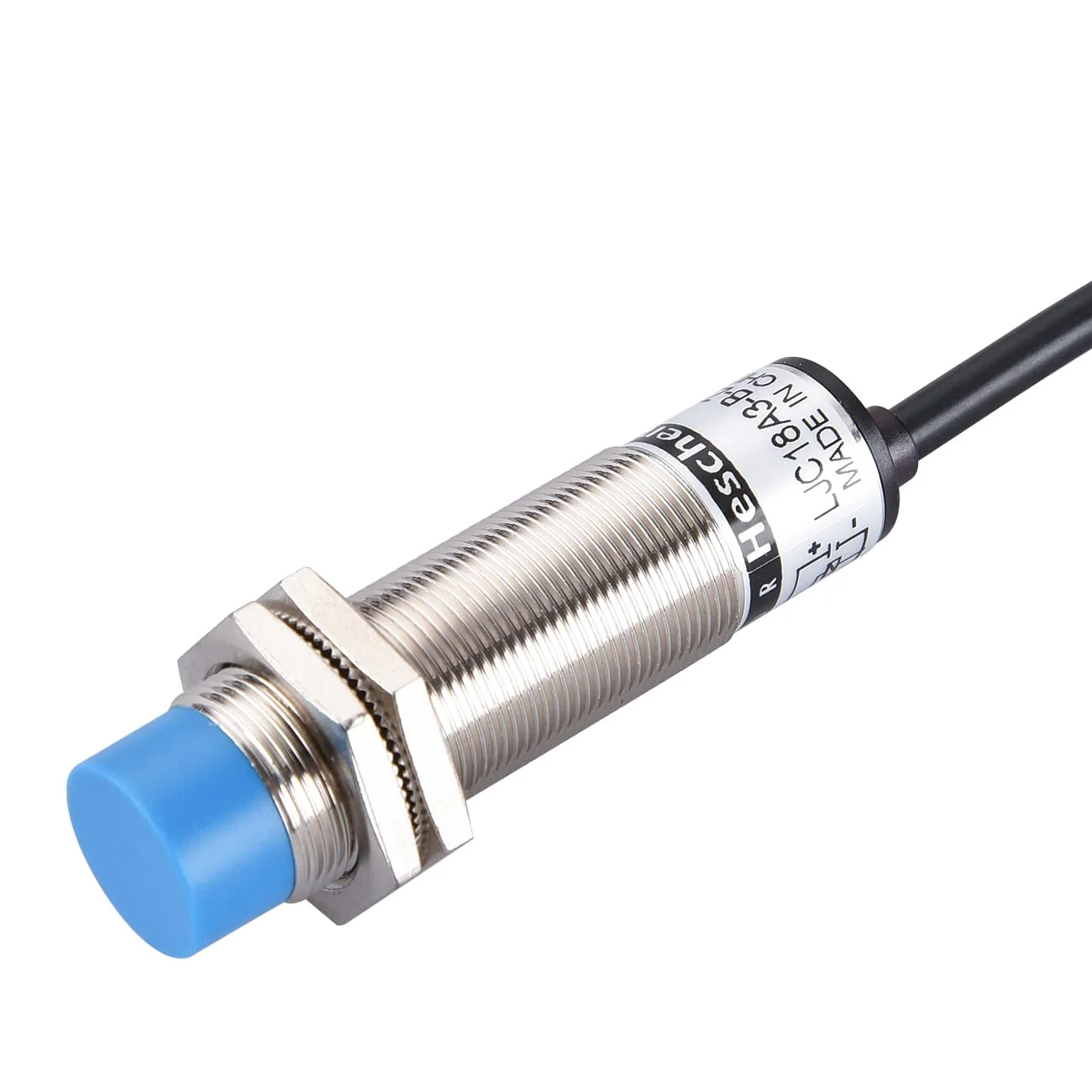

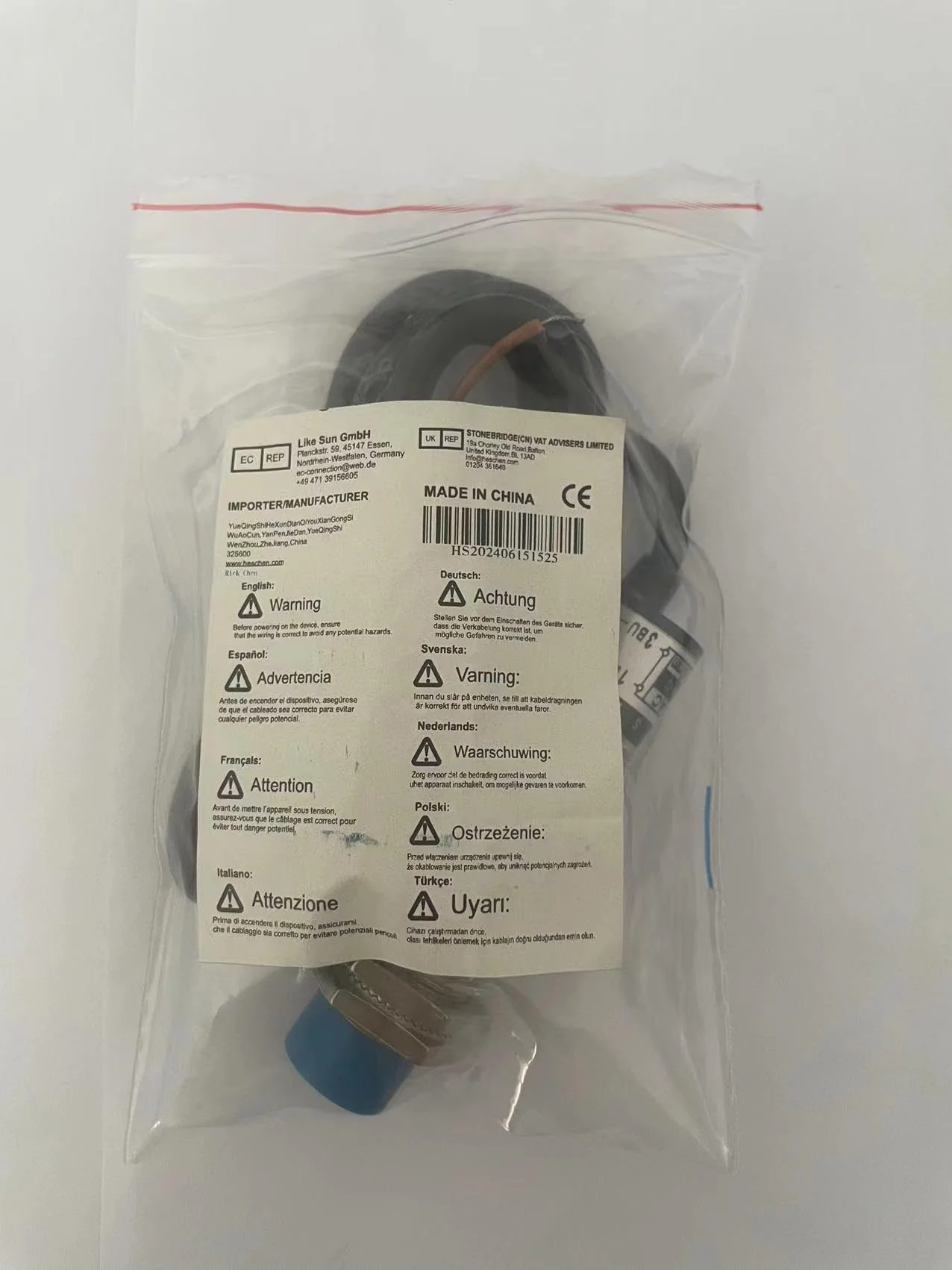

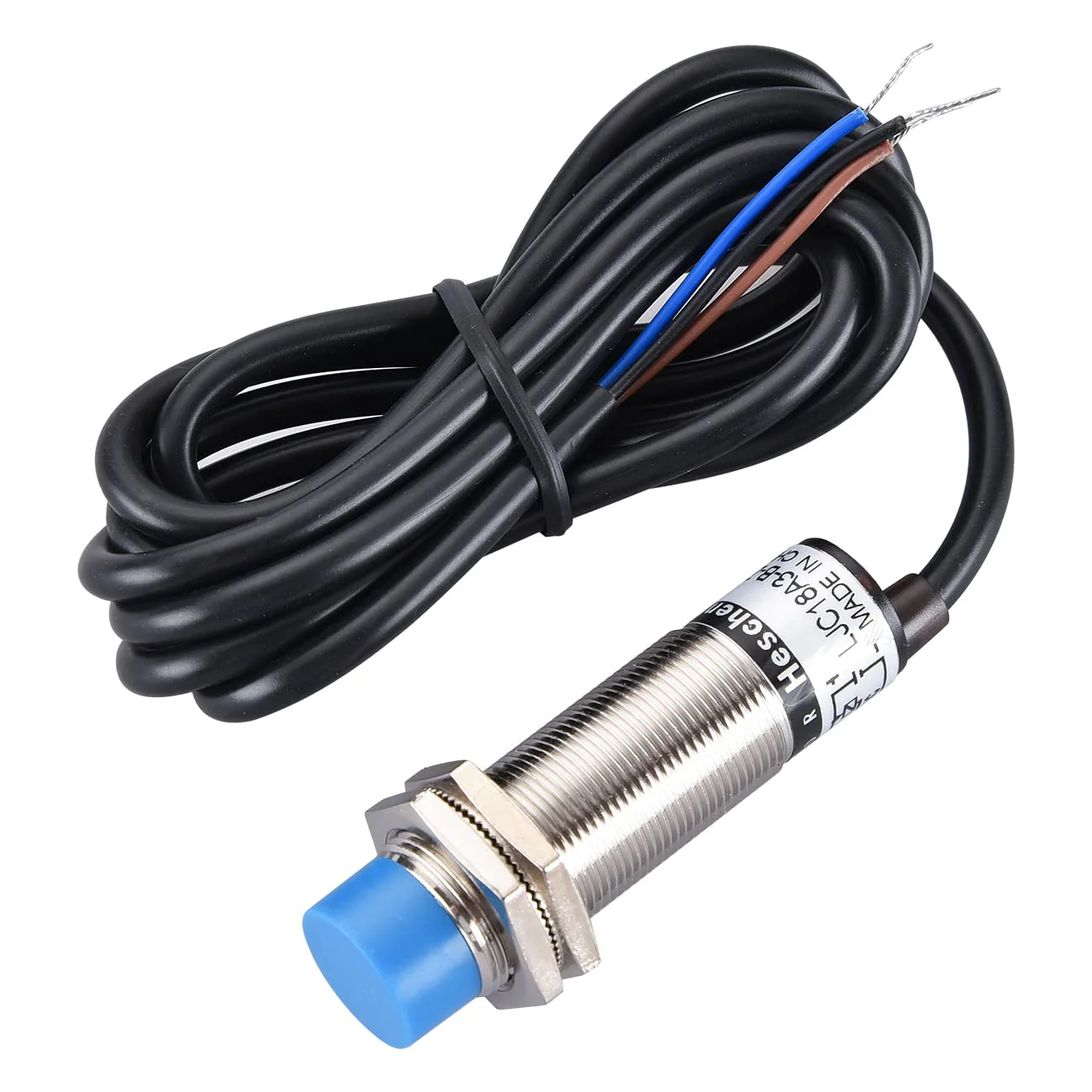

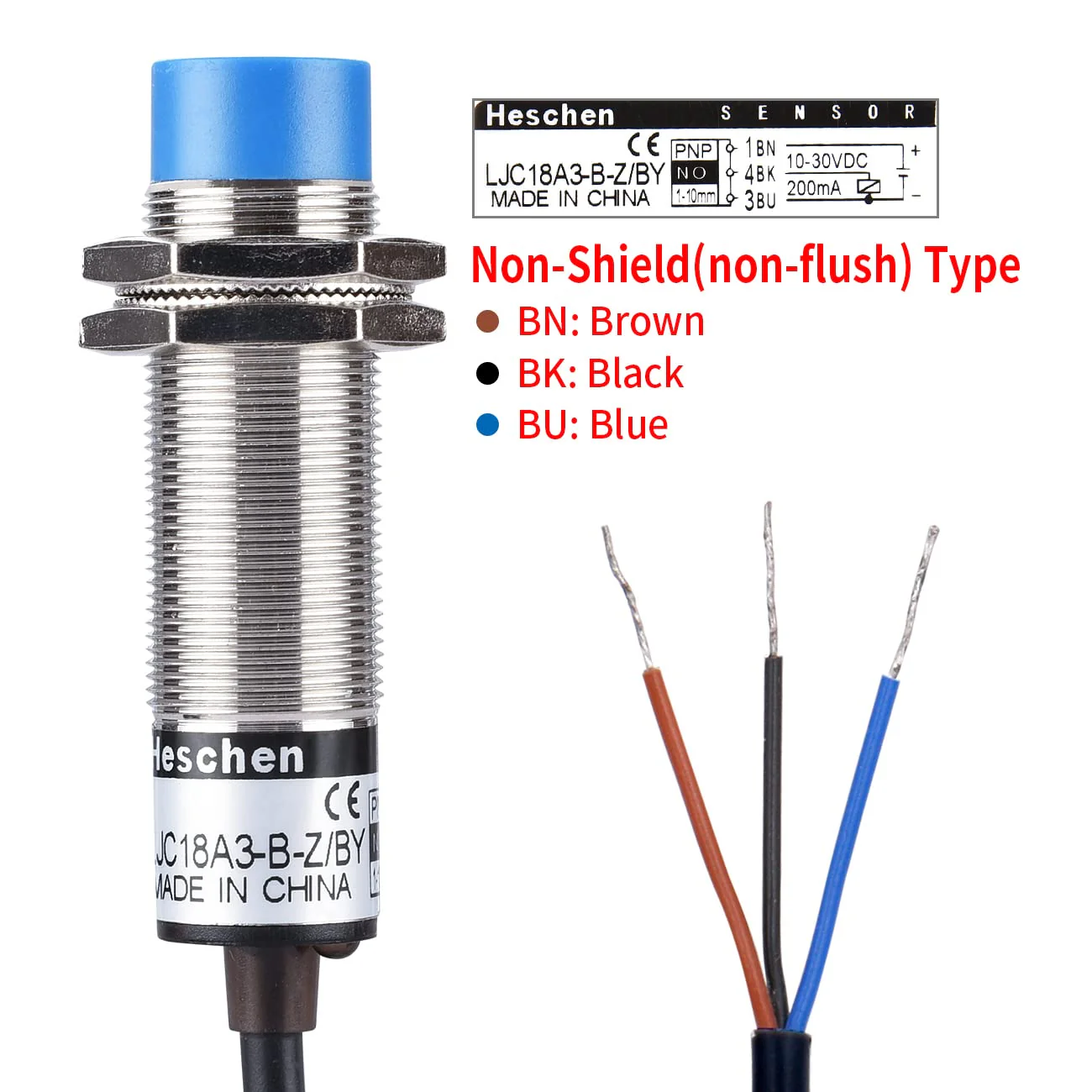

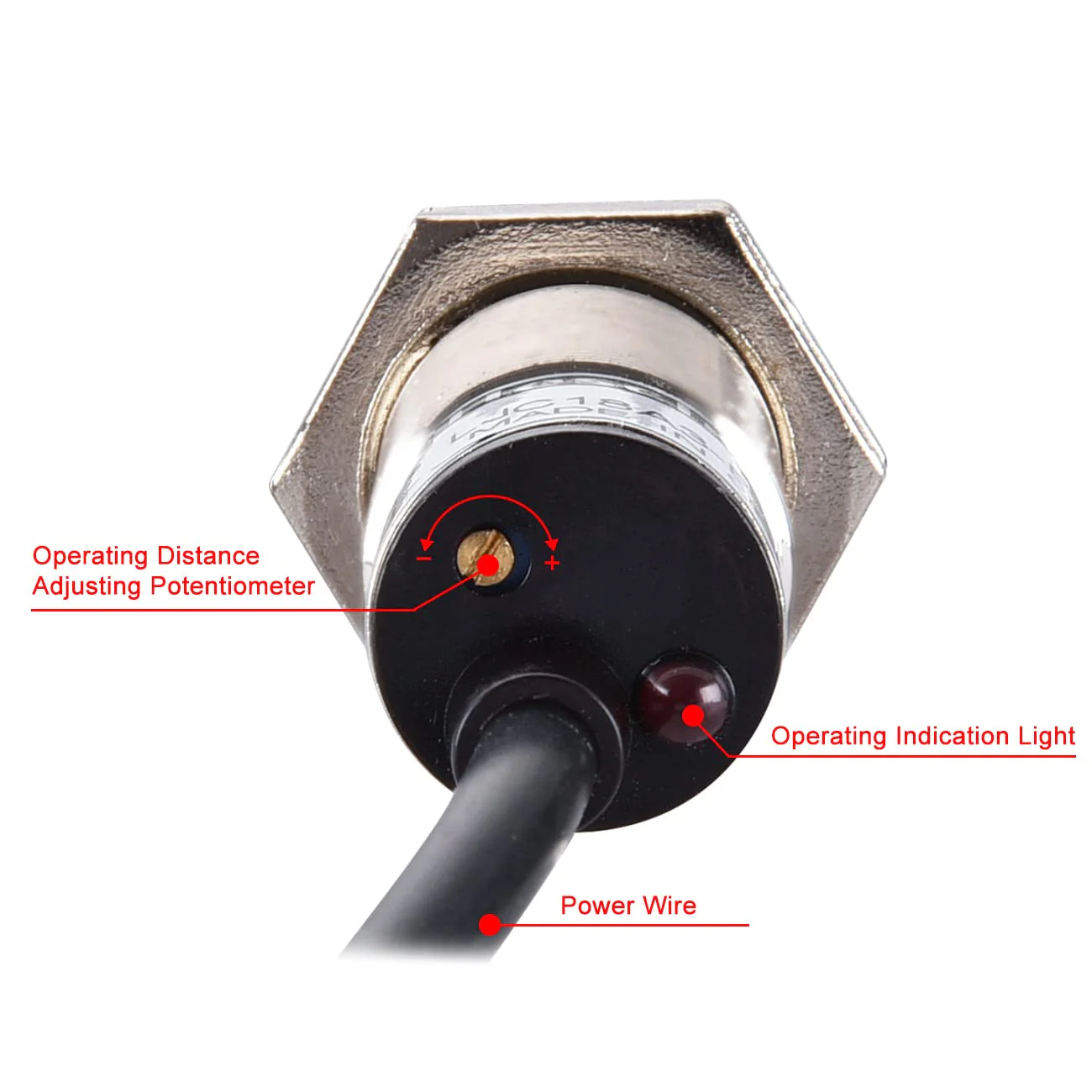

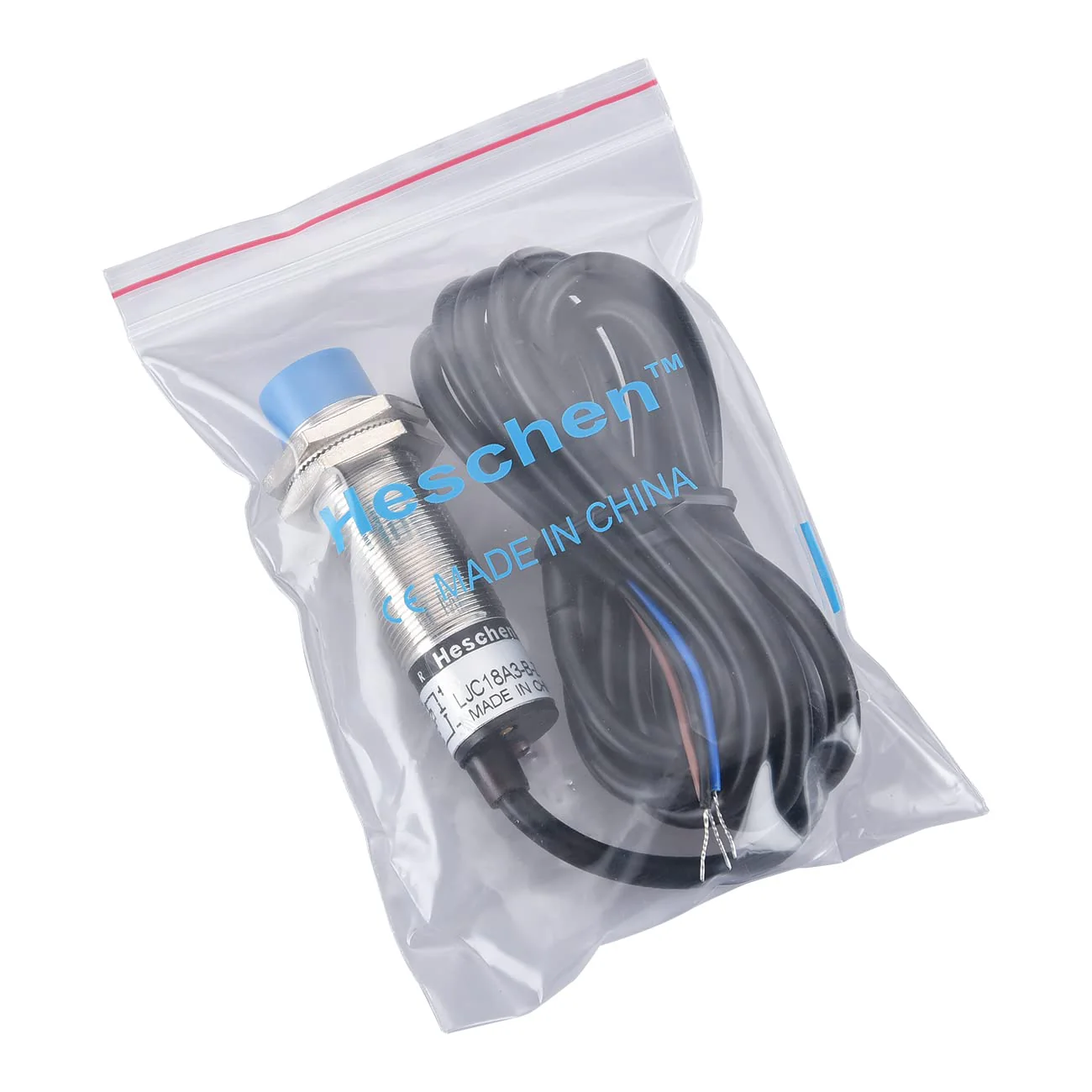

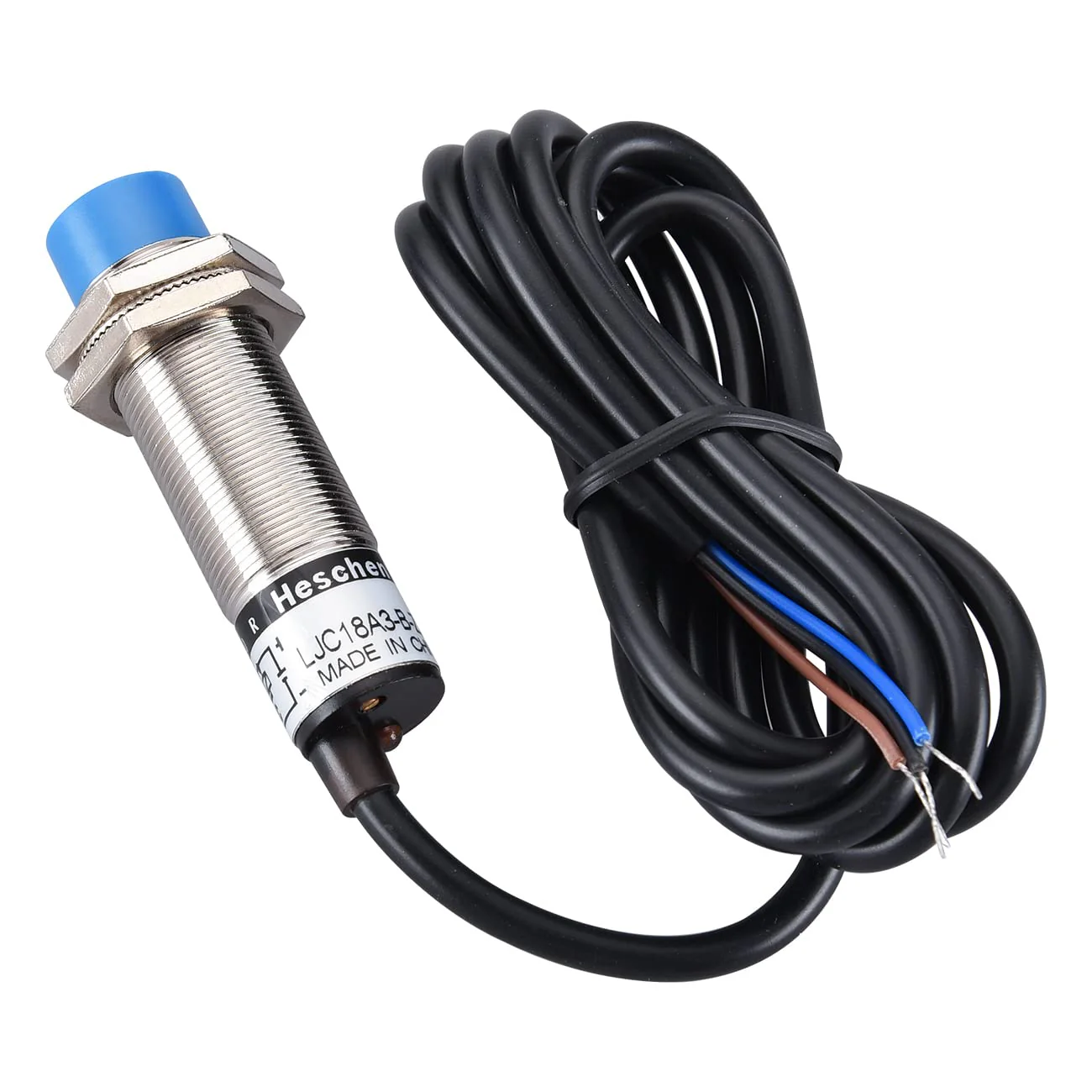

M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z/BY Detection 10mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires - Image 2
M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z/BY Detection 10mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires - Image 3
M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z/BY Detection 10mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires - Image 4
M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z/BY Detection 10mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires - Image 5
M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z/BY Detection 10mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires - Image 6
M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z/BY Detection 10mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires - Image 7
M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z/BY Detection 10mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires - Image 8

M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z/BY Detection 10mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires

M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z/BY Detection 10mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires

Detection Object:Can detect any dielectric.Delay Distance:10% below of the detection distance.Supply Voltage:DC12-24V(10-30V) Impulse (p-p)10% below.Comsuption Current:13mA below.Control Output:200mA below.Loop Protection :reversal connection protection,surge absorption,load short-circuit protection.Ambient Temperature & Humidity:During operation , storage : individually-30～＋65℃(no freeze ,no drew ) ,During operation,storage:individually 35-95%RH.Insulation Impedance :50MΩ above ( DC500 megameter ) between charging part and shell.Withstand Voltage : AC1000V 50/60Hz 1 min. between charging part and shell.Temperature Influence : Temperature range-30～＋65℃,at + 23℃,± 15% detection distance, Temperature range-25～＋60℃,at +23℃,±10% detection distance.Voltage influence : Inside ±I5% rated supply voltage range,at rated supply voltage value ,inside ± 10 % detection distance.

Product Features

  • Mounting Hole Diameter: 18mm
  • Detecting Distance: 10mm10%; Set distance:0-8mm
  • Output Type: PNP Normally Open(NO), Non-Shield Type
  • Current Output: 200mA; Working Voltage: 10-30 VDC
  • Cable Length: 50"(127cm)

Product Information

Shipping & Returns

Description

M18 Capacitive Proximity Sensor Switch Non-Shield Type LJC18A3-B-Z/BY Detection 10mm 10-30VDC 200mA PNP Normally Open(NO) 3 Wires

Detection Object:Can detect any dielectric.Delay Distance:10% below of the detection distance.Supply Voltage:DC12-24V(10-30V) Impulse (p-p)10% below.Comsuption Current:13mA below.Control Output:200mA below.Loop Protection :reversal connection protection,surge absorption,load short-circuit protection.Ambient Temperature & Humidity:During operation , storage : individually-30～＋65℃(no freeze ,no drew ) ,During operation,storage:individually 35-95%RH.Insulation Impedance :50MΩ above ( DC500 megameter ) between charging part and shell.Withstand Voltage : AC1000V 50/60Hz 1 min. between charging part and shell.Temperature Influence : Temperature range-30～＋65℃,at + 23℃,± 15% detection distance, Temperature range-25～＋60℃,at +23℃,±10% detection distance.Voltage influence : Inside ±I5% rated supply voltage range,at rated supply voltage value ,inside ± 10 % detection distance.

Product Features

  • Mounting Hole Diameter: 18mm
  • Detecting Distance: 10mm10%; Set distance:0-8mm
  • Output Type: PNP Normally Open(NO), Non-Shield Type
  • Current Output: 200mA; Working Voltage: 10-30 VDC
  • Cable Length: 50"(127cm)
