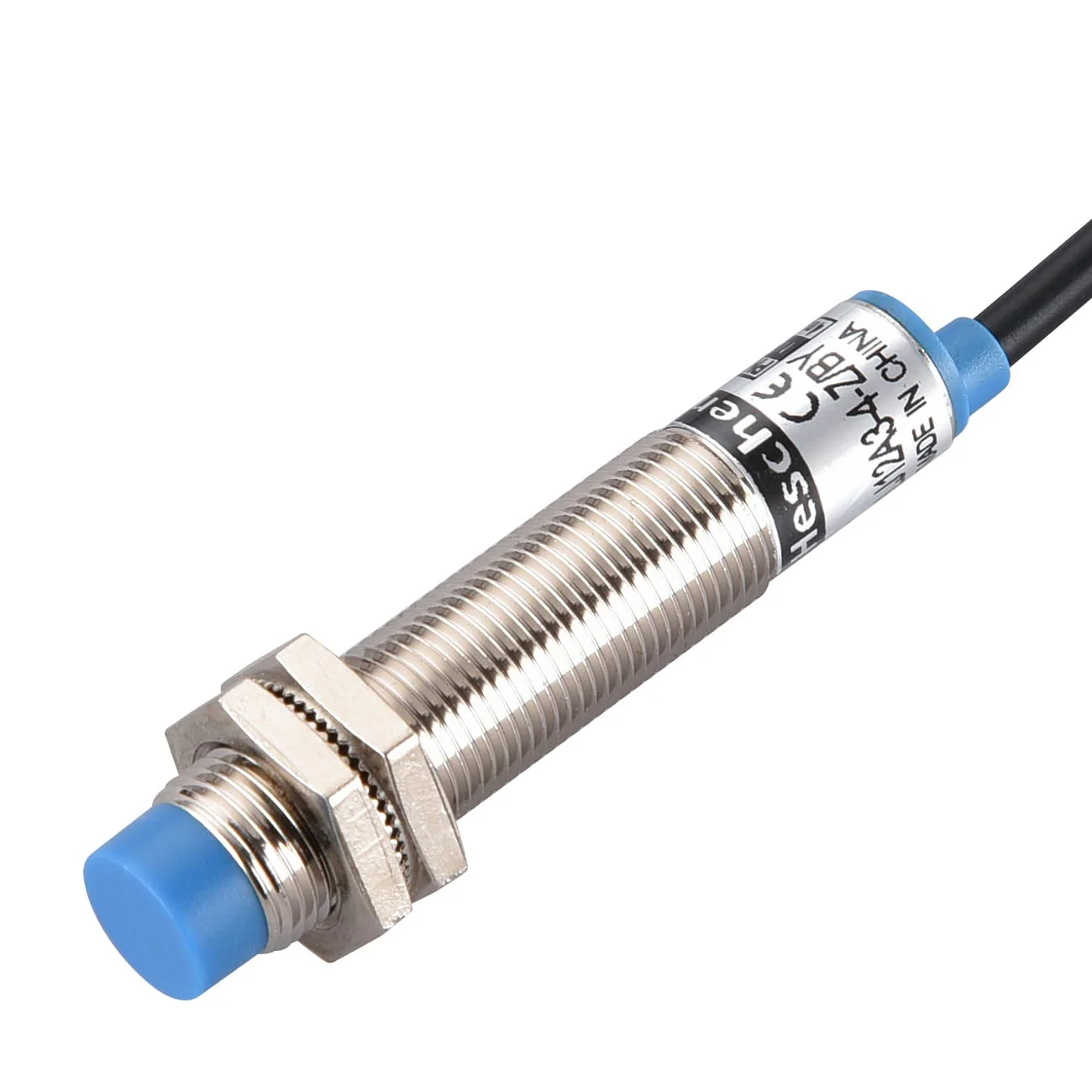

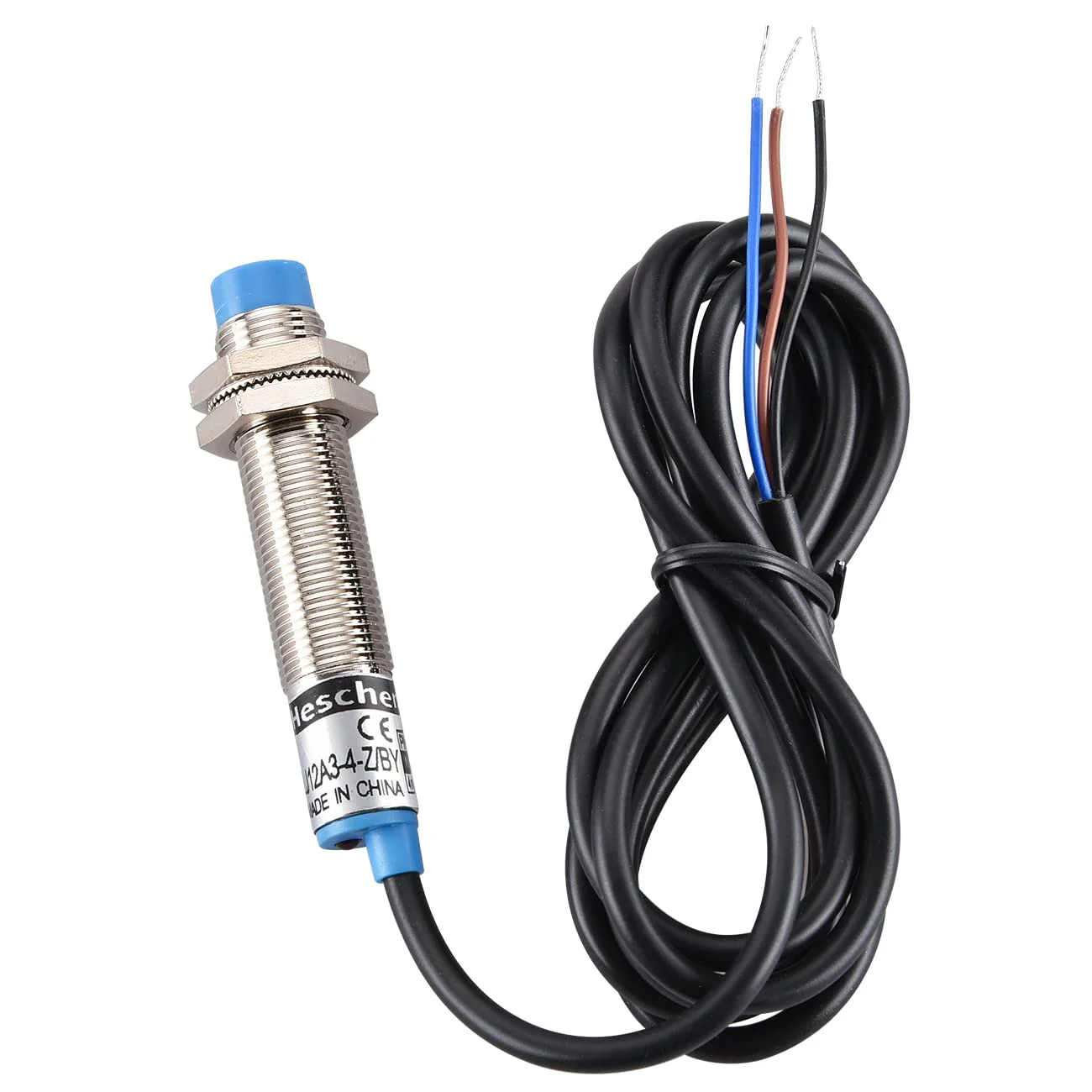

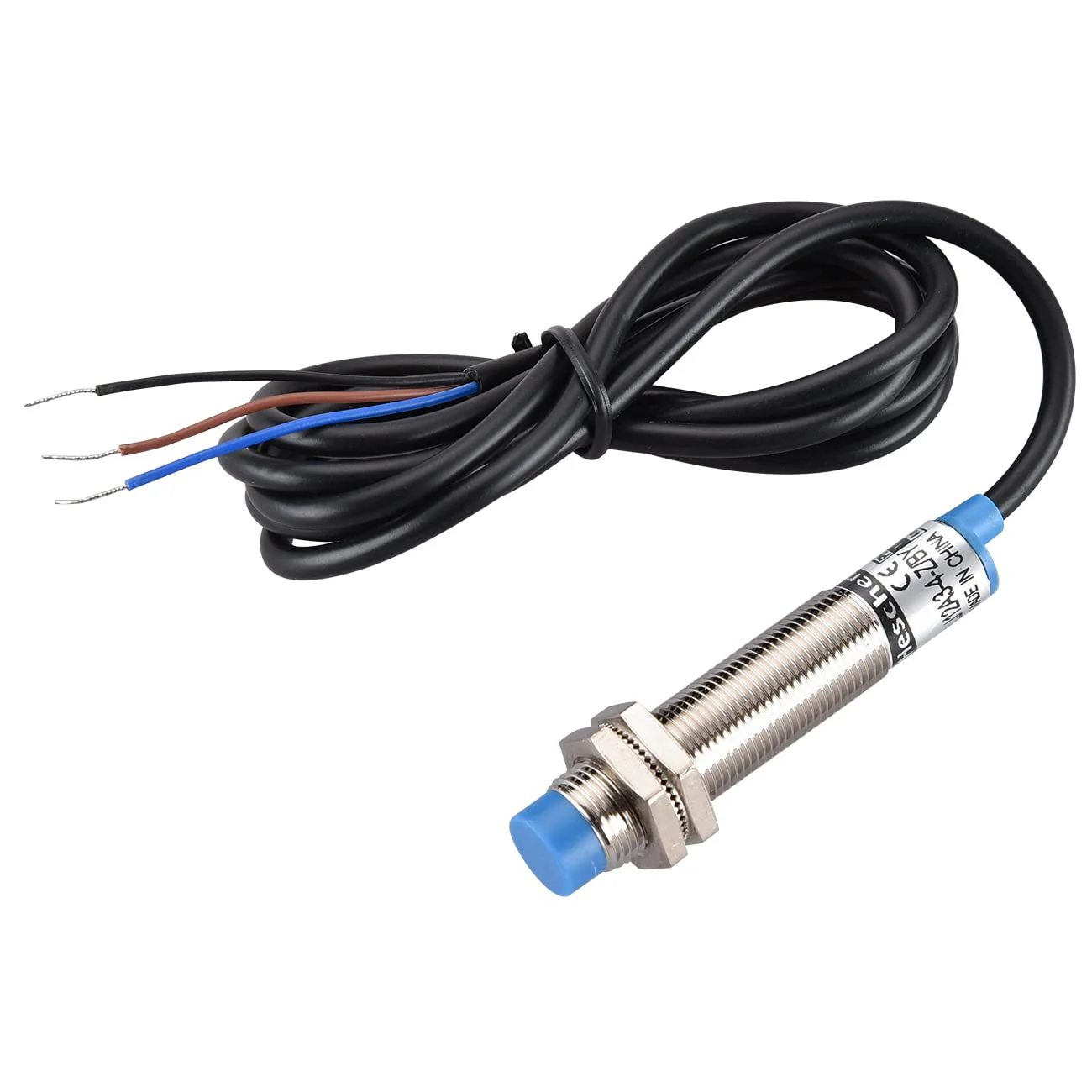

M12 Proximity Sensor, Inductive, Non-Shield Type, LJ12A3-4-Z/BY, 4mm, 10-30VDC, 200mA, PNP NO, 3 Wire, Motion Detector Device
HomeStore

M12 Proximity Sensor, Inductive, Non-Shield Type, LJ12A3-4-Z/BY, 4mm, 10-30VDC, 200mA, PNP NO, 3 Wire, Motion Detector Device

M12 Proximity Sensor, Inductive, Non-Shield Type, LJ12A3-4-Z/BY, 4mm, 10-30VDC, 200mA, PNP NO, 3 Wire, Motion Detector Device

M12 Proximity Sensor, Inductive, Non-Shield Type, LJ12A3-4-Z/BY, 4mm, 10-30VDC, 200mA, PNP NO, 3 Wire, Motion Detector Device

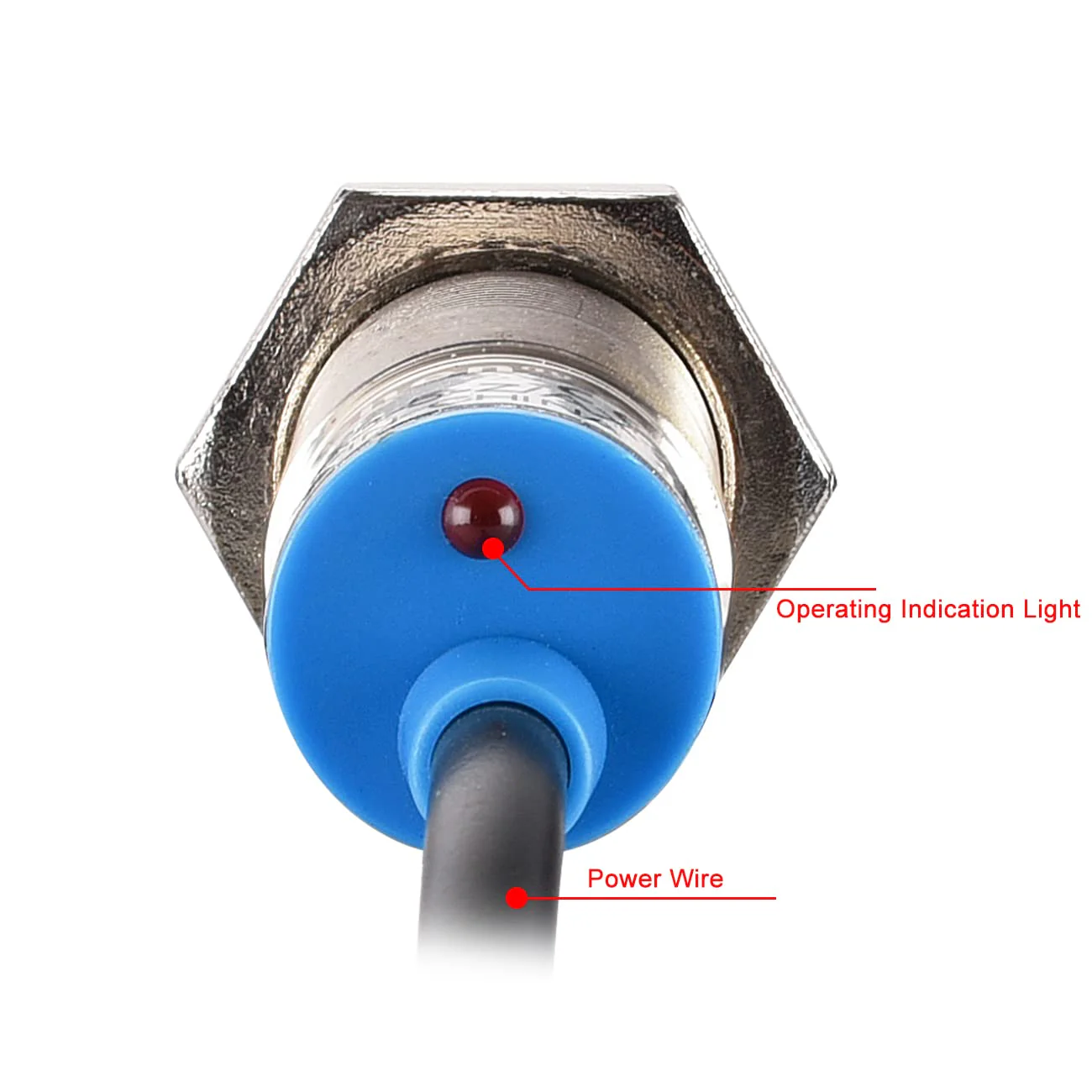

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC.Used in common places with medium enviroment resistanceRed LED indicates that it's available to detect the sensor operation stateEconomic and simple operationWidely used, can be substitution of min-type switch and limit switchIP 67 protection

Product Features

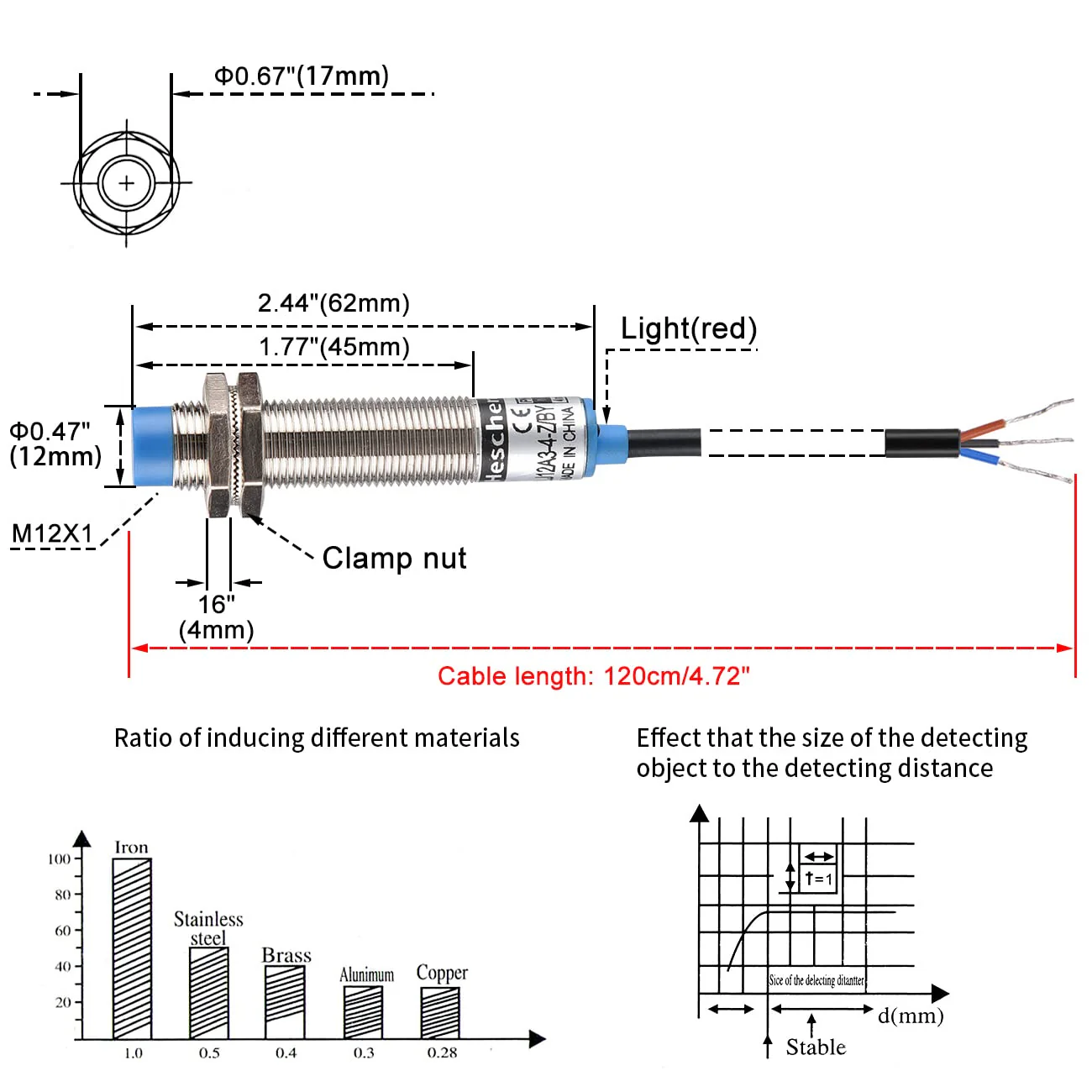

  • Mounting Hole Diameter: 12mm
  • Detecting Distance: 4mm10%; Set distance: 0-3.6mm

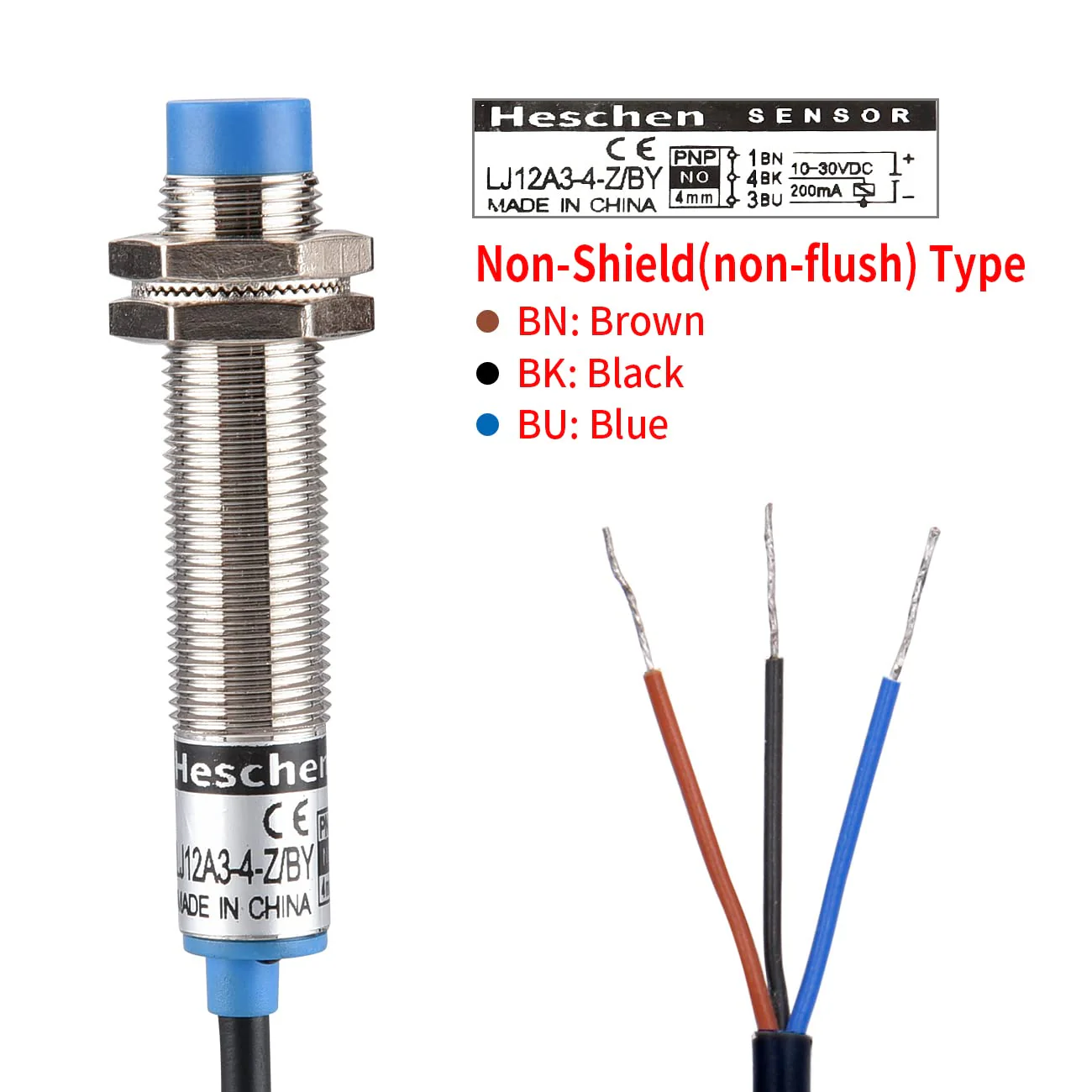

  • Output Type: PNP NO(Normally Open); Non-Shield Type
  • Current Output: 200mA; Working Voltage: 10-30 VDC
  • Detect Object: Magnetic metal
$21.55

Original: $61.57

-65%
M12 Proximity Sensor, Inductive, Non-Shield Type, LJ12A3-4-Z/BY, 4mm, 10-30VDC, 200mA, PNP NO, 3 Wire, Motion Detector Device—

$61.57

$21.55

More Images

M12 Proximity Sensor, Inductive, Non-Shield Type, LJ12A3-4-Z/BY, 4mm, 10-30VDC, 200mA, PNP NO, 3 Wire, Motion Detector Device - Image 2
M12 Proximity Sensor, Inductive, Non-Shield Type, LJ12A3-4-Z/BY, 4mm, 10-30VDC, 200mA, PNP NO, 3 Wire, Motion Detector Device - Image 3
M12 Proximity Sensor, Inductive, Non-Shield Type, LJ12A3-4-Z/BY, 4mm, 10-30VDC, 200mA, PNP NO, 3 Wire, Motion Detector Device - Image 4
M12 Proximity Sensor, Inductive, Non-Shield Type, LJ12A3-4-Z/BY, 4mm, 10-30VDC, 200mA, PNP NO, 3 Wire, Motion Detector Device - Image 5
M12 Proximity Sensor, Inductive, Non-Shield Type, LJ12A3-4-Z/BY, 4mm, 10-30VDC, 200mA, PNP NO, 3 Wire, Motion Detector Device - Image 6
M12 Proximity Sensor, Inductive, Non-Shield Type, LJ12A3-4-Z/BY, 4mm, 10-30VDC, 200mA, PNP NO, 3 Wire, Motion Detector Device - Image 7

M12 Proximity Sensor, Inductive, Non-Shield Type, LJ12A3-4-Z/BY, 4mm, 10-30VDC, 200mA, PNP NO, 3 Wire, Motion Detector Device

M12 Proximity Sensor, Inductive, Non-Shield Type, LJ12A3-4-Z/BY, 4mm, 10-30VDC, 200mA, PNP NO, 3 Wire, Motion Detector Device

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC.Used in common places with medium enviroment resistanceRed LED indicates that it's available to detect the sensor operation stateEconomic and simple operationWidely used, can be substitution of min-type switch and limit switchIP 67 protection

Product Features

  • Mounting Hole Diameter: 12mm
  • Detecting Distance: 4mm10%; Set distance: 0-3.6mm
  • Output Type: PNP NO(Normally Open); Non-Shield Type
  • Current Output: 200mA; Working Voltage: 10-30 VDC
  • Detect Object: Magnetic metal

Product Information

Shipping & Returns

Description

M12 Proximity Sensor, Inductive, Non-Shield Type, LJ12A3-4-Z/BY, 4mm, 10-30VDC, 200mA, PNP NO, 3 Wire, Motion Detector Device

Power supply reversal connection protection; short-circuit protection, can directly connect with PLC.Used in common places with medium enviroment resistanceRed LED indicates that it's available to detect the sensor operation stateEconomic and simple operationWidely used, can be substitution of min-type switch and limit switchIP 67 protection

Product Features

  • Mounting Hole Diameter: 12mm
  • Detecting Distance: 4mm10%; Set distance: 0-3.6mm
  • Output Type: PNP NO(Normally Open); Non-Shield Type
  • Current Output: 200mA; Working Voltage: 10-30 VDC
  • Detect Object: Magnetic metal
