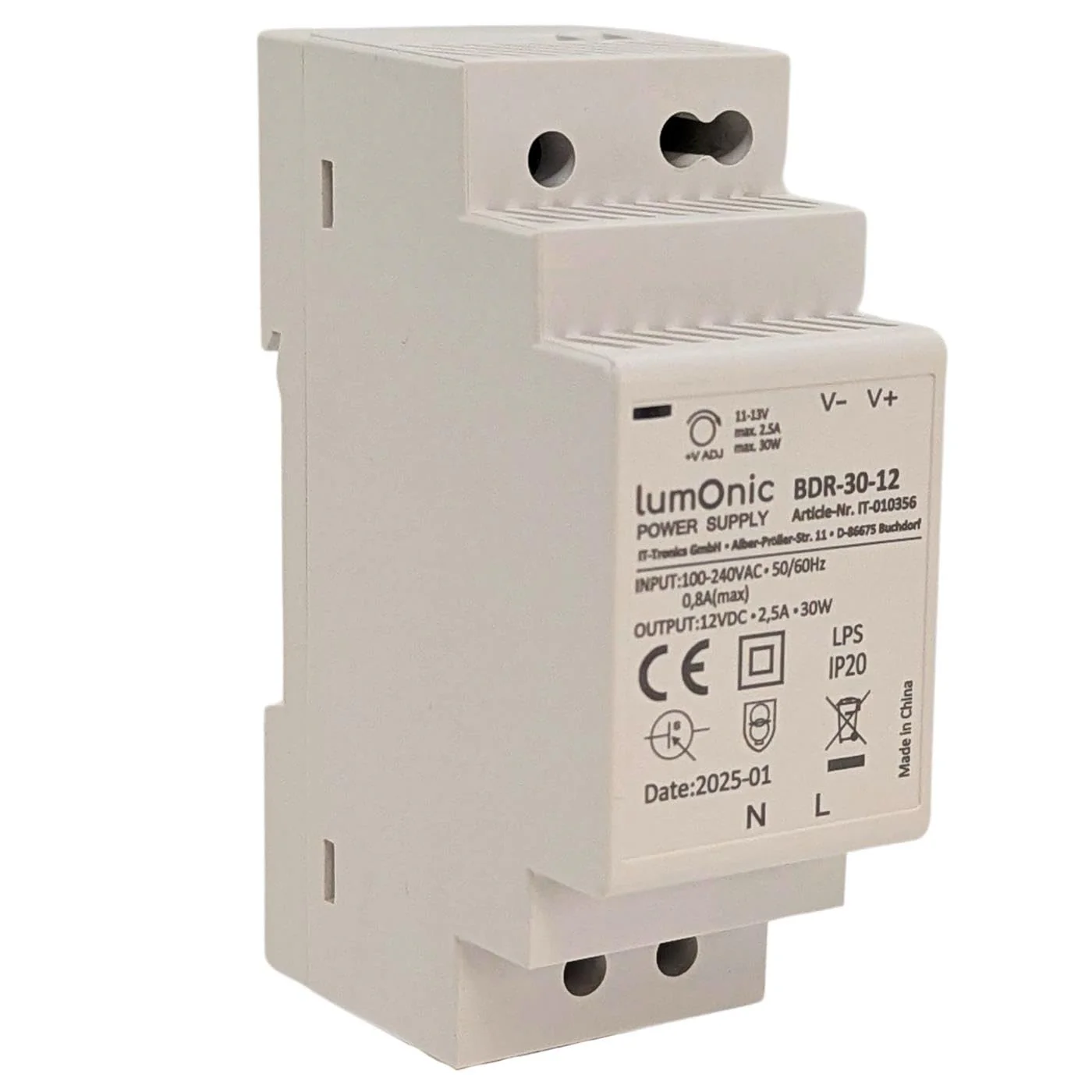

Lumonic I Power Supply DIN Rail BDR-30-12 I 12 V / 30 W I Input 100-240 VAC I Overload Protection & Short Circuit Proof I DIN-Rail Switching Power Supply I Control Cabinet & 12V

Lumonic I Power Supply DIN Rail BDR-30-12 I 12 V / 30 W I Input 100-240 VAC I Overload Protection & Short Circuit Proof I DIN-Rail Switching Power Supply I Control Cabinet &

Product Features

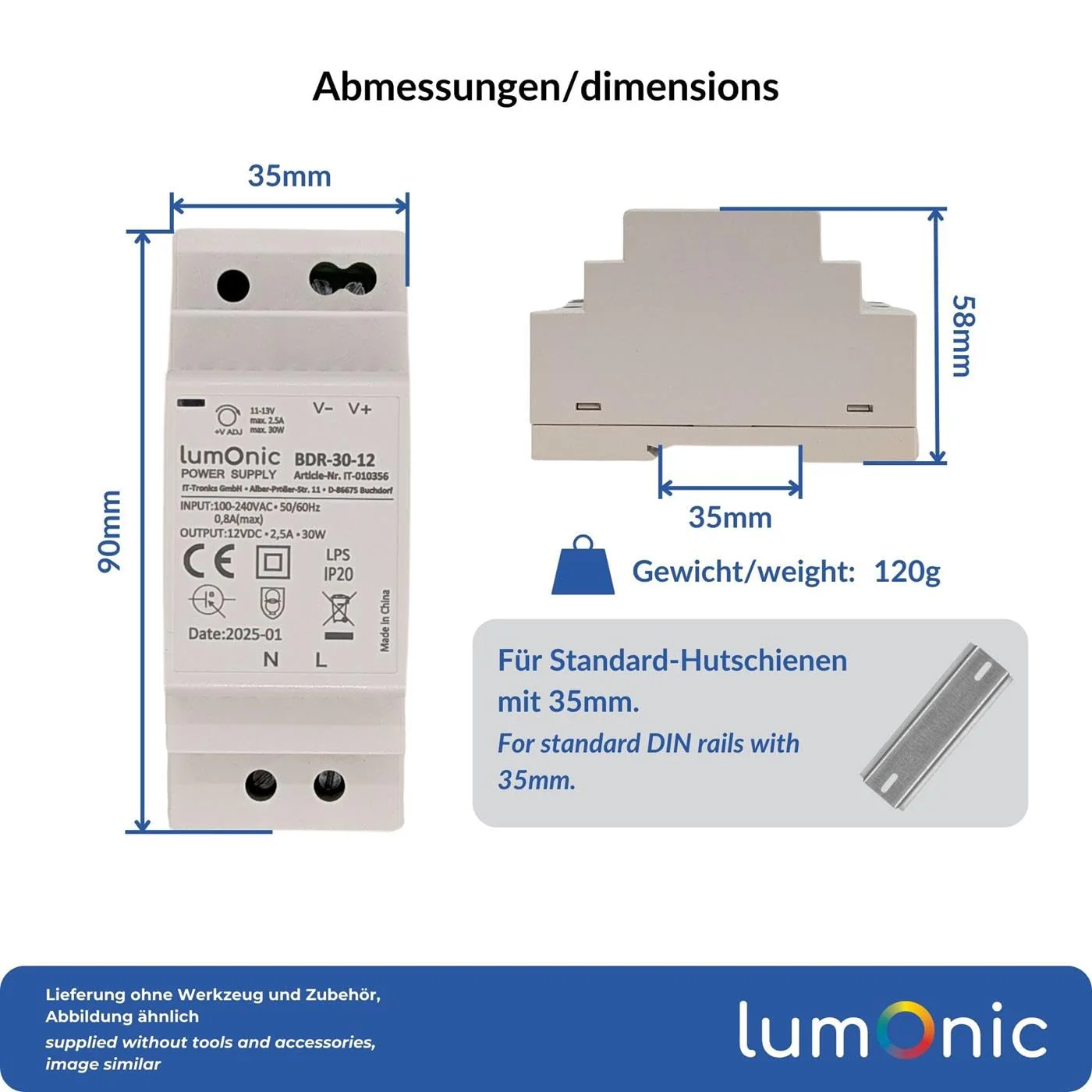

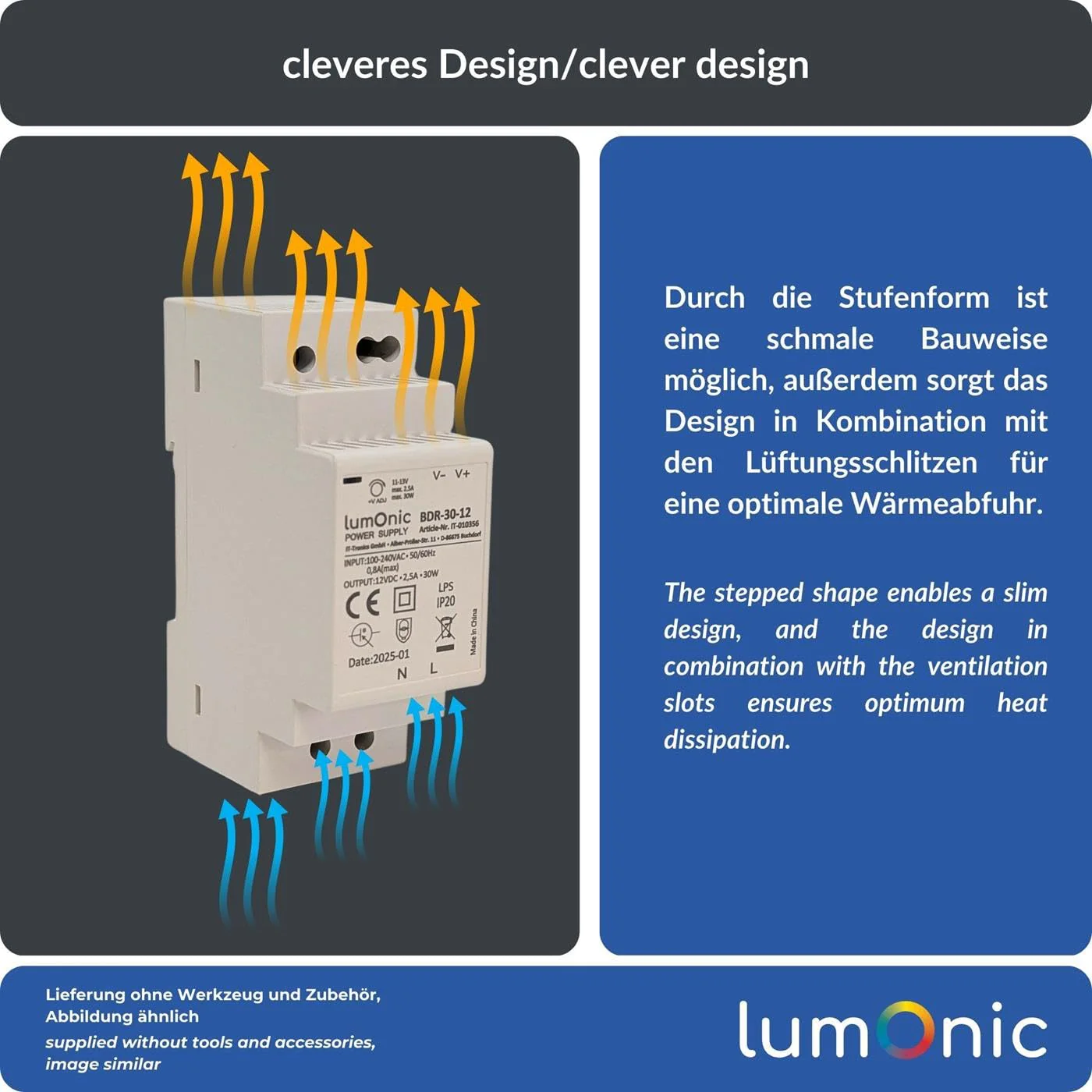

• Compact dimensions: the powerful power supply can be mounted without tools and easily on DIN rails with 35 mm (TS35/7.5 or TS35/15) and with 90 x 35 x 58 mm (L x W x H) requires minimal space in the control cabinet. The connection is via touch-proof screw terminals recessed into the housing for quick and secure installation.

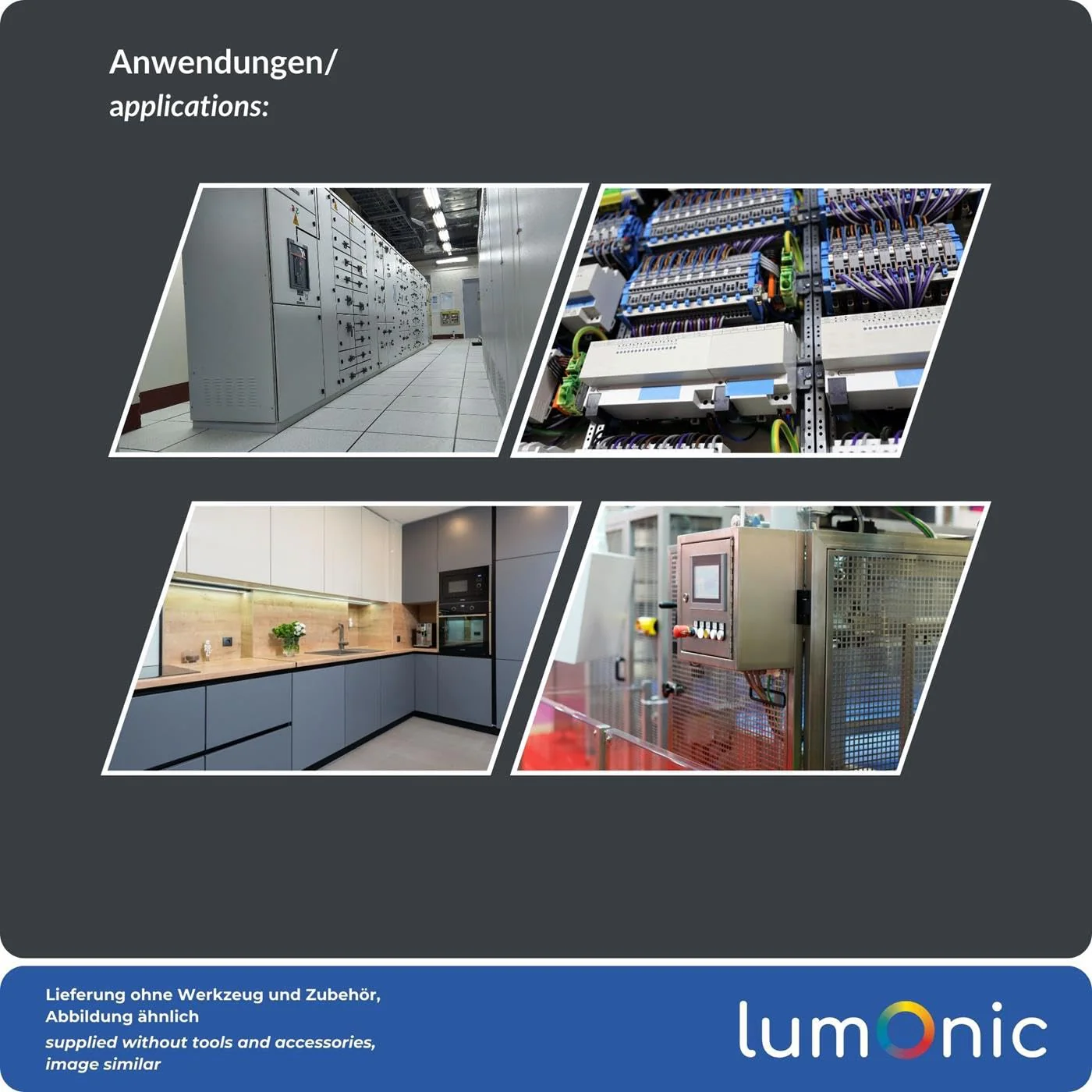

• Reliable performance: The power supply designed for continuous operation is ideal for industrial applications, control cabinet construction, LED lighting, alarm and intercom systems and home automation. A status LED indicates that the device is ready to use. The permissible ambient temperature from -20C to +70C underlines the very wide range of applications.
• Stable power supply: thanks to universal input voltage of 100-240VAC (@50/60Hz), the switching power supply can be used worldwide. The precise 12 V DC output delivers max. 30 W or 2.5 A.
• Fine adjustment and efficiency: a set screw can be used to fine-tune the output voltage between 10.8 - 13.8 VDC with a small screwdriver, so that even sensitive projects are reliably supplied. The power supply also impresses with a high efficiency of 88% as well as excellent ripple and noise values of only 120mVp-p.
• Safety: The short-circuit-proof DIN rail power supply has overvoltage and overload protection. The device complies with the standard BS/EN 62368-1 and complies with protection class II.
