Long Distance Active Video Balun 1 Channel Utp Video Transceiver for CCTV Compatible with All Ahd/Cvi/Tvi/Cvbs Effective Distance 1800M

Long Distance Active Video Balun 1 Channel Utp Video Transceiver for CCTV Compatible with All Ahd/Cvi/Tvi/Cvbs Effective Distance 1800M

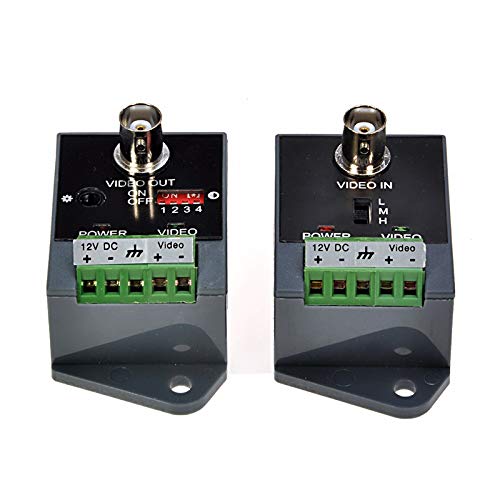

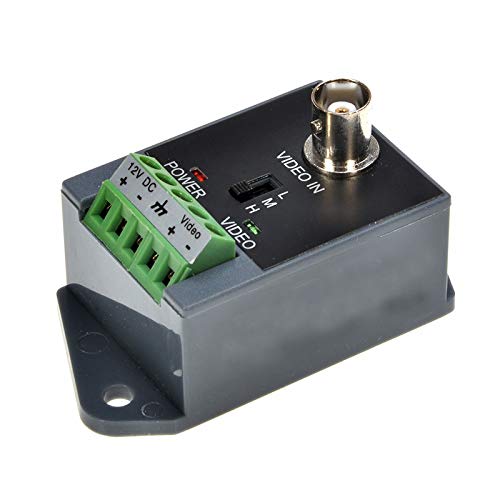

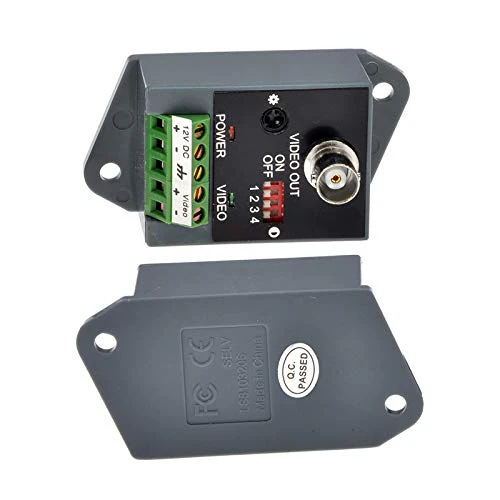

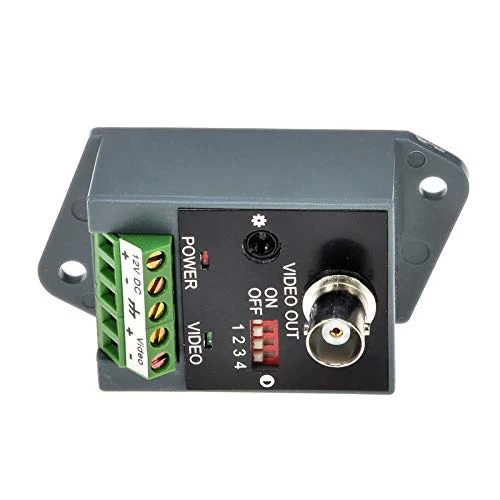

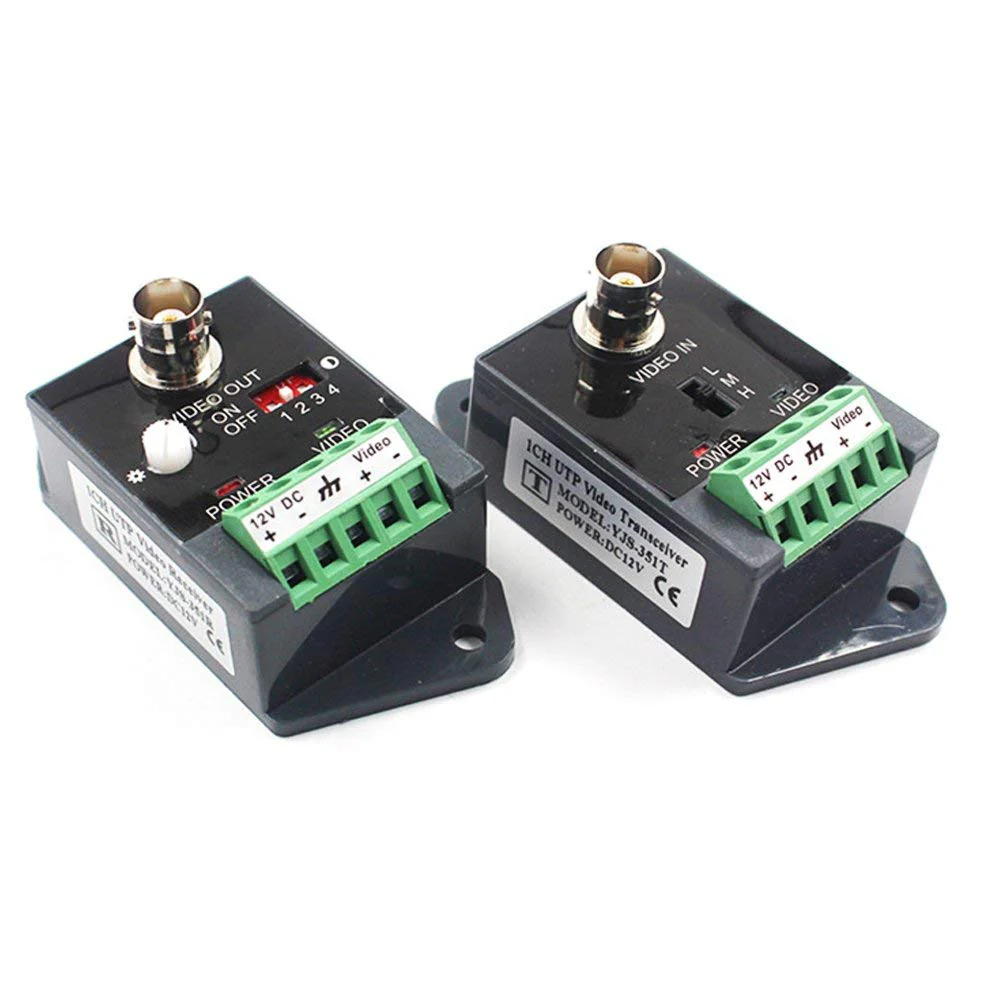

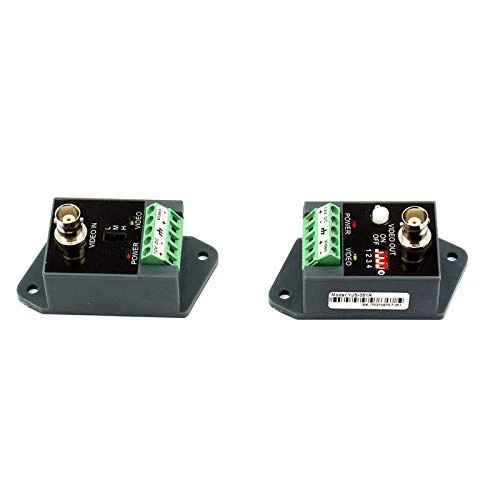

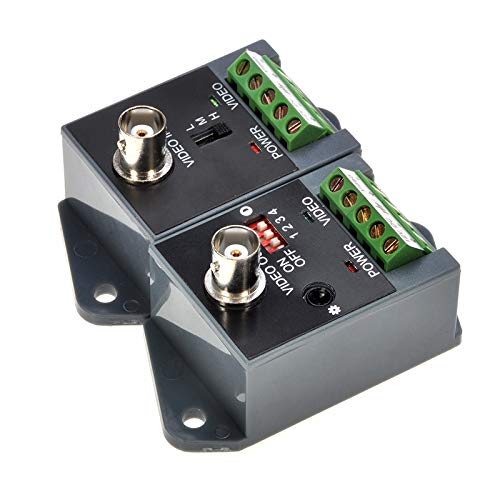

Long distance 1 channel Active Video Balun Video transceiver for CCTV Compatible with all AHD/CVI/TVI/CVBS Descriptions: Single channel Active video transmitter balun. Video transmission via UTP CAT5 or better cable. Full- motion CCTV video at distances up to1800m With Active transmitter Balun,1000m with Passive Balun. Outstanding interference rejection and transient protection. Female BNC allows connection directly to the camera or DVR. Save lots of Extra Money on cable. Specifications:1CH Active video balun transmitter and receiver Video Frequency respons: DC-6MhzDifferential-mode Rejection: 15khz -6Mhz 60dB typeAudio YESImpedance Coax,male BNC:75 ohms Unshielded Twisted Pair: 24-16 AWGCategory Type: Cat5 or betterImpedance: 100 ohms Full motion CCTV video at long distance(Max .9,000ft/1800M) SUPPORT: HD- CVI/AHD/HDTVI/CVBS For HD-AHD: 720P/1200M, 1080P:900M, 300W/400W: 750M For HD- CVI: 720P/1200M, 1080P:900M, 300W/400W: 750M For HD-TVI: 720P/1000M, 1080P:800M, 300W/400W: 650M CVBS:1800M

Product Features

• The unit is a device that allows the transmission of real-time monochrome or color video over Unshilded Twisted Pair telephone wire.
• High quality and long distance transmission for CCTV HD-CVI/AHD/HDTVI/CVBS

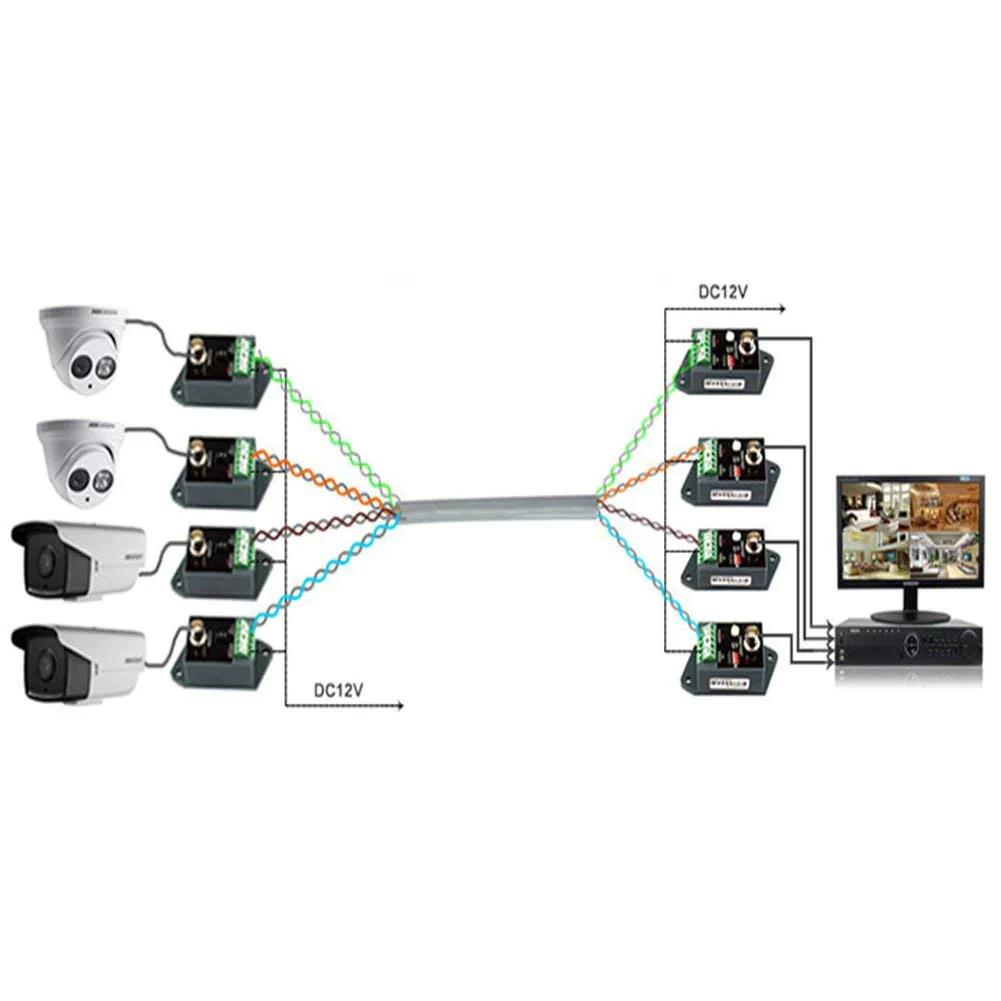

• Enable cost-effective, point to point transmission appliance
• It is ideal for a wide variety of applications such as security, surveillance, video conferencing,elevator surveillance, and P/T/Z control signals.
• Package including : 1 Pair Active HD Video Transceiver
