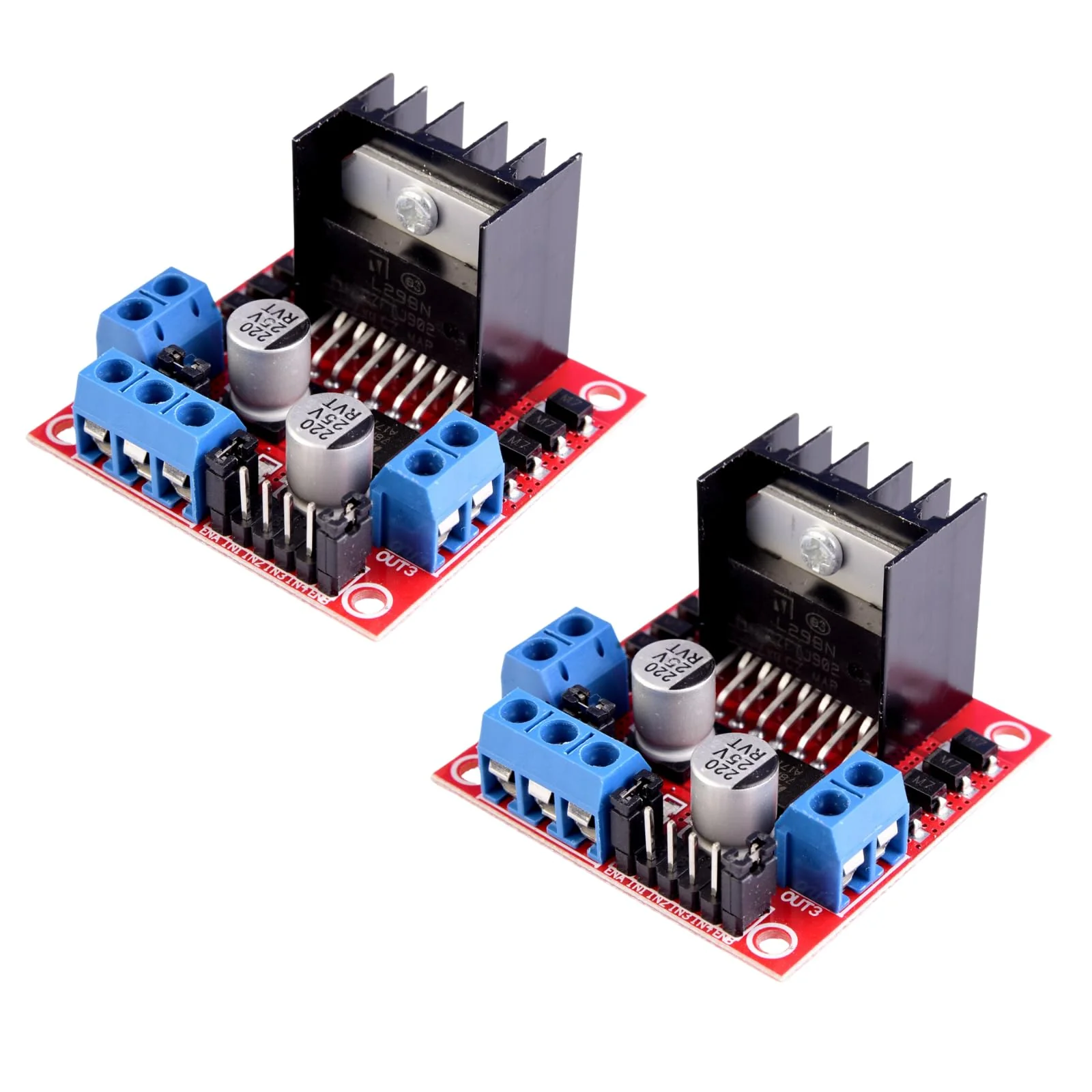

LAOMAO L298N Motor Driver Board Module DC Stepper Motor Robot Smart Car
LAOMAO L298N Motor Driver Board Module DC Stepper Motor Robot Smart Car

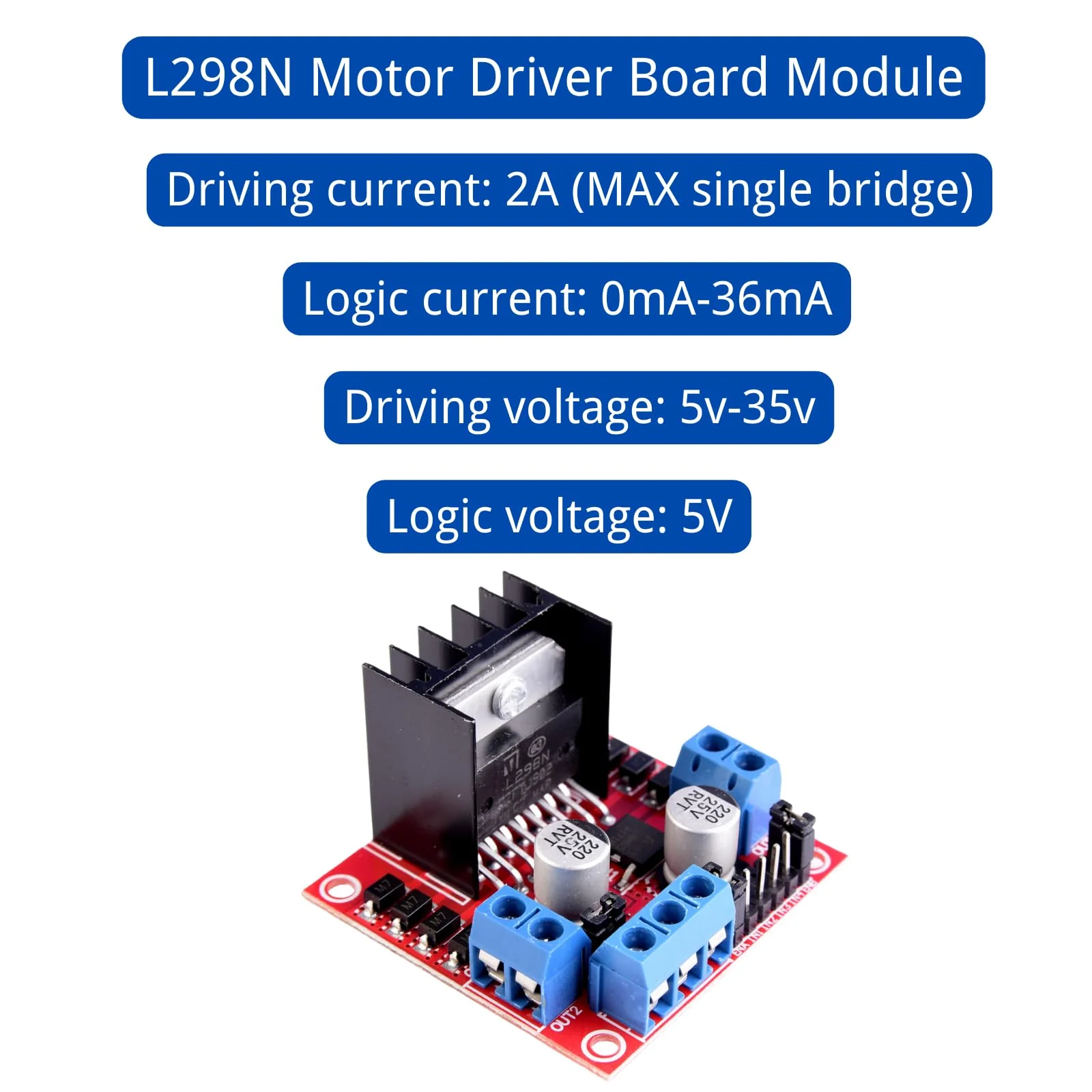

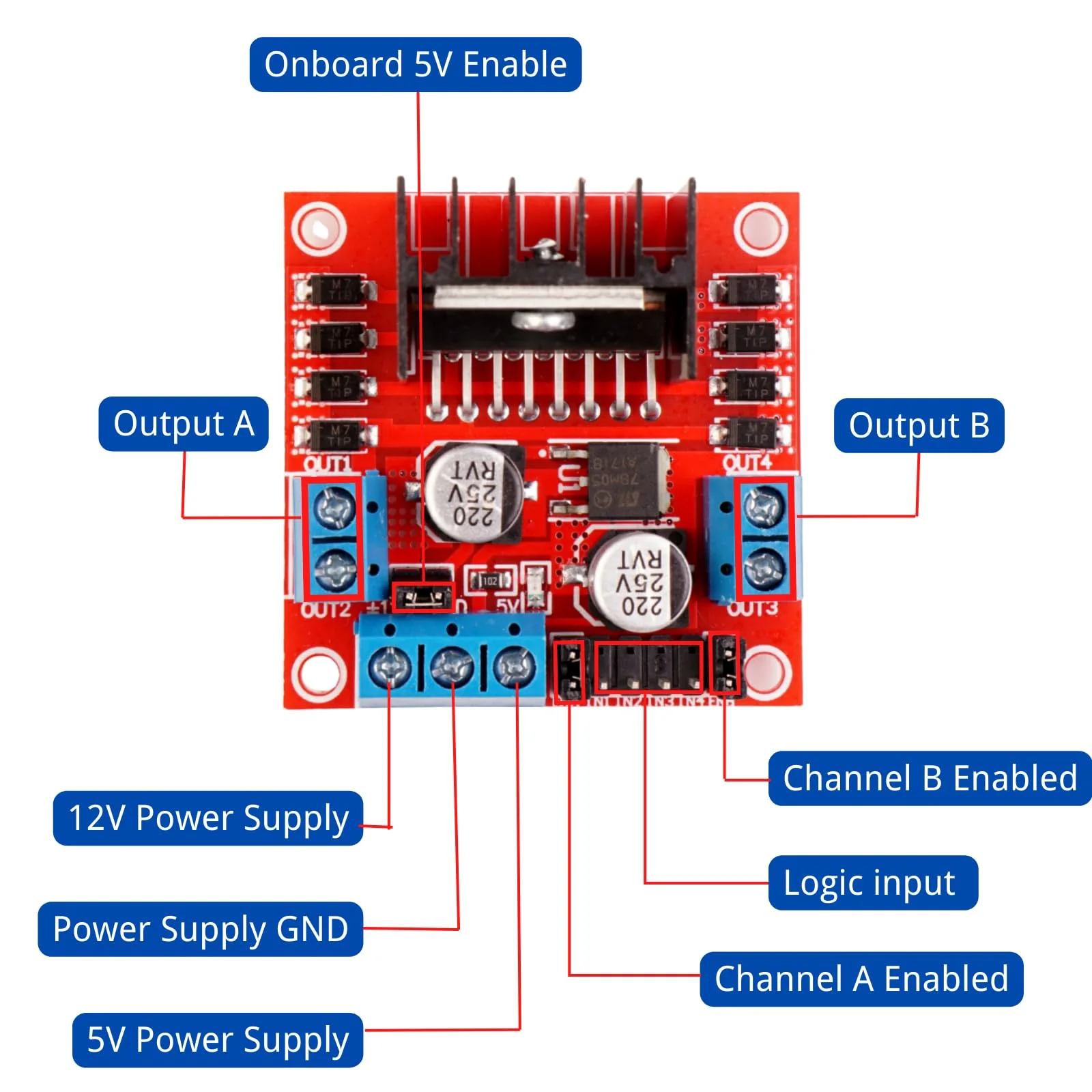

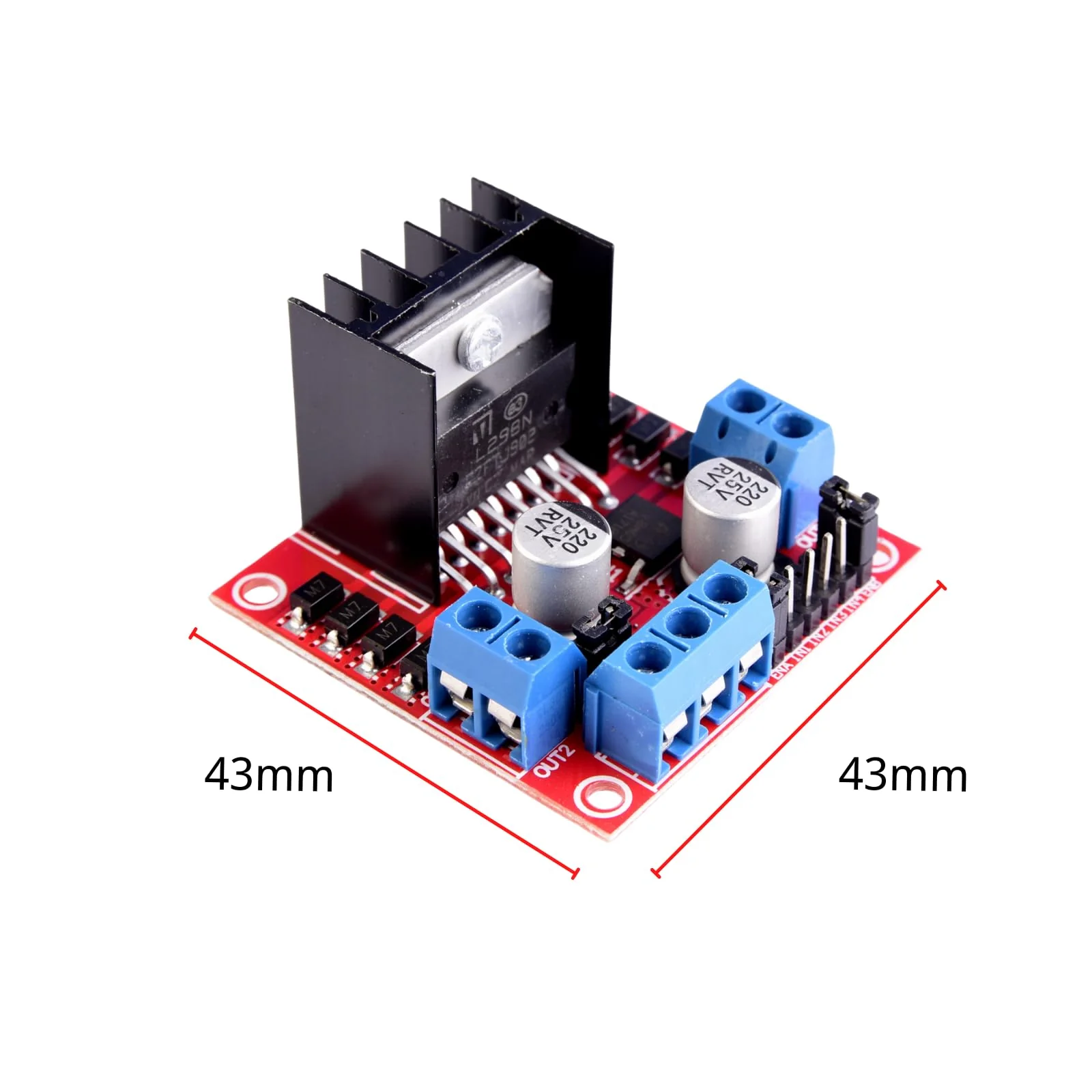

Detailed description: This L298N motor drive controller board is a high- performance module for Arduino smart car, which can work with various devices such as UNO, MEGA R3, Mega2560, etc. to provide a stable and reliable drive for the motor of the smart car. It adopts a dual H-bridge design, which can easily drive DC motors and provide powerful performance for the smart car. With excellent control accuracy, it can accurately adjust the motor speed and direction to meet different movement requirements. Detailed parameters: Module Name: Dual H Bridge Motor Drive Module Working mode: H-bridge drive (dual). Main control chip: L298N Packaging: electrostatic bag. Logical voltage: 5 V. Driver voltage: 5V-35V. Logical current: 0mA-36mA. Driver current: 2A (MAX single bridge). Storage temperature: -20 °C to +135 °C. Maximum power: 25 W. Weight: 30 g. Outer dimensions: 43 x 43 x 27 mm. Precautions: 1. If your drive voltage (marked above as 12V input, the actual permissible input range is 7-12V) 7V. -12 V, you can use the on-board 5V logic power supply if you use the on-board 5V power supply, the interface in the +5V When the on-board 5V supply is used, the +5V supply in the interface does not require input voltage, but can subtract 5V for external use. (This is a conventional application!) 2. If the drive voltage is higher than 12V and less than or equal to 24V (the manual of the chip suggests that it can support up to 35V, but this is a matter of experience). (The manual of the chip suggests that it can support up to 35 V, but according to the experience of the general 298 conservative applications, the maximum voltage support up to 24 V is already very impressive!) For example, if you have a motor with a rated voltage of 18 V, for example a motor with a nominal voltage of 18 V. First, the jumper cap that activates the 5V output must be removed from the board. Then the 5V output port is connected externally to the 5V enable. The 5V release is a control signal with a level of 5V. If this signal input is valid and the power supply in the motor driver module is normal, the motor driver module outputs power. Otherwise, no electricity will flow on the motor even with normal power supply. The voltage is supplied to the internal logic circuit of the L298N. (This is a non-conventional application of the high voltage drive)
Product Features
- 1. This module adopts L298N as the main driver chip, with strong drive ability, low heat generation and strong anti-interference ability
- 2.Multifunctional drive capability: L298N motor driver board module has a powerful drive function, can drive two DC motors or one two phase stepper motor at the same time, easily meet the diverse needs of a variety of robots, intelligent vehicle projects for motor drive
- 3. This module adopts high-capacity filter capacitors and connection protection diodes that can improve reliability
- 4. High-quality electronic components: high-quality electronic components are used in production, after strict quality control to ensure that each L298N engine driver board module has stable performance, low failure rate, for the reliable operation of the entire robot or intelligent vehicle system, to provide a strong warranty
- 5. Widely used scenarios: suitable for all types of robotics production, such as Education robots, service robots, inspection robots, etc. but also in the intelligent vehicle model, automation technology and many other areas with excellent performance, versatility to meet the creativity and project needs of different user groups.
Original: $86.20
-65%$86.20
$30.17More Images
LAOMAO L298N Motor Driver Board Module DC Stepper Motor Robot Smart Car
LAOMAO L298N Motor Driver Board Module DC Stepper Motor Robot Smart Car
Detailed description: This L298N motor drive controller board is a high- performance module for Arduino smart car, which can work with various devices such as UNO, MEGA R3, Mega2560, etc. to provide a stable and reliable drive for the motor of the smart car. It adopts a dual H-bridge design, which can easily drive DC motors and provide powerful performance for the smart car. With excellent control accuracy, it can accurately adjust the motor speed and direction to meet different movement requirements. Detailed parameters: Module Name: Dual H Bridge Motor Drive Module Working mode: H-bridge drive (dual). Main control chip: L298N Packaging: electrostatic bag. Logical voltage: 5 V. Driver voltage: 5V-35V. Logical current: 0mA-36mA. Driver current: 2A (MAX single bridge). Storage temperature: -20 °C to +135 °C. Maximum power: 25 W. Weight: 30 g. Outer dimensions: 43 x 43 x 27 mm. Precautions: 1. If your drive voltage (marked above as 12V input, the actual permissible input range is 7-12V) 7V. -12 V, you can use the on-board 5V logic power supply if you use the on-board 5V power supply, the interface in the +5V When the on-board 5V supply is used, the +5V supply in the interface does not require input voltage, but can subtract 5V for external use. (This is a conventional application!) 2. If the drive voltage is higher than 12V and less than or equal to 24V (the manual of the chip suggests that it can support up to 35V, but this is a matter of experience). (The manual of the chip suggests that it can support up to 35 V, but according to the experience of the general 298 conservative applications, the maximum voltage support up to 24 V is already very impressive!) For example, if you have a motor with a rated voltage of 18 V, for example a motor with a nominal voltage of 18 V. First, the jumper cap that activates the 5V output must be removed from the board. Then the 5V output port is connected externally to the 5V enable. The 5V release is a control signal with a level of 5V. If this signal input is valid and the power supply in the motor driver module is normal, the motor driver module outputs power. Otherwise, no electricity will flow on the motor even with normal power supply. The voltage is supplied to the internal logic circuit of the L298N. (This is a non-conventional application of the high voltage drive)
Product Features
- 1. This module adopts L298N as the main driver chip, with strong drive ability, low heat generation and strong anti-interference ability
- 2.Multifunctional drive capability: L298N motor driver board module has a powerful drive function, can drive two DC motors or one two phase stepper motor at the same time, easily meet the diverse needs of a variety of robots, intelligent vehicle projects for motor drive
- 3. This module adopts high-capacity filter capacitors and connection protection diodes that can improve reliability
- 4. High-quality electronic components: high-quality electronic components are used in production, after strict quality control to ensure that each L298N engine driver board module has stable performance, low failure rate, for the reliable operation of the entire robot or intelligent vehicle system, to provide a strong warranty
- 5. Widely used scenarios: suitable for all types of robotics production, such as Education robots, service robots, inspection robots, etc. but also in the intelligent vehicle model, automation technology and many other areas with excellent performance, versatility to meet the creativity and project needs of different user groups.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
LAOMAO L298N Motor Driver Board Module DC Stepper Motor Robot Smart Car
Detailed description: This L298N motor drive controller board is a high- performance module for Arduino smart car, which can work with various devices such as UNO, MEGA R3, Mega2560, etc. to provide a stable and reliable drive for the motor of the smart car. It adopts a dual H-bridge design, which can easily drive DC motors and provide powerful performance for the smart car. With excellent control accuracy, it can accurately adjust the motor speed and direction to meet different movement requirements. Detailed parameters: Module Name: Dual H Bridge Motor Drive Module Working mode: H-bridge drive (dual). Main control chip: L298N Packaging: electrostatic bag. Logical voltage: 5 V. Driver voltage: 5V-35V. Logical current: 0mA-36mA. Driver current: 2A (MAX single bridge). Storage temperature: -20 °C to +135 °C. Maximum power: 25 W. Weight: 30 g. Outer dimensions: 43 x 43 x 27 mm. Precautions: 1. If your drive voltage (marked above as 12V input, the actual permissible input range is 7-12V) 7V. -12 V, you can use the on-board 5V logic power supply if you use the on-board 5V power supply, the interface in the +5V When the on-board 5V supply is used, the +5V supply in the interface does not require input voltage, but can subtract 5V for external use. (This is a conventional application!) 2. If the drive voltage is higher than 12V and less than or equal to 24V (the manual of the chip suggests that it can support up to 35V, but this is a matter of experience). (The manual of the chip suggests that it can support up to 35 V, but according to the experience of the general 298 conservative applications, the maximum voltage support up to 24 V is already very impressive!) For example, if you have a motor with a rated voltage of 18 V, for example a motor with a nominal voltage of 18 V. First, the jumper cap that activates the 5V output must be removed from the board. Then the 5V output port is connected externally to the 5V enable. The 5V release is a control signal with a level of 5V. If this signal input is valid and the power supply in the motor driver module is normal, the motor driver module outputs power. Otherwise, no electricity will flow on the motor even with normal power supply. The voltage is supplied to the internal logic circuit of the L298N. (This is a non-conventional application of the high voltage drive)
Product Features
- 1. This module adopts L298N as the main driver chip, with strong drive ability, low heat generation and strong anti-interference ability
- 2.Multifunctional drive capability: L298N motor driver board module has a powerful drive function, can drive two DC motors or one two phase stepper motor at the same time, easily meet the diverse needs of a variety of robots, intelligent vehicle projects for motor drive
- 3. This module adopts high-capacity filter capacitors and connection protection diodes that can improve reliability
- 4. High-quality electronic components: high-quality electronic components are used in production, after strict quality control to ensure that each L298N engine driver board module has stable performance, low failure rate, for the reliable operation of the entire robot or intelligent vehicle system, to provide a strong warranty
- 5. Widely used scenarios: suitable for all types of robotics production, such as Education robots, service robots, inspection robots, etc. but also in the intelligent vehicle model, automation technology and many other areas with excellent performance, versatility to meet the creativity and project needs of different user groups.
