L298P Motor Driver Module H-Bridge Driver Shield Expansion Board Speed Controller High-Power DC Stepper Motor Controller Bluetooth Interface with 24AWG Cable for Arduino
L298P Motor Driver Module H-Bridge Driver Shield Expansion Board Speed Controller High-Power DC Stepper Motor Controller Bluetooth Interface with 24AWG Cable for Arduino
L298P Motor Driver Module H-Bridge Driver Shield Expansion Board Speed Controller High-Power DC Stepper Motor Controller Bluetooth Interface with 24AWG Cable for Arduino

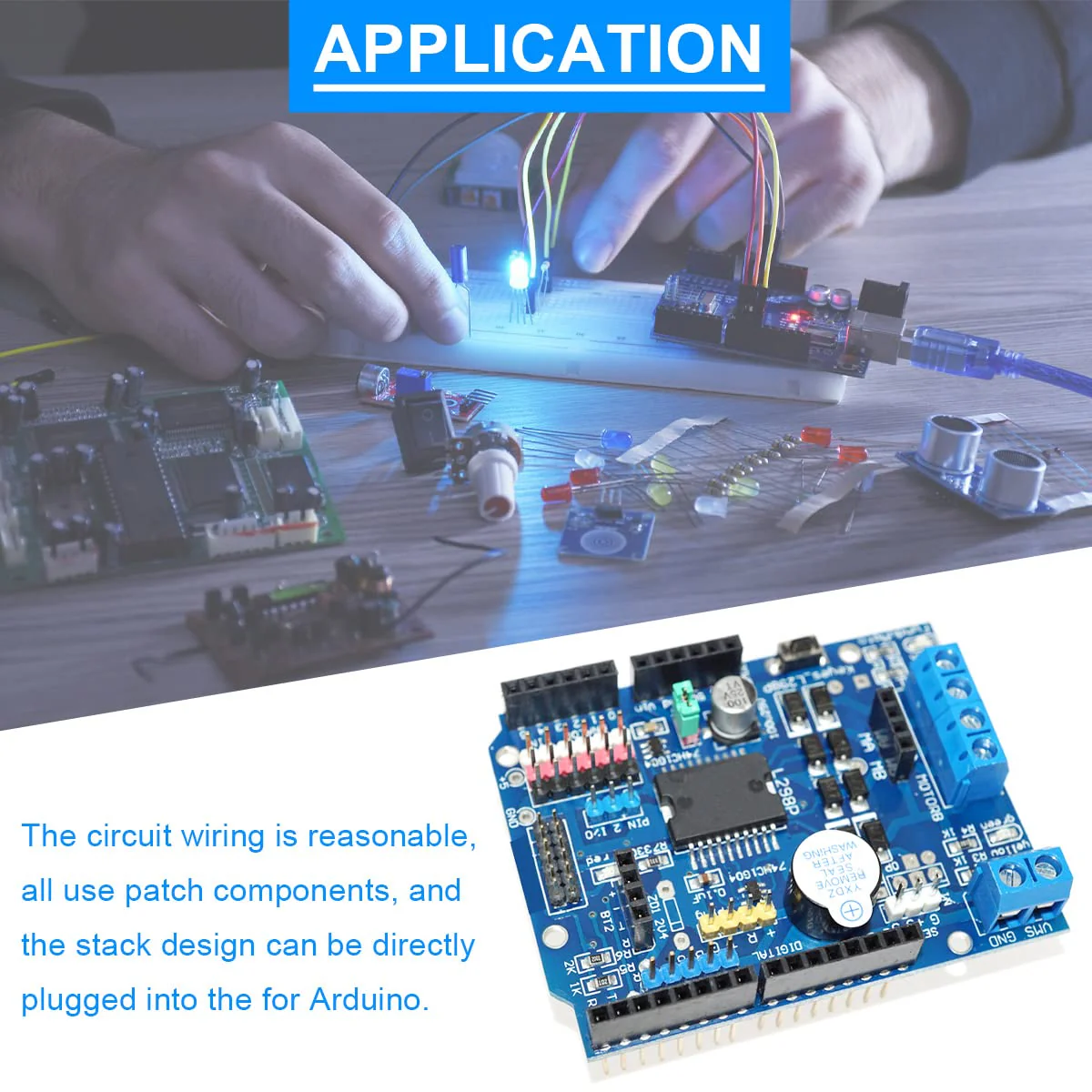

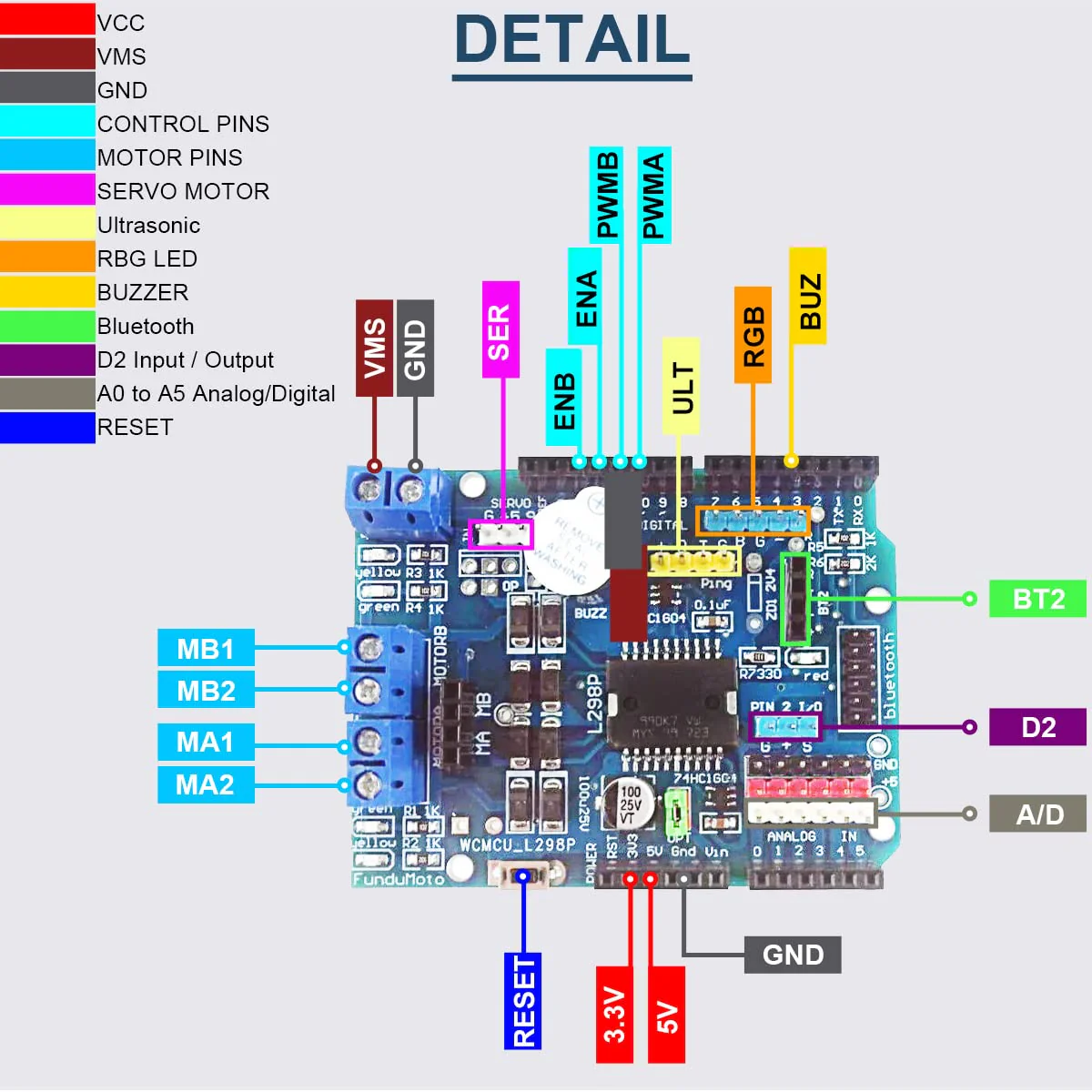

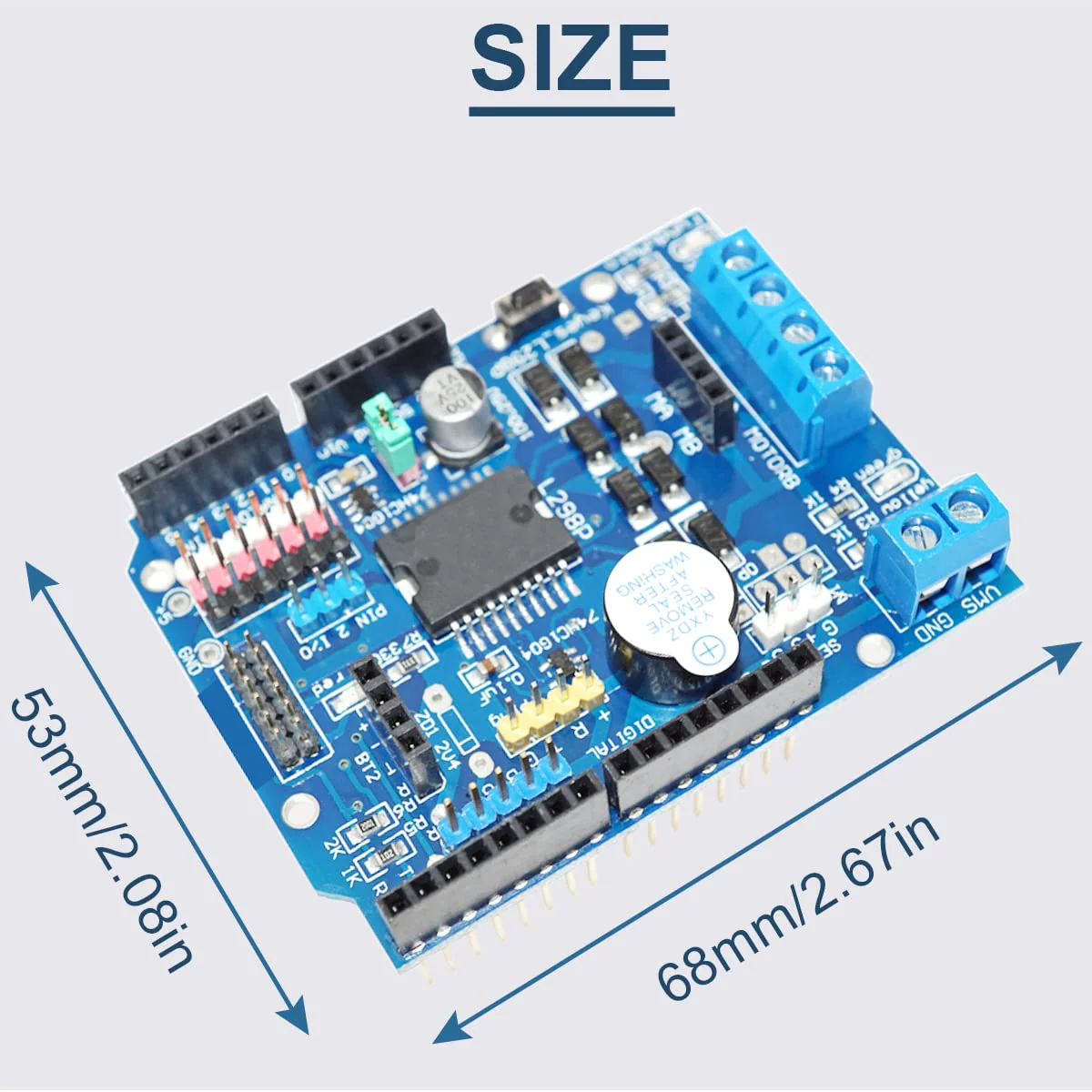

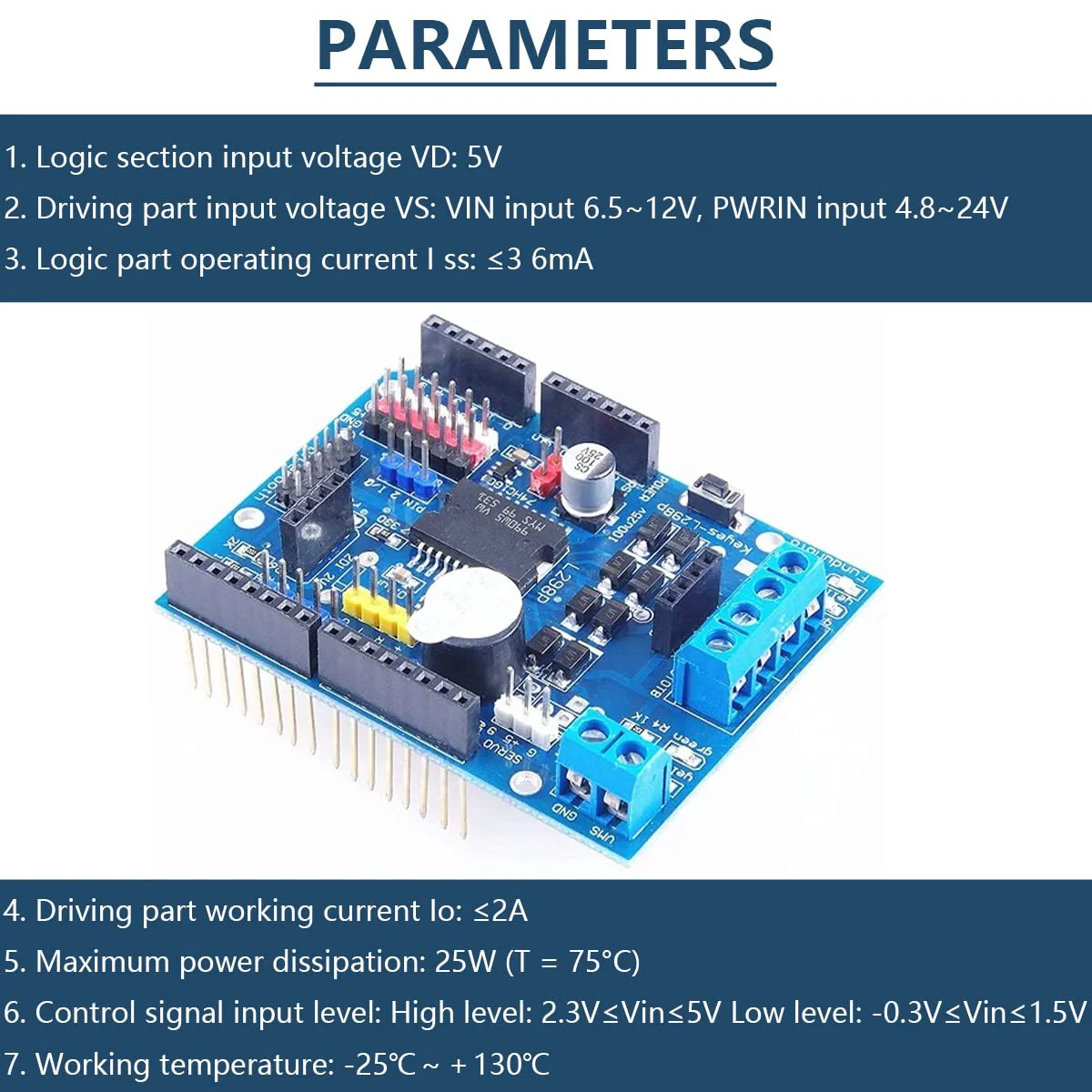

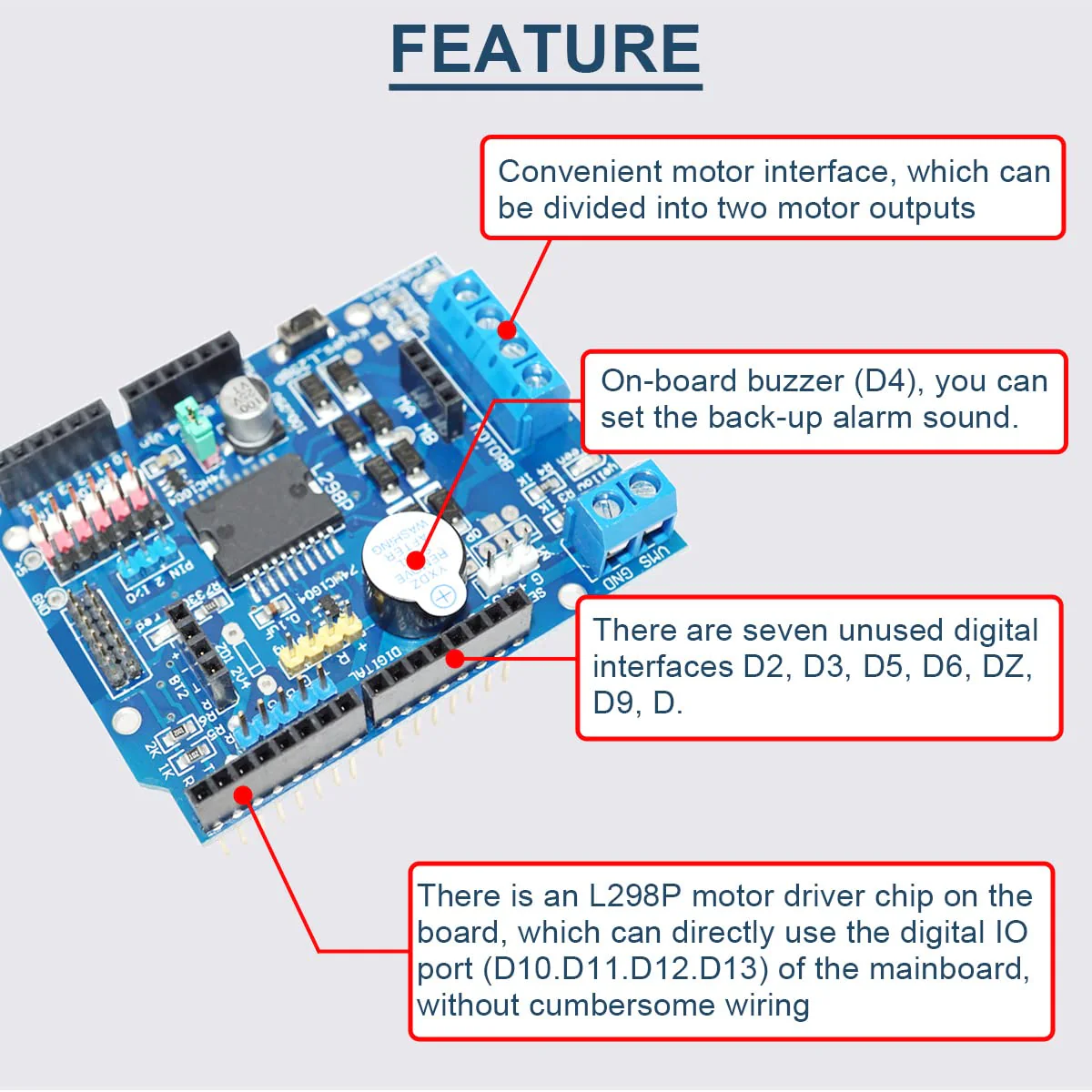

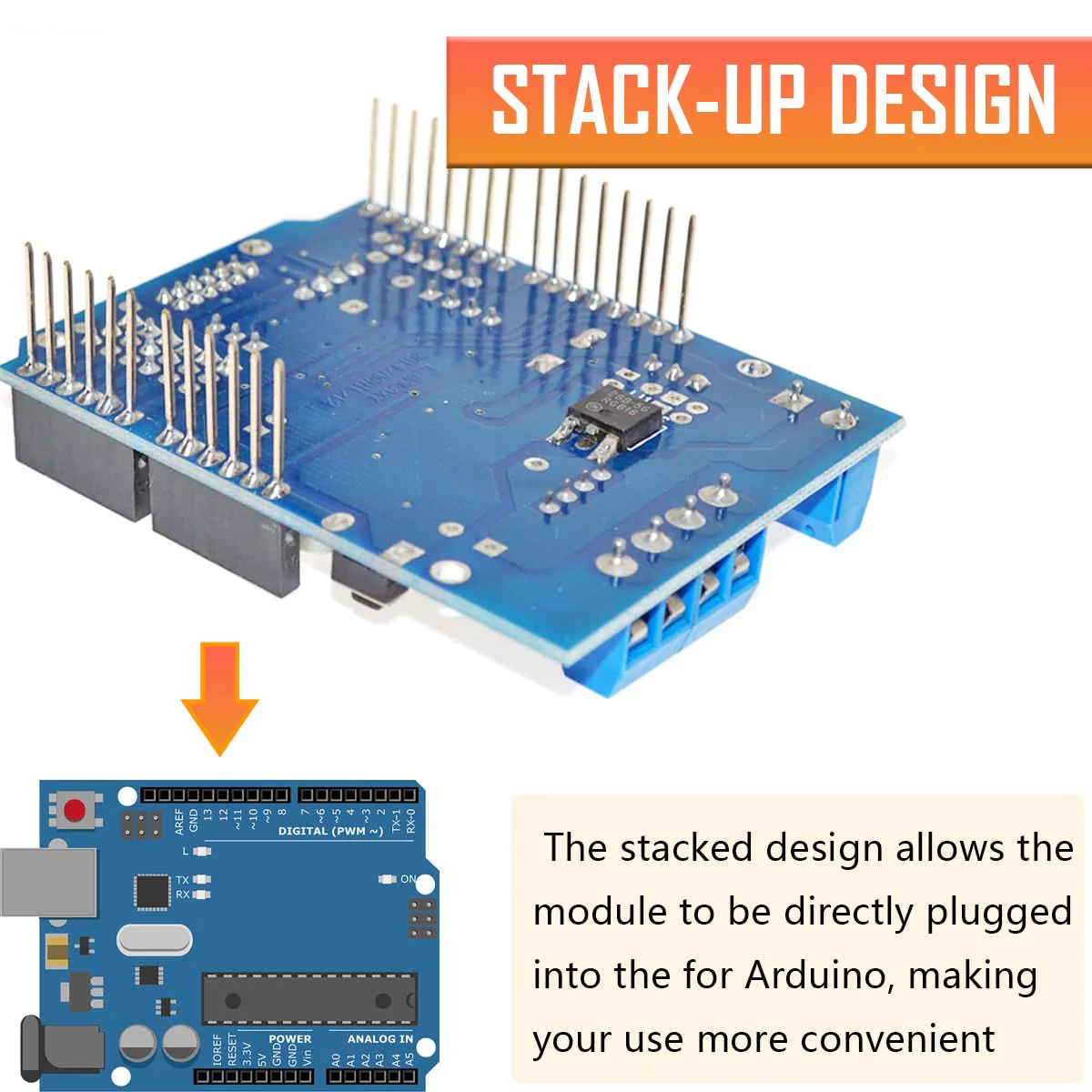

Description: Adopt dedicated high-power motor driver chip L298P which can directly drive two DC motors with drive current up to 2A. Use eight high-speed Schottky diodes at motor output as protection. Stack design can be directly plugged into the for Arduino, easier to use. The L298P shield DC motor driver has PWM speed control mode; dual high-power H-bridge driver. Technical Specification: 1. Logic part input voltage VD: 5V; 2. Drive part of the input voltage VS: VIN: 6.5 ~ 12V, PWR IN: 4.8 ~ 24V; 3. Logic part of the working current Iss: less than or equal to 3 6 m A; 4. Drive part of the operating current I o: less than or equal to 2 A; 5. Maximum dissipation power: 25W (T = 7 5 ℃); 6. Control signal input level: high level: 2.3V less than or equal to Vin less than or equal to 5V; low level: - 0.3 V less than or equal to V i n less than or equal to 1.5 V; 7. Operating temperature: - 2 5 ℃ ~ + 1 3 0 ℃; 8. Drive: high power dual H bridge drive; 9. Size: 68 x 53mm/2.67 x 2.08in Features: 1.The board with L298P motor drive chip, directly with the motherboard digital IO port (D10, D11, D12, D13), without cumbersome wiring. 2. Onboard buzzer (D4), you can set the reverse alarm ringtones. 3. Convenient motor interface, can be divided into two motor output. 4. Two-way Bluetooth interface, you can directly plug, no wiring. 5. D2, D3, D5, D6, D7, D9, and D seven are not occupied by the digital interface. 6. A 0 - A 5 six analog interfaces. 7. Forward and backward steering are indicators. Package Includes: 1 x L298P Motor Driver Module 2 x 50cm/19.6inch 24AWG Cable
Product Features
- Description: Use eight high-speed Schottky diodes at motor output as protection.The motor can be powered using the for Arduino VIN input or the binding post input on the driver, toggled with jumpers.
- High performance: Control signal input level: High 2.3V low -0.3V; Belt clip and can be controlled via front row access signal; 1Drive Type: Dual power H-bridge driver; Pin occupancy: D4 ~ D7 direct drive motor; Supports PWM / PLL mode motor speed control
- L298P chip: Adopt dedicated high-power motor driver chip L298P which can directly drive two DC motors with drive current up to 2A. The L298P shield DC motor driver has PWM speed control mode; dual high-power H-bridge driver

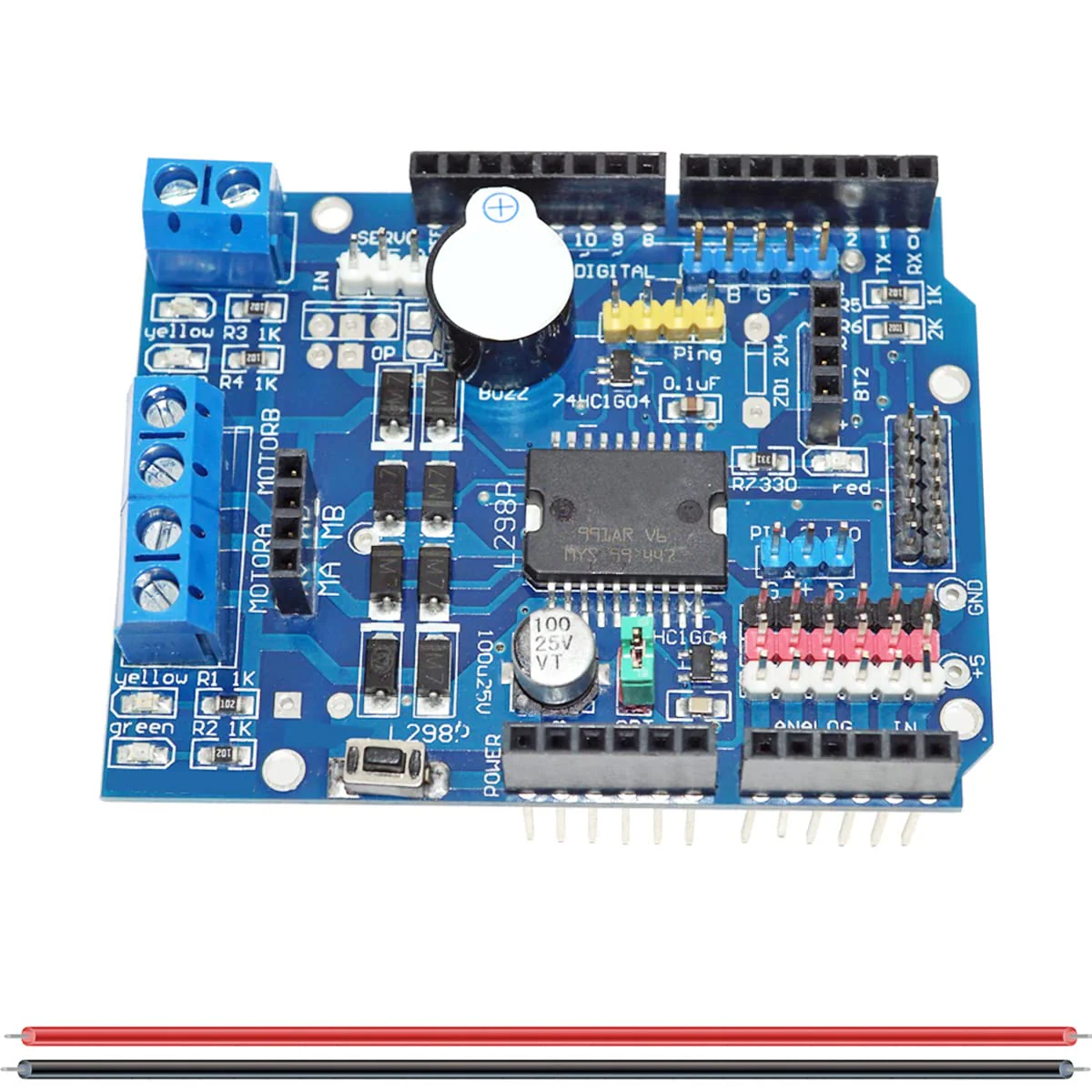

- Package includes: You will get 1 x L298P Motor Driver Module, 1 x 50cm/19.6inch 24AWG Cable.
Original: $70.99
-65%$70.99
$24.85More Images
L298P Motor Driver Module H-Bridge Driver Shield Expansion Board Speed Controller High-Power DC Stepper Motor Controller Bluetooth Interface with 24AWG Cable for Arduino
L298P Motor Driver Module H-Bridge Driver Shield Expansion Board Speed Controller High-Power DC Stepper Motor Controller Bluetooth Interface with 24AWG Cable for Arduino
Description: Adopt dedicated high-power motor driver chip L298P which can directly drive two DC motors with drive current up to 2A. Use eight high-speed Schottky diodes at motor output as protection. Stack design can be directly plugged into the for Arduino, easier to use. The L298P shield DC motor driver has PWM speed control mode; dual high-power H-bridge driver. Technical Specification: 1. Logic part input voltage VD: 5V; 2. Drive part of the input voltage VS: VIN: 6.5 ~ 12V, PWR IN: 4.8 ~ 24V; 3. Logic part of the working current Iss: less than or equal to 3 6 m A; 4. Drive part of the operating current I o: less than or equal to 2 A; 5. Maximum dissipation power: 25W (T = 7 5 ℃); 6. Control signal input level: high level: 2.3V less than or equal to Vin less than or equal to 5V; low level: - 0.3 V less than or equal to V i n less than or equal to 1.5 V; 7. Operating temperature: - 2 5 ℃ ~ + 1 3 0 ℃; 8. Drive: high power dual H bridge drive; 9. Size: 68 x 53mm/2.67 x 2.08in Features: 1.The board with L298P motor drive chip, directly with the motherboard digital IO port (D10, D11, D12, D13), without cumbersome wiring. 2. Onboard buzzer (D4), you can set the reverse alarm ringtones. 3. Convenient motor interface, can be divided into two motor output. 4. Two-way Bluetooth interface, you can directly plug, no wiring. 5. D2, D3, D5, D6, D7, D9, and D seven are not occupied by the digital interface. 6. A 0 - A 5 six analog interfaces. 7. Forward and backward steering are indicators. Package Includes: 1 x L298P Motor Driver Module 2 x 50cm/19.6inch 24AWG Cable
Product Features
- Description: Use eight high-speed Schottky diodes at motor output as protection.The motor can be powered using the for Arduino VIN input or the binding post input on the driver, toggled with jumpers.
- High performance: Control signal input level: High 2.3V low -0.3V; Belt clip and can be controlled via front row access signal; 1Drive Type: Dual power H-bridge driver; Pin occupancy: D4 ~ D7 direct drive motor; Supports PWM / PLL mode motor speed control
- L298P chip: Adopt dedicated high-power motor driver chip L298P which can directly drive two DC motors with drive current up to 2A. The L298P shield DC motor driver has PWM speed control mode; dual high-power H-bridge driver
- Package includes: You will get 1 x L298P Motor Driver Module, 1 x 50cm/19.6inch 24AWG Cable.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
L298P Motor Driver Module H-Bridge Driver Shield Expansion Board Speed Controller High-Power DC Stepper Motor Controller Bluetooth Interface with 24AWG Cable for Arduino
Description: Adopt dedicated high-power motor driver chip L298P which can directly drive two DC motors with drive current up to 2A. Use eight high-speed Schottky diodes at motor output as protection. Stack design can be directly plugged into the for Arduino, easier to use. The L298P shield DC motor driver has PWM speed control mode; dual high-power H-bridge driver. Technical Specification: 1. Logic part input voltage VD: 5V; 2. Drive part of the input voltage VS: VIN: 6.5 ~ 12V, PWR IN: 4.8 ~ 24V; 3. Logic part of the working current Iss: less than or equal to 3 6 m A; 4. Drive part of the operating current I o: less than or equal to 2 A; 5. Maximum dissipation power: 25W (T = 7 5 ℃); 6. Control signal input level: high level: 2.3V less than or equal to Vin less than or equal to 5V; low level: - 0.3 V less than or equal to V i n less than or equal to 1.5 V; 7. Operating temperature: - 2 5 ℃ ~ + 1 3 0 ℃; 8. Drive: high power dual H bridge drive; 9. Size: 68 x 53mm/2.67 x 2.08in Features: 1.The board with L298P motor drive chip, directly with the motherboard digital IO port (D10, D11, D12, D13), without cumbersome wiring. 2. Onboard buzzer (D4), you can set the reverse alarm ringtones. 3. Convenient motor interface, can be divided into two motor output. 4. Two-way Bluetooth interface, you can directly plug, no wiring. 5. D2, D3, D5, D6, D7, D9, and D seven are not occupied by the digital interface. 6. A 0 - A 5 six analog interfaces. 7. Forward and backward steering are indicators. Package Includes: 1 x L298P Motor Driver Module 2 x 50cm/19.6inch 24AWG Cable
Product Features
- Description: Use eight high-speed Schottky diodes at motor output as protection.The motor can be powered using the for Arduino VIN input or the binding post input on the driver, toggled with jumpers.
- High performance: Control signal input level: High 2.3V low -0.3V; Belt clip and can be controlled via front row access signal; 1Drive Type: Dual power H-bridge driver; Pin occupancy: D4 ~ D7 direct drive motor; Supports PWM / PLL mode motor speed control
- L298P chip: Adopt dedicated high-power motor driver chip L298P which can directly drive two DC motors with drive current up to 2A. The L298P shield DC motor driver has PWM speed control mode; dual high-power H-bridge driver
- Package includes: You will get 1 x L298P Motor Driver Module, 1 x 50cm/19.6inch 24AWG Cable.
