K9DP QRP AM Broadcast Interference BCI Filter Male/Female BNC - Compatible with Xiegu X6100, X5105, G90, G106, SDR receivers, HF Amateur Radios
K9DP QRP AM Broadcast Interference BCI Filter Male/Female BNC - Compatible with Xiegu X6100, X5105, G90, G106, SDR receivers, HF Amateur Radios
K9DP QRP AM Broadcast Interference BCI Filter Male/Female BNC - Compatible with Xiegu X6100, X5105, G90, G106, SDR receivers, HF Amateur Radios

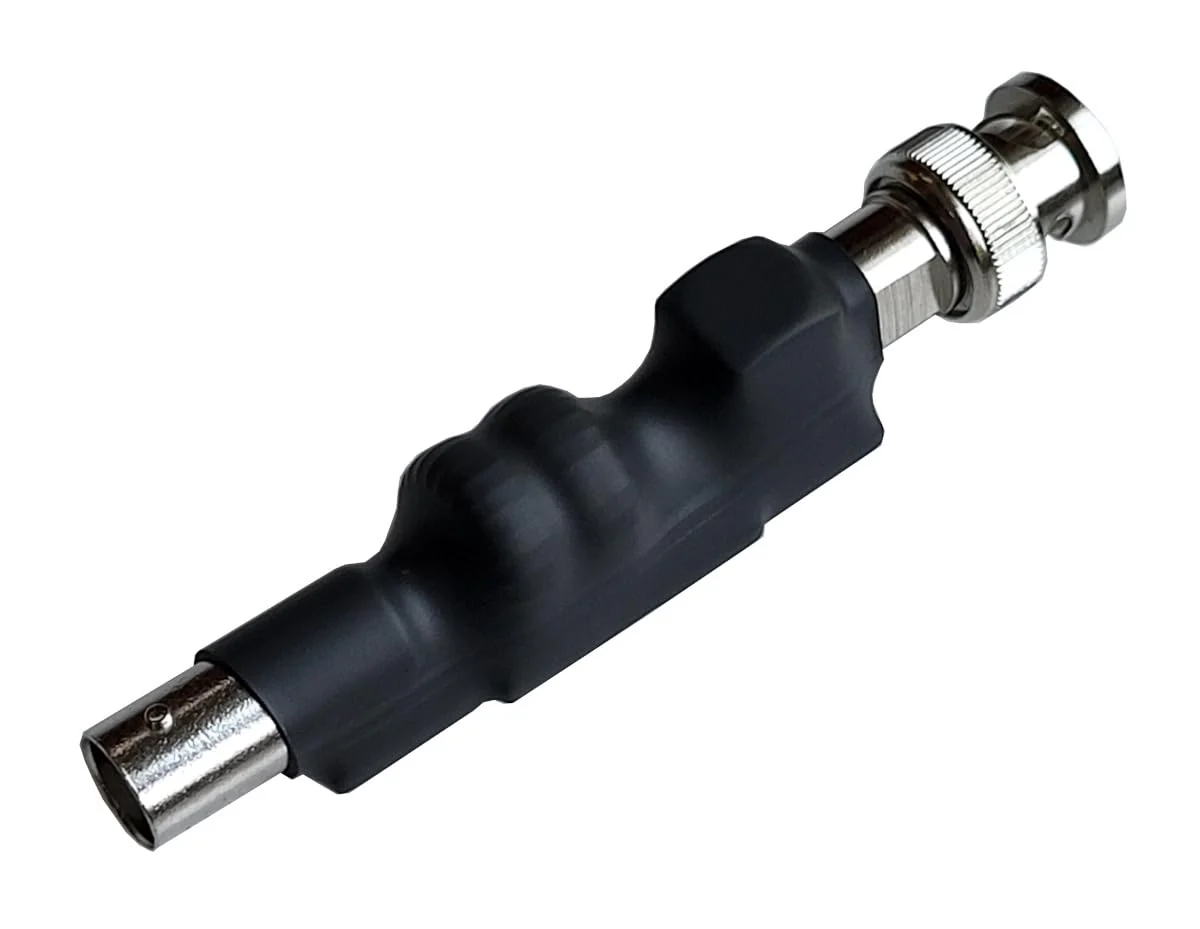

The K9DP QRP broadcast interference (BCI) filter allows QRP (low-power) amateur radio operators to reduce or eliminate unwanted broadcast interference in their signals. Primary designed to help HF radios and receivers that struggle with front-end overload from AM broadcast stations, compatible with Xiegu X6100, X5105, G90, G106 and SDR receivers. This lightweight and portable filter is ideal for use in field operations such as Parks on the Air (POTA), Summits on the Air (SOTA), and Field Day. It has been tested at power levels up to 20 watts with SSB, CW, and digital modes, and its small size and low weight make it easy to take with you wherever you go. Measuring only 3.4 inches (86mm) in length and weighing just 30 grams, it's a convenient choice for on-the-go operations. Overall, this filter is a great way for radio operators to enhance their radio’s performance and improve their communication experience. These filters have a 50Ω impedance and are symmetrical, so it's not important which end is the input or output. Caution: High SWR can damage the filter. The filter should be inserted inline between the transceiver and tuner, rather than between the tuner and antenna. If your radio has an internal tuner, be sure to use a resonant antenna or an antenna with a matching circuit, such as an EFHW (end fed half wave), in combination with the filter.
Product Features
- Fully assembled and tested in the USA by K9DP. This is the Male/Female BNC connector version. Connect the filter directly to your QRP radio without adapters!
- Designed to help HF radios and receivers that struggle with front-end overload from AM broadcast interference, compatible with Xiegu radios X6100, X5105, G90, G106 and SDR receivers.
- Lightweight and portable design, only 3.4 inches (86mm) in length and weighing just 30 grams. Perfect for Parks on the Air (POTA), Summits on the Air (SOTA) and Field Day.
- Tested up to 20 watts with SSB, CW and digital FT8.

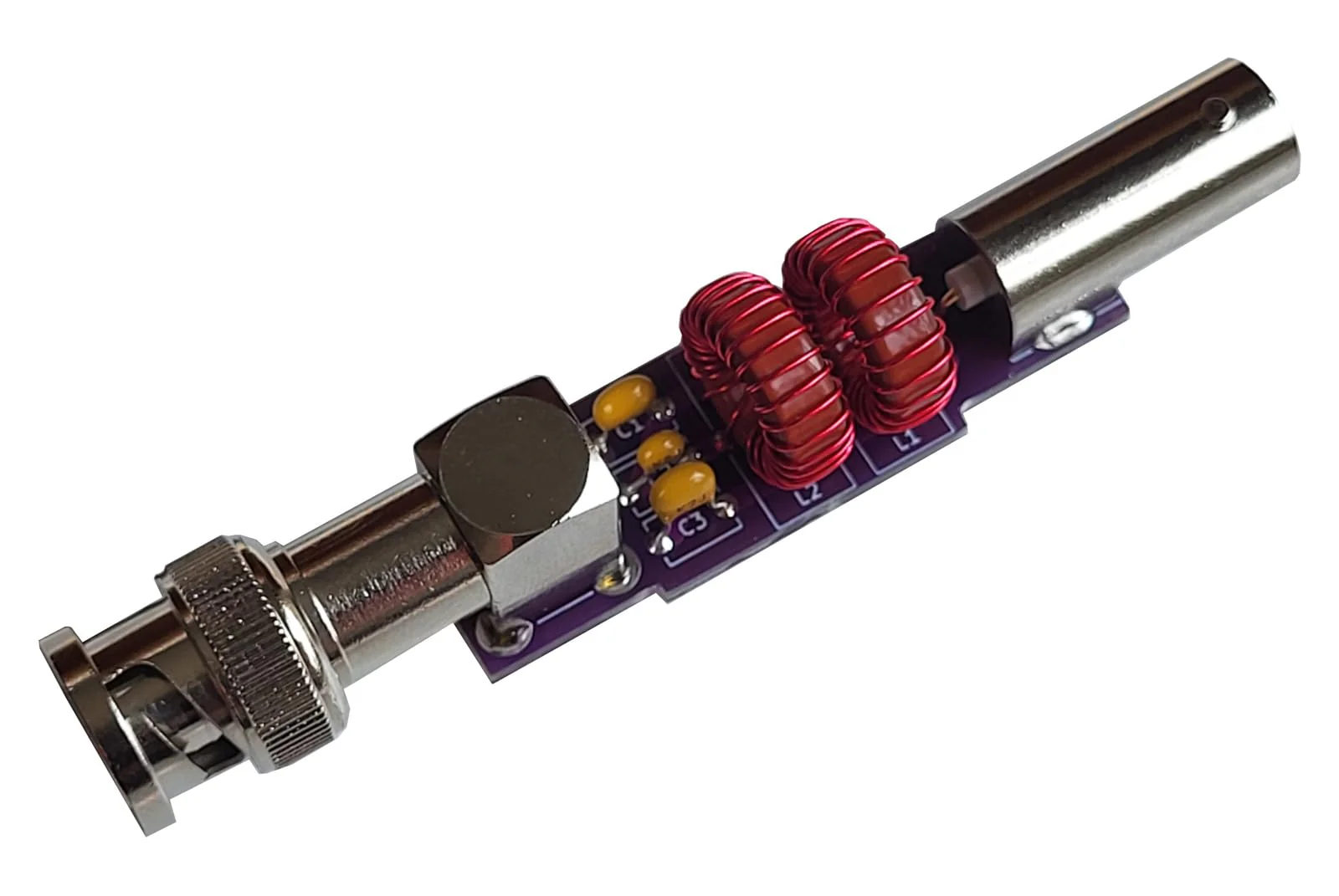

- High quality C0G (NP0) capacitors and Micrometals toroids.
More Images
K9DP QRP AM Broadcast Interference BCI Filter Male/Female BNC - Compatible with Xiegu X6100, X5105, G90, G106, SDR receivers, HF Amateur Radios
K9DP QRP AM Broadcast Interference BCI Filter Male/Female BNC - Compatible with Xiegu X6100, X5105, G90, G106, SDR receivers, HF Amateur Radios
The K9DP QRP broadcast interference (BCI) filter allows QRP (low-power) amateur radio operators to reduce or eliminate unwanted broadcast interference in their signals. Primary designed to help HF radios and receivers that struggle with front-end overload from AM broadcast stations, compatible with Xiegu X6100, X5105, G90, G106 and SDR receivers. This lightweight and portable filter is ideal for use in field operations such as Parks on the Air (POTA), Summits on the Air (SOTA), and Field Day. It has been tested at power levels up to 20 watts with SSB, CW, and digital modes, and its small size and low weight make it easy to take with you wherever you go. Measuring only 3.4 inches (86mm) in length and weighing just 30 grams, it's a convenient choice for on-the-go operations. Overall, this filter is a great way for radio operators to enhance their radio’s performance and improve their communication experience. These filters have a 50Ω impedance and are symmetrical, so it's not important which end is the input or output. Caution: High SWR can damage the filter. The filter should be inserted inline between the transceiver and tuner, rather than between the tuner and antenna. If your radio has an internal tuner, be sure to use a resonant antenna or an antenna with a matching circuit, such as an EFHW (end fed half wave), in combination with the filter.
Product Features
- Fully assembled and tested in the USA by K9DP. This is the Male/Female BNC connector version. Connect the filter directly to your QRP radio without adapters!
- Designed to help HF radios and receivers that struggle with front-end overload from AM broadcast interference, compatible with Xiegu radios X6100, X5105, G90, G106 and SDR receivers.
- Lightweight and portable design, only 3.4 inches (86mm) in length and weighing just 30 grams. Perfect for Parks on the Air (POTA), Summits on the Air (SOTA) and Field Day.
- Tested up to 20 watts with SSB, CW and digital FT8.
- High quality C0G (NP0) capacitors and Micrometals toroids.
