JZK CD74HC4067 Multiplexer Precise Module 16 Channel Analog Digital Multiplexer Breakout Board Module 2V-6V Pack of 3
JZK CD74HC4067 Multiplexer Precise Module 16 Channel Analog Digital Multiplexer Breakout Board Module 2V-6V Pack of 3
JZK CD74HC4067 Multiplexer Precise Module 16 Channel Analog Digital Multiplexer Breakout Board Module 2V-6V Pack of 3

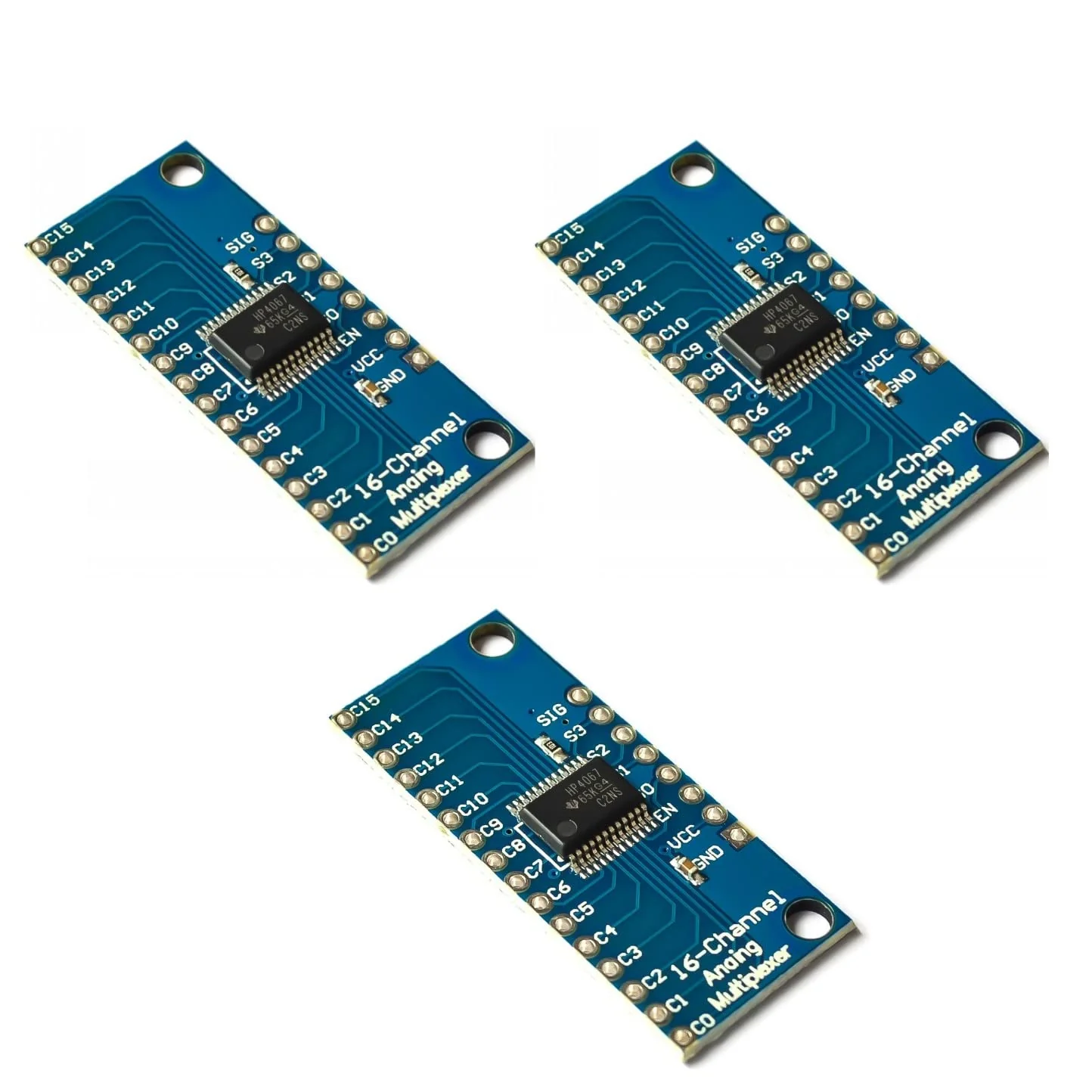

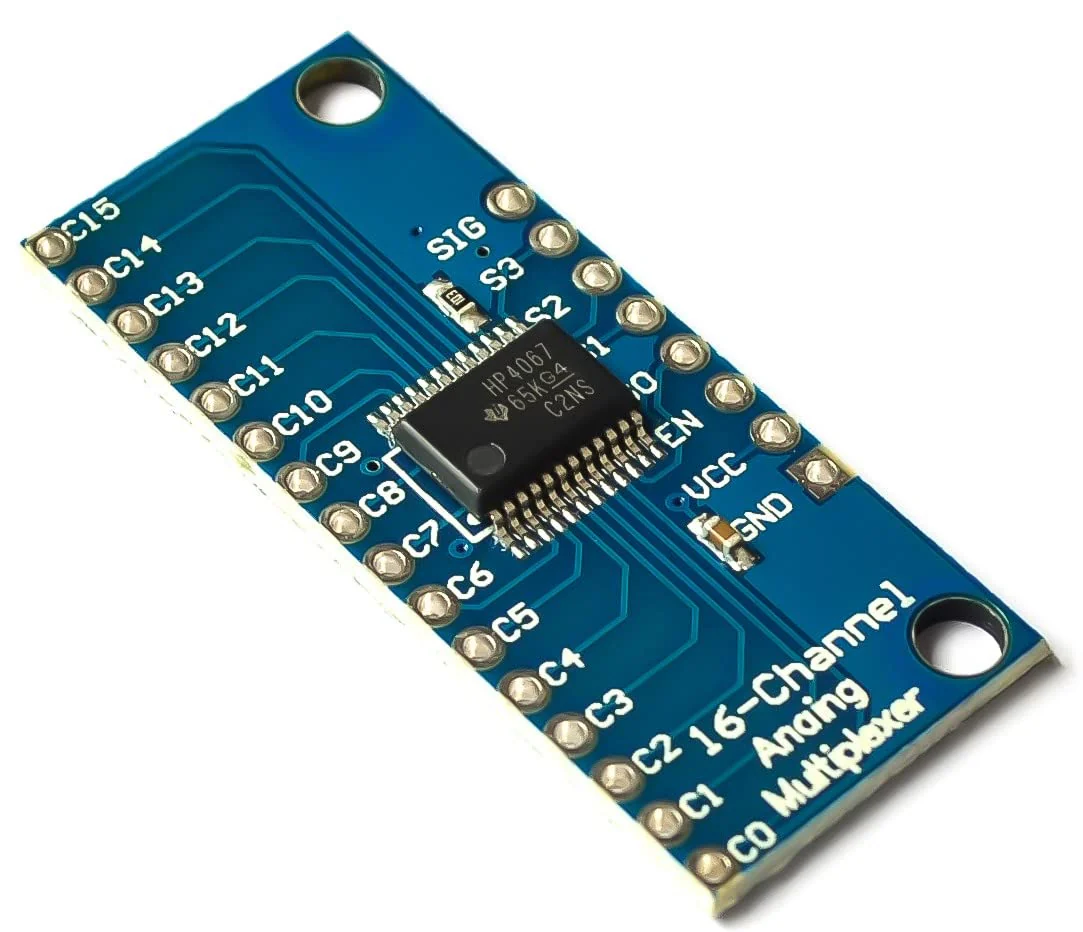

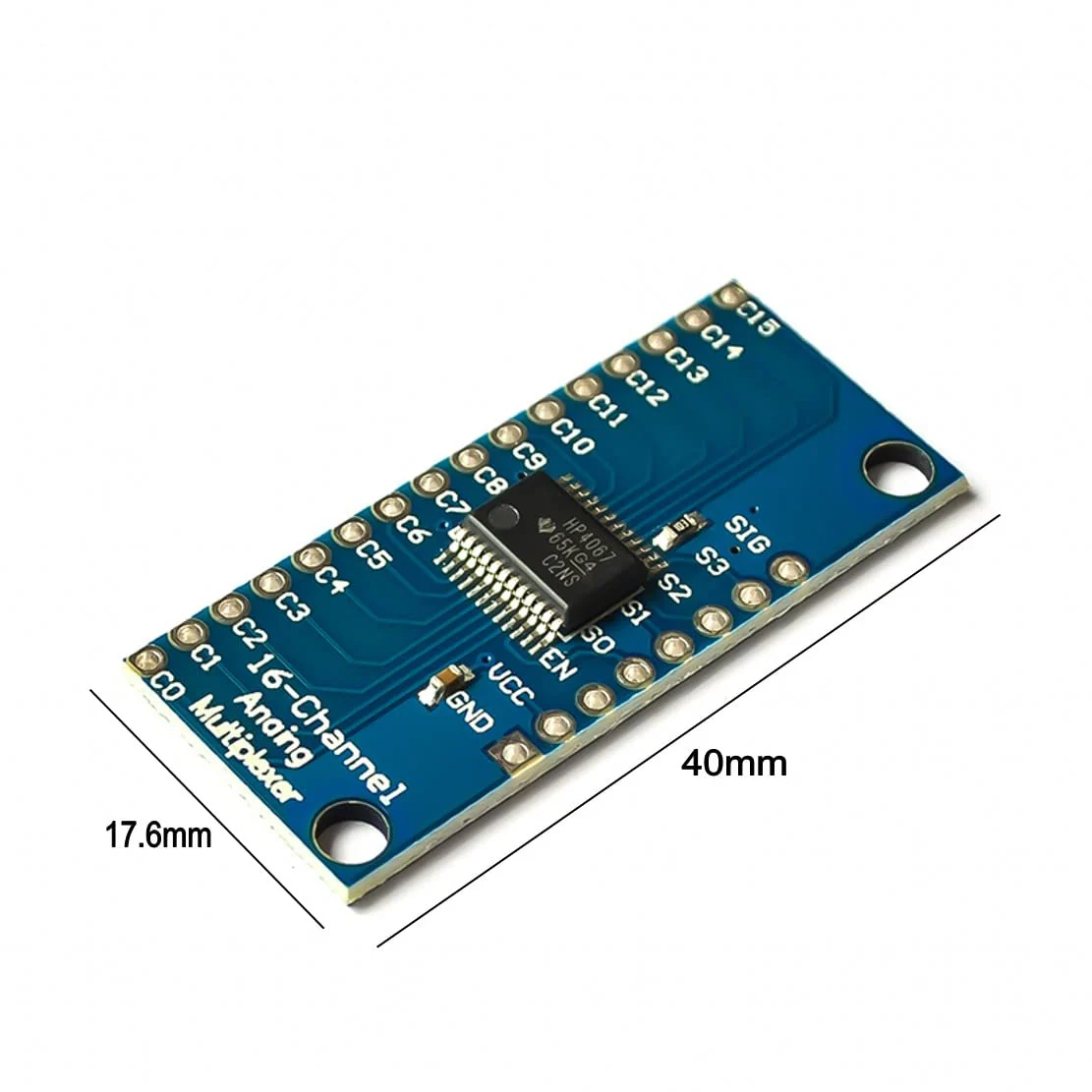

Package includes: 3 x CD74HC4067 Multiplexer Module Specifications: 2 V to 6 V operation. Inrush resistance: 70 ohms @ 4.5V 6ns break at 4.5V before production. Wide operating temperature range: -55°C to 125°C. Analog signal input: C0-C15/16 channel Analog output: DIG Channel control: S0-S3. This is a breakout board for the very handy 16-channel analog/digital multiplexer/demultiplexer CD74HC4067. This chip is like a rotary switch - it internally directs the common pin (COM in the circuit diagram, SIG on the board) to one of 16 channel pins. It works with both digital and analogue signals (the voltage cannot be higher than VCC), and the connectors work in both directions.
Product Features
- 2V to 6V Operation Onrush resistance: 70 ohms at 4.5V. 6ns break before manufacturing at 4.5V. Wide operating temperature range: -55C to 125C. Analog Signal Input: C0-C15/16 Channel Analog Output: DIG Channel control: S0-S3
- This is a breakout board for the very handy 16-channel analog/digital multiplexer/demultiplexer CD74HC4067. This chip is like a rotary switch - it internally routes the common pin (COM in the circuit diagram, SIG on the board) to one of 16 channel pins
- It works with both digital and analog signals (the voltage cannot be higher than VCC), and the connectors work in both directions.
- To control it, connect 4 digital outputs to the address selection pins of the chip (S0-S3) and send it the binary address of the desired channel. This allows you to connect up to 16 sensors with only 5 pins to your system!
- The internal switches are bi-directional, support voltages between grounding and VCC, have low "on" resistance and low "off" leakage and to prevent crosstalk, perform "breaking before switching on. The board also breaks out the chip's "activatable" pin which, when driven up, completely disconnects the common pin (all switches "off").
