JZK 5x Photorresistor Sensor Module Digital Light Intensity Sensor Module Light Brightness Detector Module Light Brightness Sensor
JZK 5x Photorresistor Sensor Module Digital Light Intensity Sensor Module Light Brightness Detector Module Light Brightness Sensor
JZK 5x Photorresistor Sensor Module Digital Light Intensity Sensor Module Light Brightness Detector Module Light Brightness Sensor

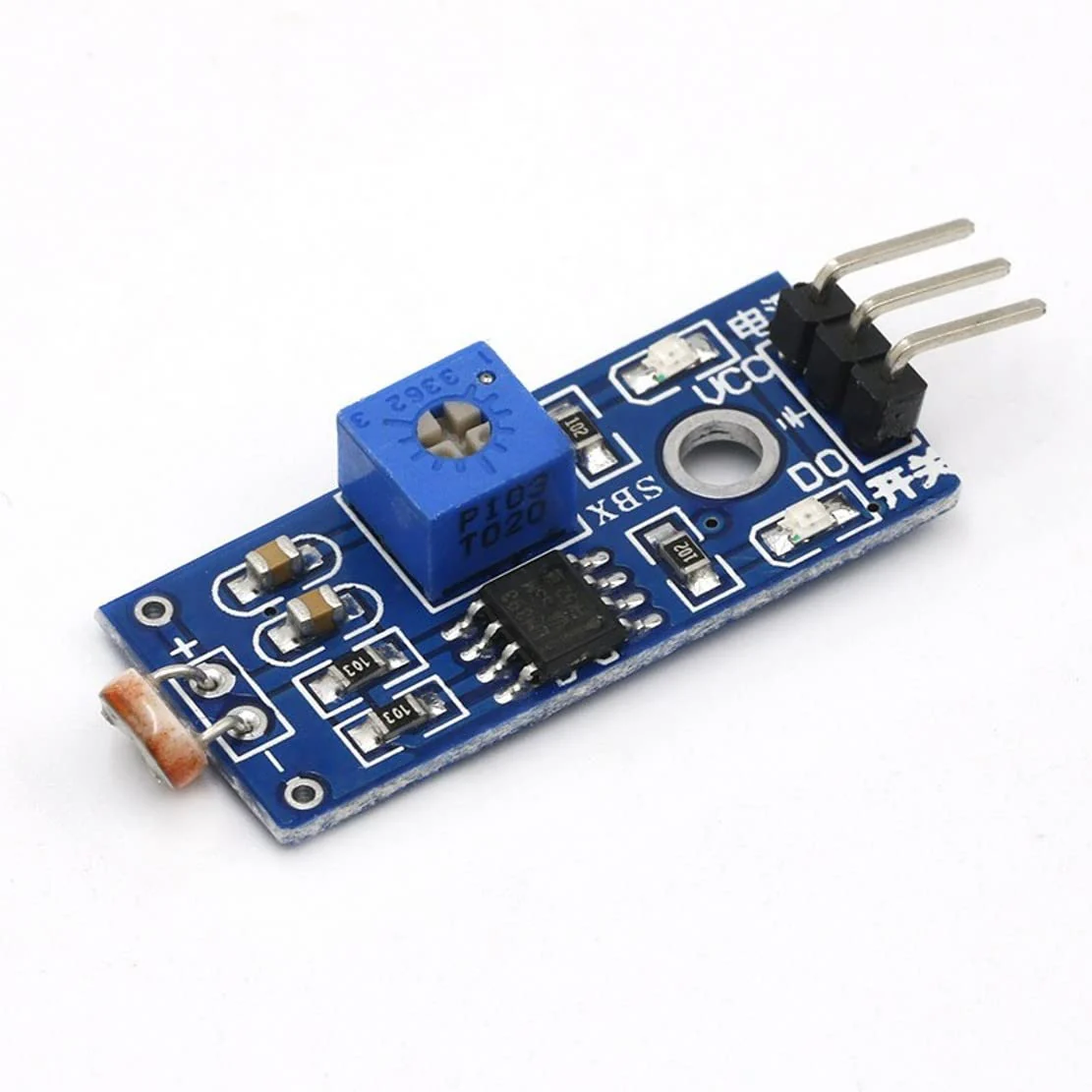

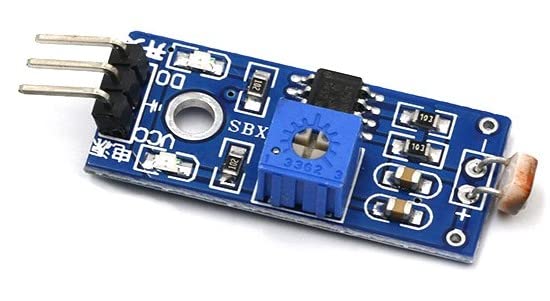

Package includes: Pack of 5 photor-resistor sensor module. Features: 1. A sensitive photoresistance sensor. 2. The comparator output signal is clean, good waveform, driving ability, more than 15mA. 3. Adjustable potentiometer to adjust the brightness of light detection. 4. Operating voltage: DC 3.3V-5V 5. Working current: try to use more than 1A. 6. Output format: digital switching outputs (0 and 1). 7. Fixed bolt holes for easy installation. 8. PCB Size: 3.2cm x 1.4cm 9. Wide voltage comparator LM393. 1. Light sensitive resistance module, which is most sensitive to ambient light, is usually used to detect the brightness of ambient light, trigger microcontrollers or relay modules. 2. The module, if the brightness of the ambient light does not reach the set threshold, DO side output high when the ambient light exceeds the set threshold, DO end output low. 3. DO output can be directly connected to the microcontroller via the microcontroller to detect high and low, detecting the brightness of the ambient light. 4. DO output of the relay module can directly drive the shop, which can be assembled from a light control switch. Application: 1. The intelligent car or robot searches for lines (including black lines and white lines), goes along the path of the black lines, also known as tracing. 2. The smart car avoids cliffs and prevents them from falling off. 3. The smart car avoids obstacles. 4. Can be applied to other automated photoelectric reflection applications.
Product Features

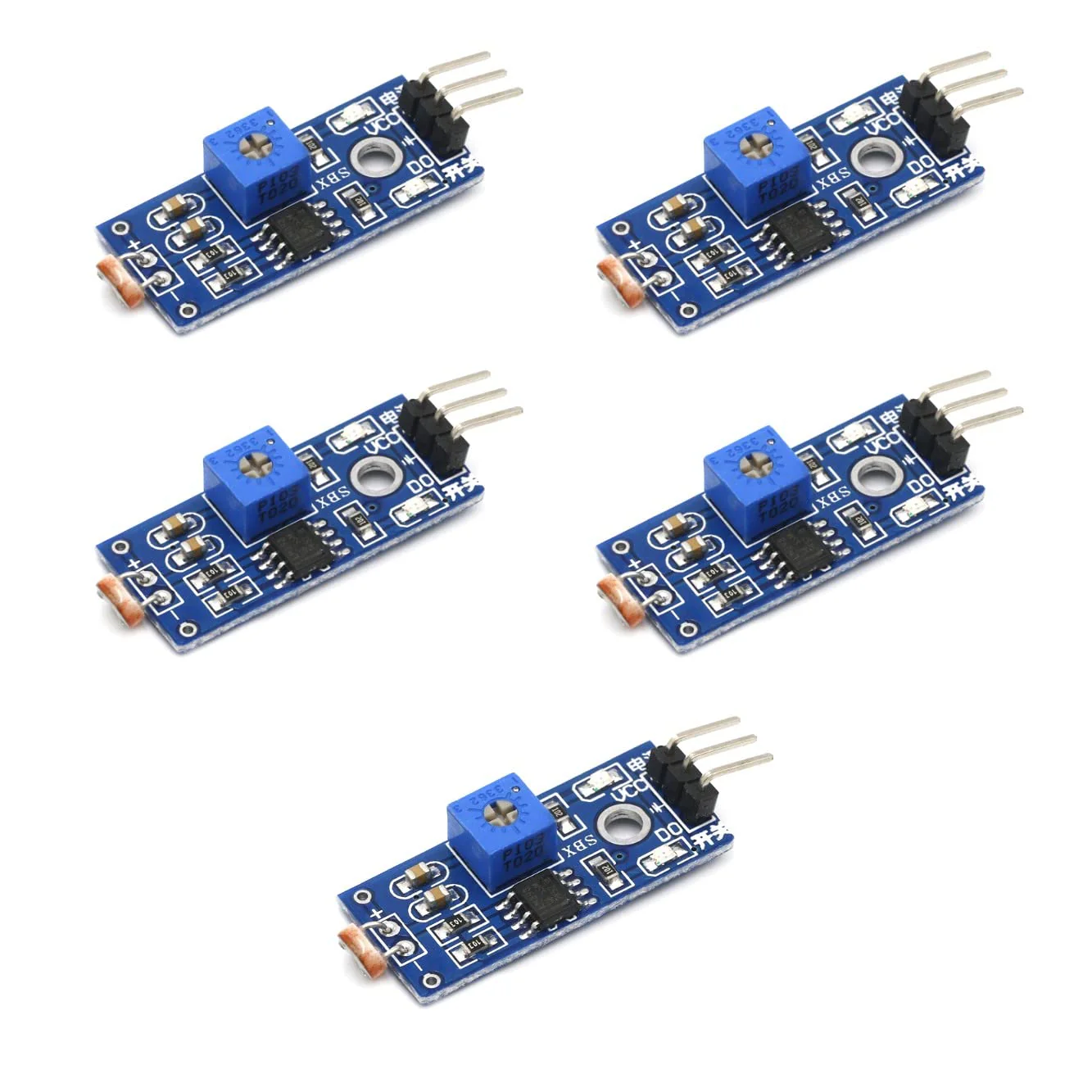

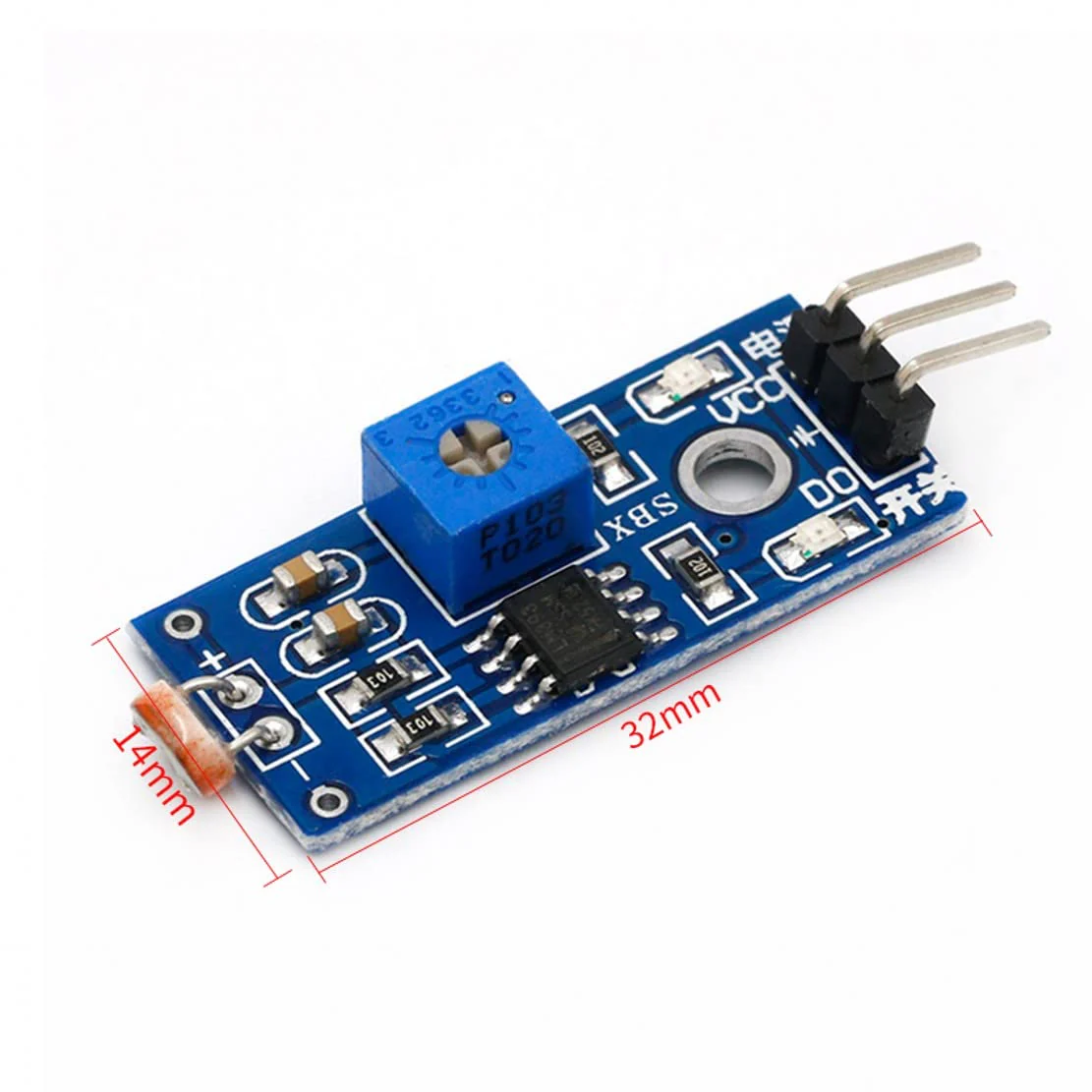

- Package included:5 x Photoresistor Modules Operating voltage: 3.3V-5V. The comparator output signal is clean, good waveform, driving ability, more than 15 mA. PCB Size: 3.2cm x 1.4cm
- This photosensitive resistor module is most sensitive to ambient light and is usually used to detect the brightness of ambient light, trigger microcontrollers or relay modules.
- With adjustable potentiometer to adjust the brightness of light detection. DO output can be directly connected to the microcontroller via the microcontroller to detect high and low, thus detecting the brightness of the ambient light.
- Output form: DO digital switching outputs (0 and 1) and AO analog voltage output. The module, if the brightness of the ambient light does not reach the set threshold, DO side output high when the ambient light level exceeds the set threshold, DO end output low.
- Application: 1. The intelligent car or robot searches for lines (including black lines and white lines), goes along the path of the black lines, also known as tracing. 2. The smart car avoids cliffs and prevents them from falling off. 3. The smart car avoids obstacles. 4. Can be applied to other automated photoelectric reflection applications.
