JSN-SR04T Ultrasonic Distance Transducer Sensor Module Binghe JSN-SR04T Integration Ultrasonic Distance Transducer Sensor Module JSN-SR04T Distance Measuring Module Waterproof 5V Compatible with
JSN-SR04T Ultrasonic Distance Transducer Sensor Module Binghe JSN-SR04T Integration Ultrasonic Distance Transducer Sensor Module JSN-SR04T Distance Measuring Module Waterproof 5V Compatible with
JSN-SR04T Ultrasonic Distance Transducer Sensor Module Binghe JSN-SR04T Integration Ultrasonic Distance Transducer Sensor Module JSN-SR04T Distance Measuring Module Waterproof 5V Compatible with

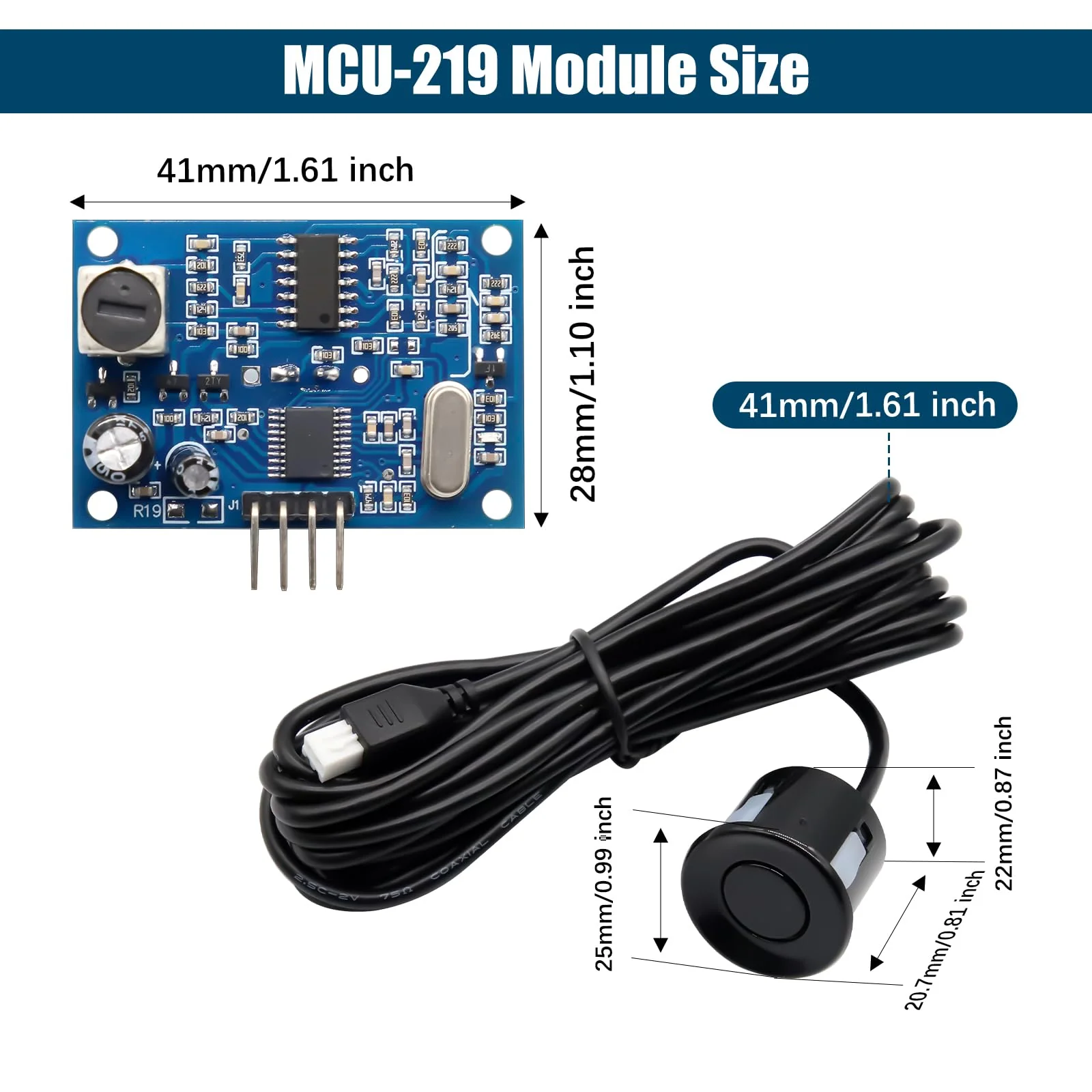

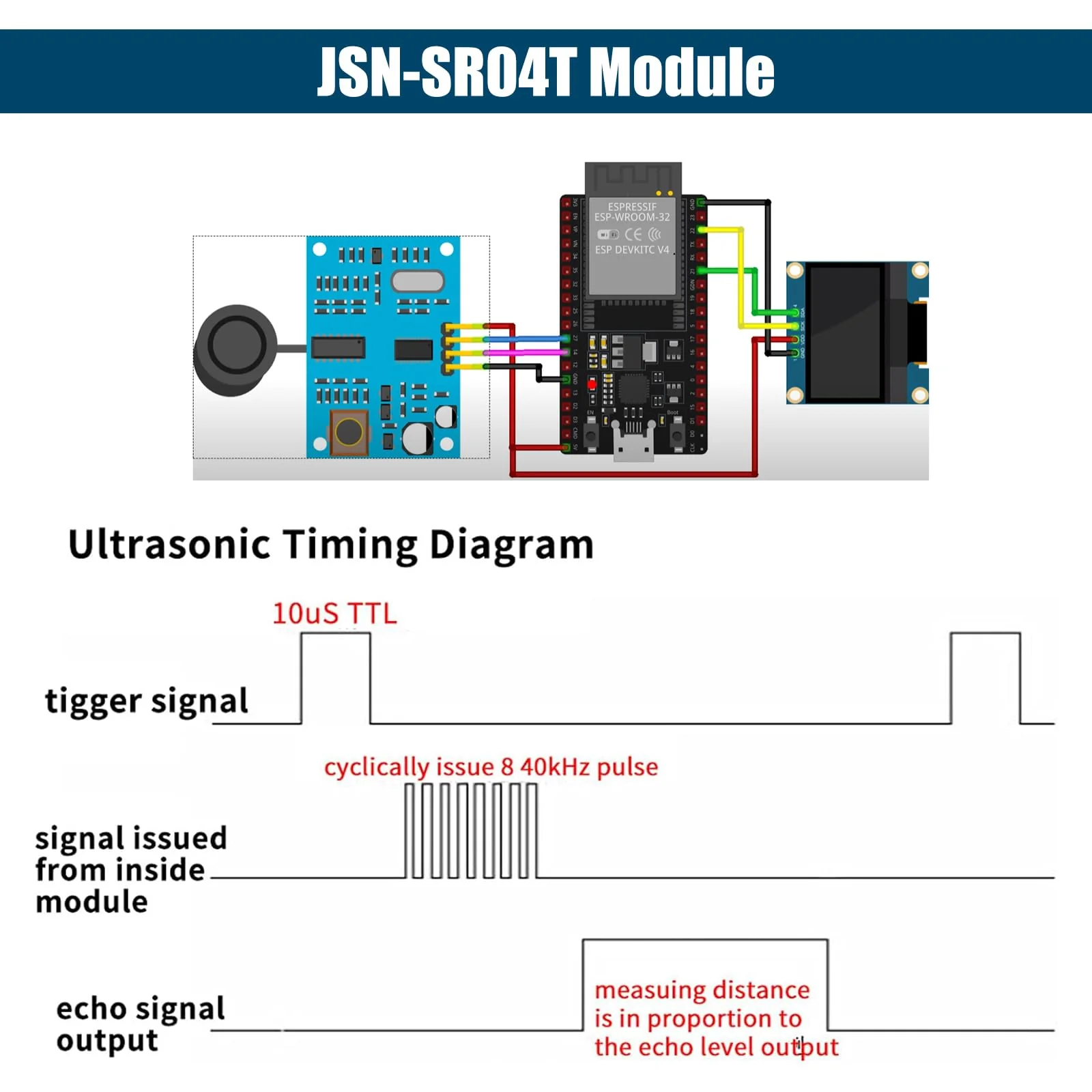

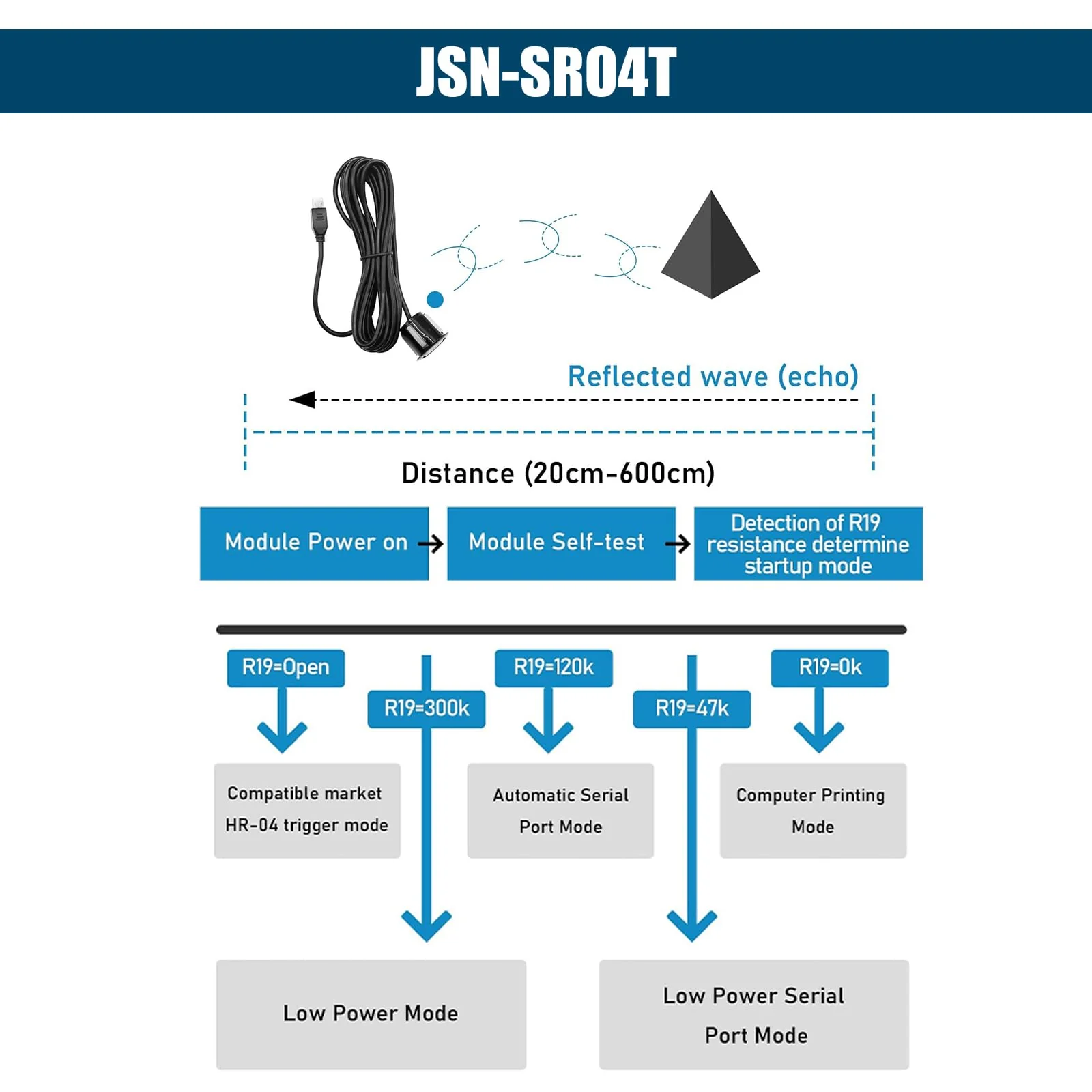

Description: JSN-SR04T module has stable performance and measuring distance. Can and SRF05, SRF02 and other ultrasonic distance measurement module phase. JSN-SR04T module high precision, blind zone (25 cm), stable distance measurement is a strong basis for the success of this product on the market. JSN-SR04T through the control port to send more than 10 microseconds of high- level signals, receive the echo timing, echo end read time, after the time to calculate the distance, the cycle of measurement can be obtained from the real-time distance changes. Parameters: Operating voltage: DC 5 V. Static working current: 5 mA. Total working current: 30 mA. Acoustic transmission frequency: 40KHz. Range: 6 m. Blind zone: 25 cm. Wiring method: +5 V (voltage positive). Trigger (control port) RX Echo (receiver) TX GND (negative pole of the power supply). Module size: 41 mm x 28.5 mm. Resolution: approx. 0.5 cm. Angle: less than 50 degrees. Operating temperature: -10-70°C. Storage temperature: -20-80°C. Working principle: 1. Use the IO port TRIG to trigger the distance measurement, give at least 10us high-level signal. 2. The JSN- SR04T module automatically sends 8 square waves of 40 kHz and automatically detects whether a signal is coming back. 3; 3. When a signal comes back, a high level is output via the IO port ECHO; the duration of the high level is the time of the ultrasonic wave from the transmission to the return. Test distance = (high level time sound speed (340M/S))/2. Product features: 1. Small size, easy to use. 2. Low voltage, low power consumption. 3. High measurement accuracy; 4. Strong anti-interference. 5. Integrated closed waterproof with wire probe, suitable for wet, poor measurement occasions. Products include: 1 x JSN-SR04T integration ultrasonic distance measuring converter sensor module.
Product Features
- High precision distance measurement: The Binghe JSN-SR04T module offers exceptional accuracy with a measuring range of up to 6 meters, perfect for reverse radar and horizontal distance measurement applications.
- Waterproof design: the integrated sealed probe is waterproof and therefore ideal for use in damp or harsh environments. The JSN-SR04T ensures reliable and stable measuring performance.
- Low power consumption and high performance: The JSN-SR04T module is powered by only 5 V and has a standby current of only 5 mA, making it suitable for embedded systems with low power consumption.

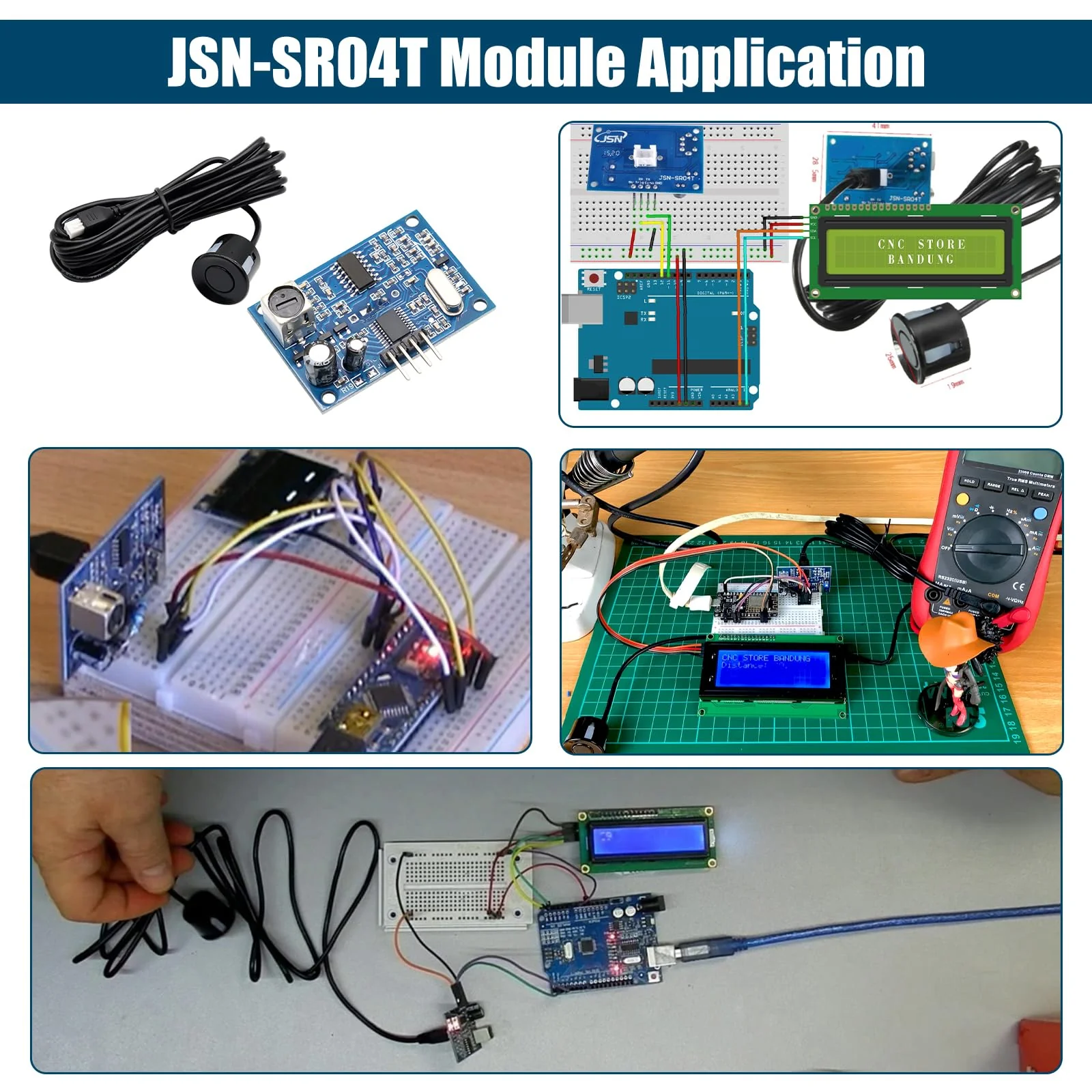

- Wide compatibility: The JSN-SR04T module is compatible with open source hardware platforms such as Arduino and can be easily integrated into various intelligent devices and automation control systems.
- Strong anti-interference ability: with strong anti-interference capabilities, the JSN-SR04T module ensures accurate distance measurement even in complex environments, making it suitable for security systems, industrial control and more.
More Images
JSN-SR04T Ultrasonic Distance Transducer Sensor Module Binghe JSN-SR04T Integration Ultrasonic Distance Transducer Sensor Module JSN-SR04T Distance Measuring Module Waterproof 5V Compatible with
JSN-SR04T Ultrasonic Distance Transducer Sensor Module Binghe JSN-SR04T Integration Ultrasonic Distance Transducer Sensor Module JSN-SR04T Distance Measuring Module Waterproof 5V Compatible with
Description: JSN-SR04T module has stable performance and measuring distance. Can and SRF05, SRF02 and other ultrasonic distance measurement module phase. JSN-SR04T module high precision, blind zone (25 cm), stable distance measurement is a strong basis for the success of this product on the market. JSN-SR04T through the control port to send more than 10 microseconds of high- level signals, receive the echo timing, echo end read time, after the time to calculate the distance, the cycle of measurement can be obtained from the real-time distance changes. Parameters: Operating voltage: DC 5 V. Static working current: 5 mA. Total working current: 30 mA. Acoustic transmission frequency: 40KHz. Range: 6 m. Blind zone: 25 cm. Wiring method: +5 V (voltage positive). Trigger (control port) RX Echo (receiver) TX GND (negative pole of the power supply). Module size: 41 mm x 28.5 mm. Resolution: approx. 0.5 cm. Angle: less than 50 degrees. Operating temperature: -10-70°C. Storage temperature: -20-80°C. Working principle: 1. Use the IO port TRIG to trigger the distance measurement, give at least 10us high-level signal. 2. The JSN- SR04T module automatically sends 8 square waves of 40 kHz and automatically detects whether a signal is coming back. 3; 3. When a signal comes back, a high level is output via the IO port ECHO; the duration of the high level is the time of the ultrasonic wave from the transmission to the return. Test distance = (high level time sound speed (340M/S))/2. Product features: 1. Small size, easy to use. 2. Low voltage, low power consumption. 3. High measurement accuracy; 4. Strong anti-interference. 5. Integrated closed waterproof with wire probe, suitable for wet, poor measurement occasions. Products include: 1 x JSN-SR04T integration ultrasonic distance measuring converter sensor module.
Product Features
- High precision distance measurement: The Binghe JSN-SR04T module offers exceptional accuracy with a measuring range of up to 6 meters, perfect for reverse radar and horizontal distance measurement applications.
- Waterproof design: the integrated sealed probe is waterproof and therefore ideal for use in damp or harsh environments. The JSN-SR04T ensures reliable and stable measuring performance.
- Low power consumption and high performance: The JSN-SR04T module is powered by only 5 V and has a standby current of only 5 mA, making it suitable for embedded systems with low power consumption.
- Wide compatibility: The JSN-SR04T module is compatible with open source hardware platforms such as Arduino and can be easily integrated into various intelligent devices and automation control systems.
- Strong anti-interference ability: with strong anti-interference capabilities, the JSN-SR04T module ensures accurate distance measurement even in complex environments, making it suitable for security systems, industrial control and more.
