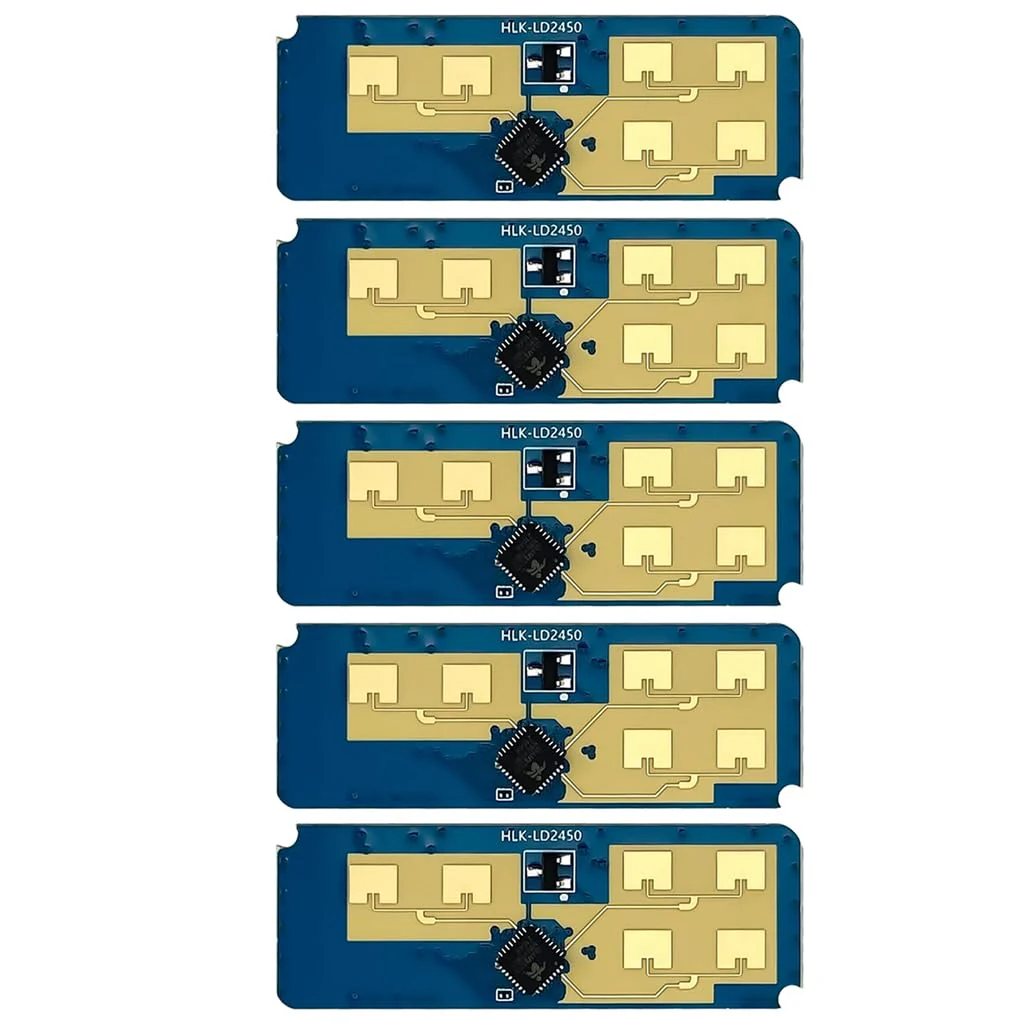

JMT HLK-LD2450 24GHz Trajectory Sensor, ISM Smart Home, Human Motion Tracking, Ra·DAR Induction Module, Distance Angle, Speed Measurement (Pack of 5) 5Pcs

JMT HLK-LD2450 24GHz Trajectory Sensor, ISM Smart Home, Human Motion Tracking, Ra·DAR Induction Module, Distance Angle, Speed Measurement (Pack of 5)

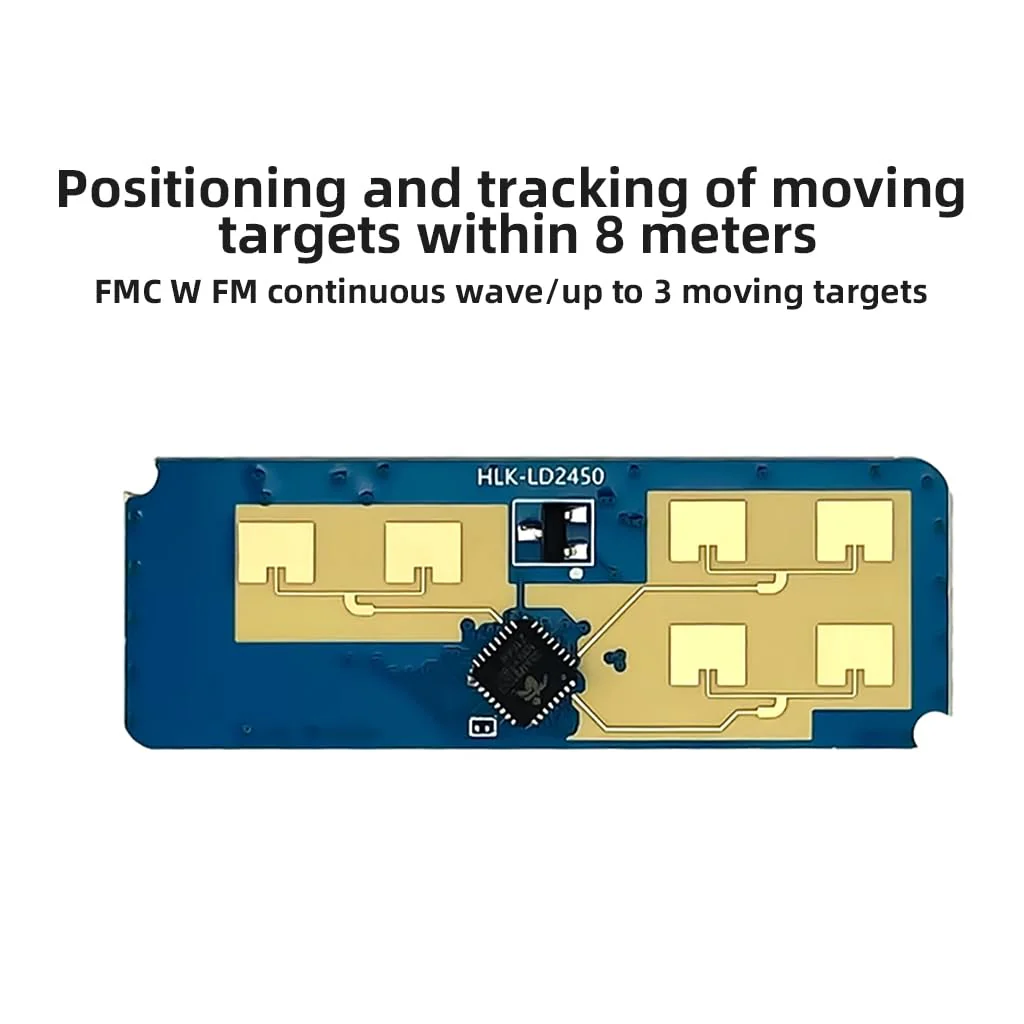

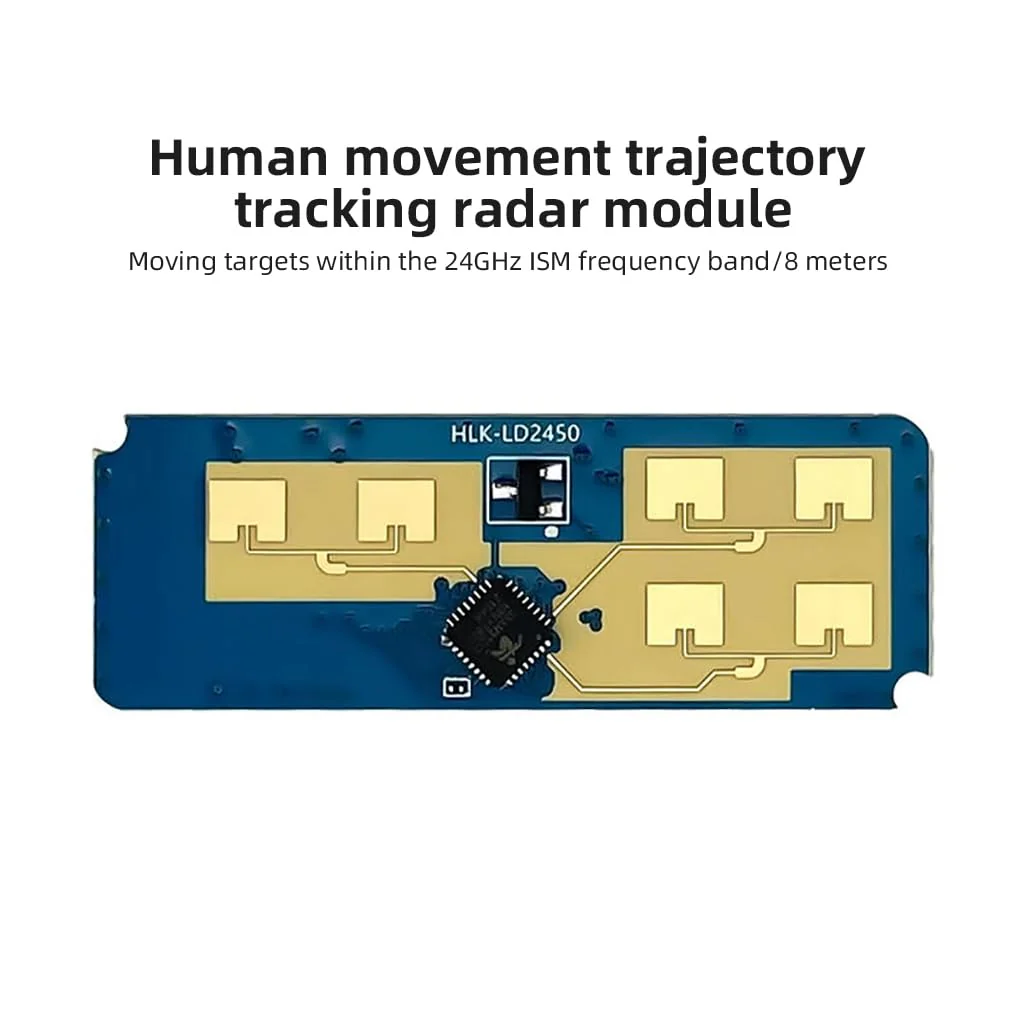

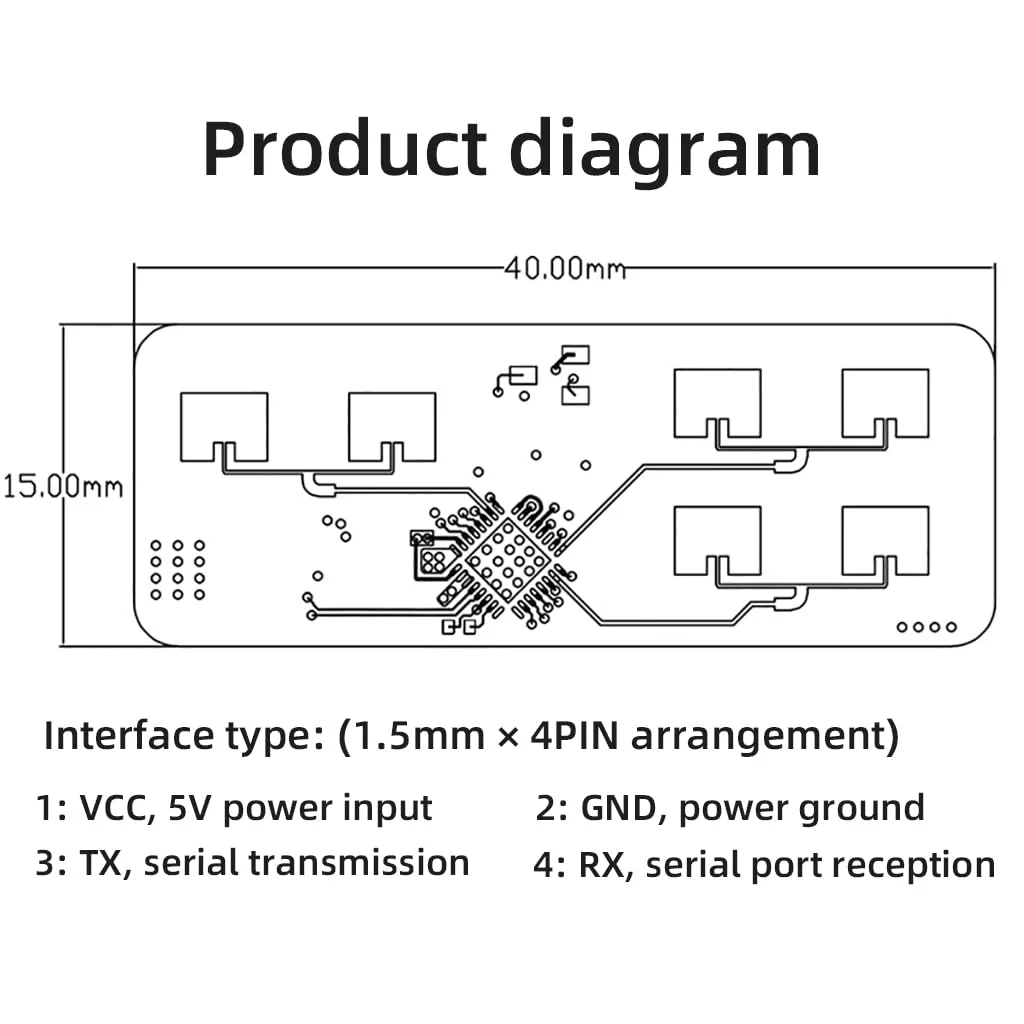

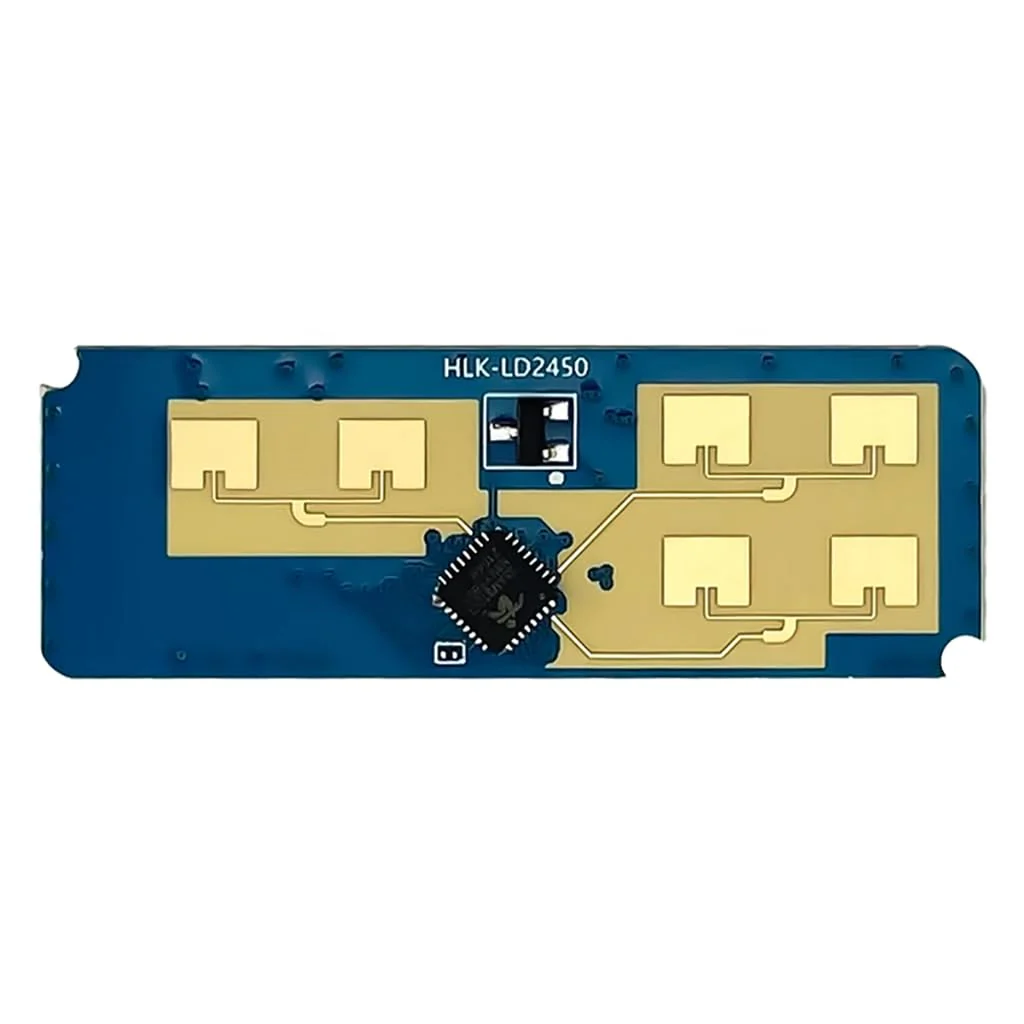

HLK-LD2450 24GHz Trajectory Sensor ISM Smart Home Human Motion Tracking Induction Module Distance Angle Speed Measurement Product description: The LD2450 is a 24G module that can achieve real-time tracking of the position of the moving target in the detection range and output the distance, angle and speed information of the moving target in the area via the serial port. It is mainly used in general indoor scenes such as home, office and hotel to realize the positioning and tracking of moving people. Product features: - Frequency: 24G-24.25GHz - Bandwidth: 250 MHz (CE/FCC compliant) - Modulation mode: FMCW. - Power supply voltage: 5V (typ.) - External dimensions: 15 x 40 mm. - Detection angle: azimuth ± 60° / tilt ± 35 degrees. - Detection distance: maximum detection distance 8 m. - Distance Rate: 0.75m - Accuracy of distance: 0.15m -Angle accuracy: 2° ~ 20. - Data refresh rate: 10 Hz. - Ambient temperature: -40°C ~ +85°C. -Data format: ASCIl serial output - Package: Standard 1.5mm x 4-pin female (customizable) The baud rate of the serial port is 256000. 1 stop bit, no parity bit. Configuration Tool Description After connecting the module, open the configuration tool and select the correct port number and serial port information when you click Detect device. After connecting the module, open the configuration tool, click on detection device, select the correct port number and serial port information, and then click Start to retrieve the moving targets in the detection area. Then click on Start to retrieve the moving target information in the detection area. Note: The serial port tool and host tool cannot be used simultaneously

Product Features

• LD2450 Radar Module: a trajectory module that can achieve real-time tracking of the position of the moving target in the detection range and output the distance, angle and speed information of the moving target in the area via the serial port.
• Usage of Scenes It is mainly used in common indoor scenes such as home, office and hotel to realize the positioning and tracking of moving people.
• Data format: ASCIl serial output Modulation mode: FMCW sweep bandwidth: 250MHz (CE/FCC compliant) Frequency: 24G-24.25GHz The baud rate of the serial port is 256000. 1 Stop Bit, No Parity Bit Package: Standard 1.5mm x 4 Pin Female Notes: The serial port tool and host tool cannot be used simultaneously.
