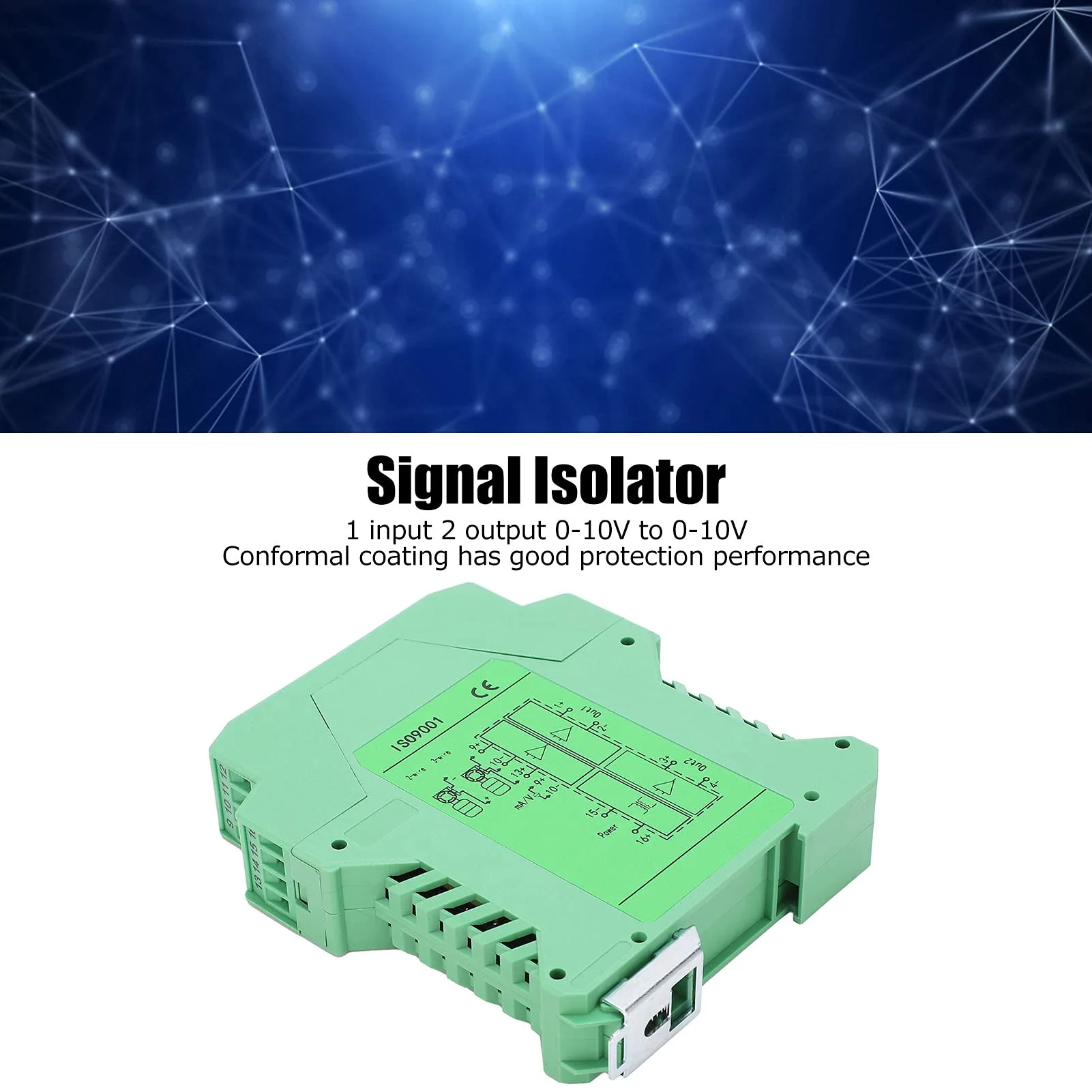

Isolator, 0-10V To 0-10V Current Conditioner, Analog Isolator Transmitter Splitter, DIN Rail Mount, PLC Detect Conditioner for 2 or 3 Wire Transmitters
Isolator, 0-10V To 0-10V Current Conditioner, Analog Isolator Transmitter Splitter, DIN Rail Mount, PLC Detect Conditioner for 2 or 3 Wire Transmitters
Isolator, 0-10V To 0-10V Current Conditioner, Analog Isolator Transmitter Splitter, DIN Rail Mount, PLC Detect Conditioner for 2 or 3 Wire Transmitters

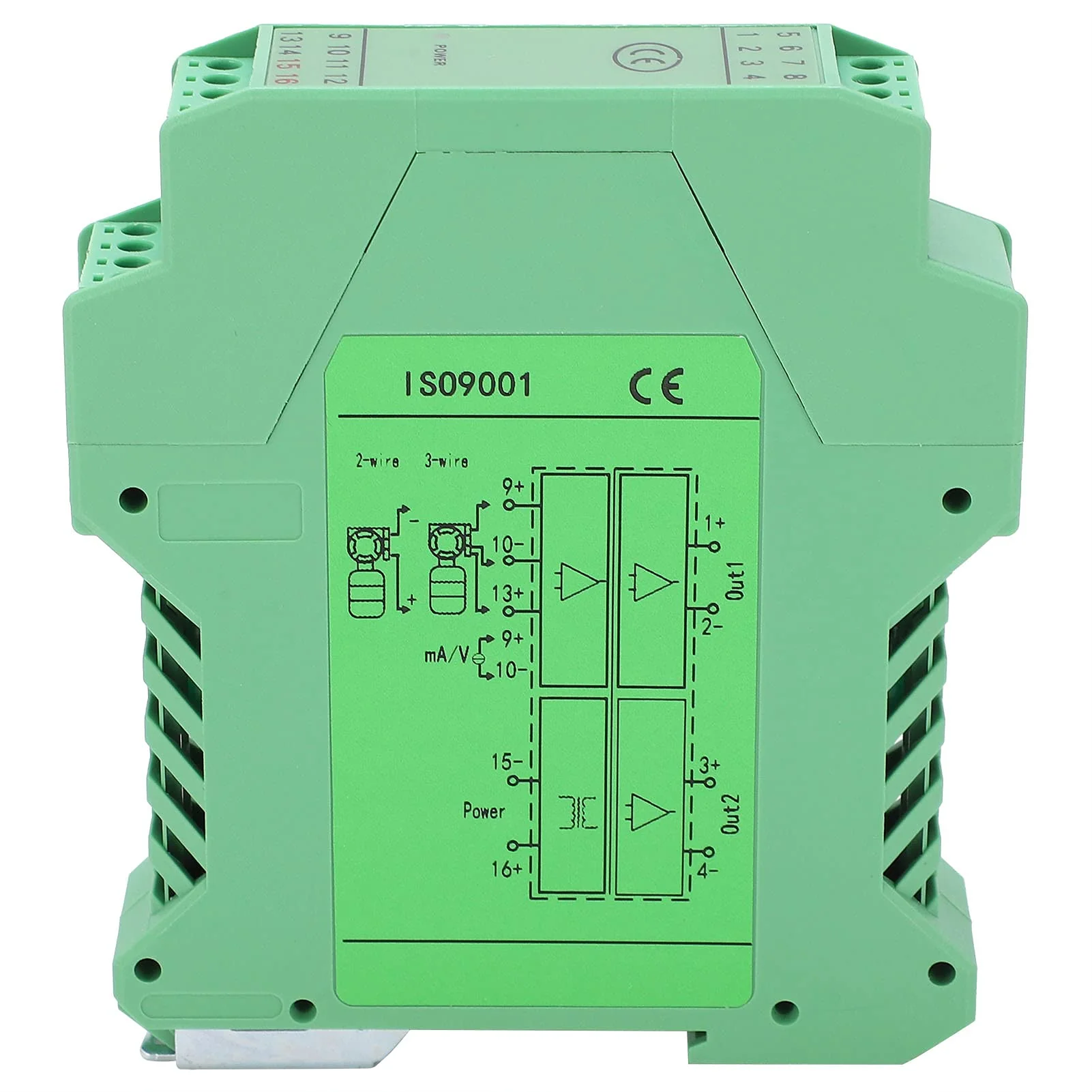

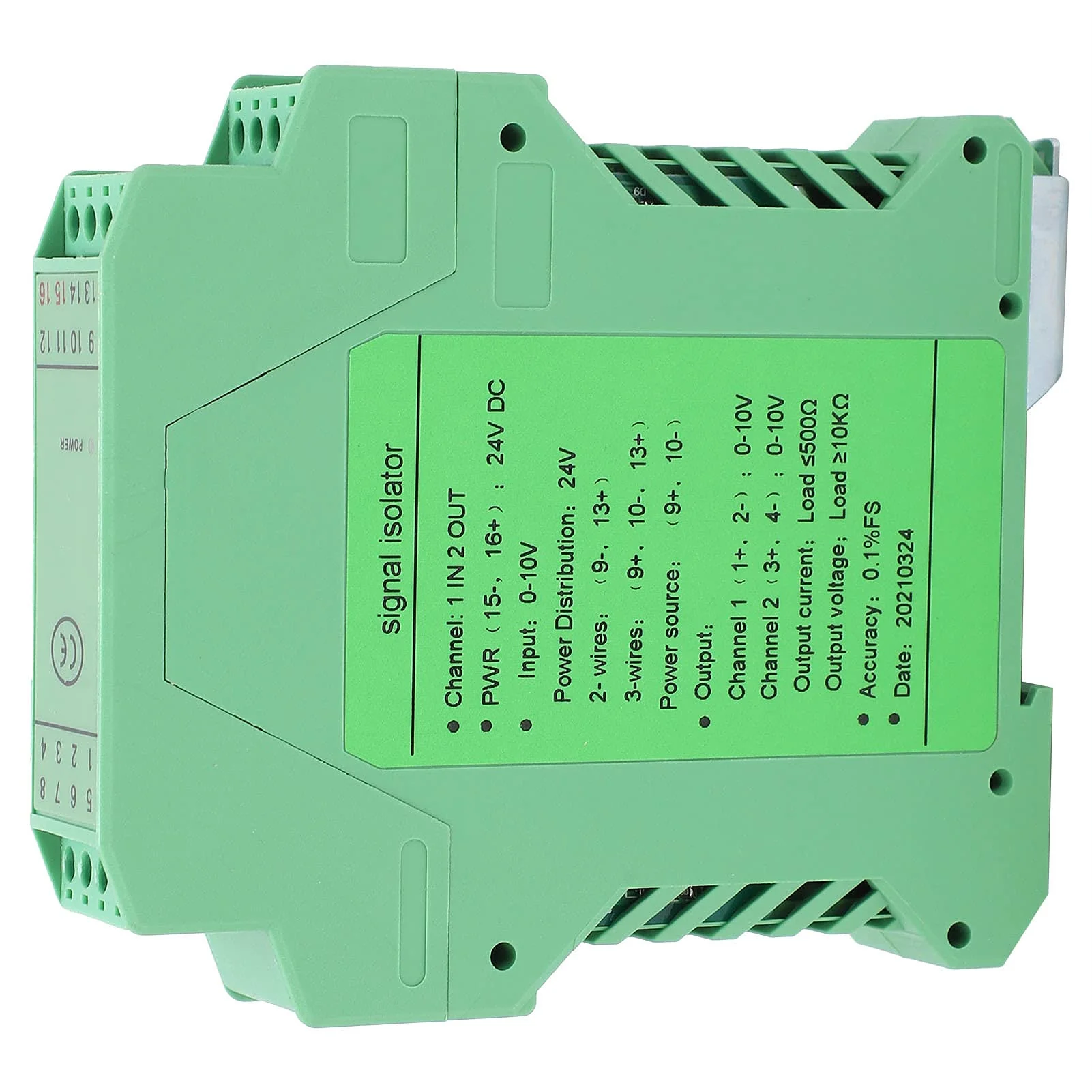

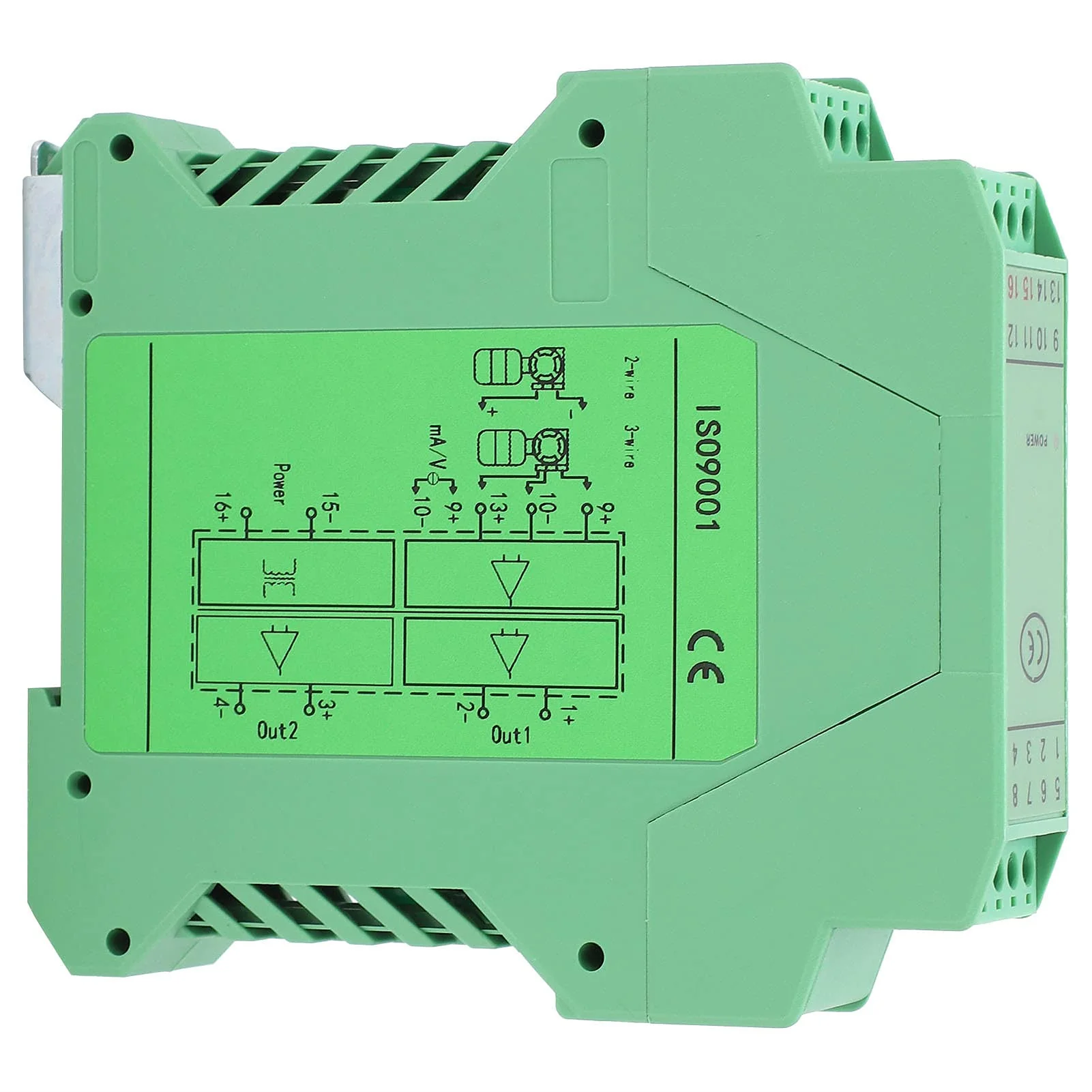

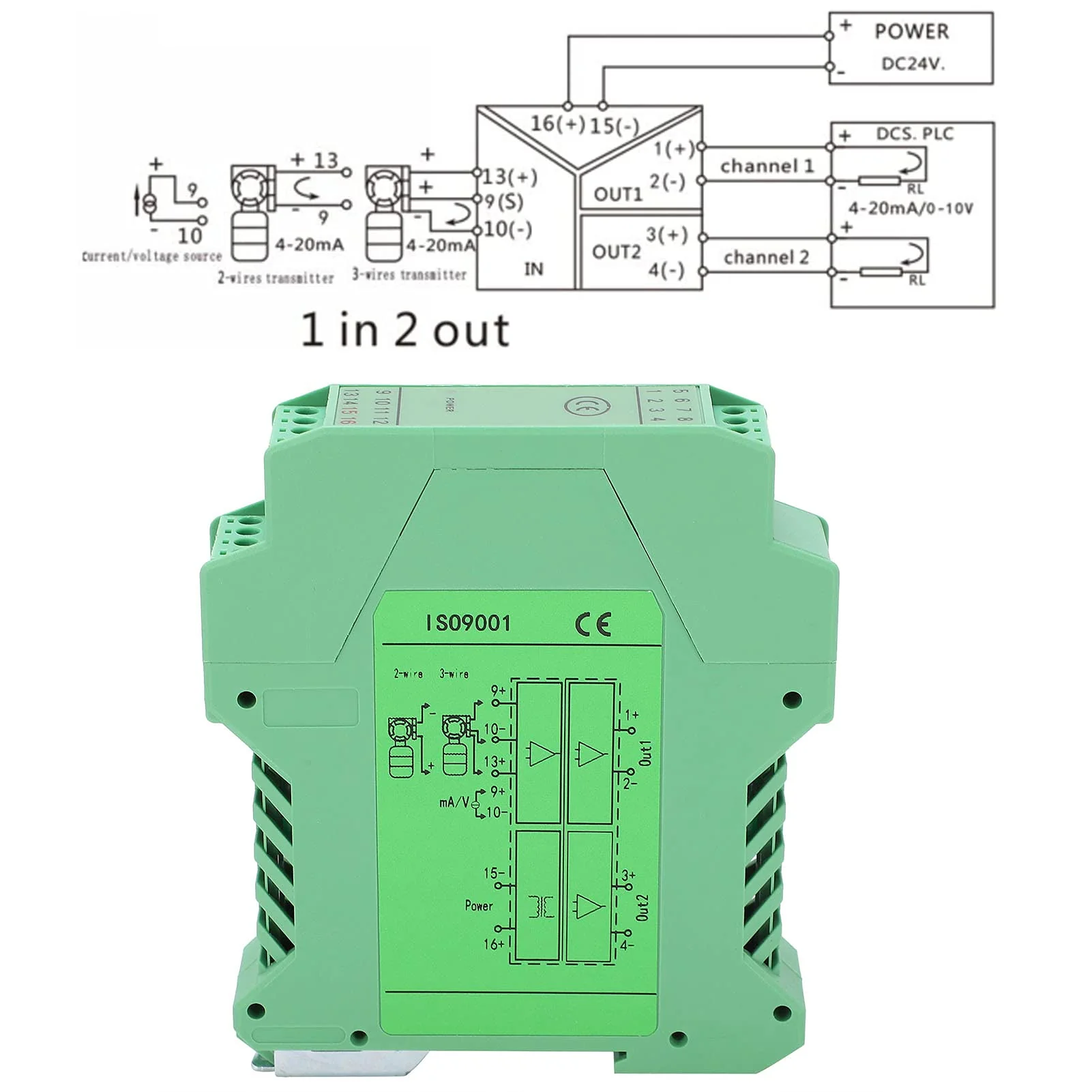

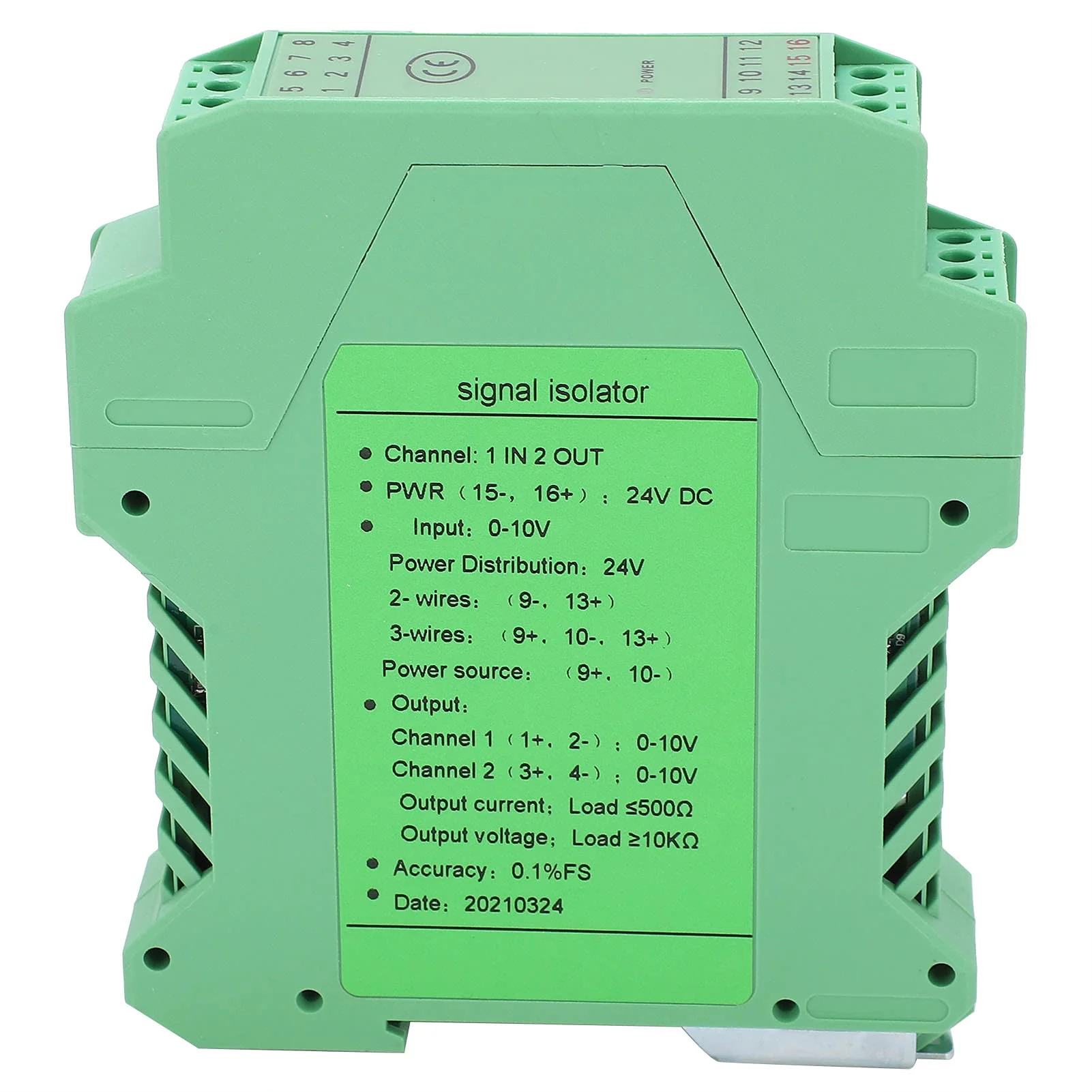

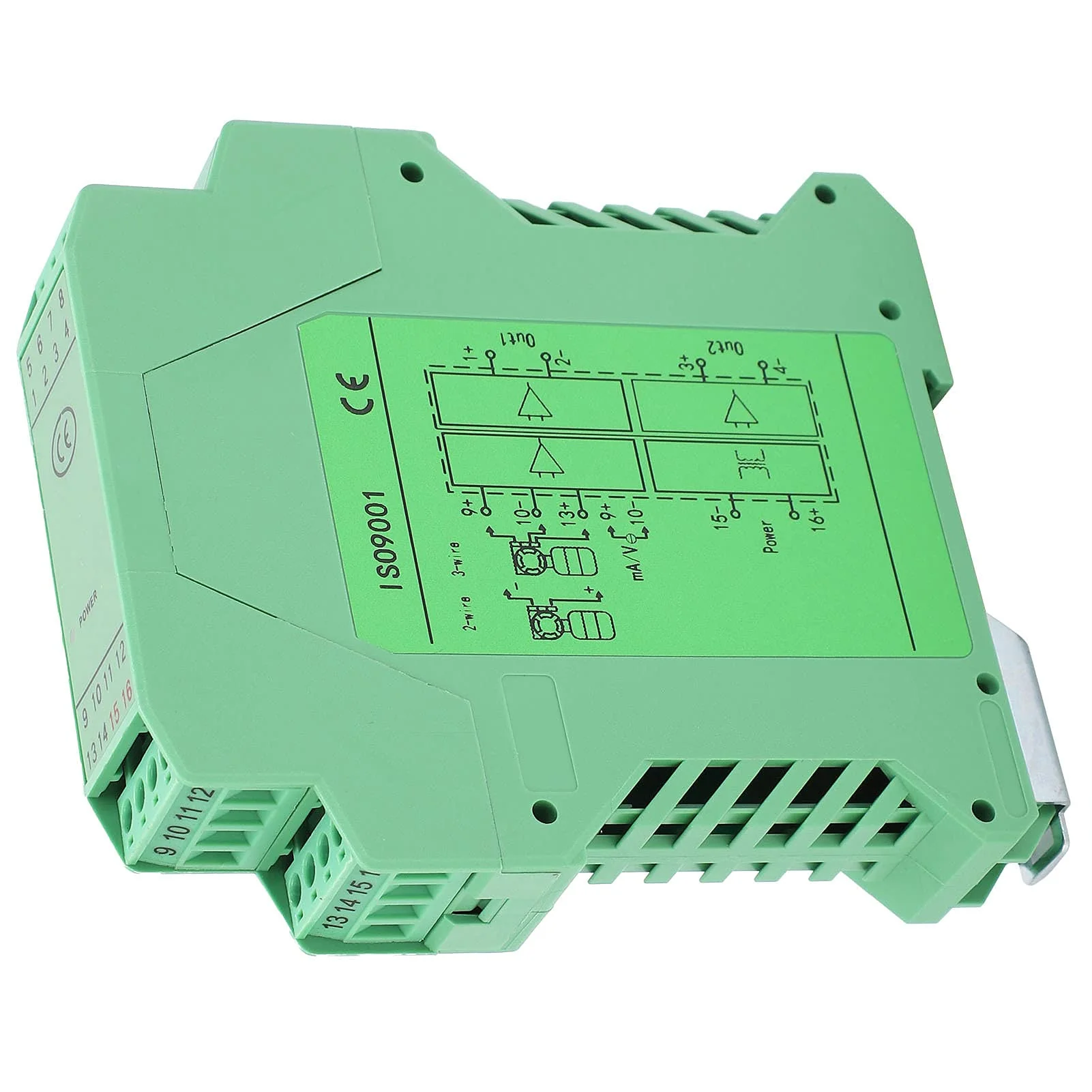

Feature: 1. Conformal coating is used to protect circuit boards and related equipment from environmental erosion. 2. High‑quality ABS material shell, high temperature and impact resistance, can be used for a long time. 3. 35mm standard guide rail installation, easy installation and disassembly, and does not occupy space. Specification: Item Type: Isolator Material: ABS Model: GLG Channel: 1 in 2 out PWR (15-, 16+): 24V DC Input: 0-10V Distribution Voltage: DC 24V 2-Wire System: (9-, 13+) 3-Wire: (9+, 10-, 13+) Power Supply: (9+, 10-) Output: Channel 1 (1+, 2-): 0-10V Channel 2 (3+, 4-): 0-10V Output Current: Load≤500Ω Output Voltage: Load≥10KΩ Accuracy: 0.1% FS Working Temperature Range: -20-+55℃ Electromagnetic Compatibility: Comply with GB/T 18268 (1EC61326-1) Applicable Field Equipment: 2-wire, 3-wire transmitter, current source : DC24V power supply, provides isolated power distribution for the transmitter on site, and at the same time isolates and transmits the current generated by the transmitter from the site to the control room, PLC, DCS and other input terminal interface current source, 2-wire system, 3-wire system transmitter General purpose; internal use of high-efficiency magnetic isolation technology, isolation between input, output, and power supply, with high accuracy, high linearity, low temperature drift and other characteristics. Package List: 1 x Isolator Note: The installation location must not have strong vibration, and the intensity of electromagnetic interference from the terminal, power supply terminal and space exceeding the third category of the IEC61000‑4 series of industrial field electromagnetic interference, and the use environment must not be harmful to metal and plastic parts. substance.
Product Features
- HIGH-QUALITY PERFORMANCE: The DC conditioner has good cold resistance, excellent insulation, resistance, leakage resistance, vibration resistance, and Molded coatings are used to protect circuit boards and related equipment from environmental attack
- EASY INSTALLATION: 35MM Standard guide rail installation, installation does not take up space, strong versatility. DC24V power supply provides isolated energy distribution for field transmitters, which is safer and more energy-saving

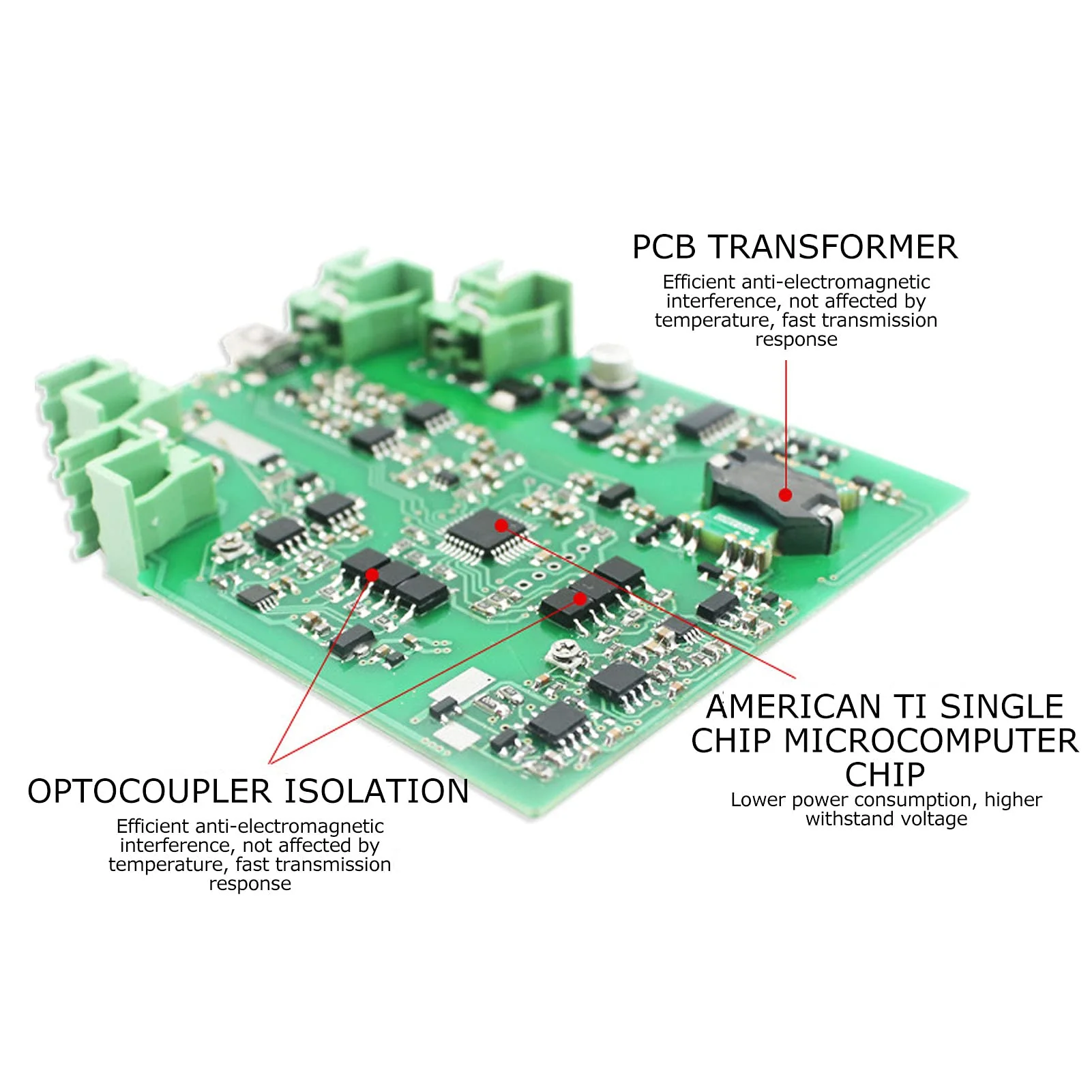

- PRODUCT FEATURES: DC conditioner with PCB transformer, optocoupler isolation, strong anti-electromagnetic interference, not affected by temperature, fast transmission response, high-quality TI microcontroller chip, low power consumption, high withstand voltage
- UNIQUE TECHNOLOGY: The DC conditioner adopts internal magnetic isolation technology, and the input, output, and power supply are isolated from each other, which has the characteristics of high precision. Strong anti-interference ability and high reliability
- PRODUCT ADVANTAGES: DC conditioner has high internal control precision, 10ms fast response time, high-strength insulation for input and output power connections, high dielectric strength, eliminates single-source electromagnetic interference, and high-efficiency filter circuit suppresses output
Original: $137.63
-65%$137.63
$48.17More Images
Isolator, 0-10V To 0-10V Current Conditioner, Analog Isolator Transmitter Splitter, DIN Rail Mount, PLC Detect Conditioner for 2 or 3 Wire Transmitters
Isolator, 0-10V To 0-10V Current Conditioner, Analog Isolator Transmitter Splitter, DIN Rail Mount, PLC Detect Conditioner for 2 or 3 Wire Transmitters
Feature: 1. Conformal coating is used to protect circuit boards and related equipment from environmental erosion. 2. High‑quality ABS material shell, high temperature and impact resistance, can be used for a long time. 3. 35mm standard guide rail installation, easy installation and disassembly, and does not occupy space. Specification: Item Type: Isolator Material: ABS Model: GLG Channel: 1 in 2 out PWR (15-, 16+): 24V DC Input: 0-10V Distribution Voltage: DC 24V 2-Wire System: (9-, 13+) 3-Wire: (9+, 10-, 13+) Power Supply: (9+, 10-) Output: Channel 1 (1+, 2-): 0-10V Channel 2 (3+, 4-): 0-10V Output Current: Load≤500Ω Output Voltage: Load≥10KΩ Accuracy: 0.1% FS Working Temperature Range: -20-+55℃ Electromagnetic Compatibility: Comply with GB/T 18268 (1EC61326-1) Applicable Field Equipment: 2-wire, 3-wire transmitter, current source : DC24V power supply, provides isolated power distribution for the transmitter on site, and at the same time isolates and transmits the current generated by the transmitter from the site to the control room, PLC, DCS and other input terminal interface current source, 2-wire system, 3-wire system transmitter General purpose; internal use of high-efficiency magnetic isolation technology, isolation between input, output, and power supply, with high accuracy, high linearity, low temperature drift and other characteristics. Package List: 1 x Isolator Note: The installation location must not have strong vibration, and the intensity of electromagnetic interference from the terminal, power supply terminal and space exceeding the third category of the IEC61000‑4 series of industrial field electromagnetic interference, and the use environment must not be harmful to metal and plastic parts. substance.
Product Features
- HIGH-QUALITY PERFORMANCE: The DC conditioner has good cold resistance, excellent insulation, resistance, leakage resistance, vibration resistance, and Molded coatings are used to protect circuit boards and related equipment from environmental attack
- EASY INSTALLATION: 35MM Standard guide rail installation, installation does not take up space, strong versatility. DC24V power supply provides isolated energy distribution for field transmitters, which is safer and more energy-saving
- PRODUCT FEATURES: DC conditioner with PCB transformer, optocoupler isolation, strong anti-electromagnetic interference, not affected by temperature, fast transmission response, high-quality TI microcontroller chip, low power consumption, high withstand voltage
- UNIQUE TECHNOLOGY: The DC conditioner adopts internal magnetic isolation technology, and the input, output, and power supply are isolated from each other, which has the characteristics of high precision. Strong anti-interference ability and high reliability
- PRODUCT ADVANTAGES: DC conditioner has high internal control precision, 10ms fast response time, high-strength insulation for input and output power connections, high dielectric strength, eliminates single-source electromagnetic interference, and high-efficiency filter circuit suppresses output
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Isolator, 0-10V To 0-10V Current Conditioner, Analog Isolator Transmitter Splitter, DIN Rail Mount, PLC Detect Conditioner for 2 or 3 Wire Transmitters
Feature: 1. Conformal coating is used to protect circuit boards and related equipment from environmental erosion. 2. High‑quality ABS material shell, high temperature and impact resistance, can be used for a long time. 3. 35mm standard guide rail installation, easy installation and disassembly, and does not occupy space. Specification: Item Type: Isolator Material: ABS Model: GLG Channel: 1 in 2 out PWR (15-, 16+): 24V DC Input: 0-10V Distribution Voltage: DC 24V 2-Wire System: (9-, 13+) 3-Wire: (9+, 10-, 13+) Power Supply: (9+, 10-) Output: Channel 1 (1+, 2-): 0-10V Channel 2 (3+, 4-): 0-10V Output Current: Load≤500Ω Output Voltage: Load≥10KΩ Accuracy: 0.1% FS Working Temperature Range: -20-+55℃ Electromagnetic Compatibility: Comply with GB/T 18268 (1EC61326-1) Applicable Field Equipment: 2-wire, 3-wire transmitter, current source : DC24V power supply, provides isolated power distribution for the transmitter on site, and at the same time isolates and transmits the current generated by the transmitter from the site to the control room, PLC, DCS and other input terminal interface current source, 2-wire system, 3-wire system transmitter General purpose; internal use of high-efficiency magnetic isolation technology, isolation between input, output, and power supply, with high accuracy, high linearity, low temperature drift and other characteristics. Package List: 1 x Isolator Note: The installation location must not have strong vibration, and the intensity of electromagnetic interference from the terminal, power supply terminal and space exceeding the third category of the IEC61000‑4 series of industrial field electromagnetic interference, and the use environment must not be harmful to metal and plastic parts. substance.
Product Features
- HIGH-QUALITY PERFORMANCE: The DC conditioner has good cold resistance, excellent insulation, resistance, leakage resistance, vibration resistance, and Molded coatings are used to protect circuit boards and related equipment from environmental attack
- EASY INSTALLATION: 35MM Standard guide rail installation, installation does not take up space, strong versatility. DC24V power supply provides isolated energy distribution for field transmitters, which is safer and more energy-saving
- PRODUCT FEATURES: DC conditioner with PCB transformer, optocoupler isolation, strong anti-electromagnetic interference, not affected by temperature, fast transmission response, high-quality TI microcontroller chip, low power consumption, high withstand voltage
- UNIQUE TECHNOLOGY: The DC conditioner adopts internal magnetic isolation technology, and the input, output, and power supply are isolated from each other, which has the characteristics of high precision. Strong anti-interference ability and high reliability
- PRODUCT ADVANTAGES: DC conditioner has high internal control precision, 10ms fast response time, high-strength insulation for input and output power connections, high dielectric strength, eliminates single-source electromagnetic interference, and high-efficiency filter circuit suppresses output
