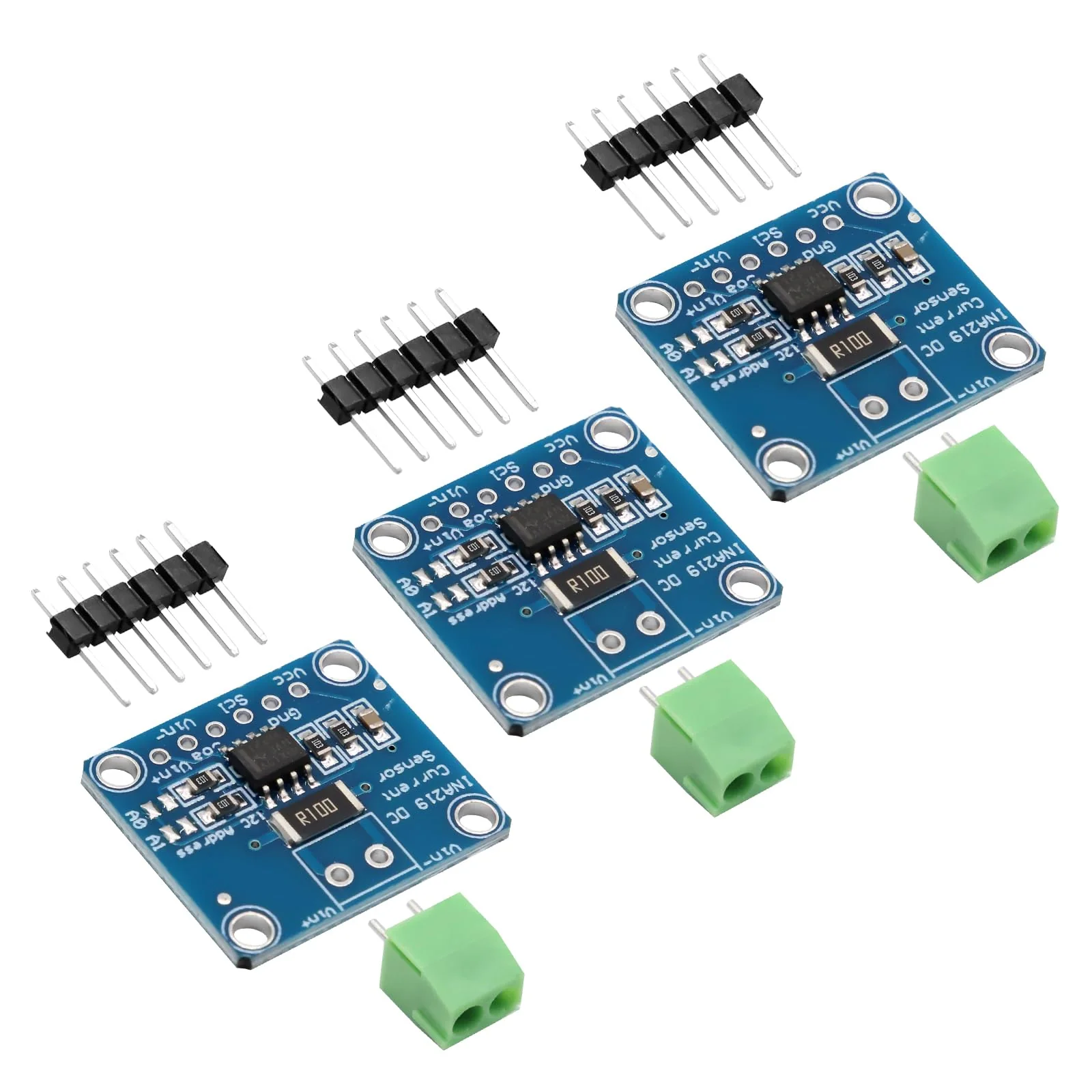

INA219 I2C Sensor Module Binghe 3 Pieces INA219 Zero Point Drift Bidirectional Current Monitoring Sensor Module CJMCU-219 Bidirectional Current Monitoring Sensor I2C Interface Compatible with Arduino
INA219 I2C Sensor Module Binghe 3 Pieces INA219 Zero Point Drift Bidirectional Current Monitoring Sensor Module CJMCU-219 Bidirectional Current Monitoring Sensor I2C Interface Compatible with Arduino
INA219 I2C Sensor Module Binghe 3 Pieces INA219 Zero Point Drift Bidirectional Current Monitoring Sensor Module CJMCU-219 Bidirectional Current Monitoring Sensor I2C Interface Compatible with Arduino

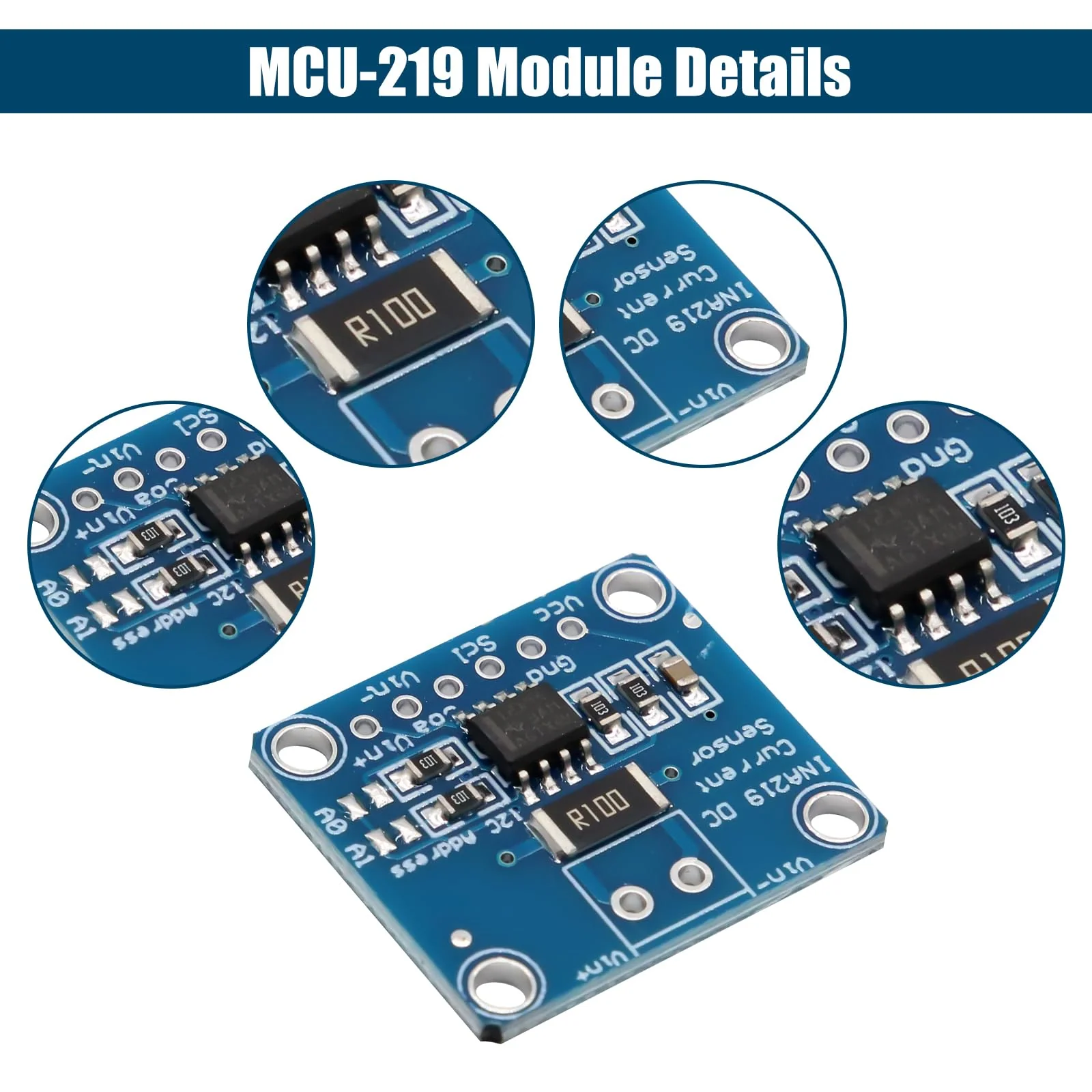

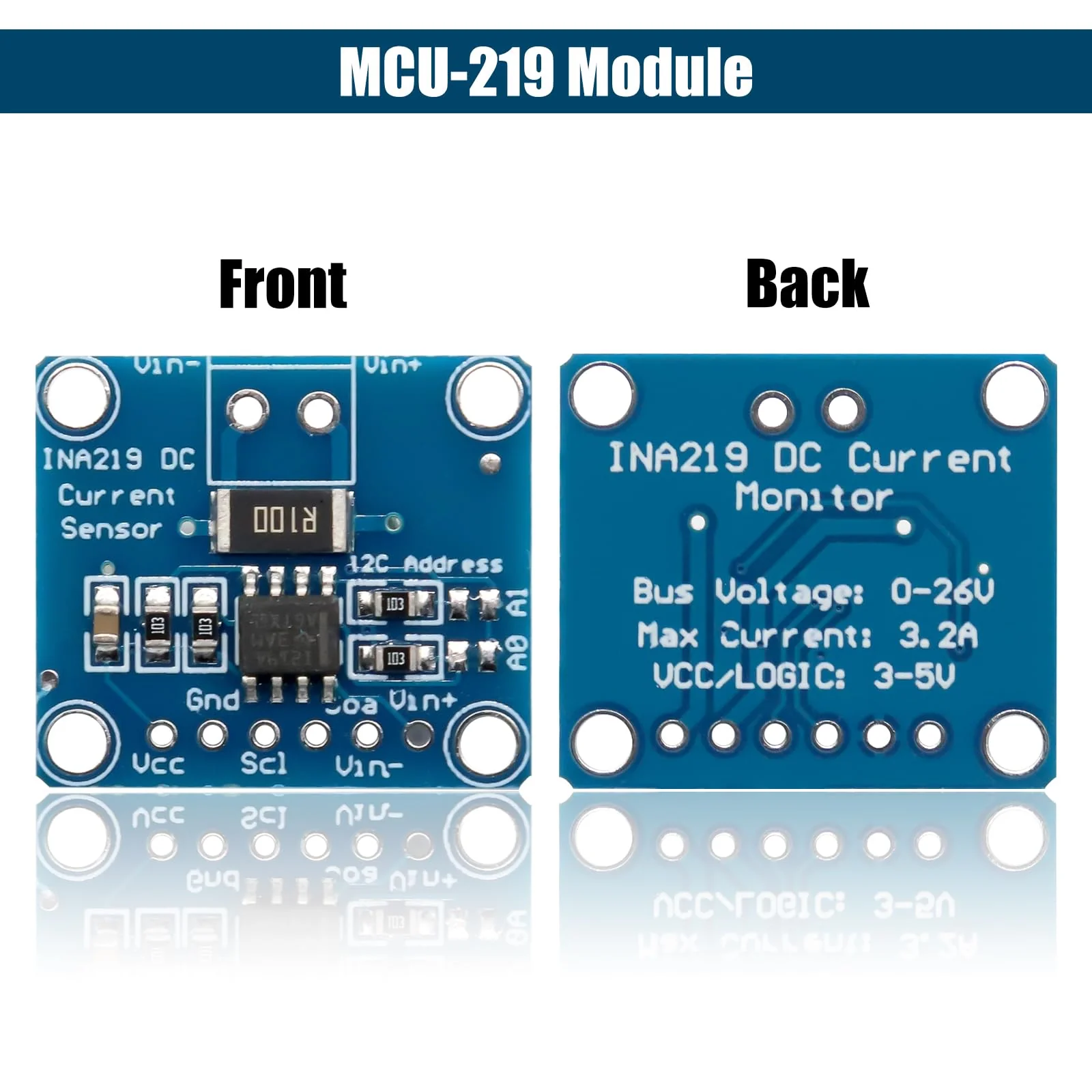

Description: The MCU-219 module is a current and voltage monitoring module based on the INA219 chip with zero drift, bi-directional current detection and I2C communication interface. It allows real-time monitoring of voltage, current and power in circuits. This INA219 module can detect bus voltages in the range of 0V to +26V and supports bi-directional current monitoring up to 2A. Parameters: Chip: INA219. Current measuring range: ±3.2A (standard), higher currents can be measured by replacing resistors Voltage measuring range: 0 V - 26 V. Power calculation accuracy: calculate power as voltage × current. Communication interface: I2C (100kHz or 400kHz) I2C Address: 0x40 (default), other addresses can be configured Resolution: 12-bit ADC Operating voltage: 3 V - 5.5 V. Current measuring resistance: 0.01Ω Measuring accuracy: max. 1%. Steps for use: 1. Connect the power supply and load: connect the positive and negative terminals, make sure that the supply voltage is between 0V and 26V and the current does not exceed 3.2A. 2. Connecting I2C interface: select the appropriate I2C address. 3. Read data: read voltage, current and power data. 4. Power calculation: calculated from the readings. Product included: 3 x INA219 I2C sensor module.
Product Features
- High-precision current monitoring: The INA219 module supports bi-directional current monitoring with an accuracy of 1% and an offset of 100uV, ensuring stable performance within a temperature range of -40C to +85C.
- I2C Interface for High Speed Communication: The INA219 module easily connects to Arduino and other devices via the I2C interface, and supports high-speed communication up to 3.4MHz.
- Supports Multiple Sample Averaging: The MCU-219's INA219 module can form the mean value of up to 128 samples, providing improved filtering in noisy environments to ensure data reliability.

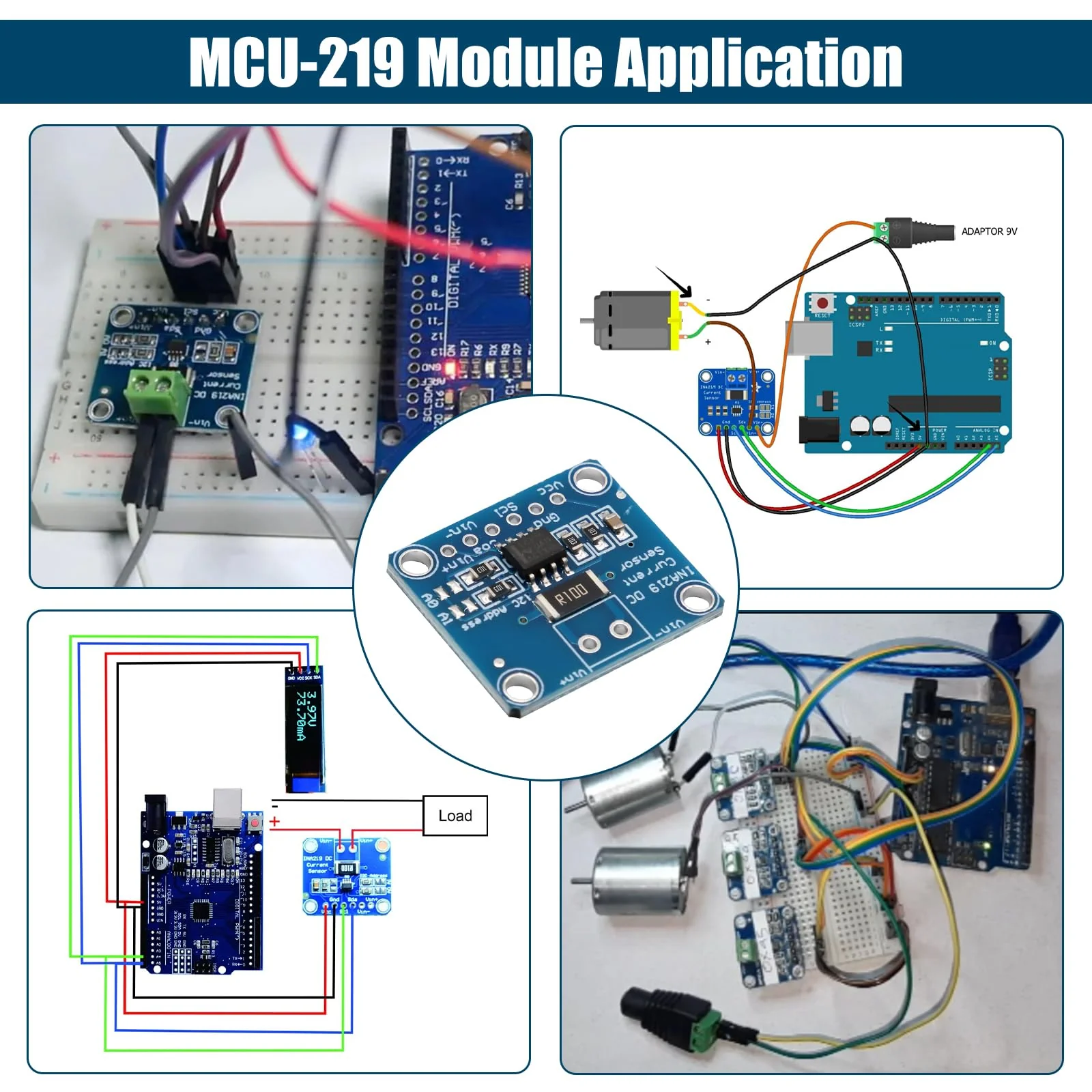

- Bi-directional Current Monitoring: INA219 module supports monitoring bi-directional current in circuits and can detect bus voltages from 0V to +26V, ideal for Arduino development projects.
- Software Programmable Functions: All functions of the INA219 are programmable by software, allowing the user to adjust the settings according to their needs, which greatly increases flexibility.
