ICQUANZX CDM324 24GHz 15m Radar Induction Single Channel Microwave Sensor Module
ICQUANZX CDM324 24GHz 15m Radar Induction Single Channel Microwave Sensor Module

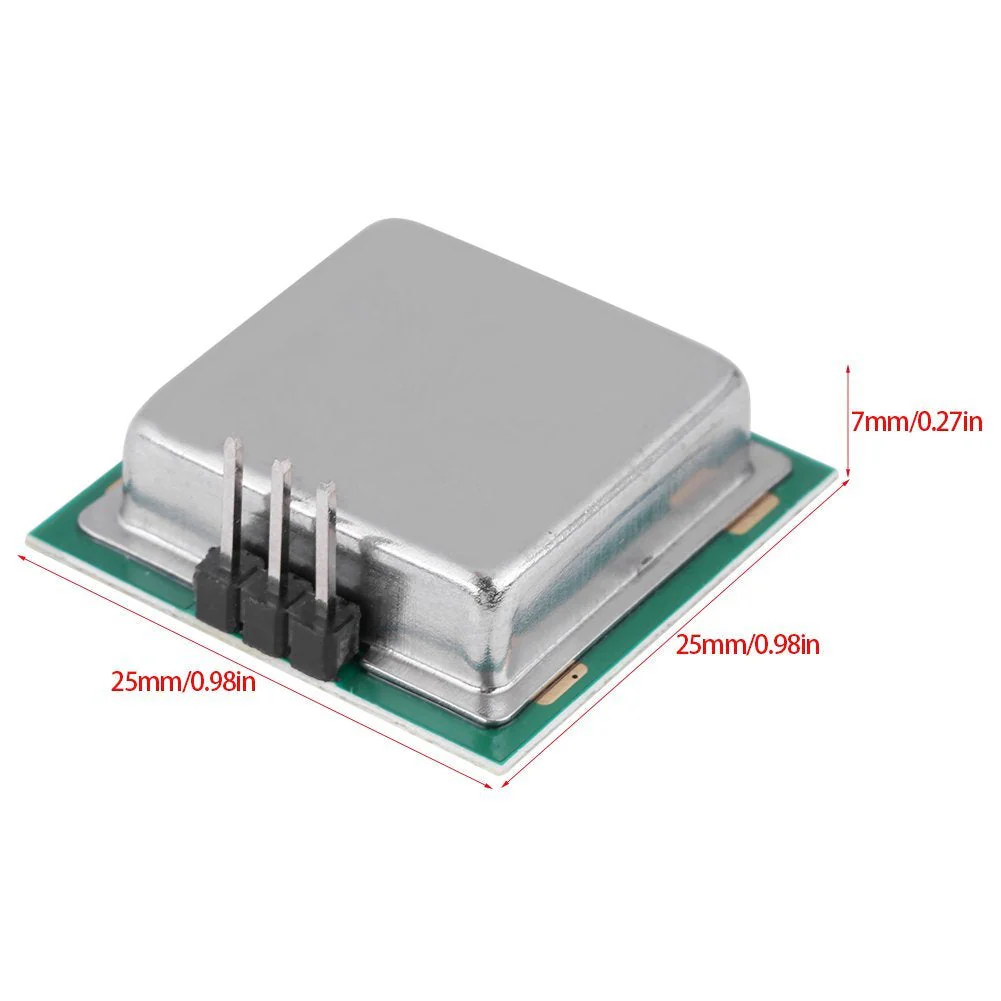

Features: Non-contact detection, detection of moving objects. The transmission frequency of this module is 24 GHz and can be used in companies, industry, word control, etc. Provide different frequency range standards: -UK, -F. Advanced low consumption PHEMT oscillator. Independent broadcasting and receiving channels can bring the big profit. High sensitivity, high flexibility, low cost, range is 15m. Single channel operation Specifications: Transmission frequency: min: 24 GHz type: 24.125 GHz max: 24.25 GHz Output power: 16 dbm (type). Antenna pattern: horizontal direction: typ.80, vertical direction: typ.32 Side lobe suppression ratio: horizontal direction: typ.13 dB, vertical direction: typ.13 dB. Operating temperature: -20 ~ 60 °C. Operating current: type: 30MA, max: 40MA Operating voltage: type: 5.5 V. Pulse width: type: 10US IF output: -300 ~ 300 MV. Size: 25 x 25 x 7 mm / 0.98 x 0.98 x 0.27 inches. Weight: 5 g. Box contents: 1 x microwave body induction module
Product Features
- Non-contact: non-contact detection, detection of moving objects. Using Doppler radar technology compared to the traditional infrared sensing PIR with the penetration detection ability.
- Wide application: the transmission frequency of this module is 24 GHz and can be used in companies, industries, word control, etc. This is a microwave sensor module for detecting moving objects and the human body. Most used in the human body, the lighting system, anti-theft warning system.
- Parameters: Advanced PHEMT oscillator with low consumption, offers different frequency range standards: -UK, -F, operating temperature: -20 ~ 60 C.
- Independence: Independent transmission and reception route, can achieve the big profit. The module has many advantages such as high sensitivity, long range, wide detection angle, high reliability and a wide range of operating voltages.
- High performance: single channel operation. High sensitivity, high flexibility, low cost, range is 50 feet.Unaffected by temperature, humidity, noise, airflow, dust, rays, etc., adaptable to terrible environments
