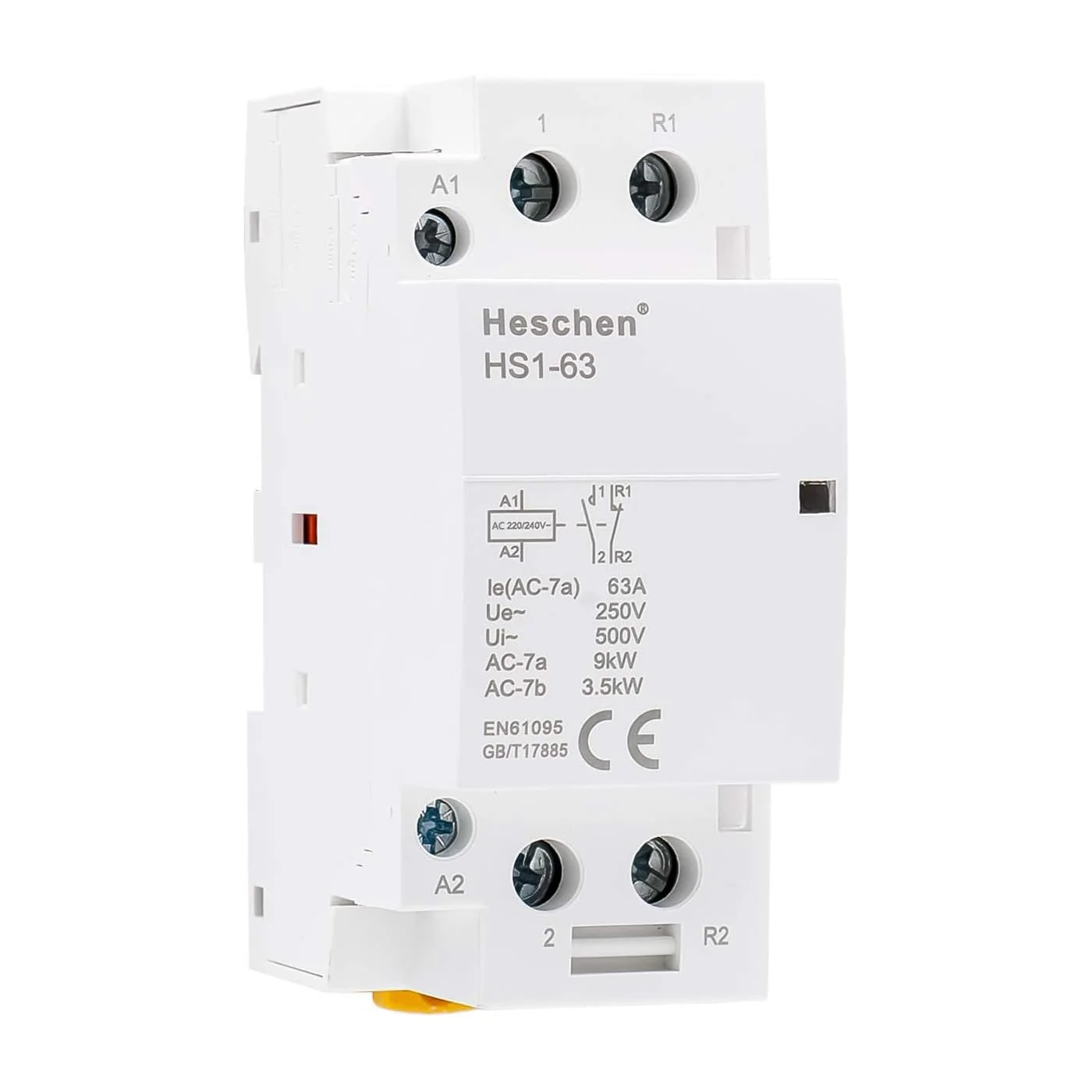

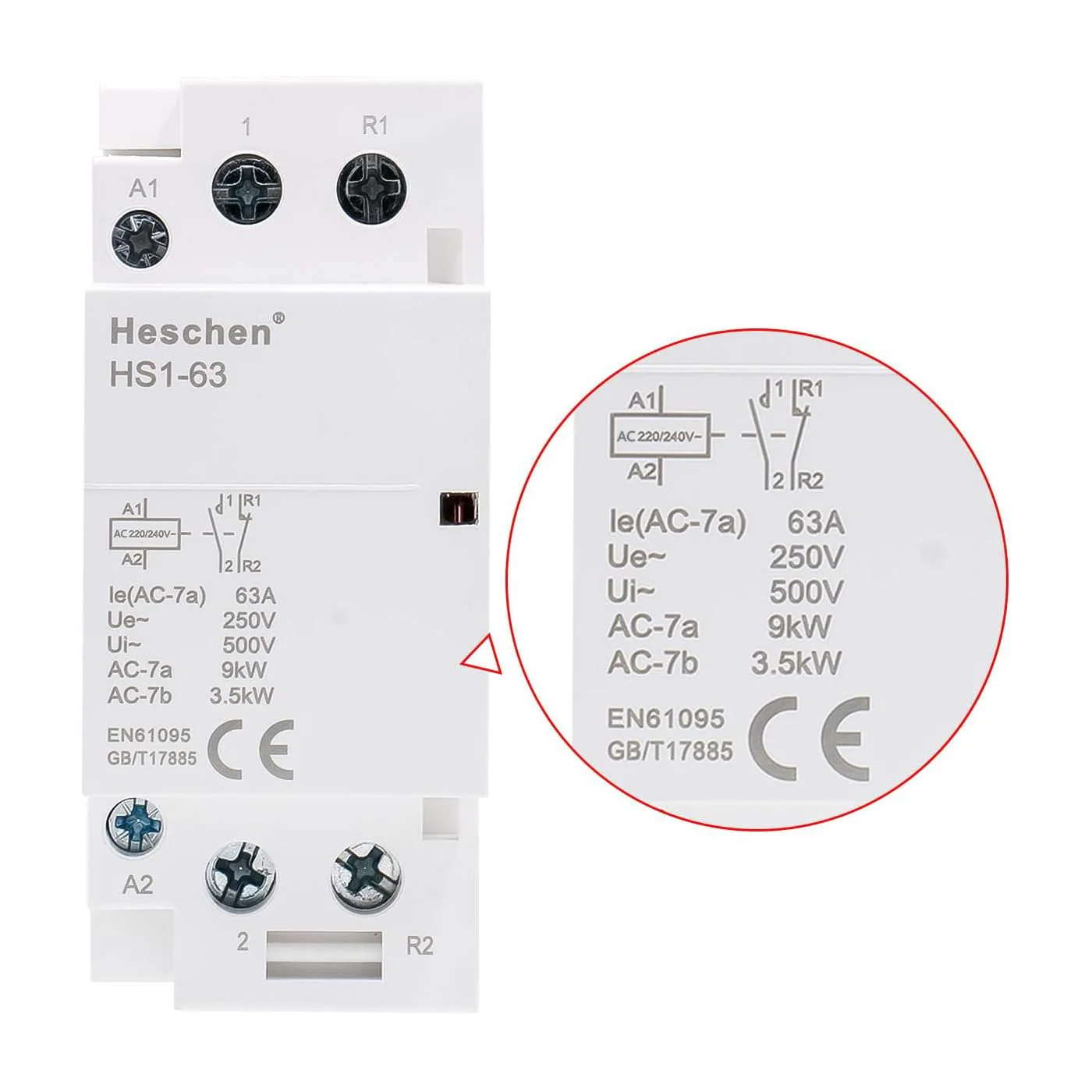

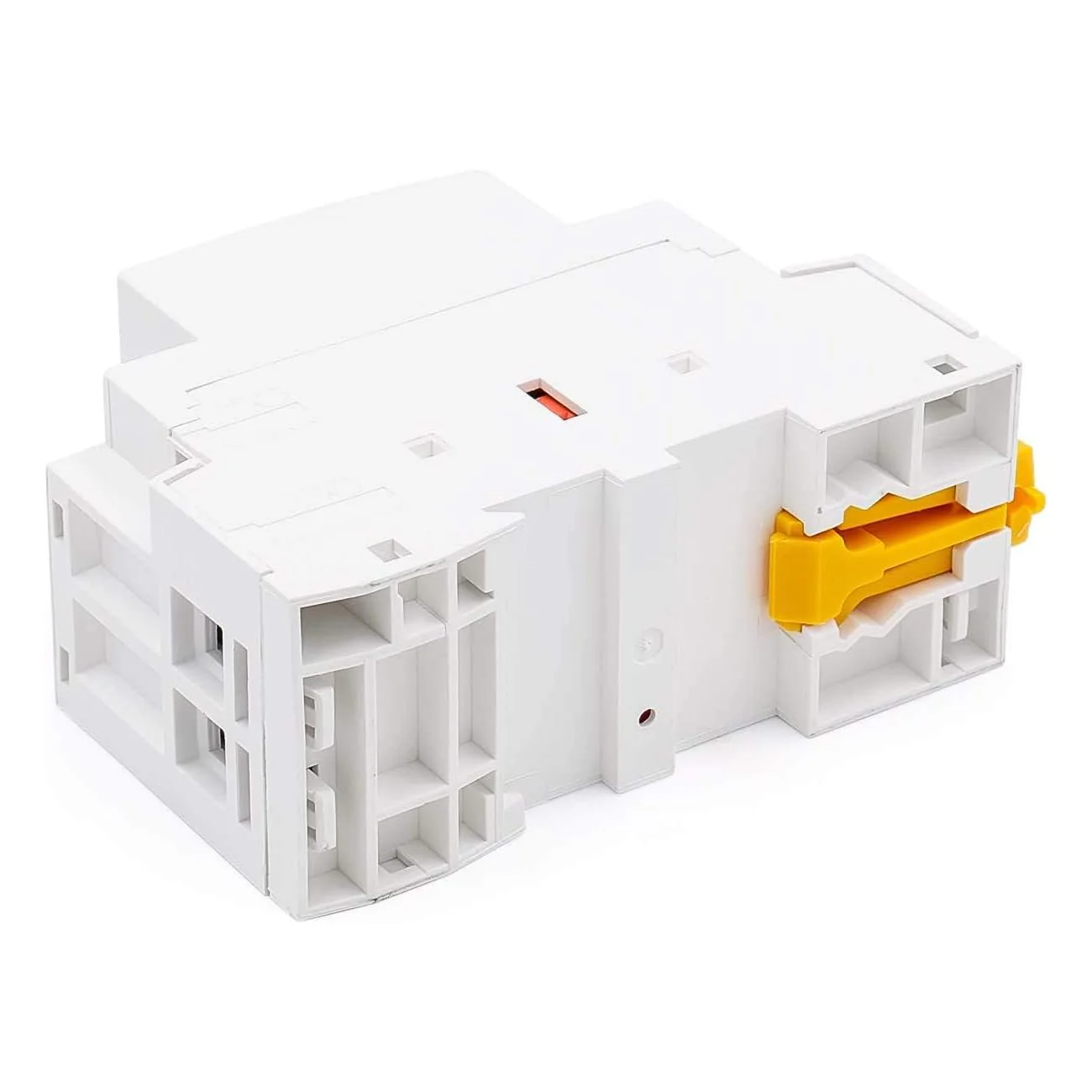

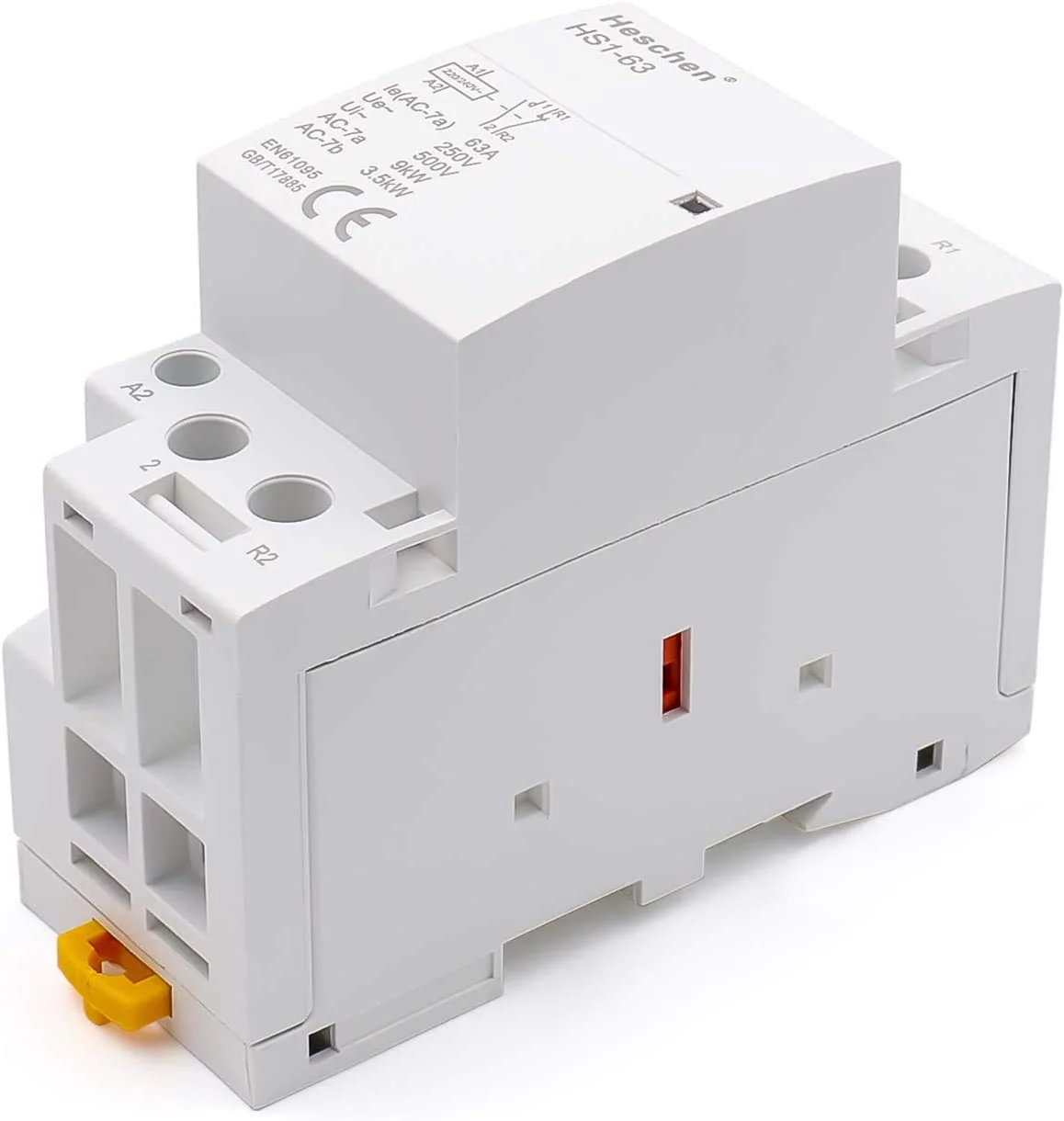

Household AC Contactor, HS1-63, 2 Pole 1NO 1NC, AC 220V/240V Coil Voltage, 35mm DIN Rail Mount
Household AC Contactor, HS1-63, 2 Pole 1NO 1NC, AC 220V/240V Coil Voltage, 35mm DIN Rail Mount
Household AC Contactor, HS1-63, 2 Pole 1NO 1NC, AC 220V/240V Coil Voltage, 35mm DIN Rail Mount
Household AC Contactor is mainly designed for AC 50Hz or 60Hz circuits with 220V/240V. Rated operating voltage in AC-7a usage, rated operating voltage up to 230V, rated operating current up to 63A, Rated operating voltage in AC-7b usage , rated current to 10A. Using in breaking capacity below 5kA circuit. For distance connect or break the circuit.Application: for home, apartment, hotel, automatic cut off or connect the power.
Product Features
- Product Name: Household AC Contactor
- Rating: 220V/240VAC, 63Amp
- Contact Type: 1NO 1NC, 2 Poles

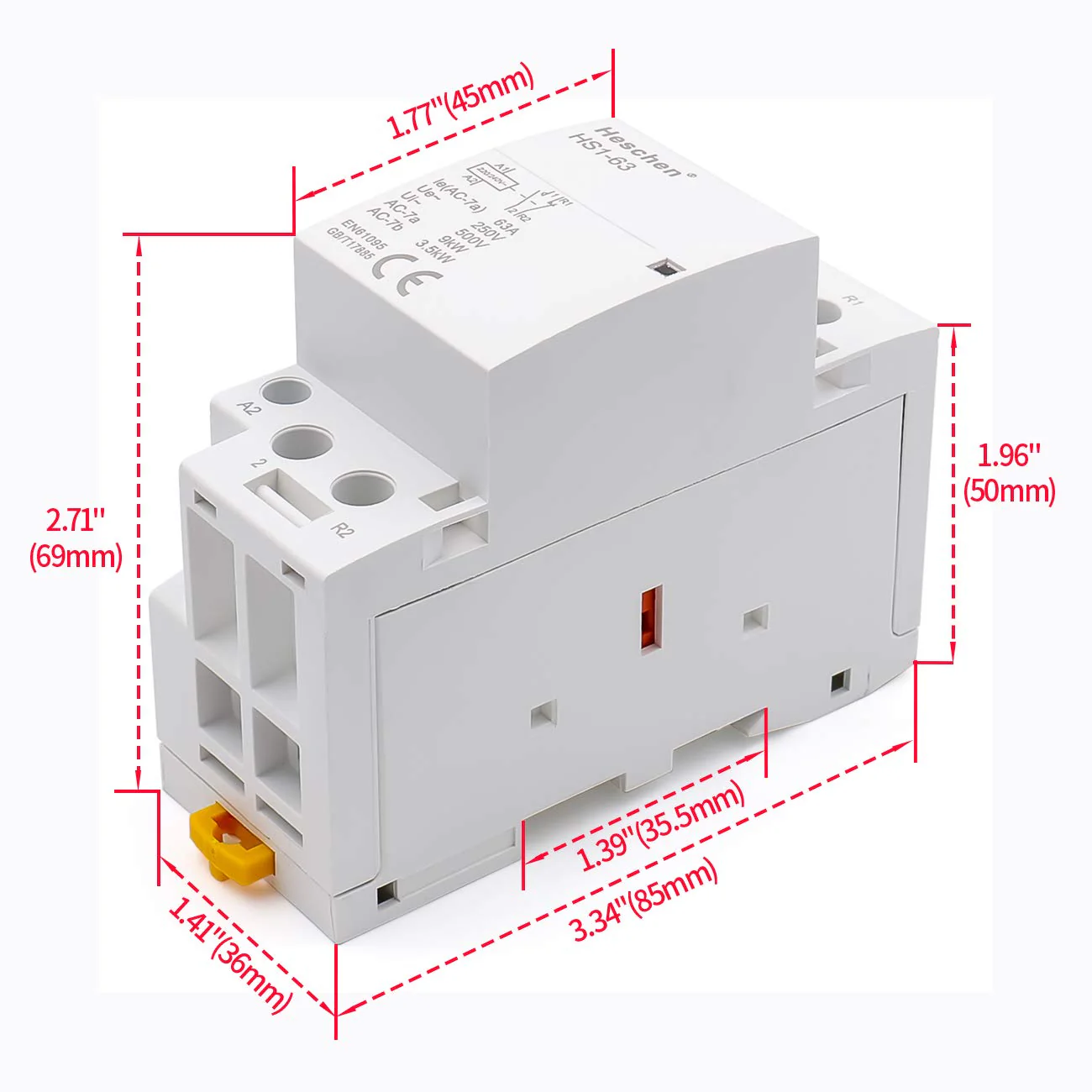

- Mount Type: 35 mm DIN Rail; Total Size (approx.): 82x65x37 mm/3.2"x2.6"x1.4"(L*W*T)
- Net Weight: 224g
Original: $99.24
-65%$99.24
$34.73More Images
Household AC Contactor, HS1-63, 2 Pole 1NO 1NC, AC 220V/240V Coil Voltage, 35mm DIN Rail Mount
Household AC Contactor, HS1-63, 2 Pole 1NO 1NC, AC 220V/240V Coil Voltage, 35mm DIN Rail Mount
Household AC Contactor is mainly designed for AC 50Hz or 60Hz circuits with 220V/240V. Rated operating voltage in AC-7a usage, rated operating voltage up to 230V, rated operating current up to 63A, Rated operating voltage in AC-7b usage , rated current to 10A. Using in breaking capacity below 5kA circuit. For distance connect or break the circuit.Application: for home, apartment, hotel, automatic cut off or connect the power.
Product Features
- Product Name: Household AC Contactor
- Rating: 220V/240VAC, 63Amp
- Contact Type: 1NO 1NC, 2 Poles
- Mount Type: 35 mm DIN Rail; Total Size (approx.): 82x65x37 mm/3.2"x2.6"x1.4"(L*W*T)
- Net Weight: 224g
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Household AC Contactor, HS1-63, 2 Pole 1NO 1NC, AC 220V/240V Coil Voltage, 35mm DIN Rail Mount
Household AC Contactor is mainly designed for AC 50Hz or 60Hz circuits with 220V/240V. Rated operating voltage in AC-7a usage, rated operating voltage up to 230V, rated operating current up to 63A, Rated operating voltage in AC-7b usage , rated current to 10A. Using in breaking capacity below 5kA circuit. For distance connect or break the circuit.Application: for home, apartment, hotel, automatic cut off or connect the power.
Product Features
- Product Name: Household AC Contactor
- Rating: 220V/240VAC, 63Amp
- Contact Type: 1NO 1NC, 2 Poles
- Mount Type: 35 mm DIN Rail; Total Size (approx.): 82x65x37 mm/3.2"x2.6"x1.4"(L*W*T)
- Net Weight: 224g
