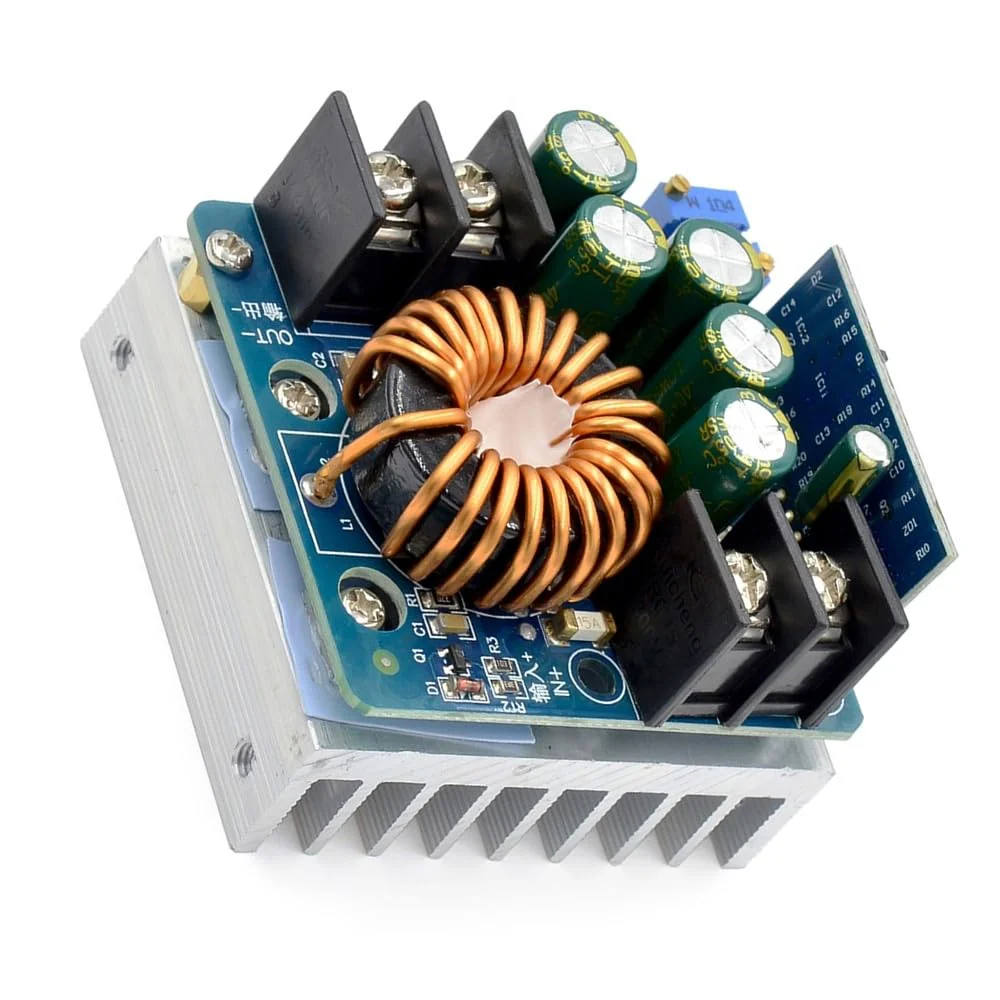

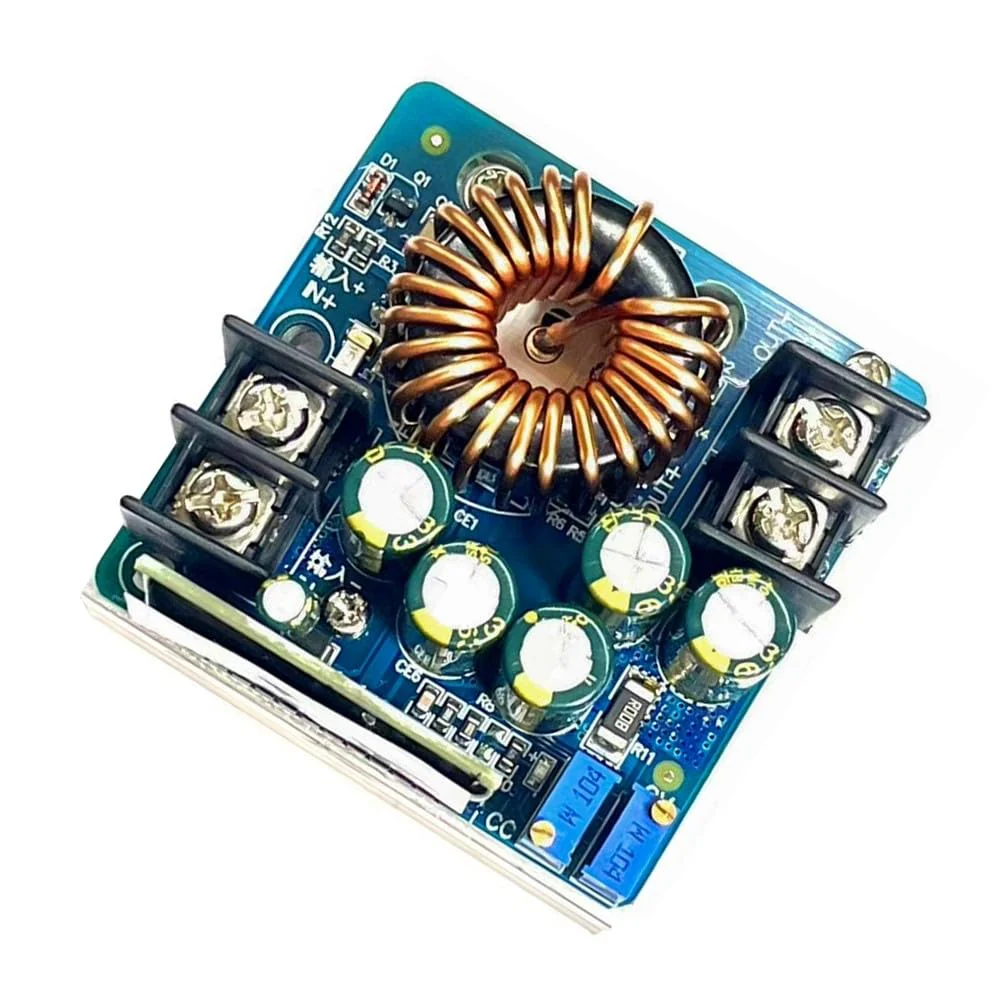

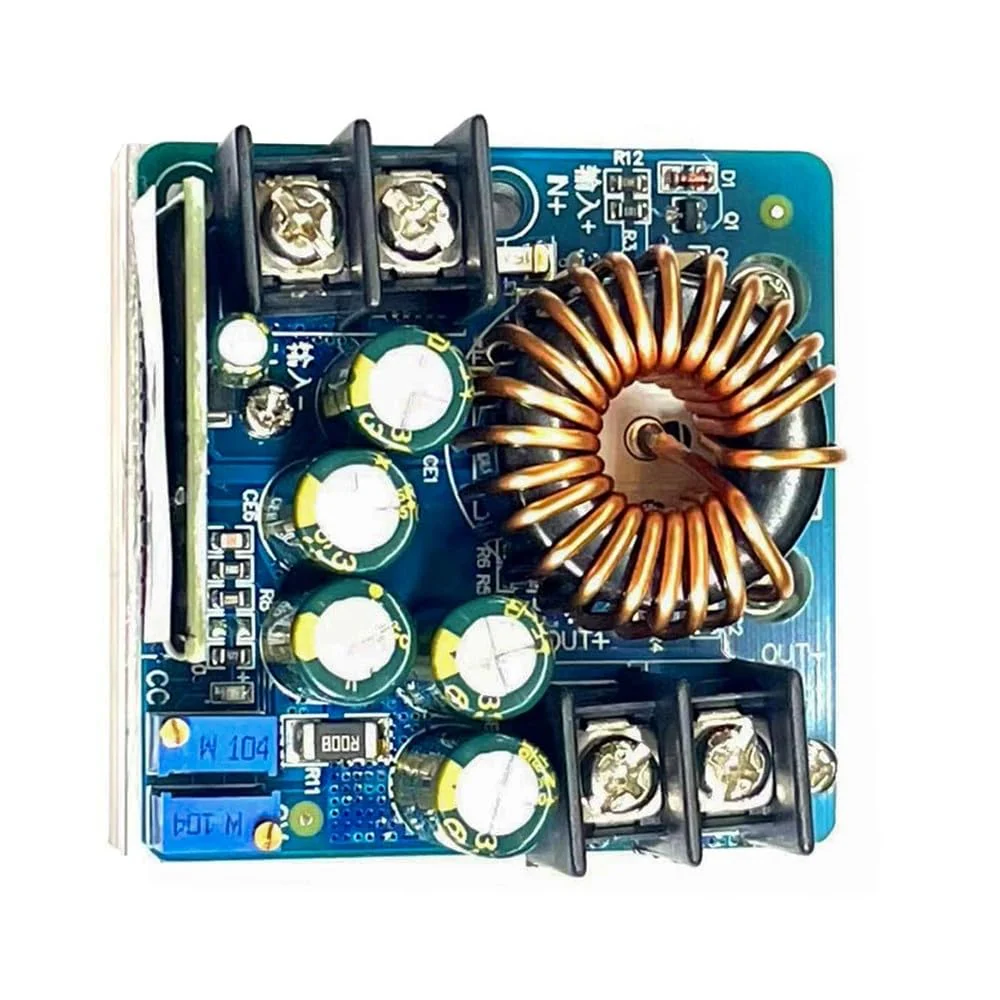

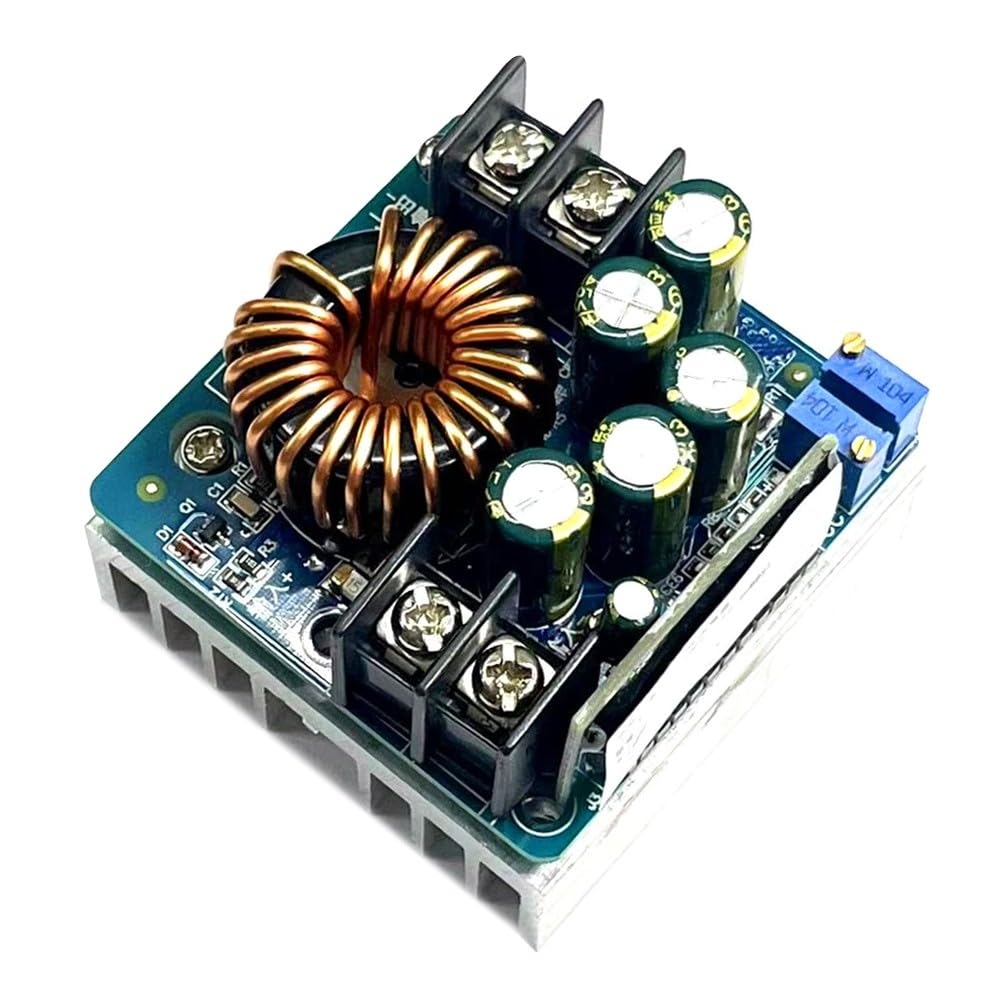

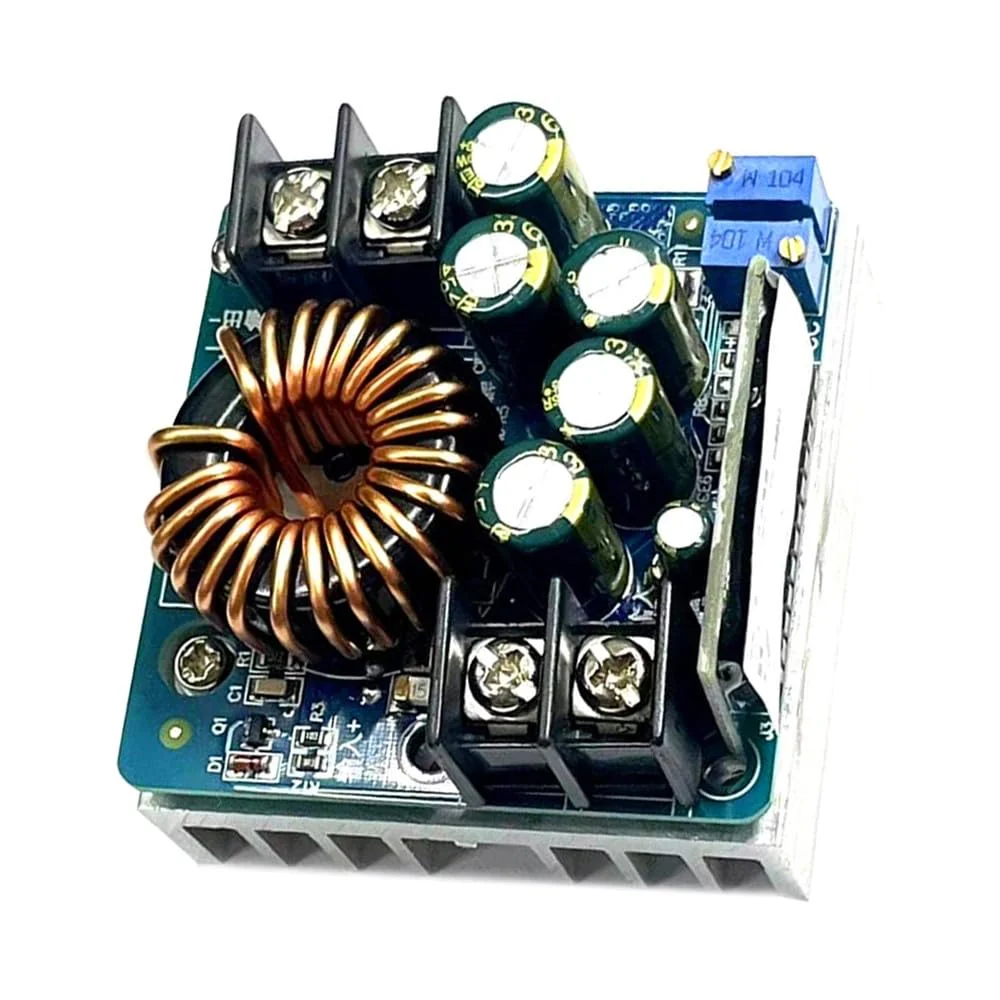

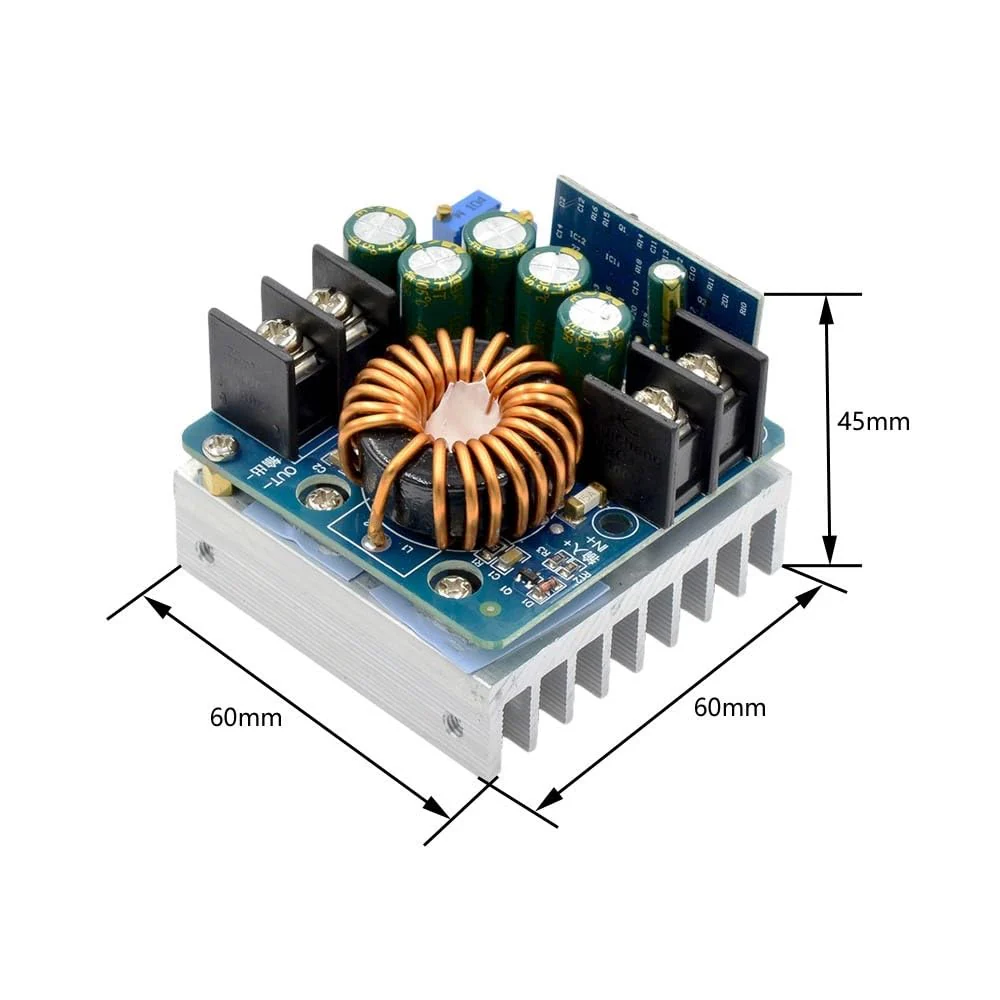

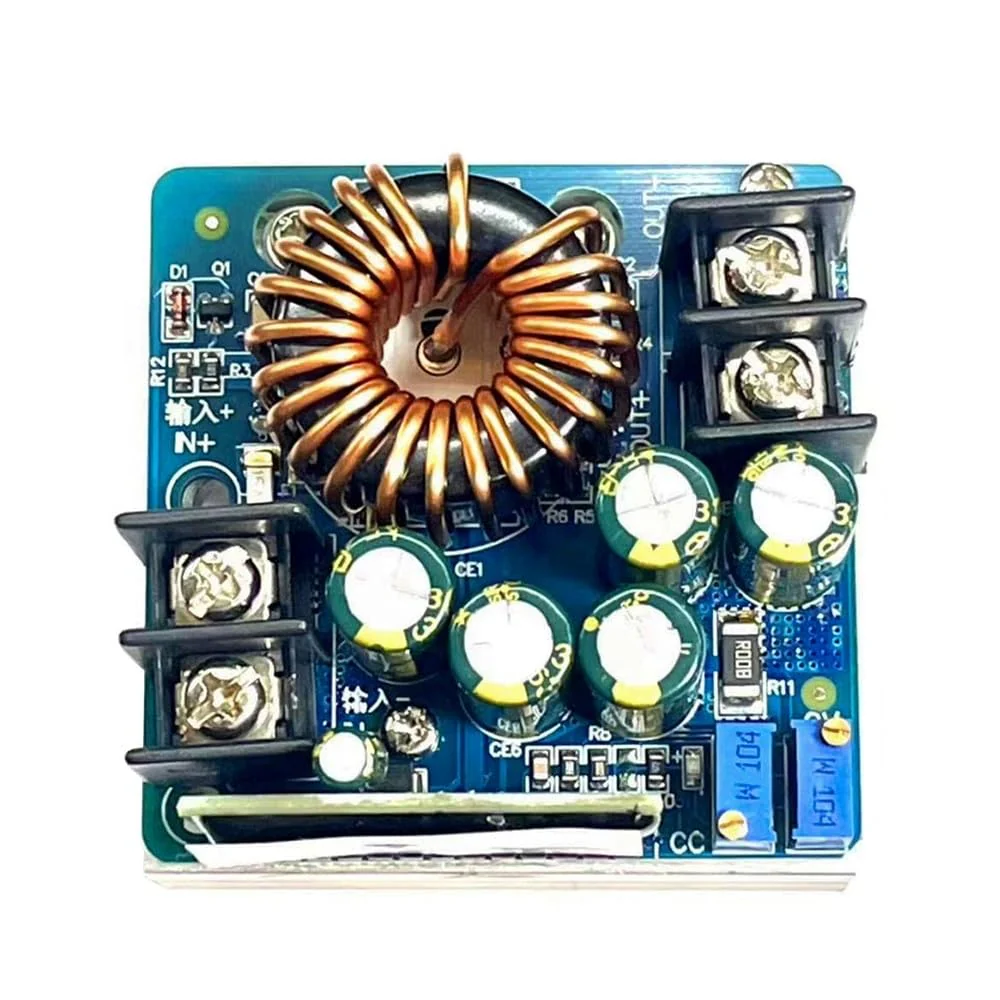

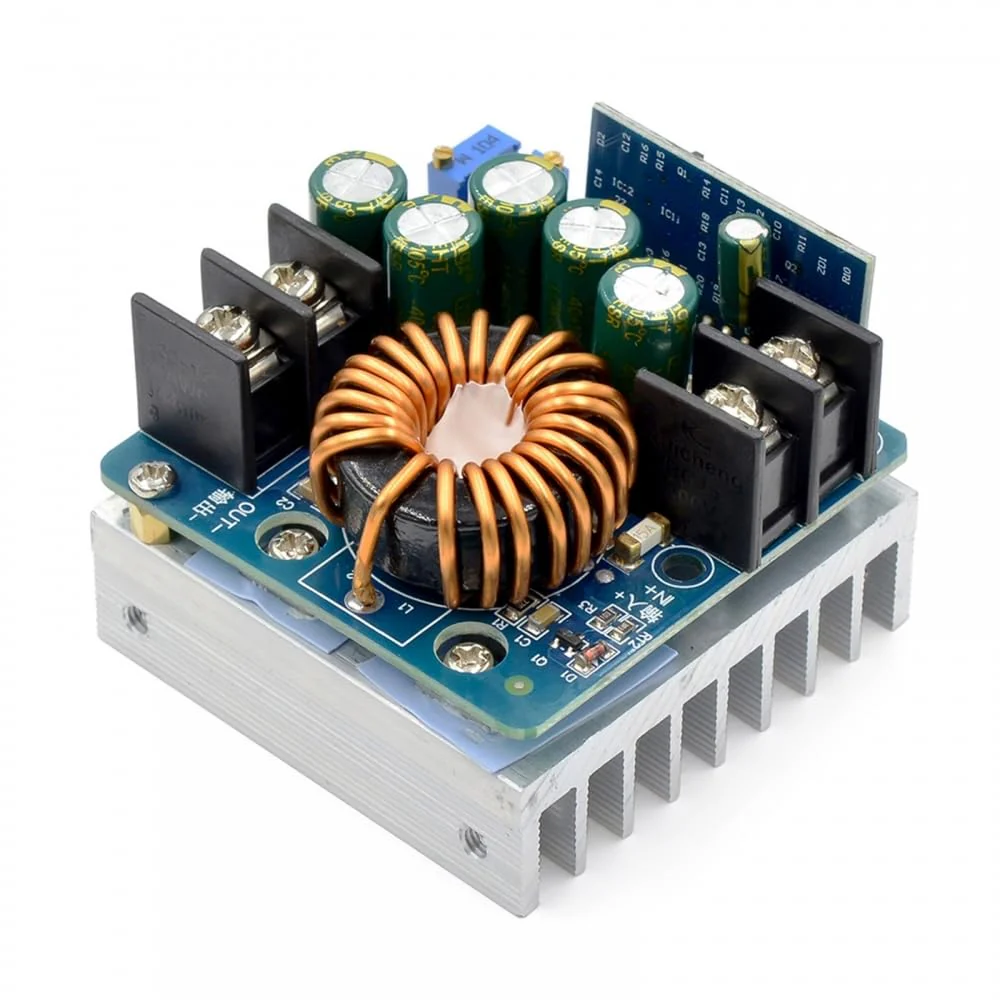

High Power Step Down Converter, 400W DC-DC 10.5V-60V to 0-45V Adjustable Supply Module, Buck Power Regulator Module
High Power Step Down Converter, 400W DC-DC 10.5V-60V to 0-45V Adjustable Supply Module, Buck Power Regulator Module
High Power Step Down Converter, 400W DC-DC 10.5V-60V to 0-45V Adjustable Supply Module, Buck Power Regulator Module

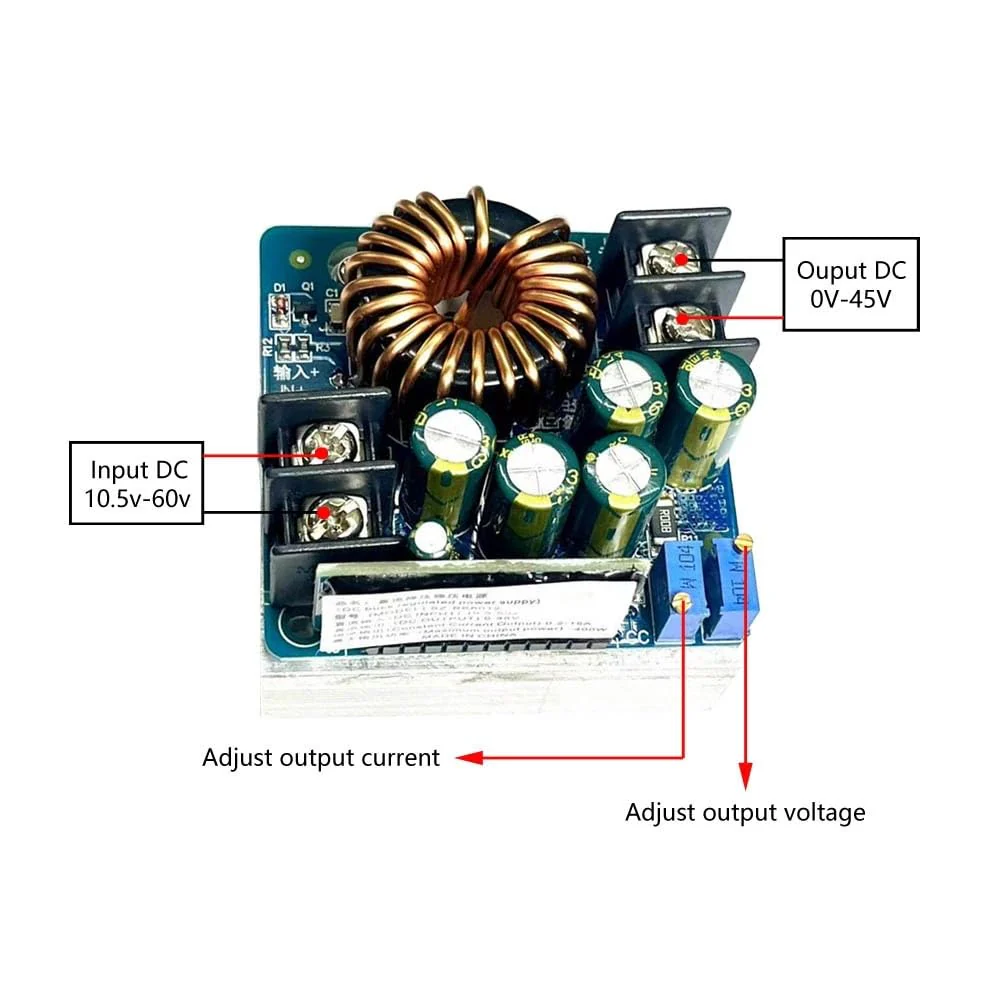

Specifications: Model: SZ-BK0612 Module type: non-isolated buck module. Input voltage: 10.5-60V Output voltage range: 0-45V (must meet step down requirements, in input multiplied by 0.8) Minimum output voltage: 0V (+1V). Maximum output voltage: approximately the same input x 0.8. Output constant current: 0.2-15A (infinitely adjustable, heat dissipation should be amplified if it exceeds 12A) Maximum output power: 400W (need to add a fan to forcibly heat the heatsink and magnetic ring) Continuous maximum working power: 280W (in ventilated environment) Continuous maximum working current: 12A (in ventilated environment). Input low voltage protection: yes (the input is lower than 10.5V, the output is closed and there is an error of about 0.5V) Input surge protection: none (overpressure prohibited). Working temperature: -10°C ~ 85°C (heat dissipation is amplified when it exceeds 65°C). Operating frequency: 100 kHz. Conversion efficiency: up to 97% (efficiency refers to input and output voltage, current and voltage difference) Short circuit protection: yes (constant current protection). Input reverse polarity protection: Yes (in case of short circuit, the input reverse polarity must be careful as the input fuse will burn out) Anti-backflow output: none (when charging the battery, the output is connected to an inductive load, for example, the anti-backflow diode must be added to the motor) Working indicator: blue LED light. Constant current display: yes. Wiring mode: self- equipped weld-free 25A wiring terminal Size: 60 x 60 x 45 mm.
Product Features
- It is a DC-DC 400W high-performance downward module CVCC 10.5V-60V to 0-45V downward voltage converter. 10-60V wide input voltage, suitable for most power supplies on the market as input source.
- Output constant voltage and current, voltage and current continuously adjustable. It can meet most electrical devices. High output power, good ventilation and natural heat dissipation can reach 280W/12A (note the limit of output power and output current).
- The module uses a step rectification scheme with high efficiency. The output voltage is more than 10 V and the efficiency is more than 92% -96%. When charging the battery, there is a constant current indicator. The charging status is visible at a glance.
- The input has a 15A fuse, and the positive and negative poles of the input are connected in reverse, which will not damage the power supply. (The fuse will burn out and the fuse must be replaced)
- SHOP WITH CONFIDENCE: To provide you with the highest quality service, please feel free to contact us if you have any questions. We provide after-sales service until you are satisfied.
More Images
High Power Step Down Converter, 400W DC-DC 10.5V-60V to 0-45V Adjustable Supply Module, Buck Power Regulator Module
High Power Step Down Converter, 400W DC-DC 10.5V-60V to 0-45V Adjustable Supply Module, Buck Power Regulator Module
Specifications: Model: SZ-BK0612 Module type: non-isolated buck module. Input voltage: 10.5-60V Output voltage range: 0-45V (must meet step down requirements, in input multiplied by 0.8) Minimum output voltage: 0V (+1V). Maximum output voltage: approximately the same input x 0.8. Output constant current: 0.2-15A (infinitely adjustable, heat dissipation should be amplified if it exceeds 12A) Maximum output power: 400W (need to add a fan to forcibly heat the heatsink and magnetic ring) Continuous maximum working power: 280W (in ventilated environment) Continuous maximum working current: 12A (in ventilated environment). Input low voltage protection: yes (the input is lower than 10.5V, the output is closed and there is an error of about 0.5V) Input surge protection: none (overpressure prohibited). Working temperature: -10°C ~ 85°C (heat dissipation is amplified when it exceeds 65°C). Operating frequency: 100 kHz. Conversion efficiency: up to 97% (efficiency refers to input and output voltage, current and voltage difference) Short circuit protection: yes (constant current protection). Input reverse polarity protection: Yes (in case of short circuit, the input reverse polarity must be careful as the input fuse will burn out) Anti-backflow output: none (when charging the battery, the output is connected to an inductive load, for example, the anti-backflow diode must be added to the motor) Working indicator: blue LED light. Constant current display: yes. Wiring mode: self- equipped weld-free 25A wiring terminal Size: 60 x 60 x 45 mm.
Product Features
- It is a DC-DC 400W high-performance downward module CVCC 10.5V-60V to 0-45V downward voltage converter. 10-60V wide input voltage, suitable for most power supplies on the market as input source.
- Output constant voltage and current, voltage and current continuously adjustable. It can meet most electrical devices. High output power, good ventilation and natural heat dissipation can reach 280W/12A (note the limit of output power and output current).
- The module uses a step rectification scheme with high efficiency. The output voltage is more than 10 V and the efficiency is more than 92% -96%. When charging the battery, there is a constant current indicator. The charging status is visible at a glance.
- The input has a 15A fuse, and the positive and negative poles of the input are connected in reverse, which will not damage the power supply. (The fuse will burn out and the fuse must be replaced)
- SHOP WITH CONFIDENCE: To provide you with the highest quality service, please feel free to contact us if you have any questions. We provide after-sales service until you are satisfied.
