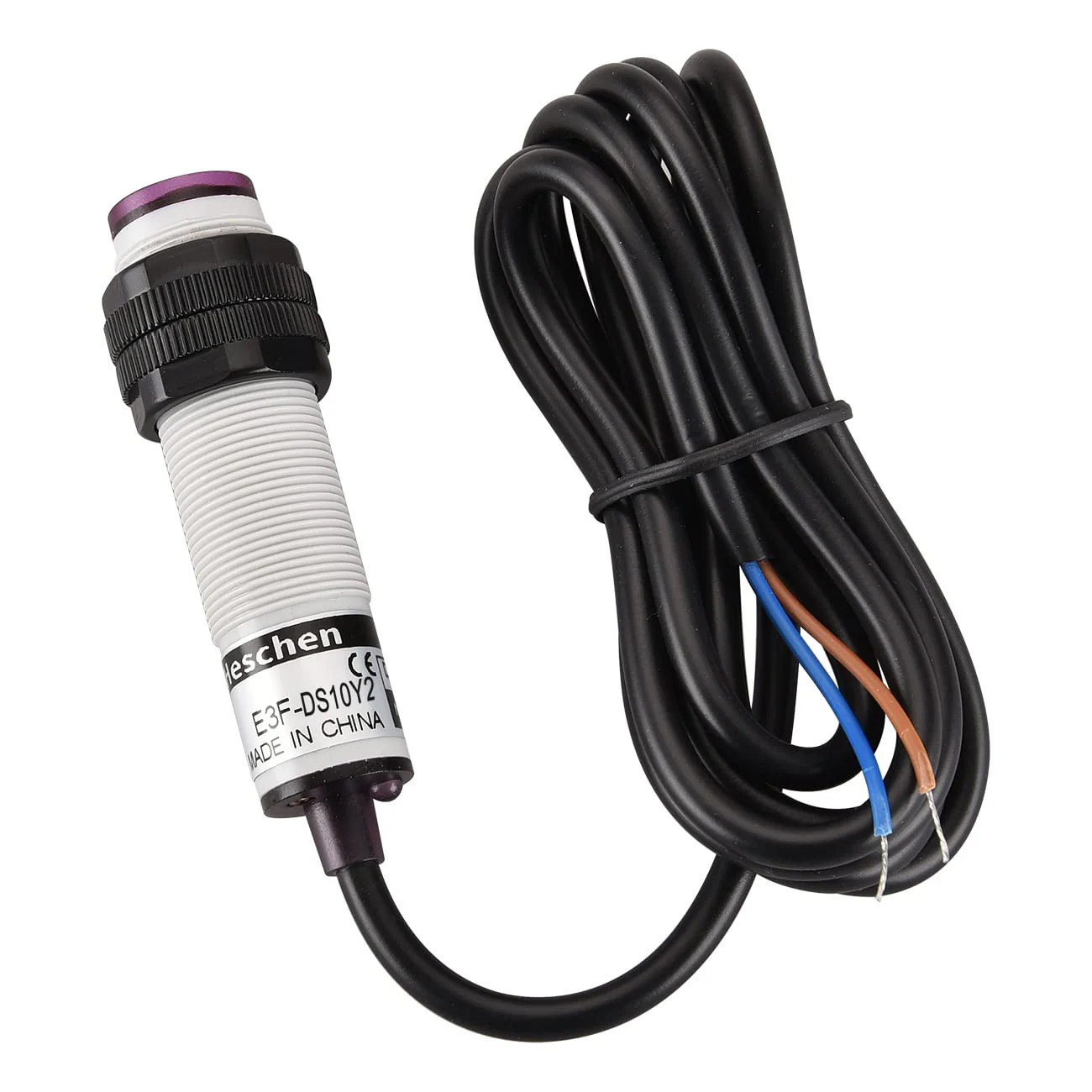

Heschen M18 Column Infrared Photoelectric Proximity Switch, Diffuse Reflection Type, E3F-DS10Y2, Detection Distance 10 cm, 90-250VAC 400mA, Normally Closed (NC), 2 Wires
Heschen M18 Column Infrared Photoelectric Proximity Switch, Diffuse Reflection Type, E3F-DS10Y2, Detection Distance 10 cm, 90-250VAC 400mA, Normally Closed (NC), 2 Wires
Heschen M18 Column Infrared Photoelectric Proximity Switch, Diffuse Reflection Type, E3F-DS10Y2, Detection Distance 10 cm, 90-250VAC 400mA, Normally Closed (NC), 2 Wires
Connection delay: 1.5ms Light source: infrared light 660nm Mains voltage: AC 90-250V 50/60Hz. Combination current: 1.7mA at the bottom. Control Output: 400mA Bottom Loop protection: surge attenuation. Ambient temperature and humidity: during operation, storage: individually 30 ~ + 65 °C (no freezing, no drew), during operation, storage: individually 35 - 95% RH. Insulation impedance: 50 MΩ above (DC500 megameter) between charging part and housing. Dielectric strength: AC 1000 V, 50/60 Hz, 1 min between charging part and housing. Temperature influence: temperature range: 30 ~ +65 °C, at + 23 °C, ± 15% detection distance, temperature range: 25 ~ + 60 °C, at +23 °C, ± 10% detection distance. Voltage influence: indoor ± 15% rated supply voltage range, at rated supply voltage value, within ± 10% detection distance.
Product Features

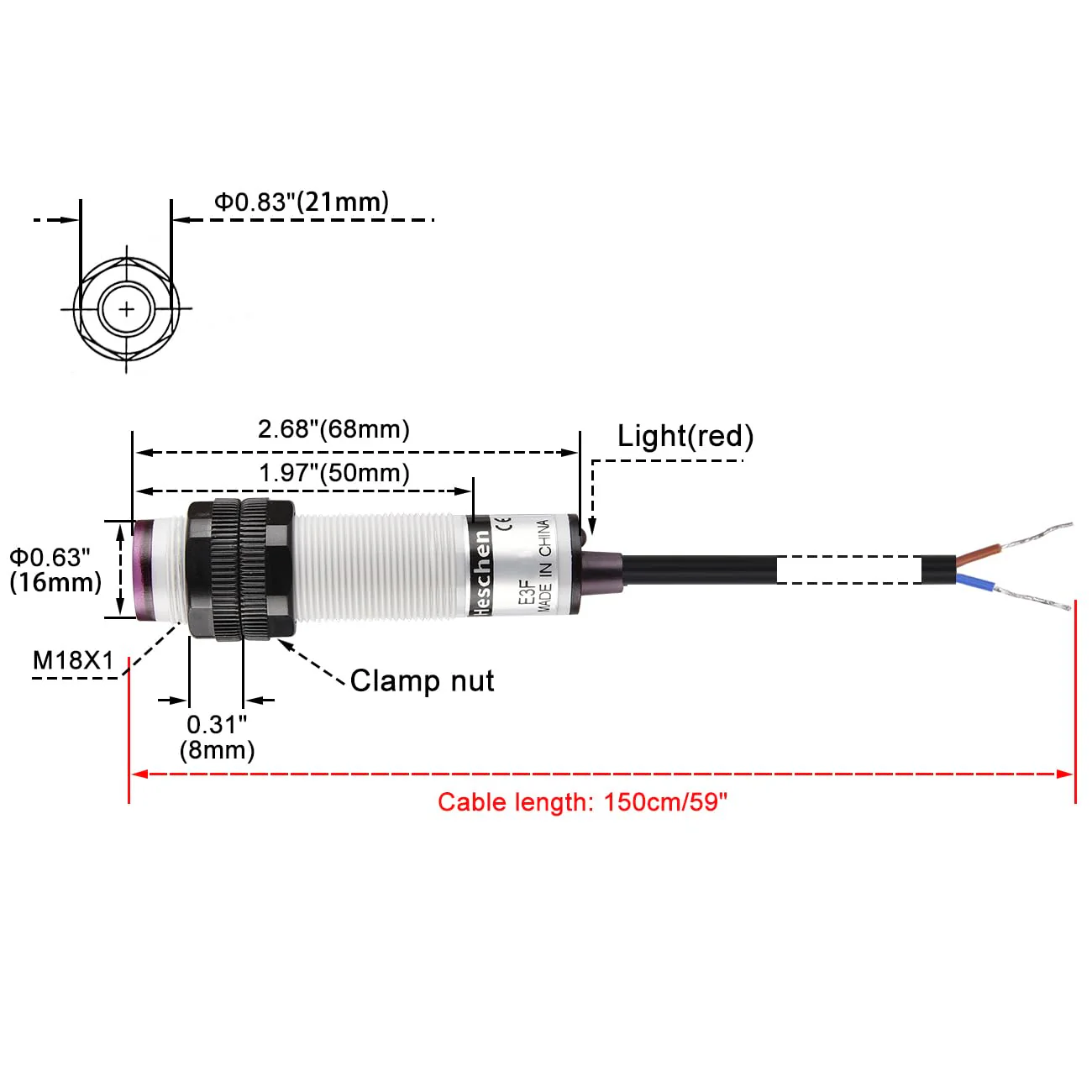

- Mounting Hole Dia:18mm/0.71";Cable Length:150cm/59
- Detection distance: 10 cm 10%, not adjustable

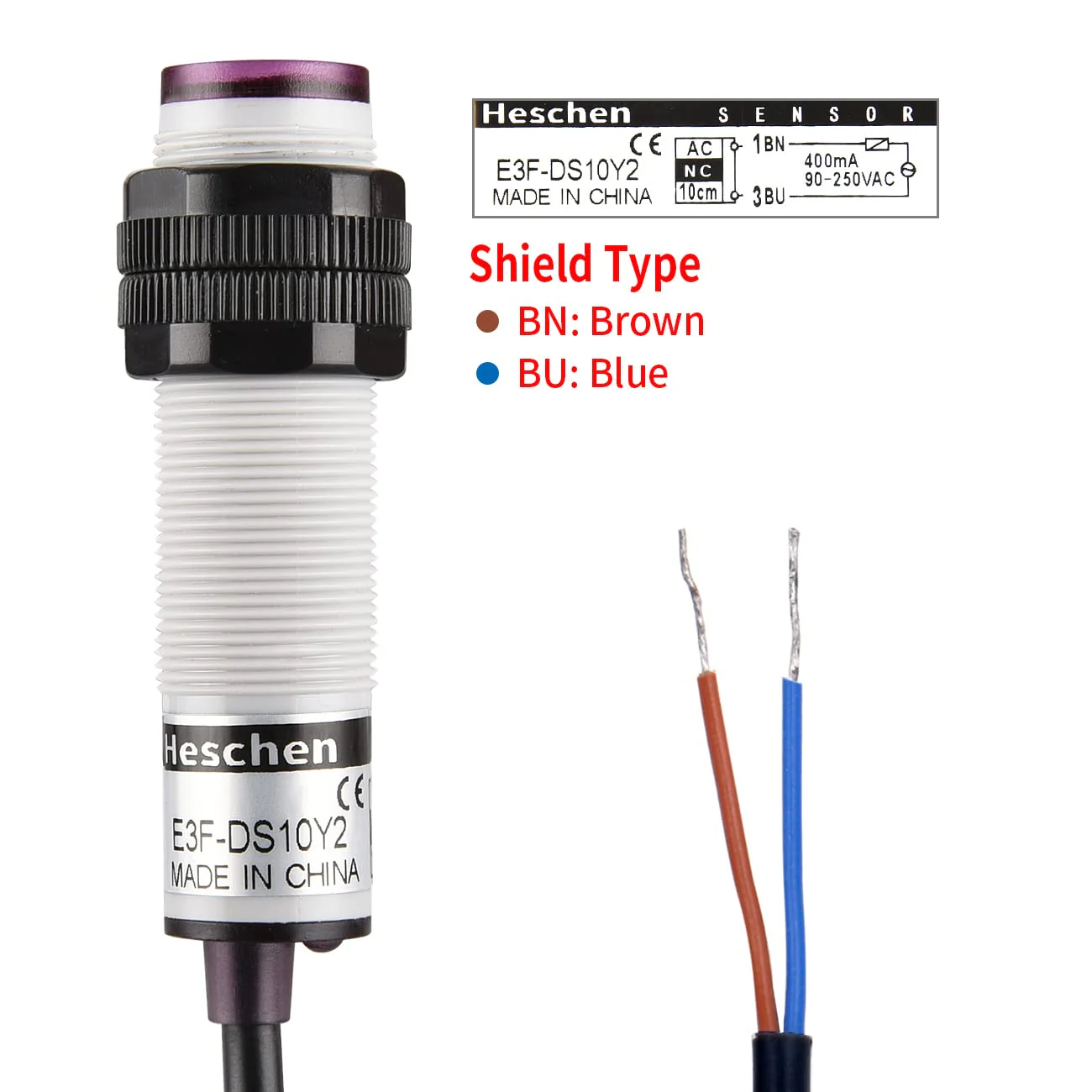

- Output type: normally closed (NC); diffuse reflection type
- Current Output: 400mA; Working Voltage: AC 90-250V
- Detection terget: opaque object
More Images
Heschen M18 Column Infrared Photoelectric Proximity Switch, Diffuse Reflection Type, E3F-DS10Y2, Detection Distance 10 cm, 90-250VAC 400mA, Normally Closed (NC), 2 Wires
Heschen M18 Column Infrared Photoelectric Proximity Switch, Diffuse Reflection Type, E3F-DS10Y2, Detection Distance 10 cm, 90-250VAC 400mA, Normally Closed (NC), 2 Wires
Connection delay: 1.5ms Light source: infrared light 660nm Mains voltage: AC 90-250V 50/60Hz. Combination current: 1.7mA at the bottom. Control Output: 400mA Bottom Loop protection: surge attenuation. Ambient temperature and humidity: during operation, storage: individually 30 ~ + 65 °C (no freezing, no drew), during operation, storage: individually 35 - 95% RH. Insulation impedance: 50 MΩ above (DC500 megameter) between charging part and housing. Dielectric strength: AC 1000 V, 50/60 Hz, 1 min between charging part and housing. Temperature influence: temperature range: 30 ~ +65 °C, at + 23 °C, ± 15% detection distance, temperature range: 25 ~ + 60 °C, at +23 °C, ± 10% detection distance. Voltage influence: indoor ± 15% rated supply voltage range, at rated supply voltage value, within ± 10% detection distance.
Product Features
- Mounting Hole Dia:18mm/0.71";Cable Length:150cm/59
- Detection distance: 10 cm 10%, not adjustable
- Output type: normally closed (NC); diffuse reflection type
- Current Output: 400mA; Working Voltage: AC 90-250V
- Detection terget: opaque object
