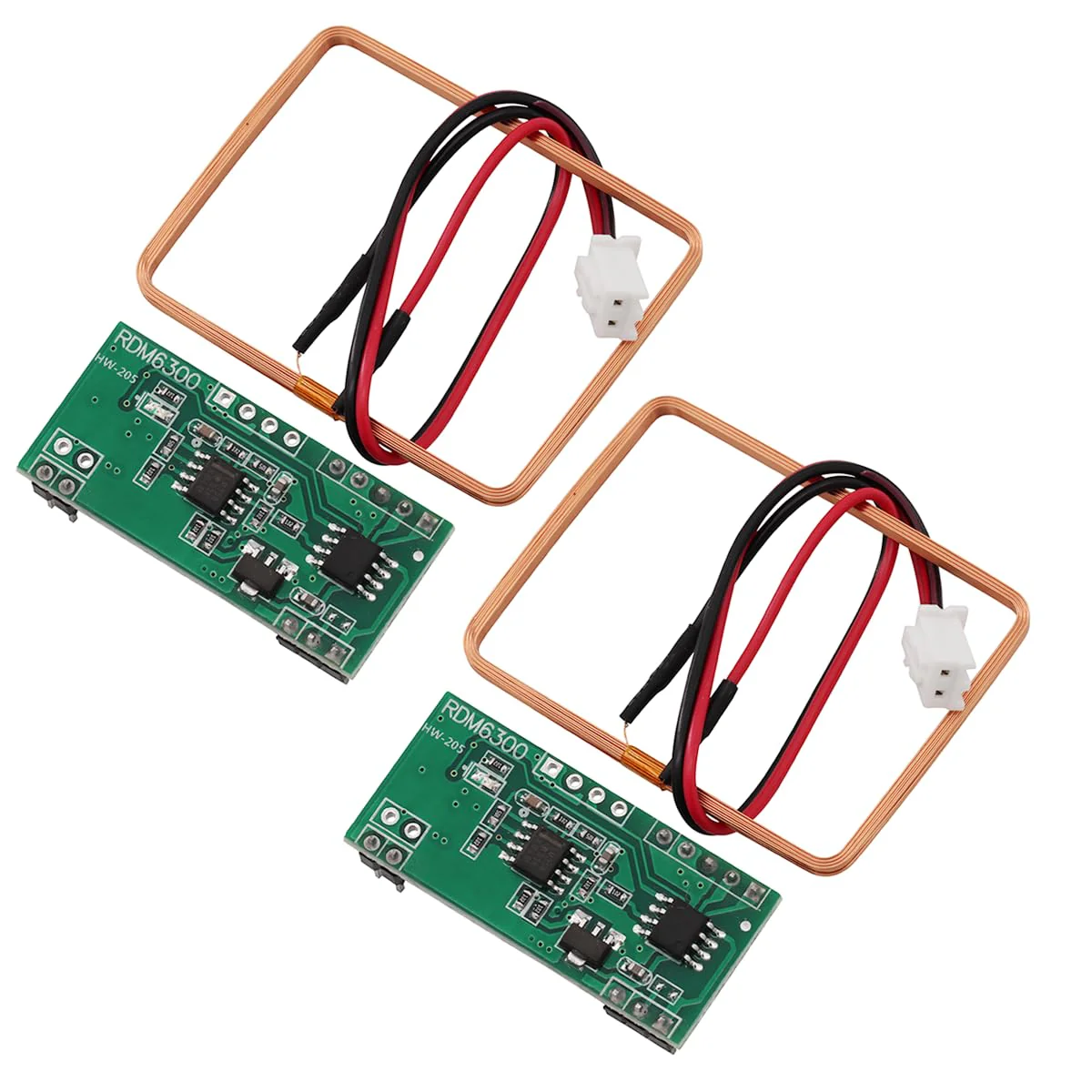

Heevhas RDM630 125 KHZ EM4100 Radio Frequency Identification Reading Module Read Module UART Serial Output DC 5V (Pack of 2)
Heevhas RDM630 125 KHZ EM4100 Radio Frequency Identification Reading Module Read Module UART Serial Output DC 5V (Pack of 2)
Heevhas RDM630 125 KHZ EM4100 Radio Frequency Identification Reading Module Read Module UART Serial Output DC 5V (Pack of 2)

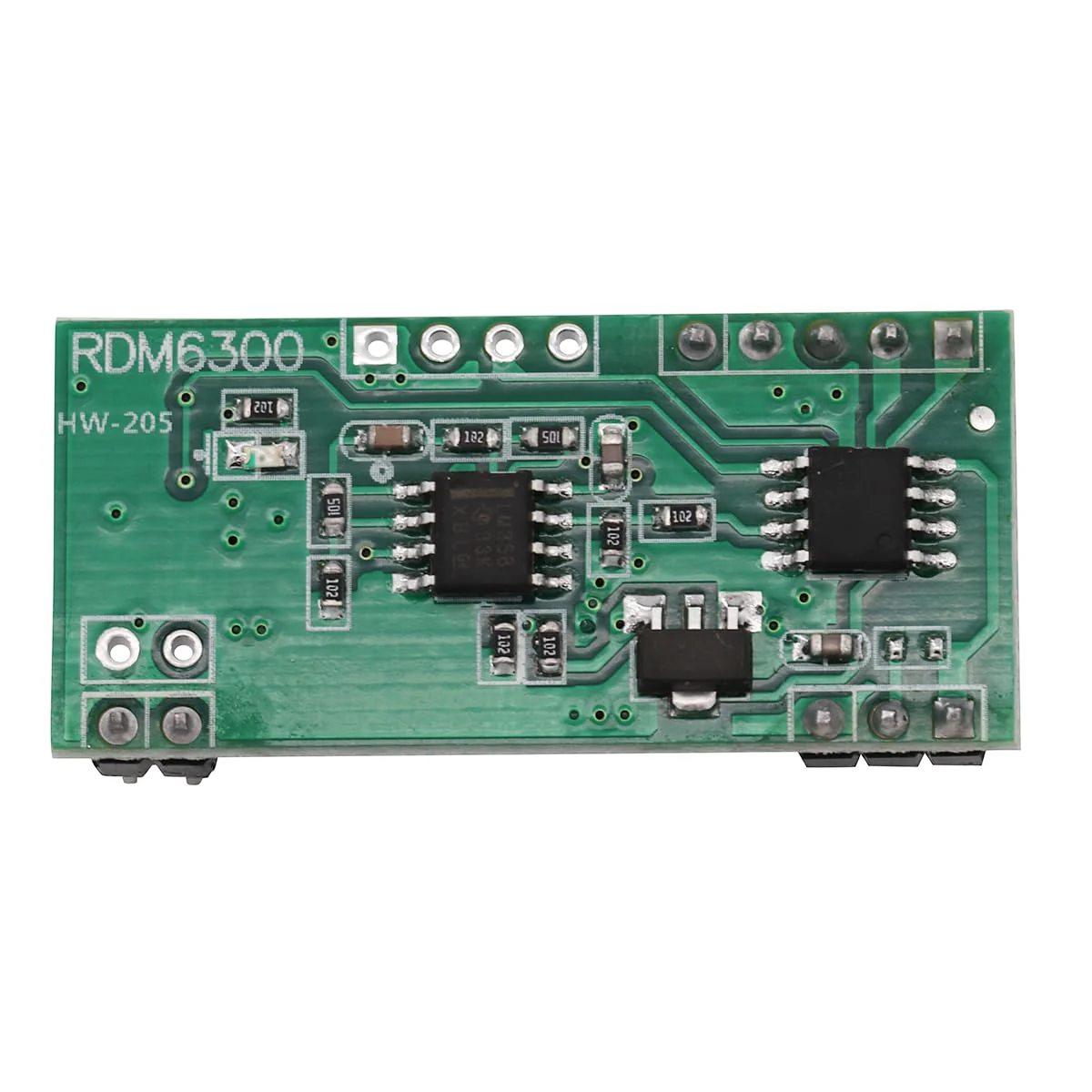

Description: The RDM630 series contactless high frequency ID card modules utilizes advanced high frequency receiving circuits and embedded microcontroller designs combined with efficient decoding algorithms to complete the data reception of EM4100 compatible ID cards. It is characterised by high reception sensitivity, low operating current and high stability. The support module commonly used by users for reading radio frequency identification cards can read EM4100 series 125K radio frequency identification cards. This module is easy to use. After turning on, connect the serial port to your motherboard. When a radio frequency identification card enters the card reading area, the module sends the card number directly to the motherboard via UART. Then use the relay module to connect to the motherboard to achieve easy access control. APPLICATION Suitable for various applications of radio frequency identification such as access control, attendance, charging, anti-theft, patrol service, etc. Module parameters: Frequency: 125 kHz. Baud rate: 9600 (TTL current level format). Interface: TTL Electricity LevelFormat Power supply: DC 5V (± 5%) Current: <50 mA. Operating range: max. 50mm (depending on card/tag shape, manufacturer) Coil inductance 47~68uH Extend I/O port: N/A Indicator light: N/A. Working temperature: -10°C ~ +70°C. Storage temperature: -20°C ~ +80°C. Max. Humidity: Relative humidity 0 ~ 95%. Size: 38.5 mm x 19 mm x 9 mm. Package includes: 2 x RDM630 125 KHZ EM4100 radio frequency identification reading module
Product Features

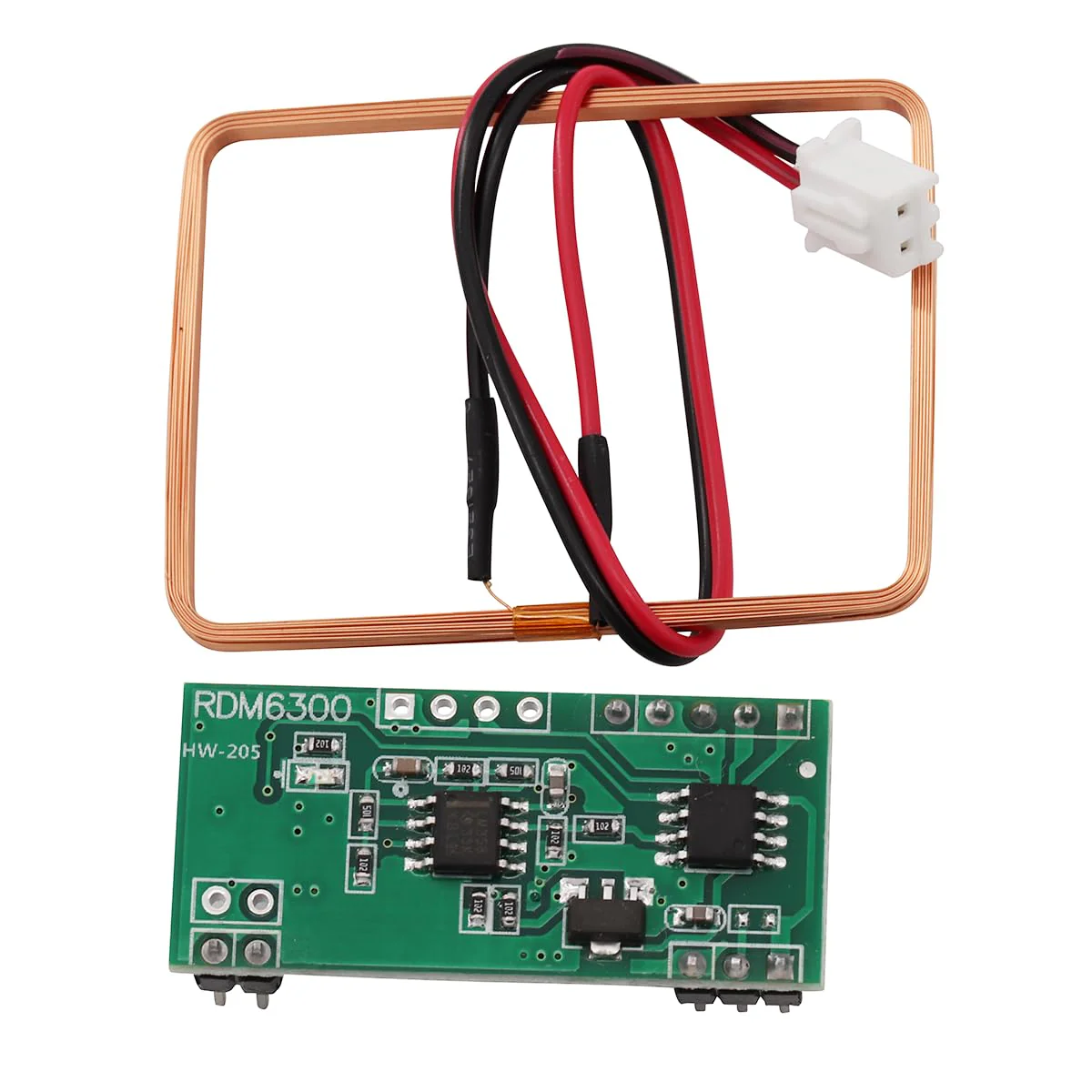

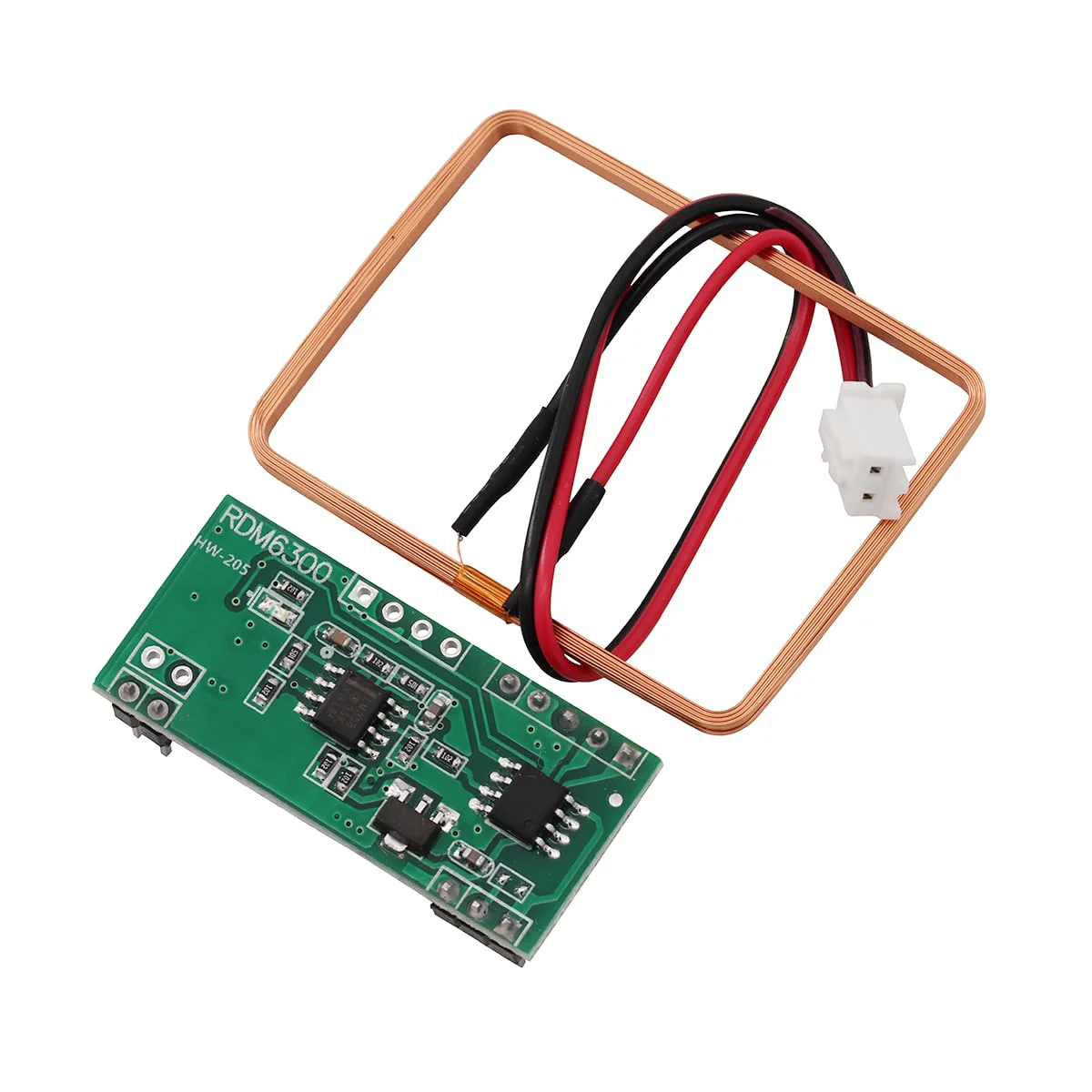

- RDM630 KIT: RDM630 125 KHz EM4100 radio frequency identification card module kit.
- [Installation is more convenient] Direct serial reading, all pins lead to an interface for electronic building blocks.

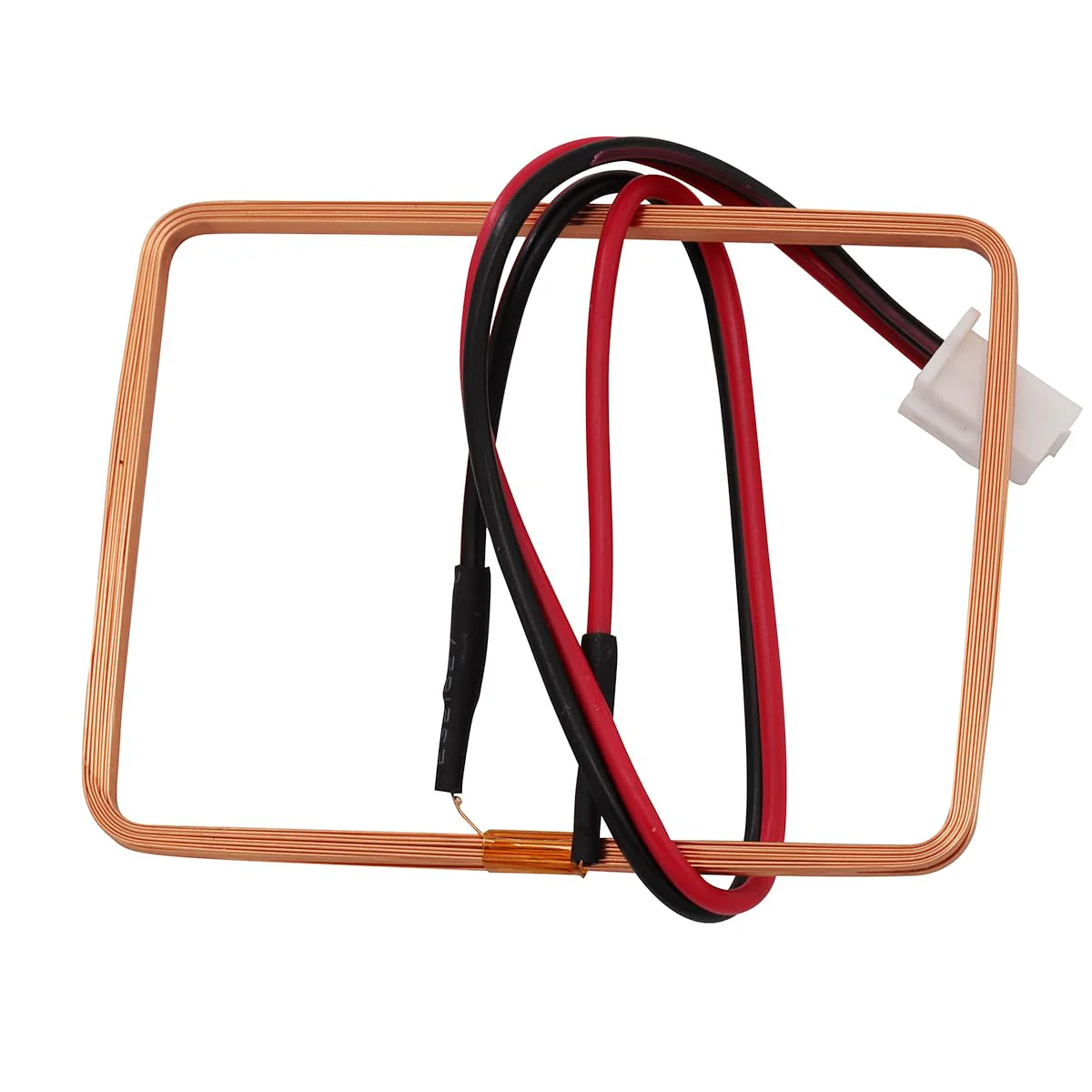

- Supports external antenna: maximum effective distance up to 50 mm.
- Short decoding time: less than 100 ms decoding time, UART interface.
- Application: It can be used in office/home security, personal identification, access control, anti-counterfeiting, interactive toy and production control systems, etc.
More Images
Heevhas RDM630 125 KHZ EM4100 Radio Frequency Identification Reading Module Read Module UART Serial Output DC 5V (Pack of 2)
Heevhas RDM630 125 KHZ EM4100 Radio Frequency Identification Reading Module Read Module UART Serial Output DC 5V (Pack of 2)
Description: The RDM630 series contactless high frequency ID card modules utilizes advanced high frequency receiving circuits and embedded microcontroller designs combined with efficient decoding algorithms to complete the data reception of EM4100 compatible ID cards. It is characterised by high reception sensitivity, low operating current and high stability. The support module commonly used by users for reading radio frequency identification cards can read EM4100 series 125K radio frequency identification cards. This module is easy to use. After turning on, connect the serial port to your motherboard. When a radio frequency identification card enters the card reading area, the module sends the card number directly to the motherboard via UART. Then use the relay module to connect to the motherboard to achieve easy access control. APPLICATION Suitable for various applications of radio frequency identification such as access control, attendance, charging, anti-theft, patrol service, etc. Module parameters: Frequency: 125 kHz. Baud rate: 9600 (TTL current level format). Interface: TTL Electricity LevelFormat Power supply: DC 5V (± 5%) Current: <50 mA. Operating range: max. 50mm (depending on card/tag shape, manufacturer) Coil inductance 47~68uH Extend I/O port: N/A Indicator light: N/A. Working temperature: -10°C ~ +70°C. Storage temperature: -20°C ~ +80°C. Max. Humidity: Relative humidity 0 ~ 95%. Size: 38.5 mm x 19 mm x 9 mm. Package includes: 2 x RDM630 125 KHZ EM4100 radio frequency identification reading module
Product Features
- RDM630 KIT: RDM630 125 KHz EM4100 radio frequency identification card module kit.
- [Installation is more convenient] Direct serial reading, all pins lead to an interface for electronic building blocks.
- Supports external antenna: maximum effective distance up to 50 mm.
- Short decoding time: less than 100 ms decoding time, UART interface.
- Application: It can be used in office/home security, personal identification, access control, anti-counterfeiting, interactive toy and production control systems, etc.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Heevhas RDM630 125 KHZ EM4100 Radio Frequency Identification Reading Module Read Module UART Serial Output DC 5V (Pack of 2)
Description: The RDM630 series contactless high frequency ID card modules utilizes advanced high frequency receiving circuits and embedded microcontroller designs combined with efficient decoding algorithms to complete the data reception of EM4100 compatible ID cards. It is characterised by high reception sensitivity, low operating current and high stability. The support module commonly used by users for reading radio frequency identification cards can read EM4100 series 125K radio frequency identification cards. This module is easy to use. After turning on, connect the serial port to your motherboard. When a radio frequency identification card enters the card reading area, the module sends the card number directly to the motherboard via UART. Then use the relay module to connect to the motherboard to achieve easy access control. APPLICATION Suitable for various applications of radio frequency identification such as access control, attendance, charging, anti-theft, patrol service, etc. Module parameters: Frequency: 125 kHz. Baud rate: 9600 (TTL current level format). Interface: TTL Electricity LevelFormat Power supply: DC 5V (± 5%) Current: <50 mA. Operating range: max. 50mm (depending on card/tag shape, manufacturer) Coil inductance 47~68uH Extend I/O port: N/A Indicator light: N/A. Working temperature: -10°C ~ +70°C. Storage temperature: -20°C ~ +80°C. Max. Humidity: Relative humidity 0 ~ 95%. Size: 38.5 mm x 19 mm x 9 mm. Package includes: 2 x RDM630 125 KHZ EM4100 radio frequency identification reading module
Product Features
- RDM630 KIT: RDM630 125 KHz EM4100 radio frequency identification card module kit.
- [Installation is more convenient] Direct serial reading, all pins lead to an interface for electronic building blocks.
- Supports external antenna: maximum effective distance up to 50 mm.
- Short decoding time: less than 100 ms decoding time, UART interface.
- Application: It can be used in office/home security, personal identification, access control, anti-counterfeiting, interactive toy and production control systems, etc.
