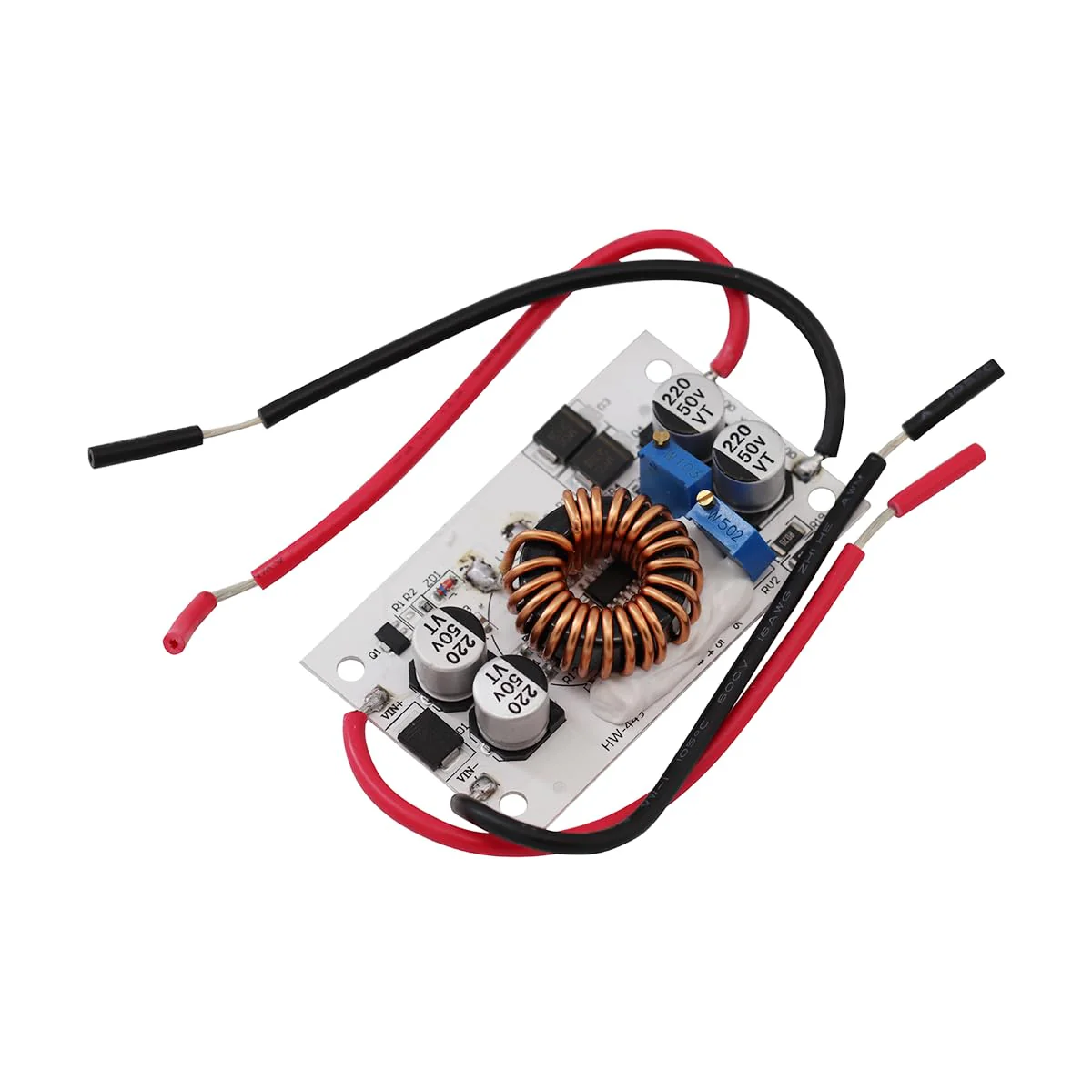

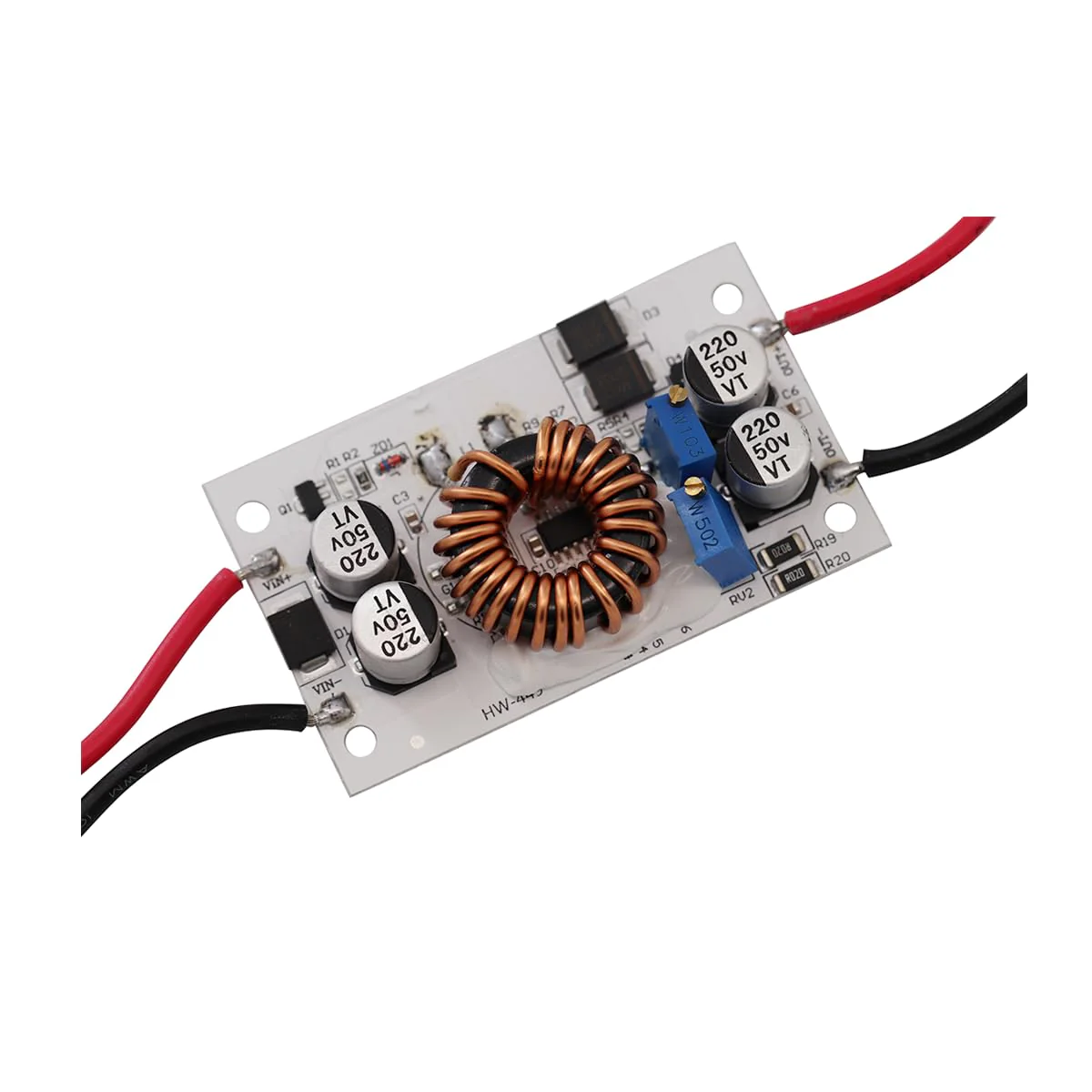

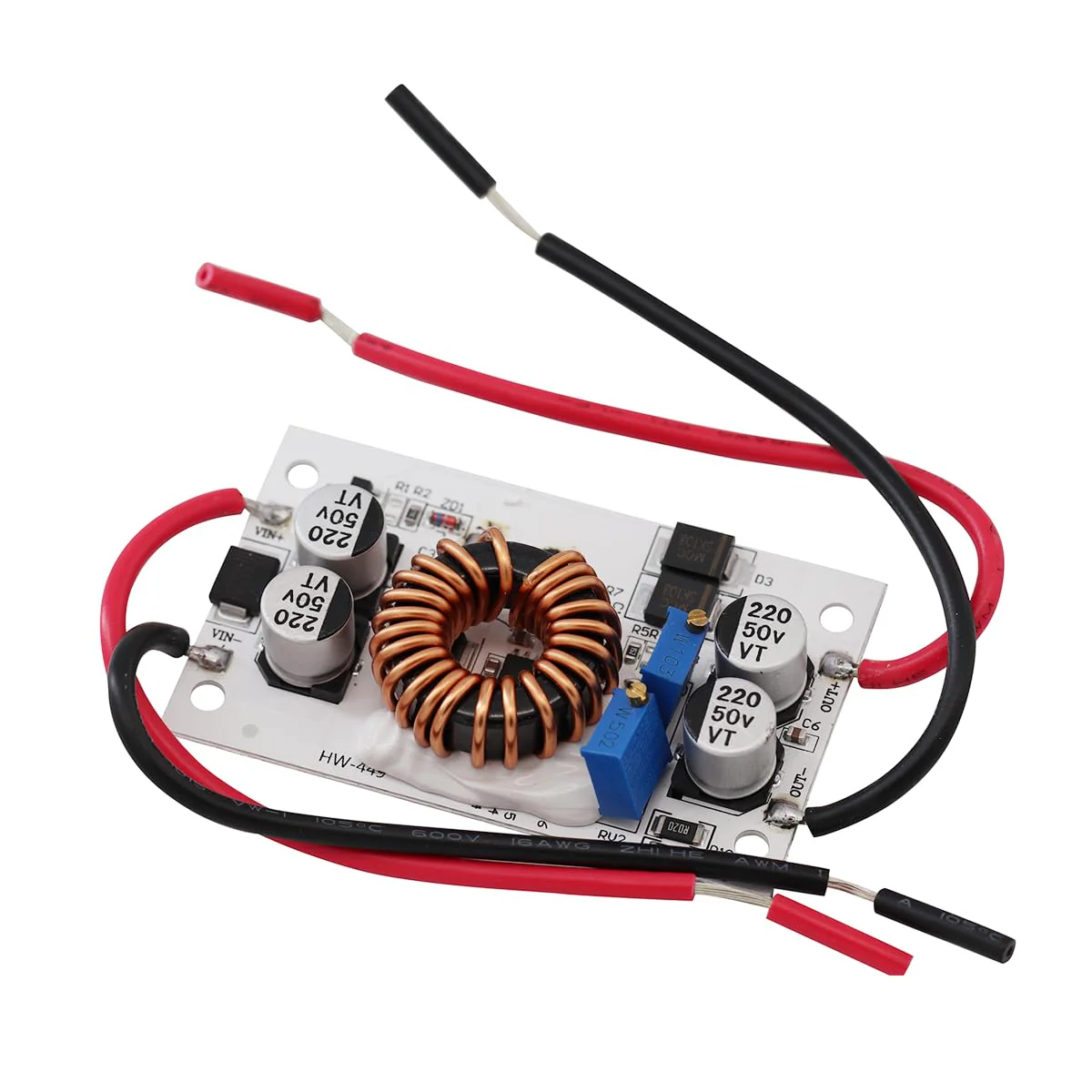

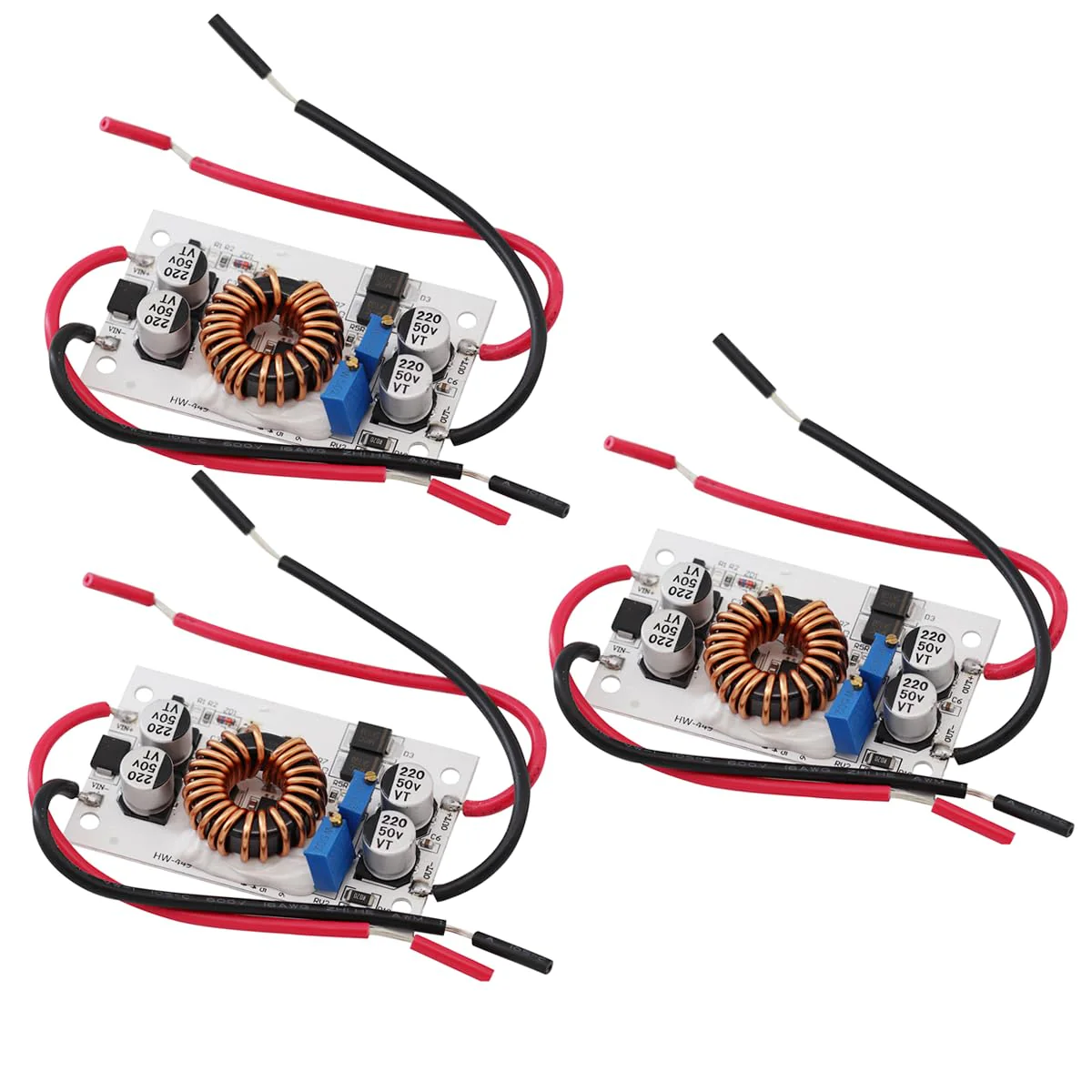

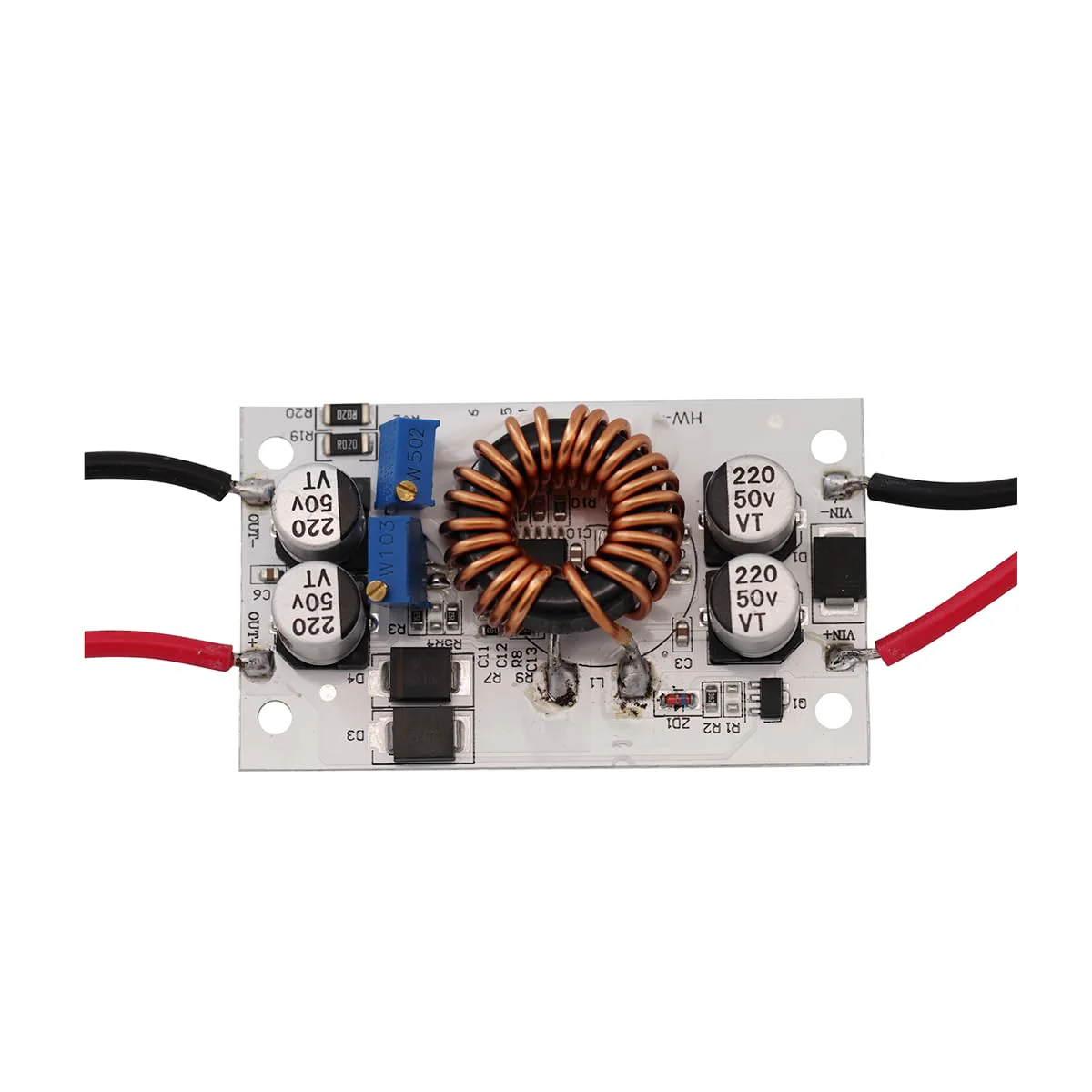

Heevhas DC-DC Boost Converter 250W 10A Adjustable Step-up Converter Constant Power Supply Module LED Driver Boost Module (Pack of 3)
Heevhas DC-DC Boost Converter 250W 10A Adjustable Step-up Converter Constant Power Supply Module LED Driver Boost Module (Pack of 3)
Heevhas DC-DC Boost Converter 250W 10A Adjustable Step-up Converter Constant Power Supply Module LED Driver Boost Module (Pack of 3)

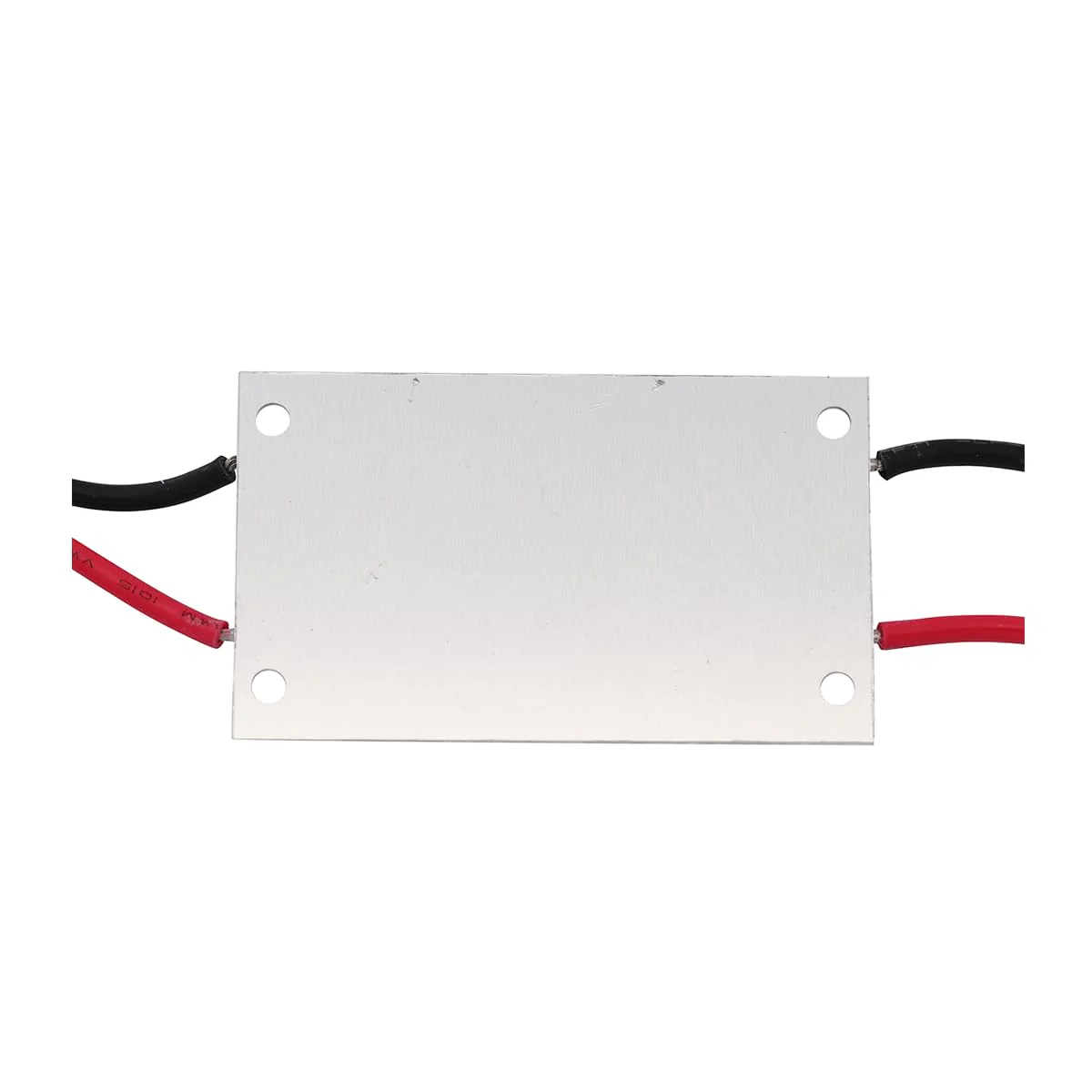

Product description: Input voltage: DC 8.5V-48V. Input current: 10 A (max) exceeds 6 A, please improve heat dissipation. Quiescent current: 10 mA (12 V litre, 20 V, the output voltage, the higher the current will increase too quietly). Output voltage: 10-50 V continuously adjustable constant. Operating frequency: 150 kHz. Constant current range: 0.2-8 A. Conversion efficiency: up to 96% (the efficiency depends on input and output voltage, current and voltage difference). Temperature: -40°C ~ +85°C (ambient temperature is too high, please improve heat dissipation) With over-current protection and input reverse polarity protection Output power = input voltage 10A, e.g.: input 12V 5A = 60W, input 24V 5A = 120W, input 36V 5A = 180W, input 48V 5A = 240W. For more power, you can use the two modules in parallel, such as the output to 10A, you can use two modules in parallel, the current of each module can be adjusted to 5A. Size: 70 mm x 36 mm x 13 mm. The aluminium substrate design is easy to install and the back of the board can be directly attached to the metal housing for heat dissipation. Reduces device space. The method of adjusting the output voltage/output current: 1. Adjust the RV1 potentiometer according to your battery or LED, adjust the output voltage you need. For example, 10 series of LED voltage set 37 V. 2. Turn the RV2 potentiometer 30 times clockwise and set the minimum output current, connect the LED and adjust the RV2 potentiometer to the required current. Note: Please do not set the current in a short circuit, the circuit structure of the boost module cannot be adjusted in the short circuit. Package includes: 3 x DC-DC Boost Converter 250 W 10 A Adjustable Step-Up Converter Constant Power Supply Module
Product Features
- Parameters: DC 10V-40V, output voltage: 10-50V continuous adjustment, the output voltage should be greater than the input voltage. Input current: 10A (MAX), Static working current: 10mA, Constant current range: 0.2 -8A. Operating frequency: 150 KHz, power: 250 W. Please improve the heat sink when the output current exceeds 6 A
- Performance FeaturesThe power supply has a high-quality energy management chip with high reliability, low surge current, small size, maximum power of 250W and efficiency of up to 96% (the efficiency depends on input and output voltage, current and voltage difference).
- Overcurrent protection: Boost converter with drop current control, adjustable output current limit when the current exceeds the current limit, which varies depending on the type of load current.
- Note: This product is a boost power supply and can only be boosted and regulated. The output voltage can only be higher than the input voltage. Turn right to reduce the output voltage, and turn left to increase the output voltage.
- Application: Build a voltage regulator yourself; power your electronic devices; as a power supply for vehicles; can power your laptop, PDA or various digital products; build a powerful mobile notebook power supply yourself; voltage regulator for solar panels; operate powerful LED lights; charge batteries, lithium batteries, etc.
More Images
Heevhas DC-DC Boost Converter 250W 10A Adjustable Step-up Converter Constant Power Supply Module LED Driver Boost Module (Pack of 3)
Heevhas DC-DC Boost Converter 250W 10A Adjustable Step-up Converter Constant Power Supply Module LED Driver Boost Module (Pack of 3)
Product description: Input voltage: DC 8.5V-48V. Input current: 10 A (max) exceeds 6 A, please improve heat dissipation. Quiescent current: 10 mA (12 V litre, 20 V, the output voltage, the higher the current will increase too quietly). Output voltage: 10-50 V continuously adjustable constant. Operating frequency: 150 kHz. Constant current range: 0.2-8 A. Conversion efficiency: up to 96% (the efficiency depends on input and output voltage, current and voltage difference). Temperature: -40°C ~ +85°C (ambient temperature is too high, please improve heat dissipation) With over-current protection and input reverse polarity protection Output power = input voltage 10A, e.g.: input 12V 5A = 60W, input 24V 5A = 120W, input 36V 5A = 180W, input 48V 5A = 240W. For more power, you can use the two modules in parallel, such as the output to 10A, you can use two modules in parallel, the current of each module can be adjusted to 5A. Size: 70 mm x 36 mm x 13 mm. The aluminium substrate design is easy to install and the back of the board can be directly attached to the metal housing for heat dissipation. Reduces device space. The method of adjusting the output voltage/output current: 1. Adjust the RV1 potentiometer according to your battery or LED, adjust the output voltage you need. For example, 10 series of LED voltage set 37 V. 2. Turn the RV2 potentiometer 30 times clockwise and set the minimum output current, connect the LED and adjust the RV2 potentiometer to the required current. Note: Please do not set the current in a short circuit, the circuit structure of the boost module cannot be adjusted in the short circuit. Package includes: 3 x DC-DC Boost Converter 250 W 10 A Adjustable Step-Up Converter Constant Power Supply Module
Product Features
- Parameters: DC 10V-40V, output voltage: 10-50V continuous adjustment, the output voltage should be greater than the input voltage. Input current: 10A (MAX), Static working current: 10mA, Constant current range: 0.2 -8A. Operating frequency: 150 KHz, power: 250 W. Please improve the heat sink when the output current exceeds 6 A
- Performance FeaturesThe power supply has a high-quality energy management chip with high reliability, low surge current, small size, maximum power of 250W and efficiency of up to 96% (the efficiency depends on input and output voltage, current and voltage difference).
- Overcurrent protection: Boost converter with drop current control, adjustable output current limit when the current exceeds the current limit, which varies depending on the type of load current.
- Note: This product is a boost power supply and can only be boosted and regulated. The output voltage can only be higher than the input voltage. Turn right to reduce the output voltage, and turn left to increase the output voltage.
- Application: Build a voltage regulator yourself; power your electronic devices; as a power supply for vehicles; can power your laptop, PDA or various digital products; build a powerful mobile notebook power supply yourself; voltage regulator for solar panels; operate powerful LED lights; charge batteries, lithium batteries, etc.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Heevhas DC-DC Boost Converter 250W 10A Adjustable Step-up Converter Constant Power Supply Module LED Driver Boost Module (Pack of 3)
Product description: Input voltage: DC 8.5V-48V. Input current: 10 A (max) exceeds 6 A, please improve heat dissipation. Quiescent current: 10 mA (12 V litre, 20 V, the output voltage, the higher the current will increase too quietly). Output voltage: 10-50 V continuously adjustable constant. Operating frequency: 150 kHz. Constant current range: 0.2-8 A. Conversion efficiency: up to 96% (the efficiency depends on input and output voltage, current and voltage difference). Temperature: -40°C ~ +85°C (ambient temperature is too high, please improve heat dissipation) With over-current protection and input reverse polarity protection Output power = input voltage 10A, e.g.: input 12V 5A = 60W, input 24V 5A = 120W, input 36V 5A = 180W, input 48V 5A = 240W. For more power, you can use the two modules in parallel, such as the output to 10A, you can use two modules in parallel, the current of each module can be adjusted to 5A. Size: 70 mm x 36 mm x 13 mm. The aluminium substrate design is easy to install and the back of the board can be directly attached to the metal housing for heat dissipation. Reduces device space. The method of adjusting the output voltage/output current: 1. Adjust the RV1 potentiometer according to your battery or LED, adjust the output voltage you need. For example, 10 series of LED voltage set 37 V. 2. Turn the RV2 potentiometer 30 times clockwise and set the minimum output current, connect the LED and adjust the RV2 potentiometer to the required current. Note: Please do not set the current in a short circuit, the circuit structure of the boost module cannot be adjusted in the short circuit. Package includes: 3 x DC-DC Boost Converter 250 W 10 A Adjustable Step-Up Converter Constant Power Supply Module
Product Features
- Parameters: DC 10V-40V, output voltage: 10-50V continuous adjustment, the output voltage should be greater than the input voltage. Input current: 10A (MAX), Static working current: 10mA, Constant current range: 0.2 -8A. Operating frequency: 150 KHz, power: 250 W. Please improve the heat sink when the output current exceeds 6 A
- Performance FeaturesThe power supply has a high-quality energy management chip with high reliability, low surge current, small size, maximum power of 250W and efficiency of up to 96% (the efficiency depends on input and output voltage, current and voltage difference).
- Overcurrent protection: Boost converter with drop current control, adjustable output current limit when the current exceeds the current limit, which varies depending on the type of load current.
- Note: This product is a boost power supply and can only be boosted and regulated. The output voltage can only be higher than the input voltage. Turn right to reduce the output voltage, and turn left to increase the output voltage.
- Application: Build a voltage regulator yourself; power your electronic devices; as a power supply for vehicles; can power your laptop, PDA or various digital products; build a powerful mobile notebook power supply yourself; voltage regulator for solar panels; operate powerful LED lights; charge batteries, lithium batteries, etc.
