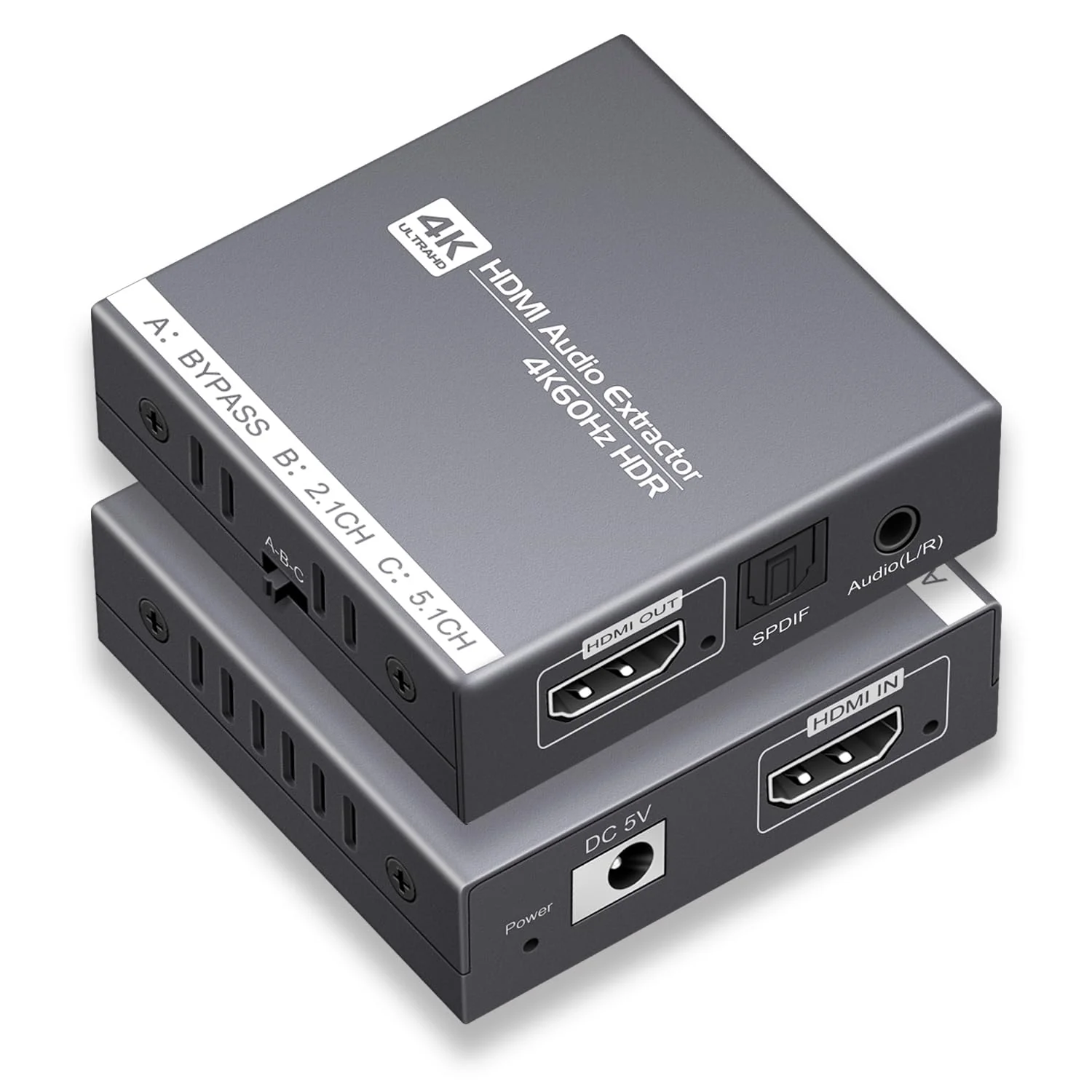

HDMI 2.0 Audio Extractor 4K 60Hz, HDMI to Optical and 3.5mm Audio Adapter for PS4/5, Fire Stick, Speakers, Headphones, Blu-ray Player RY-4HA102

HDMI 2.0 Audio Extractor 4K 60Hz, HDMI to Optical and 3.5mm Audio Adapter for PS4/5, Fire Stick, Speakers, Headphones, Blu-ray Player

Product Features

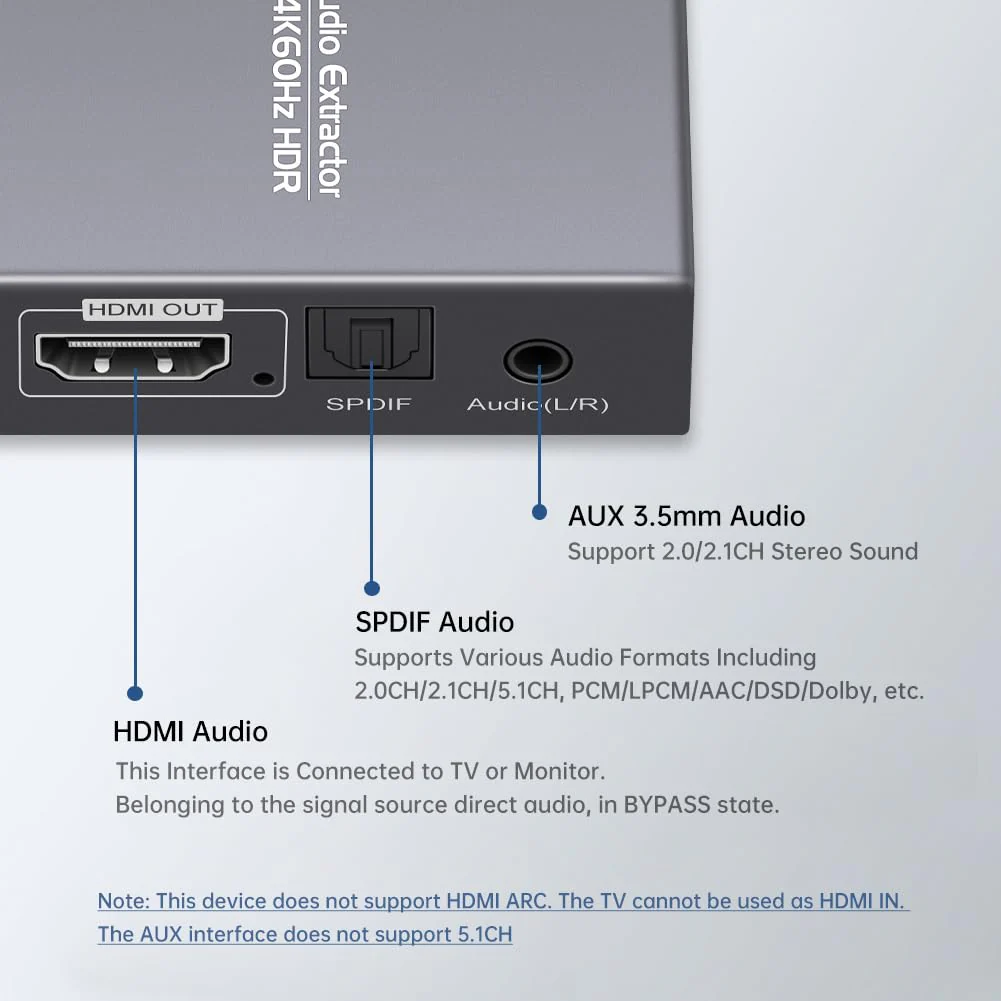

• HDMI Audio Extractor 4K@60HzHDMI Audio Extractor extracts audio information from HDMI signals and transmits it via Optical SPDIF and AUX 3.5mm interfaces to audio receivers such as your soundbars, amplifiers, headphones and other audio receivers. (Note: The device does not support ARC/ EARC.TV cannot be used as an input source, otherwise cannot be used.)

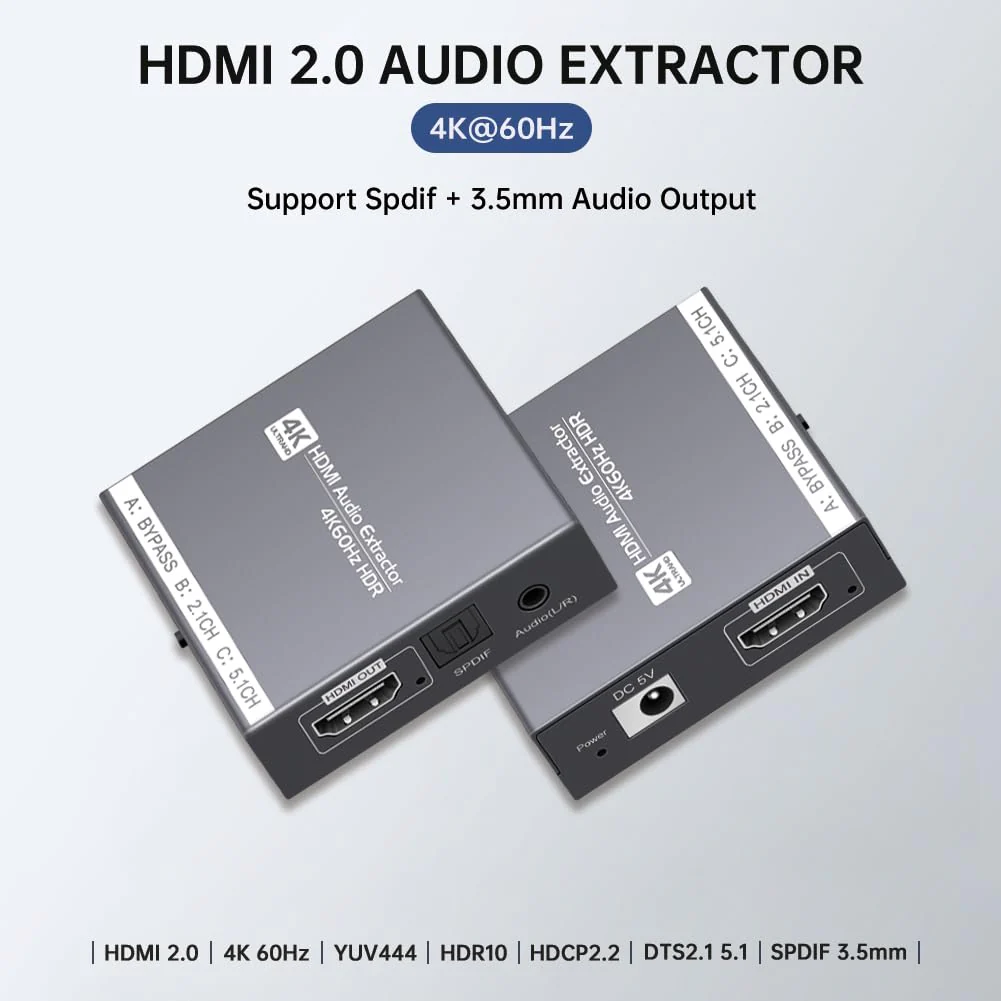

• HDMI 2.0 Ultra HD Audio&VideoSupports HDMI 2.0 version with up to 18GB bandwidth, HDCP2.2,HDR10, Video Resolution support 1080P@144Hz, 1080P@120Hz, 4K 50/60Hz(YUV444). Audio supports 2.1CH, 5.1CH, Dolby Atmos, DTS X, Dolby True HD, DTS-HD and other audio. (Please make sure to use HDMI 2.0 certified cable).

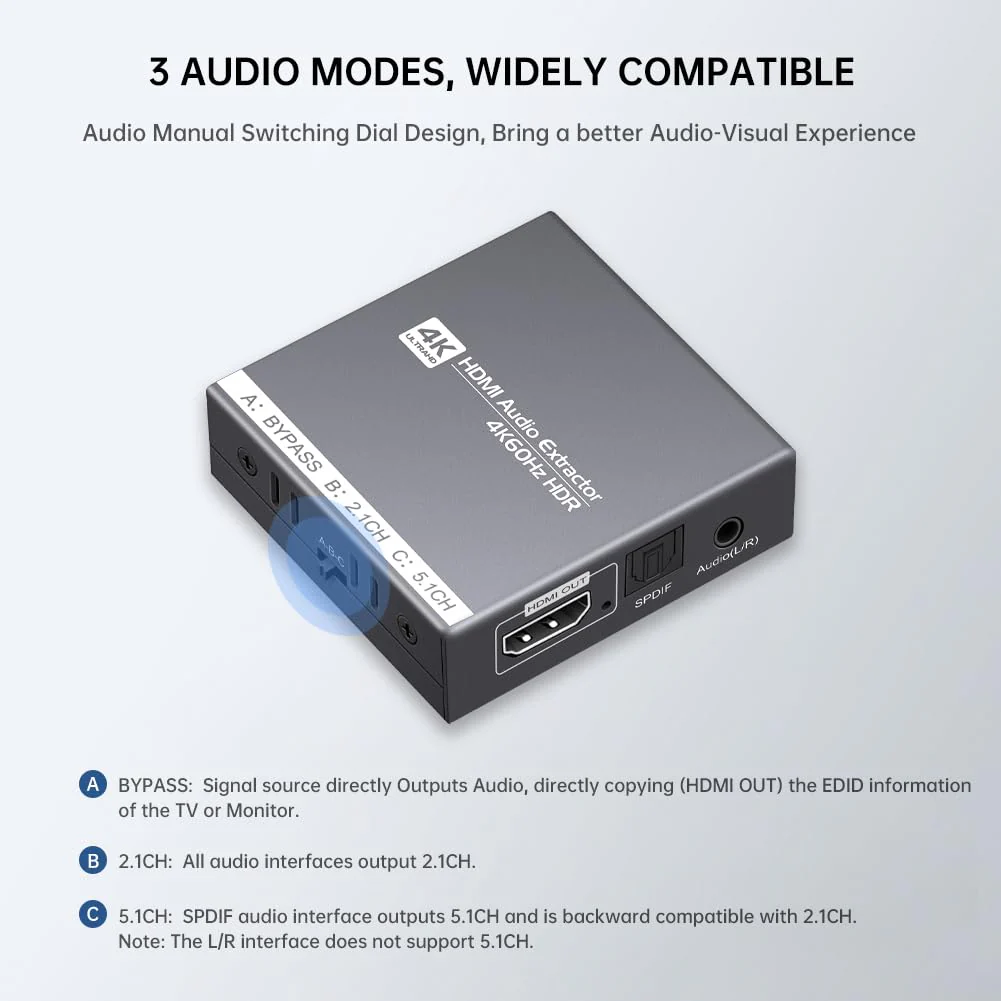

• 3 Audio ModesBy manually selecting three audio modes, there are three options: Pass, 2.1CH, and 5.1CH. 2.1CH is used for AUX 3.5mm or SPDIF Stereo Output (only supports uncompressed audio such as LPCM). 5.1CH is used for SPDIF output (supporting compressed audio such as DTS, Dolby Digital, etc.). When there is no sound when using the first two modes, please use the Pass mode. Attention: If there is no sound, please set the sound of the signal source to PCM format.
• Precautions for useIt is not supported to use a TV as the video input source (No ARC/eARC). If you need to use a TV as the video source, please purchase our HDMI ARC converter B09NDB7R7H. When the audio is set to 5.1CH, there will be no sound on the 3.5mm audio port. When set to 2.1CH, SPDIF and 3.5mm audio can be output simultaneously. When there is no sound in the first two methods, please set it to PASS mode. Then please check the audio settings. The 5.1CH sound effect depends on the playback of the video itself. If the video only supports 2.1CH sound effect, it will not be able to play under the 5.1CH setting.

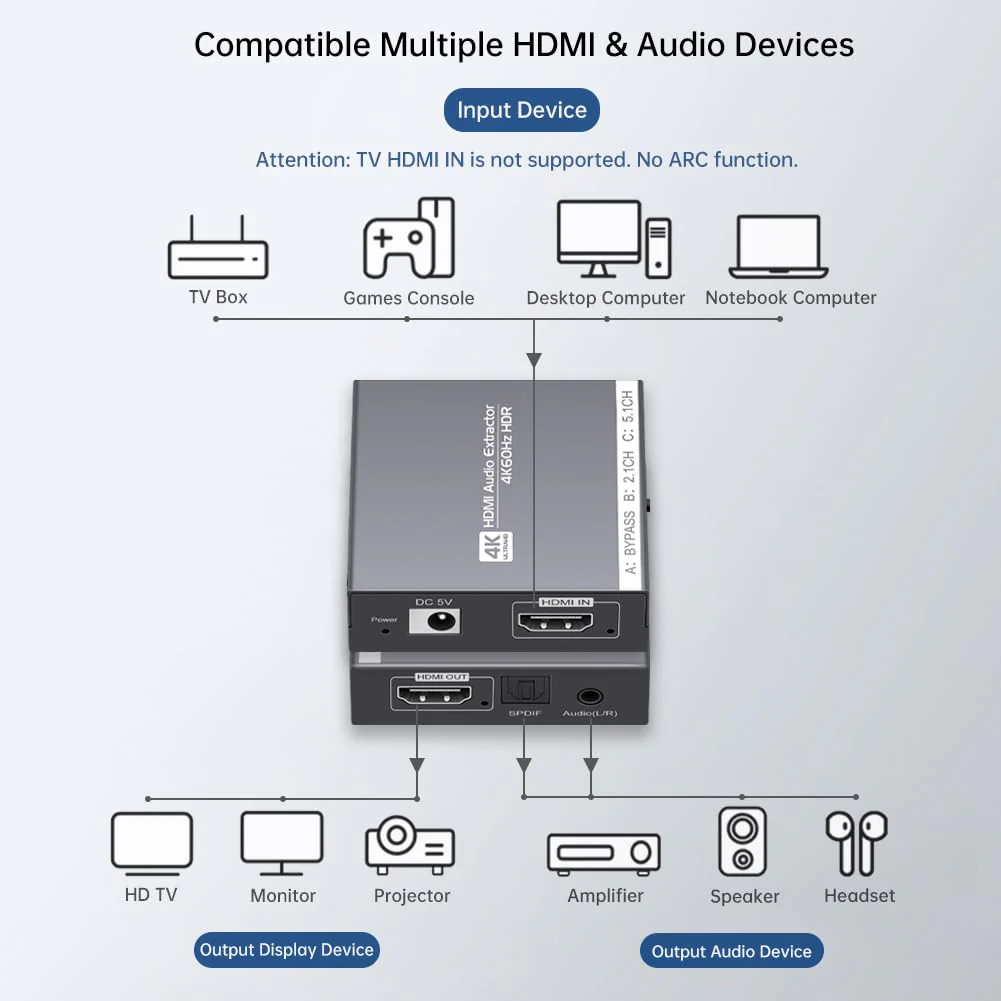

• Widely CompatibleWith various HDMI source devices without dedicated audio output, it also Supports HDMI input from devices such as Blu ray/DVD/HD players, TV stick, satellite TV boxes, Fire TV, PS4/5, PCs, and laptops, and outputs to TVs, displays, and projectors through HDMI. Optical SPDIF and AUX 3.5mm outputs are suitable for Speakers, Soundbars, Amplifiers, and Headphones.Suitable for scenarios such as home theaters and computer games. (ARC/eARC not supported)
