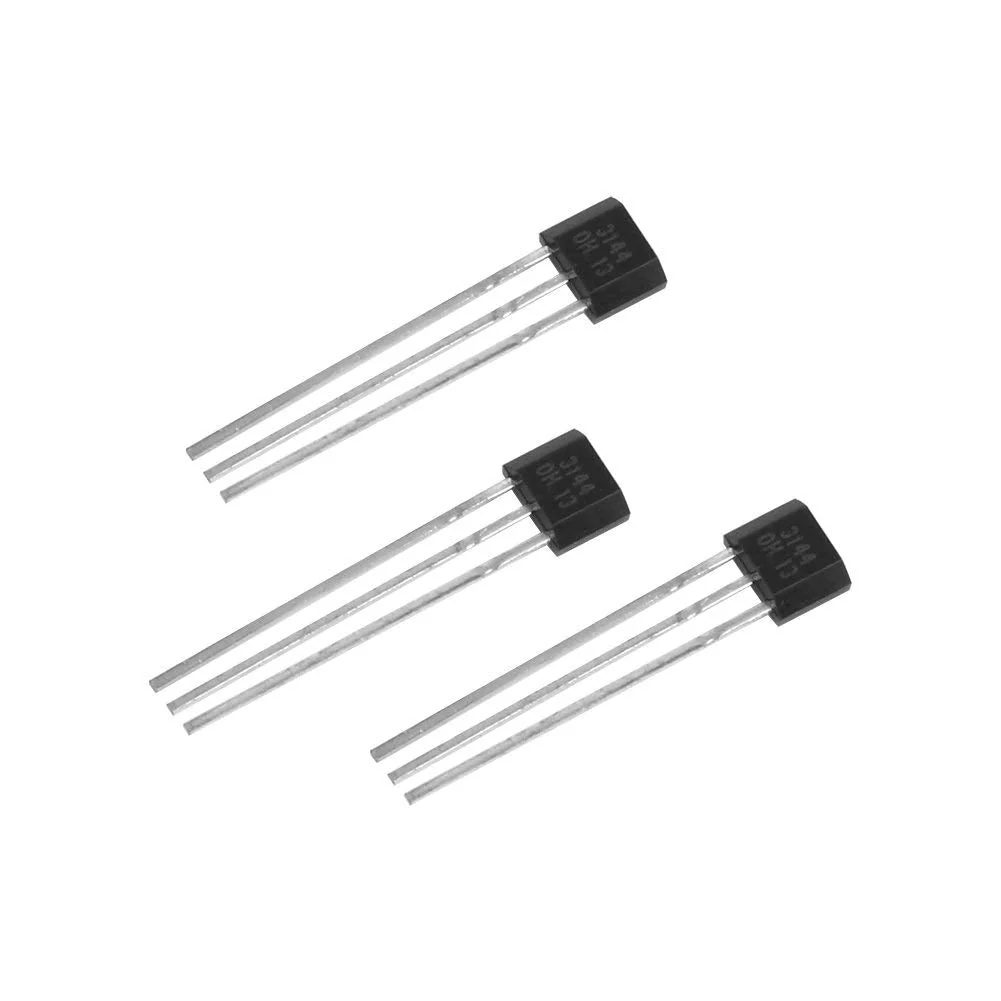

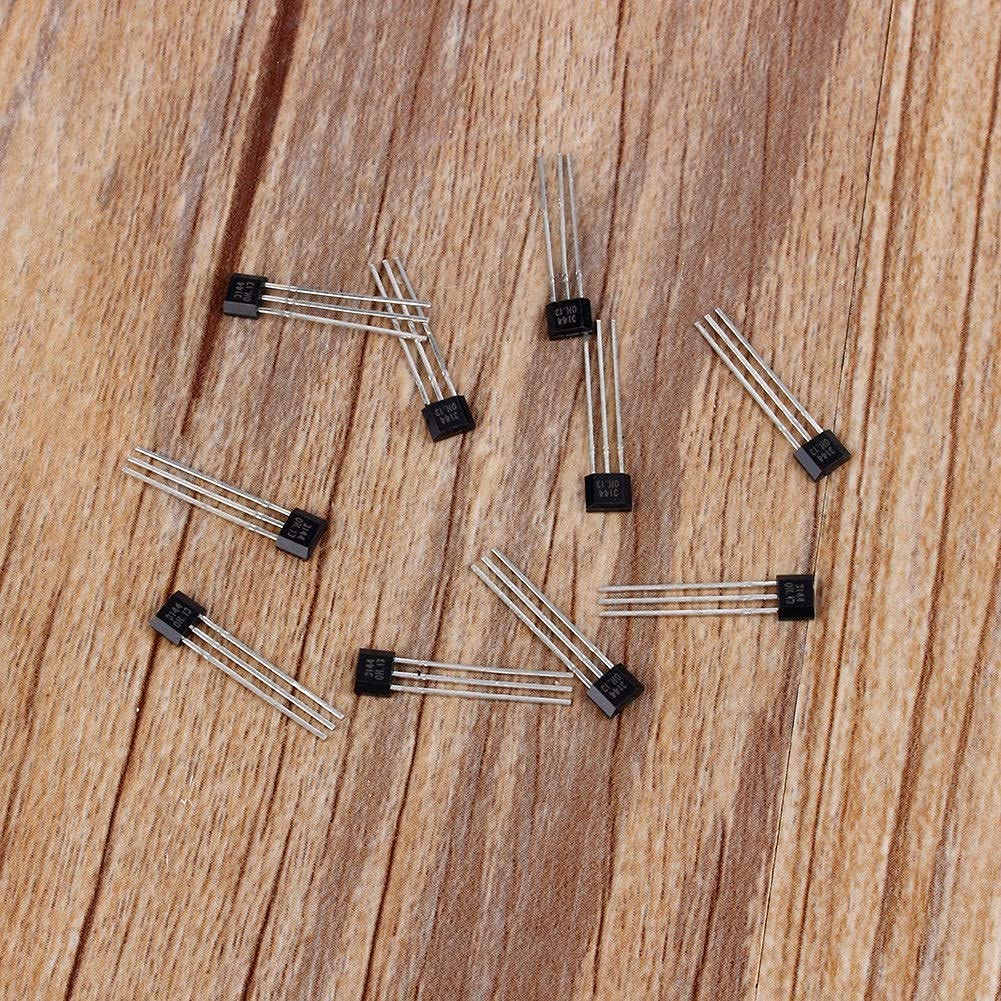

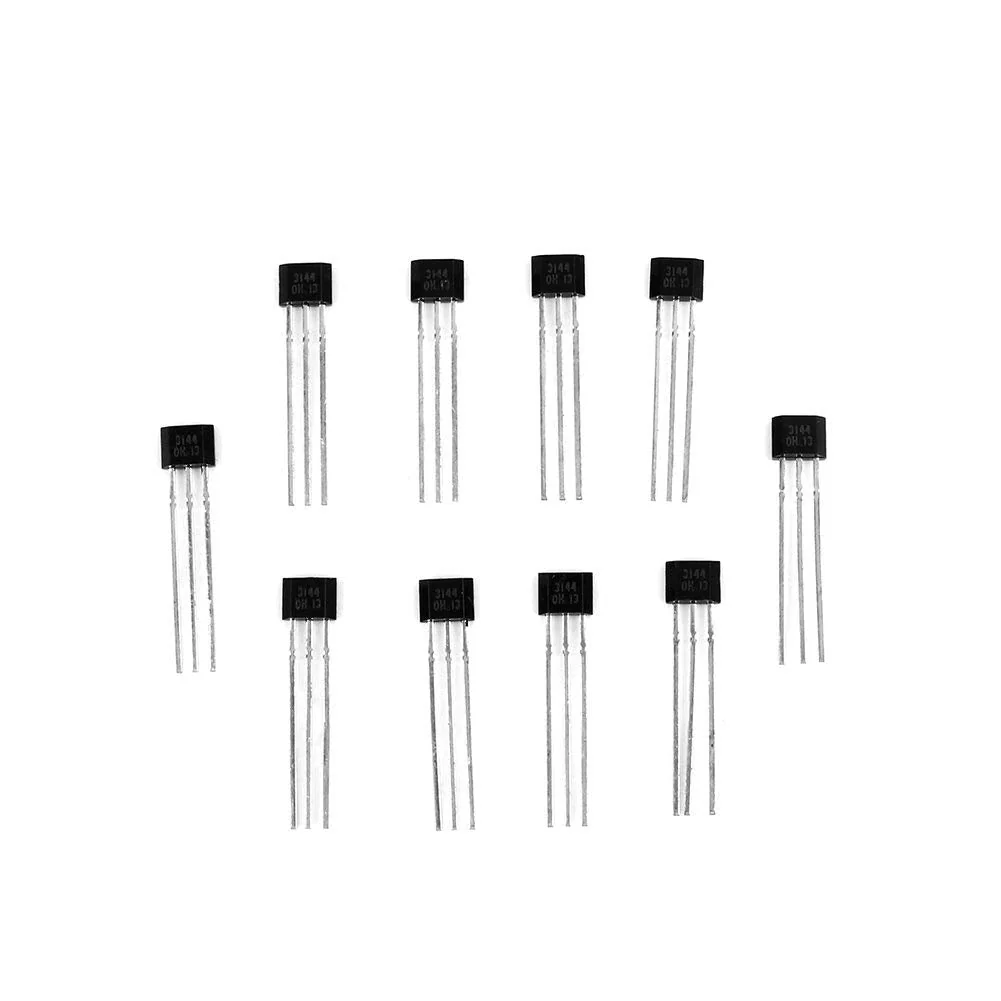

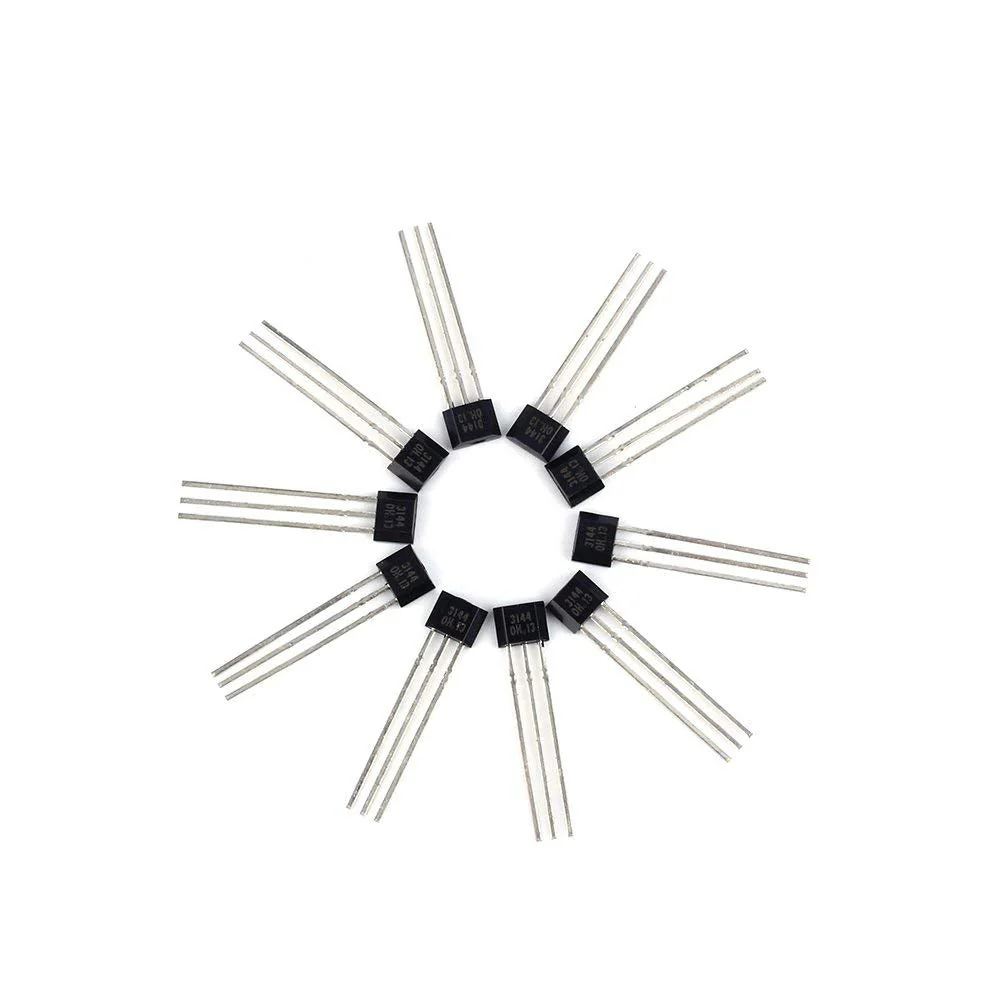

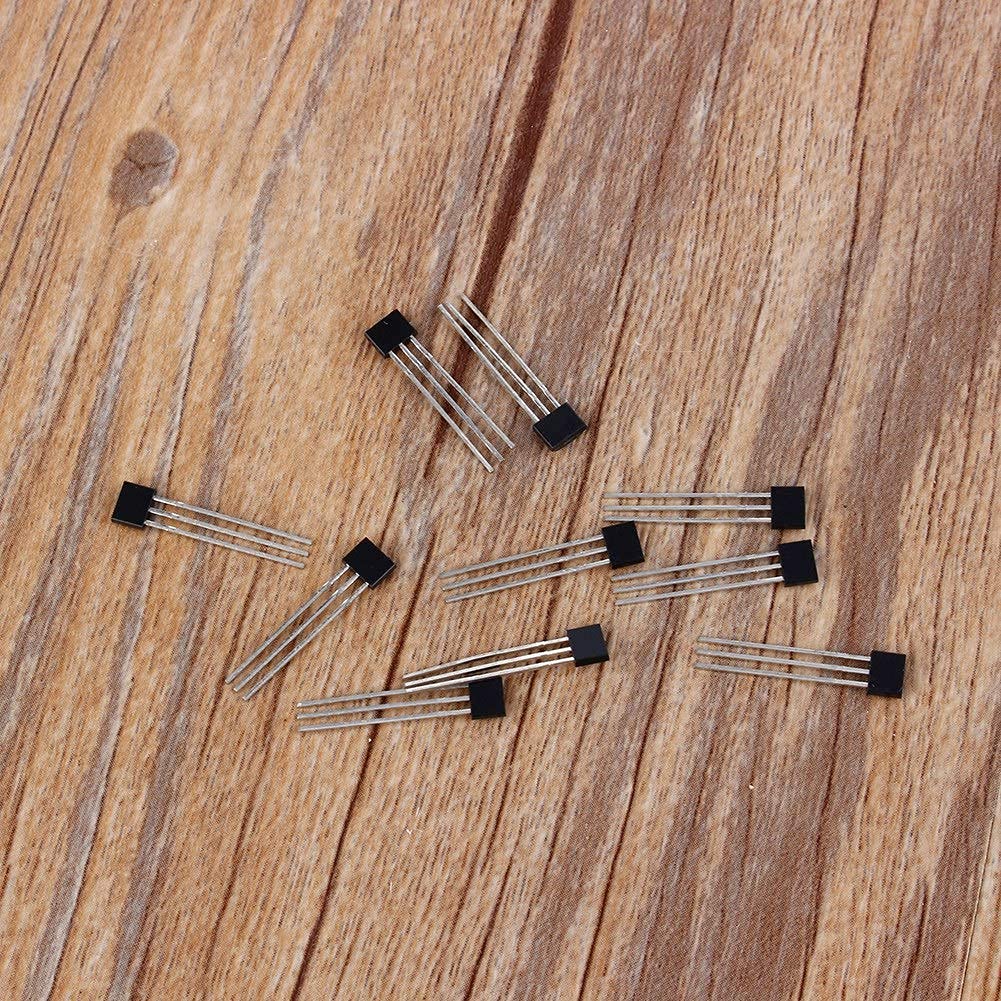

Hall Effect Sensor, 10pcs/lot A3144 3144E OH3144E Ratiometric Linear Hall Effect Sensor Magnetic Detector Switch TO-92UA 3-Pin SIP
Hall Effect Sensor, 10pcs/lot A3144 3144E OH3144E Ratiometric Linear Hall Effect Sensor Magnetic Detector Switch TO-92UA 3-Pin SIP
Hall Effect Sensor, 10pcs/lot A3144 3144E OH3144E Ratiometric Linear Hall Effect Sensor Magnetic Detector Switch TO-92UA 3-Pin SIP
Specification: Main material: metal, plastic. Colour: black, silver. Terminal quantity: 3 Length: 13 mm. Pin pitch: 1 mm / 0.04 inches. Model Type:A3144 Continuous output current: 50mA Package includes: 10 x A3144 3144E OH3144E Hall Effect Sensor Switch
Product Features
- Supply voltage VCC: 24V. The sensor is highly sensitive, easy to install and disassemble
- Output breakdown voltage VCE:50V Operating stability in automotive or industrial applications, suitable for most unregulated power supplies.
- Low current IOL output: 50mA Hall effect sensor switches are suitable for electronic toys, small household appliances, sports equipment, etc.
- Working temperature TA: E: -20 to 85 degrees Celsius, L: -40 to 150 degrees Celsius. Storage temperature range TS: -65 ~ 150 degrees Celsius. Limit parameters (25 degrees Celsius). The Hall effect switch sensor has a wide operating temperature range.
- It can be applied to a variety of devices: it can be activated by a small commercial permanent magnet, has low solid state reliability and can withstand physical loads.
Original: $71.71
-65%$71.71
$25.10More Images
