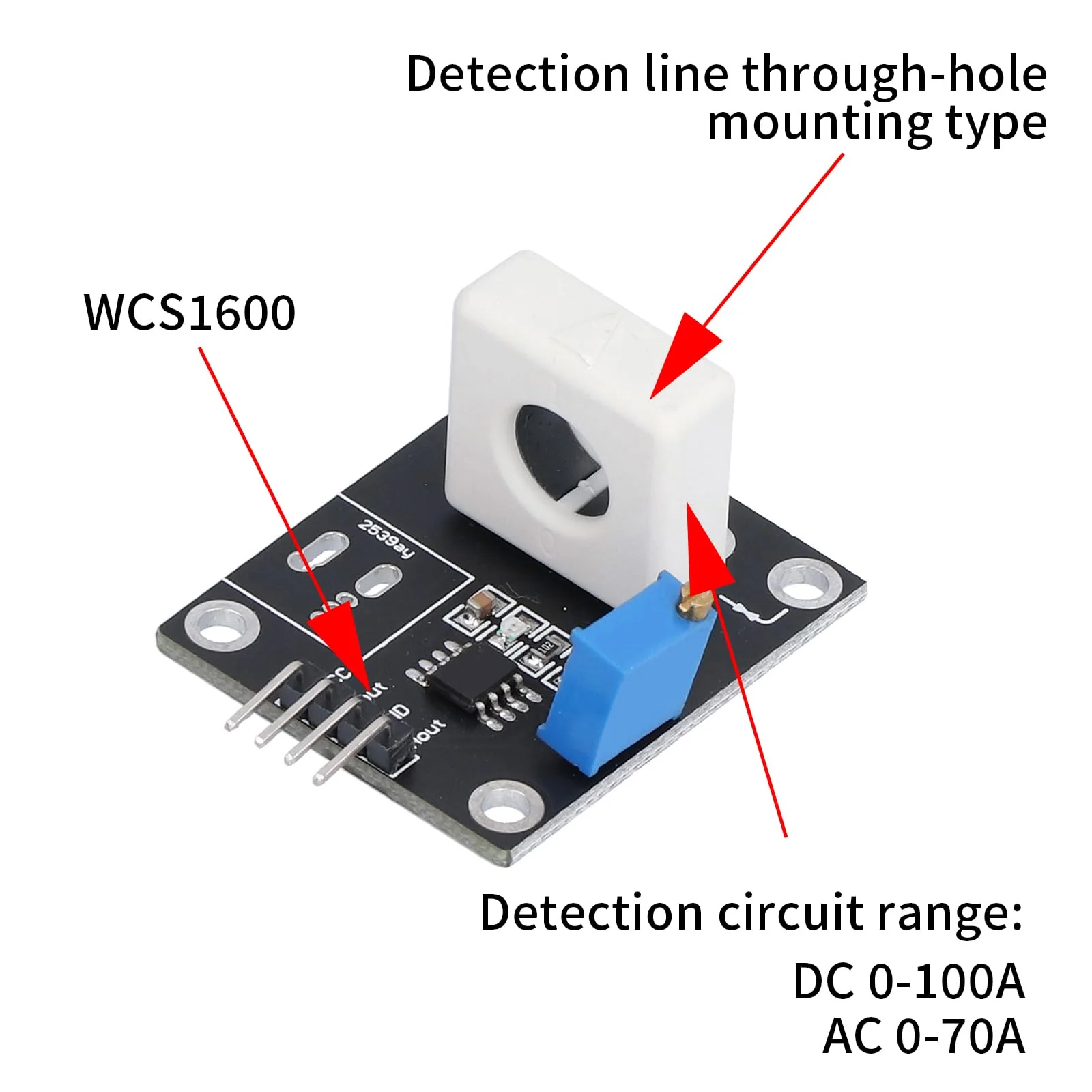

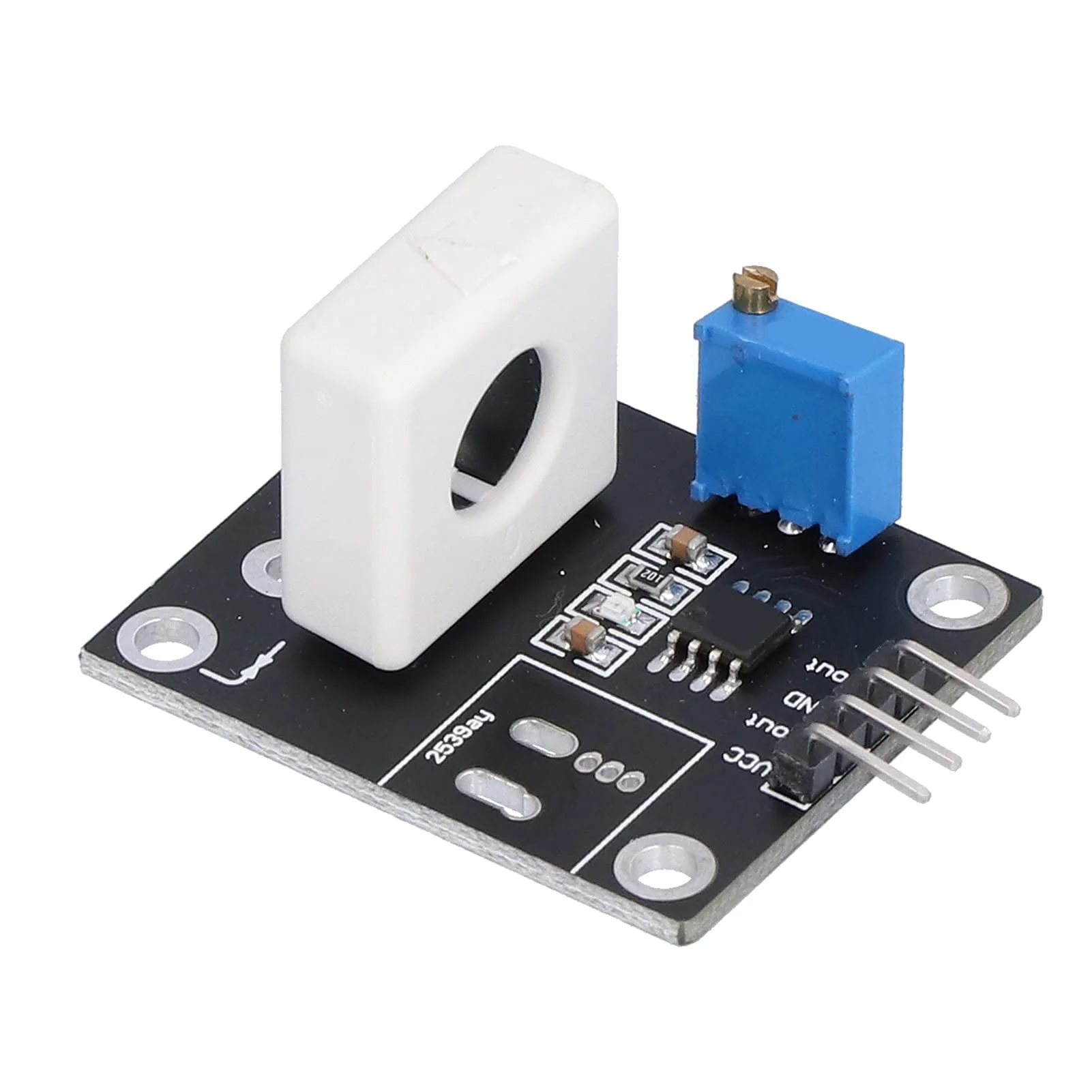

Hall Current Sensor, 100A WCS1600 DC 5V Short Circuit Protection Modules Adjustable Short Circuit Overcurrent Protection Detector for Intelligent Car Engine Overcurrent Detection Wcs1600-black

Hall Current Sensor, 100A WCS1600 DC 5V Short Circuit Protection Modules Adjustable Short Circuit Overcurrent Protection Detector for Intelligent Car Engine Overcurrent Detection

Product Features

• Widely used: the Hall current sensor module is used in over-current detection of intelligent car engines, protection current detection for the blocked rotor, short circuit protection detection, demonstration gauge experiment, etc., which is suitable for secondary development

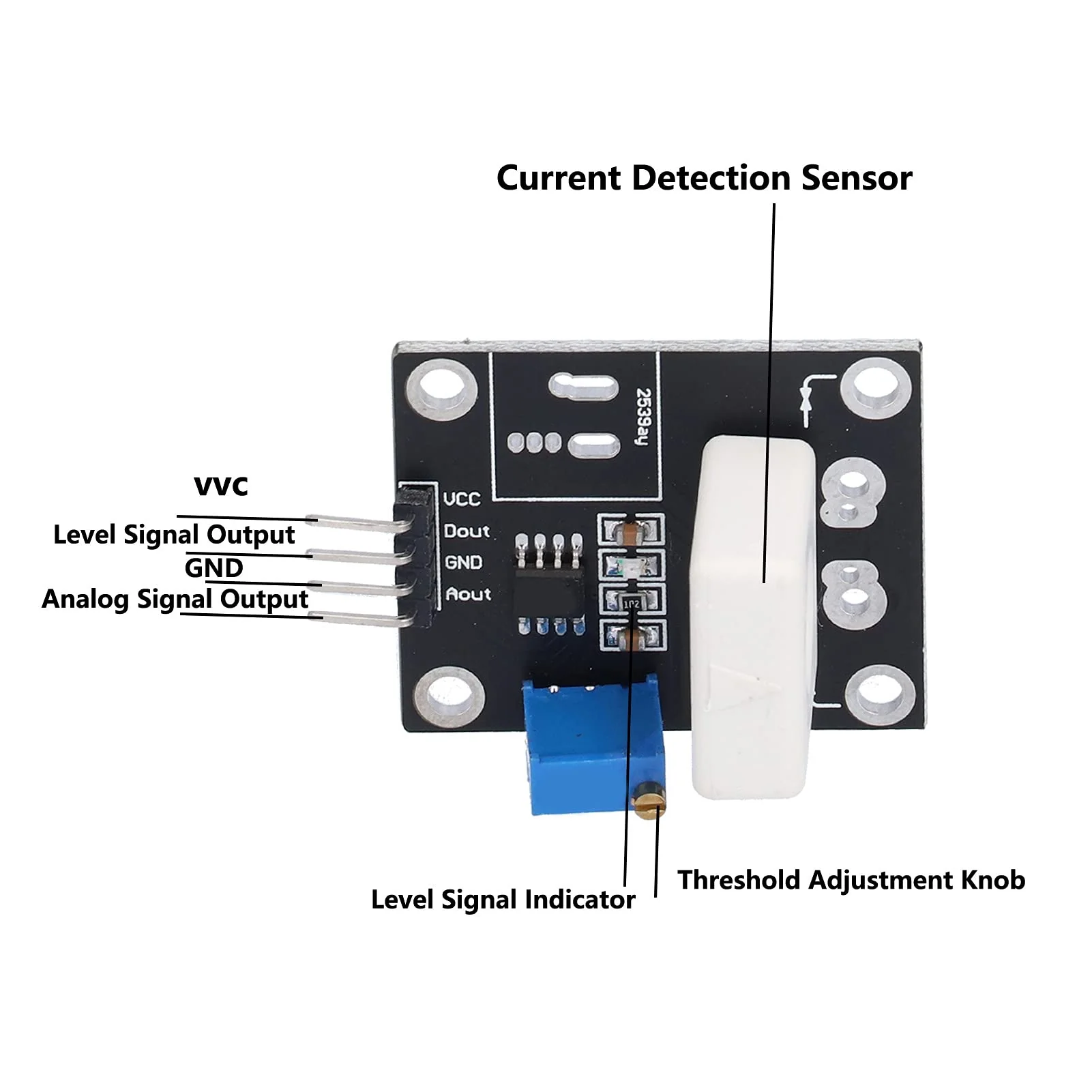

• Sampling Current The analog signal output for sampling current conversion of the short circuit protection module can be connected to the ADC, TTL level signal output, and also to the one chip IO port control
• Current Signal The short circuit overcurrent protection module has an over current signal output indicator, and the output signal is an analog signal and level signal

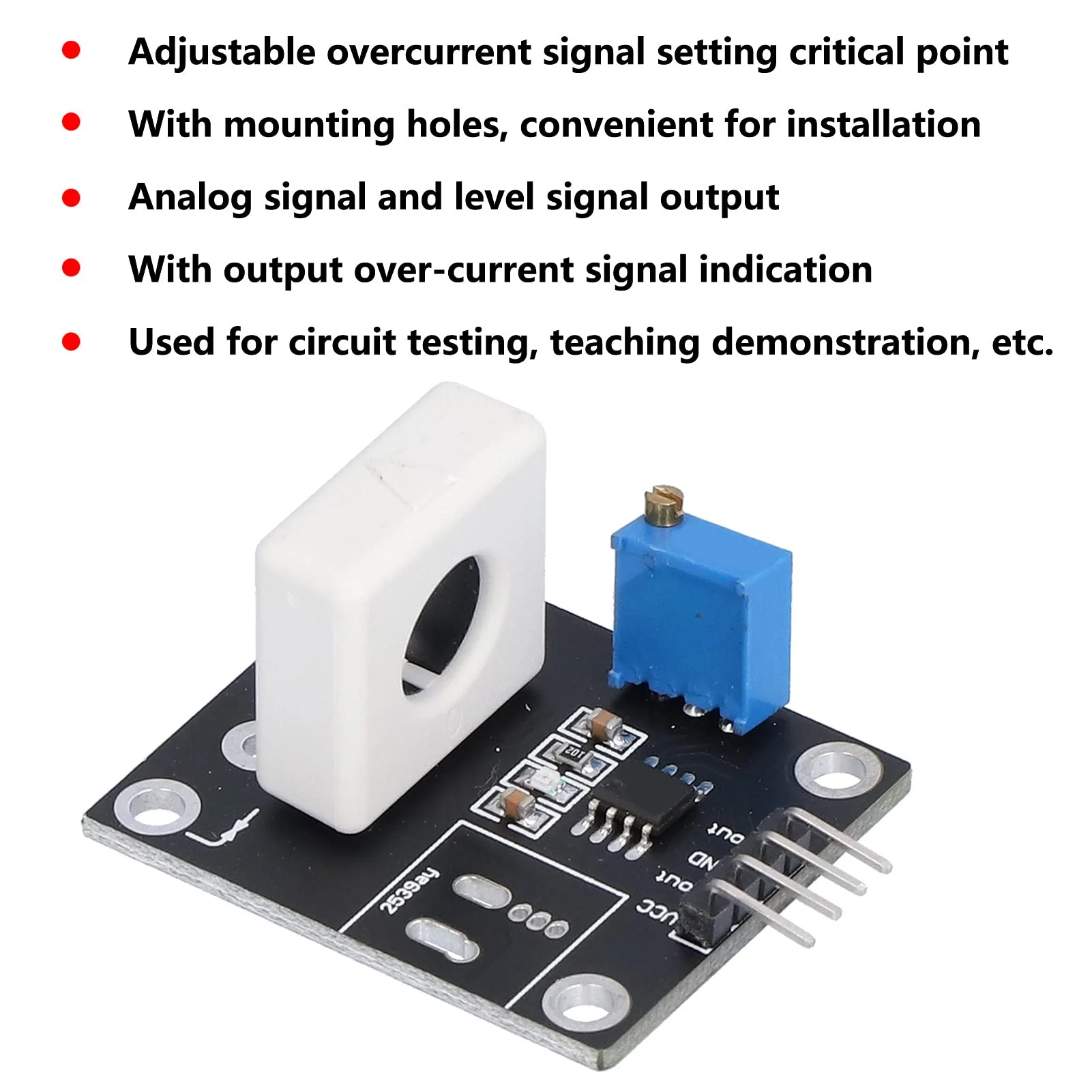

• Adjustable threshold value: the threshold value for the over-current signal setting of the overcurrent protection module is adjustable and the setting resolution is 5A

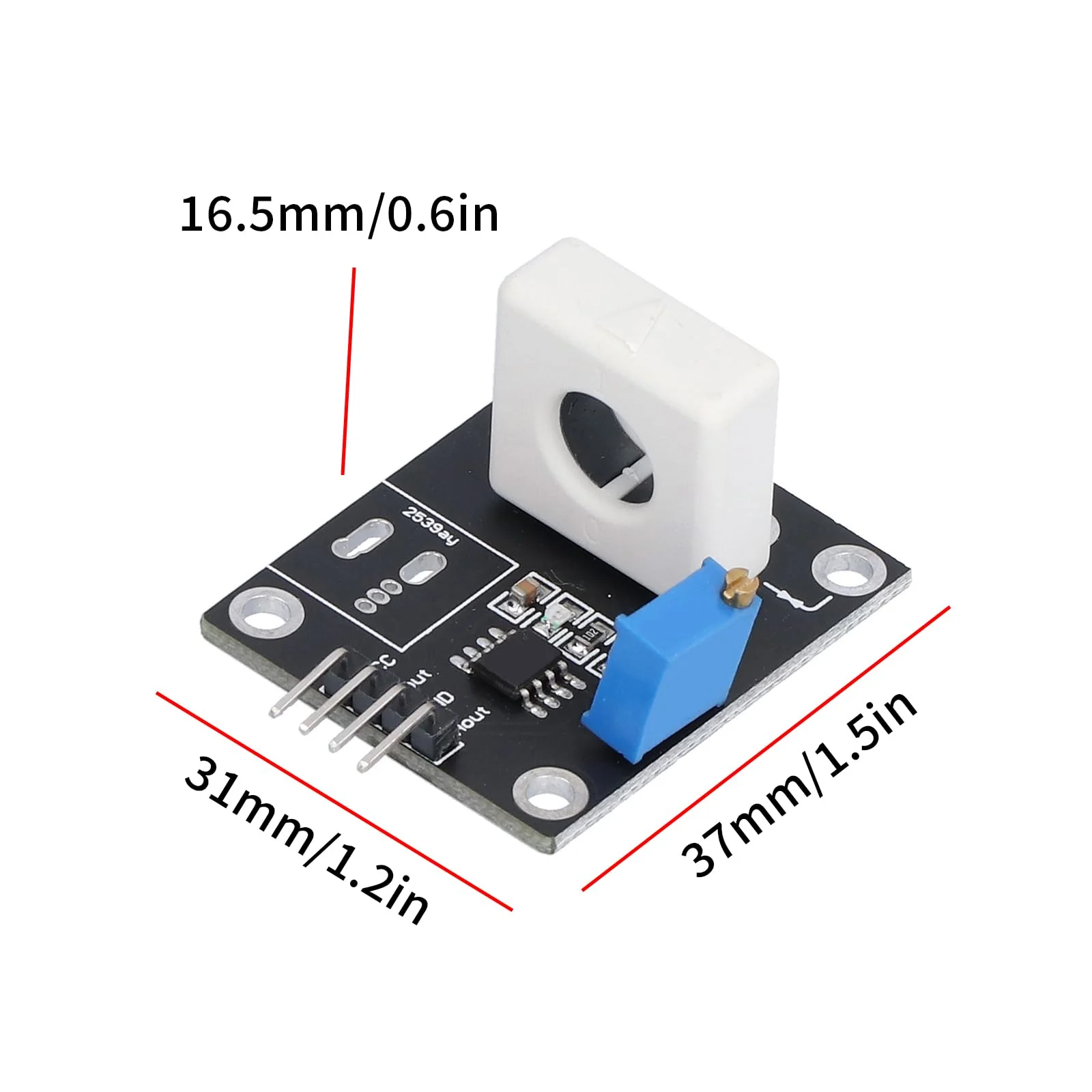

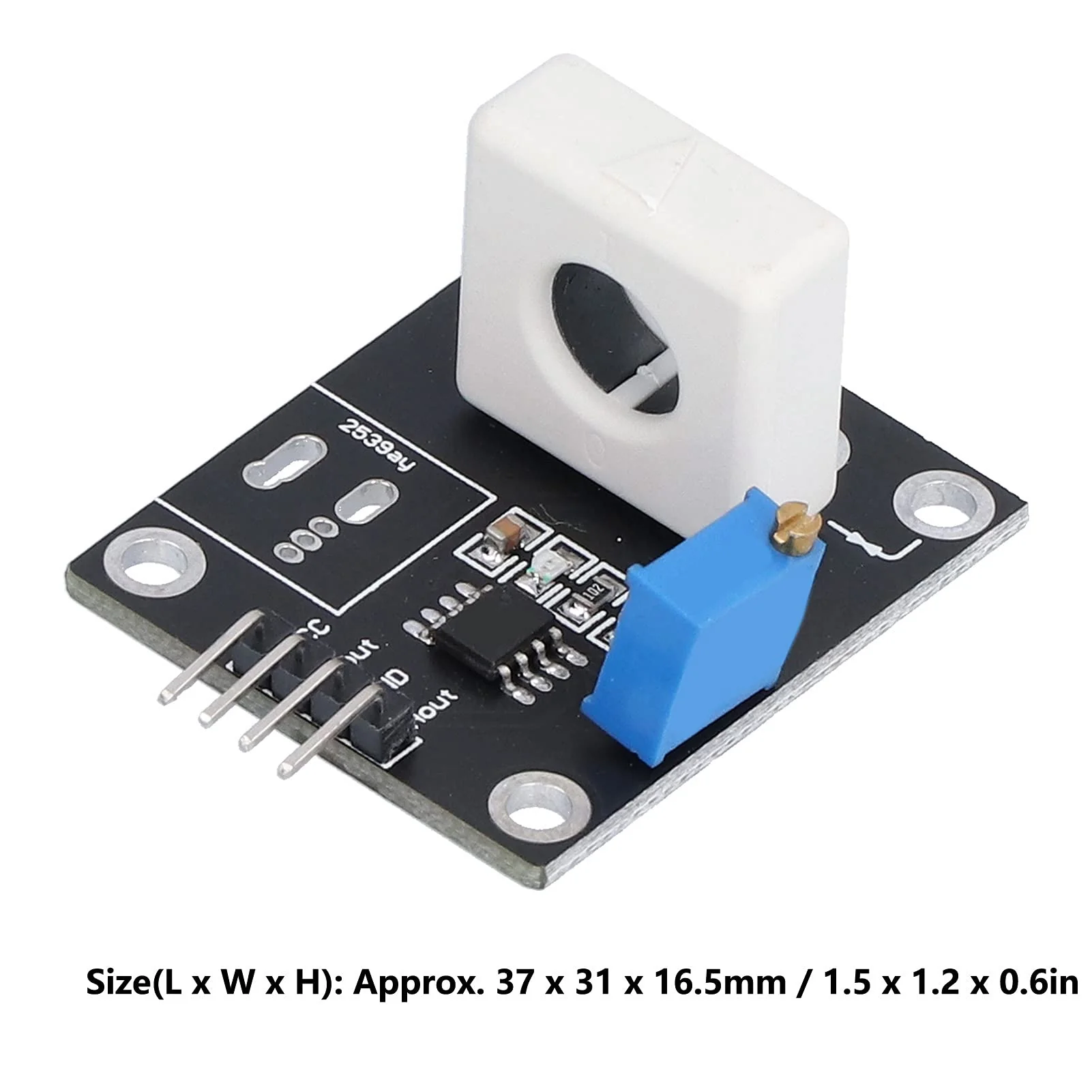

• Current detection range: the current detection range of the current protection module is 1000A for DC and 50A for AC; the current detection resolution is 22mV/A; It has a mounting hole for easy firmware installation
