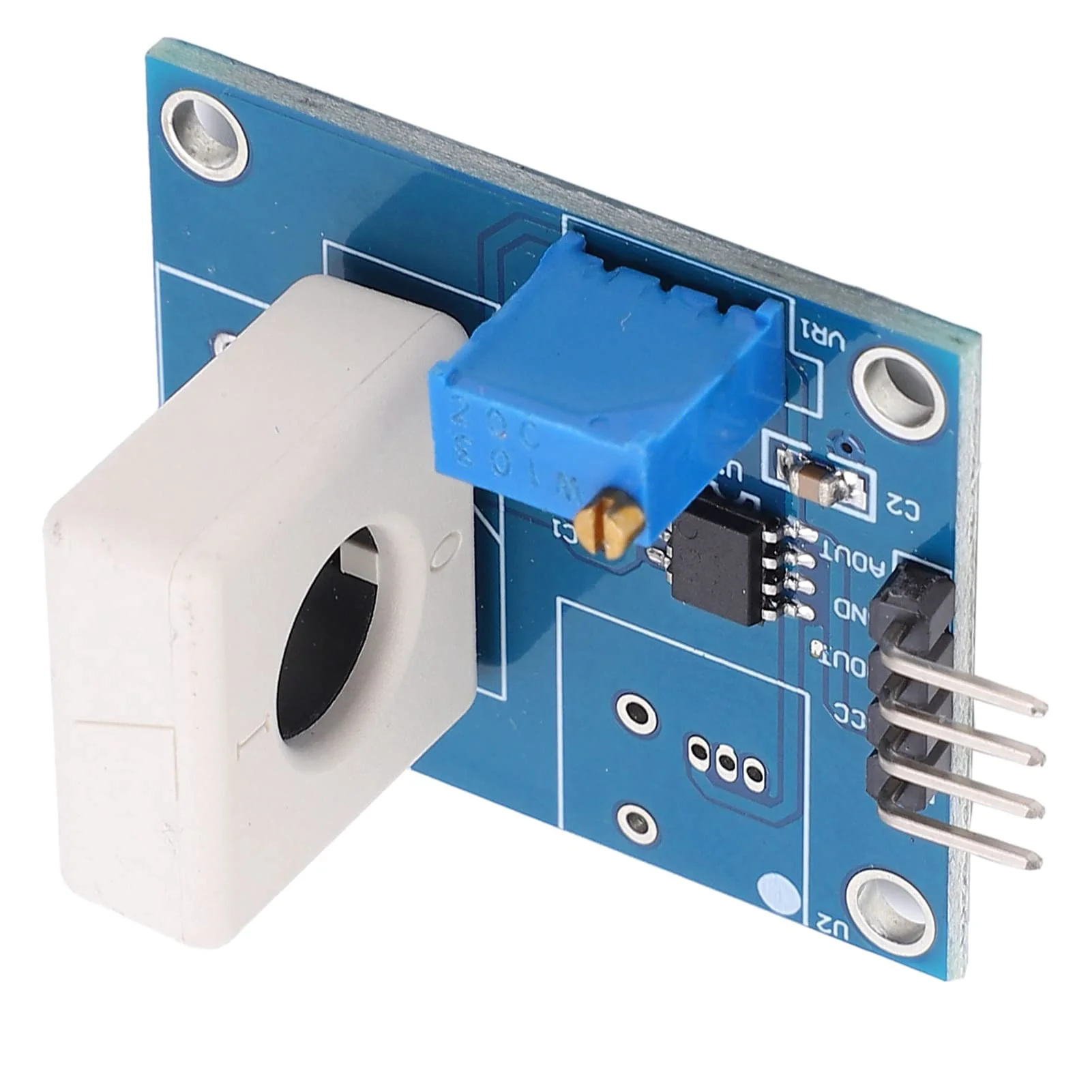

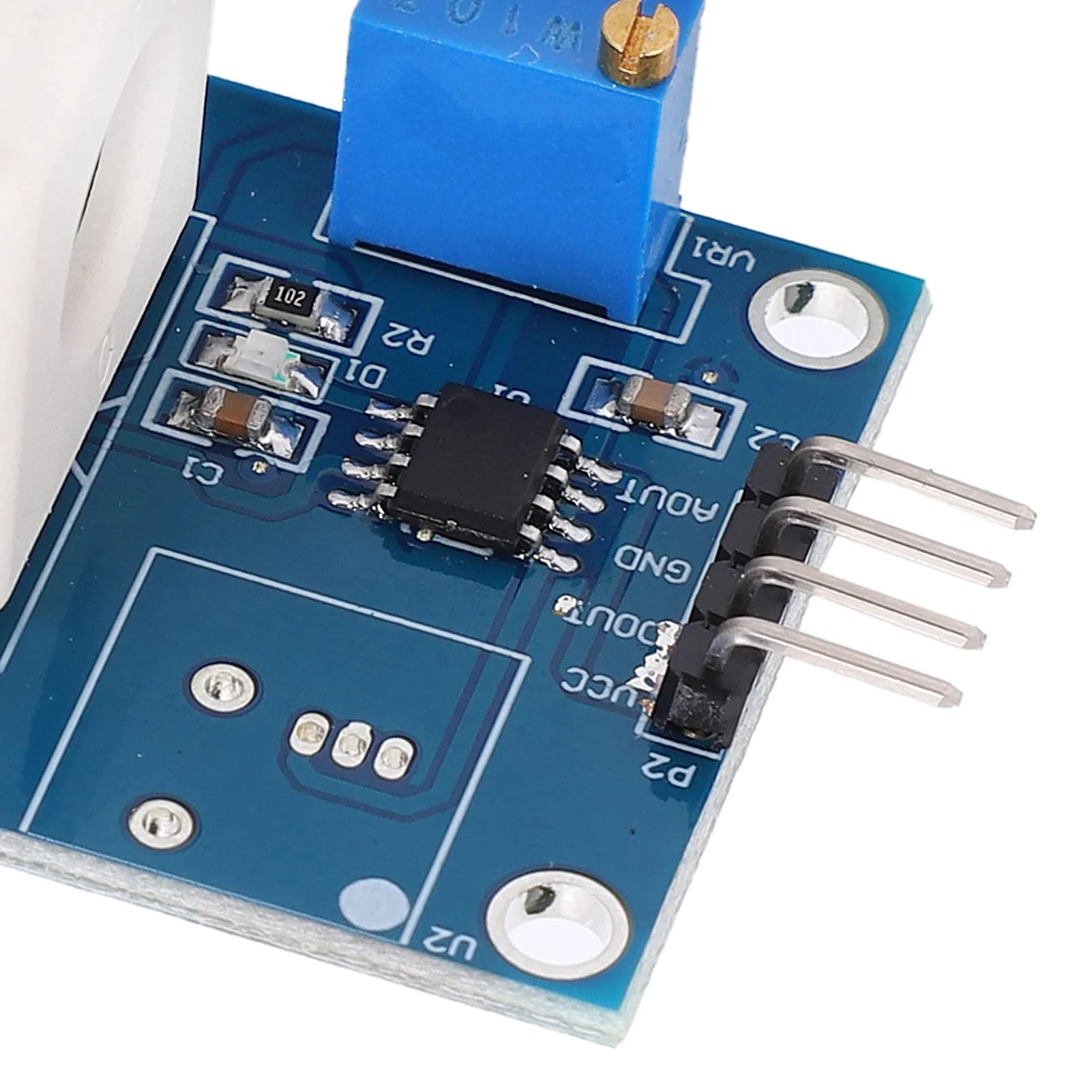

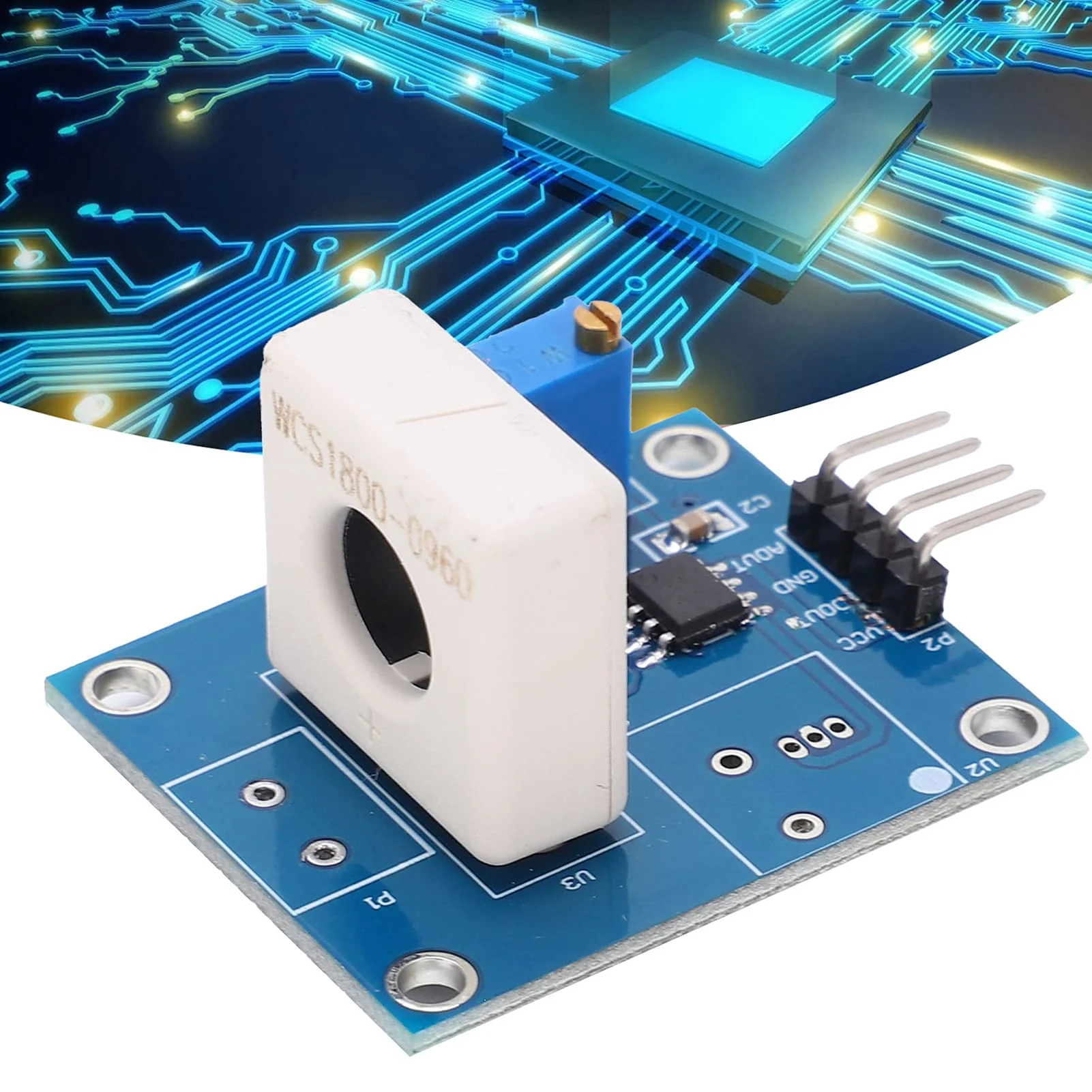

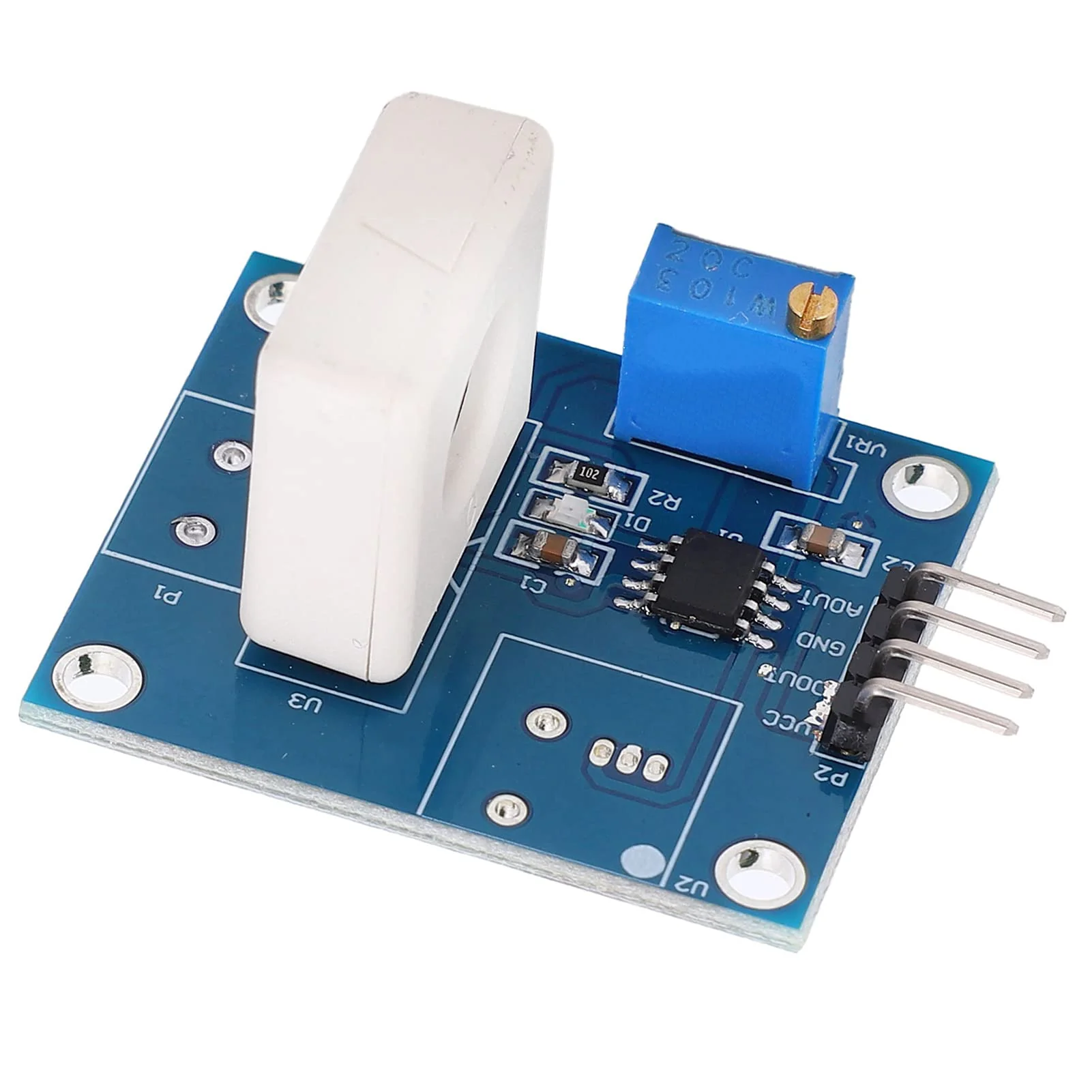

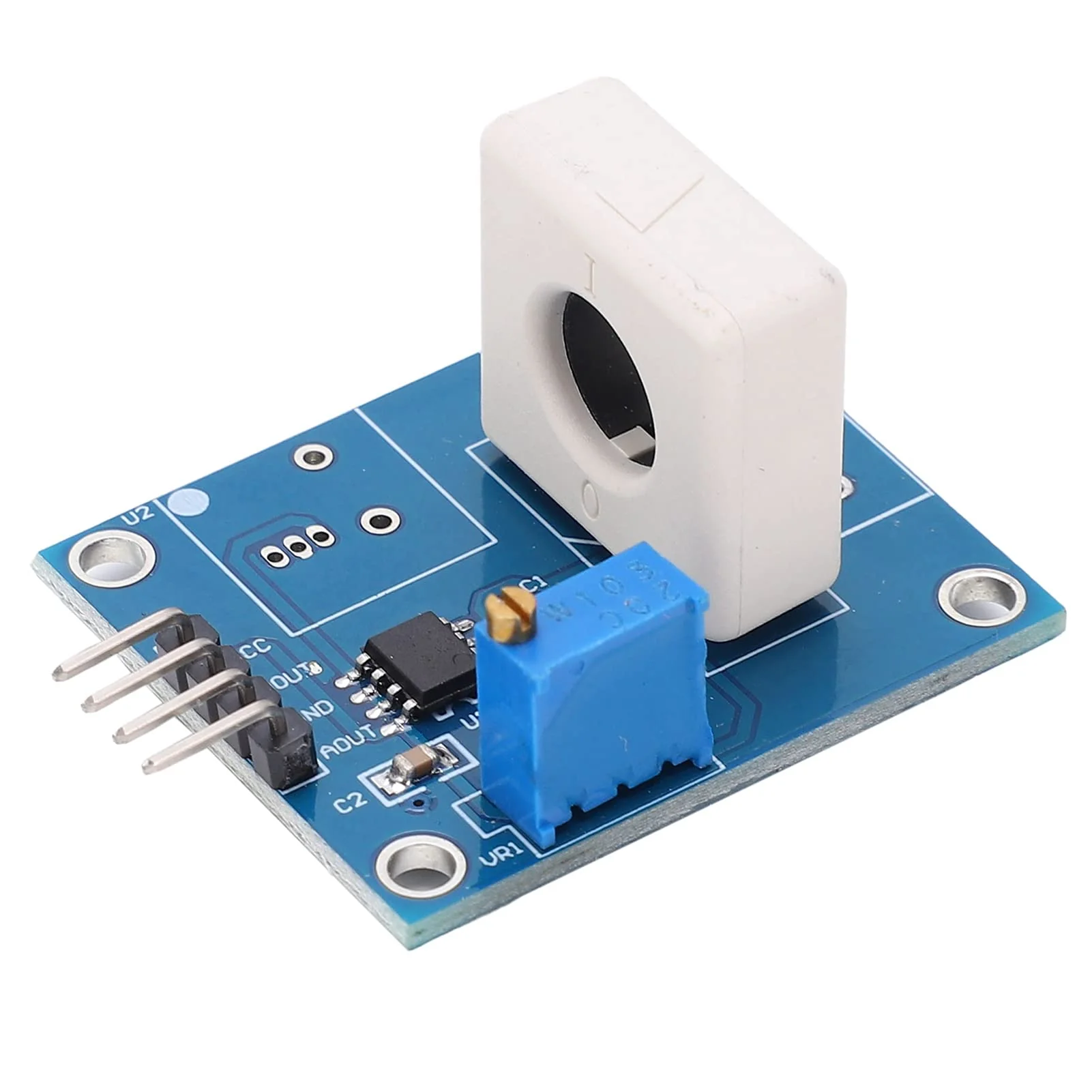

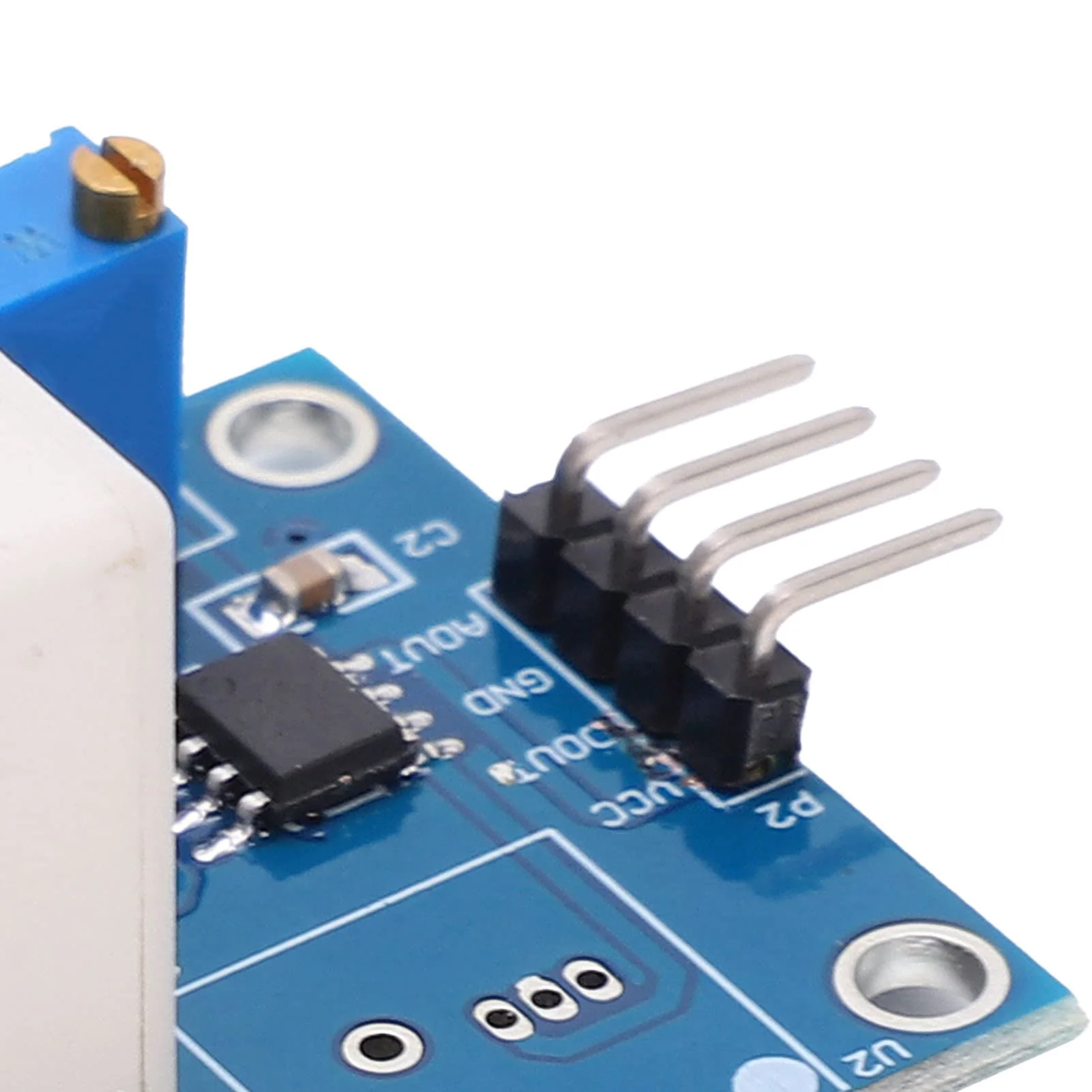

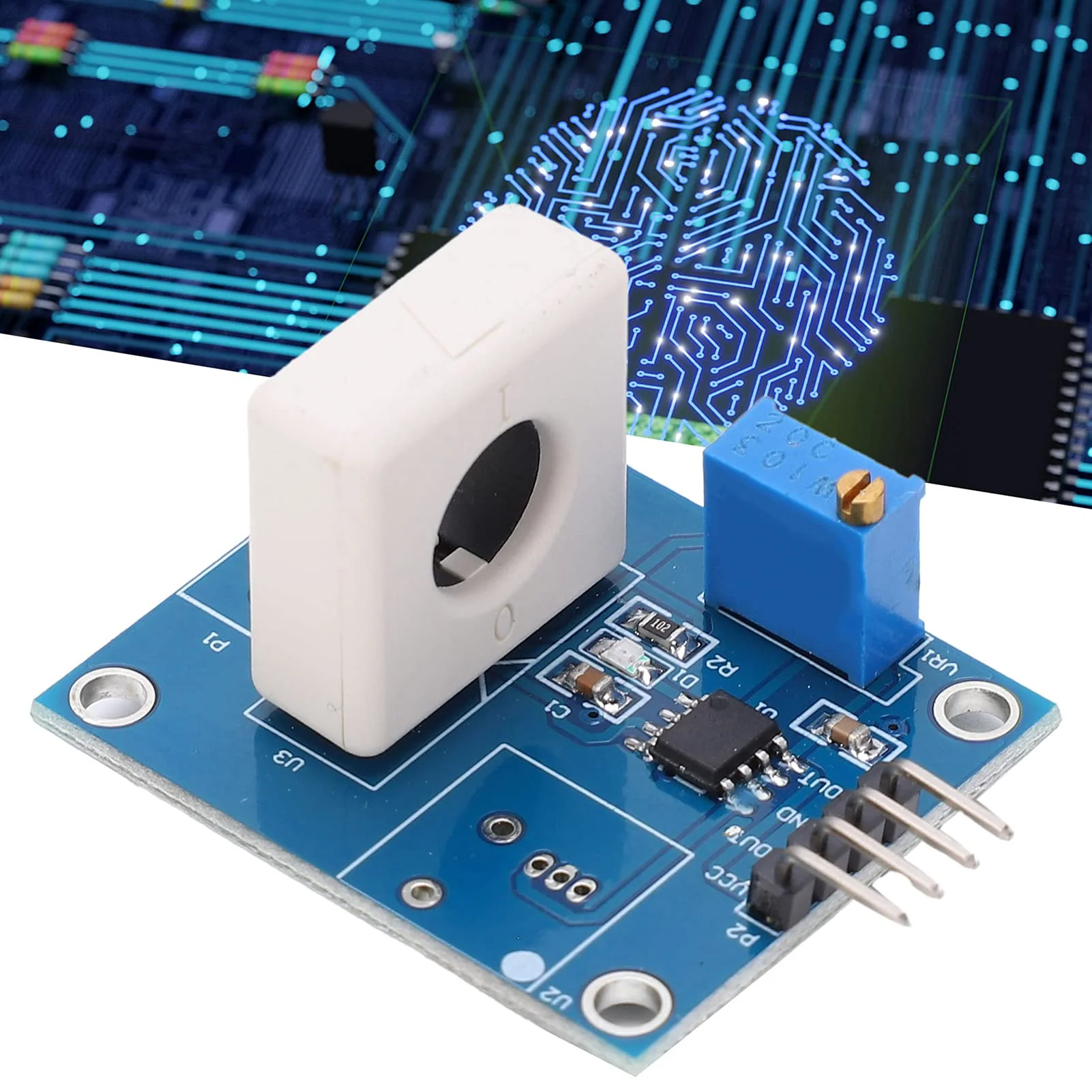

Hall Current Detection Sensor Module DC 5V 35A WCS1800 Short Circuit Overcurrent Protection Detector with Overcurrent LED Signal Display

Hall Current Detection Sensor Module DC 5V 35A WCS1800 Short Circuit Overcurrent Protection Detector with Overcurrent LED Signal Display

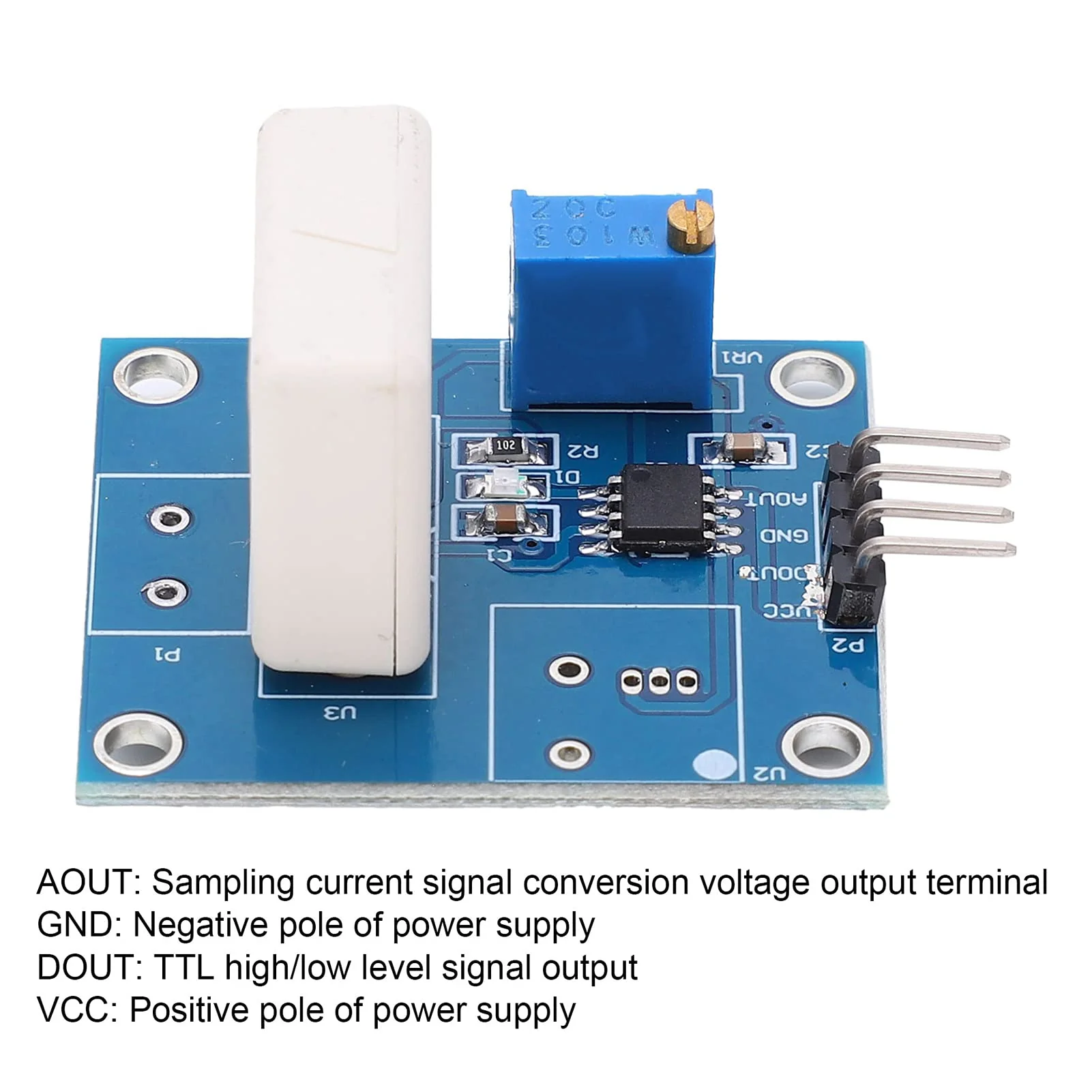

Specification: Item Type: Hall Current Sensor Material: PCB. Operating voltage: DC 5 V. Current detection range: DC: ±35A; AC current: 25A (applies to analogue output). Current limiting current range: 0.5A-35A (applies to switching output) Output signal: analog voltage signal, switching signal Purpose: The first function is an analog signal followed by an operational amplifier suitable for A/D conversion. The second function is the switching signal, with which the current limit value can be set in advance. When the current value is greater than the preset current value, the switching signal changes from low to high level and is indicated by an LED indicator. Package list: 1 x Hall current sensor.

Product Features

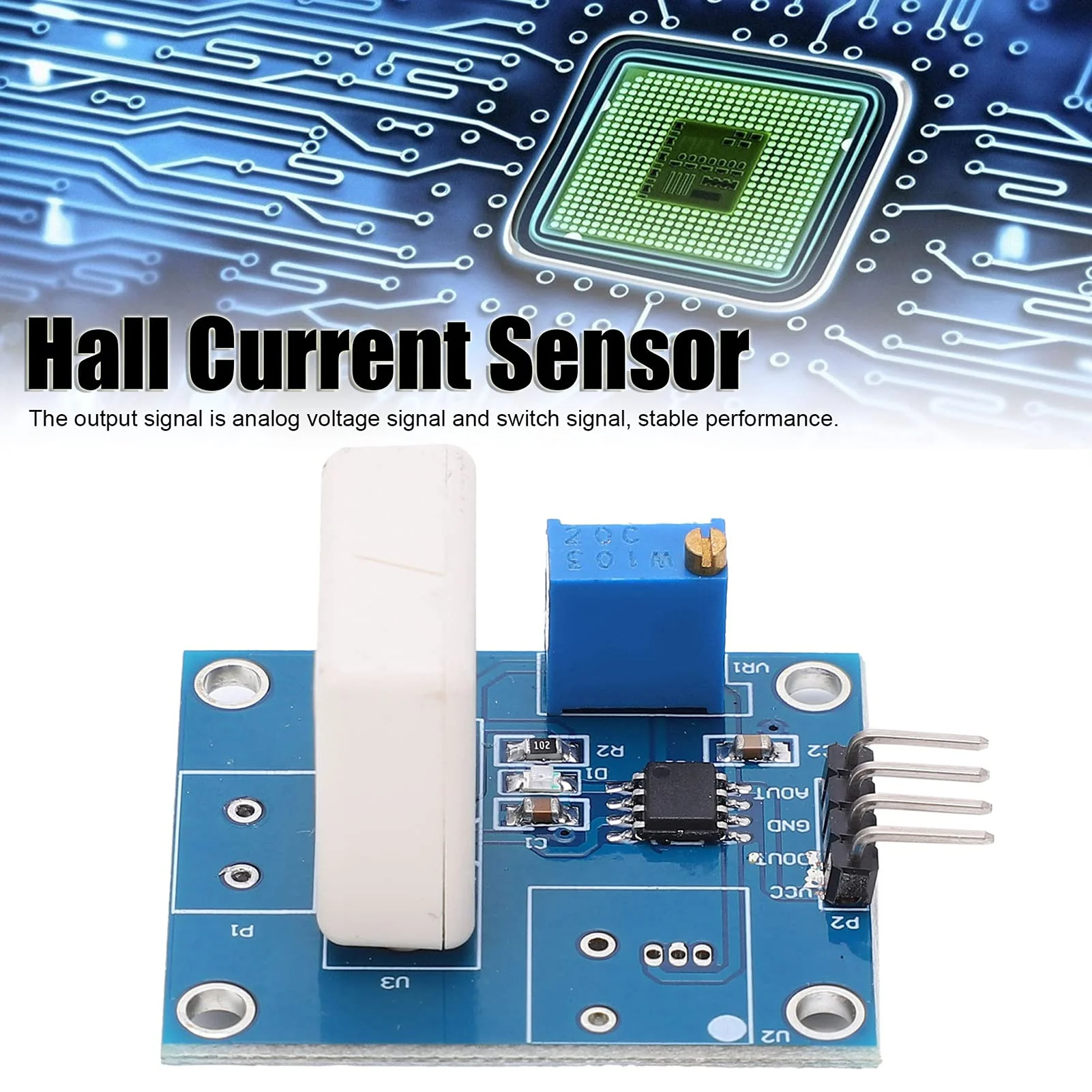

• Function: the output signal is an analogue voltage signal and a switching signal, stable performance. The first function is an analog signal followed by an operational amplifier suitable for A/D conversion.
• With LED indicator light --- you can set the current limit value in advance. When the current value is greater than the preset current value, the switching signal changes from low to high level and is indicated by an LED indicator.
• Easy to use: two output modes can be selected to meet different work requirements. With mounting holes, convenient for firmware installation, save time and effort.
• Specification --- Material: PCB; Current detection range: DC: 35A; AC: 25A, suitable for analog output. Current limit range: 0.5A-35A, suitable for switching output.
• Guarantee --- We promise that you will solve all problems if you had them. Because we pride ourselves on our customer service we provide!
