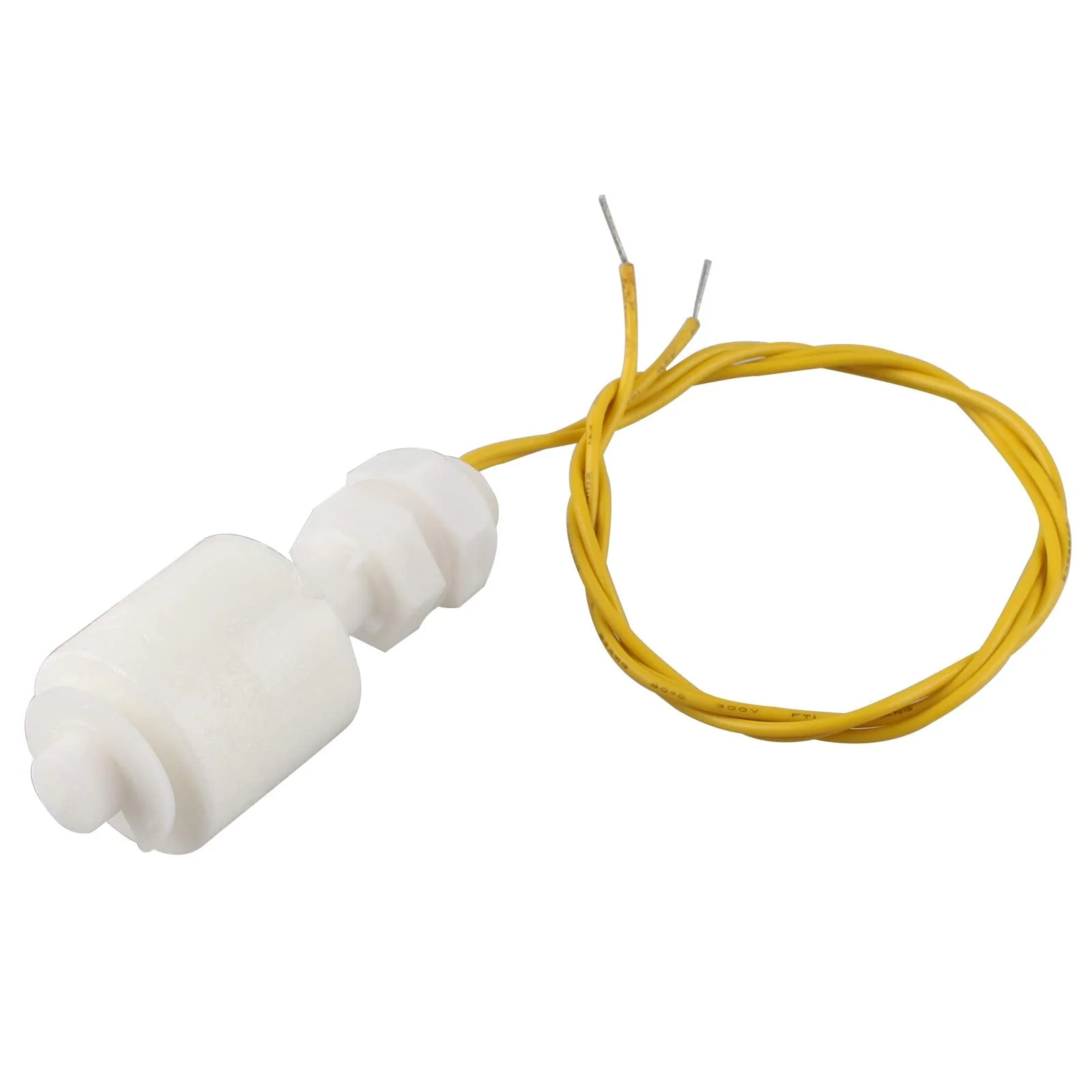

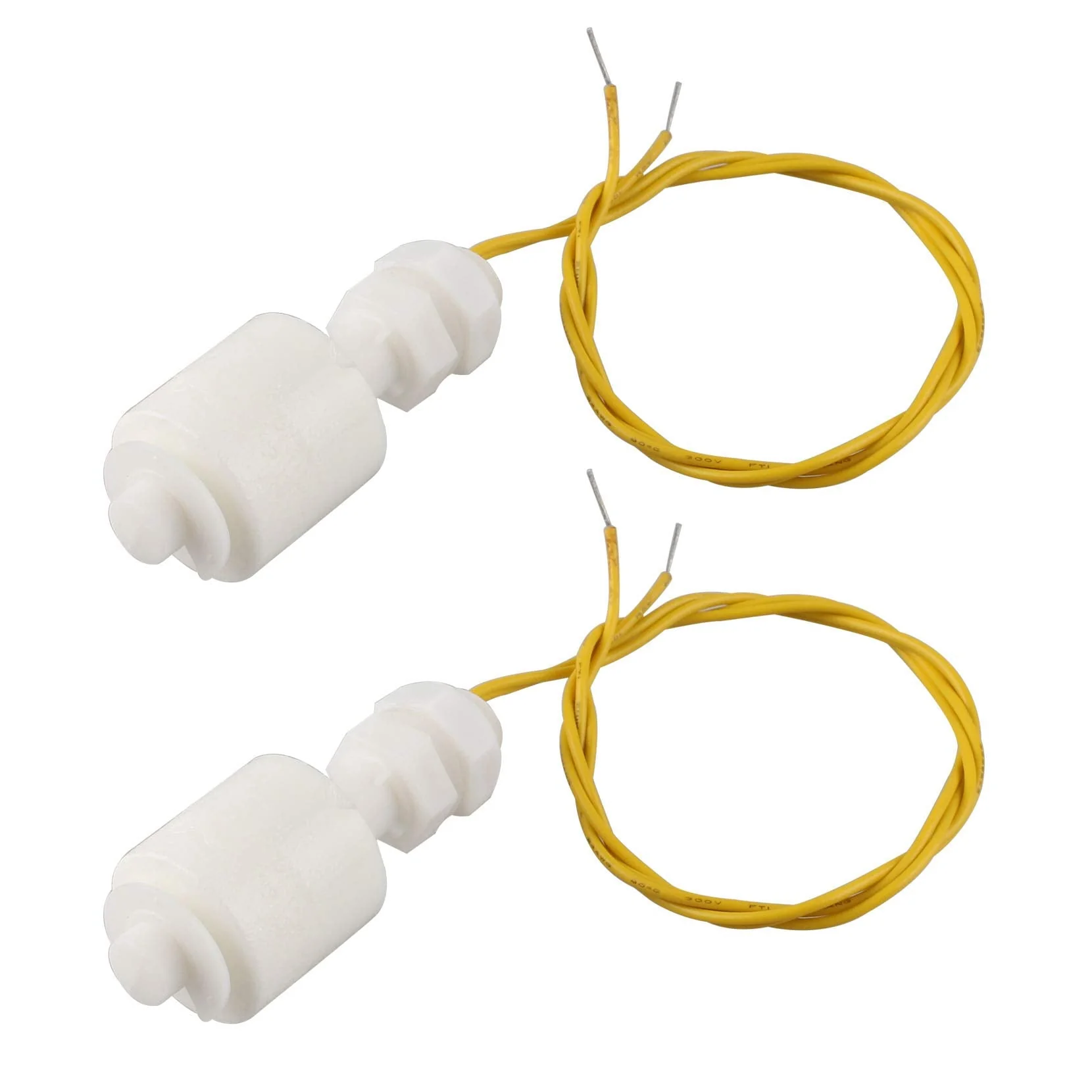

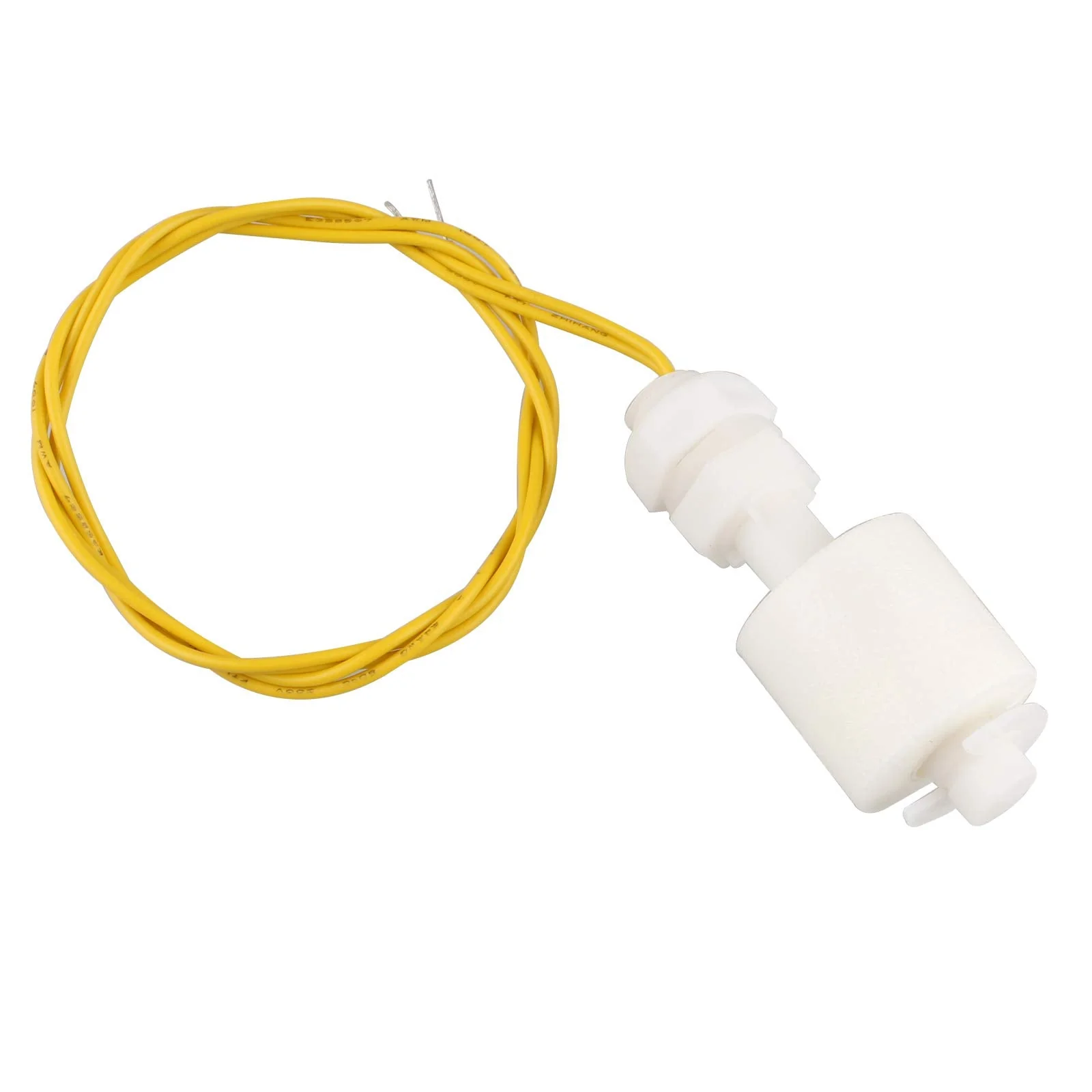

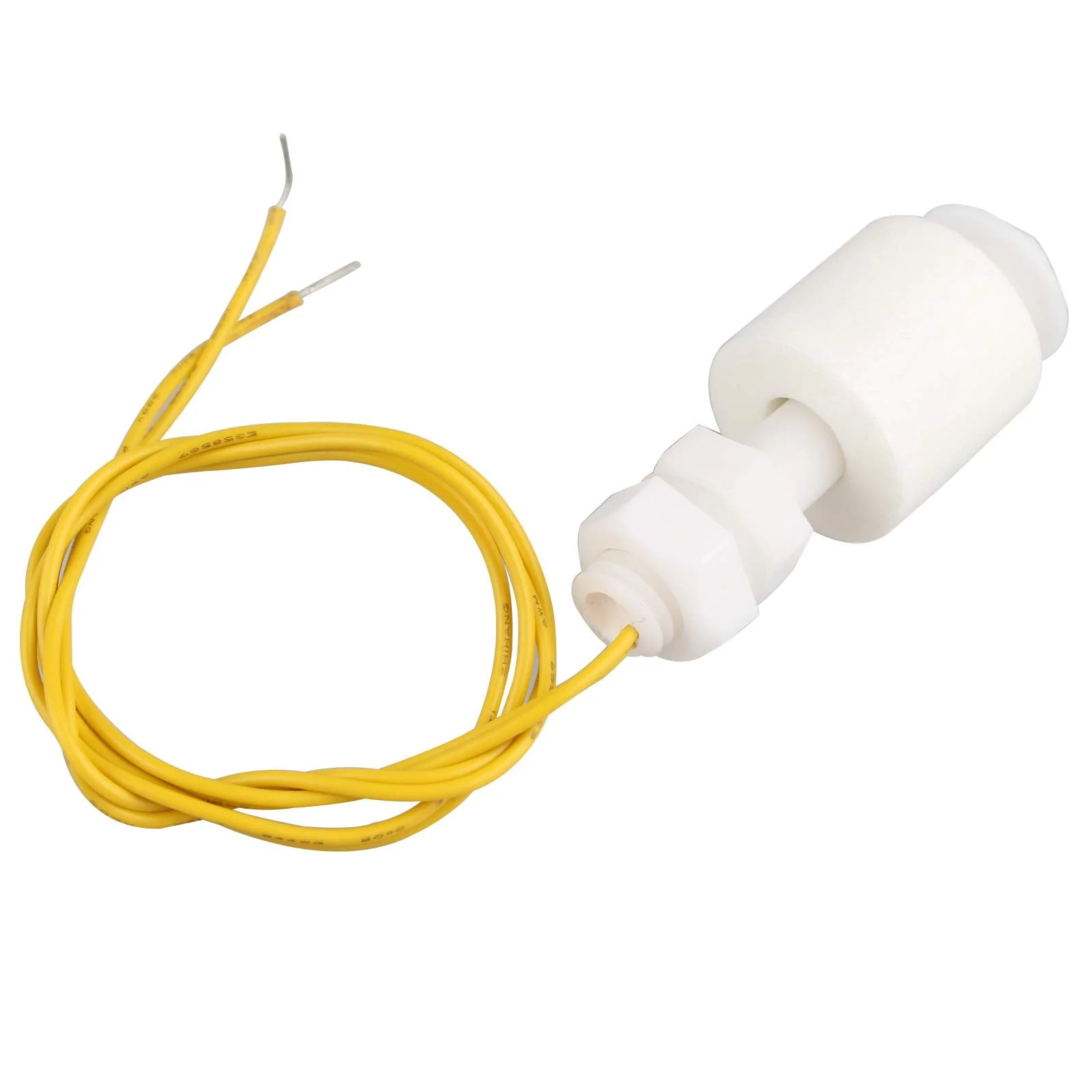

HALJIA ZP4510 2pcs Mini Liquid Water Level Sensor Vertical Float Switch for Aquarium Pump Control L=45mm
HALJIA ZP4510 2pcs Mini Liquid Water Level Sensor Vertical Float Switch for Aquarium Pump Control L=45mm
HALJIA ZP4510 2pcs Mini Liquid Water Level Sensor Vertical Float Switch for Aquarium Pump Control L=45mm

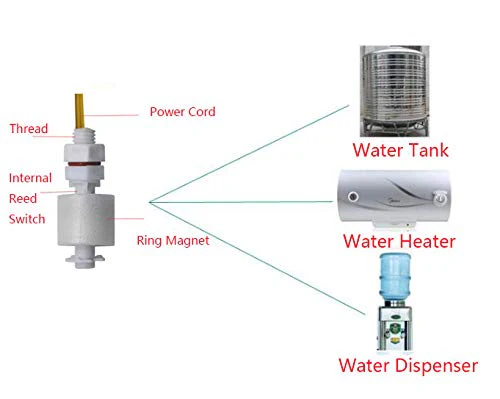

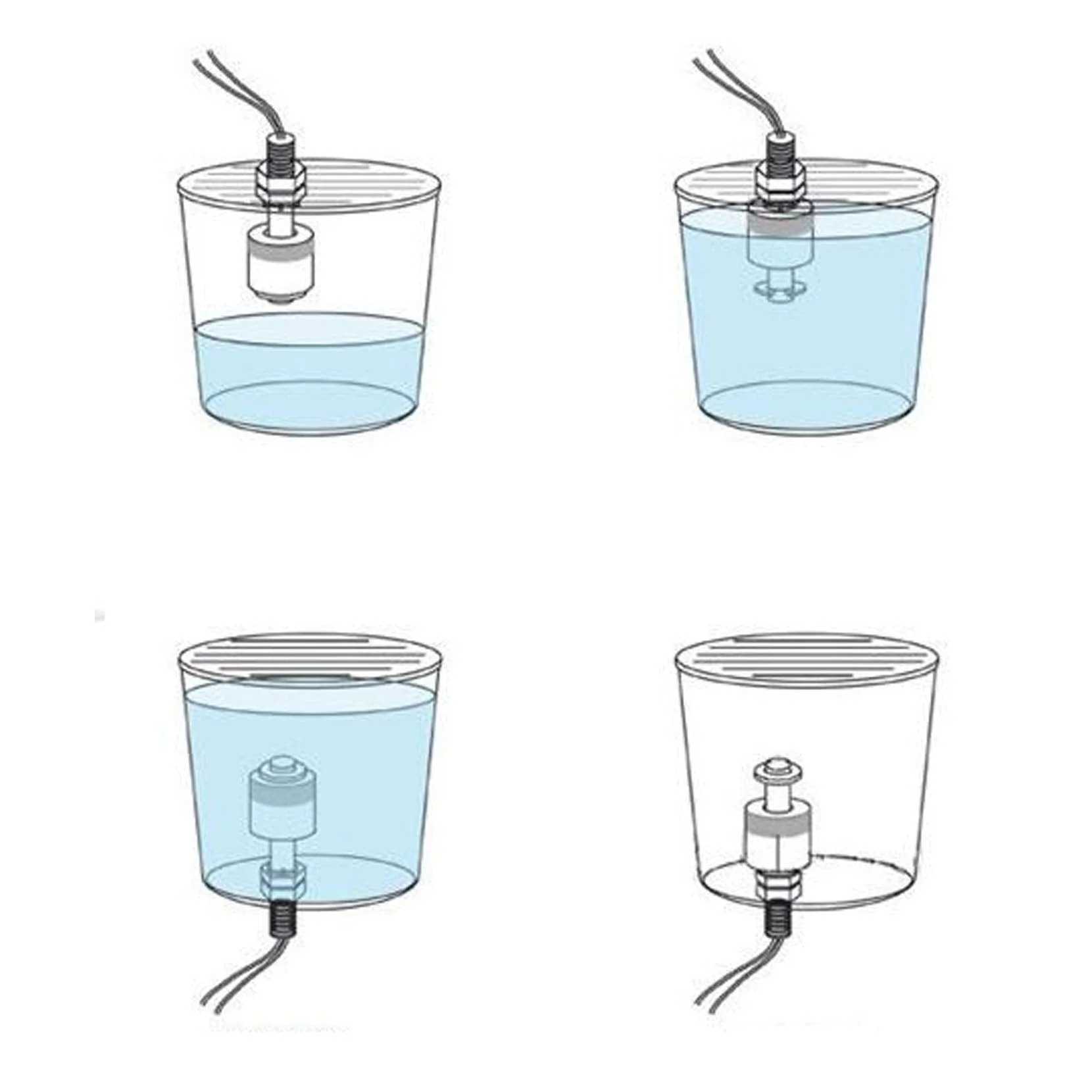

Working principle: The liquid level sensor mainly consists of a reed switch and a floating ball. The floating ball has a magnetic material. One or more reed switches are arranged in the closed non-magnetic metal tube or plastic tube, and then the catheter is passed through a variety of floating balls with magnetic material, and with the fixed double ring control the floating ball and reed switch in the appropriate position, the floating ball rises or falls with the liquid and uses the contact point near the beginning of the Magnetic spring to open and open and Close the magnetic spring. The action is used as a level control or indicator (when the float is near the reed switch, it is on, when it leaves, the switch is off). Product features: 1. Contact capacity: 10 W 2. Switching voltage: AC/DC 110 V. 3. Switching current: 0.5 A. 4. Insulation resistance: >10Ω 5. Contact resistance: <100m 6. Resistance: 107 times 7. Operating Temperature: -10~60°C 8. Working pressure: <0.6MPA 9. Medium Specific Weight: >0.6 10. Switch Material: PP 11. Color: white and yellow 12. Thread diameter (approx. ): 10mm 13. Switch Housing Size:2258mm(Max D x H 14. Cable Length: 38cm 15. Weight: 13g Note: Regarding float wiring, it is recommended to use a small relay as it is low in power consumption. Specially designed for the motor with AC contactor solenoid valve motor, it must be connected to the relay. Package includes: 2 x Float Switch
Product Features
- Product Name : Float Switch;Model Number: : ZP4510
- Contact Capacity:10W;Switching Voltage: AC/DC110V;Switching Current:0.5A

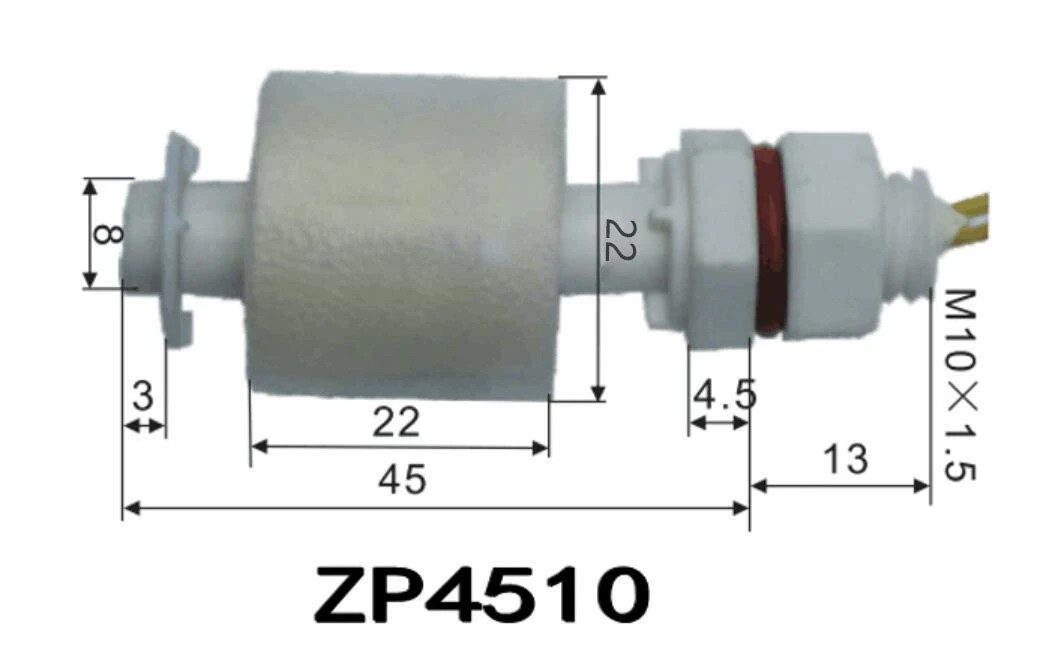

- Thread diameter (approx. ): 10 mm; switch housing size: 22 x 58 mm (max. D x H); Cable length: 38 cm
- The float level switch and any liquid or pressure and temperature can be used. It is widely used in the shipbuilding industry, generator equipment, petrochemical, food industry, water treatment equipment, colouring and finishing industry, hydraulic machines and so on.
- International products have separate terms, are sold from abroad and may differ from local products, including fit, age ratings, and language of product, labeling or instructions.
More Images
HALJIA ZP4510 2pcs Mini Liquid Water Level Sensor Vertical Float Switch for Aquarium Pump Control L=45mm
HALJIA ZP4510 2pcs Mini Liquid Water Level Sensor Vertical Float Switch for Aquarium Pump Control L=45mm
Working principle: The liquid level sensor mainly consists of a reed switch and a floating ball. The floating ball has a magnetic material. One or more reed switches are arranged in the closed non-magnetic metal tube or plastic tube, and then the catheter is passed through a variety of floating balls with magnetic material, and with the fixed double ring control the floating ball and reed switch in the appropriate position, the floating ball rises or falls with the liquid and uses the contact point near the beginning of the Magnetic spring to open and open and Close the magnetic spring. The action is used as a level control or indicator (when the float is near the reed switch, it is on, when it leaves, the switch is off). Product features: 1. Contact capacity: 10 W 2. Switching voltage: AC/DC 110 V. 3. Switching current: 0.5 A. 4. Insulation resistance: >10Ω 5. Contact resistance: <100m 6. Resistance: 107 times 7. Operating Temperature: -10~60°C 8. Working pressure: <0.6MPA 9. Medium Specific Weight: >0.6 10. Switch Material: PP 11. Color: white and yellow 12. Thread diameter (approx. ): 10mm 13. Switch Housing Size:2258mm(Max D x H 14. Cable Length: 38cm 15. Weight: 13g Note: Regarding float wiring, it is recommended to use a small relay as it is low in power consumption. Specially designed for the motor with AC contactor solenoid valve motor, it must be connected to the relay. Package includes: 2 x Float Switch
Product Features
- Product Name : Float Switch;Model Number: : ZP4510
- Contact Capacity:10W;Switching Voltage: AC/DC110V;Switching Current:0.5A
- Thread diameter (approx. ): 10 mm; switch housing size: 22 x 58 mm (max. D x H); Cable length: 38 cm
- The float level switch and any liquid or pressure and temperature can be used. It is widely used in the shipbuilding industry, generator equipment, petrochemical, food industry, water treatment equipment, colouring and finishing industry, hydraulic machines and so on.
- International products have separate terms, are sold from abroad and may differ from local products, including fit, age ratings, and language of product, labeling or instructions.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
HALJIA ZP4510 2pcs Mini Liquid Water Level Sensor Vertical Float Switch for Aquarium Pump Control L=45mm
Working principle: The liquid level sensor mainly consists of a reed switch and a floating ball. The floating ball has a magnetic material. One or more reed switches are arranged in the closed non-magnetic metal tube or plastic tube, and then the catheter is passed through a variety of floating balls with magnetic material, and with the fixed double ring control the floating ball and reed switch in the appropriate position, the floating ball rises or falls with the liquid and uses the contact point near the beginning of the Magnetic spring to open and open and Close the magnetic spring. The action is used as a level control or indicator (when the float is near the reed switch, it is on, when it leaves, the switch is off). Product features: 1. Contact capacity: 10 W 2. Switching voltage: AC/DC 110 V. 3. Switching current: 0.5 A. 4. Insulation resistance: >10Ω 5. Contact resistance: <100m 6. Resistance: 107 times 7. Operating Temperature: -10~60°C 8. Working pressure: <0.6MPA 9. Medium Specific Weight: >0.6 10. Switch Material: PP 11. Color: white and yellow 12. Thread diameter (approx. ): 10mm 13. Switch Housing Size:2258mm(Max D x H 14. Cable Length: 38cm 15. Weight: 13g Note: Regarding float wiring, it is recommended to use a small relay as it is low in power consumption. Specially designed for the motor with AC contactor solenoid valve motor, it must be connected to the relay. Package includes: 2 x Float Switch
Product Features
- Product Name : Float Switch;Model Number: : ZP4510
- Contact Capacity:10W;Switching Voltage: AC/DC110V;Switching Current:0.5A
- Thread diameter (approx. ): 10 mm; switch housing size: 22 x 58 mm (max. D x H); Cable length: 38 cm
- The float level switch and any liquid or pressure and temperature can be used. It is widely used in the shipbuilding industry, generator equipment, petrochemical, food industry, water treatment equipment, colouring and finishing industry, hydraulic machines and so on.
- International products have separate terms, are sold from abroad and may differ from local products, including fit, age ratings, and language of product, labeling or instructions.
