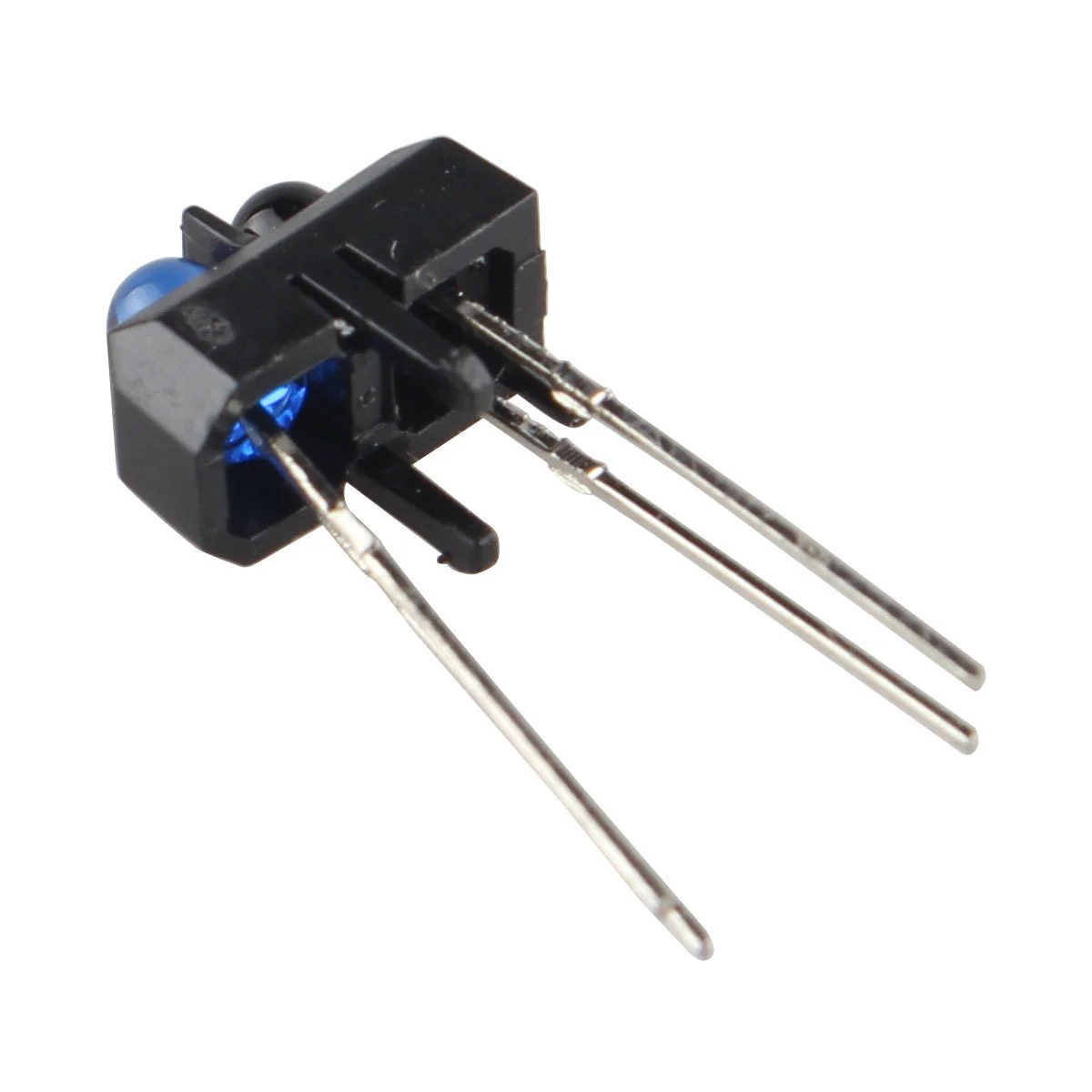

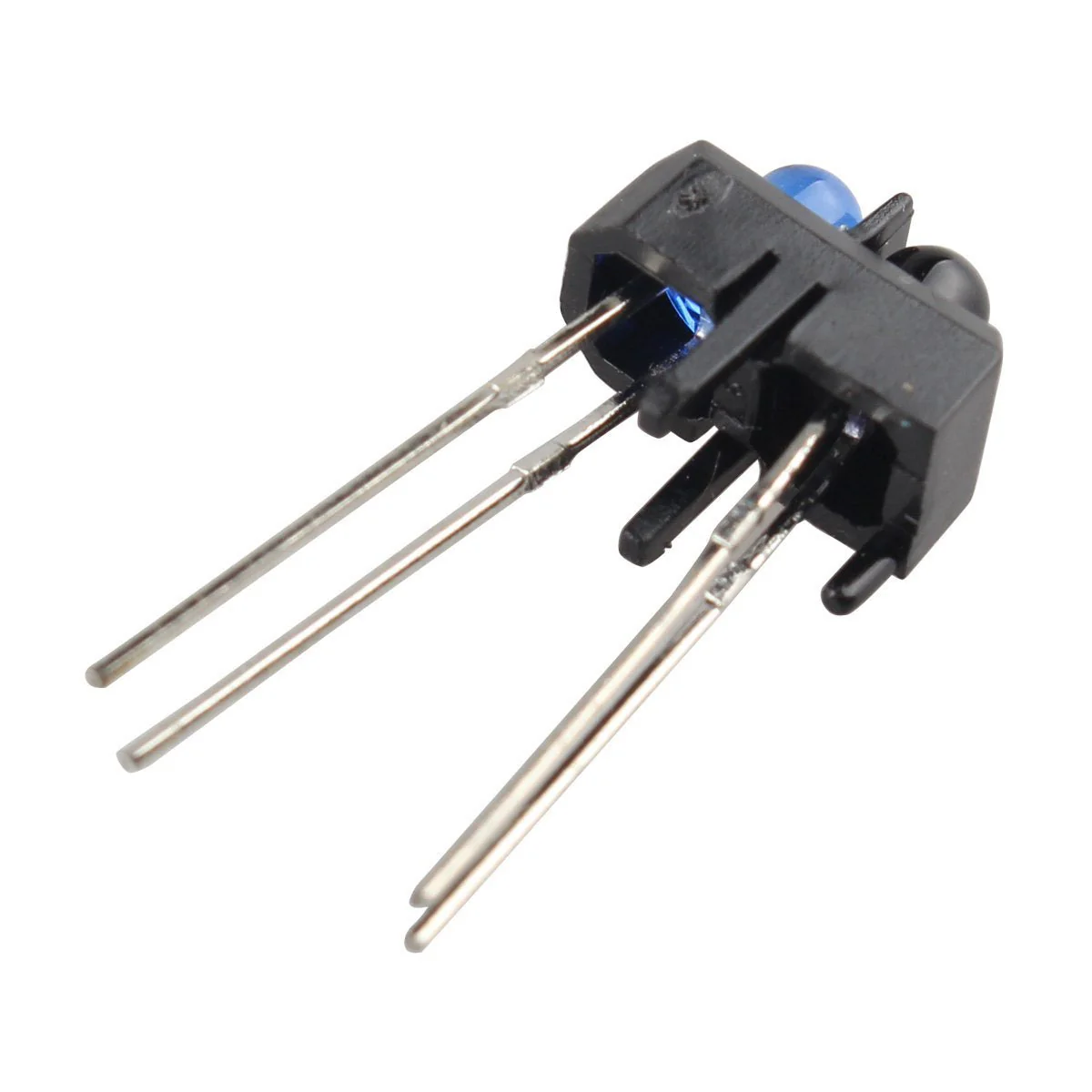

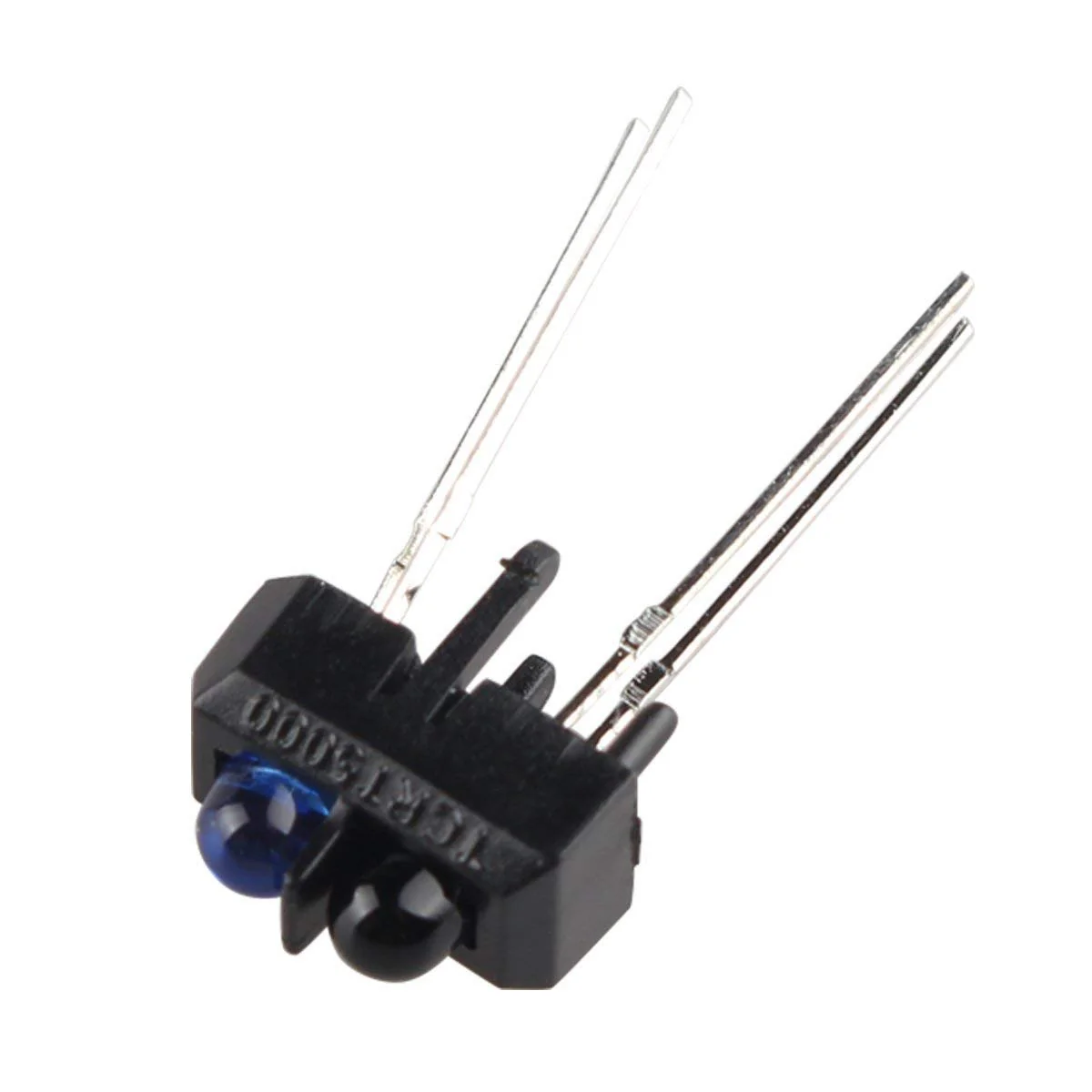

HALJIA TCRT5000 TCRT5000L Reflective Optical Sensor IR Switch Compatible with Arduino (Pack of 10)
HALJIA TCRT5000 TCRT5000L Reflective Optical Sensor IR Switch Compatible with Arduino (Pack of 10)
HALJIA TCRT5000 TCRT5000L Reflective Optical Sensor IR Switch Compatible with Arduino (Pack of 10)

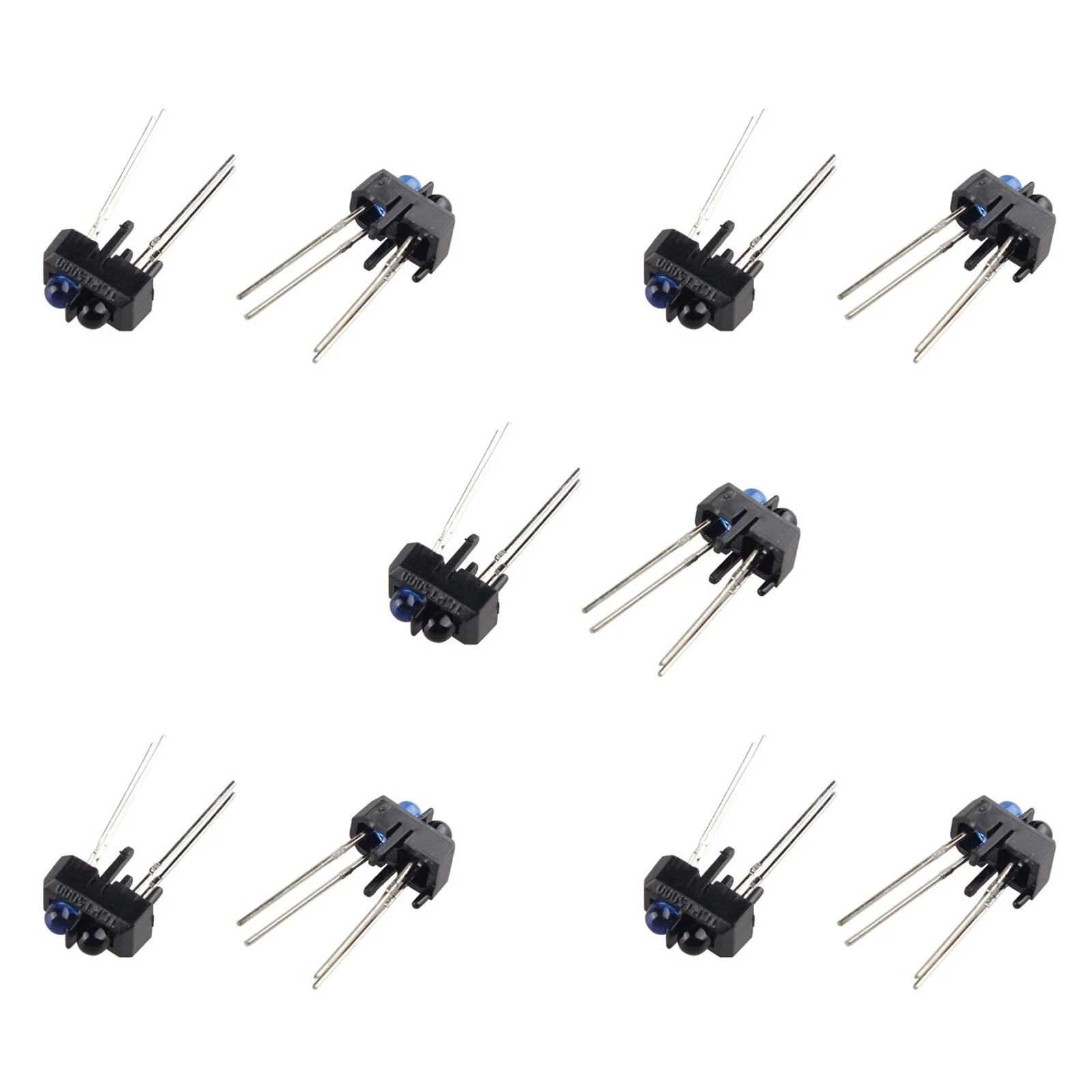

Specifications: Reach: 12mm Operating wavelength: 950 mm. Detection method: reflective Reverse Voltage: 5V Forward Current: 60mA Forward Current: 3A Emitter power dissipation: 100mW Collector Emitter Voltage: 70V Emitter collector voltage: 5V Collector Current: 100mA Detector power dissipation: 100mW Sensor power dissipation: 200mW Operating temperature: -25 ℃ ~ +85 ℃. Compact construction, feel the presence of an object by using the reflective IR spotlight from the object. Consists of a phototransistor. Snap-in construction for PCB mounting. Polycarbonate plastic housing that prevents crosstalk. Position sensor for wave encoder Detection of reflective materials such as paper, IBM cards, magnetic tapes, etc. Limit switch for mechanical movements in the VCR. General purpose - anywhere space is limited. Package includes: 10 x TCRT5000
Product Features
- Model:TCRT5000;Package Content:10 x Reflective Optical Sensor Switch
- The maximum continuous output current is 5A; Peak current is 10A.
- Compact construction, feel the presence of an object by using the reflective IR spotlight from the object.
- Consists of a phototransistor. Snap-in construction for PCB mounting.
- Polycarbonate plastic housing that prevents crosstalk. Position sensor for wave encoder
More Images
HALJIA TCRT5000 TCRT5000L Reflective Optical Sensor IR Switch Compatible with Arduino (Pack of 10)
HALJIA TCRT5000 TCRT5000L Reflective Optical Sensor IR Switch Compatible with Arduino (Pack of 10)
Specifications: Reach: 12mm Operating wavelength: 950 mm. Detection method: reflective Reverse Voltage: 5V Forward Current: 60mA Forward Current: 3A Emitter power dissipation: 100mW Collector Emitter Voltage: 70V Emitter collector voltage: 5V Collector Current: 100mA Detector power dissipation: 100mW Sensor power dissipation: 200mW Operating temperature: -25 ℃ ~ +85 ℃. Compact construction, feel the presence of an object by using the reflective IR spotlight from the object. Consists of a phototransistor. Snap-in construction for PCB mounting. Polycarbonate plastic housing that prevents crosstalk. Position sensor for wave encoder Detection of reflective materials such as paper, IBM cards, magnetic tapes, etc. Limit switch for mechanical movements in the VCR. General purpose - anywhere space is limited. Package includes: 10 x TCRT5000
Product Features
- Model:TCRT5000;Package Content:10 x Reflective Optical Sensor Switch
- The maximum continuous output current is 5A; Peak current is 10A.
- Compact construction, feel the presence of an object by using the reflective IR spotlight from the object.
- Consists of a phototransistor. Snap-in construction for PCB mounting.
- Polycarbonate plastic housing that prevents crosstalk. Position sensor for wave encoder
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
HALJIA TCRT5000 TCRT5000L Reflective Optical Sensor IR Switch Compatible with Arduino (Pack of 10)
Specifications: Reach: 12mm Operating wavelength: 950 mm. Detection method: reflective Reverse Voltage: 5V Forward Current: 60mA Forward Current: 3A Emitter power dissipation: 100mW Collector Emitter Voltage: 70V Emitter collector voltage: 5V Collector Current: 100mA Detector power dissipation: 100mW Sensor power dissipation: 200mW Operating temperature: -25 ℃ ~ +85 ℃. Compact construction, feel the presence of an object by using the reflective IR spotlight from the object. Consists of a phototransistor. Snap-in construction for PCB mounting. Polycarbonate plastic housing that prevents crosstalk. Position sensor for wave encoder Detection of reflective materials such as paper, IBM cards, magnetic tapes, etc. Limit switch for mechanical movements in the VCR. General purpose - anywhere space is limited. Package includes: 10 x TCRT5000
Product Features
- Model:TCRT5000;Package Content:10 x Reflective Optical Sensor Switch
- The maximum continuous output current is 5A; Peak current is 10A.
- Compact construction, feel the presence of an object by using the reflective IR spotlight from the object.
- Consists of a phototransistor. Snap-in construction for PCB mounting.
- Polycarbonate plastic housing that prevents crosstalk. Position sensor for wave encoder
