HALJIA Float Switch, Liquid Water Level Sensor, Stainless Steel, Vertical Float Switch, for Electrical, Drainage, Level Control and Alarm L = 45 mm

HALJIA Float Switch, Liquid Water Level Sensor, Stainless Steel, Vertical Float Switch, for Electrical, Drainage, Level Control and Alarm L = 45 mm

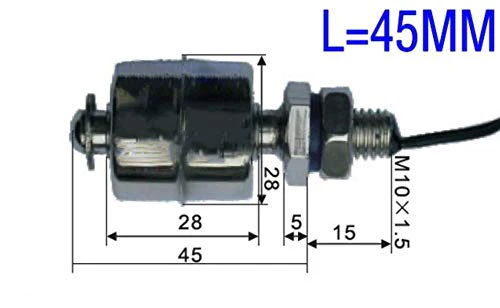

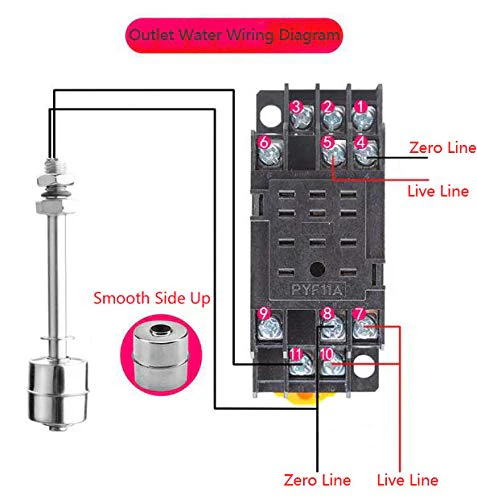

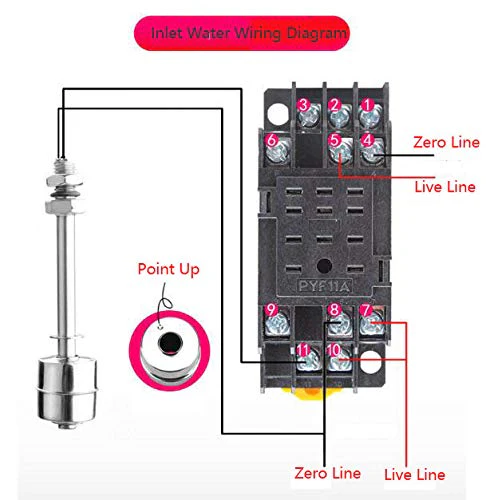

Specifications: 1. Product Name: Water Level Sensor Float Switch 2. Material: stainless steel. 3. Switching current: 0.5 A. 4. Maximum switching voltage: 100 V. 5. Maximum temperature: 120 °C. 6. Colour: red, silver. 7. Thread diameter (approx. ): 10 mm. 8. Switch body size (including thread): 60 × 28 mm (max. H x D). 9. Cable length: 38 cm. 10. Weight: 39.5 g 11. Widely used in electronics, electrical, chemical, water treatment, drainage, level control and alarming. Note: The point of the float is fixed and there is a circlip limit on the top and bottom. The reed switch contacts inside are not movable. The contact current of the reed switch in the float switch is small and the large load burns out. Control the solenoid valve, the alarm should be supplemented with a small relay, and the control pump should be equipped with a small relay and an AC contactor. Package includes: 1 x stainless steel float switch.

Product Features

• Product Name : Water Level Sensor;Material : Stainless Steel
• Maximum switching voltage: 100 V DC; Maximum load: 10 W; Working current: 0.5 A; Maximum temperature: 120 C
• Thread Diameter:10mm; Switch Body Size(including thread):6028mm(Max. H D); cable length: 38 cm
• Widely used in electronics, electrical, chemical, water treatment, drainage, level control and alarm.
• Package Content: 1 x Floating Switch (L=45mm)
