Hailege Si5351A I2C 25MHz I2C High Frequency Signal Generator Breakout Board Rectangular Wave Frequency Generator Signal Generator 8KHz to 160MHz 3-5VDC for Arduino
Hailege Si5351A I2C 25MHz I2C High Frequency Signal Generator Breakout Board Rectangular Wave Frequency Generator Signal Generator 8KHz to 160MHz 3-5VDC for Arduino
Hailege Si5351A I2C 25MHz I2C High Frequency Signal Generator Breakout Board Rectangular Wave Frequency Generator Signal Generator 8KHz to 160MHz 3-5VDC for Arduino

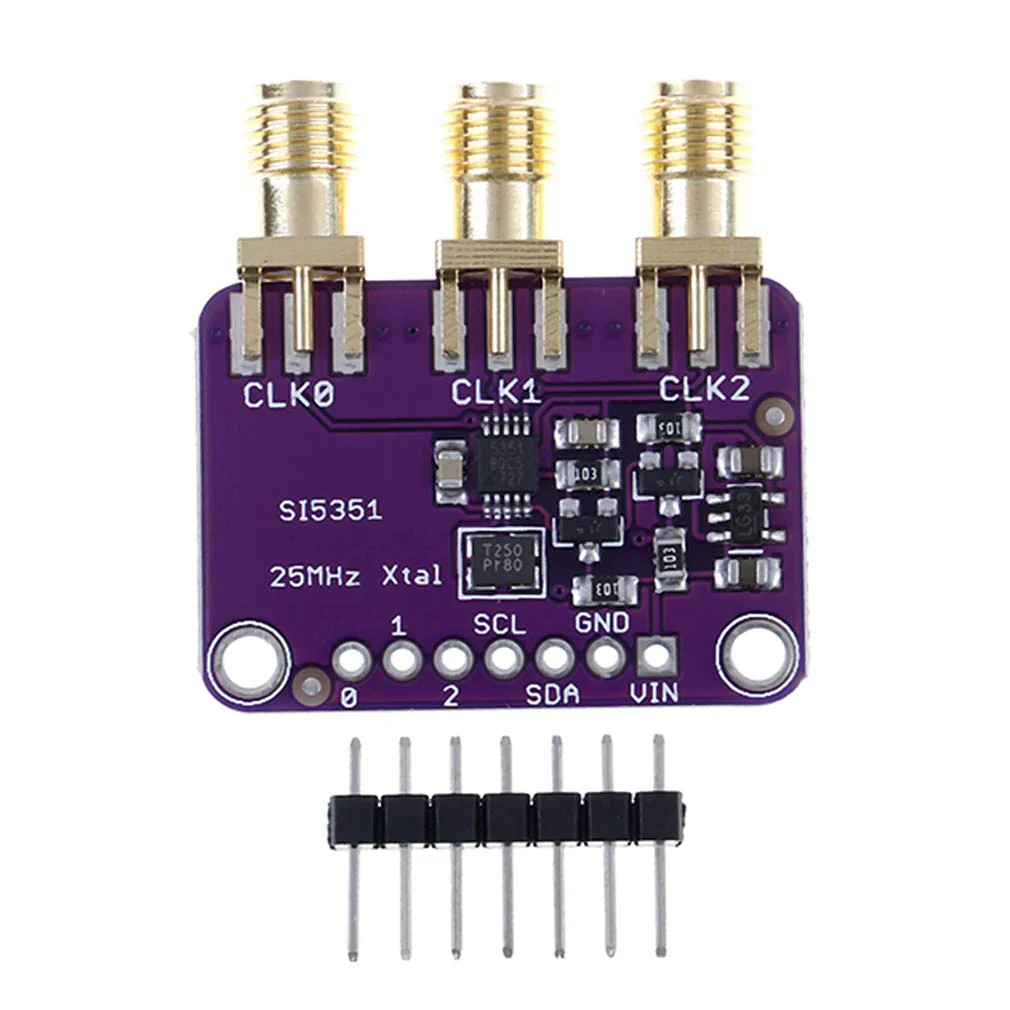

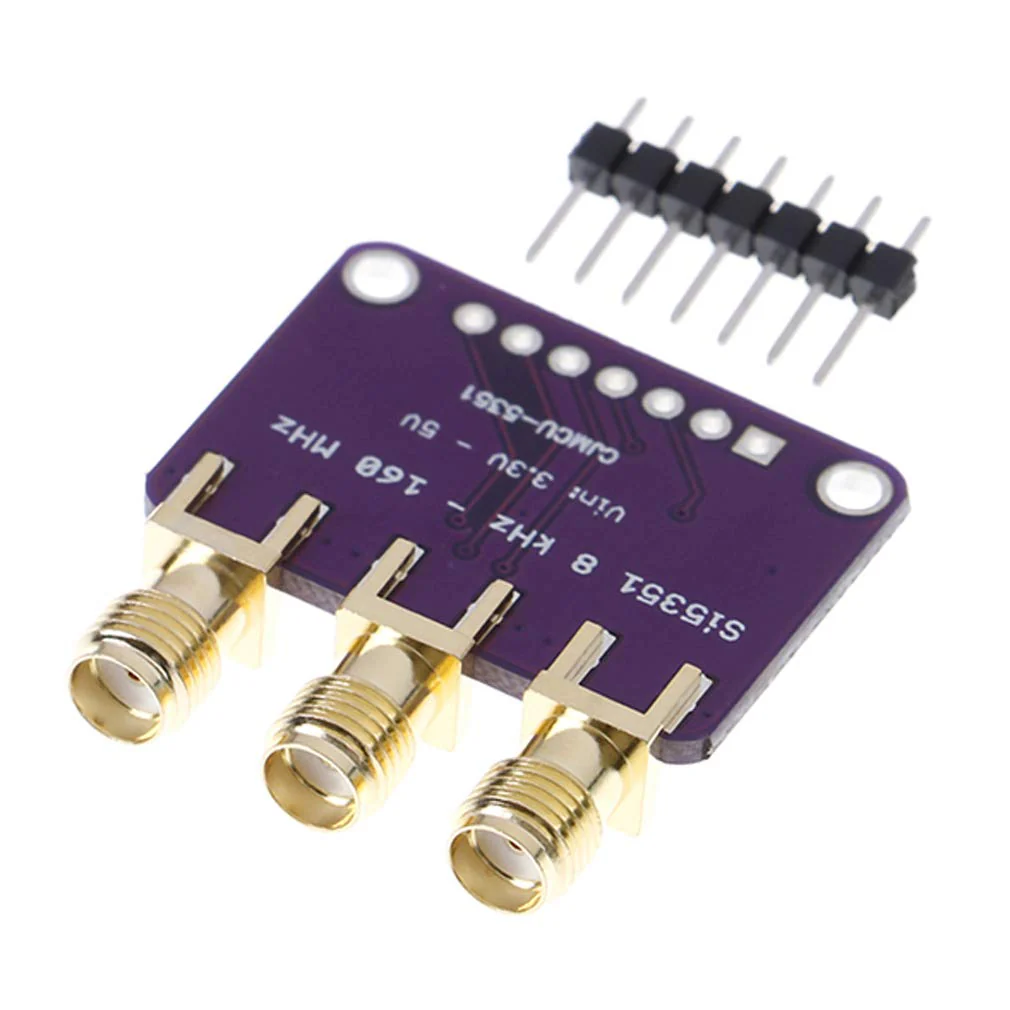

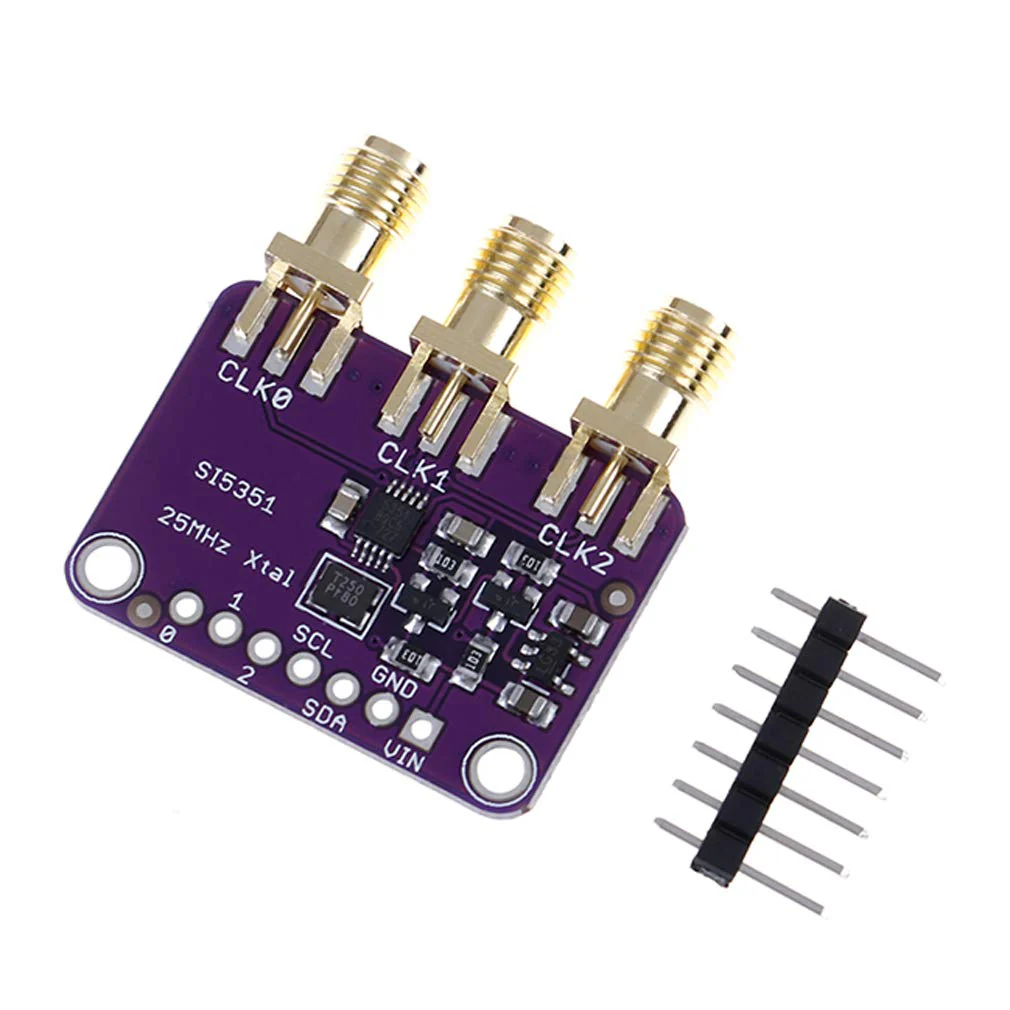

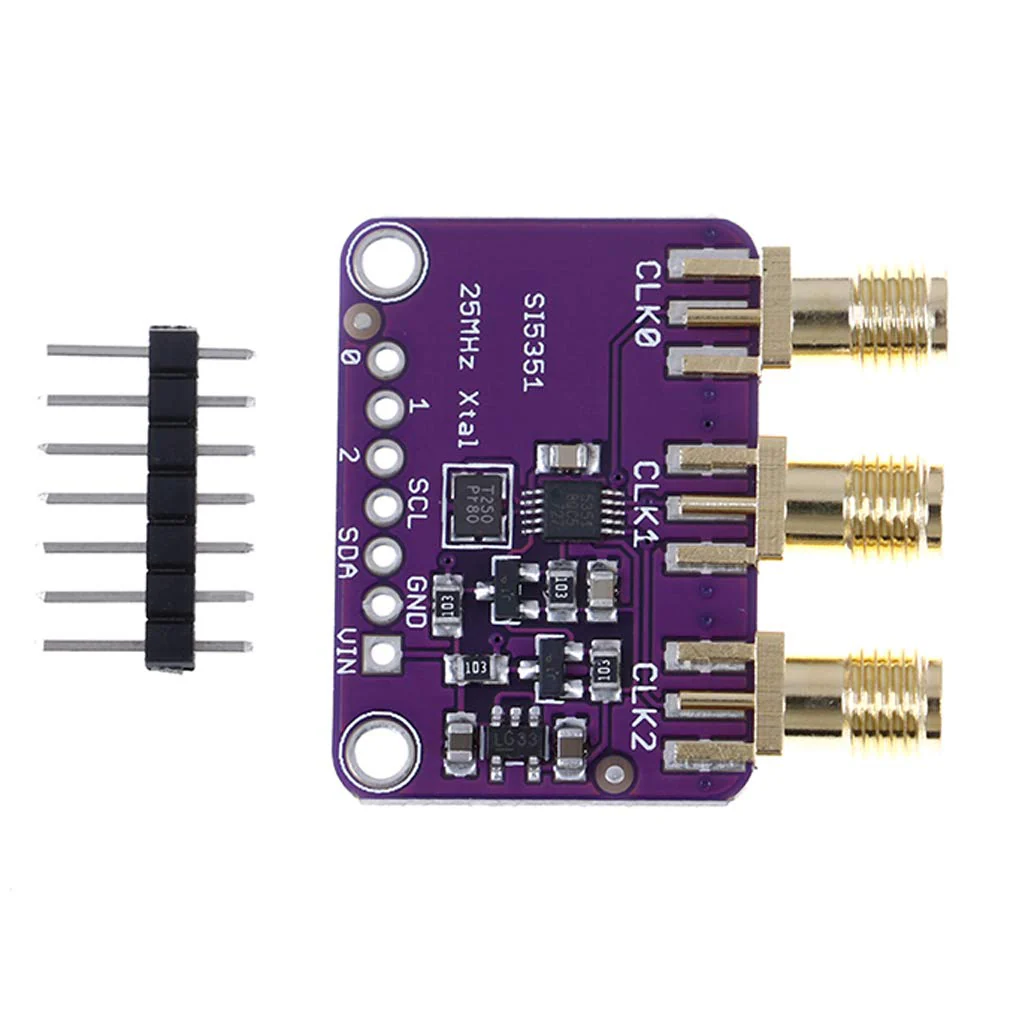

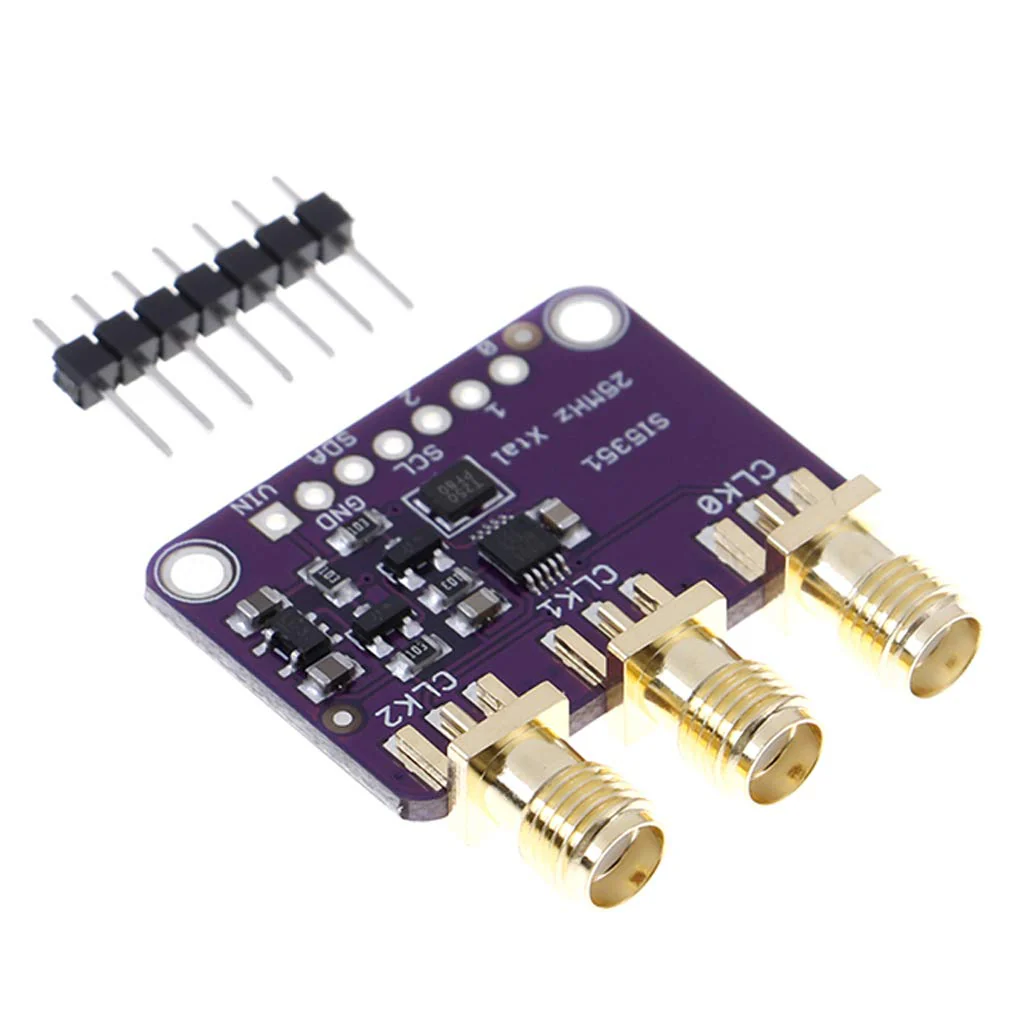

Never look for another crystal again - with the Si5351A clock generator from Adafruit! This chip has a precise 25 MHz quartz reference as well as an internal PLL and divider, so it can produce almost any frequency from <8 kHz up to 150+ MHz. The Si5351A clock generator is an I2C controller clock generator. It uses the built-in precision clock to control multiple PLLs and clock dividers using I2C instructions. By setting up the PLL and dividers, you can create precise and arbitrary frequencies. There are three independent outputs, each of which can have a different frequency. The outputs are 3 Vss, either via a breadboard-friendly header or, for RF work, via an optional SMA port. We put this handy little chip on its own breakout board board, with a 3.3V LDO regulator, so it can be operated from 3-5VDC. We also have a level shifting circuit attached to the I2C lines so you can safely use this chip with 3V or 5V logic. And best of all, we even have a great tutorial and library to get you started! Our code is designed for use with the Arduino microcontroller and IDE, but easily ports to your preferred platform with I2C support Package includes: 1 x SSi5351A I2C generator clock breakout board
Product Features
- It can generate almost any frequency, from <8KHz to 150+ MHz.
- This chip has a precise 25 MHz quartz reference as well as internal PLL and dividers.
- The Si5351 is a configurable I2C clock generator ideal for replacing quartz, crystal oscillators, VCXOs, phase locked loops (PLLs) and fanout buffers in cost-critical applications.
- The outputs are 3 Vss, either via a breadboard-friendly header or, for RF work, via an optional SMA port.
- We offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.
