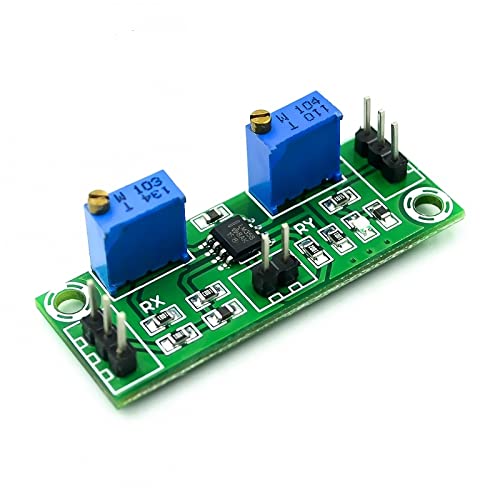

Hailege LM358 Weak Signal Amplifier Voltage Amplifier Secondary Operational Amplifier Board Single Power Signal Collector 3.5-24 V Pack of 4
Hailege LM358 Weak Signal Amplifier Voltage Amplifier Secondary Operational Amplifier Board Single Power Signal Collector 3.5-24 V Pack of 4
Hailege LM358 Weak Signal Amplifier Voltage Amplifier Secondary Operational Amplifier Board Single Power Signal Collector 3.5-24 V Pack of 4

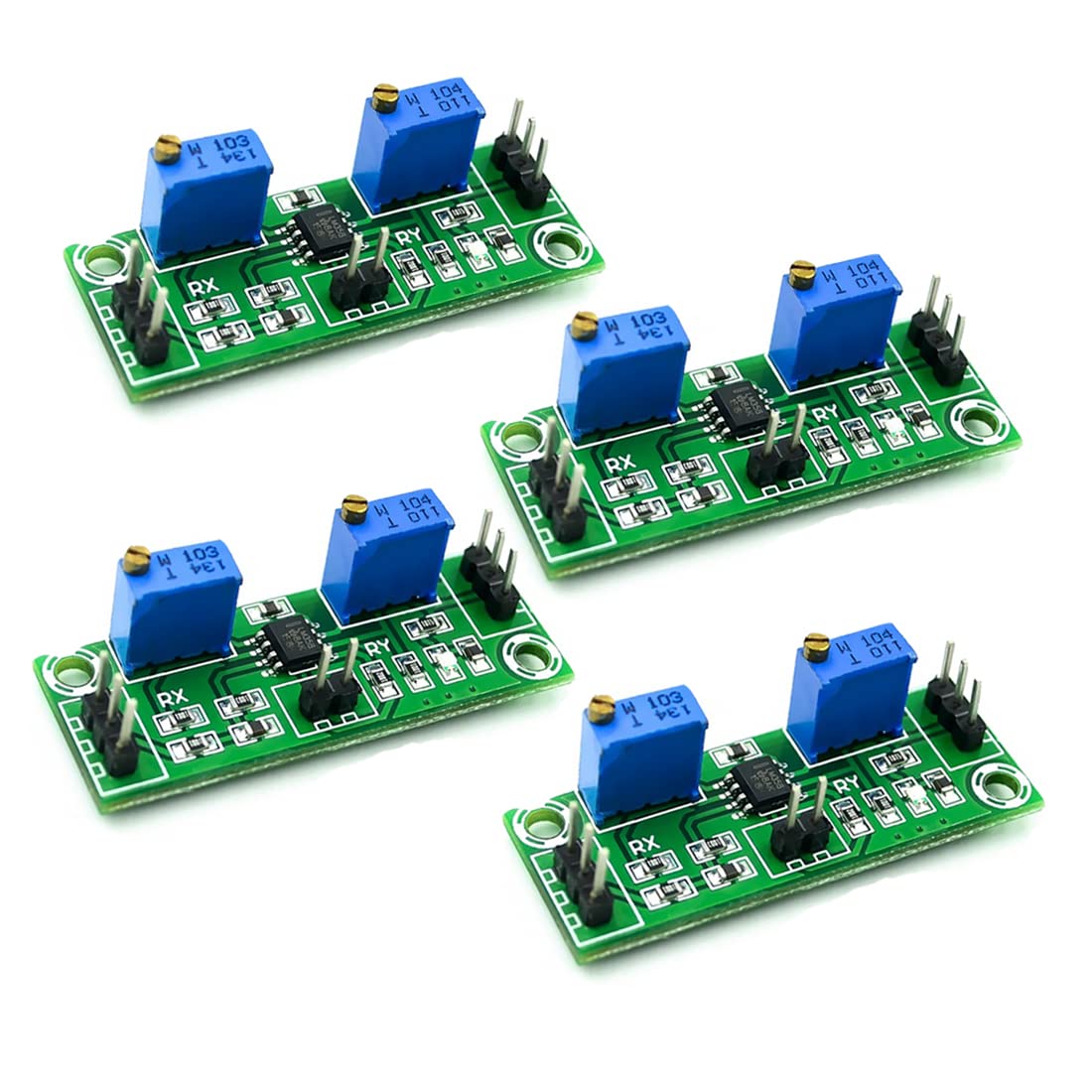

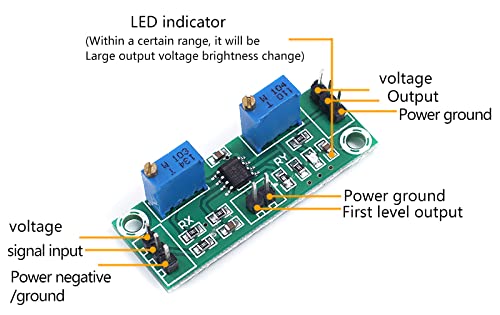

Description: LM358 is the core two-stage operational amplifier, which can amplify DC weak signals, such as DC voltage signals, DC pulse signals, can amplify signals of millivolts or even weaker, and has two potentiometers, respectively for the first stage and The second stage performs single-stage magnification adjustment, but the total magnification is the product of the two-stage multiple, so the magnification will be adjusted adjusted to a large extextent. If the first level is adjusted to 20 times magnification, then if the second level is adjusted to 100 times, then the total magnification is 2000 times. Note: the default of this LM358 Amplifier is 1000 times. Parameters: 1. Power supply voltage: 3.5-24V DC power supply. 2. Current output: maximum 15-20MA (non-linear). 3. Voltage output: output = input voltage signal magnification. 4. Magnification: Total multiple = first multiple multiple second multiple multiple multiple 5. Board size: length 45.3 mm, width 16.2 mm. 6. The two potentiometers on the board are rotated counterclockwise to increase the multiple. Package includes: 4 x LM358 weak signal amplifier boards.
Product Features
- LM358 Weak Signal Amplifier Voltage Amplifier 3.5-24V DC
- Two potentiometers on the board are rotated counterclockwise to increase the multiple.
- LM358 is the core two-stage operational amplifier, which can amplify DC weak signals.
- It amplify signals of millivolts or even weaker, and has two potentiometers to be rotated counterclockwise to increase the multiple.
Original: $85.48
-65%$85.48
$29.92More Images
