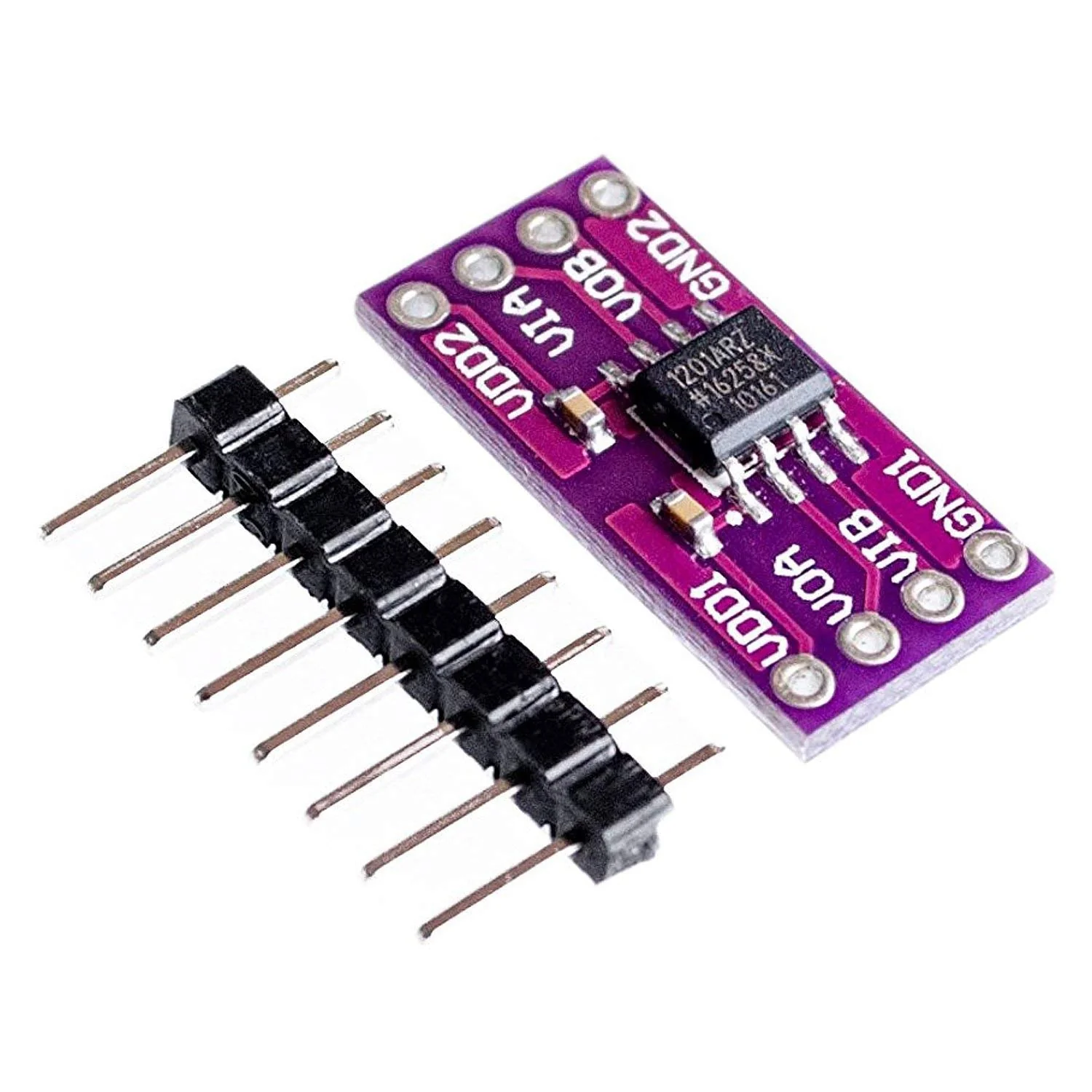

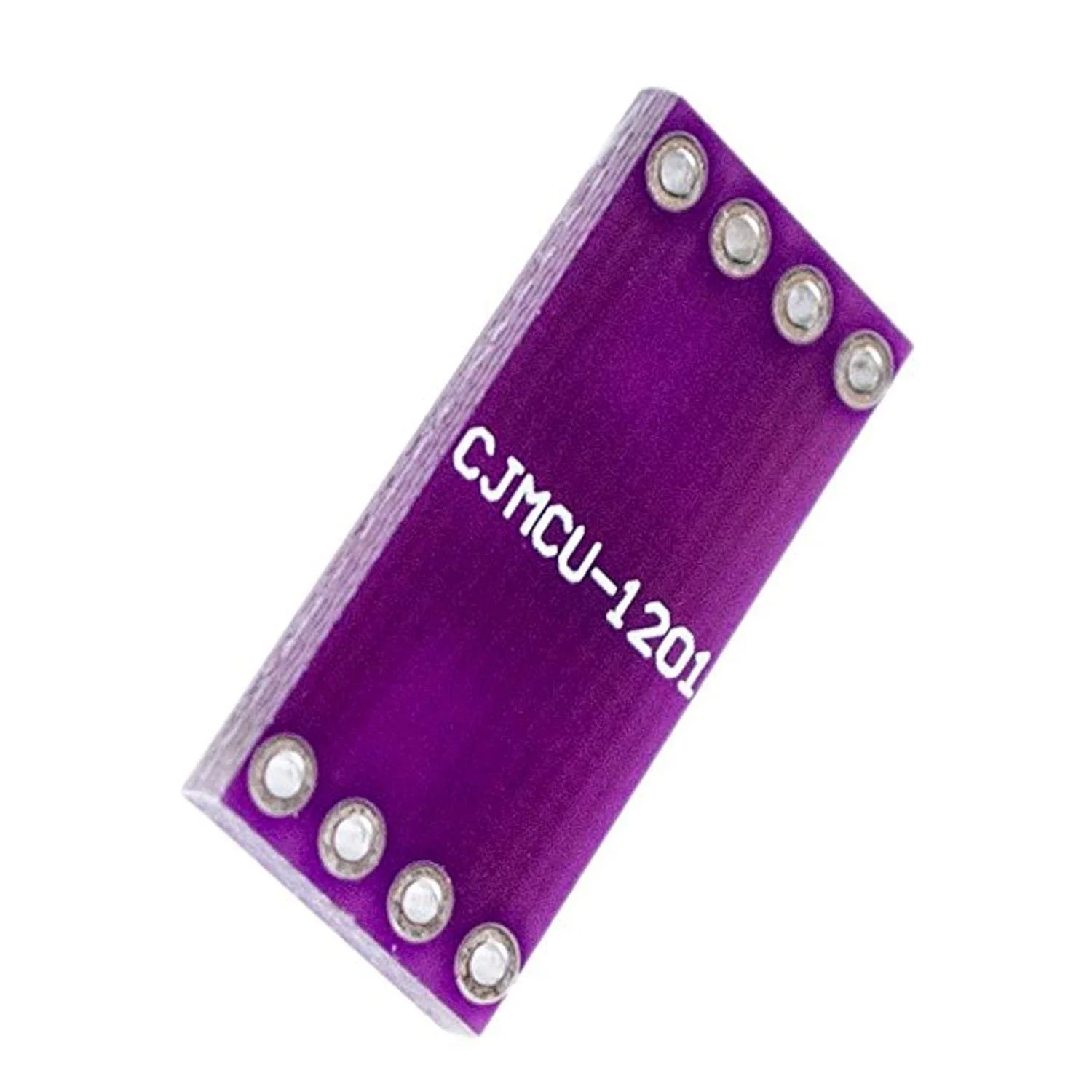

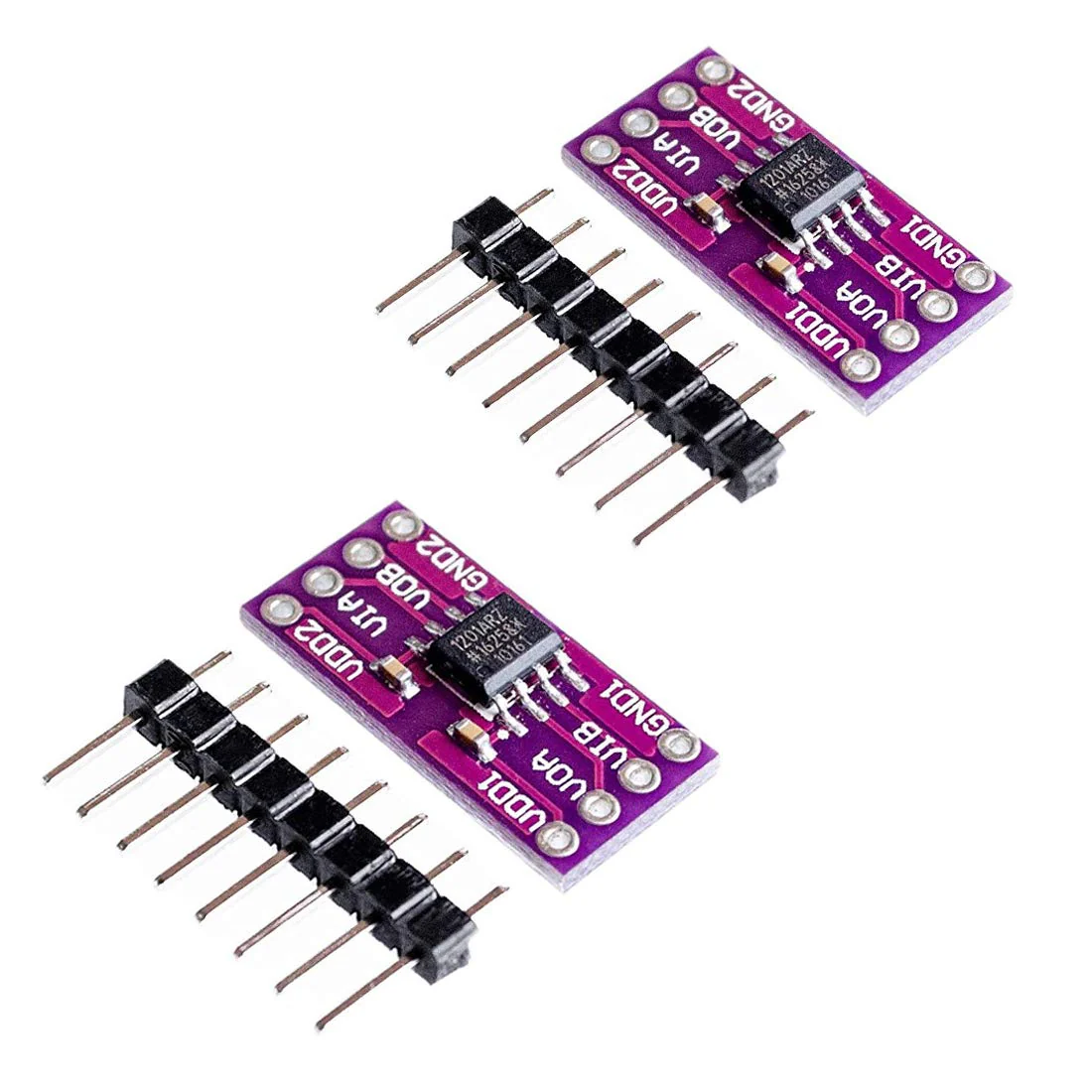

Hailege ADUM1201 Dual Channel Digital Magnetic Insulator Replace Optocoupler for iCoupler Pack of 2
Hailege ADUM1201 Dual Channel Digital Magnetic Insulator Replace Optocoupler for iCoupler Pack of 2
Hailege ADUM1201 Dual Channel Digital Magnetic Insulator Replace Optocoupler for iCoupler Pack of 2
Description: The ADUM1201 has two power supplies and a reference ground, and the supply voltage range is between 2.7V and 5.5V, which allows low voltage supply and further reduces the power consumption of the system. Need to access 0.01 between the power supply and the reference ground? F to 0.1? F capacitor for filtering out high frequency interference, the distance between the capacitor and the power supply should be within 20mm, so you can achieve better filter results. Since the height of the two isolated channels match, the cross-talk of the channels is very low, and the use of a two-channel input and output reversal design, which is perfect for the bi-directional transmission and reception characteristics of the RS232 bus, greatly simplifies the insulator and isolated hardware connections at both ends. It should be noted that GND1 and GND2 are two different reference mass, otherwise the effect of insulation will not be achieved. Also note that the ADUM1201 works normally, ensuring the two ends of the power supply at the same time that the ADUM1201 can work properly both channels if a power supply cannot cause the entire chip to not work properly. Box contents: 2 x ADUM1201 two- channel digital magnetic insulator board
Product Features
- Lower power consumption than the same data transfer rate with conventional optical isolator 1/10, minimum operating current 0.8 mA.
- ADUM1201 Dual Channel Digital Magnetic Insulator Breakout
- Performance: Higher timing accuracy, transient common mode suppression and the degree of adjustment between channels are better than conventional optical isolator.
- Application: RS-232/RS-422/RS-485 transceiver insulation
- We offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.
Original: $84.03
-65%$84.03
$29.41More Images
