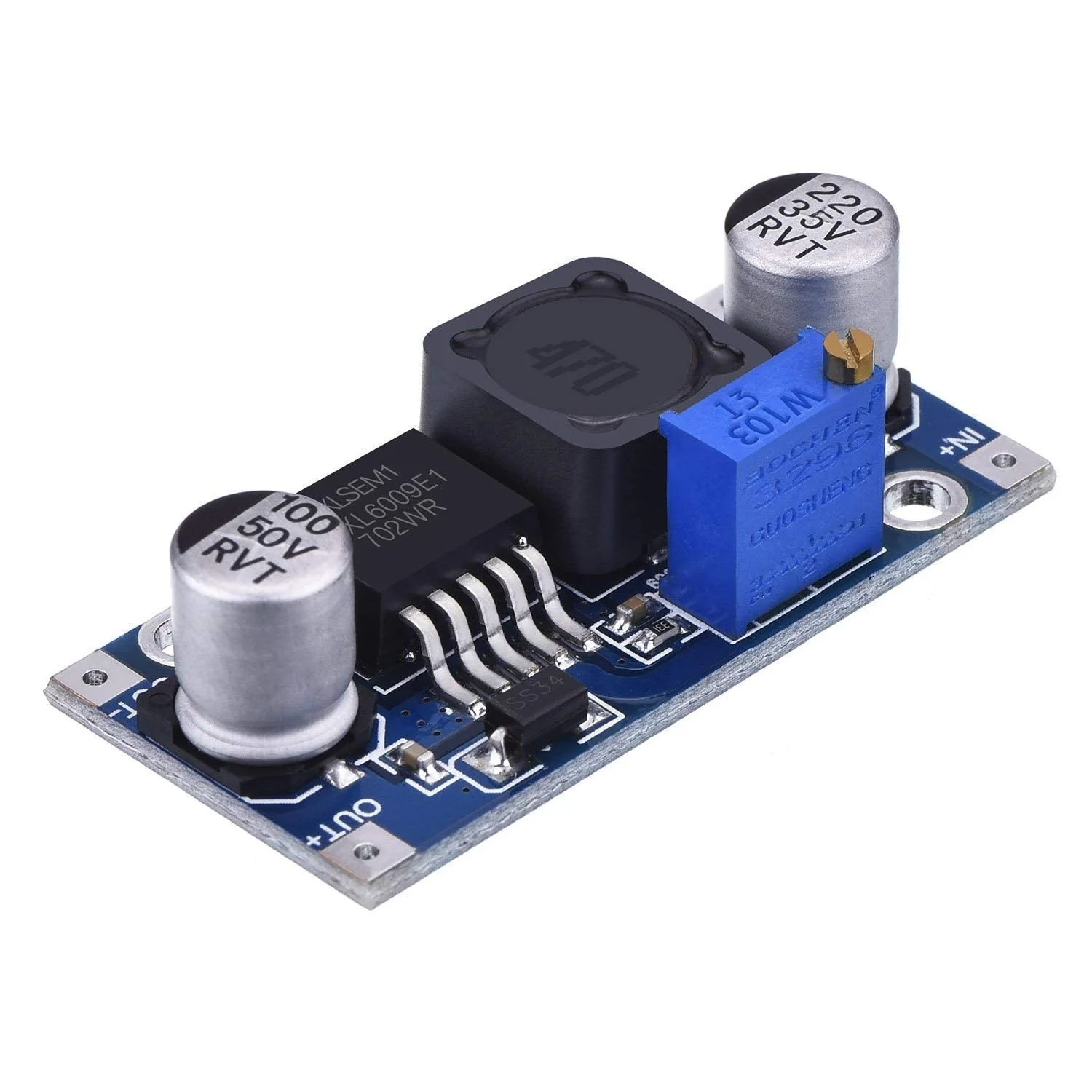

Hailege 5pcs XL6009 DC-DC Adjustable Boost Module DC3.0-30V to DC5-35V Output Voltage Power Converter PCB Module 400KHz
Hailege 5pcs XL6009 DC-DC Adjustable Boost Module DC3.0-30V to DC5-35V Output Voltage Power Converter PCB Module 400KHz
Hailege 5pcs XL6009 DC-DC Adjustable Boost Module DC3.0-30V to DC5-35V Output Voltage Power Converter PCB Module 400KHz

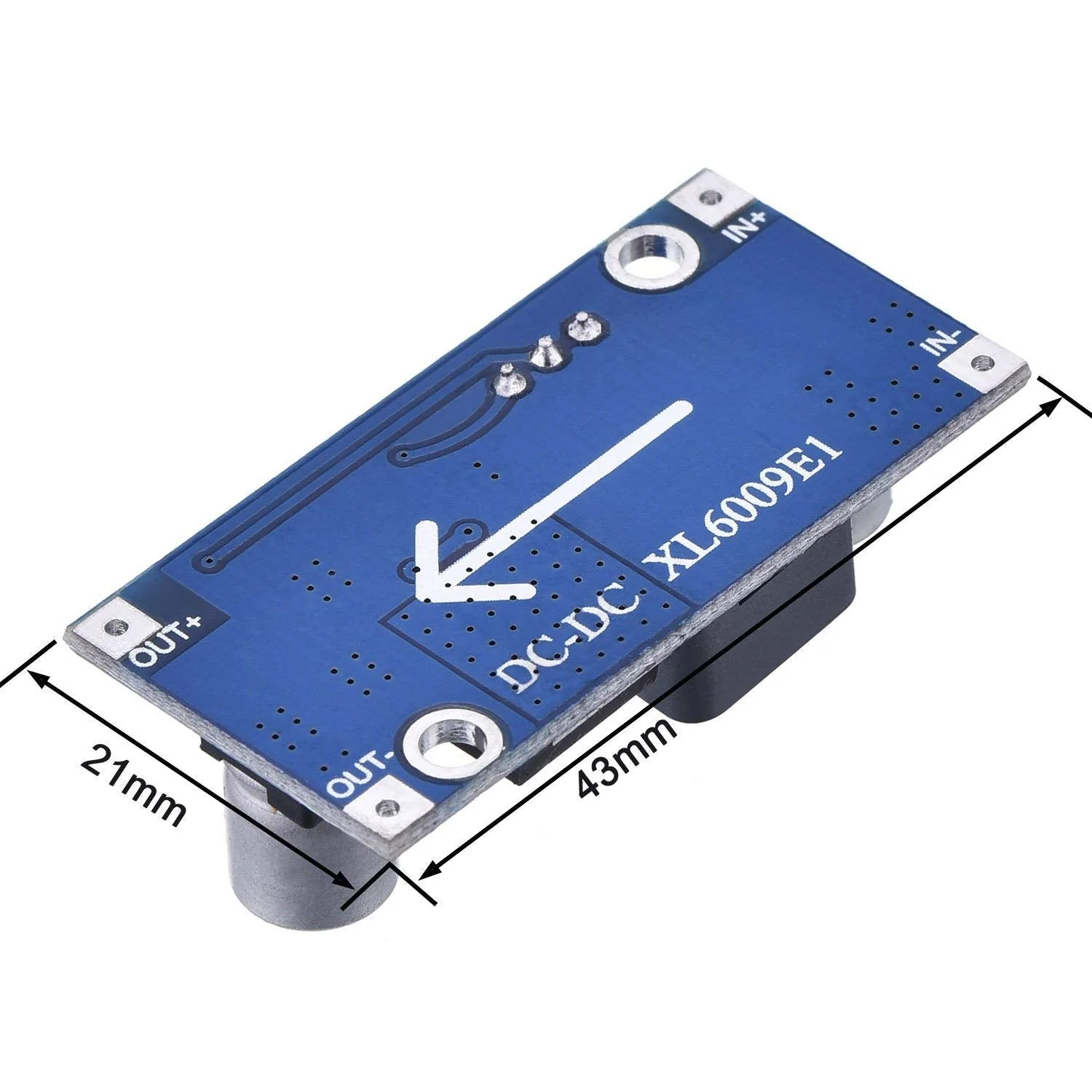

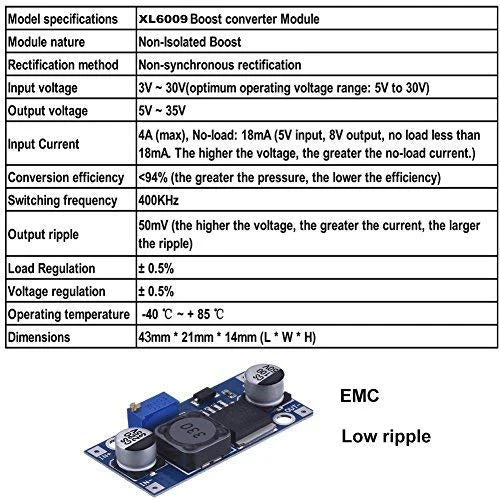

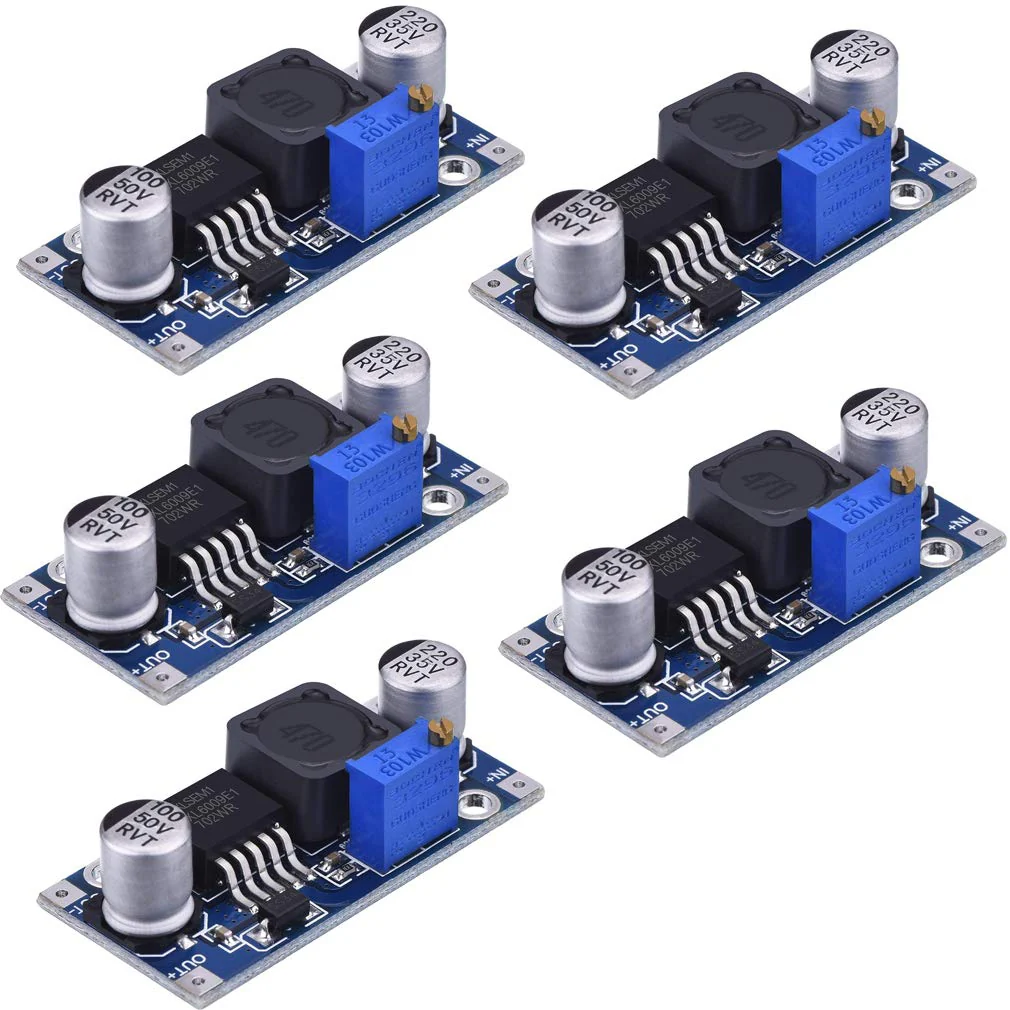

Description: Input 3V output 12V 0.4A 4.8W Input 5 V output 12 V 0.8 A 9.6 W. Input 7.4 V output 12 V 1.5 A 18 W. Input 12 V output 15 V 2 A 30 W. Input 12 V output 16 V 2 A 32 W. Input 12 V output 18 V 1.6 A 28.8 W. Input 12 V output 19 V 1.5 A 28.5 W. Input 12 V output 24 V 1 A 24 W. Vin Iin Efficiency = Vout Iout Vin: input voltage. Iin: input current. Vout: output voltage. Iout: output current. Features: Module texture: non-isolated step-up (boost). Rectification: Non-synchronous rectification Input voltage: 3V-32V. Output voltage: 5V-35V. Input current: 4 A (max), no-load current 18 mA. Conversion efficiency: 94% (highest). Switching frequency: 400 kHz. Output ripple: 50mV (max). Load control: 0.5. % voltage regulation: 0.5%. Operating temperature: -40 °C. C to +85? c cup Dimensions: 47 x 22 x 13 mm. Short circuit protection: None. Applications: DIY a mobile Power supply boost charger Power supply for electronic devices. Box contents: 5 x XL6009 adjustable DC boost module
Product Features
- Wide input voltage: 3 V ~ 32 V; optimal operating voltage range: 5 ~ 32 V; wide output voltage: 5 V ~ 35 V
- The XL6009 is a powerful 400kHz 4A switch currency step-up module (BOOST). This module is equipped with the high-frequency switch technology of the 3rd generation as a core chip. The performance is much higher than LM2577
- With an ultra-high switching frequency of 400 kHz, the ripple is lower, even if filter capacitors with small capacity can achieve very good results (compared to the LM2577, the frequency is 50 kHz)
- With 4A MOSFET switches with high efficiency, the efficiency of the XL6009 can be up to 94% (LM2577current is 3A
- We offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.
More Images
Hailege 5pcs XL6009 DC-DC Adjustable Boost Module DC3.0-30V to DC5-35V Output Voltage Power Converter PCB Module 400KHz
Hailege 5pcs XL6009 DC-DC Adjustable Boost Module DC3.0-30V to DC5-35V Output Voltage Power Converter PCB Module 400KHz
Description: Input 3V output 12V 0.4A 4.8W Input 5 V output 12 V 0.8 A 9.6 W. Input 7.4 V output 12 V 1.5 A 18 W. Input 12 V output 15 V 2 A 30 W. Input 12 V output 16 V 2 A 32 W. Input 12 V output 18 V 1.6 A 28.8 W. Input 12 V output 19 V 1.5 A 28.5 W. Input 12 V output 24 V 1 A 24 W. Vin Iin Efficiency = Vout Iout Vin: input voltage. Iin: input current. Vout: output voltage. Iout: output current. Features: Module texture: non-isolated step-up (boost). Rectification: Non-synchronous rectification Input voltage: 3V-32V. Output voltage: 5V-35V. Input current: 4 A (max), no-load current 18 mA. Conversion efficiency: 94% (highest). Switching frequency: 400 kHz. Output ripple: 50mV (max). Load control: 0.5. % voltage regulation: 0.5%. Operating temperature: -40 °C. C to +85? c cup Dimensions: 47 x 22 x 13 mm. Short circuit protection: None. Applications: DIY a mobile Power supply boost charger Power supply for electronic devices. Box contents: 5 x XL6009 adjustable DC boost module
Product Features

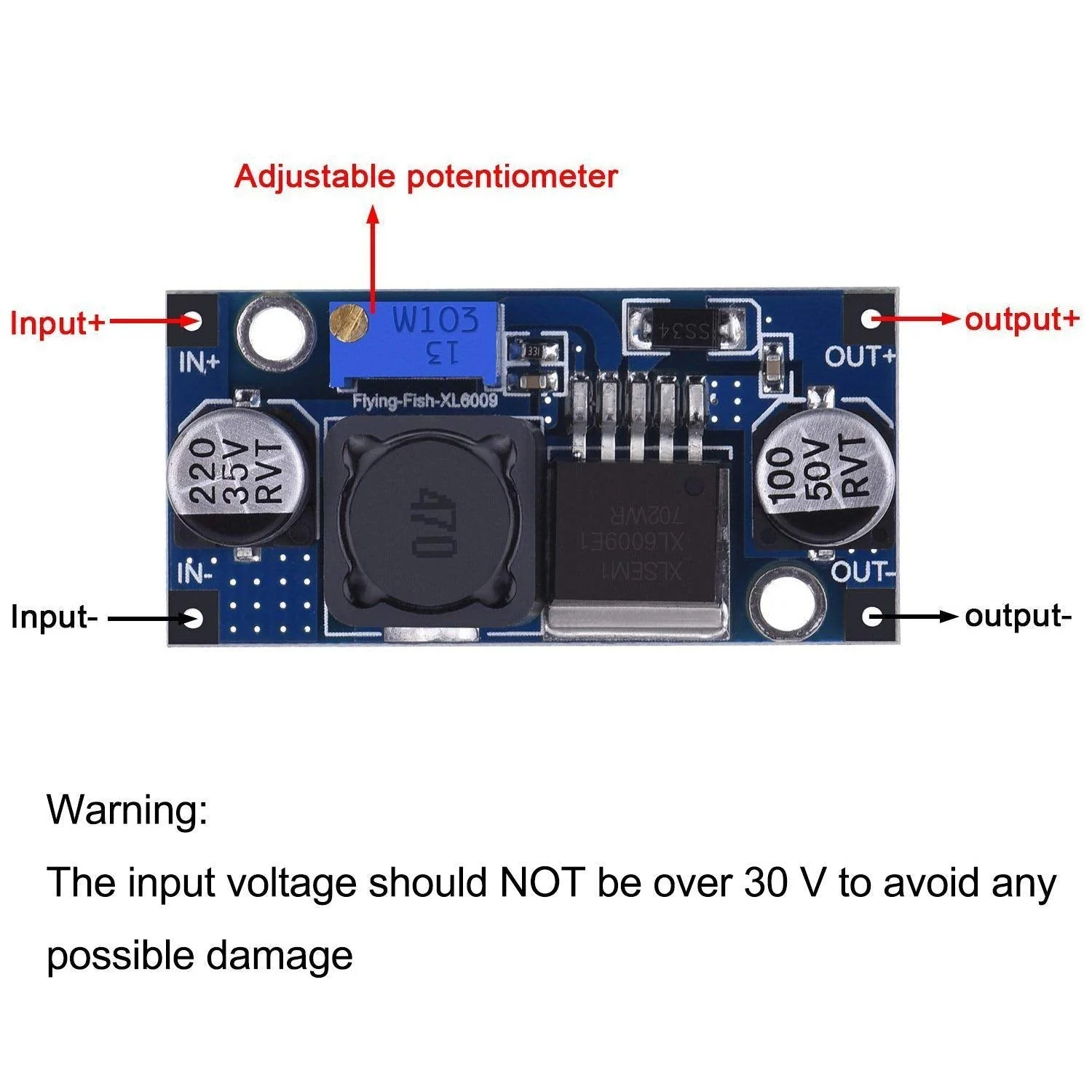

- Wide input voltage: 3 V ~ 32 V; optimal operating voltage range: 5 ~ 32 V; wide output voltage: 5 V ~ 35 V
- The XL6009 is a powerful 400kHz 4A switch currency step-up module (BOOST). This module is equipped with the high-frequency switch technology of the 3rd generation as a core chip. The performance is much higher than LM2577
- With an ultra-high switching frequency of 400 kHz, the ripple is lower, even if filter capacitors with small capacity can achieve very good results (compared to the LM2577, the frequency is 50 kHz)
- With 4A MOSFET switches with high efficiency, the efficiency of the XL6009 can be up to 94% (LM2577current is 3A
- We offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.
