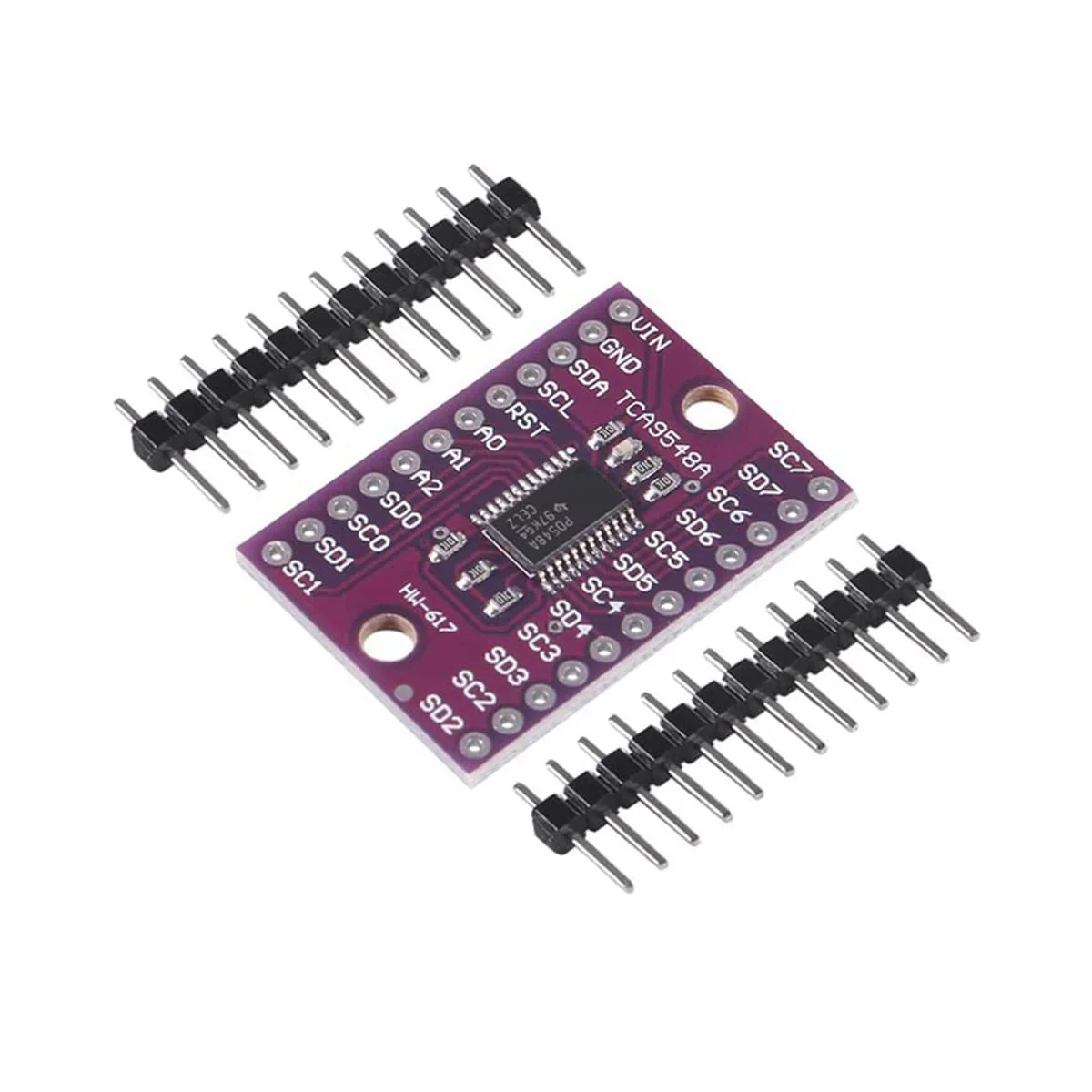

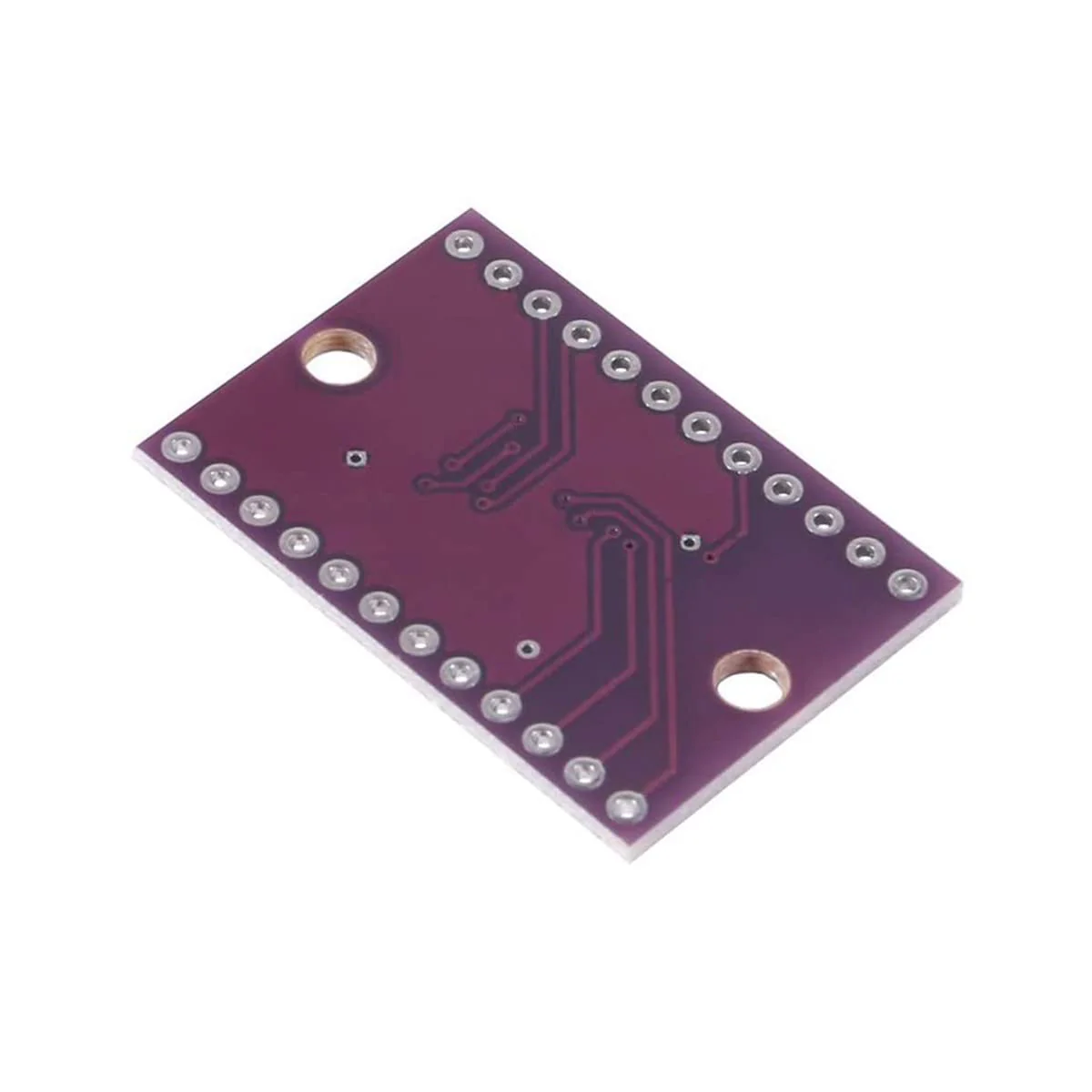

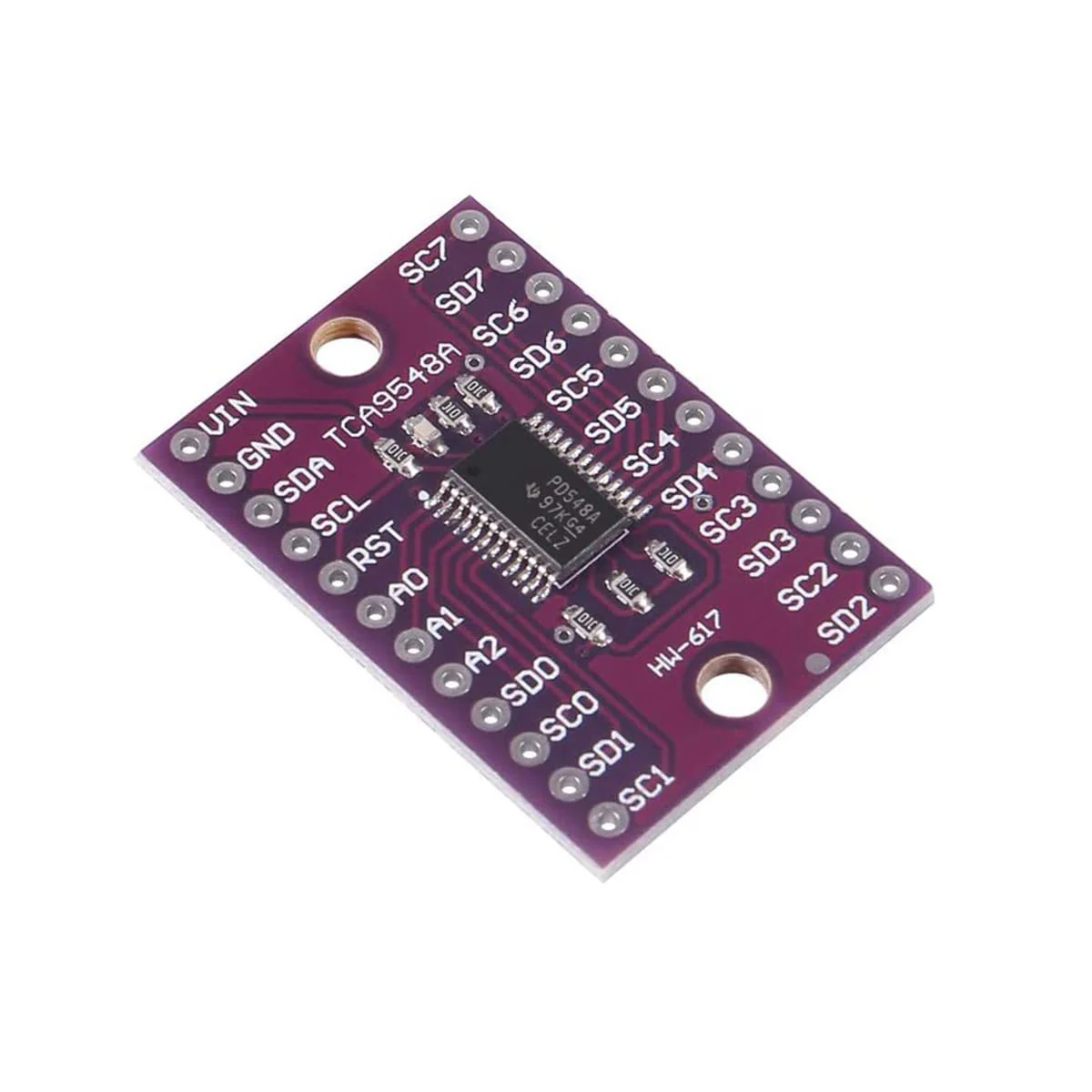

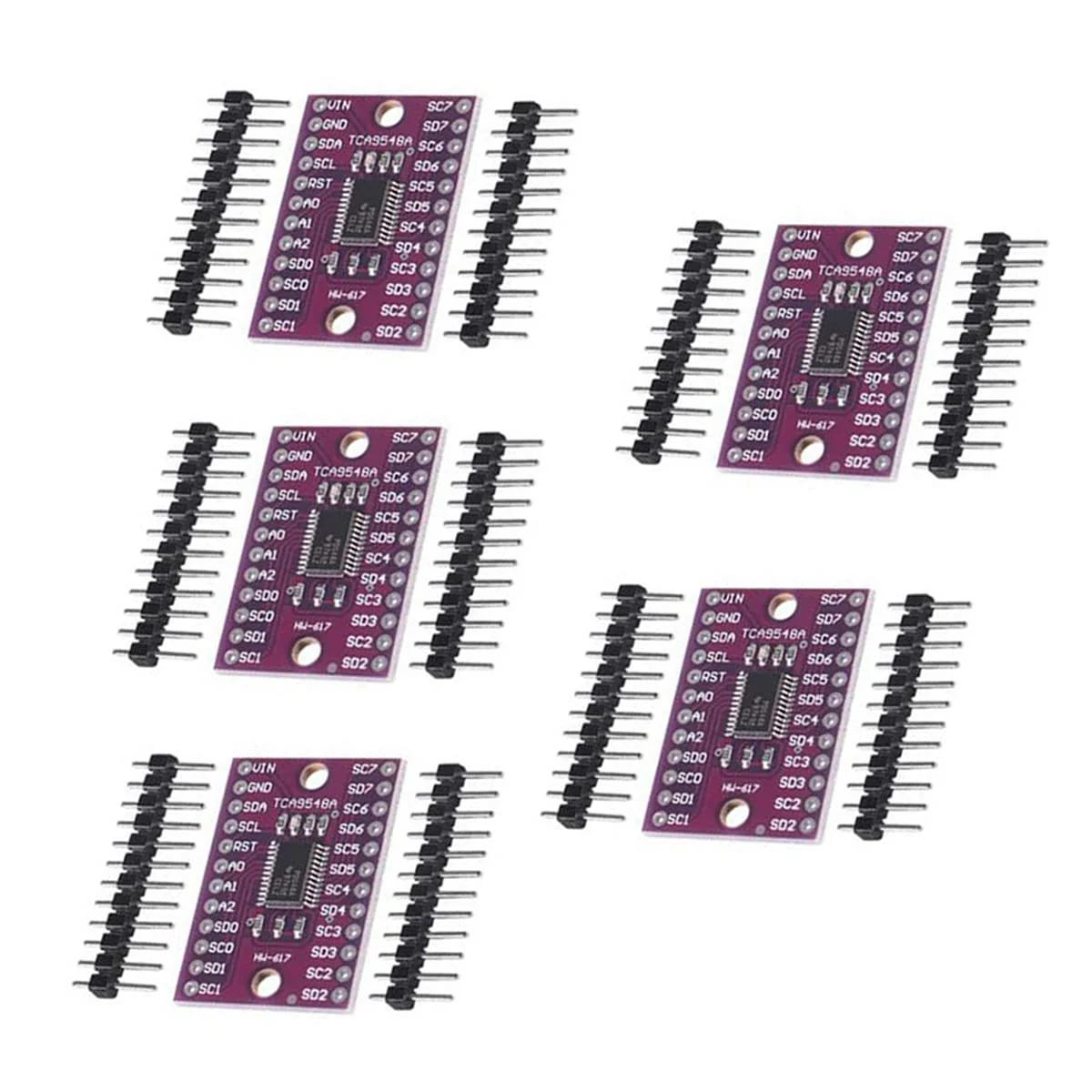

Hailege 5pcs TCA9548 TCA9548A I2C IIC Multiplexer Breakout Board 8 Channel Expansion Board Module Development Board
Hailege 5pcs TCA9548 TCA9548A I2C IIC Multiplexer Breakout Board 8 Channel Expansion Board Module Development Board
Hailege 5pcs TCA9548 TCA9548A I2C IIC Multiplexer Breakout Board 8 Channel Expansion Board Module Development Board

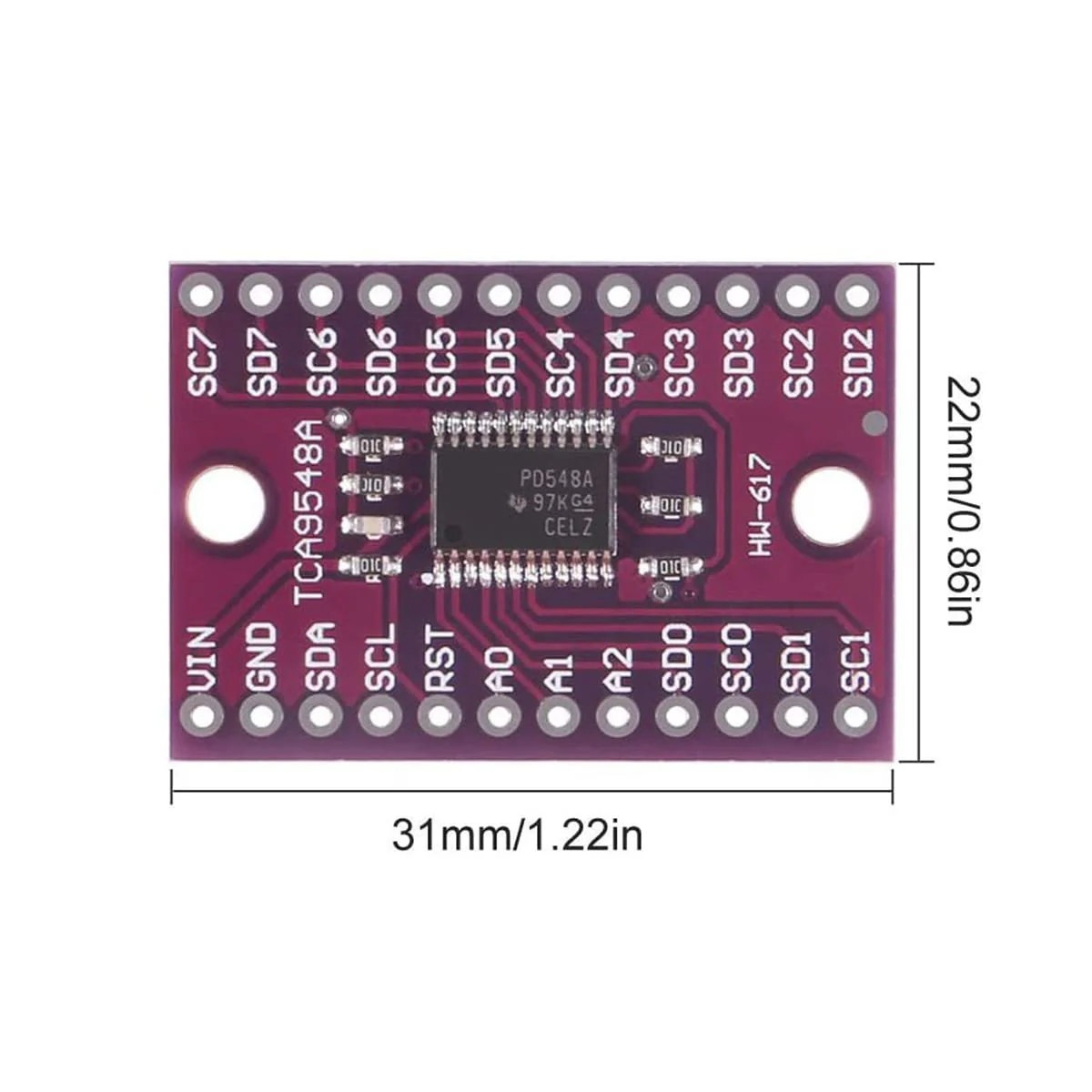

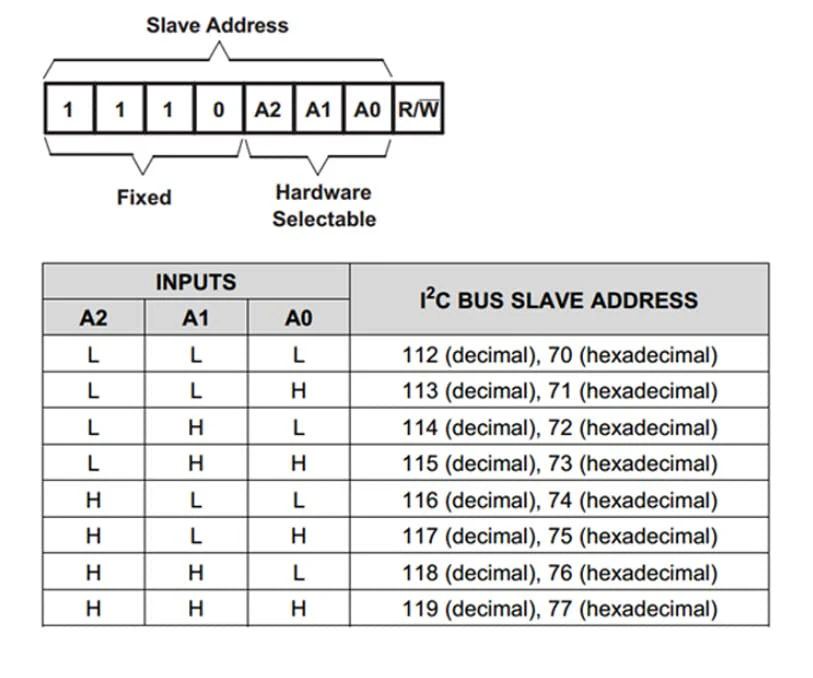

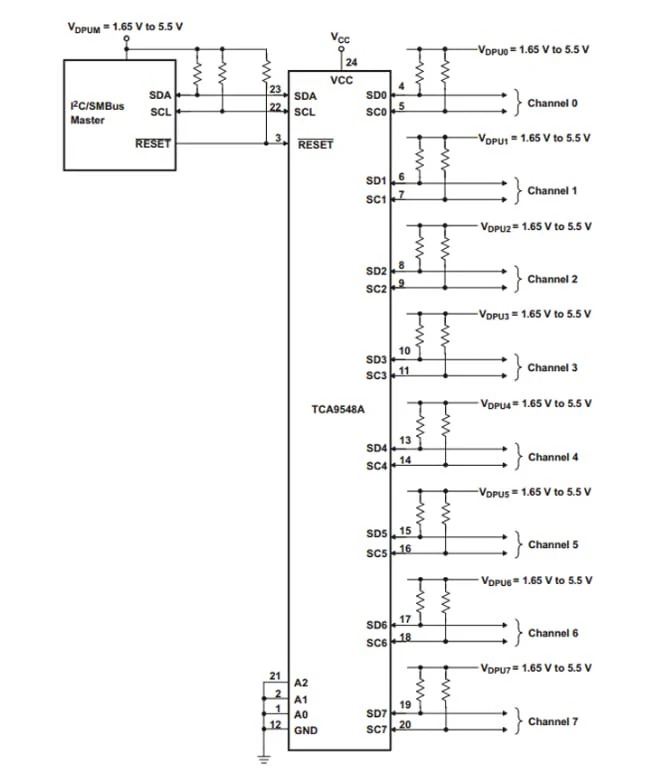

Features: There are 8 I2C interfaces on one expander, and there are eight bidirectional transfer switches that can be controlled by I2C bus. This means that after 1 expander is transferred, 8 identical addresses can be connected to the same I2C port. The device is also in normal use. The default address of this expander is 0x70, the address can be changed, and can be set within 0x70 to 0x77 according to your needs. In theory, 8 expanders can be cascaded in the address of 0x70 to 0x77, and each expander can connect 8 devices with the same address. This realizes the same I2C port and connects 64 devices with the same address and uses them normally. Very powerful! Depending on the contents of the programmable control registers, any single SCn/SDn channel or combination of channels can be selected. When a timeout or other improper operation occurs, the system master can reset the TCA9548A by asserting the /RESET input low. Parameters: Working voltage: 1.65V-5.5V. IIC clock frequency: 0-400KHz. Small board size: 31.5 mm x 21.4 mm with two M3 mounting holes. Instructions: The /RESET, SDA, SCL, A0, A1, and A2 pins on the small board are connected to the pull-up 10K resistor, no need to connect externally. Package includes: 5 x TCA9548 TCA9548A I2C IIC multiplexer breakout boards
Product Features
- TCA9548 TCA9548A I2C IIC 8 Channel Multiplexer Breakout Board
- Support for voltages between 1.8V, 2.5V, 3.3V and 5V buses Level shifting.
- There are 8 I2C interfaces on one expander, and there are eight bidirectional transfer switches that can be controlled by I2C bus.
- The adapter is connected to an I2C device with multiple identical addresses on the same I2C port on the main control board for normal communication and use.
- Compatible with IIC bus and system management bus (SMBus), active low reset input, support for hot insertion.
Original: $84.03
-65%$84.03
$29.41More Images
Hailege 5pcs TCA9548 TCA9548A I2C IIC Multiplexer Breakout Board 8 Channel Expansion Board Module Development Board
Hailege 5pcs TCA9548 TCA9548A I2C IIC Multiplexer Breakout Board 8 Channel Expansion Board Module Development Board
Features: There are 8 I2C interfaces on one expander, and there are eight bidirectional transfer switches that can be controlled by I2C bus. This means that after 1 expander is transferred, 8 identical addresses can be connected to the same I2C port. The device is also in normal use. The default address of this expander is 0x70, the address can be changed, and can be set within 0x70 to 0x77 according to your needs. In theory, 8 expanders can be cascaded in the address of 0x70 to 0x77, and each expander can connect 8 devices with the same address. This realizes the same I2C port and connects 64 devices with the same address and uses them normally. Very powerful! Depending on the contents of the programmable control registers, any single SCn/SDn channel or combination of channels can be selected. When a timeout or other improper operation occurs, the system master can reset the TCA9548A by asserting the /RESET input low. Parameters: Working voltage: 1.65V-5.5V. IIC clock frequency: 0-400KHz. Small board size: 31.5 mm x 21.4 mm with two M3 mounting holes. Instructions: The /RESET, SDA, SCL, A0, A1, and A2 pins on the small board are connected to the pull-up 10K resistor, no need to connect externally. Package includes: 5 x TCA9548 TCA9548A I2C IIC multiplexer breakout boards
Product Features
- TCA9548 TCA9548A I2C IIC 8 Channel Multiplexer Breakout Board
- Support for voltages between 1.8V, 2.5V, 3.3V and 5V buses Level shifting.
- There are 8 I2C interfaces on one expander, and there are eight bidirectional transfer switches that can be controlled by I2C bus.
- The adapter is connected to an I2C device with multiple identical addresses on the same I2C port on the main control board for normal communication and use.
- Compatible with IIC bus and system management bus (SMBus), active low reset input, support for hot insertion.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Hailege 5pcs TCA9548 TCA9548A I2C IIC Multiplexer Breakout Board 8 Channel Expansion Board Module Development Board
Features: There are 8 I2C interfaces on one expander, and there are eight bidirectional transfer switches that can be controlled by I2C bus. This means that after 1 expander is transferred, 8 identical addresses can be connected to the same I2C port. The device is also in normal use. The default address of this expander is 0x70, the address can be changed, and can be set within 0x70 to 0x77 according to your needs. In theory, 8 expanders can be cascaded in the address of 0x70 to 0x77, and each expander can connect 8 devices with the same address. This realizes the same I2C port and connects 64 devices with the same address and uses them normally. Very powerful! Depending on the contents of the programmable control registers, any single SCn/SDn channel or combination of channels can be selected. When a timeout or other improper operation occurs, the system master can reset the TCA9548A by asserting the /RESET input low. Parameters: Working voltage: 1.65V-5.5V. IIC clock frequency: 0-400KHz. Small board size: 31.5 mm x 21.4 mm with two M3 mounting holes. Instructions: The /RESET, SDA, SCL, A0, A1, and A2 pins on the small board are connected to the pull-up 10K resistor, no need to connect externally. Package includes: 5 x TCA9548 TCA9548A I2C IIC multiplexer breakout boards
Product Features
- TCA9548 TCA9548A I2C IIC 8 Channel Multiplexer Breakout Board
- Support for voltages between 1.8V, 2.5V, 3.3V and 5V buses Level shifting.
- There are 8 I2C interfaces on one expander, and there are eight bidirectional transfer switches that can be controlled by I2C bus.
- The adapter is connected to an I2C device with multiple identical addresses on the same I2C port on the main control board for normal communication and use.
- Compatible with IIC bus and system management bus (SMBus), active low reset input, support for hot insertion.
