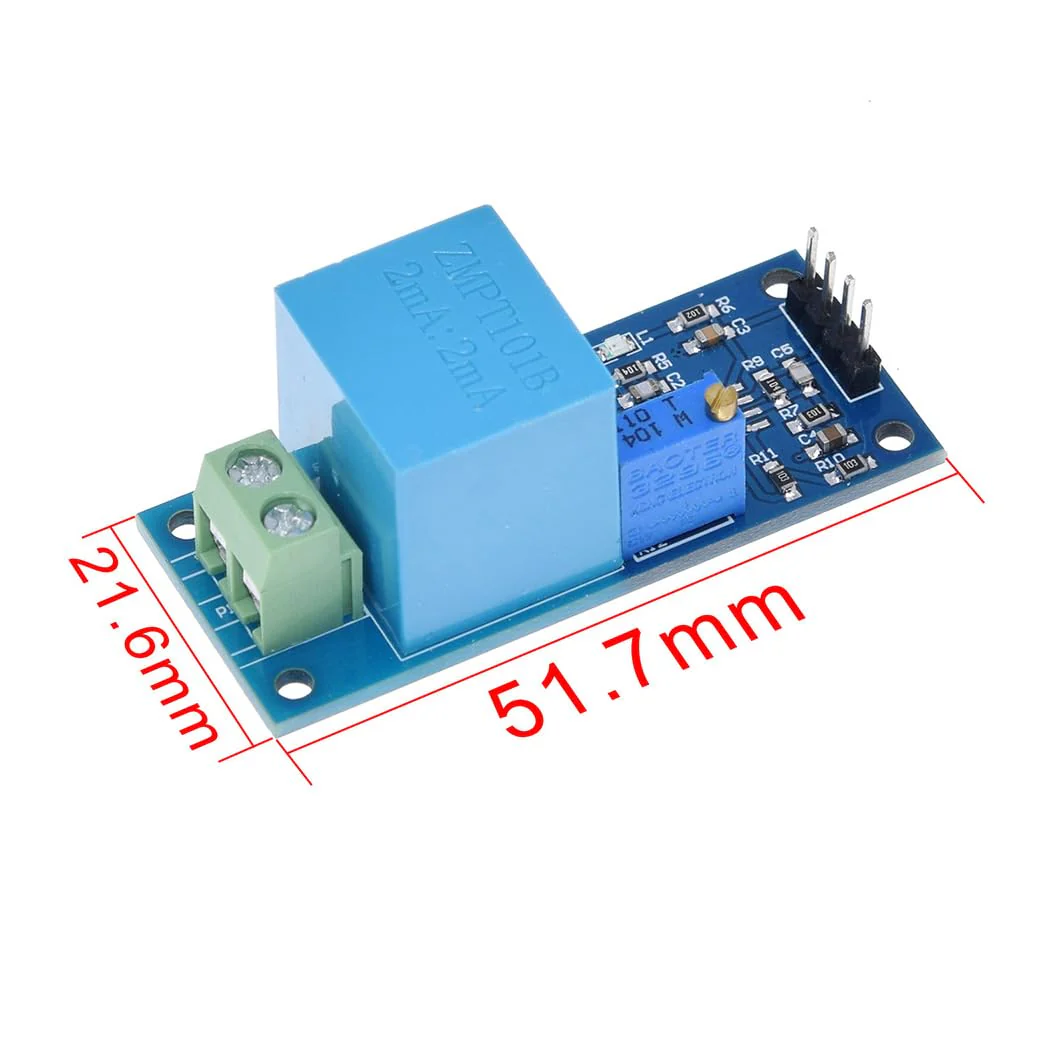

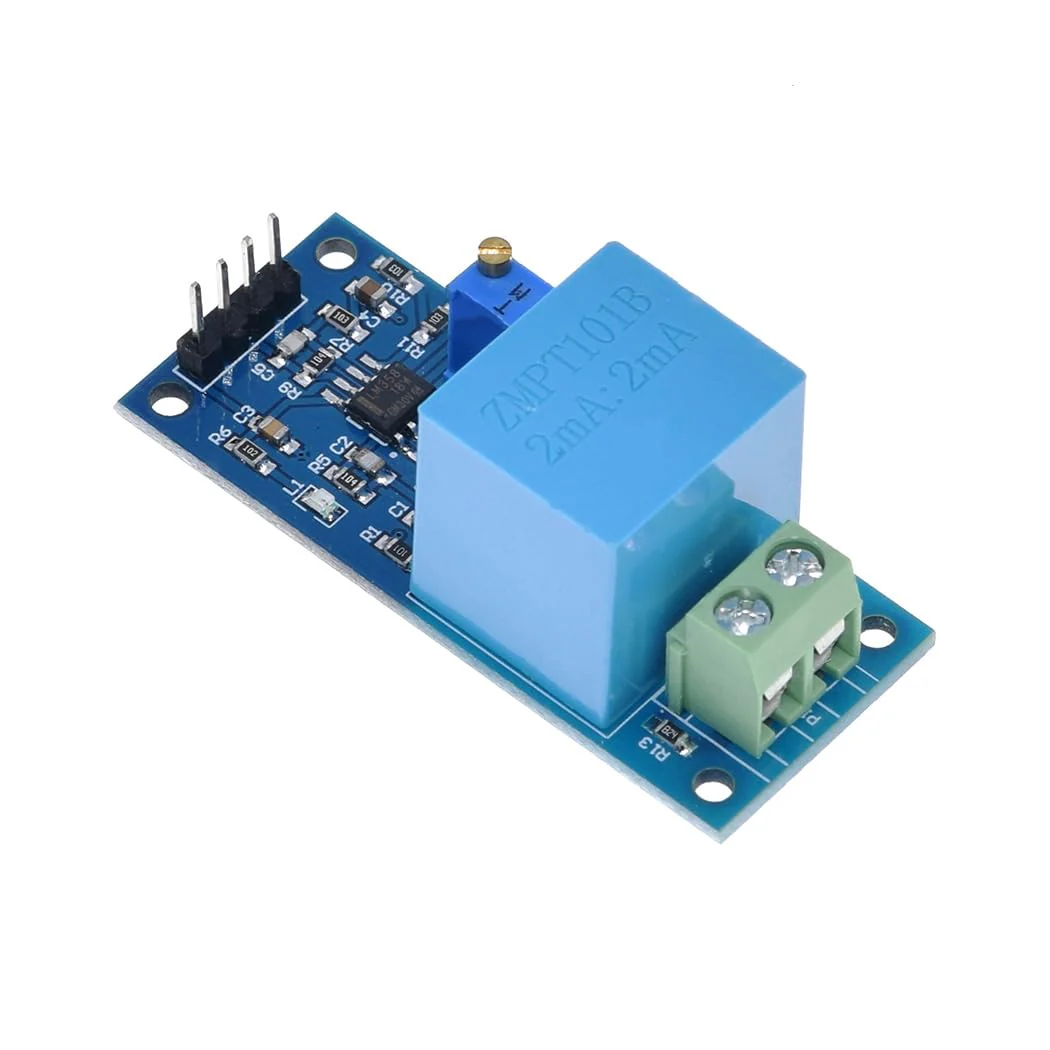

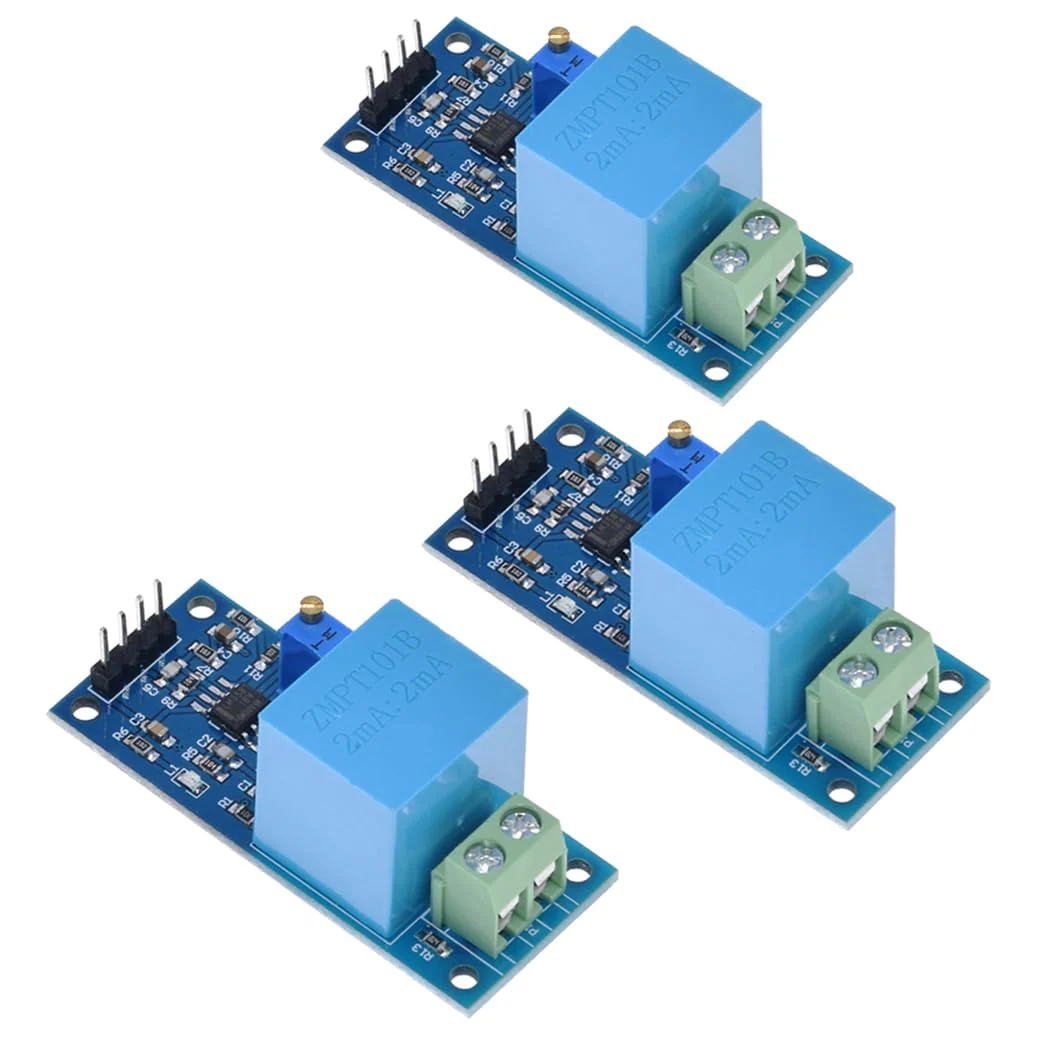

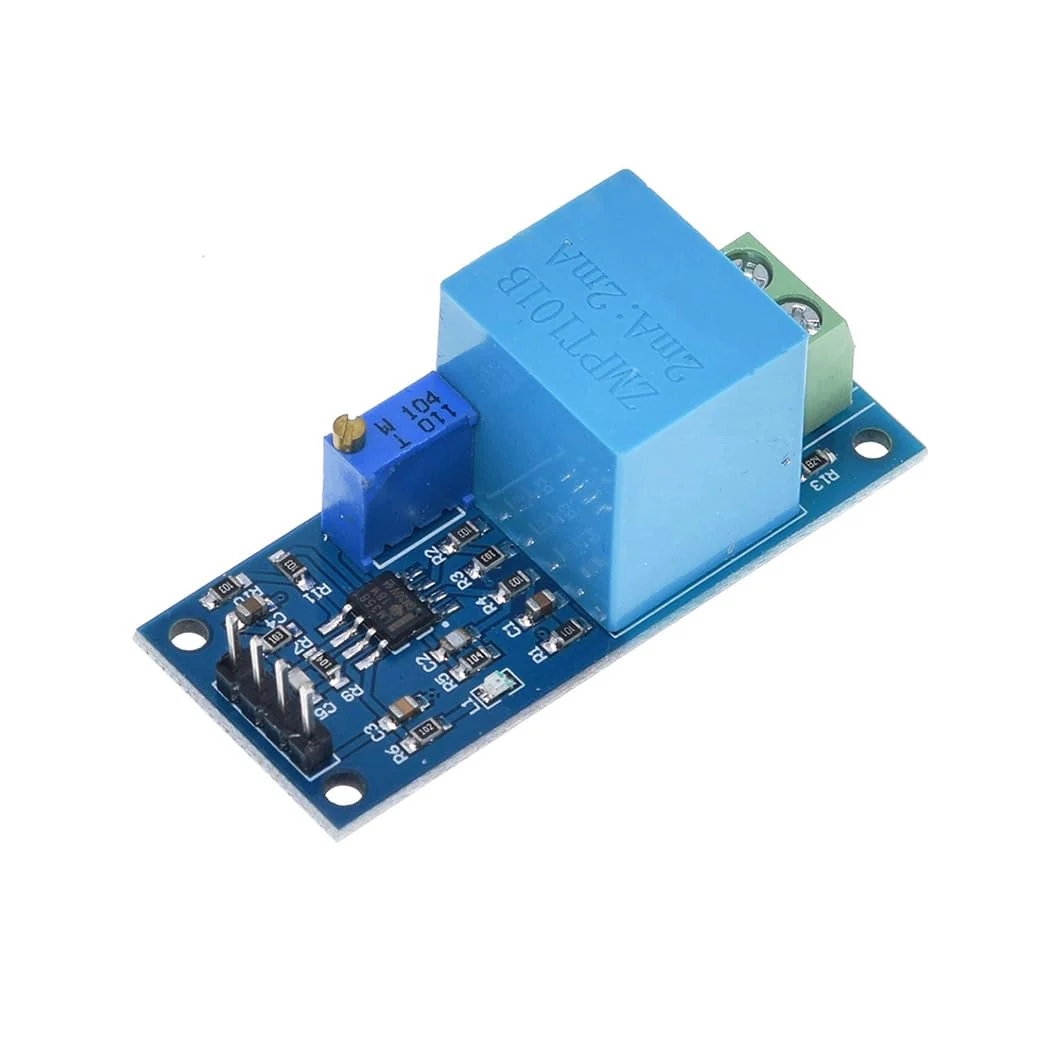

Hailege 3pcs ZMPT101B Voltage Sensor Voltage Converter Module AC Current Signal Detection 5-30V AC Active Single-Phase Output
Hailege 3pcs ZMPT101B Voltage Sensor Voltage Converter Module AC Current Signal Detection 5-30V AC Active Single-Phase Output
Hailege 3pcs ZMPT101B Voltage Sensor Voltage Converter Module AC Current Signal Detection 5-30V AC Active Single-Phase Output

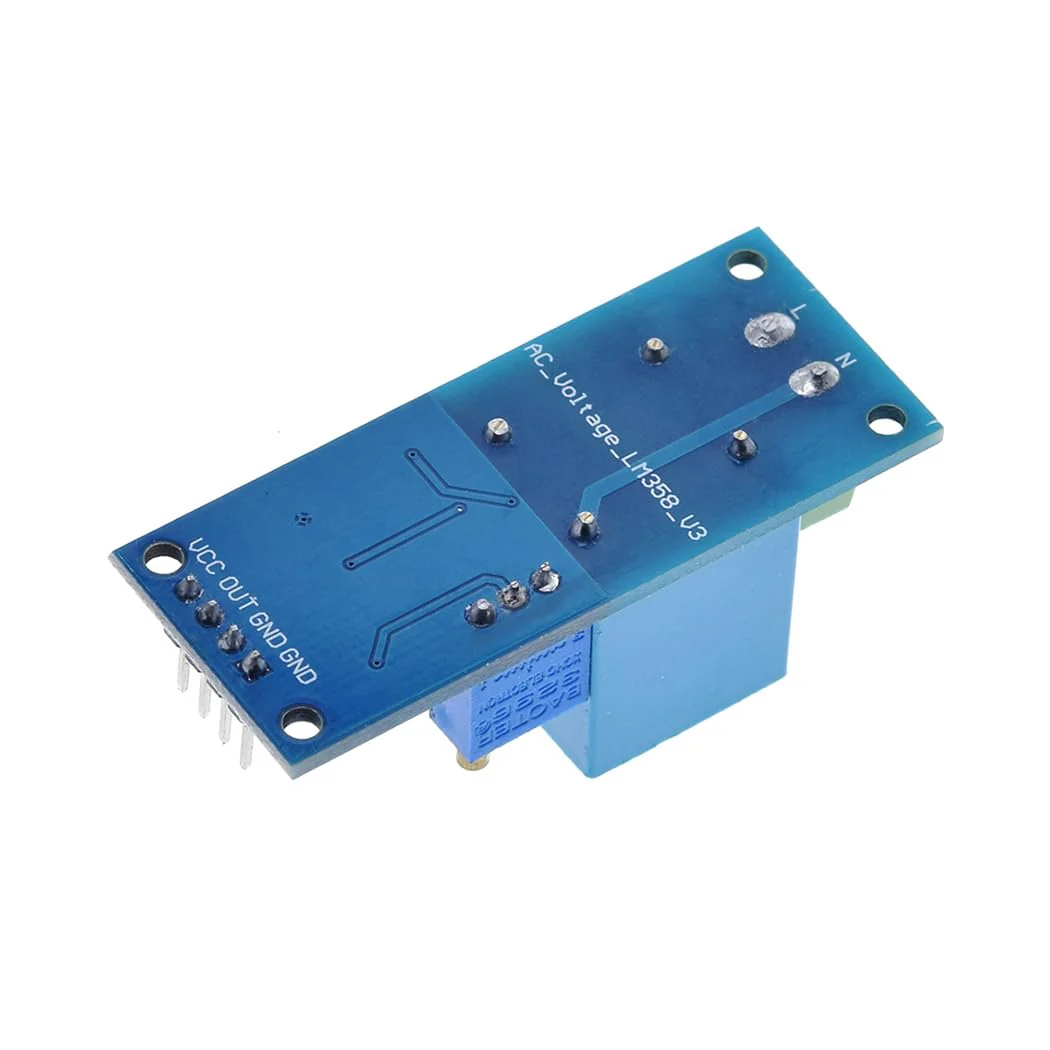

Description: 1. When L, N is connected to AC220V. VCC, GND input DC5V-30V OUT, GND, which is connected to the oscilloscope, can produce a sine wave. 2. By adjusting the potentiometer, the amplitude of the output waveform (the mean value does not change during the setting process), the waveform of the range of 0-VCC can be changed. 3. If the waveform is distorted when increasing the amplitude, this can be remedied by increasing the operating voltage VCC accordingly. If you want the mean value of the waveform to be shifted to 0 o'clock, you can switch a capacitor of about 105 pF in series with OUT to filter out the DC component in the waveform. 4. Adjusting the potentiometer can change the amplitude of the output waveform (the setting process does not change the mean value). The waveform changes in the range of 0-VCC between; during the increase of amplitude, when the waveform distortion, can be appropriately increased by working voltage VCC to release. 5. When the median value of the waveform is shifted to 0, a capacitor of about 105 pF at the OUT port can be connected in series to filter the DC component in the waveform. Box contents: 3 x ZMPT101B Voltage Converter Voltage Sensor Module
Product Features
- High precision operational amplifier current, easy to 250V within AC current signal detection.
- ZMPT101B Voltage Converter Voltage Sensor Module
- Single phase AC module with active output voltage and mutual inductance, equipped with ZMPT101B series of high precision voltage converters and high precision operational amplifier current.
- By adjusting the potentiometer, the amplitude of the output waveform can be changed, the setting process does not change the middle value.
- We offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.
