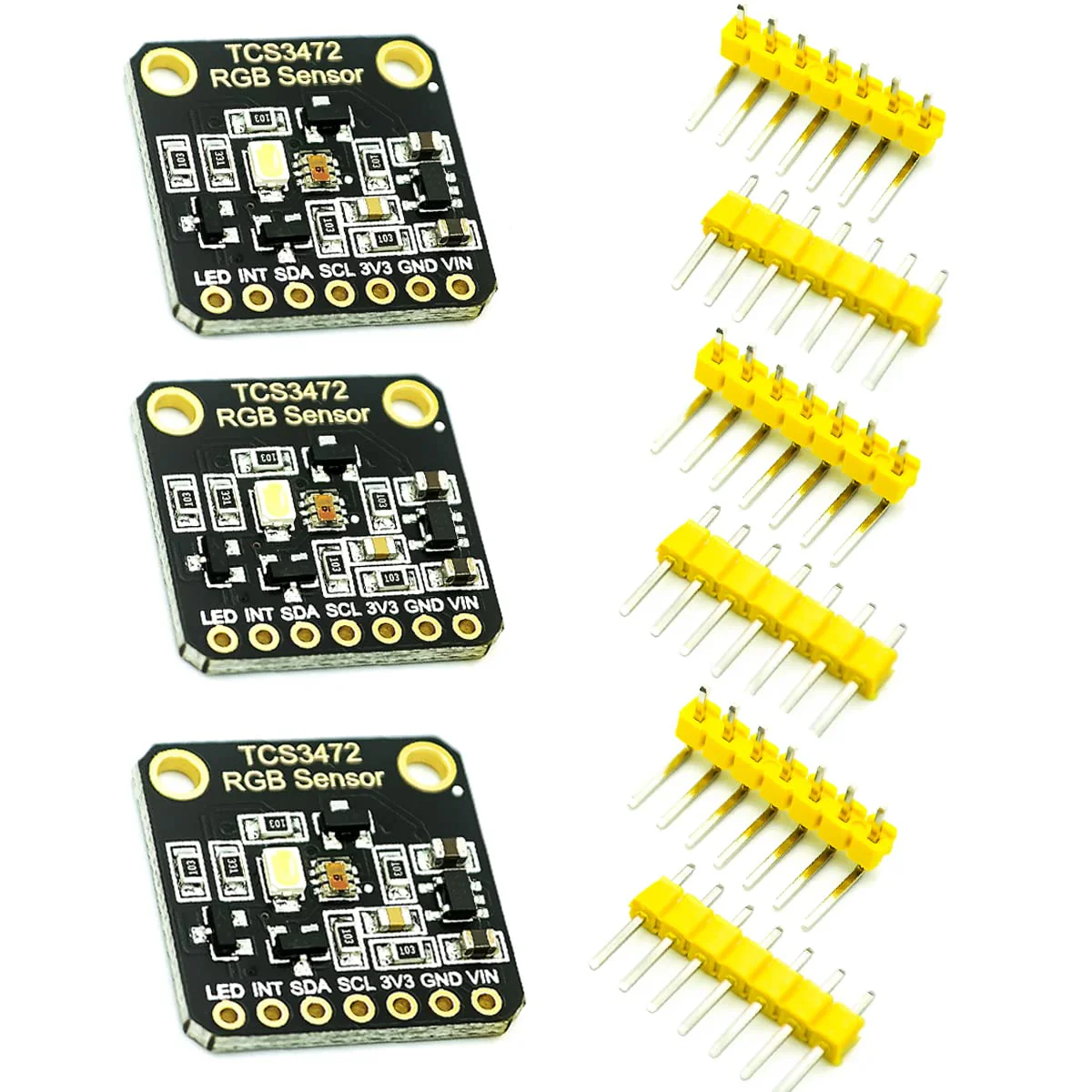

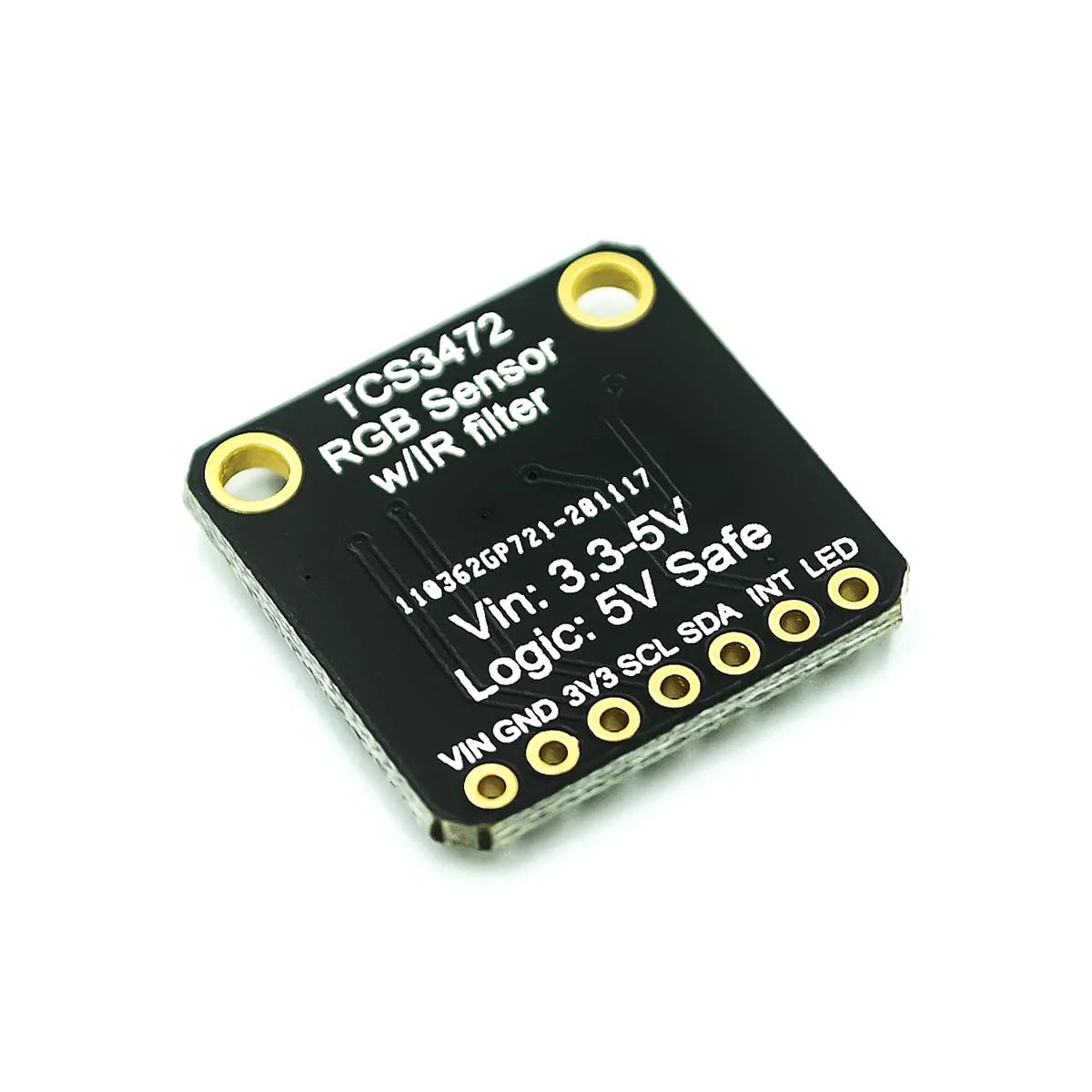

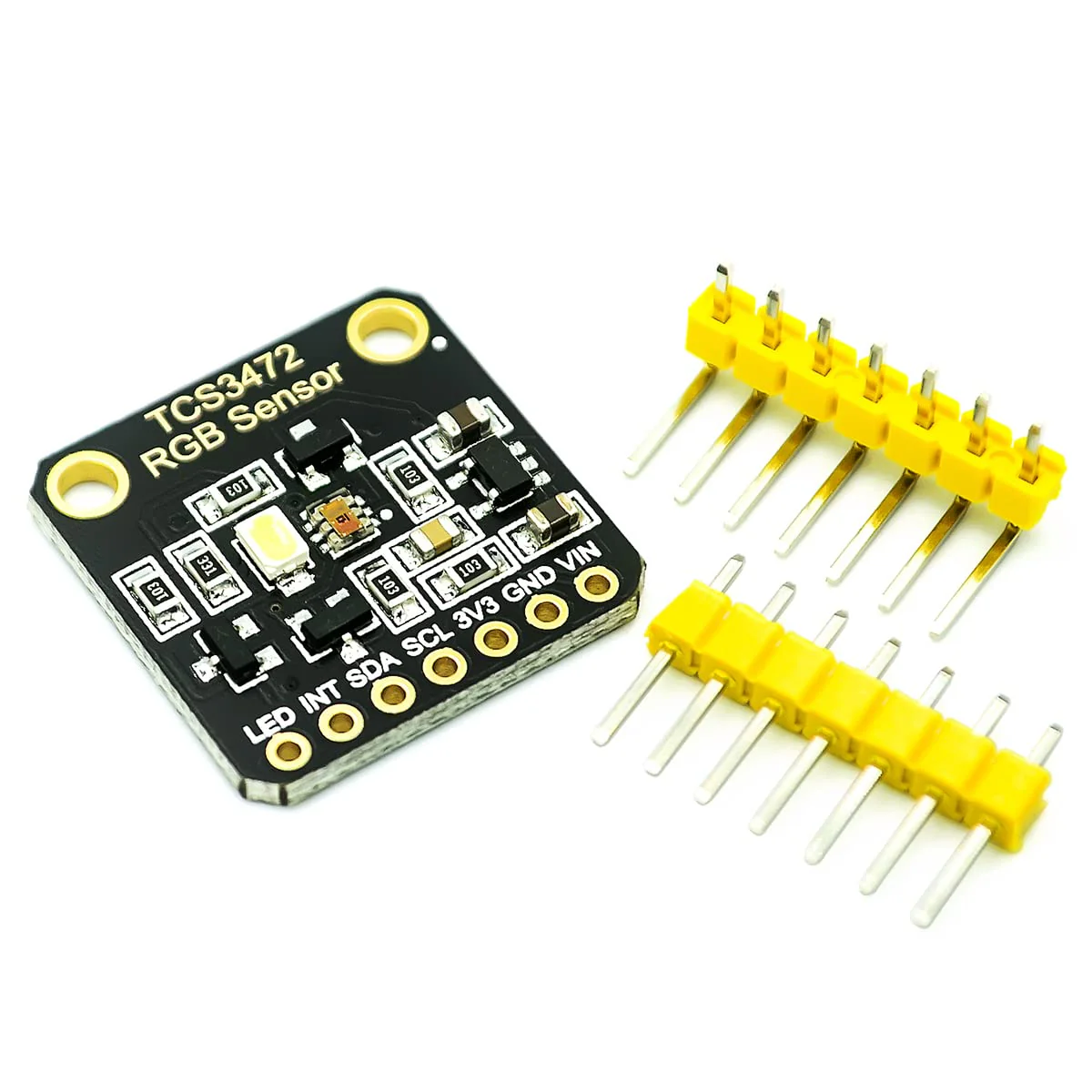

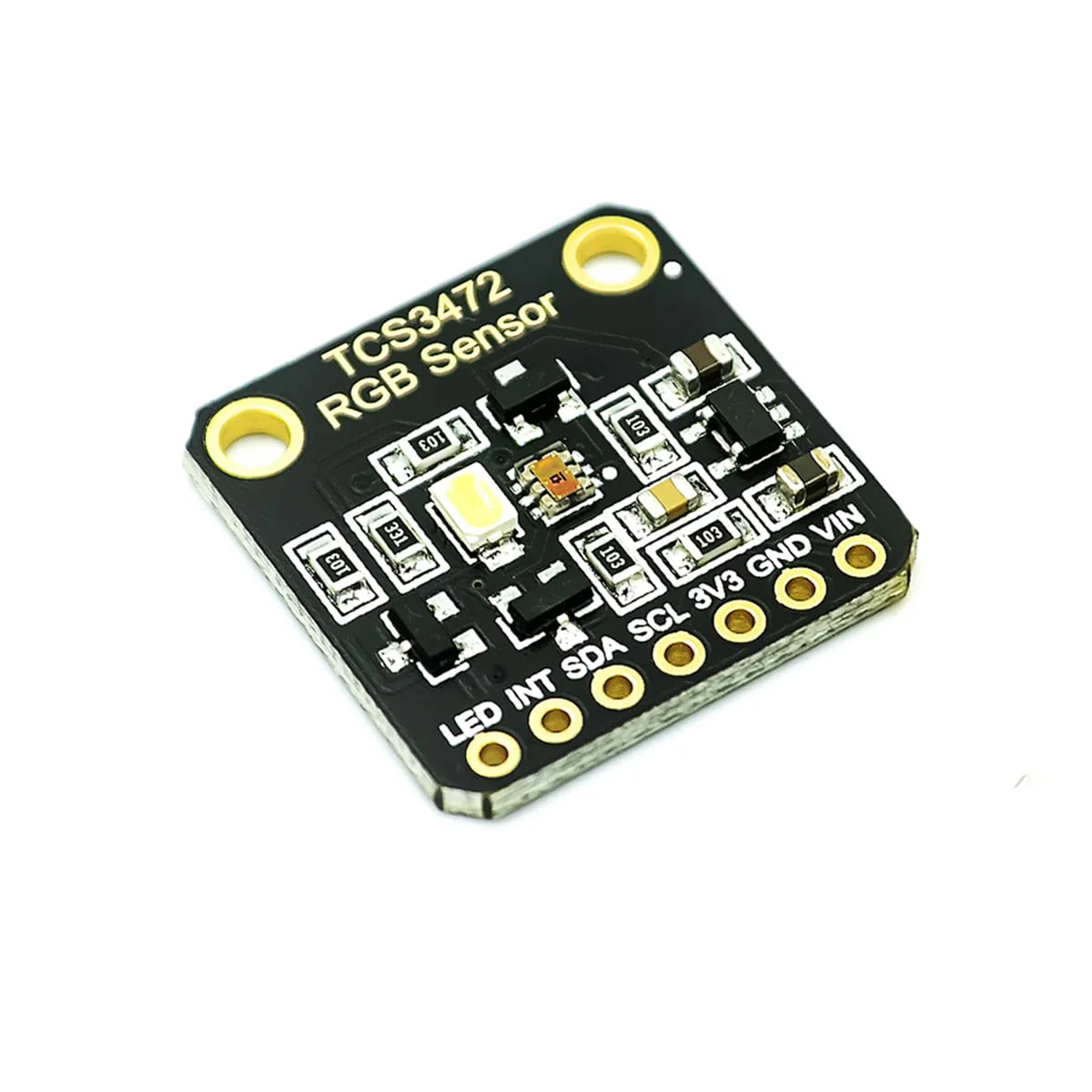

Hailege 3pcs TCS34725 TCS-34725 RGB Light Colour Sensor Colour Recognition Module RGB Colour Sensor with IR Filter
Hailege 3pcs TCS34725 TCS-34725 RGB Light Colour Sensor Colour Recognition Module RGB Colour Sensor with IR Filter
Hailege 3pcs TCS34725 TCS-34725 RGB Light Colour Sensor Colour Recognition Module RGB Colour Sensor with IR Filter
Description: TCS-34725 TCS34725 RGB Color Light Sensor Colour recognition module specification: 1. Red, green, blue (RGB) and white light measurement with IR cut filter 2. Programmable analog gain and integration time. 3. 3,800,000:1 Dynamic Range 4. Very high sensitivity. Ideal for use behind dark glass 5. Maskable interrupt 6. Programmable upper and lower thresholds with persistence filter 7. Power Management 8. Low power consumption: 2.5μA sleep mode 9. 65 μA waiting state with programmable waiting time from 2.4 ms to > 7 seconds. 10. I2C fast mode compatible interface 11. Data rates up to 400 kbit/s 12. Input voltage level compatible with VDD or 1.8 V bus. 13. Register set and pin compatible with the TCS3x71 series. 14. Small 2 mm x 2.4 mm dual flat no-lead (FN). Applications: 1. RGB LED backlight control. 2. Measurement of light colour temperature. 3. Ambient light detection for controlling the backlight of the display. 4. Liquid and gas analysis 5. Package includes: 3 x TCS34725 RGB colour sensors.
Product Features
- TCS34725 RGB Color Sensor Color Measurement Sensor
- Advantage: data rates up to 400 kbit/s
- I2C fast mode compatible interface and power-saving 2.5uA sleep mode
- Strong point: input voltage levels compatible with VDD or 1.8V bus
- We offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.
