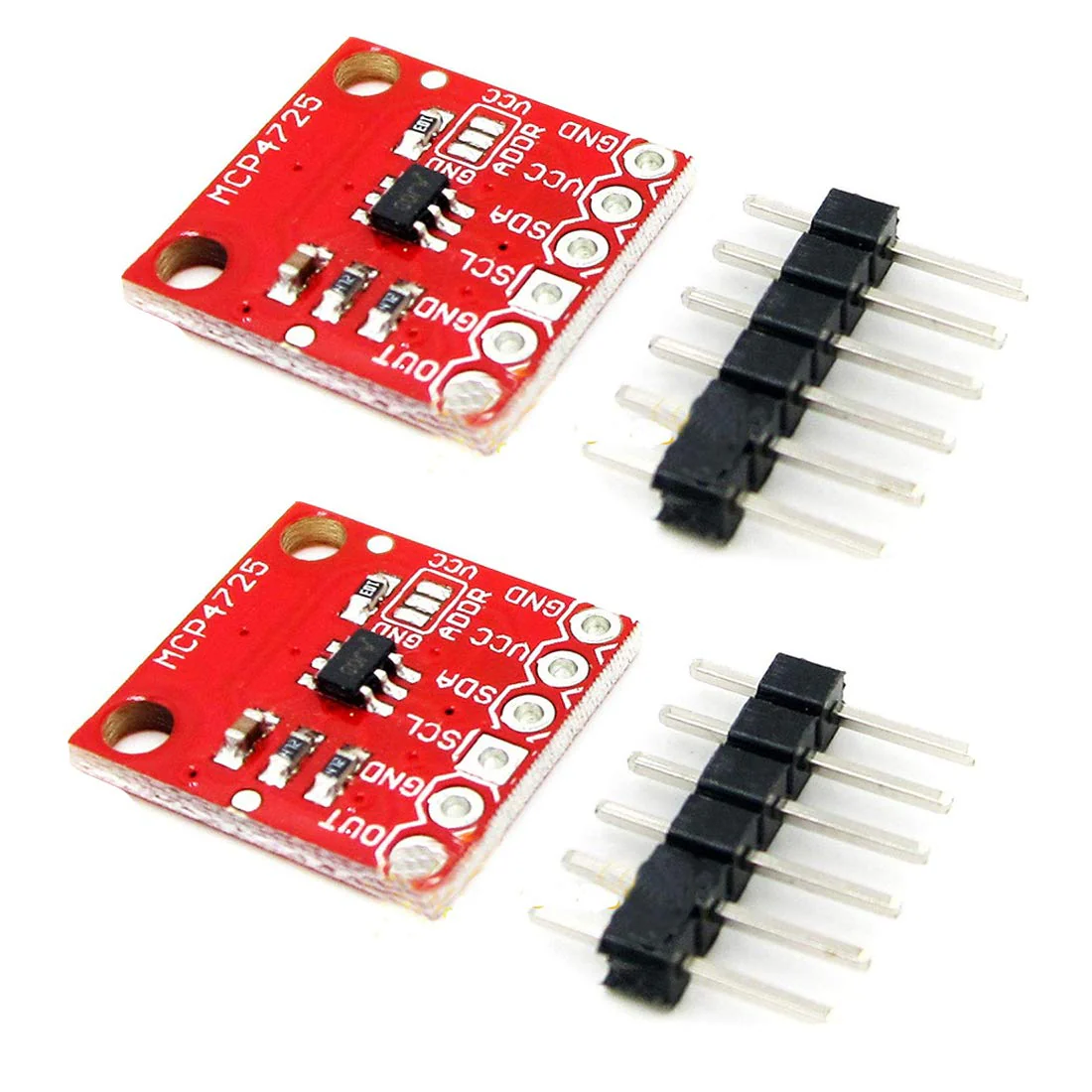

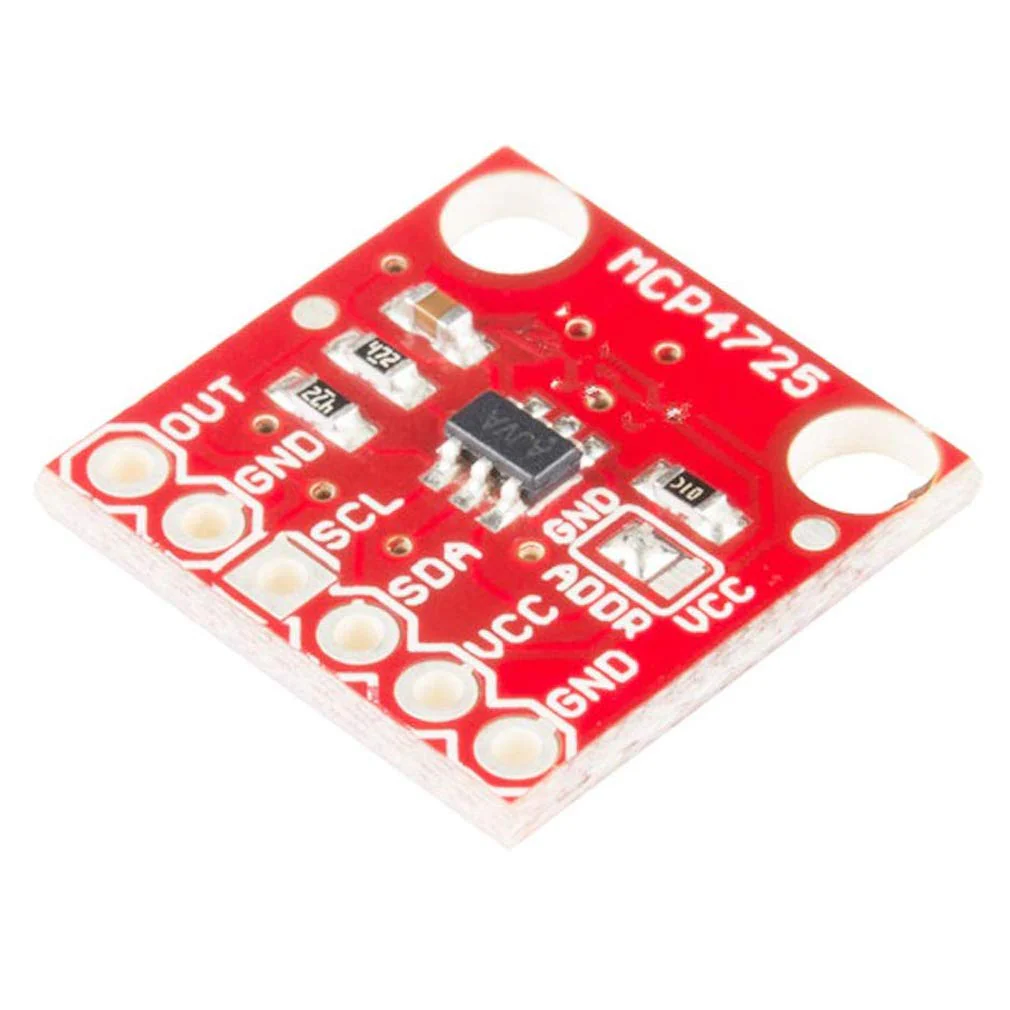

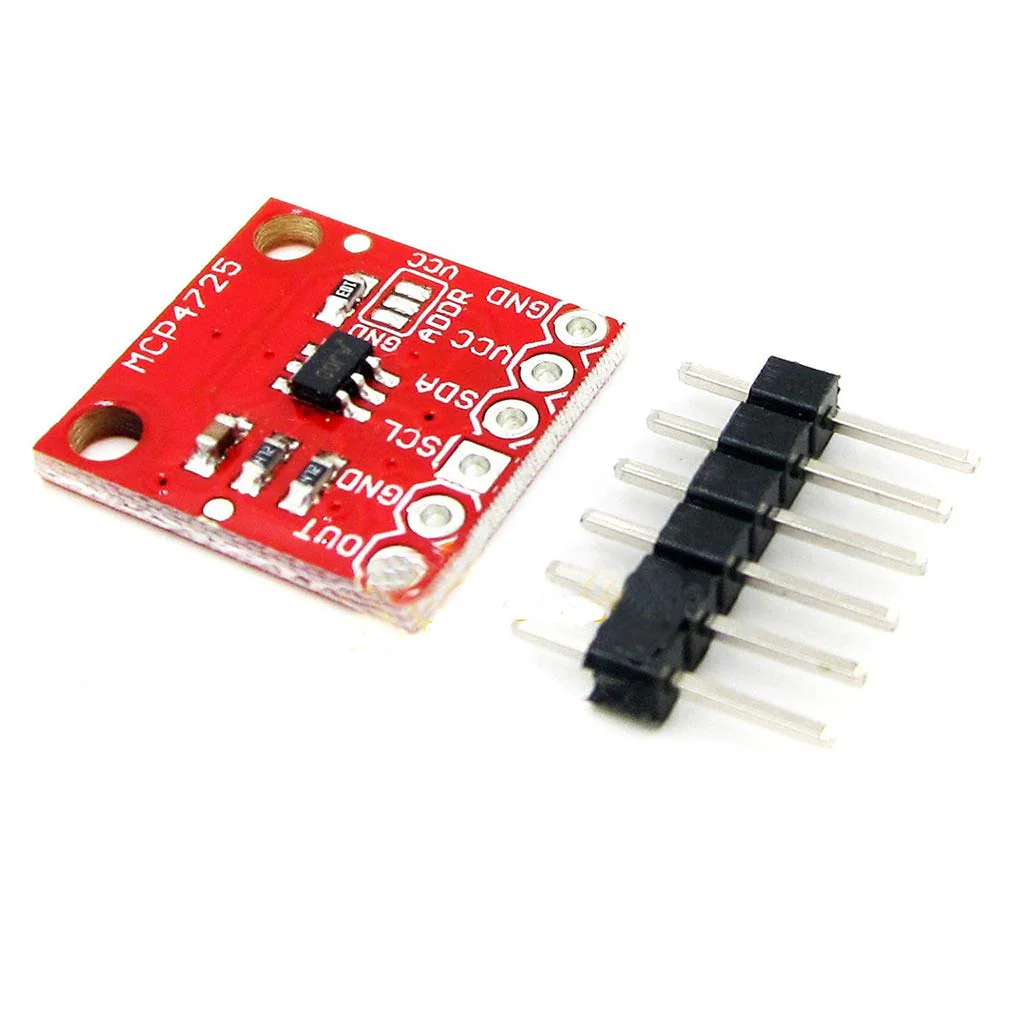

Hailege 2pcs MCP4725 12 Bit I2C IIC DAC Development Board Breakout Board Internal EEPROM Store Settings
Hailege 2pcs MCP4725 12 Bit I2C IIC DAC Development Board Breakout Board Internal EEPROM Store Settings
Hailege 2pcs MCP4725 12 Bit I2C IIC DAC Development Board Breakout Board Internal EEPROM Store Settings
Description: You've always wanted to output analog voltages from a microcontroller, the MCP4725 is the DAC you can do this with! The MCP4725 is an I2C controlled digital-to-analog converter (DAC). With a DAC, you can use analogue signals, e.g. a sine wave, from a digital source, such as the I2C interface of the microcontroller. Digital-to-analog converters are ideal for sound generation, musical instruments and many other creative projects! This version of the MCP4725 breakout addresses some issues with the board, including the IC footprint, I2C pinout, changes in the overall dimensions of the board to better fit your projects, and some other minor tweaks. This board divides every pin you need to access and use the MCP4725, including GND and Signal OUT pins for connecting to an oscilloscope or other device you need to connect to the board. Also on board are SCL, SDA, VCC and another GND for your base I2C pinout. If you want to have more than one MCP4725 on a bus, the pull- up resistors on this board can be disabled. Simply read the connection instructions in the "Documents" section below for instructions and tips. Features: 12C interface with 12-bit resolution (Standard, fast and high speed interface supported) Small housing with 2.7V to 5.5V supply Internal EEPROM for saving settings Package includes: 2 x MCP4725 12-bit I2C-IIC-DAC development board
Product Features
- With a DAC, you can use analogue signals, e.g. a sine wave, from a digital source, such as the I2C interface of the microcontroller.
- MCP4725 12-bit I2C-IIC-DAC Development Board Breakout Board
- On board are SCL, SDA, VCC and another GND for your basic I2C pinout.
- Digital-to-analog converters are an internal EEPROM for storing settings for sound generation, musical instruments and many other creative projects
- We offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.
Original: $97.79
-65%$97.79
$34.23More Images
