Hailege 2pcs MAX4080SASA Current Sensor Module Current Meter Amplifier High Accuracy Highly Integrated Voltage Current Source
Hailege 2pcs MAX4080SASA Current Sensor Module Current Meter Amplifier High Accuracy Highly Integrated Voltage Current Source
Hailege 2pcs MAX4080SASA Current Sensor Module Current Meter Amplifier High Accuracy Highly Integrated Voltage Current Source

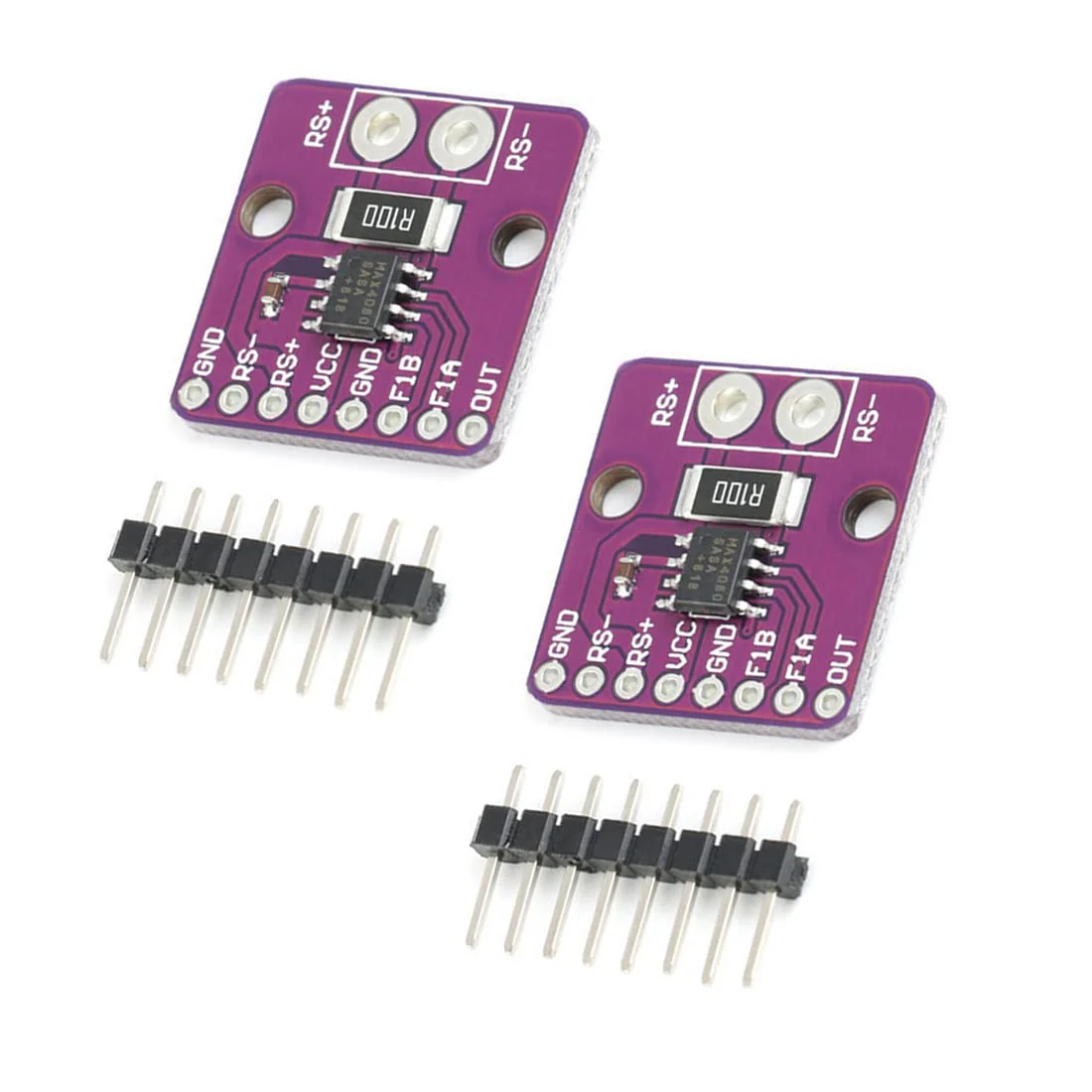

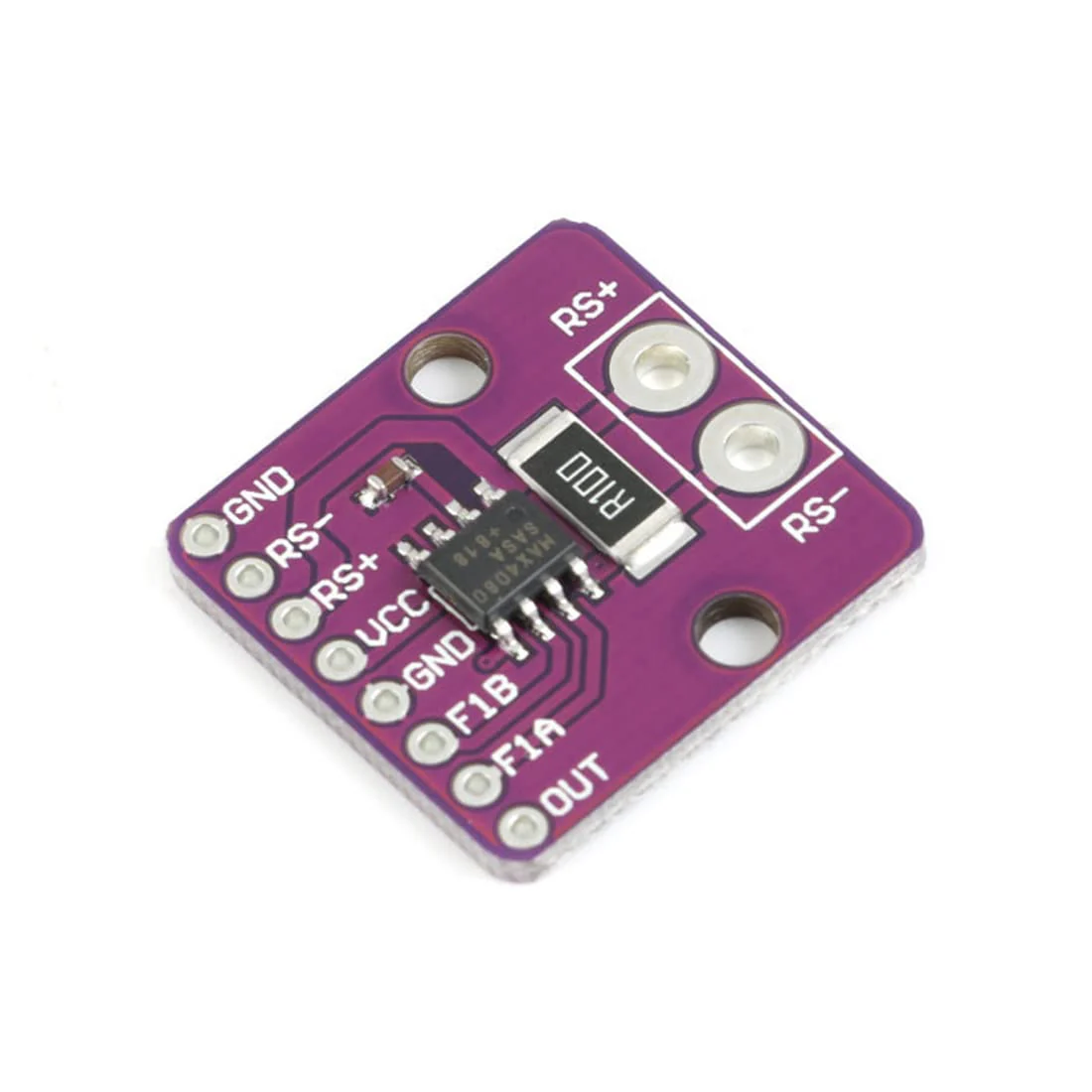

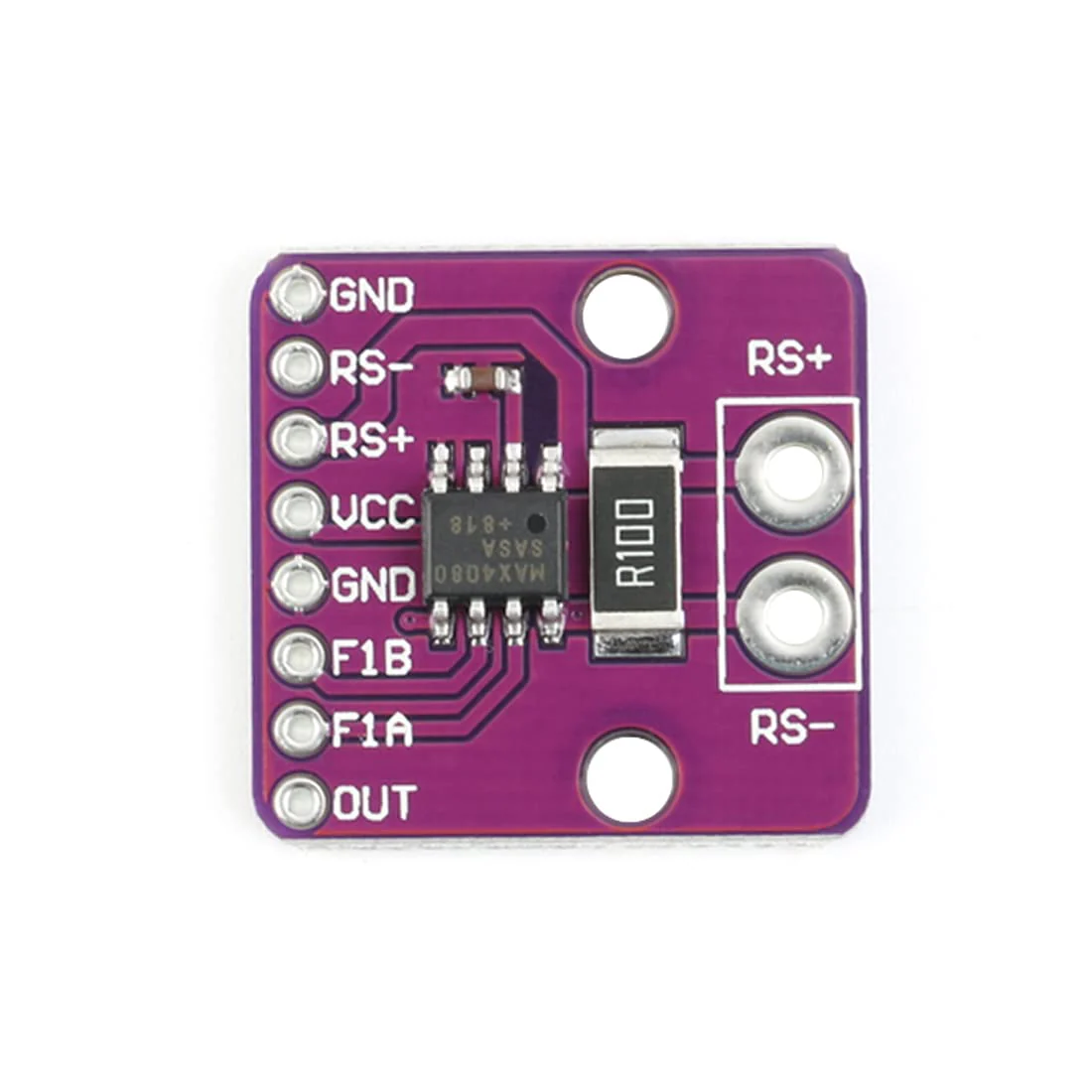

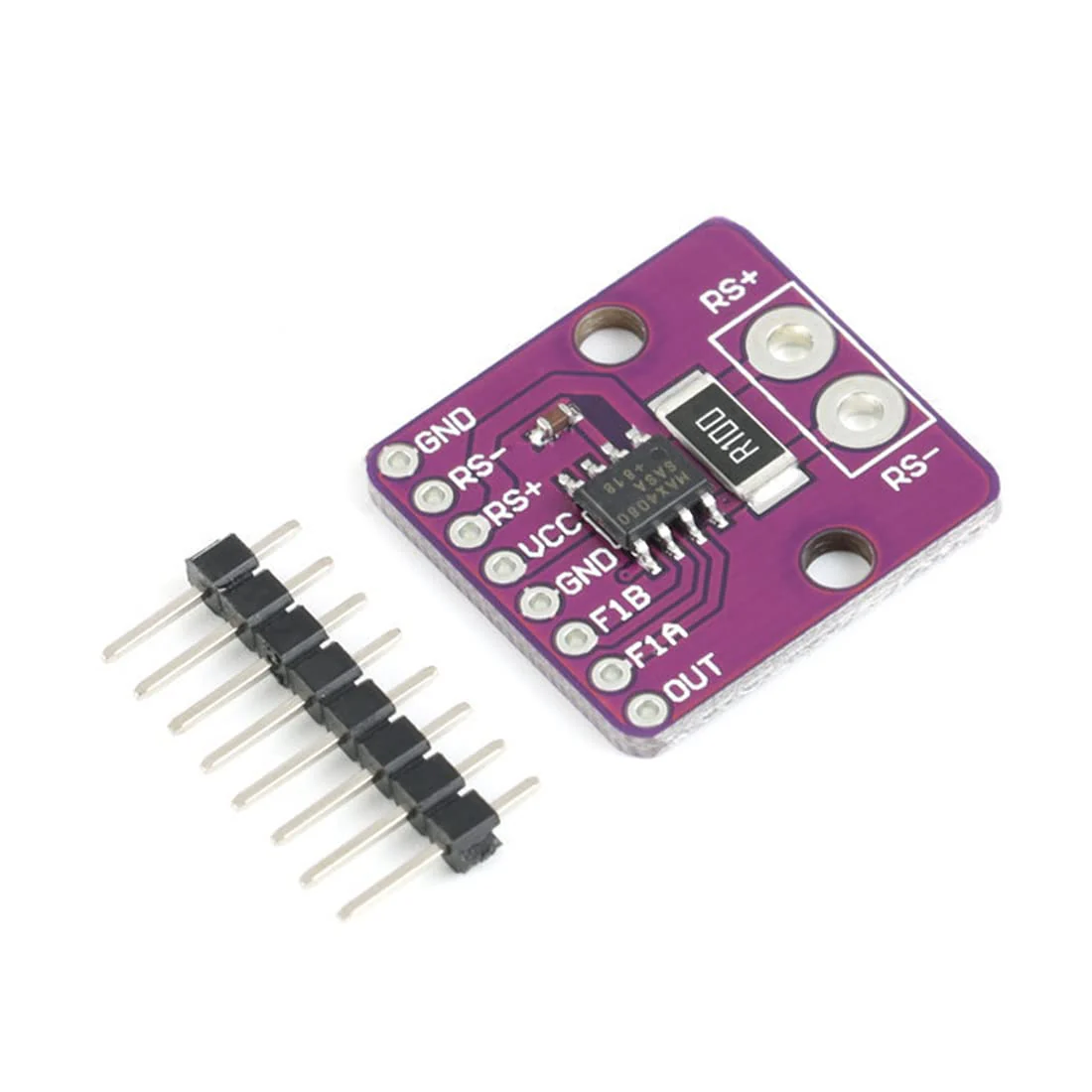

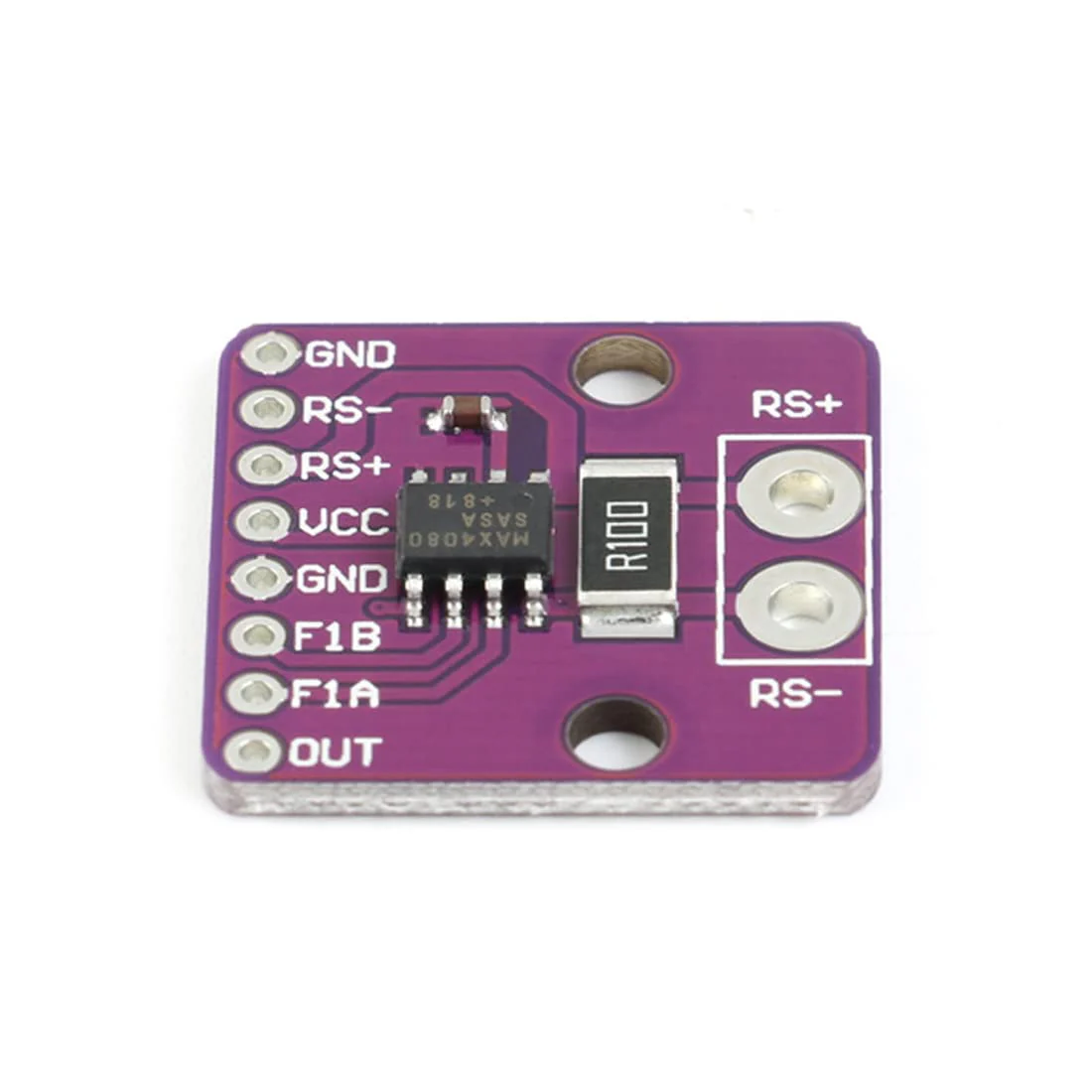

Description: MAX4080 are high-side current measuring amplifiers with an input voltage range of 4.5V to 76V, making them ideal for telecommunications, automotive, backplane and other systems that require accurate monitoring of high voltage currents. Parameters: Common Mode Input Voltage Range: 4.5V to 76V Maximum working current: 190uA Full Scale Accuracy: ?. 1%. Low input offset voltage: 100" V Independent operating voltage of the power supply: 4.5V to 76V Pin definition: RS+: positive pole of the external measuring resistor. RS-: negative pole of the external measuring resistor. VCC: Positive power supply Out: conversion voltage output. FIA, FIB: MAX4080 chip used by module, no connection Applications: 48 V telecommunication and backplane current detection. Car (12 V, 24 V or 42 V battery). Avalanche photodiode and PIN diode current monitoring. Two way motor control All-purpose system / current measurement at board level. Energy management system. Precision high voltage power source. Package includes: 2 x MAX4080SASA current measuring module.
Product Features
- MAX4080 is a high side current meter amplifier with an input voltage range of 4.5V to 76V
- MAX4080 provide users with a highly integrated, simple, accurate and compact current measurement solution.
- MAX4080's single output pin continuously monitors the entire charge-discharge process without additional polarity output.
- Three different gains (5V/V, 20V/V, 60V/V, chip screen printing suffixes are specified by F, T, S) support the selection of external measuring resistors by the user and it is easy to adjust the full scale current and proportional output voltage.
- We offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.
