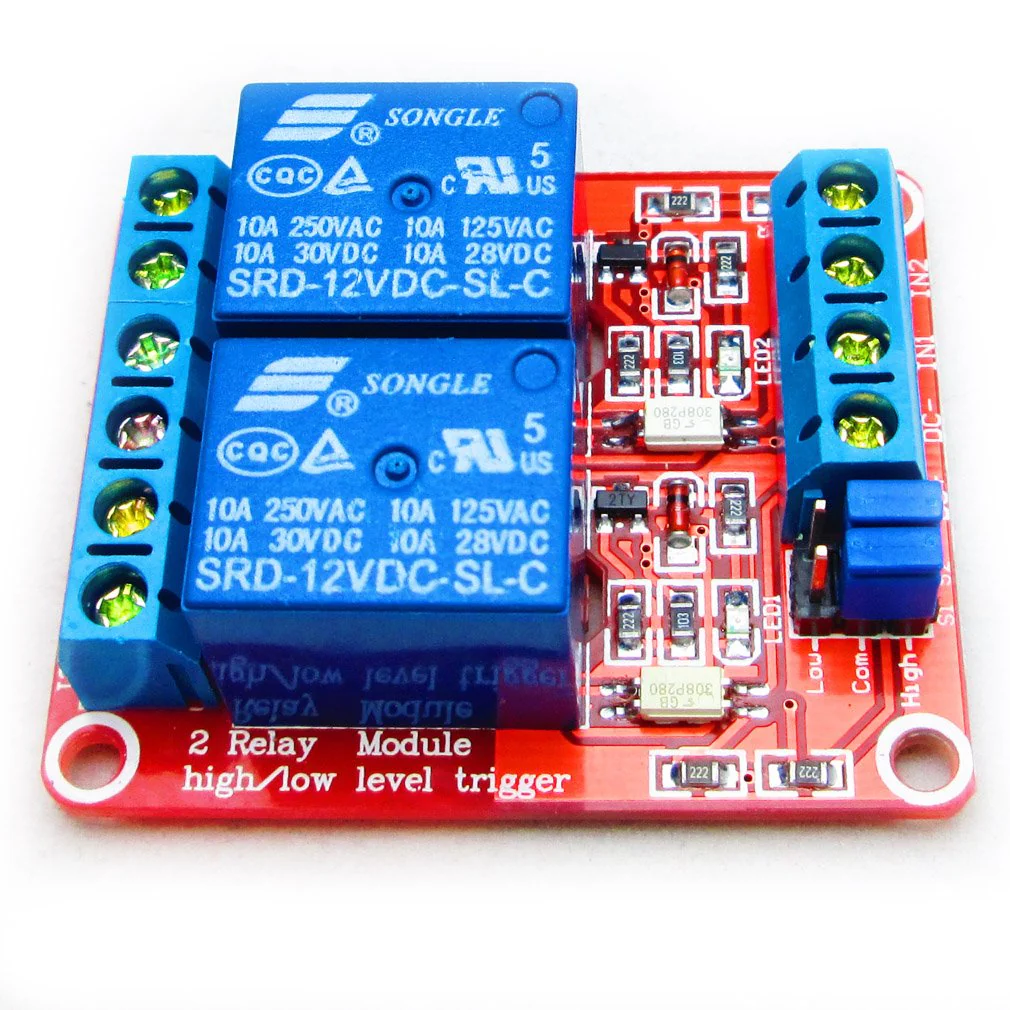

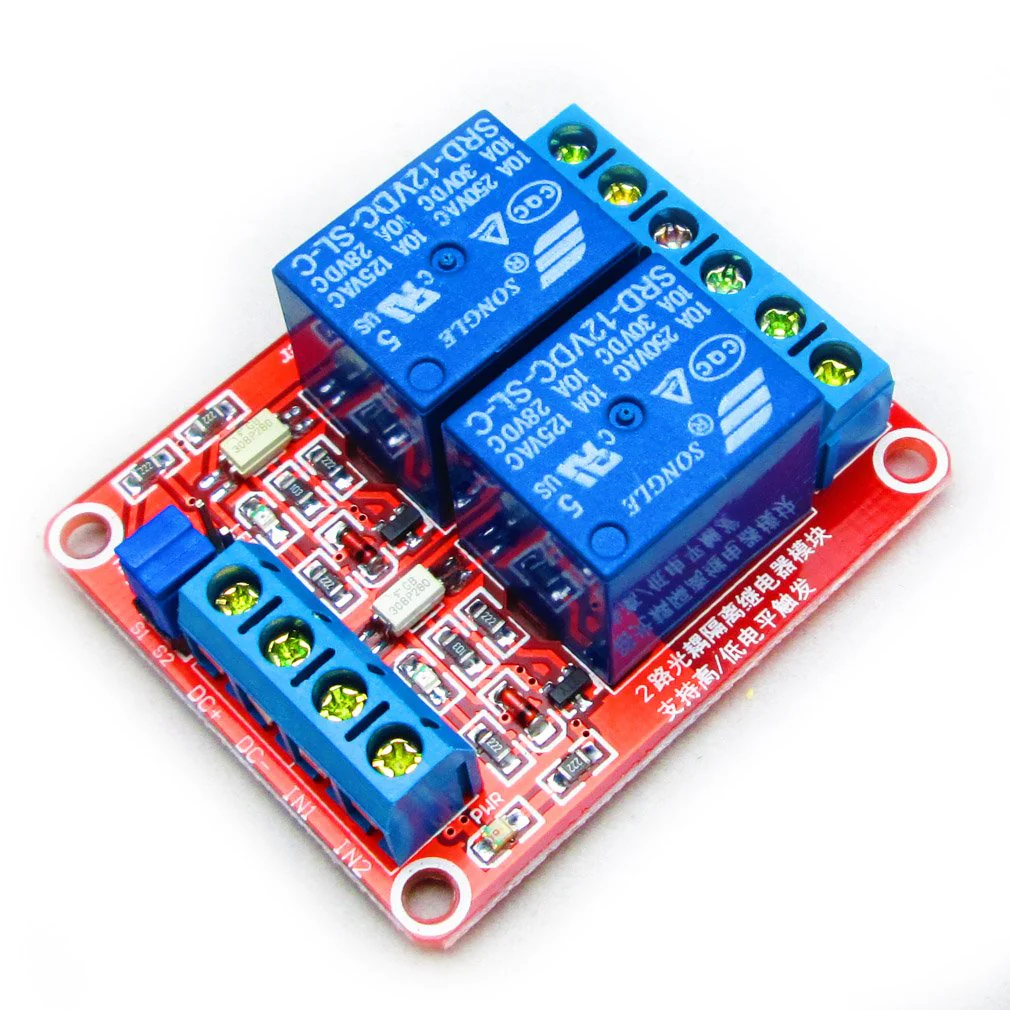

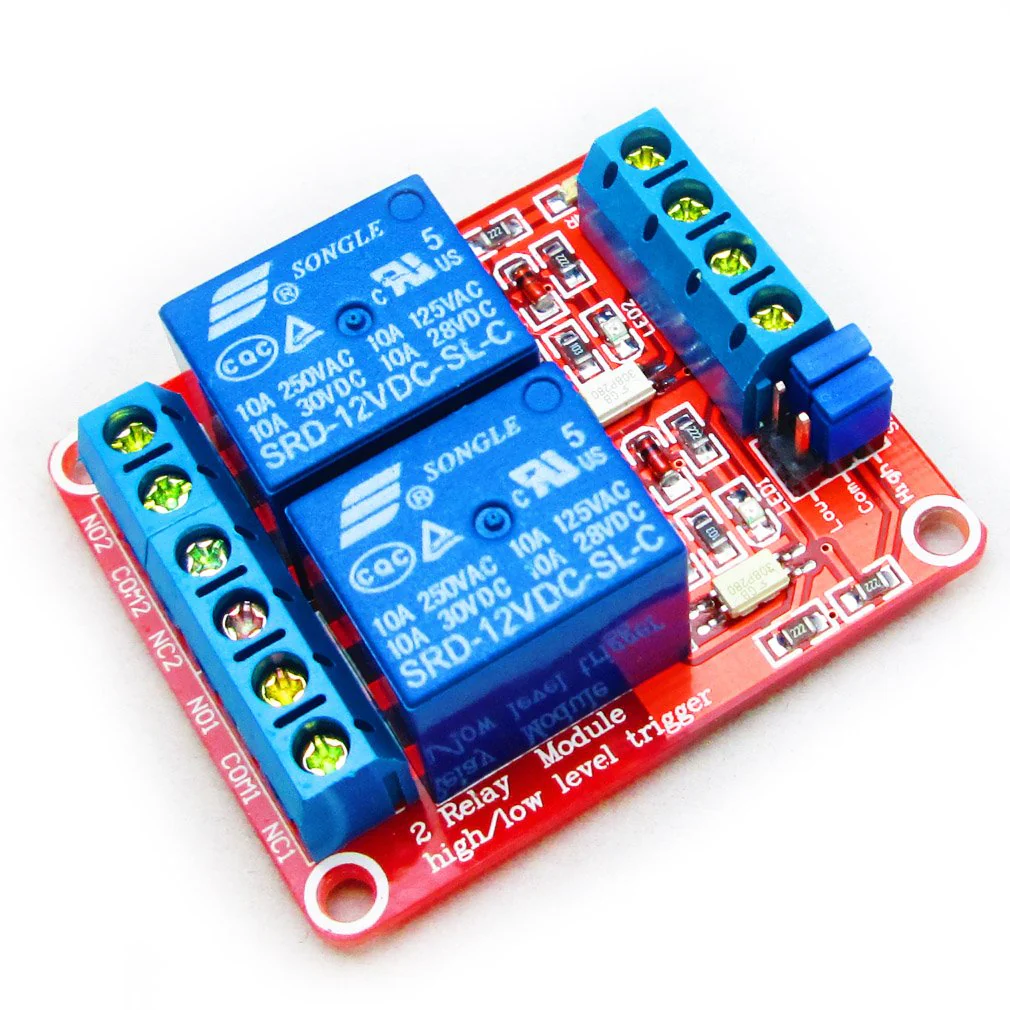

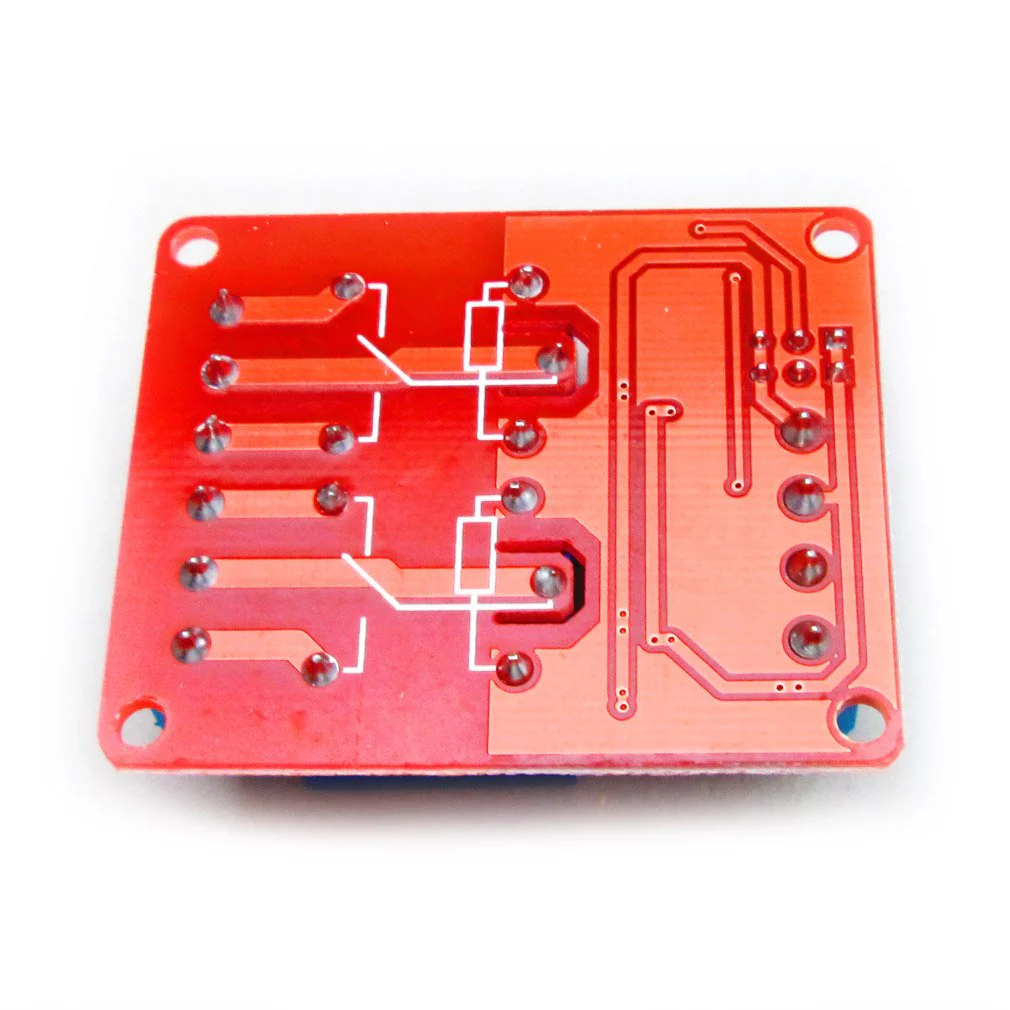

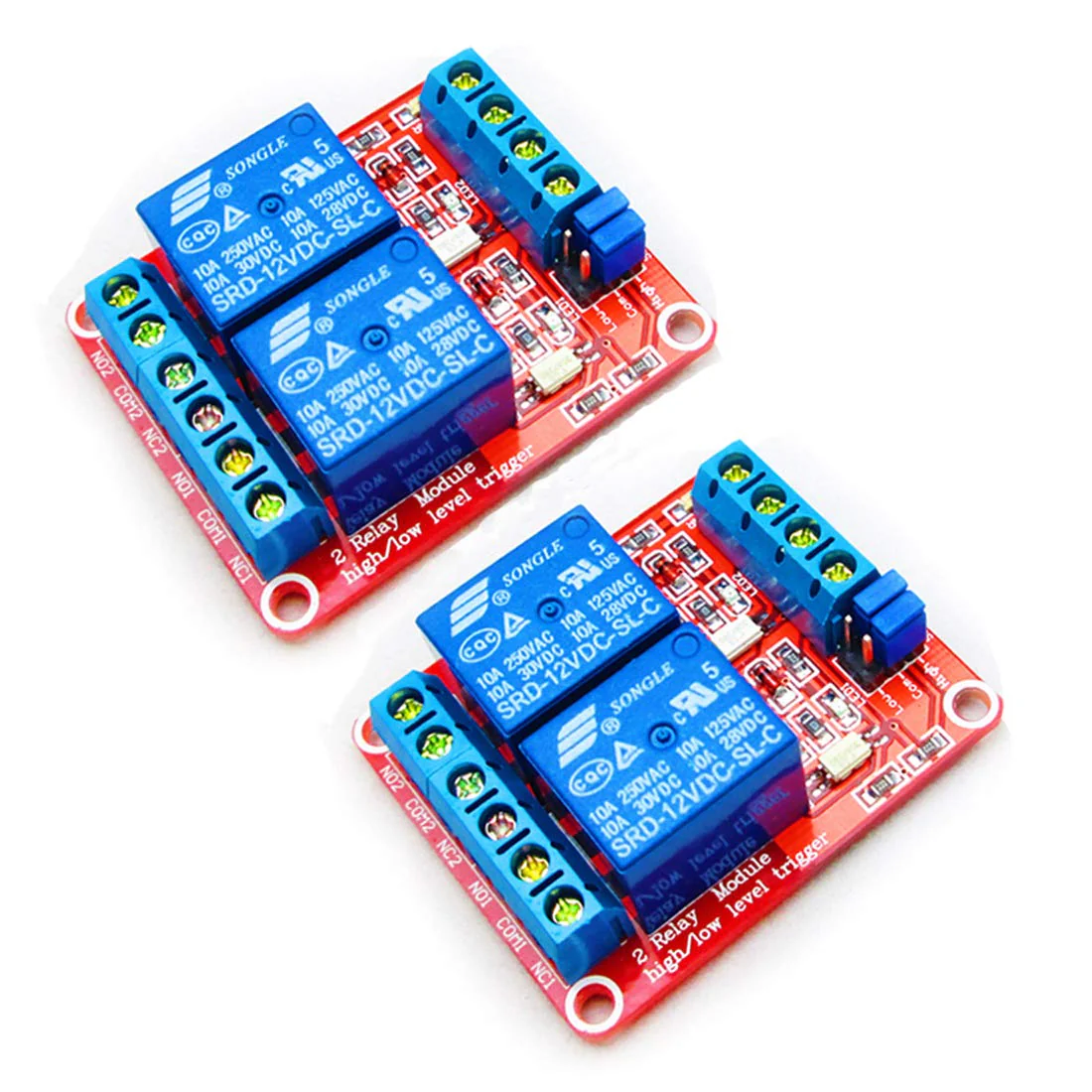

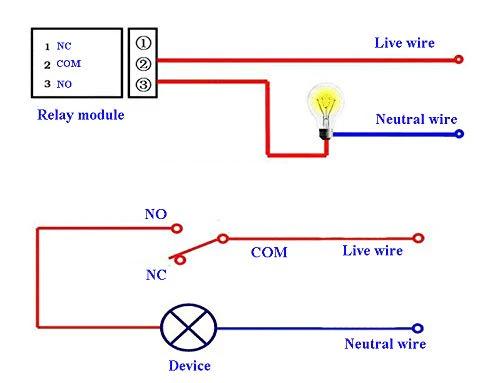

Description: 1. The module uses original quality relay, normally open interfaces. Maximum load: AC 250V/10A, DC 30V/10A. 2. The power indicator (green), the status display of the relay (red). 3. Module size: 50 mm x 26 mm x 18.5 mm (L x W x H). 4. Has four mounting screw holes, hole 3.1 mm, 44.5 mm x 20.5 mm grid. Module interface: 1. DC +: positive power supply DC 12 V. 2. DC-: negative circuit. 3. IN1: 1 channel signal to trigger the end, you can use a high or low level control relay Set 4. IN2: 2 channel signal to trigger the end, you can set a high or low level control relay Relay outputs: 1. NO1: after a relay normally open interfaces, relay before floating, short circuit pull with COM1 2. COM1: 1 relay common interface 3. NC1: 1 relay currentless closed port, COM1 relay short-circuited before and after pulling - Free 4. NO2: way normally open relay interface, the relay before floating, retracting and COM2 short 5. COM2: 2 relays 6 for the common interface . NC2: 2 way normal closed relay interface relay short front and COM2, pull the empty post Note: This relay is triggered by DC 12V and cannot trigger with the signal at 5V. Box contents: 2 x DC 12 V 2-channel relay module with insulated optocoupler high and low level trigger
Product Features
- With optical patch isolation, strong drive capability and stable performance;
- Can set a high or low level trigger with jumper to meet the demand for more trigger applications.
- The module can be high or low through a jumper adjustment trigger;
- Fault tolerant design, even if the control line is interrupted, the relay will not work
- We offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.
