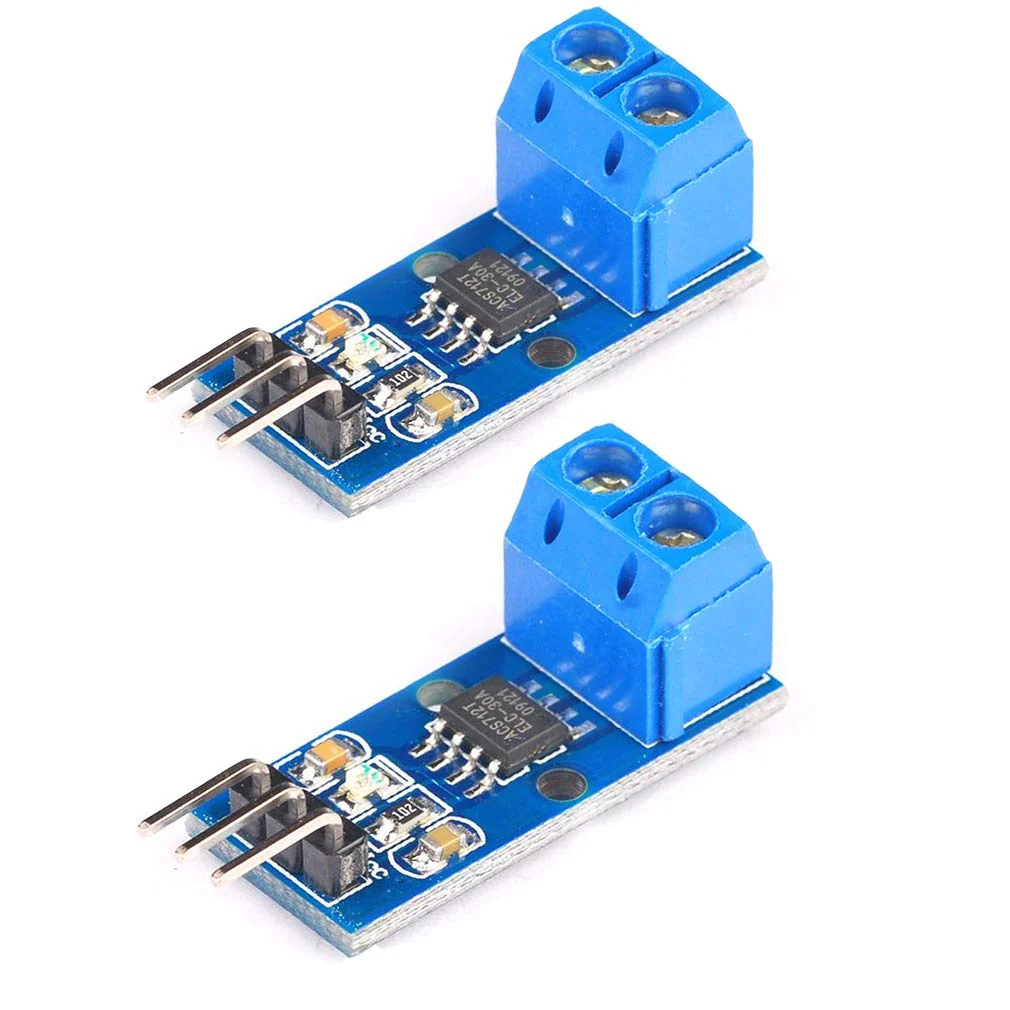

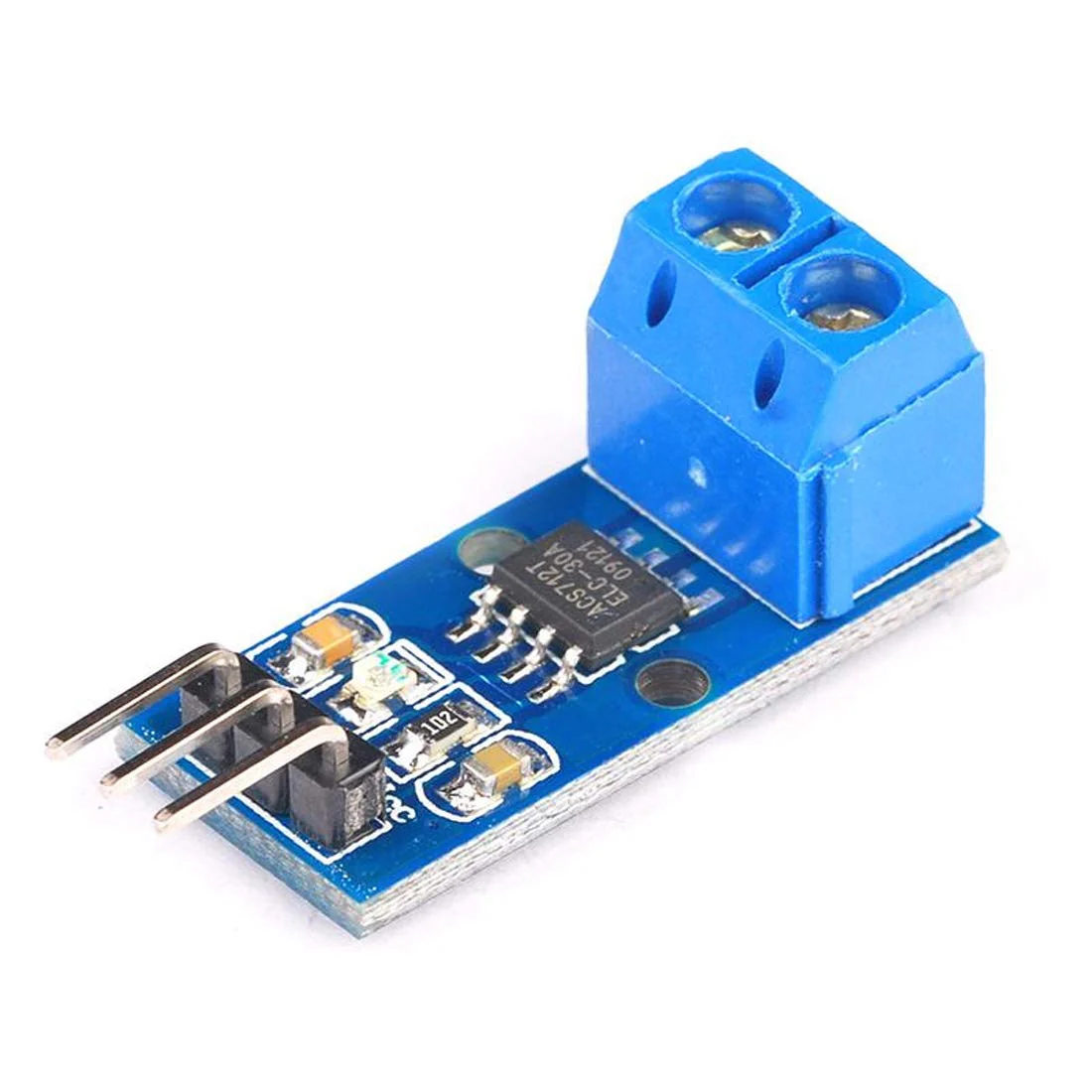

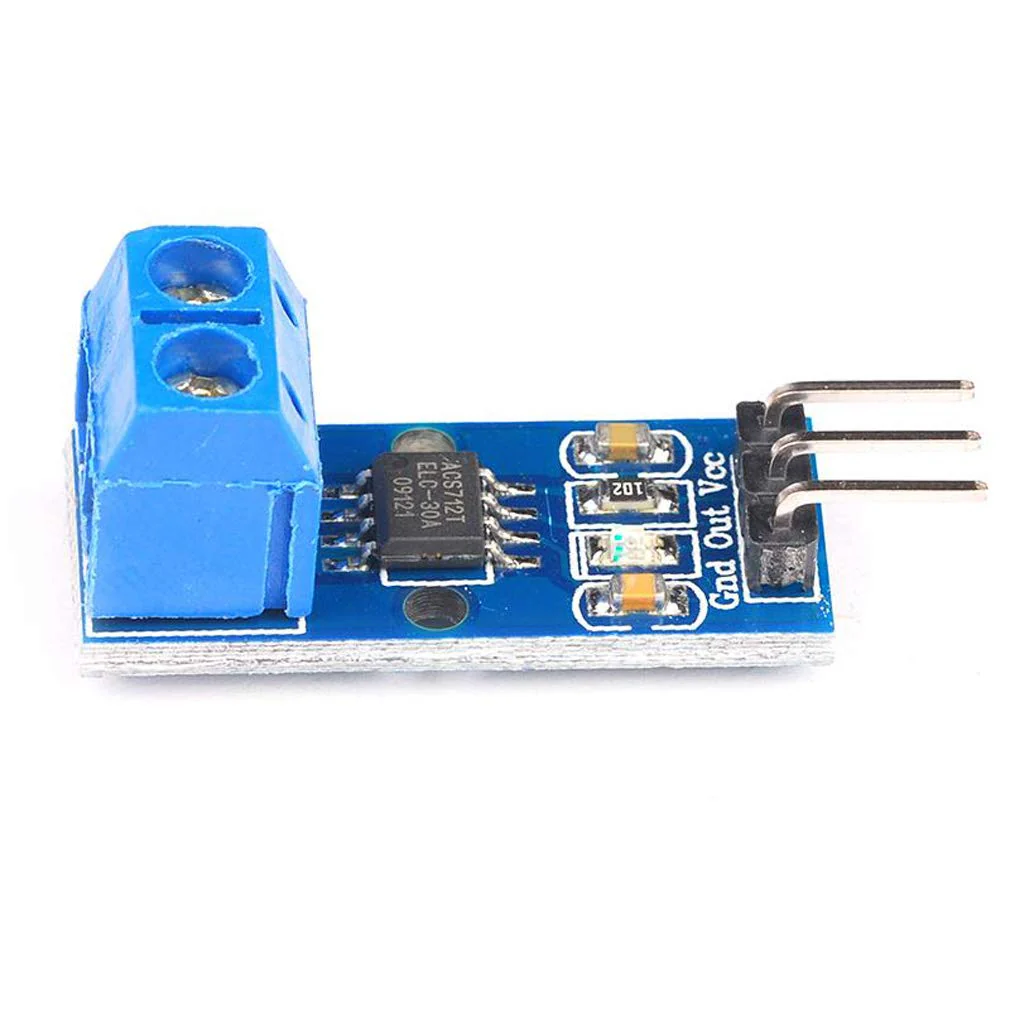

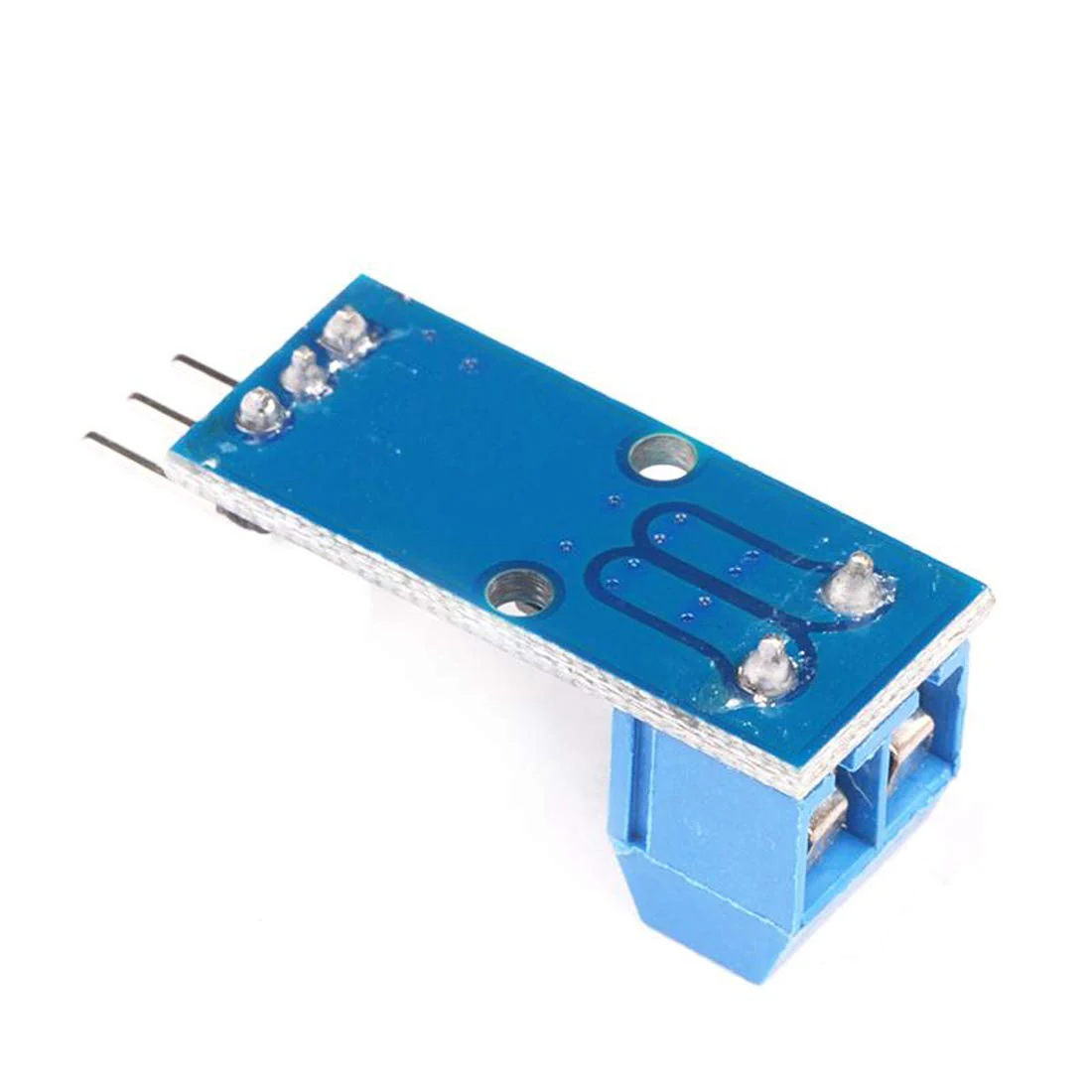

Hailege 2pcs 5A ACS712 Current Sensor Module ACS712 5A Current Detection Range
Hailege 2pcs 5A ACS712 Current Sensor Module ACS712 5A Current Detection Range
Description: 1. The current sensor chips: ACS712ELC-05B; 2. Pin 5V power supply, built-in power indicator; 3. The module can be measured plus or minus 5 amps, which corresponds to the analogue output of 185 mV/A. 4. There is no detection current, the output voltage is VCC/2; 5. PCB size: 31 mm x 13 mm. Note: The ACS712 Hall detection principle, when you use it to avoid a magnetic field, affects it. Box contents: 2 x ACS712 current sensors
Product Features
- High Quality Current Sensor Chips:ACS712
- 5A ACS712 sensor module for current detection
- The module can measure the positive and negative 5 amps, which corresponds to the analogue output 100mV A.
- Pin 5V power supply, on-board power indicator.
- We offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.
More Images
Hailege 2pcs 5A ACS712 Current Sensor Module ACS712 5A Current Detection Range
Hailege 2pcs 5A ACS712 Current Sensor Module ACS712 5A Current Detection Range
Description: 1. The current sensor chips: ACS712ELC-05B; 2. Pin 5V power supply, built-in power indicator; 3. The module can be measured plus or minus 5 amps, which corresponds to the analogue output of 185 mV/A. 4. There is no detection current, the output voltage is VCC/2; 5. PCB size: 31 mm x 13 mm. Note: The ACS712 Hall detection principle, when you use it to avoid a magnetic field, affects it. Box contents: 2 x ACS712 current sensors
Product Features
- High Quality Current Sensor Chips:ACS712
- 5A ACS712 sensor module for current detection
- The module can measure the positive and negative 5 amps, which corresponds to the analogue output 100mV A.
- Pin 5V power supply, on-board power indicator.
- We offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Hailege 2pcs 5A ACS712 Current Sensor Module ACS712 5A Current Detection Range
Description: 1. The current sensor chips: ACS712ELC-05B; 2. Pin 5V power supply, built-in power indicator; 3. The module can be measured plus or minus 5 amps, which corresponds to the analogue output of 185 mV/A. 4. There is no detection current, the output voltage is VCC/2; 5. PCB size: 31 mm x 13 mm. Note: The ACS712 Hall detection principle, when you use it to avoid a magnetic field, affects it. Box contents: 2 x ACS712 current sensors
Product Features
- High Quality Current Sensor Chips:ACS712
- 5A ACS712 sensor module for current detection
- The module can measure the positive and negative 5 amps, which corresponds to the analogue output 100mV A.
- Pin 5V power supply, on-board power indicator.
- We offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.
