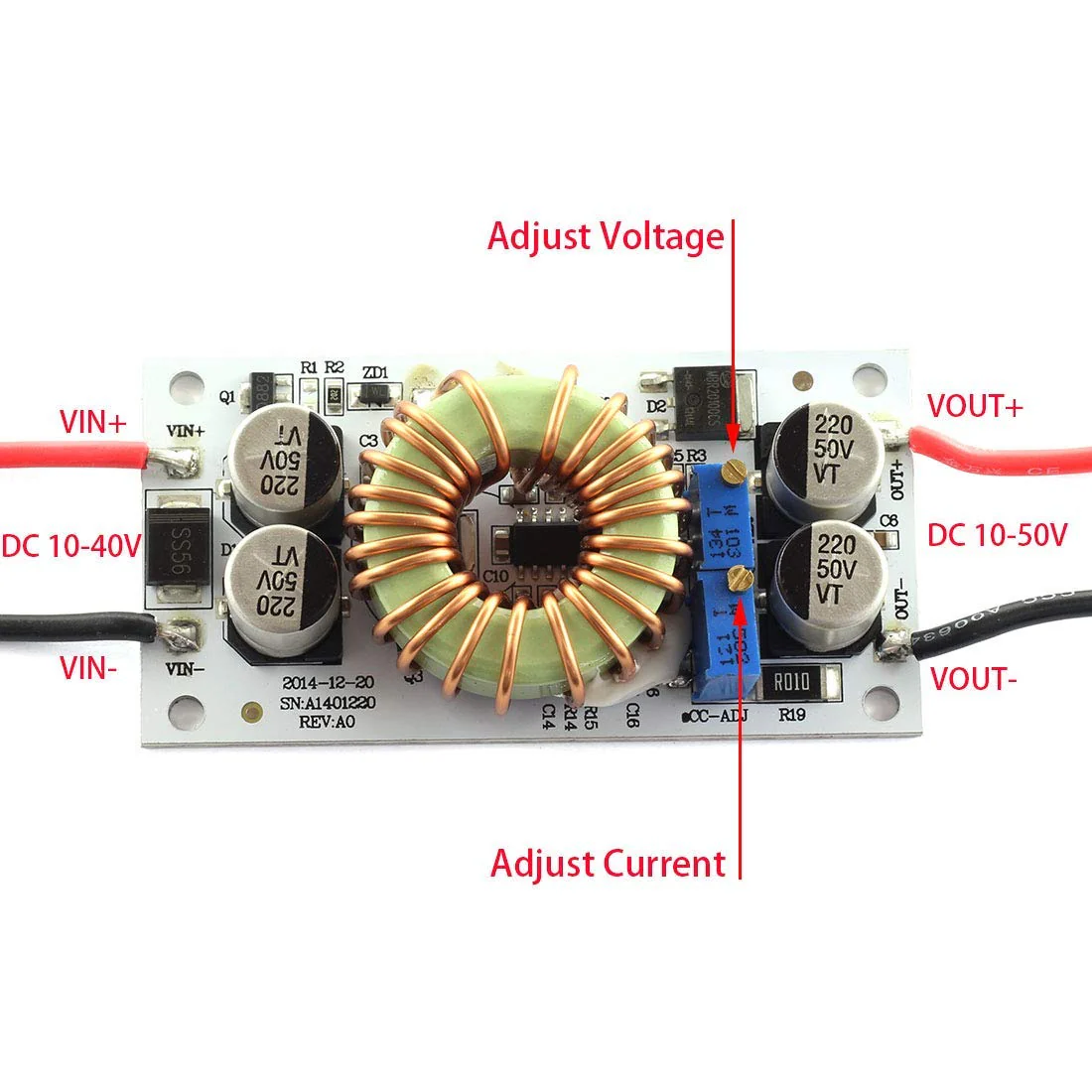

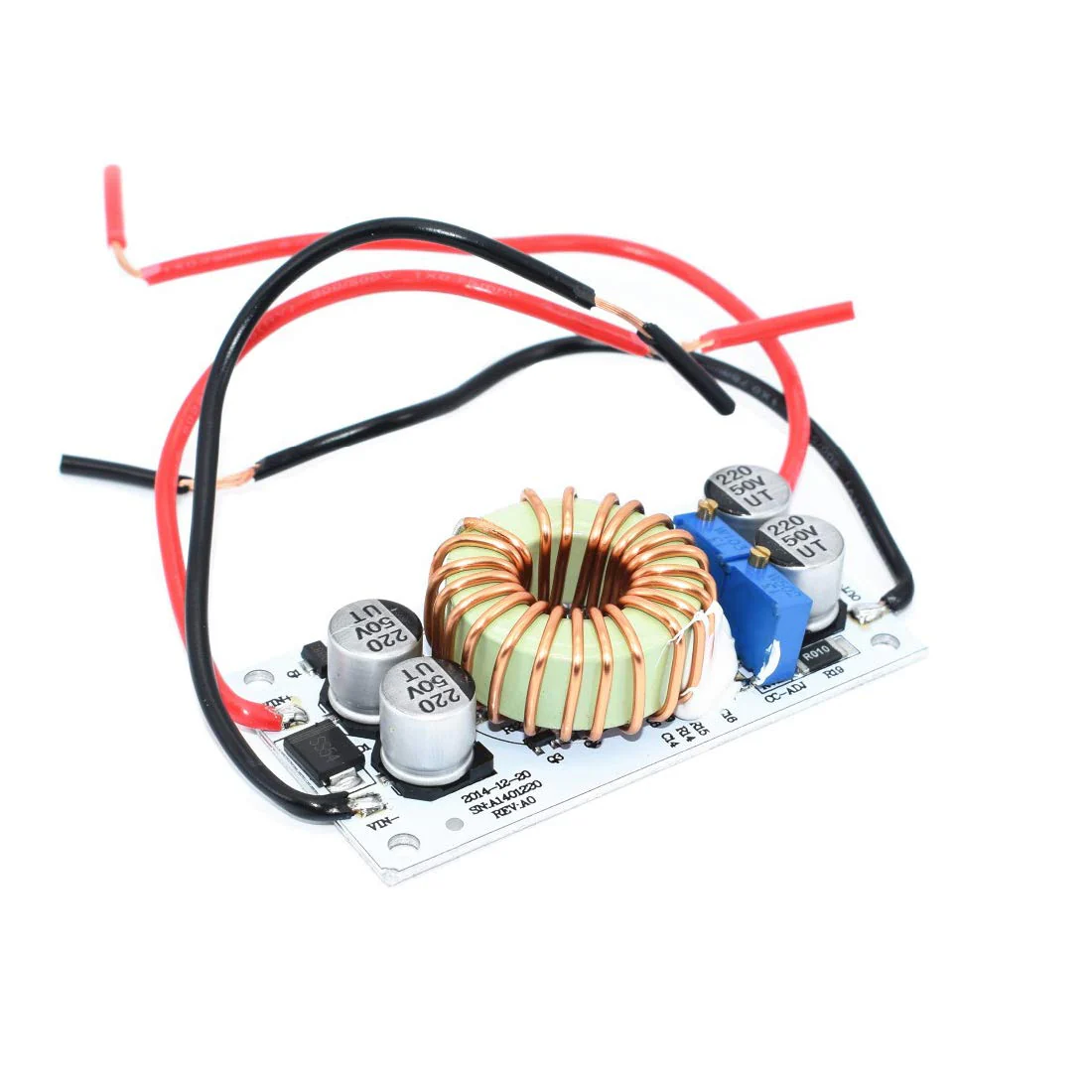

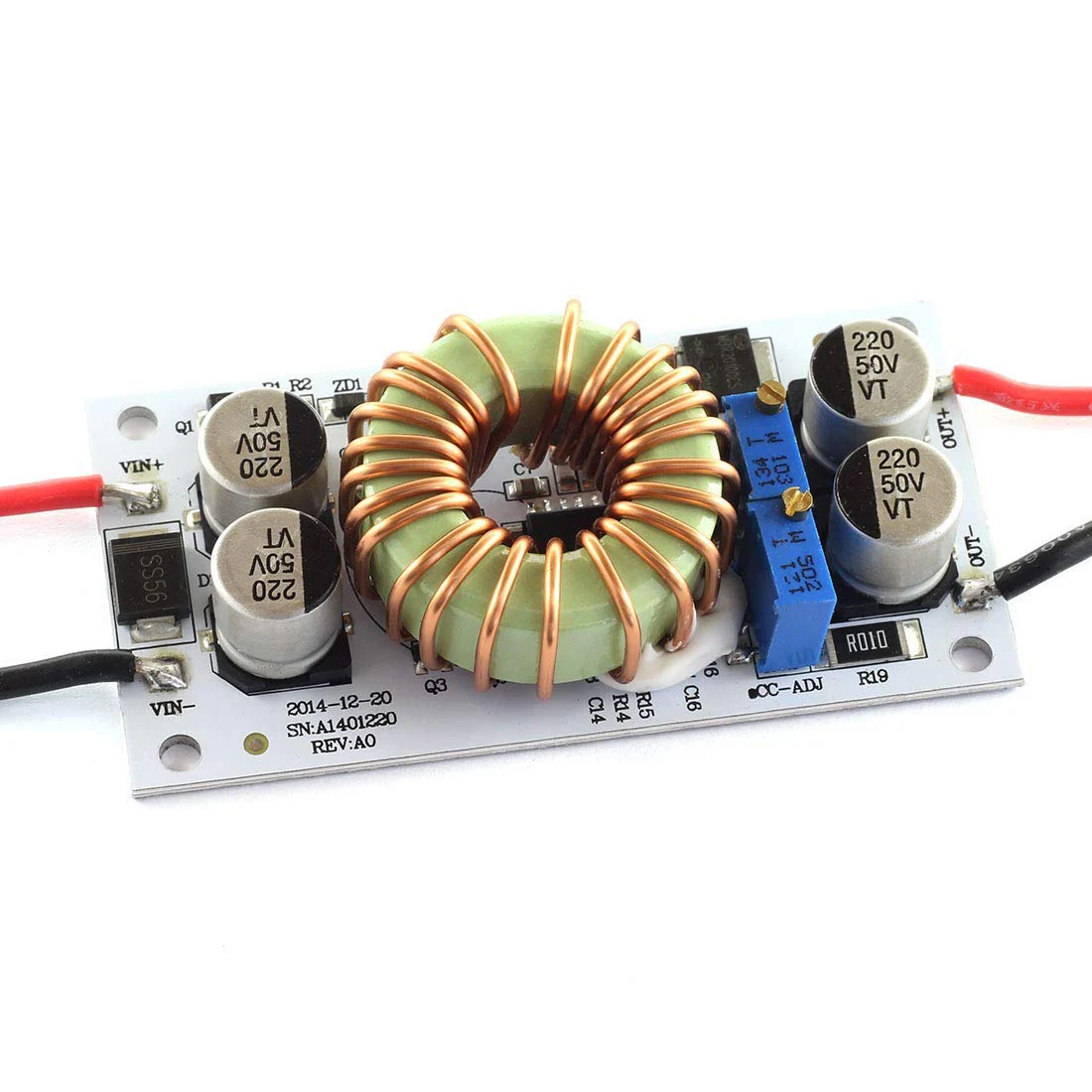

Hailege 250W DC-DC Boost Step-up Module, 10-40V to 10-50V, 6A Adjustable, Constant Voltage, Constant Current, 150KHz, 6A, 250W
Hailege 250W DC-DC Boost Step-up Module, 10-40V to 10-50V, 6A Adjustable, Constant Voltage, Constant Current, 150KHz, 6A, 250W
Hailege 250W DC-DC Boost Step-up Module, 10-40V to 10-50V, 6A Adjustable, Constant Voltage, Constant Current, 150KHz, 6A, 250W
Description: Module features: non-isolated step-up module (BOOST). Input voltage: DC10V-40V. Input current: 6A (MAX) exceeds 4A, please improve heat dissipation. Quiescent current: 10 mA (12 V litre, 20 V, the output voltage, the higher. the power becomes too quiet). Output voltage: 10-50 V infinitely adjustable. Constant] range: 0.2-6A. Temperature: -40 to +85 degrees (ambient temperature is too high, please improve heat dissipation) Operating frequency: 150KHz. Conversion efficiency: up to 96%. Over current protection: it Input reverse polarity protection: yes. Installation: 4 3 mm screw holes. Connection method: connection output. Module size: length 70 mm, width 36 mm, height 13 mm. Single module: 50 g. Applications: 1. DIY a power supply, 12 V can be adjusted input and output 12-50 V. 2. The power supply for your electronic device can adjust the value of the output voltage depending on the system. 3. As a car power supply for your laptop, PDA or a variety of digital products. 4. DIY a mobile notebook power supply: 12V coupled with a high capacity lithium battery so you can go anywhere light is books. 5. Controller of the solar panel for the battery, rechargeable lithium batteries. 6. Control high performance LED lights. Box contents: 1 x 250 W DC-DC step-up converter constant current power supply module
Product Features
- Module features: non-isolated step-up module (BOOST)
- 250W DC-DC Boost Step-up Mobile Power Supply with Constant Current
- Input voltage: DC10V-40V
- Operating frequency: 150KHz
- We offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.
More Images
Hailege 250W DC-DC Boost Step-up Module, 10-40V to 10-50V, 6A Adjustable, Constant Voltage, Constant Current, 150KHz, 6A, 250W
Hailege 250W DC-DC Boost Step-up Module, 10-40V to 10-50V, 6A Adjustable, Constant Voltage, Constant Current, 150KHz, 6A, 250W
Description: Module features: non-isolated step-up module (BOOST). Input voltage: DC10V-40V. Input current: 6A (MAX) exceeds 4A, please improve heat dissipation. Quiescent current: 10 mA (12 V litre, 20 V, the output voltage, the higher. the power becomes too quiet). Output voltage: 10-50 V infinitely adjustable. Constant] range: 0.2-6A. Temperature: -40 to +85 degrees (ambient temperature is too high, please improve heat dissipation) Operating frequency: 150KHz. Conversion efficiency: up to 96%. Over current protection: it Input reverse polarity protection: yes. Installation: 4 3 mm screw holes. Connection method: connection output. Module size: length 70 mm, width 36 mm, height 13 mm. Single module: 50 g. Applications: 1. DIY a power supply, 12 V can be adjusted input and output 12-50 V. 2. The power supply for your electronic device can adjust the value of the output voltage depending on the system. 3. As a car power supply for your laptop, PDA or a variety of digital products. 4. DIY a mobile notebook power supply: 12V coupled with a high capacity lithium battery so you can go anywhere light is books. 5. Controller of the solar panel for the battery, rechargeable lithium batteries. 6. Control high performance LED lights. Box contents: 1 x 250 W DC-DC step-up converter constant current power supply module
Product Features
- Module features: non-isolated step-up module (BOOST)
- 250W DC-DC Boost Step-up Mobile Power Supply with Constant Current
- Input voltage: DC10V-40V
- Operating frequency: 150KHz
- We offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.
