Hailege 2 x UNO R3 Proto Shield Prototype Expansion Board with SYB-170 Mini Breadboard Based on Arduino UNO R3 ProtoShield
Hailege 2 x UNO R3 Proto Shield Prototype Expansion Board with SYB-170 Mini Breadboard Based on Arduino UNO R3 ProtoShield
Hailege 2 x UNO R3 Proto Shield Prototype Expansion Board with SYB-170 Mini Breadboard Based on Arduino UNO R3 ProtoShield

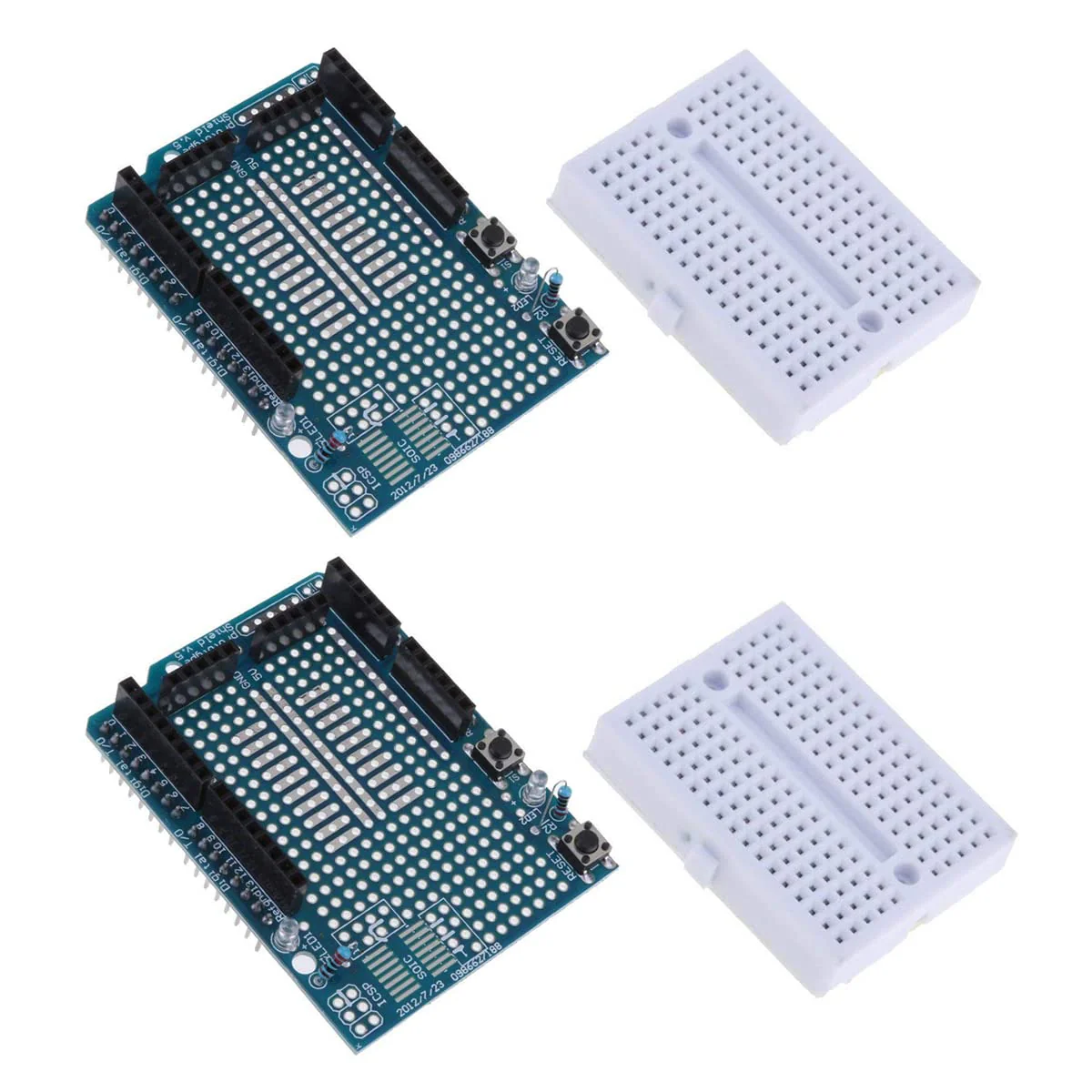

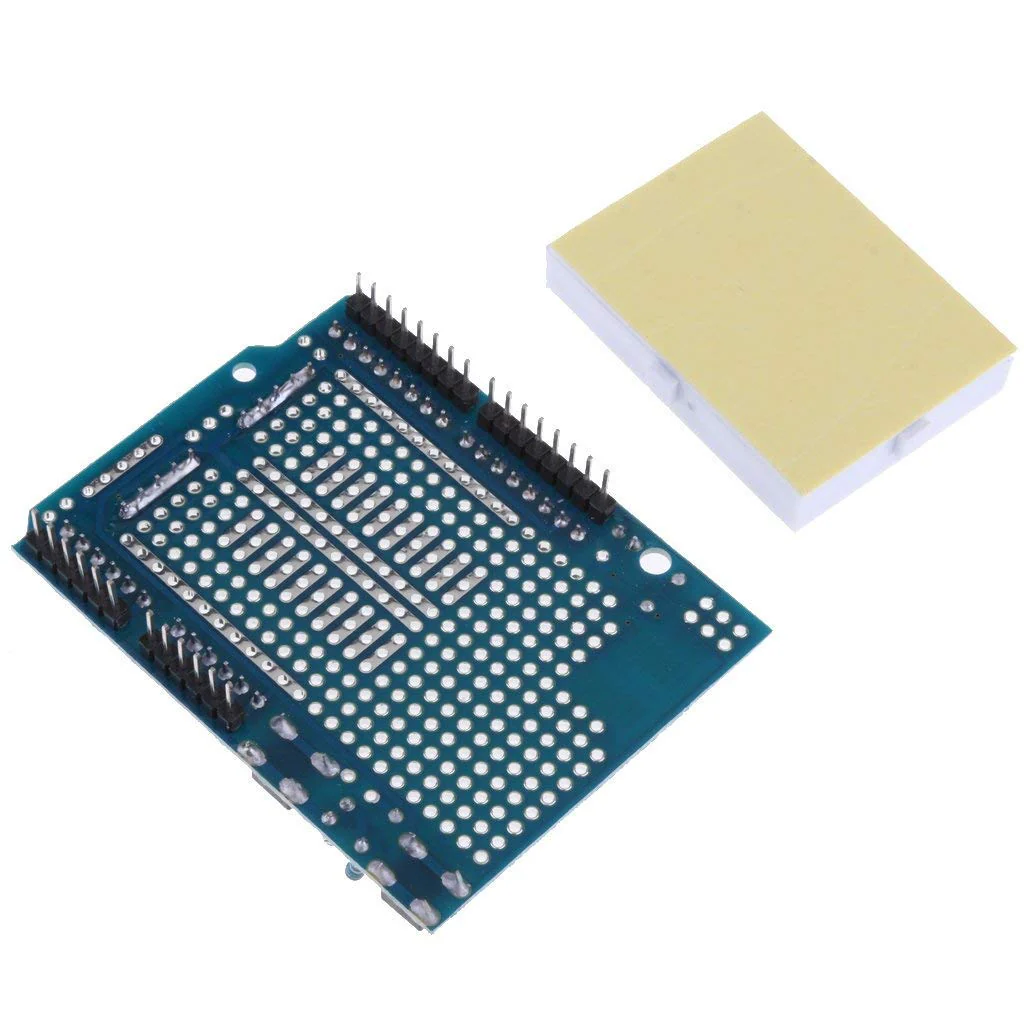

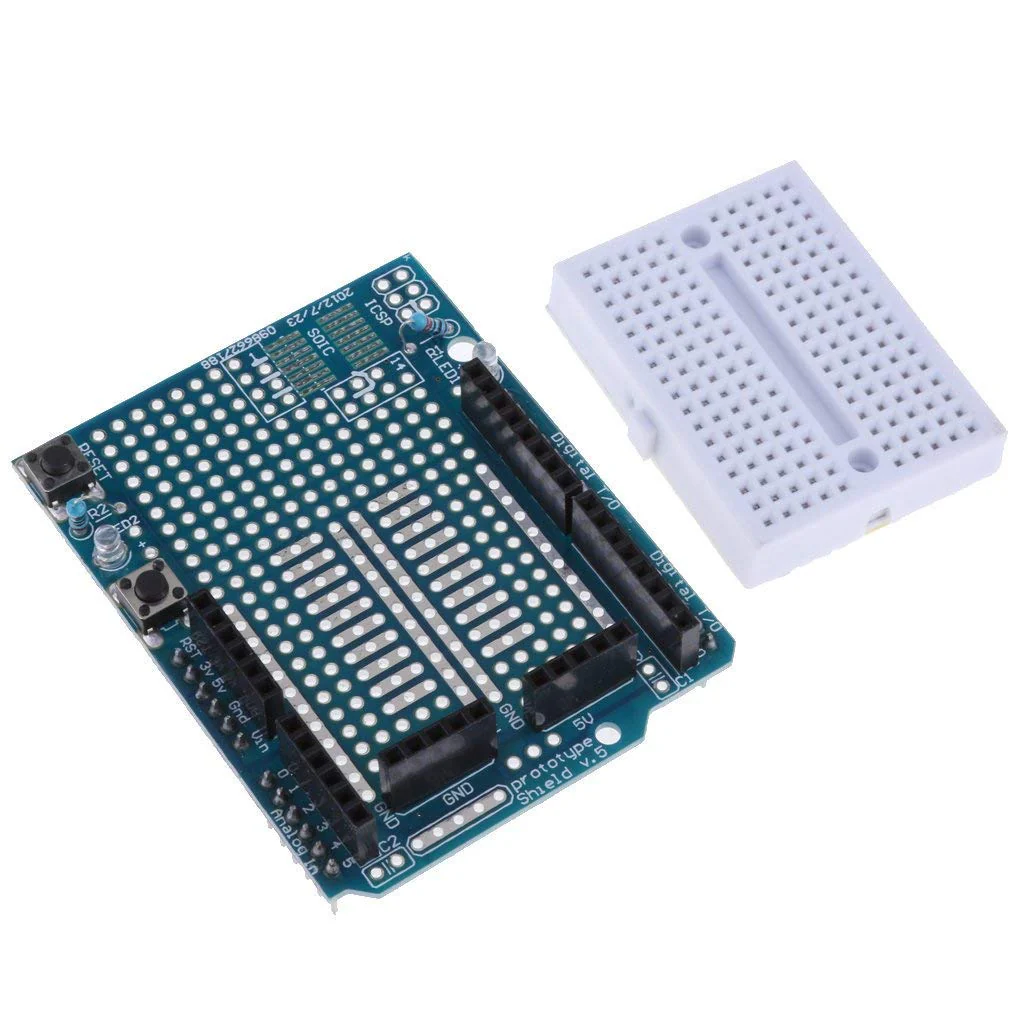

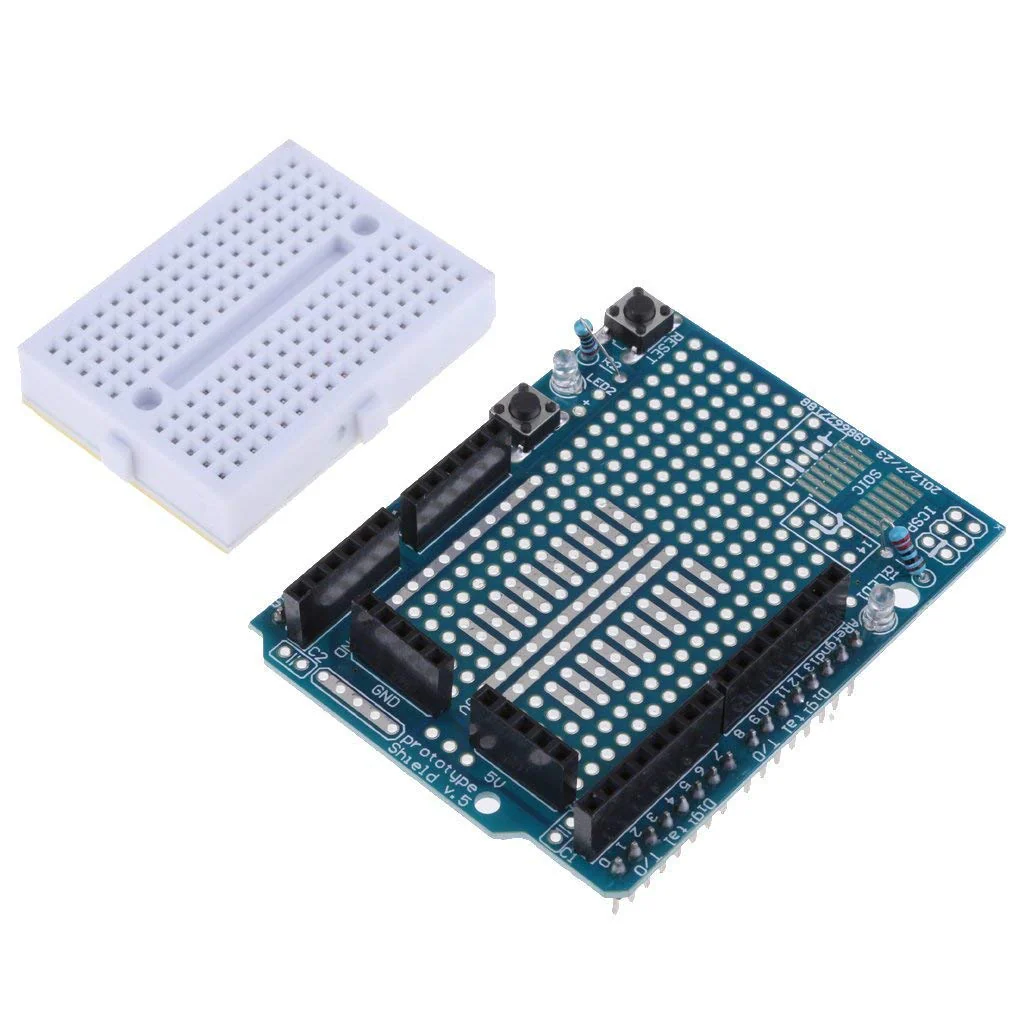

Description: Duemilanove is used in conjunction with ProtoShield prototype expansion boards to build the circuit prototypes directly on the board to weld components, the mini bread plate at the top can also be connected to the circuit. The side adhesive connection between the bread board and the board, the breadboard and the circuit board is sold separately. The ProtoShield prototype expansion board with two LEDs and two buttons can be used directly, pin and power supply have been determined, very fit and for Arduino with the prototype of the construction circuit. Features: Small soldering area. All pins are brought to the top level. 5V, GND and Raw pins are also exposed. SOIC space for IC The mini pegboard has 170 link points. Prototype Size: 7cm x 5.5cm x 2cm Mini pegboard size: 4.4 x 3.4 x 1 cm. Box contents: 2 x Uno R3 prototyping shield prototype expansion board. 2 x SYB-170 mini breadboard.
Product Features
- 2 sets UNO Proto Shield prototype expansion board with SYB-170 mini breadboard
- SYB-170 Mini Breadboard Based for Arduino Compatible with UNO R3
- The ProtoShield Prototyping Board comes with two LEDs and two pushbutton circuits ready to use with all pins and power supplies available
- In conjunction with the Duemilanove ProtoShield prototype expansion board, the circuit is used to build a prototype
- We offer the declaration of conformity. This product also includes an electronic user manual available in English, German, French, Spanish, Italian, Polish and Dutch. If you need support, please contact us.
