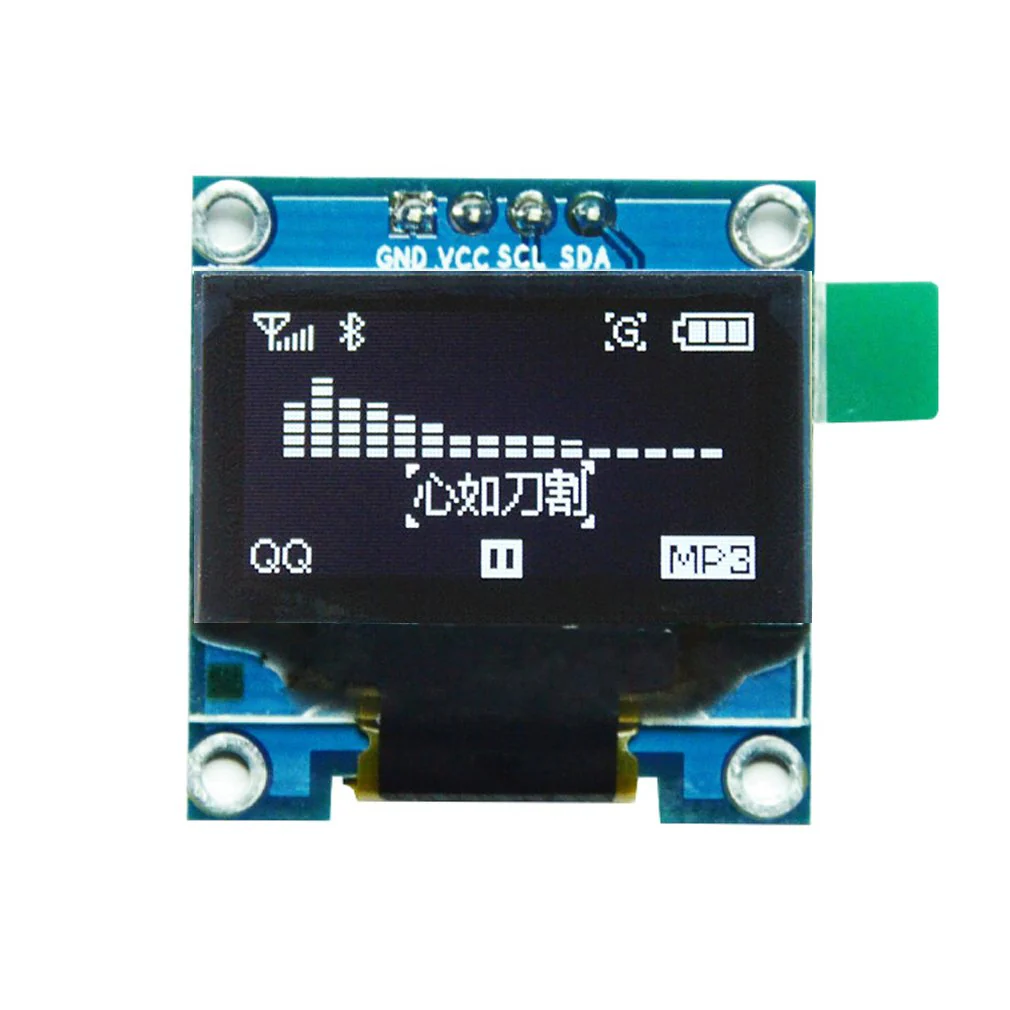

Hailege 0.96 Inch I2C IIC OLED LCD Display 128 x 64 4-Pin OLED Display Module (White)
Hailege 0.96 Inch I2C IIC OLED LCD Display 128 x 64 4-Pin OLED Display Module (White)
Description: This OLED Part No. is UG-2864HSWEG01, not UG-2864AMBAG01. Needn't backlight, the display unit can self-luminous High resolution: 128 x 64. Viewing angle: > 160°. Supports many control chip: Fully compatible with, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc. Ultra-low power consumption: full screen lit 0.08 W. Voltage: 3V ~ 5V DC. Working temperature: -30 ℃ ~ 70 ℃. Module size: 27.0 mm x 27.0 mm x 4.1 mm. I2C/IIC interface, need 2 IO only. Driver IC: S.S.D 1306. Features: Super High Brightness (Adjustable) Super High Contrast (Adjustable) Embedded Driver/Controller Colours: white/blue/blue yellow. Drive Duty: 1/64 Duty Pixels: 128 x 64. Panel size: 26.70 mm x 19.26 mm x 1.85 mm. Active area: 21.74 mm x 11.2 mm. Pixel size: 0.15 mm x 0.15 mm. Package includes: 1 x 0.96 inch I2C IIC 128 x 64 OLED LCD display (white). Note: Please contact us if you need the Schematic/Program code/User Manual etc.
Product Features
- Driver IC: 1306; Drive Duty: 1/64 Duty; Voltage: DC3V ~ 5V; High Resolution: 128 x 64
- 0.96 inch 128 x 64 OLED LCD display, I2C IIC or SPI optional
- Ultra-low power consumption, Super High Brightness, Super High Contrast
More Images
Hailege 0.96 Inch I2C IIC OLED LCD Display 128 x 64 4-Pin OLED Display Module (White)
Hailege 0.96 Inch I2C IIC OLED LCD Display 128 x 64 4-Pin OLED Display Module (White)
Description: This OLED Part No. is UG-2864HSWEG01, not UG-2864AMBAG01. Needn't backlight, the display unit can self-luminous High resolution: 128 x 64. Viewing angle: > 160°. Supports many control chip: Fully compatible with, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc. Ultra-low power consumption: full screen lit 0.08 W. Voltage: 3V ~ 5V DC. Working temperature: -30 ℃ ~ 70 ℃. Module size: 27.0 mm x 27.0 mm x 4.1 mm. I2C/IIC interface, need 2 IO only. Driver IC: S.S.D 1306. Features: Super High Brightness (Adjustable) Super High Contrast (Adjustable) Embedded Driver/Controller Colours: white/blue/blue yellow. Drive Duty: 1/64 Duty Pixels: 128 x 64. Panel size: 26.70 mm x 19.26 mm x 1.85 mm. Active area: 21.74 mm x 11.2 mm. Pixel size: 0.15 mm x 0.15 mm. Package includes: 1 x 0.96 inch I2C IIC 128 x 64 OLED LCD display (white). Note: Please contact us if you need the Schematic/Program code/User Manual etc.
Product Features
- Driver IC: 1306; Drive Duty: 1/64 Duty; Voltage: DC3V ~ 5V; High Resolution: 128 x 64
- 0.96 inch 128 x 64 OLED LCD display, I2C IIC or SPI optional
- Ultra-low power consumption, Super High Brightness, Super High Contrast
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Hailege 0.96 Inch I2C IIC OLED LCD Display 128 x 64 4-Pin OLED Display Module (White)
Description: This OLED Part No. is UG-2864HSWEG01, not UG-2864AMBAG01. Needn't backlight, the display unit can self-luminous High resolution: 128 x 64. Viewing angle: > 160°. Supports many control chip: Fully compatible with, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc. Ultra-low power consumption: full screen lit 0.08 W. Voltage: 3V ~ 5V DC. Working temperature: -30 ℃ ~ 70 ℃. Module size: 27.0 mm x 27.0 mm x 4.1 mm. I2C/IIC interface, need 2 IO only. Driver IC: S.S.D 1306. Features: Super High Brightness (Adjustable) Super High Contrast (Adjustable) Embedded Driver/Controller Colours: white/blue/blue yellow. Drive Duty: 1/64 Duty Pixels: 128 x 64. Panel size: 26.70 mm x 19.26 mm x 1.85 mm. Active area: 21.74 mm x 11.2 mm. Pixel size: 0.15 mm x 0.15 mm. Package includes: 1 x 0.96 inch I2C IIC 128 x 64 OLED LCD display (white). Note: Please contact us if you need the Schematic/Program code/User Manual etc.
Product Features
- Driver IC: 1306; Drive Duty: 1/64 Duty; Voltage: DC3V ~ 5V; High Resolution: 128 x 64
- 0.96 inch 128 x 64 OLED LCD display, I2C IIC or SPI optional
- Ultra-low power consumption, Super High Brightness, Super High Contrast
