GUUZI 12V-24V/10A Momentary Push Button NO/NC, Waterproof, Green/Red LED Light, Illuminated, 22 mm Power Start Metal Push Button with Socket Plug Green/red 22 mm momentary switch

GUUZI 12V-24V/10A Momentary Push Button NO/NC, Waterproof, Green/Red LED Light, Illuminated, 22 mm Power Start Metal Push Button with Socket Plug

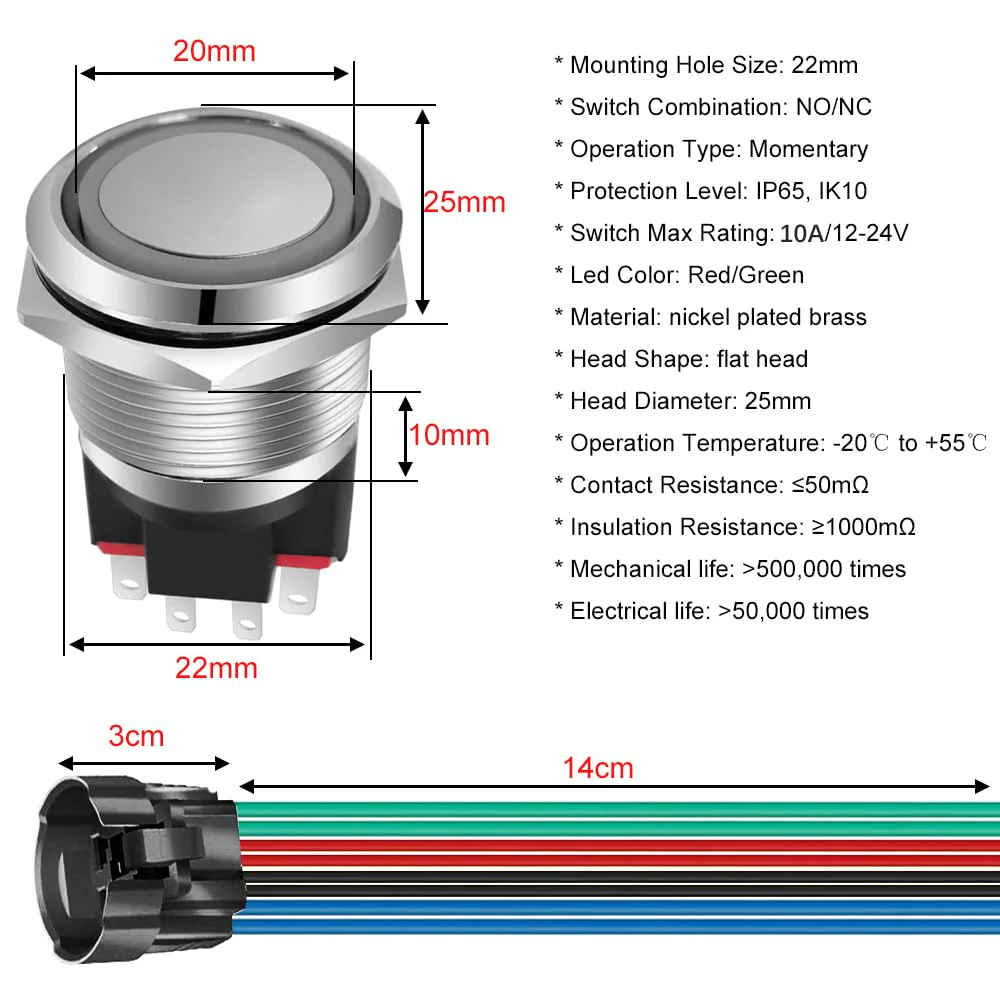

Product Name: 22mm LED Push Button Max power of button: 10A/12V-24V LED Color: Green/Red Material: nickel-plated brass + stainless steel. Head shape: flat head. Head Diameter: 25mm Mounting Hole Size:22mm Key combination: Normally open, normally closed. Connector type: 8 pins, with female connector wire Operating type: Current Protection level: IP65, IK10. Operating temperature: -20°C to +55°C. Contact resistance: ≤50mΩ Insulation resistance: ≥1000mΩ Mechanical life: >500,000 times. Electrical life: >50,000 times Package includes: 1 × Metal LED Push Button 22mm 1 x socket plug. 1 x O-ring. Important: The instruction manual is not included in the package, please refer to the connection diagrams in the photo on this website. However, if you encounter a problem during operation, please feel free to contact us. We will reply to you within 24 hours. Note: 1. These switches come with a rubber O-ring that makes them splash-proof, but they cannot be submerged in water. 2. Do your best with the push button switch of the wiring clamp to complete the soldering process within 3 seconds. 3. Please allow 1-3mm error due to manual measurement. Thank you for your understanding. 4. We strive to provide our customers with good products and excellent customer service. If you have a problem, please feel free to contact us. We will solve all problems for you

Product Features

• Short-term key: hold button - >ON, release button - >OFF

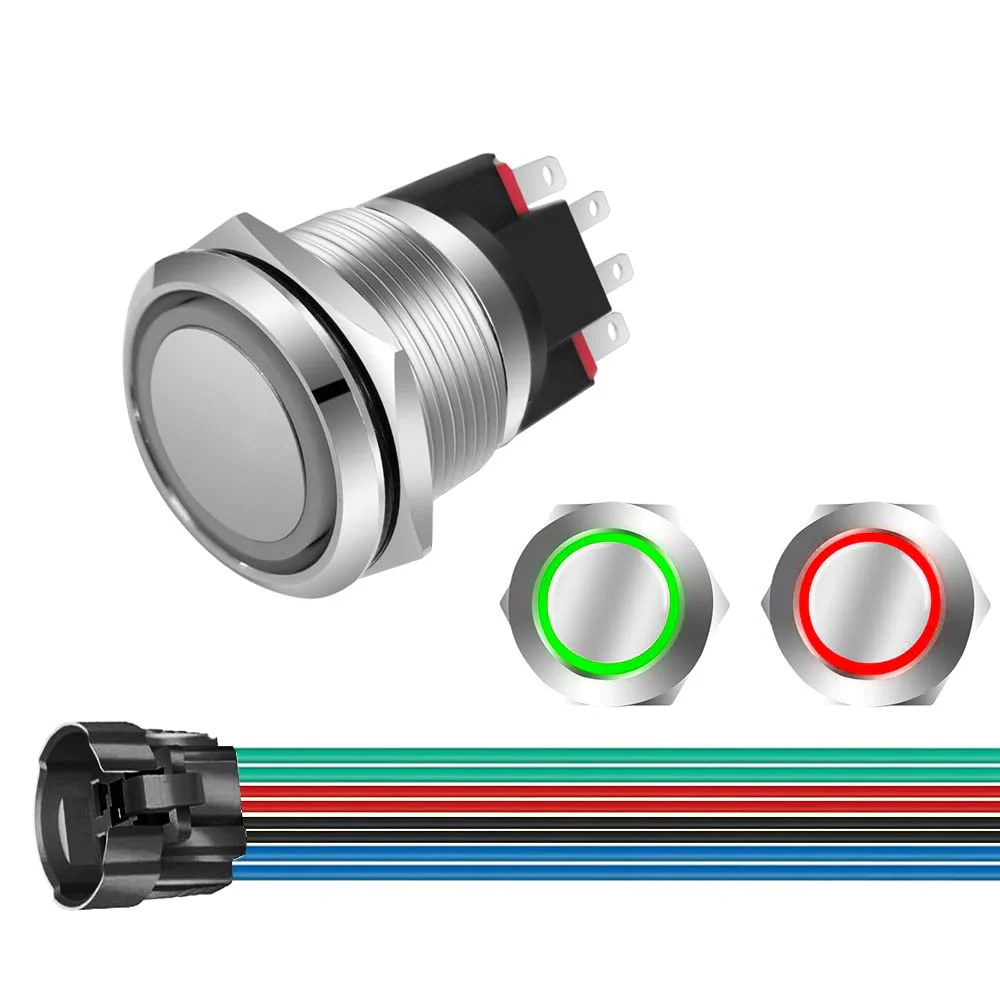

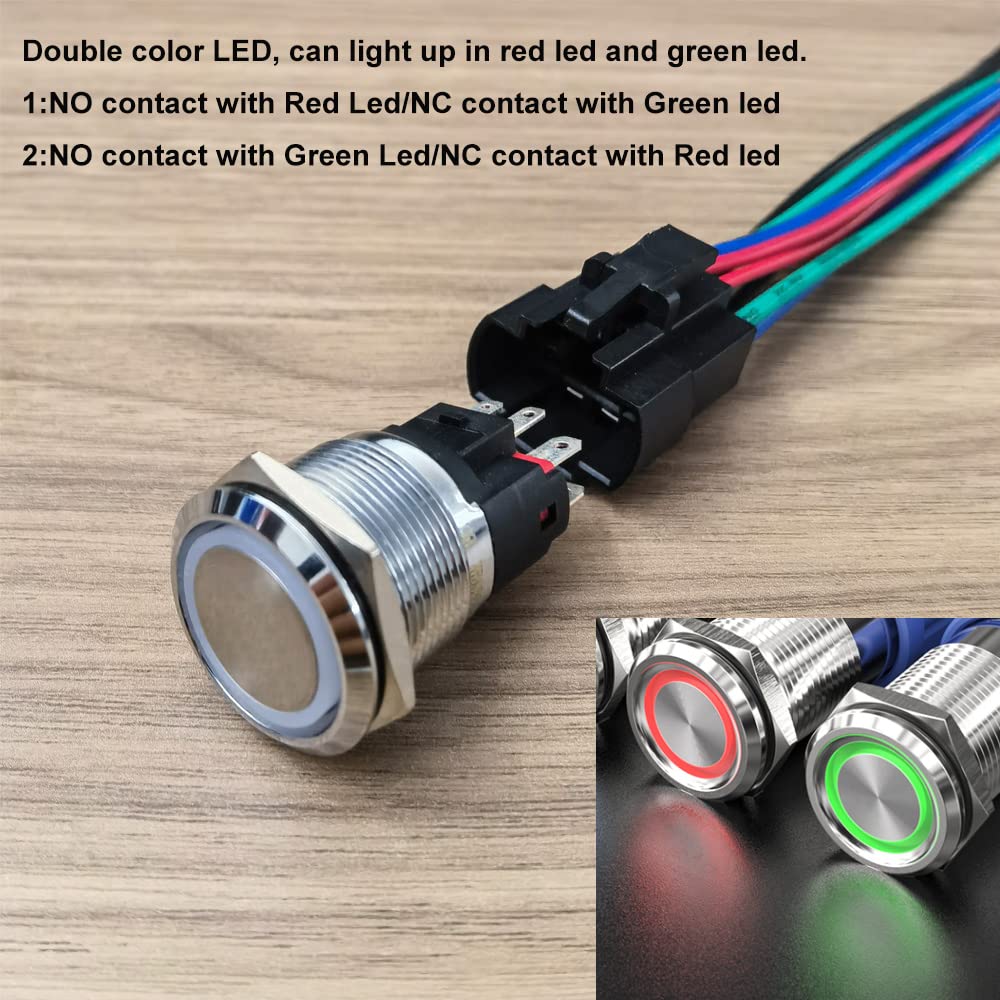

• This LED push button with two-tone LED can light up two different light colours: red LED and green LED.
• This button uses a maximum current: 10 A. ; This button uses a continuous current: 10 A. Rated voltage and current of the LED light: 12V-24V/10mA.

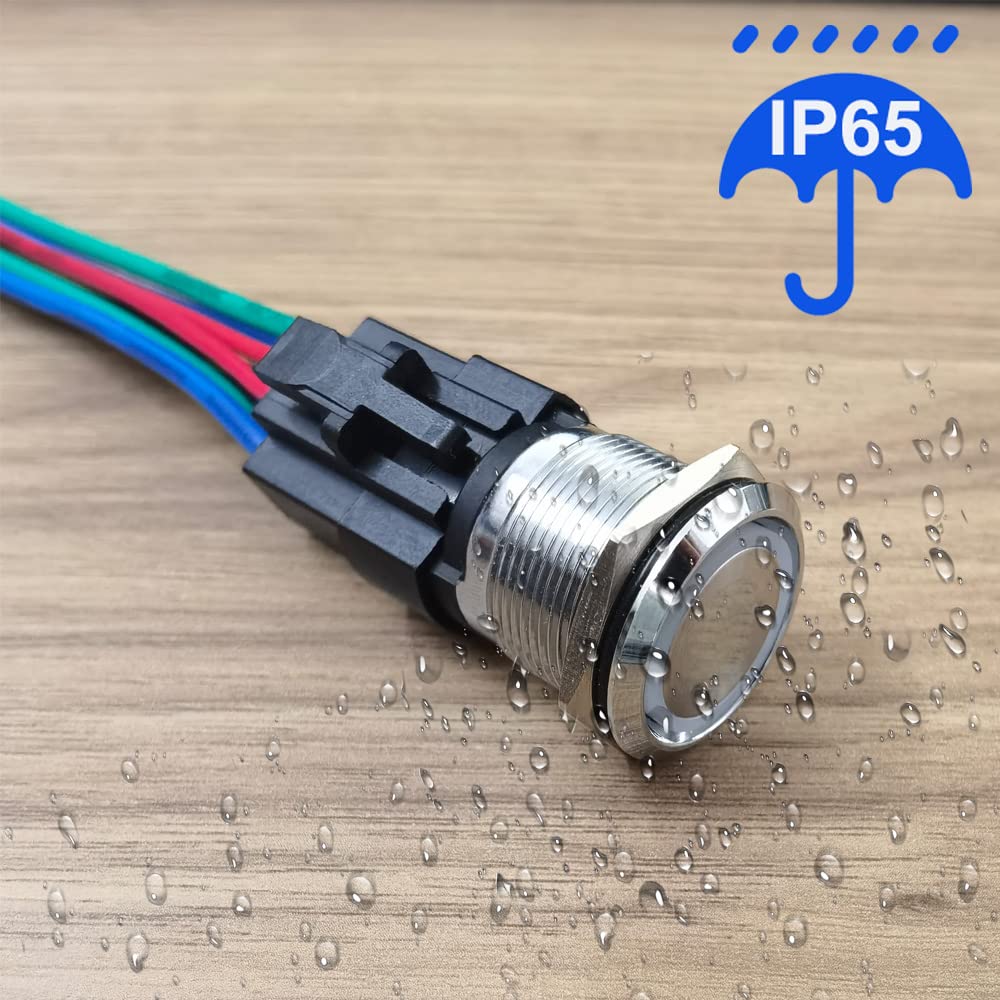

• Plate mount hole diameter:22mm, maximum plate thickness:12mm, waterproof IP65 protection, can be used in wet or dusty environment.

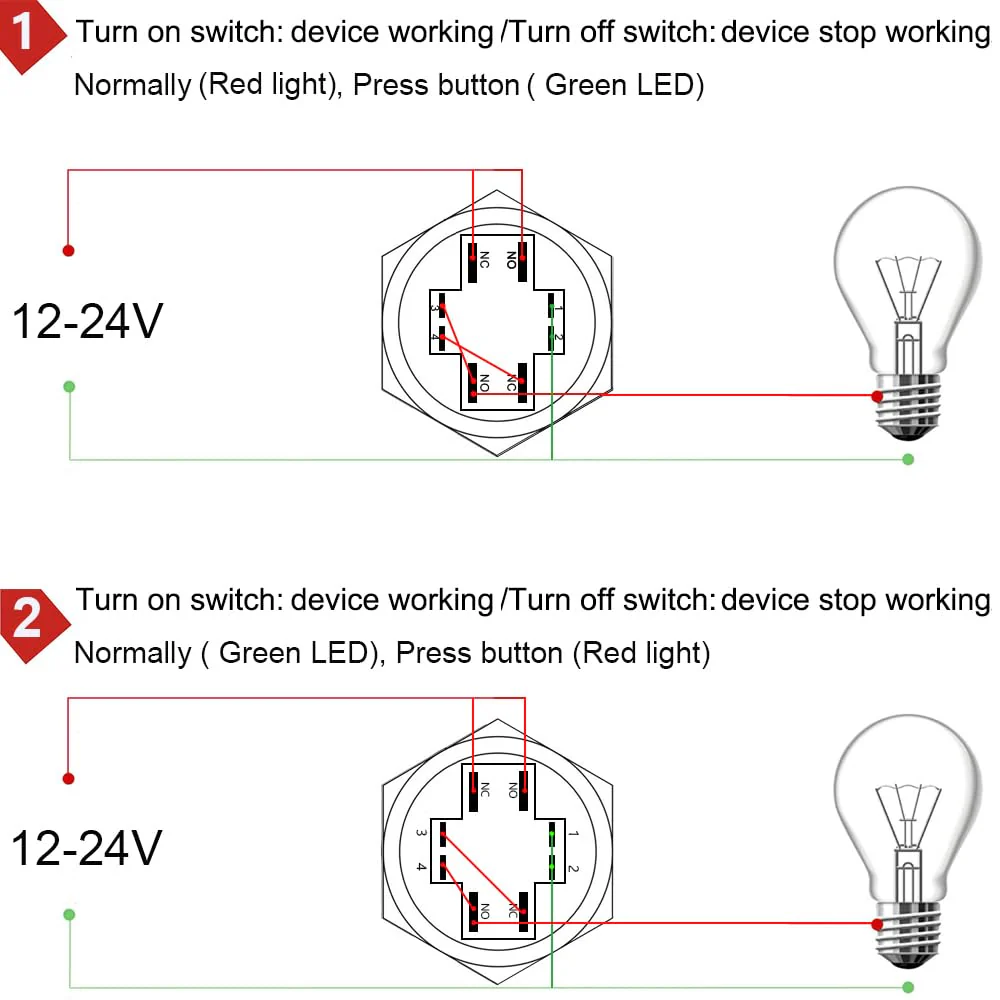

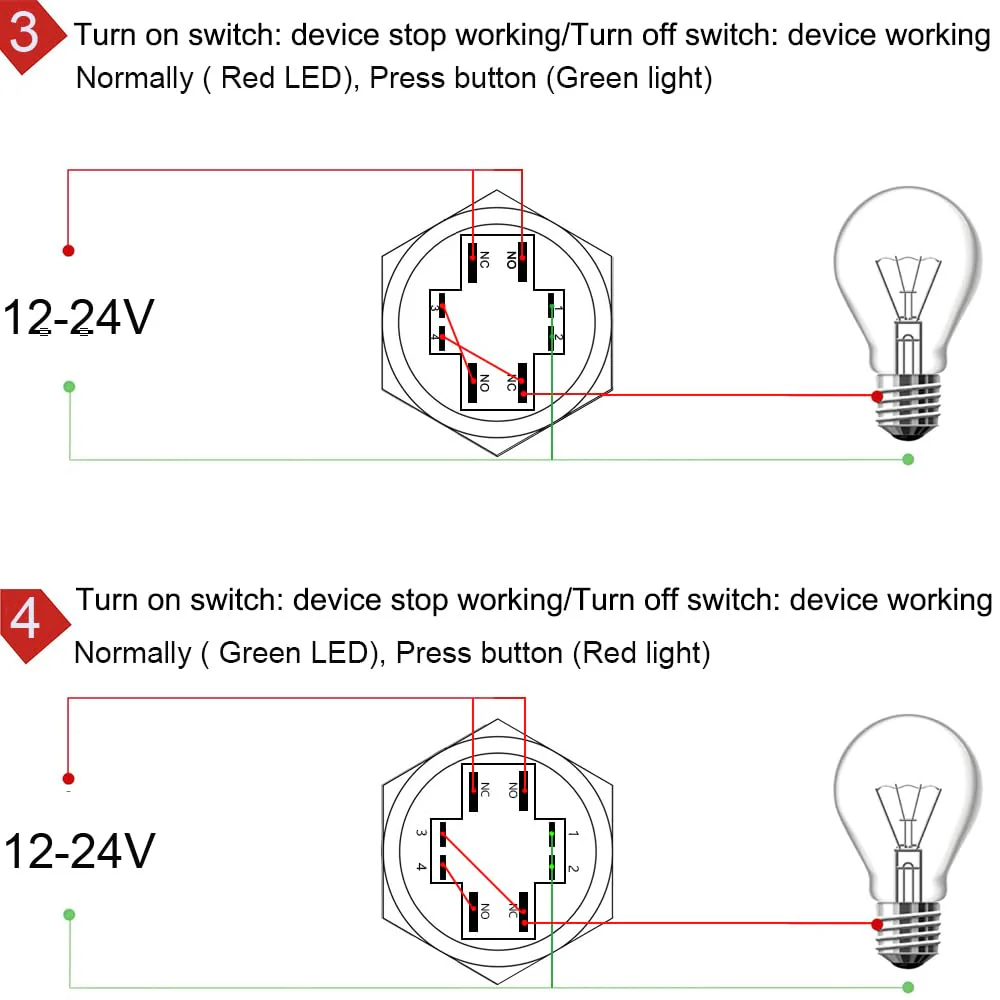

• The push button comes with a cable clamp with female plug, requires no soldering and makes your work easy and uncomplicated! The LED light can always be switched on or only when the device is in operation. This depends on how you connect the cable.
